4-10 — FRONT AXLE (#43927) — 29 parça

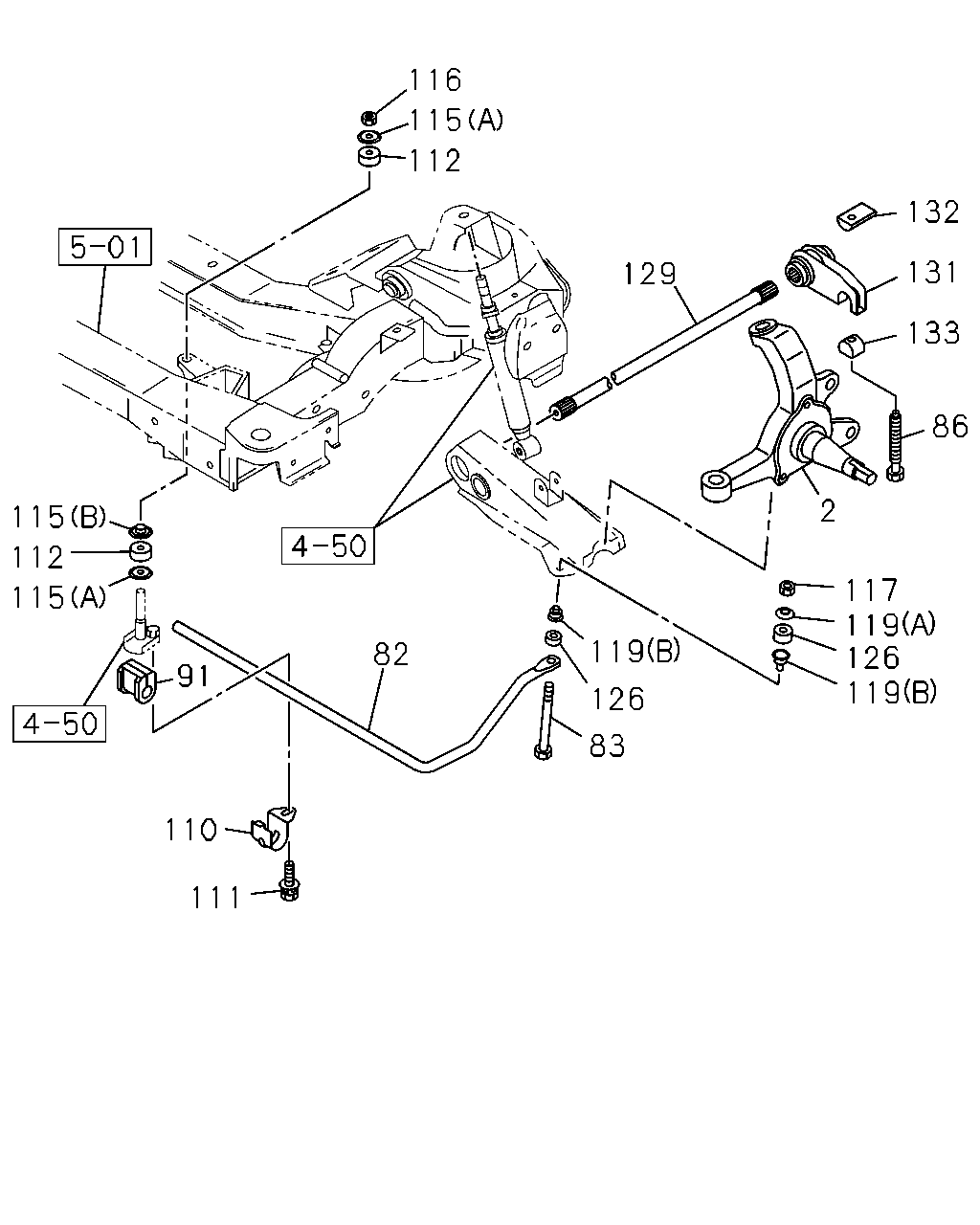

çizim 50793
116 115 112 132 131 129 133 86 2 115 112 115 117 119 126 119 119 82 91 126 83 110 111
BalonParca AdiParca NoAdetTipApplied Date
2 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0103-0112
2 KNUCKLE; FRT AXLE
THA 		8-97941-085-0 01 1 0201-0501
2 KNUCKLE; FRT AXLE 8-94432-077-2 01 1 0502-
2 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0103-0112
2 KNUCKLE; FRT AXLE
THA 		8-97941-084-0 01 1 0201-0501
2 KNUCKLE; FRT AXLE 8-94432-076-2 01 1 0502-
82 BAR; STAB,FRT SUSP 8-97200-764-0 01 1 0103-
83 BOLT; STAB BAR TO CONT ARM 8-94478-868-0 02 1 0103-
86 BOLT; TORSION BAR,HEIGHT CONT
M14X130 		8-94101-707-0 02 1 0103-
91 BUSHING; RUBBER,STAB BAR 8-94459-459-2 02 1 0103-
110 CLAMP; STAB TO ROD 8-94322-472-0 02 1 0103-0406
110 CLAMP; STAB TO ROD
PHI 		8-97977-379-0 02 1 0407-
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0103-0512
111 BOLT; CLAMP TO ROD
M8X25 W/LK&PL WASHER 		0-50640-825-0 02 1 0601-
112 BUSHING; ROD 8-94143-210-0 04 1 0103-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=10.5 OD=32 		9-51631-048-0 04 1 0103-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=15.0 OD=32 		9-51631-049-0 02 1 0103-
116 NUT; LK,STAB TO FRAME
M10 		9-09110-410-0 02 1 0103-0512
116 NUT; LK,STAB TO FRAME
M10 		0-91110-510-0 02 1 0601-
117 NUT; STAB BAR BUSHING
M10 		9-09110-410-0 02 1 0103-0512
117 NUT; STAB BAR BUSHING
M10 		0-91110-510-0 02 1 0601-
119 WASHER; CTR,STAB BAR
(A) ID=10.5 OD=32 		9-51631-048-0 02 1 0103-
119 WASHER; CTR,STAB BAR
(B) ID=15.0 OD=32 		9-51631-049-0 04 1 0103-
126 RUBBER; MTG,STAB BAR 5-51631-017-0 04 1 0103-
129 BAR; TORSION,FRT SUSP 8-94459-441-0 01 1 0103-
129 BAR; TORSION,FRT SUSP 8-94459-440-0 01 1 0103-
131 ARM; HEIGHT CONT
THA 		8-97915-817-0 02 1 0103-
132 COLLAR; TORSION BAR 8-94468-556-2 02 1 0103-
133 SEAT; TORSION BAR,HEIGHT CONT 8-94367-950-0 02 1 0103-
