Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#43924) — 256 parça

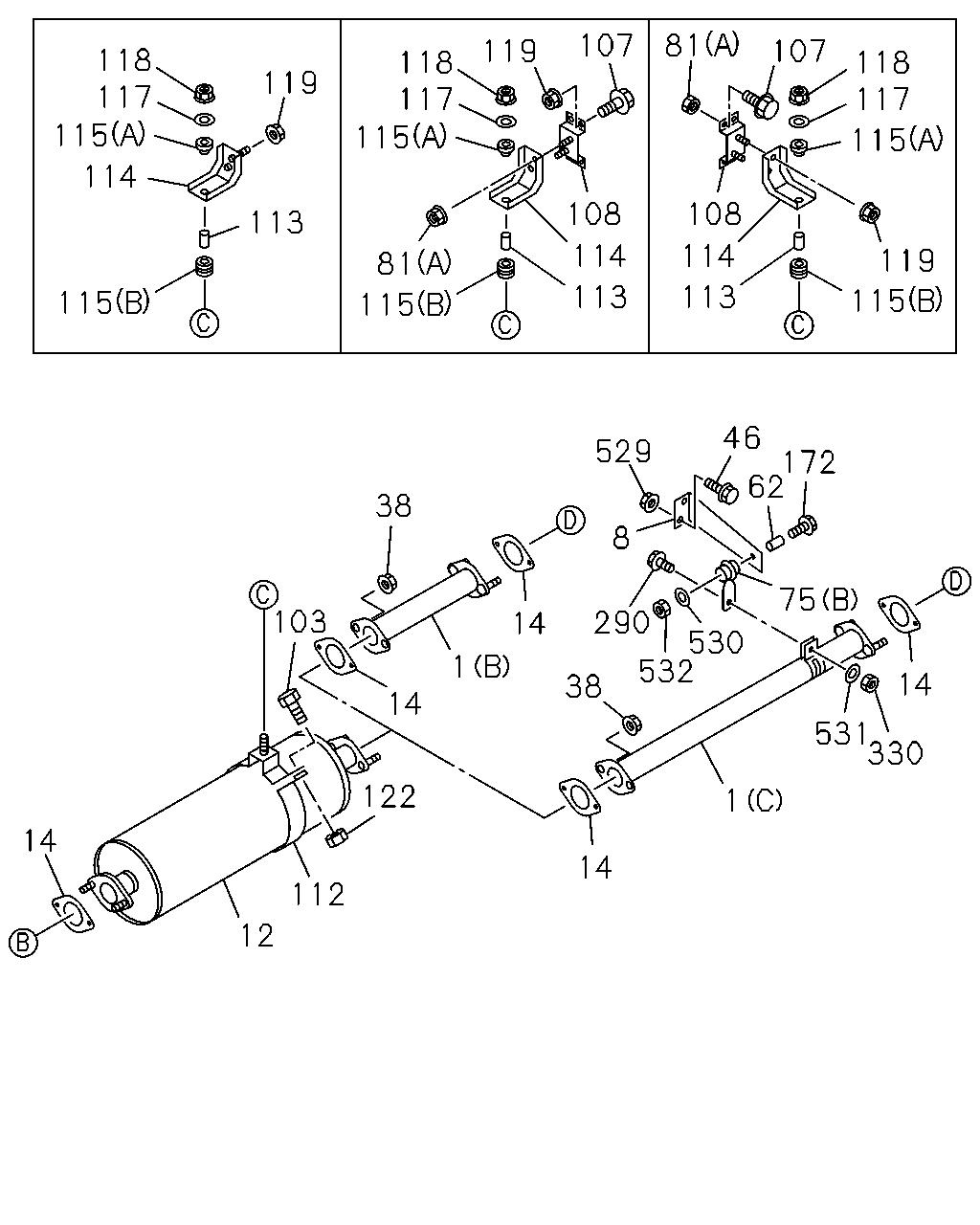

107 81 119 107 118 117 115 118 117 115 118 117 119 115 114 108 108 113 114 114 119 81 113 113 115 115 115 46 529 172 62 38 8 103 75 290 14 530 532 1 14 38 14 531 330 122 1 14 14 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0009-	●
1	PIPE; EXH 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (D) THA	8-97920-879-0	01	1	0009-		●
1	PIPE; EXH CHARGE AIR COOLER<6PL> (D) THA	8-97920-879-0	01	1	0009-			●
1	PIPE; EXH 4HG1 ENG<RJH> TURBOCHARGER<K51> (A) THA	8-97917-124-1	01	1	0009-		●
1	PIPE; EXH (A) THA	8-97917-124-1	01	1	0009-	●
1	PIPE; EXH CHARGE AIR COOLER<6PL> (C) THA	8-97920-934-0	01	1	0009-			●
8	BRACKET; EXH PIPE CHARGE AIR COOLER<6PL>	8-97220-154-0	01	1	0009-			●
12	SILENCER ASM; EXH 4HG1 ENG<RJH> TURBOCHARGER<K51> THA	8-97940-315-2	01	1	0009-		●
12	SILENCER ASM; EXH THA	8-97940-315-2	01	1	0009-	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0009-	●	●	●
14	GASKET; SILENCER TO EXH PIPE 4HG1 ENG<RJH> ID=64.7 THA	8-94328-352-0	01	1	0009-		●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0009-	●
14	GASKET; SILENCER TO EXH PIPE ID=64.7 THA	8-94328-352-0	01	1	0009-	●
14	GASKET; SILENCER TO EXH PIPE CHARGE AIR COOLER<6PL> ID=64.7 THA	8-94328-352-0	01	1	0009-			●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0009-		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●
38	NUT; SILENCER CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	02	1	0009-			●
38	NUT; SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-		●
38	NUT; SILENCER CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-			●
46	BOLT; BRKT,EXH PIPE CHARGE AIR COOLER<6PL> M10X35 FLANGE	0-28681-035-0	02	1	0009-			●
62	TUBE; DIST,BRKT CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0009-			●
75	RUBBER; SUPPORT,BRKT 4HG1 ENG<RJH> (A)	8-97166-498-0	01	1	0009-		●
75	RUBBER; SUPPORT,BRKT (A)	8-97166-498-0	01	1	0009-	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (A)	8-97080-694-0	01	1	0009-		●
75	RUBBER; SUPPORT,BRKT (A)	8-97080-694-0	01	1	0009-			●
75	RUBBER; SUPPORT,BRKT CHARGE AIR COOLER<6PL> (B) L=115	8-94156-256-0	01	1	0009-			●
81	NUT; BRKT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	02	1	0009-		●
81	NUT; BRKT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	03	1	0009-		●
81	NUT; BRKT CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	03	1	0009-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0009-	●	●	●
107	BOLT; BRKT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	02	1	0009-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ>	8-97096-649-2	01	1	0009-		●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0009-		●
112	BRACKET; HANGER	8-97076-020-0	01	1	0009-	●
112	BRACKET; HANGER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97207-224-0	01	1	0009-		●
112	BRACKET; HANGER CHARGE AIR COOLER<6PL>	8-97207-224-0	01	1	0009-			●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0009-	●	●	●
114	BRACKET; EXH SILENCER 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0009-		●
114	BRACKET; EXH SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0009-		●
114	BRACKET; EXH SILENCER CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0009-			●
114	BRACKET; EXH SILENCER EXC. FRAME STRAIGHT TYPE<7KJ>	8-94329-856-0	01	1	0009-		●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	0009-	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0009-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0009-		●
115	RUBBER; MTG,SILENCER CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0009-			●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0009-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0009-		●
115	RUBBER; MTG,SILENCER CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0009-			●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0009-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0009-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0009-	●	●	●
172	BOLT CHARGE AIR COOLER<6PL> M10X70 FLANGE	0-28081-070-0	01	1	0009-			●
290	BOLT; CLAMP CHARGE AIR COOLER<6PL> M8X45	0-20800-845-0	01	1	0009-			●
330	NUT; CLAMP CHARGE AIR COOLER<6PL> M8	9-09110-408-0	01	1	0009-			●
529	NUT; BRKT,EXH PIPE CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	02	1	0009-			●
530	WASHER CHARGE AIR COOLER<6PL> ID=10.5 OD=32	9-09164-810-0	01	1	0009-			●
531	WASHER; CLAMP CHARGE AIR COOLER<6PL> ID=8.4 OD=18	9-09164-608-0	01	1	0009-			●
532	NUT CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	01	1	0009-			●

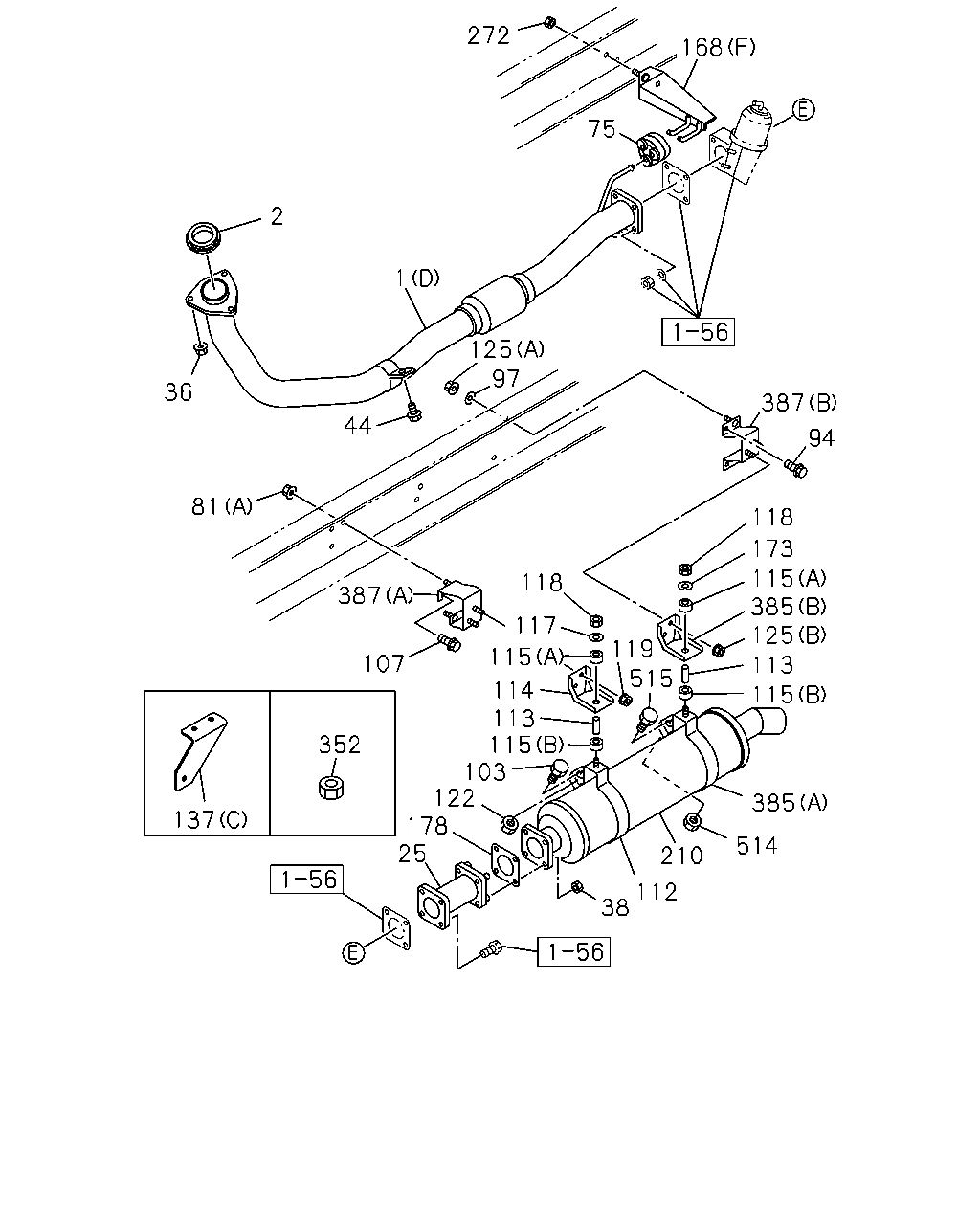

272 168 75 2 1 125 97 36 387 44 94 81 118 173 115 385 125 118 387 117 119 115 107 113 515 114 113 115 103 122 178 25 115 352 385 137 514 210 112 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0009-	●
1	PIPE; EXH 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (D) THA	8-97920-879-0	01	1	0009-		●
1	PIPE; EXH CHARGE AIR COOLER<6PL> (D) THA	8-97920-879-0	01	1	0009-			●
1	PIPE; EXH 4HG1 ENG<RJH> TURBOCHARGER<K51> (A) THA	8-97917-124-1	01	1	0009-		●
1	PIPE; EXH (A) THA	8-97917-124-1	01	1	0009-	●
1	PIPE; EXH CHARGE AIR COOLER<6PL> (C) THA	8-97920-934-0	01	1	0009-			●
2	GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0009-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> THA	8-97917-127-1	01	1	0009-		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97920-880-0	01	1	0009-		●
25	PIPE; EXH,BRK VLV TO SILENCER CHARGE AIR COOLER<6PL> THA	8-97920-880-0	01	1	0009-			●
25	PIPE; EXH,BRK VLV TO SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-126-1	01	1	0009-		●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-97917-126-1	01	1	0009-	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0009-	●	●	●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0009-		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●
38	NUT; SILENCER CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	02	1	0009-			●
38	NUT; SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-		●
38	NUT; SILENCER CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-			●
44	BOLT; BRKT M8X35 FLANGE	0-28080-835-0	01	1	0009-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1 ENG<RJH> (A)	8-97166-498-0	01	1	0009-		●
75	RUBBER; SUPPORT,BRKT (A)	8-97166-498-0	01	1	0009-	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (A)	8-97080-694-0	01	1	0009-		●
75	RUBBER; SUPPORT,BRKT (A)	8-97080-694-0	01	1	0009-			●
75	RUBBER; SUPPORT,BRKT CHARGE AIR COOLER<6PL> (B) L=115	8-94156-256-0	01	1	0009-			●
81	NUT; BRKT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	02	1	0009-		●
81	NUT; BRKT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	03	1	0009-		●
81	NUT; BRKT CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	03	1	0009-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
94	BOLT; CLAMP 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28681-030-0	01	1	0009-		●
94	BOLT; CLAMP CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28681-030-0	01	1	0009-			●
94	BOLT; CLAMP M8X45	0-20800-845-0	02	1	0009-	●	●	●
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0009-	●	●	●
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0009-	●	●	●
107	BOLT; BRKT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28681-030-0	02	1	0009-		●
112	BRACKET; HANGER 4HG1 ENG<RJH>	8-97076-020-0	01	1	0009-		●
112	BRACKET; HANGER	8-97076-020-0	01	1	0009-	●
112	BRACKET; HANGER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97207-224-0	01	1	0009-		●
112	BRACKET; HANGER CHARGE AIR COOLER<6PL>	8-97207-224-0	01	1	0009-			●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	01	1	0009-	●	●	●
114	BRACKET; EXH SILENCER 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0009-		●
114	BRACKET; EXH SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0009-		●
114	BRACKET; EXH SILENCER CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0009-			●
114	BRACKET; EXH SILENCER EXC. FRAME STRAIGHT TYPE<7KJ>	8-94329-856-0	01	1	0009-		●
114	BRACKET; EXH SILENCER	8-94329-856-0	01	1	0009-	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0009-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0009-		●
115	RUBBER; MTG,SILENCER CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0009-			●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0009-	●	●	●
115	RUBBER; MTG,SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0009-		●
115	RUBBER; MTG,SILENCER CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0009-			●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0009-	●	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0009-	●	●	●
119	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0009-	●	●	●
125	NUT; CLAMP 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) M8 FLANGE	0-91150-108-0	02	1	0009-		●
125	NUT; CLAMP CHARGE AIR COOLER<6PL> (B) M8 FLANGE	0-91150-108-0	02	1	0009-			●
125	NUT; CLAMP 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	02	1	0009-		●
125	NUT; CLAMP CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	02	1	0009-			●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0009-	●	●	●
137	BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97116-588-2	01	1	0009-		●
137	BRACKET; TAIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94114-022-1	01	1	0009-		●
137	BRACKET; TAIL PIPE (A)	8-94114-022-1	01	1	0009-	●
137	BRACKET; TAIL PIPE CHARGE AIR COOLER<6PL> (C)	8-97185-801-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97238-728-0	01	1	0009-	●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D)	8-97096-647-1	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (E)	8-94370-046-4	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (F)	8-97214-433-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT CHARGE AIR COOLER<6PL> (F)	8-97214-433-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0009-	●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0009-	●
173	WASHER; PL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> OD=55	9-09852-169-0	01	1	0009-		●
173	WASHER; PL CHARGE AIR COOLER<6PL> OD=55	9-09852-169-0	01	1	0009-			●
178	GASKET; CONV TO MANIF 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> ENGINE POWER N-SPEC(7QV) ID=64	8-97037-694-0	01	1	0009-		●
178	GASKET; CONV TO MANIF CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> ID=64	8-97037-694-0	01	1	0009-			●
210	CONVERTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> ENGINE POWER N-SPEC(7QV)	8-97205-851-1	01	1	0009-		●
210	CONVERTER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97205-851-1	01	1	0009-			●
272	NUT; FLANGE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10 FLANGE	5-09440-006-0	01	1	0009-		●
272	NUT; FLANGE CHARGE AIR COOLER<6PL> M10 FLANGE	5-09440-006-0	01	1	0009-			●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0009-		●
352	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0009-	●
385	BRACKET; SILENCER MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-94329-857-0	01	1	0009-		●
385	BRACKET; SILENCER MTG CHARGE AIR COOLER<6PL> (B)	8-94329-857-0	01	1	0009-			●
385	BRACKET; SILENCER MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-97207-224-0	01	1	0009-		●
385	BRACKET; SILENCER MTG CHARGE AIR COOLER<6PL> (A)	8-97207-224-0	01	1	0009-			●
387	SPACER; BRKT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-97172-493-2	01	1	0009-		●
387	SPACER; BRKT CHARGE AIR COOLER<6PL> (B)	8-97172-493-2	01	1	0009-			●
387	SPACER; BRKT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-97218-212-0	01	1	0009-		●
387	SPACER; BRKT CHARGE AIR COOLER<6PL> (A)	8-97218-212-0	01	1	0009-			●
514	NUT; BAND 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8	9-09110-408-0	01	1	0009-		●
514	NUT; BAND CHARGE AIR COOLER<6PL> M8	9-09110-408-0	01	1	0009-			●
515	BOLT; BAND 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8X45 W/LK WASHER	0-50040-845-0	01	1	0009-		●
515	BOLT; BAND CHARGE AIR COOLER<6PL> M8X45 W/LK WASHER	0-50040-845-0	01	1	0009-			●

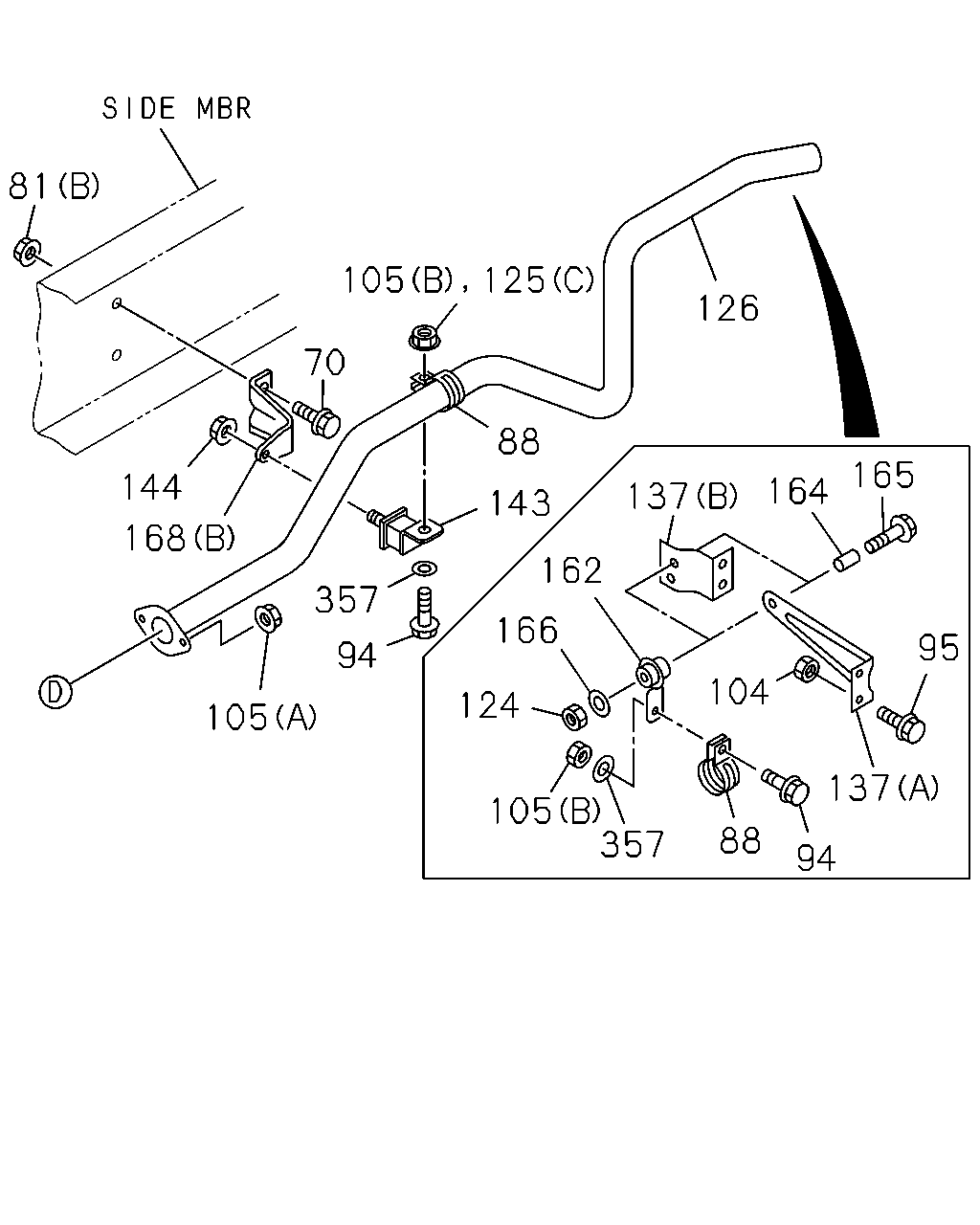

81 105 125 126 70 88 165 144 164 137 143 168 162 357 166 95 94 104 124 105 137 105 357 88 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●	●
81	NUT; BRKT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE	0-91150-110-0	02	1	0009-		●
81	NUT; BRKT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	03	1	0009-		●
81	NUT; BRKT CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	03	1	0009-			●
81	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0009-	●	●	●
88	CLAMP; EXH PIPE THA	8-97917-235-0	02	1	0009-	●	●	●
94	BOLT; CLAMP 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28681-030-0	01	1	0009-		●
94	BOLT; CLAMP CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28681-030-0	01	1	0009-			●
94	BOLT; CLAMP M8X45	0-20800-845-0	02	1	0009-	●	●	●
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
95	BOLT; BRKT CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28681-030-0	02	1	0009-			●
104	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0009-	●	●
104	NUT; BRKT CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	02	1	0009-			●
105	NUT; CLAMP (A) M10 FLANGE	0-91150-110-0	02	1	0009-	●	●	●
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0009-	●	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91150-110-0	01	1	0009-	●	●	●
125	NUT; CLAMP 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) M8 FLANGE	0-91150-108-0	02	1	0009-		●
125	NUT; CLAMP CHARGE AIR COOLER<6PL> (B) M8 FLANGE	0-91150-108-0	02	1	0009-			●
125	NUT; CLAMP 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	02	1	0009-		●
125	NUT; CLAMP CHARGE AIR COOLER<6PL> (A) M10 FLANGE	0-91150-110-0	02	1	0009-			●
125	NUT; CLAMP (C) M8	9-09110-408-0	01	1	0009-	●	●	●
126	PIPE; EXH,RR 4HG1 ENG<RJH> THA	8-97917-129-1	01	1	0009-		●
126	PIPE; EXH,RR THA	8-97917-129-1	01	1	0009-	●
126	PIPE; EXH,RR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97920-881-0	01	1	0009-		●
126	PIPE; EXH,RR CHARGE AIR COOLER<6PL> THA	8-97920-882-0	01	1	0009-			●
137	BRACKET; TAIL PIPE FRAME STRAIGHT TYPE<7KJ> (B)	8-97116-588-2	01	1	0009-		●
137	BRACKET; TAIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94114-022-1	01	1	0009-		●
137	BRACKET; TAIL PIPE (A)	8-94114-022-1	01	1	0009-	●
137	BRACKET; TAIL PIPE CHARGE AIR COOLER<6PL> (C)	8-97185-801-0	01	1	0009-			●
143	RUBBER; SUPPORT	8-97229-586-0	01	1	0009-0308	●	●	●
143	RUBBER; SUPPORT	8-97371-655-0	01	1	0309-	●	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0009-	●	●	●
162	RUBBER; SUPPORT,TAIL PIPE L=115	8-94156-256-0	01	1	0009-	●	●	●
164	COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0009-	●	●	●
164	COLLAR; DIST,TAIL PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0009-		●
164	COLLAR; DIST,TAIL PIPE CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0009-			●
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0009-	●	●	●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0009-	●	●	●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97238-728-0	01	1	0009-	●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D)	8-97096-647-1	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (E)	8-94370-046-4	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (F)	8-97214-433-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT CHARGE AIR COOLER<6PL> (F)	8-97214-433-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0009-	●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0009-	●
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0009-	●	●	●

25 2 38 36 44 168 1 376 352 168 376 75 75 168 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (B) THA	8-97917-128-1	01	1	0009-	●
1	PIPE; EXH 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (D) THA	8-97920-879-0	01	1	0009-		●
1	PIPE; EXH CHARGE AIR COOLER<6PL> (D) THA	8-97920-879-0	01	1	0009-			●
1	PIPE; EXH 4HG1 ENG<RJH> TURBOCHARGER<K51> (A) THA	8-97917-124-1	01	1	0009-		●
1	PIPE; EXH (A) THA	8-97917-124-1	01	1	0009-	●
1	PIPE; EXH CHARGE AIR COOLER<6PL> (C) THA	8-97920-934-0	01	1	0009-			●
2	GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0009-	●	●	●
25	PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> THA	8-97917-127-1	01	1	0009-		●
25	PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97920-880-0	01	1	0009-		●
25	PIPE; EXH,BRK VLV TO SILENCER CHARGE AIR COOLER<6PL> THA	8-97920-880-0	01	1	0009-			●
25	PIPE; EXH,BRK VLV TO SILENCER EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-126-1	01	1	0009-		●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-97917-126-1	01	1	0009-	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0009-	●	●	●
38	NUT; SILENCER 4HG1 ENG<RJH> M10 FLANGE	0-91150-110-0	02	1	0009-		●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●
38	NUT; SILENCER M10 FLANGE	0-91150-110-0	02	1	0009-	●
38	NUT; SILENCER CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	02	1	0009-			●
38	NUT; SILENCER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-		●
38	NUT; SILENCER CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-			●
44	BOLT; BRKT M8X35 FLANGE	0-28080-835-0	01	1	0009-	●	●	●
75	RUBBER; SUPPORT,BRKT 4HG1 ENG<RJH> (A)	8-97166-498-0	01	1	0009-		●
75	RUBBER; SUPPORT,BRKT (A)	8-97166-498-0	01	1	0009-	●
75	RUBBER; SUPPORT,BRKT 4HE1 ENG<RLY> (A)	8-97080-694-0	01	1	0009-		●
75	RUBBER; SUPPORT,BRKT (A)	8-97080-694-0	01	1	0009-			●
75	RUBBER; SUPPORT,BRKT CHARGE AIR COOLER<6PL> (B) L=115	8-94156-256-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> (C)	8-97238-728-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (C)	8-97238-728-0	01	1	0009-	●
168	BRACKET; EXH PIPE,FRT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D)	8-97096-647-1	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> (E)	8-94370-046-4	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (E)	8-94370-046-4	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (F)	8-97214-433-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT CHARGE AIR COOLER<6PL> (F)	8-97214-433-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-97096-651-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (B)	8-97096-651-0	01	1	0009-			●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (B)	5-22151-044-0	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (B)	5-22151-044-0	01	1	0009-	●
168	BRACKET; EXH PIPE,FRT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94370-689-2	01	1	0009-		●
168	BRACKET; EXH PIPE,FRT (A)	8-94370-689-2	01	1	0009-	●
352	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0009-		●
352	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0009-	●
376	BOLT; BRKT 4HG1 ENG<RJH> M10X35 FLANGE	0-28681-035-0	02	1	0009-		●
376	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0009-	●
376	BOLT; BRKT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10X35 FLANGE	0-28681-035-0	01	1	0009-		●
376	BOLT; BRKT CHARGE AIR COOLER<6PL> M10X35 FLANGE	0-28681-035-0	01	1	0009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
