Sayfa 1-45 - Isuzu EPC

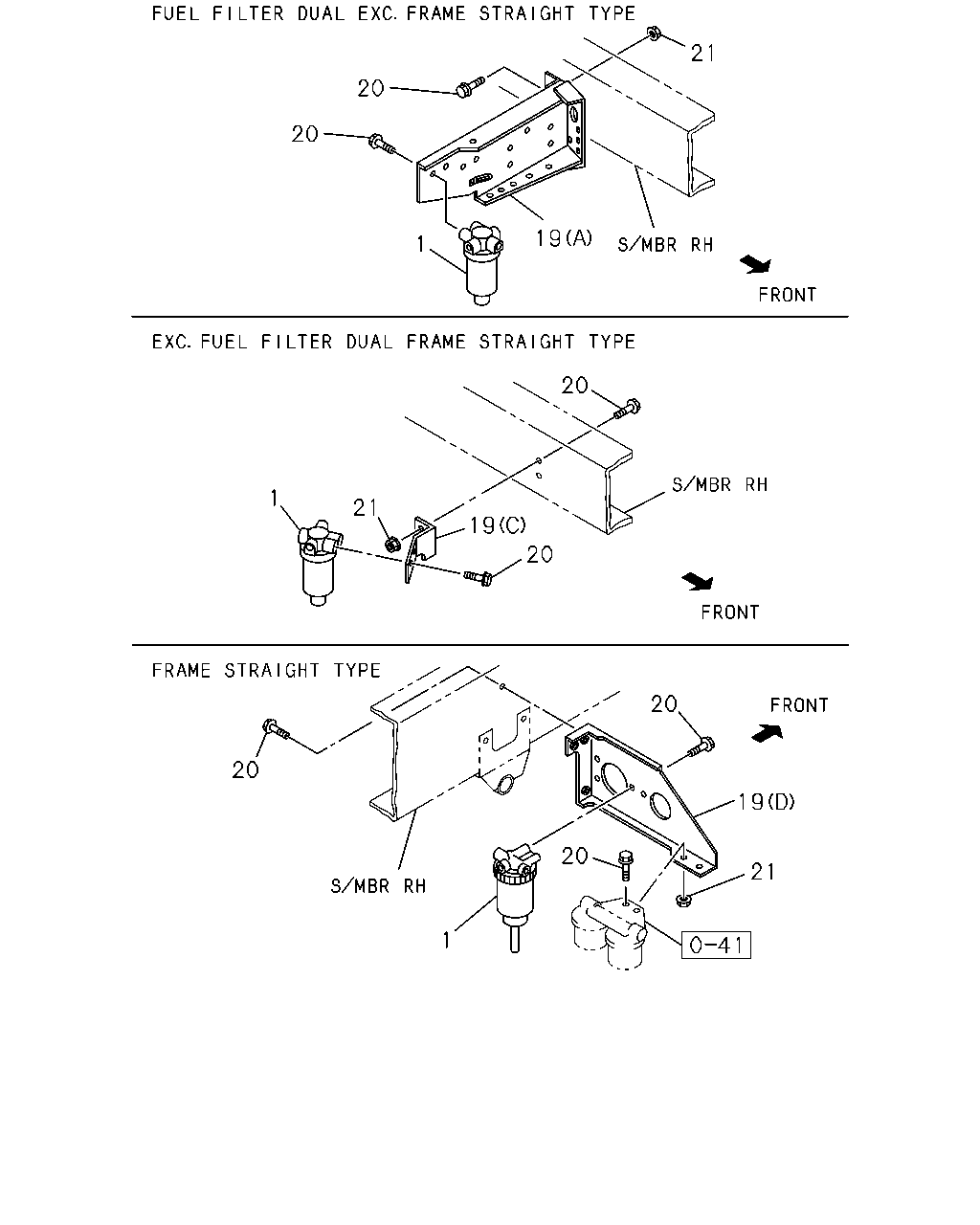

1-45 — WATER SEDIMENTER; FUEL (#43923) — 158 parça

1 9 7 5 36 87 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> TURBOCHARGER<K51> (A)	8-97081-814-1	01	1	0009-	●
1	SEDIMENTER; FUEL (A)	8-97081-814-1	01	1	0009-		●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-	●
1	SEDIMENTER; FUEL CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-			●
5	GASKET; UPR COVER,SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51>	5-09623-075-0	01	1	0009-	●
5	GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	0009-		●
5	GASKET; UPR COVER,SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0009-	●
5	GASKET; UPR COVER,SEDIMENTER CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0009-			●
7	PLUG; DRAIN,SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94132-674-0	01	1	0009-	●
7	PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0009-		●
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0009-	●
7	PLUG; DRAIN,SEDIMENTER CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0009-			●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94132-675-0	01	1	0009-	●
9	GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0009-		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=8.2 OD=13.2	1-09630-082-0	01	1	0009-	●
9	GASKET; DRAIN PLUG & CONNECTOR CHARGE AIR COOLER<6PL> ID=8.2 OD=13.2	1-09630-082-0	01	1	0009-			●
14	GASKET; SENSOR TO CENTER BOLT 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94447-156-0	01	1	0009-	●
14	GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	0009-		●
36	RING; BODY TO CASE 4HG1 ENG<RJH> TURBOCHARGER<K51>	5-13234-001-0	01	1	0009-	●
36	RING; BODY TO CASE	5-13234-001-0	01	1	0009-		●
36	RING; BODY TO CASE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0009-	●
36	RING; BODY TO CASE CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0009-			●
37	PLUG; SENSOR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94453-746-0	01	1	0009-	●
37	PLUG; SENSOR	8-94453-746-0	01	1	0009-		●
87	CASE ASM; SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97219-363-0	01	1	0009-	●
87	CASE ASM; SEDIMENTER	8-97219-363-0	01	1	0009-		●

20 1 19 24 20 20 20 19 20 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> TURBOCHARGER<K51> (A)	8-97081-814-1	01	1	0009-	●
1	SEDIMENTER; FUEL (A)	8-97081-814-1	01	1	0009-		●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-	●
1	SEDIMENTER; FUEL CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-			●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	0009-0306	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B> (A)	8-97090-298-2	01	1	0009-0306		●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97370-092-0	01	1	0307-	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B>	8-97370-092-0	01	1	0307-		●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97189-165-0	01	1	0009-0212	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97363-089-0	01	1	0301-	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0009-	●
19	BRACKET; FUEL SEDIMENTER EXC. FUEL FILTER DUAL<S6B> (C)	8-94366-685-0	01	1	0009-		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D)	8-97148-721-1	01	1	0009-0212	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D)	8-97148-721-1	01	1	0009-0212			●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL>	8-97363-088-0	01	1	0301-	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL>	8-97363-088-0	01	1	0301-			●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B)	8-97182-048-2	01	1	0009-0309	●
19	BRACKET; FUEL SEDIMENTER CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B)	8-97182-048-2	01	1	0009-0309			●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B>	8-97372-020-0	01	1	0310-	●
19	BRACKET; FUEL SEDIMENTER CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B>	8-97372-020-0	01	1	0310-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-		●	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-		●
20	BOLT; BRKT TO SEDIMENTER CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28081-030-0	02	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M10X30 FLANGE	0-28081-030-0	03	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28081-030-0	03	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER M8X20 FLANGE	0-28680-820-0	02	1	0009-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE	0-28080-830-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE	0-28080-830-0	02	1	0009-		●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0009-	●
21	NUT; BRKT TO FRAME FUEL FILTER DUAL<S6B> M10 FLANGE	0-91150-110-0	02	1	0009-		●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M10 FLANGE	0-91150-110-0	01	1	0009-	●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0009-	●
21	NUT; BRKT TO FRAME EXC. FUEL FILTER DUAL<S6B> M8 FLANGE	0-91150-108-0	02	1	0009-		●
24	NUT; SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-210-0	02	1	0009-	●
24	NUT; SEDIMENTER CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-210-0	02	1	0009-			●

6 8 40 7 9 1 4 6 20 8 40 4 29 42 38 5 3 34 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> TURBOCHARGER<K51> (A)	8-97081-814-1	01	1	0009-	●
1	SEDIMENTER; FUEL (A)	8-97081-814-1	01	1	0009-		●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-	●
1	SEDIMENTER; FUEL CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-			●
3	BODY ASM; SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13211-192-0	01	1	0009-	●
3	BODY ASM; SEDIMENTER CHARGE AIR COOLER<6PL>	1-13211-192-0	01	1	0009-			●
4	COVER; UPR,SEDIMENTER ASM 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13212-146-0	01	1	0009-	●
4	COVER; UPR,SEDIMENTER ASM CHARGE AIR COOLER<6PL>	1-13212-146-0	01	1	0009-			●
5	GASKET; UPR COVER,SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51>	5-09623-075-0	01	1	0009-	●
5	GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	0009-		●
5	GASKET; UPR COVER,SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0009-	●
5	GASKET; UPR COVER,SEDIMENTER CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0009-			●
6	CONNECTOR ASM; SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13229-002-0	02	1	0009-	●
6	CONNECTOR ASM; SEDIMENTER CHARGE AIR COOLER<6PL>	1-13229-002-0	02	1	0009-			●
7	PLUG; DRAIN,SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94132-674-0	01	1	0009-	●
7	PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	0009-		●
7	PLUG; DRAIN,SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0009-	●
7	PLUG; DRAIN,SEDIMENTER CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0009-			●
8	STOPPER; CONN,SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13229-001-0	02	1	0009-	●
8	STOPPER; CONN,SEDIMENTER CHARGE AIR COOLER<6PL>	1-13229-001-0	02	1	0009-			●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94132-675-0	01	1	0009-	●
9	GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0009-		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=8.2 OD=13.2	1-09630-082-0	01	1	0009-	●
9	GASKET; DRAIN PLUG & CONNECTOR CHARGE AIR COOLER<6PL> ID=8.2 OD=13.2	1-09630-082-0	01	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-		●	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-		●
20	BOLT; BRKT TO SEDIMENTER CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28081-030-0	02	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M10X30 FLANGE	0-28081-030-0	03	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28081-030-0	03	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER M8X20 FLANGE	0-28680-820-0	02	1	0009-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE	0-28080-830-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE	0-28080-830-0	02	1	0009-		●
29	SCREEN ASM; SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13219-228-0	01	1	0009-	●
29	SCREEN ASM; SEDIMENTER CHARGE AIR COOLER<6PL>	1-13219-228-0	01	1	0009-			●
34	PLUG; DRAIN,FUEL FILTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13219-225-0	01	1	0009-	●
34	PLUG; DRAIN,FUEL FILTER CHARGE AIR COOLER<6PL>	1-13219-225-0	01	1	0009-			●
35	GASKET; DRAIN PLUG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-09623-490-0	01	1	0009-	●
35	GASKET; DRAIN PLUG CHARGE AIR COOLER<6PL>	1-09623-490-0	01	1	0009-			●
36	RING; BODY TO CASE 4HG1 ENG<RJH> TURBOCHARGER<K51>	5-13234-001-0	01	1	0009-	●
36	RING; BODY TO CASE	5-13234-001-0	01	1	0009-		●
36	RING; BODY TO CASE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0009-	●
36	RING; BODY TO CASE CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0009-			●
38	FLOAT; SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13219-227-0	01	1	0009-	●
38	FLOAT; SEDIMENTER CHARGE AIR COOLER<6PL>	1-13219-227-0	01	1	0009-			●
40	GASKET; CONNECTOR TO COVER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=14.2 OD=19.2	1-09630-085-0	02	1	0009-	●
40	GASKET; CONNECTOR TO COVER CHARGE AIR COOLER<6PL> ID=14.2 OD=19.2	1-09630-085-0	02	1	0009-			●
42	PLATE; BAFFLE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-13219-229-0	01	1	0009-	●
42	PLATE; BAFFLE CHARGE AIR COOLER<6PL>	1-13219-229-0	01	1	0009-			●

21 20 20 19 1 20 1 21 19 20 20 20 9 20 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SEDIMENTER; FUEL 4HG1 ENG<RJH> TURBOCHARGER<K51> (A)	8-97081-814-1	01	1	0009-	●
1	SEDIMENTER; FUEL (A)	8-97081-814-1	01	1	0009-		●
1	SEDIMENTER; FUEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-	●
1	SEDIMENTER; FUEL CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0009-			●
9	GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94132-675-0	01	1	0009-	●
9	GASKET; DRAIN PLUG & CONNECTOR	8-94132-675-0	01	1	0009-		●
9	GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=8.2 OD=13.2	1-09630-082-0	01	1	0009-	●
9	GASKET; DRAIN PLUG & CONNECTOR CHARGE AIR COOLER<6PL> ID=8.2 OD=13.2	1-09630-082-0	01	1	0009-			●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97090-298-2	01	1	0009-0306	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B> (A)	8-97090-298-2	01	1	0009-0306		●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97370-092-0	01	1	0307-	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B>	8-97370-092-0	01	1	0307-		●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97189-165-0	01	1	0009-0212	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97363-089-0	01	1	0301-	●
19	BRACKET; FUEL SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (C)	8-94366-685-0	01	1	0009-	●
19	BRACKET; FUEL SEDIMENTER EXC. FUEL FILTER DUAL<S6B> (C)	8-94366-685-0	01	1	0009-		●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D)	8-97148-721-1	01	1	0009-0212	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (D)	8-97148-721-1	01	1	0009-0212			●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL>	8-97363-088-0	01	1	0301-	●
19	BRACKET; FUEL SEDIMENTER FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL>	8-97363-088-0	01	1	0301-			●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B)	8-97182-048-2	01	1	0009-0309	●
19	BRACKET; FUEL SEDIMENTER CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (B)	8-97182-048-2	01	1	0009-0309			●
19	BRACKET; FUEL SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B>	8-97372-020-0	01	1	0310-	●
19	BRACKET; FUEL SEDIMENTER CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B>	8-97372-020-0	01	1	0310-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-		●	●
20	BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL<S6B> M10X30 FLANGE	0-28081-030-0	02	1	0009-		●
20	BOLT; BRKT TO SEDIMENTER CHARGE AIR COOLER<6PL> M10X30 FLANGE	0-28081-030-0	02	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M10X30 FLANGE	0-28081-030-0	03	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER M10X30 FLANGE	0-28081-030-0	03	1	0009-			●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> M8X20 FLANGE	0-28680-820-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER M8X20 FLANGE	0-28680-820-0	02	1	0009-		●
20	BOLT; BRKT TO SEDIMENTER 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8X30 FLANGE	0-28080-830-0	02	1	0009-	●
20	BOLT; BRKT TO SEDIMENTER EXC. FUEL FILTER DUAL<S6B> M8X30 FLANGE	0-28080-830-0	02	1	0009-		●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> TURBOCHARGER<K51> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	02	1	0009-	●
21	NUT; BRKT TO FRAME FUEL FILTER DUAL<S6B> M10 FLANGE	0-91150-110-0	02	1	0009-		●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M10 FLANGE	0-91150-110-0	01	1	0009-	●
21	NUT; BRKT TO FRAME 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0009-	●
21	NUT; BRKT TO FRAME EXC. FUEL FILTER DUAL<S6B> M8 FLANGE	0-91150-108-0	02	1	0009-		●
