Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#43922) — 499 parça

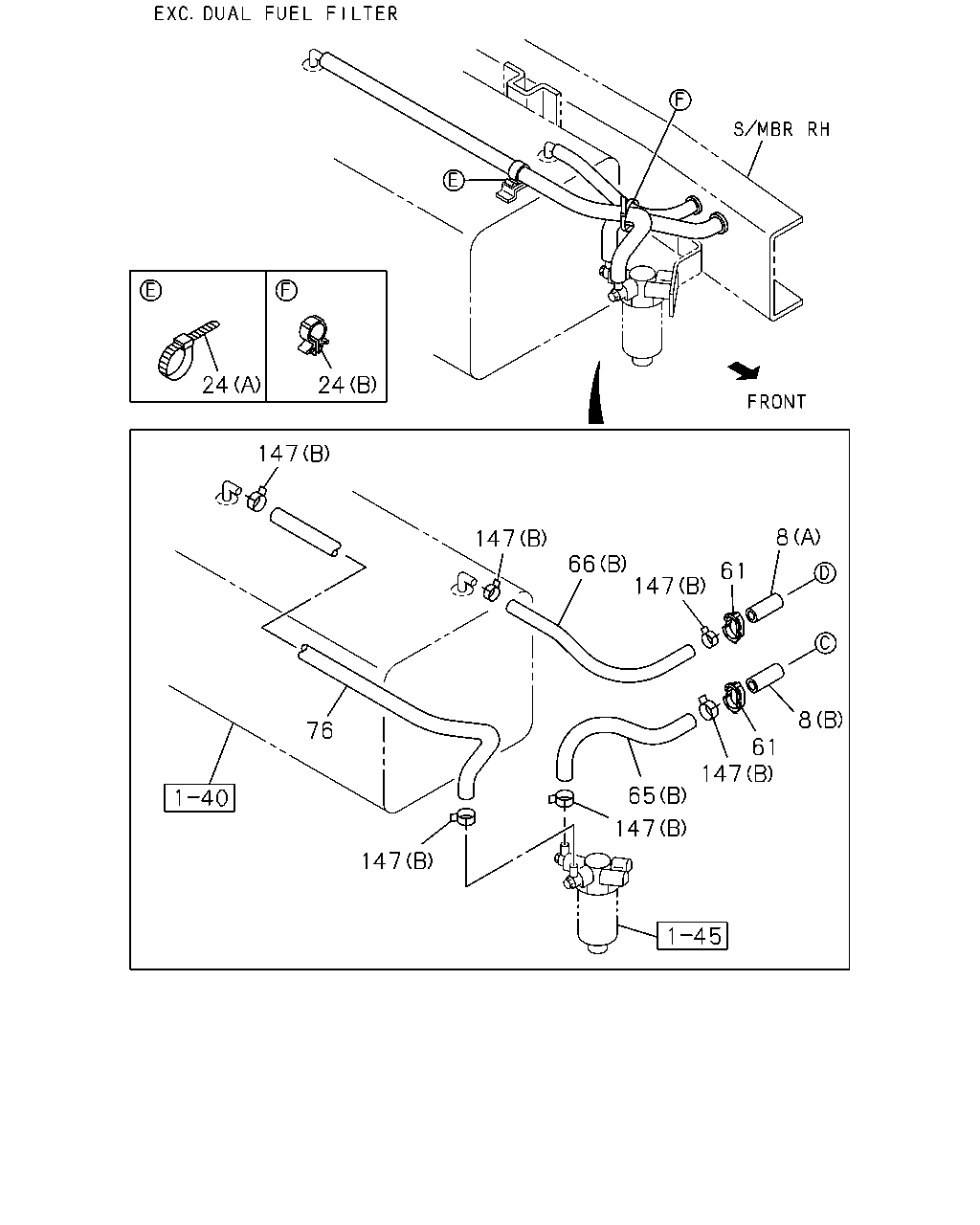

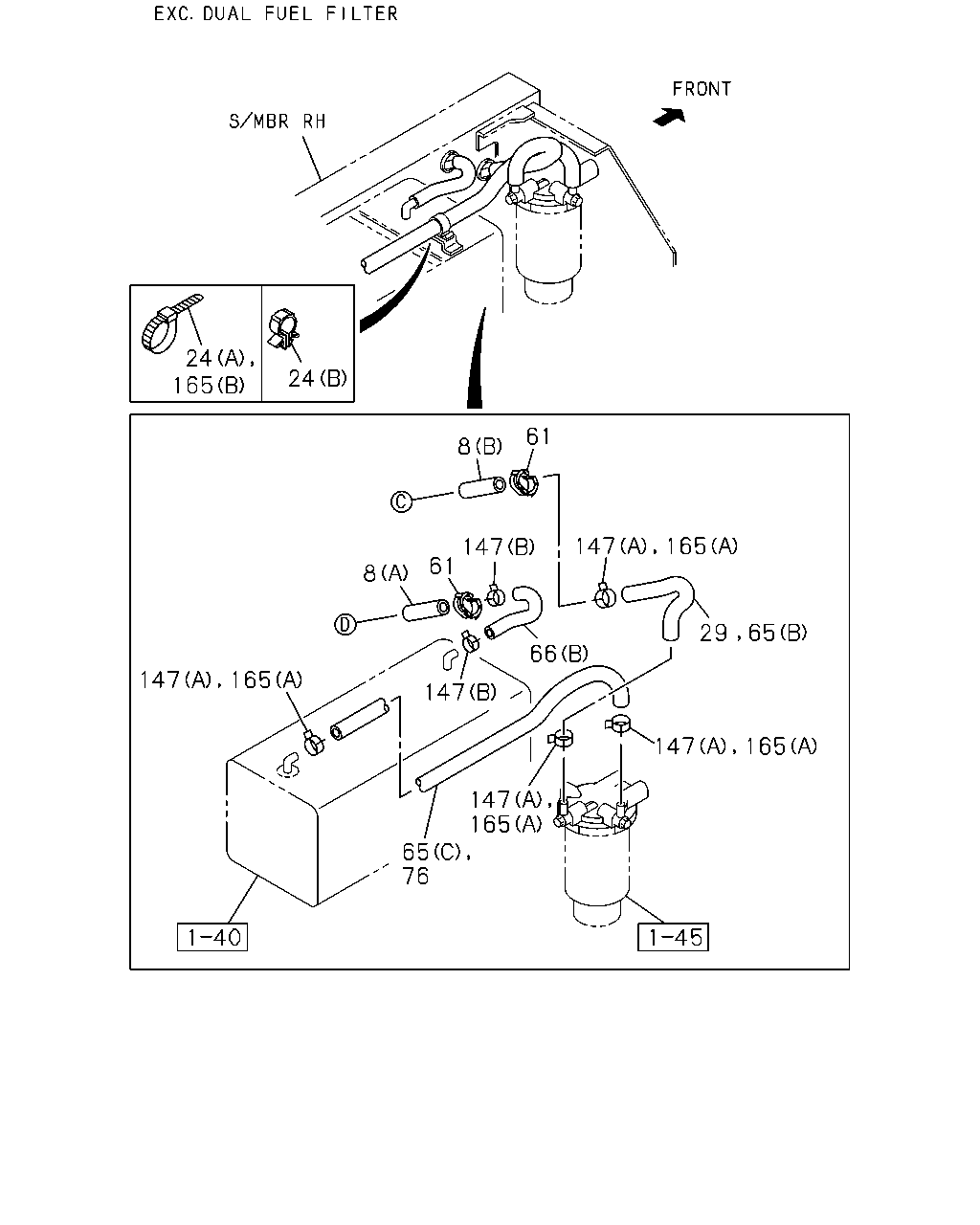

24 165 24 61 8 147 165 147 61 8 29 65 66 47 165 147 147 165 147 165 65 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	0009-	●
8	RUBBER; MTG CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	03	1	0009-		●
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0009-			●
8	RUBBER; MTG EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-			●
24	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (A) L=140	5-09707-031-1	01	1	0009-		●
24	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=250 THA	5-09707-030-1	01	1	0009-	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
29	HOSE; FUEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
29	HOSE; FUEL CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-819-1	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97916-819-1	01	1	0009-			●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-764-1	01	1	0009-	●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-900-0	01	1	0009-	●
47	PIPE; FUEL,RETURN CHARGE AIR COOLER<6PL> THA	8-97920-900-0	01	1	0009-		●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	04	1	0009-	●
61	GROMMET; PIPE TO FRAME CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	04	1	0009-		●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0009-			●
61	GROMMET; PIPE TO FRAME EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
65	HOSE; FUEL,DELIVERY PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	04	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-		●	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> ,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
165	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	08	1	0009-			●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	12	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	12	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-			●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	10	1	0009-		●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-		●

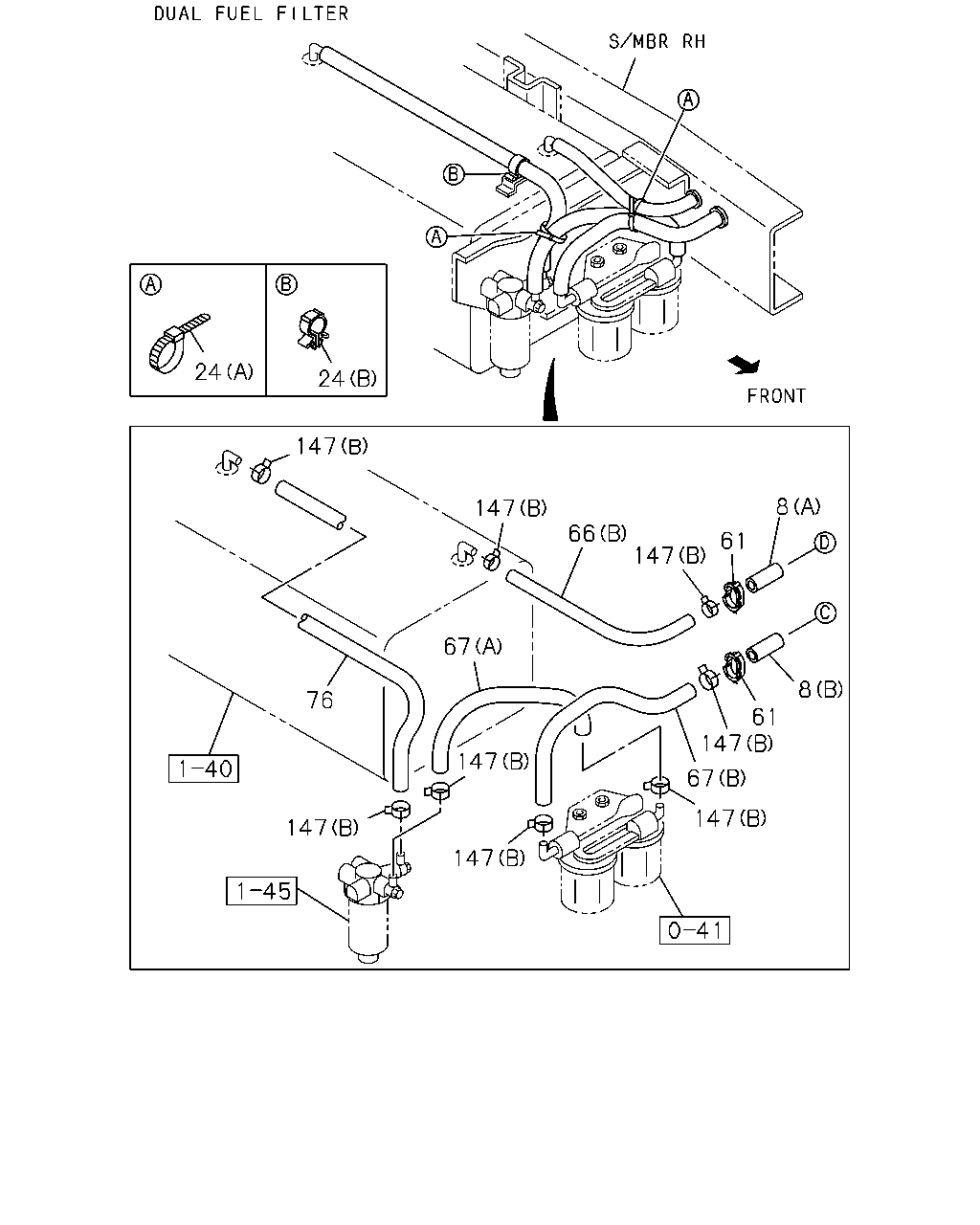

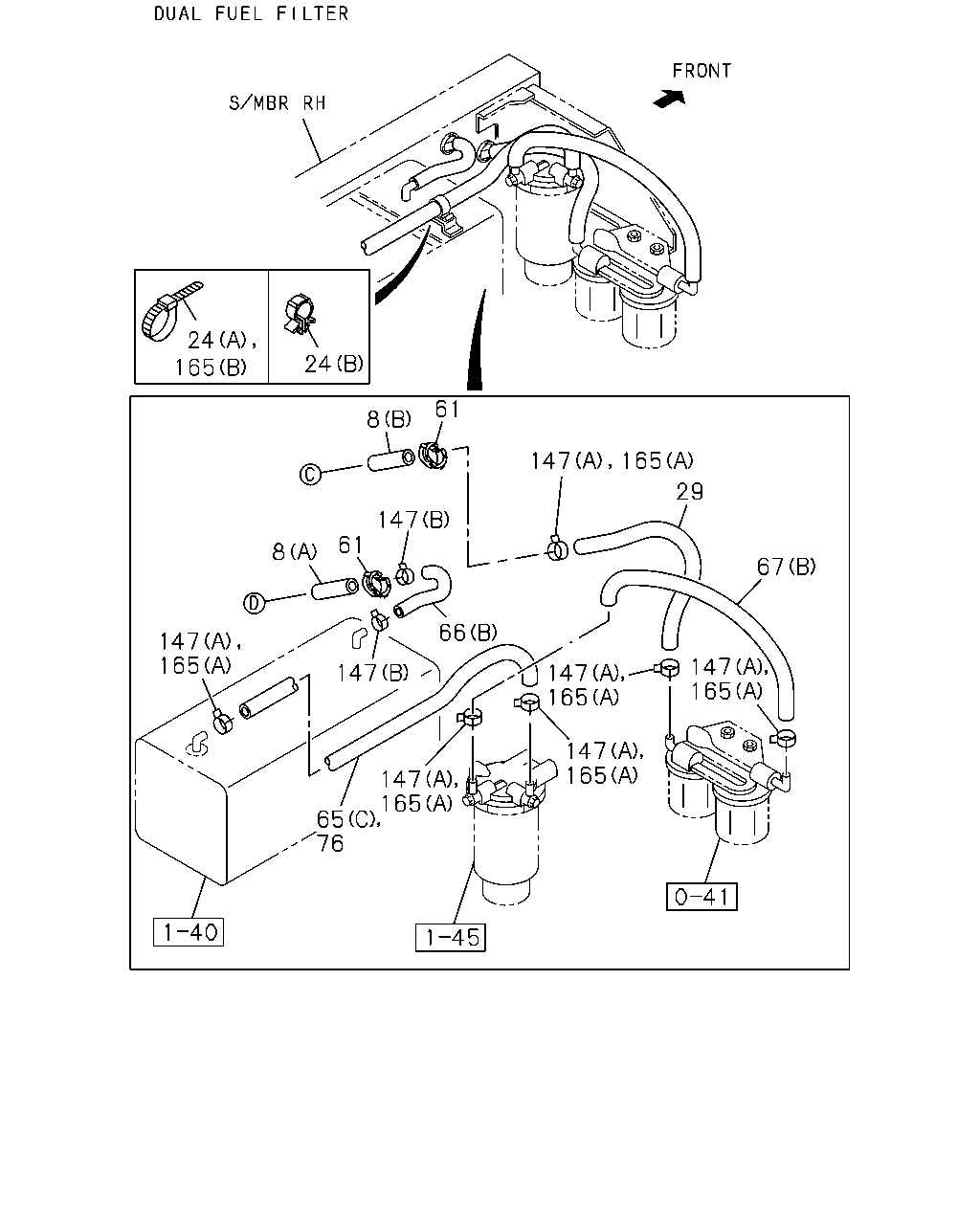

24 24 147 8 147 66 147 61 8 76 61 147 65 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	0009-	●
8	RUBBER; MTG CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	03	1	0009-		●
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0009-			●
8	RUBBER; MTG EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-			●
24	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (A) L=140	5-09707-031-1	01	1	0009-		●
24	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=250 THA	5-09707-030-1	01	1	0009-	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	04	1	0009-	●
61	GROMMET; PIPE TO FRAME CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	04	1	0009-		●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0009-			●
61	GROMMET; PIPE TO FRAME EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
65	HOSE; FUEL,DELIVERY PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	04	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-		●	●

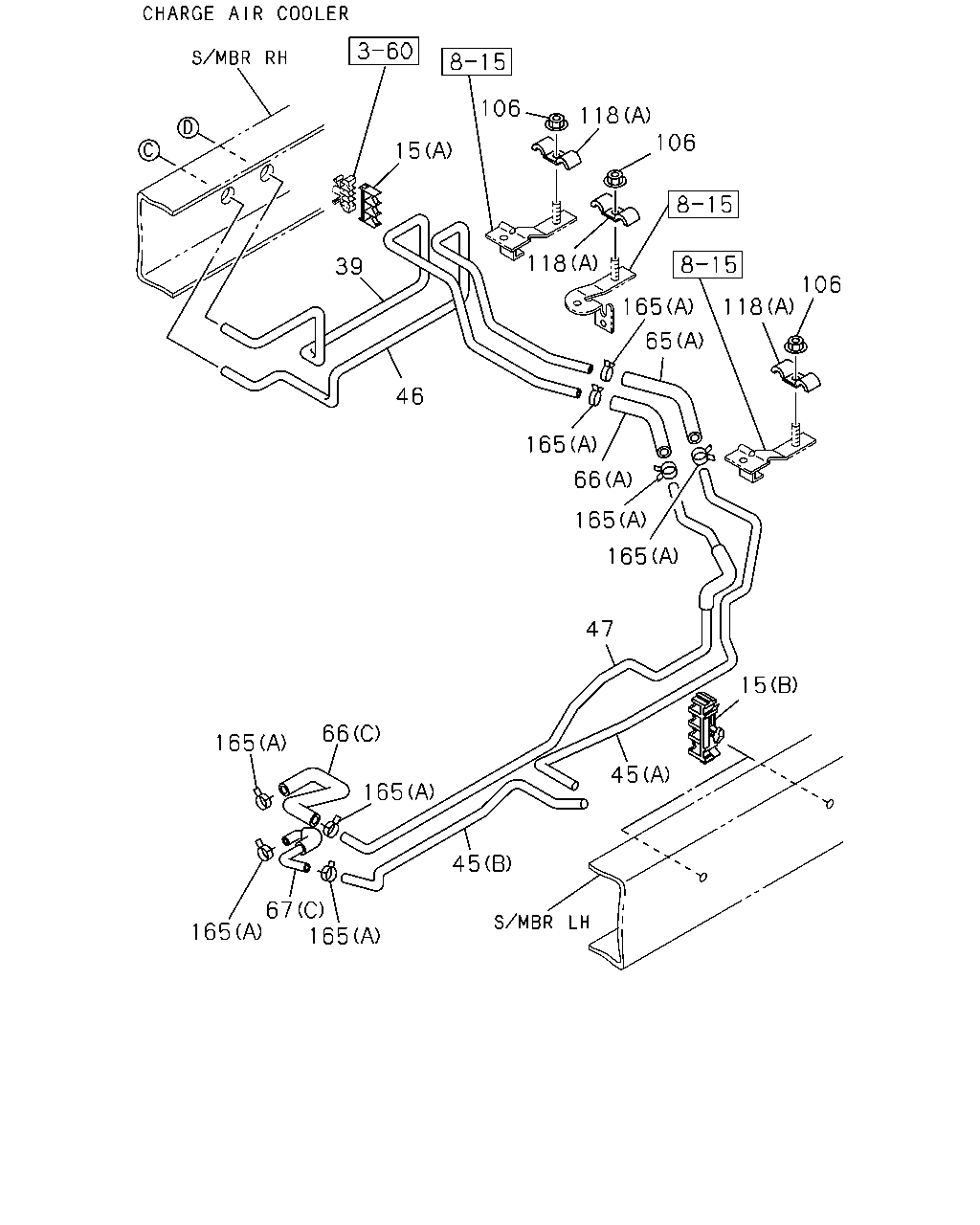

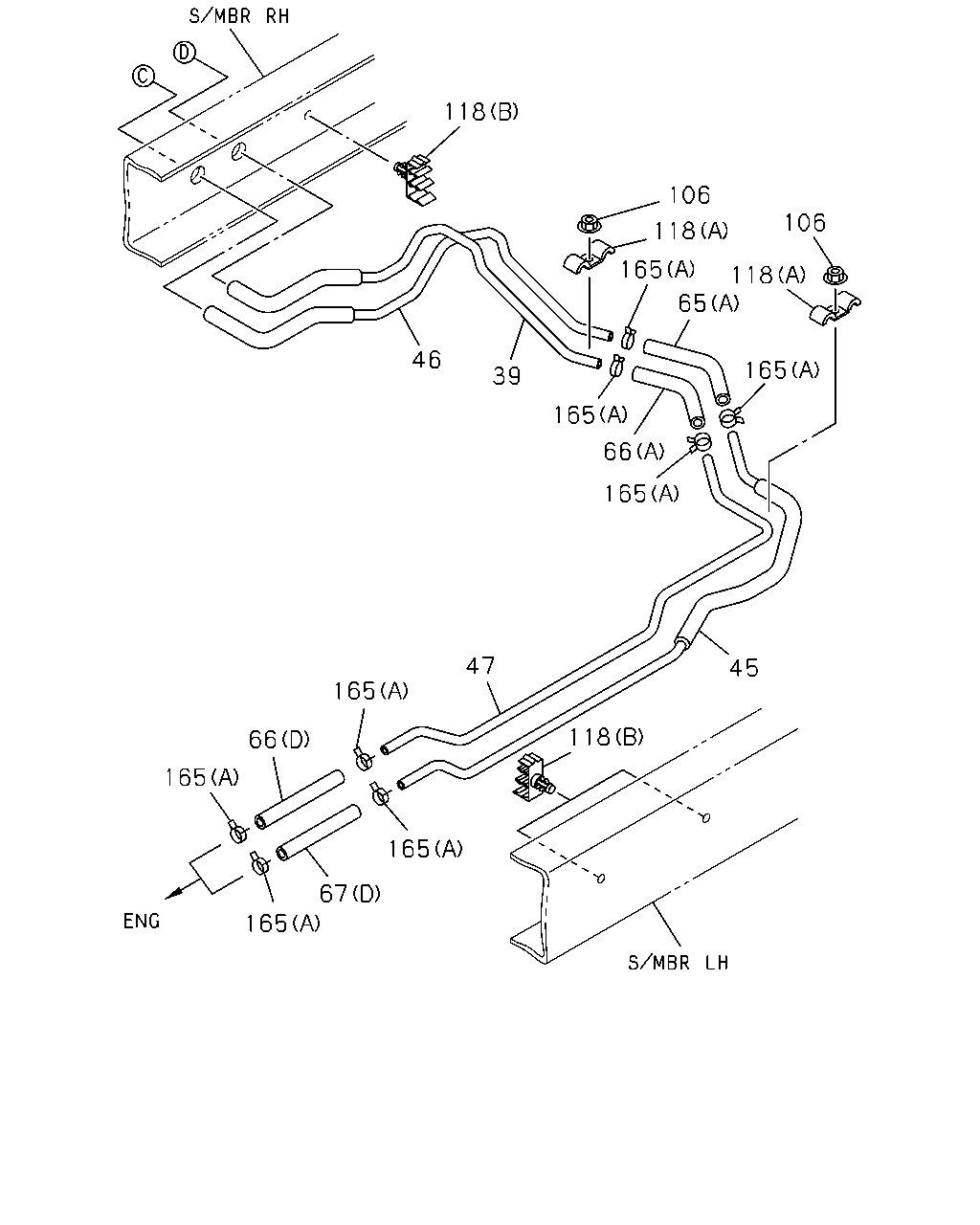

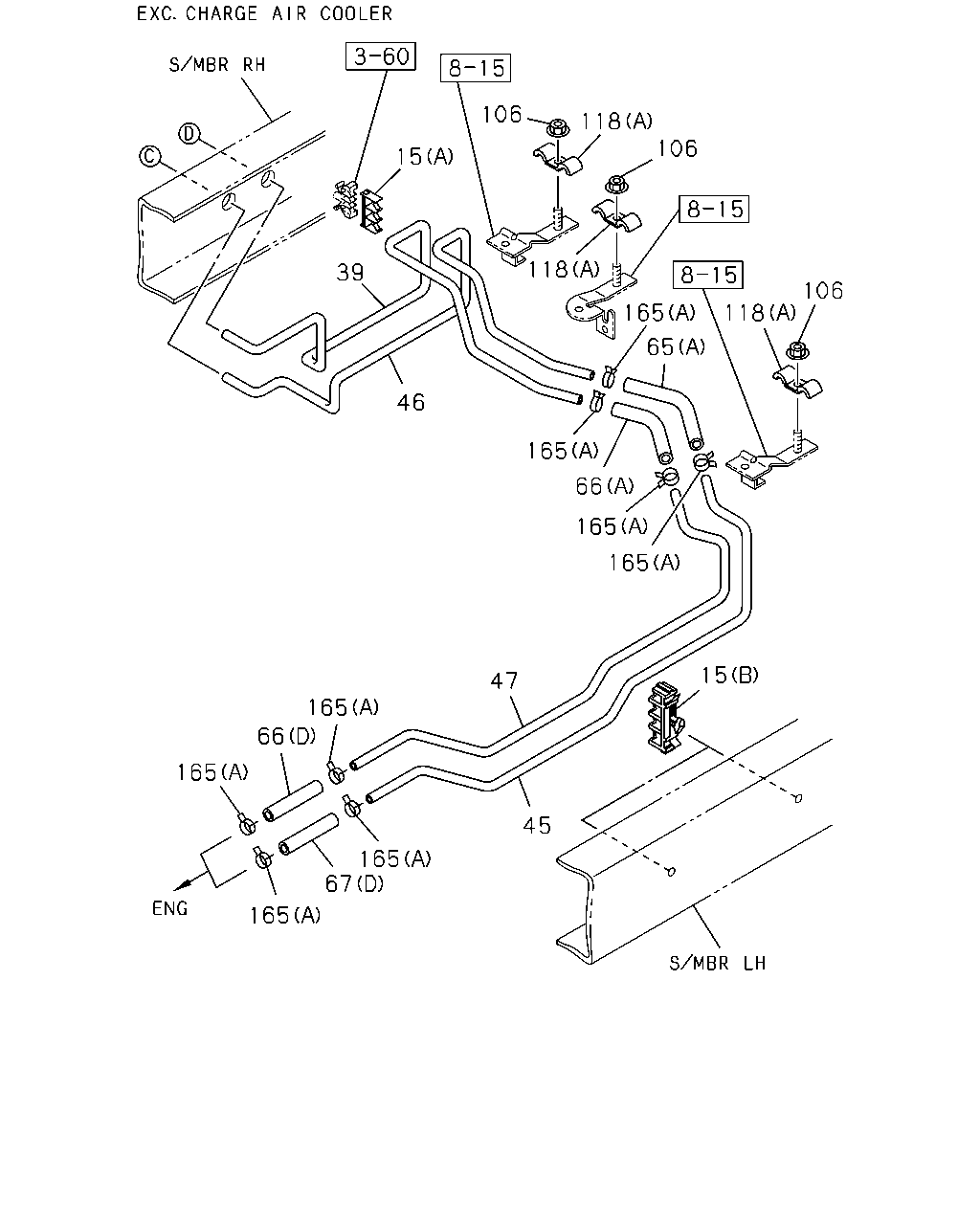

106 118 106 15 118 39 106 165 118 65 46 165 66 165 165 15 47 165 66 165 45 165 67 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	0009-	●
15	CLIP; FUEL PIPE CHARGE AIR COOLER<6PL> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	0009-		●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	0009-	●
15	CLIP; FUEL PIPE EXC. CHARGE AIR COOLER<6PL> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	0009-		●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=10X2 & 6.4	8-97103-601-0	01	1	0009-	●
15	CLIP; FUEL PIPE (A) ID=10X2 & 6.4	8-97103-601-0	01	1	0009-		●
39	PIPE; FUEL 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-817-2	01	1	0009-	●
39	PIPE; FUEL THA	8-97916-817-2	01	1	0009-			●
39	PIPE; FUEL 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-899-0	01	1	0009-	●
39	PIPE; FUEL CHARGE AIR COOLER<6PL> THA	8-97920-899-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-853-2	01	1	0009-	●
45	PIPE; FUEL,DELIVERY THA	8-97916-853-2	01	1	0009-			●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-279-1	01	1	0009-	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97920-898-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (A) THA	8-97920-898-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97920-897-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (B) THA	8-97920-897-0	01	1	0009-		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-807-2	01	1	0009-	●
46	PIPE; FUEL,TANK SIDE THA	8-97916-807-2	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-896-0	01	1	0009-	●
46	PIPE; FUEL,TANK SIDE CHARGE AIR COOLER<6PL> THA	8-97920-896-0	01	1	0009-		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-819-1	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97916-819-1	01	1	0009-			●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-764-1	01	1	0009-	●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-900-0	01	1	0009-	●
47	PIPE; FUEL,RETURN CHARGE AIR COOLER<6PL> THA	8-97920-900-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
65	HOSE; FUEL,DELIVERY PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-883-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (C) THA	8-97920-883-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0009-	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0009-	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0009-			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> ,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
165	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	08	1	0009-			●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	12	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	12	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-			●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	10	1	0009-		●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-		●

24 24 147 8 147 66 147 61 67 8 76 61 147 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	0009-	●
8	RUBBER; MTG CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	03	1	0009-		●
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0009-			●
8	RUBBER; MTG EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-			●
24	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (A) L=140	5-09707-031-1	01	1	0009-		●
24	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=250 THA	5-09707-030-1	01	1	0009-	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	04	1	0009-	●
61	GROMMET; PIPE TO FRAME CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	04	1	0009-		●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0009-			●
61	GROMMET; PIPE TO FRAME EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-883-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (C) THA	8-97920-883-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	04	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-		●	●

106 118 106 15 118 39 106 165 118 65 46 165 66 165 165 47 15 66 165 45 165 45 67 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	CLIP; FUEL PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	0009-	●
15	CLIP; FUEL PIPE CHARGE AIR COOLER<6PL> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	03	1	0009-		●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	0009-	●
15	CLIP; FUEL PIPE EXC. CHARGE AIR COOLER<6PL> (B) ID=10 & 6.4 & 4.8	8-97074-831-0	02	1	0009-		●
15	CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=10X2 & 6.4	8-97103-601-0	01	1	0009-	●
15	CLIP; FUEL PIPE (A) ID=10X2 & 6.4	8-97103-601-0	01	1	0009-		●
39	PIPE; FUEL 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-817-2	01	1	0009-	●
39	PIPE; FUEL THA	8-97916-817-2	01	1	0009-			●
39	PIPE; FUEL 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-899-0	01	1	0009-	●
39	PIPE; FUEL CHARGE AIR COOLER<6PL> THA	8-97920-899-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-853-2	01	1	0009-	●
45	PIPE; FUEL,DELIVERY THA	8-97916-853-2	01	1	0009-			●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-279-1	01	1	0009-	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97920-898-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (A) THA	8-97920-898-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97920-897-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (B) THA	8-97920-897-0	01	1	0009-		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-807-2	01	1	0009-	●
46	PIPE; FUEL,TANK SIDE THA	8-97916-807-2	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-896-0	01	1	0009-	●
46	PIPE; FUEL,TANK SIDE CHARGE AIR COOLER<6PL> THA	8-97920-896-0	01	1	0009-		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-819-1	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97916-819-1	01	1	0009-			●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-764-1	01	1	0009-	●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-900-0	01	1	0009-	●
47	PIPE; FUEL,RETURN CHARGE AIR COOLER<6PL> THA	8-97920-900-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
65	HOSE; FUEL,DELIVERY PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-883-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (C) THA	8-97920-883-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0009-	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0009-	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0009-			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> ,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
165	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	08	1	0009-			●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	12	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	12	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-			●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	10	1	0009-		●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-		●

24 165 24 61 8 147 165 29 147 61 8 67 66 147 165 147 165 147 147 165 147 165 147 165 65 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	RUBBER; MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	03	1	0009-	●
8	RUBBER; MTG CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	03	1	0009-		●
8	RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=15 L=50	8-97077-629-0	01	1	0009-	●
8	RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0009-			●
8	RUBBER; MTG EXC. CHARGE AIR COOLER<6PL> (B) OD=15 L=50	8-97077-629-0	01	1	0009-		●
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0009-	●	●	●
24	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=140	5-09707-031-1	01	1	0009-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	0009-			●
24	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (A) L=140	5-09707-031-1	01	1	0009-		●
24	CLIP; FUEL HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=250 THA	5-09707-030-1	01	1	0009-	●
24	CLIP; FUEL HOSE (A) L=250 THA	5-09707-030-1	01	1	0009-			●
24	CLIP; FUEL HOSE (B) THA	8-97917-012-0	01	1	0009-	●	●	●
29	HOSE; FUEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B> L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
29	HOSE; FUEL CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
61	GROMMET; PIPE TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	04	1	0009-	●
61	GROMMET; PIPE TO FRAME CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	04	1	0009-		●
61	GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	02	1	0009-	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0009-			●
61	GROMMET; PIPE TO FRAME EXC. CHARGE AIR COOLER<6PL> ID=17	8-94128-319-2	02	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
65	HOSE; FUEL,DELIVERY PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-883-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (C) THA	8-97920-883-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK FUEL FILTER DUAL<S6B> L=700 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
76	HOSE; FUEL,TANK 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
147	CLIP; FUEL PIPE TO HOSE FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	04	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) ID=13	8-94238-571-0	06	1	0009-	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0009-		●	●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> ,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
165	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	08	1	0009-			●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	12	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	12	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-			●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	10	1	0009-		●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-		●

118 106 106 118 165 118 65 46 165 39 165 66 165 47 45 165 118 66 165 165 67 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	PIPE; FUEL 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-817-2	01	1	0009-	●
39	PIPE; FUEL THA	8-97916-817-2	01	1	0009-			●
39	PIPE; FUEL 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-899-0	01	1	0009-	●
39	PIPE; FUEL CHARGE AIR COOLER<6PL> THA	8-97920-899-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-853-2	01	1	0009-	●
45	PIPE; FUEL,DELIVERY THA	8-97916-853-2	01	1	0009-			●
45	PIPE; FUEL,DELIVERY 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-279-1	01	1	0009-	●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97920-898-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (A) THA	8-97920-898-0	01	1	0009-		●
45	PIPE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97920-897-0	01	1	0009-	●
45	PIPE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (B) THA	8-97920-897-0	01	1	0009-		●
46	PIPE; FUEL,TANK SIDE 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-807-2	01	1	0009-	●
46	PIPE; FUEL,TANK SIDE THA	8-97916-807-2	01	1	0009-			●
46	PIPE; FUEL,TANK SIDE 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-896-0	01	1	0009-	●
46	PIPE; FUEL,TANK SIDE CHARGE AIR COOLER<6PL> THA	8-97920-896-0	01	1	0009-		●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-819-1	01	1	0009-	●
47	PIPE; FUEL,RETURN THA	8-97916-819-1	01	1	0009-			●
47	PIPE; FUEL,RETURN 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-764-1	01	1	0009-	●
47	PIPE; FUEL,RETURN 4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> THA	8-97920-900-0	01	1	0009-	●
47	PIPE; FUEL,RETURN CHARGE AIR COOLER<6PL> THA	8-97920-900-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=270 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
65	HOSE; FUEL,DELIVERY PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●	●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (B) L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
65	HOSE; FUEL,DELIVERY PIPE CHARGE AIR COOLER<6PL> (C) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
65	HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (D) L=290 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,FRAME STRAIGHT TYPE<7KJ> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE EXC. FUEL FILTER DUAL<S6B> (B) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (D) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0009-			●
66	HOSE; FUEL,RETURN PIPE EXC. HYDRO MASTER<7LT> (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●	●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (B) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-884-0	01	1	0009-	●
66	HOSE; FUEL,RETURN PIPE CHARGE AIR COOLER<6PL> (C) THA	8-97920-884-0	01	1	0009-		●
66	HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97920-883-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY CHARGE AIR COOLER<6PL> (C) THA	8-97920-883-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	0009-		●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
67	HOSE; FUEL,DELIVERY 4HG1 ENG<RJH> (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-	●
67	HOSE; FUEL,DELIVERY (D) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	0009-			●
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0009-	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (A) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0009-	●	●	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0009-	●
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0009-			●
165	CLIP; FUEL HOSE 4HG1 ENG<RJH> EXC. FUEL FILTER DUAL<S6B>,CHARGE AIR COOLER<6PL> ,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	08	1	0009-	●
165	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	08	1	0009-			●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE 4HE1 ENG<RLY> FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=140	5-09707-031-1	01	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (B) L=140	5-09707-031-1	01	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	12	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	12	1	0009-		●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL<S6B>,HYDRO MASTER<7LT> (A) ID=16	8-94238-568-0	10	1	0009-	●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-			●
165	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> EXC. CHARGE AIR COOLER<6PL> (A) ID=16	8-94238-568-0	10	1	0009-		●
165	CLIP; FUEL HOSE CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL<S6B> (A) ID=16	8-94238-568-0	10	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
