◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#43921) — 21 parça

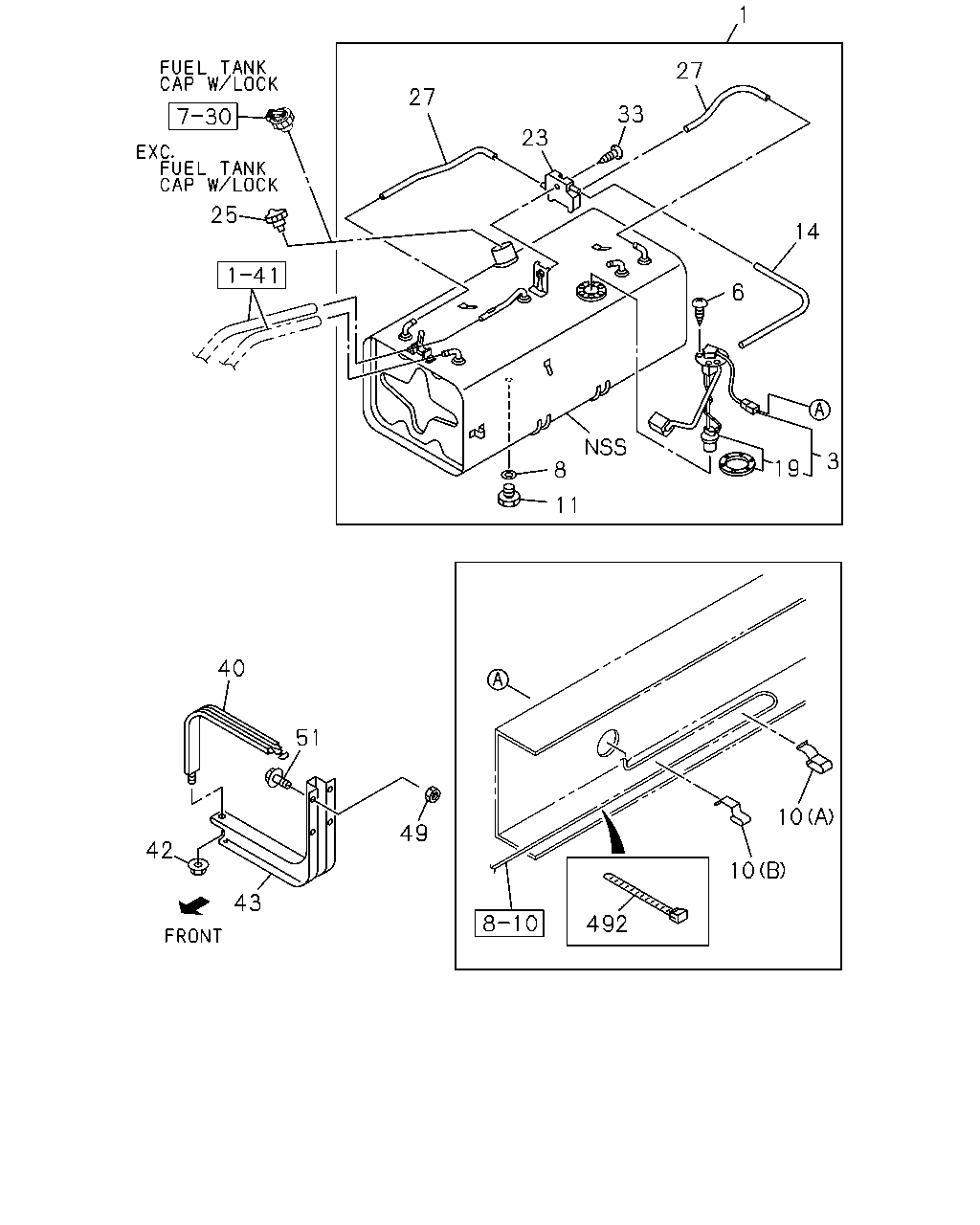

çizim 51871
1 27 27 33 23 25 14 6 3 19 8 11 40 51 10 49 42 10 43 492
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK; FUEL
1000X340X327 100L THA 		8-97916-357-0 01 1 0009- ● ● ●
3 UNIT; FUEL TANK,SUB 8-94316-190-0 01 1 0009- ● ● ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER 		9-03910-510-0 05 1 0009- ● ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97918-206-0 01 1 0009- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(A) T=10.5 THA 		5-09709-014-0 AR 1 0009- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(B) T=6.0 		5-09709-024-0 AR 1 0009- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(A) T=8.7 		5-09709-048-0 AR 1 0009- ● ● ●
10 CLIP; SPRING,FUEL TANK UNIT CABLE
(B) T=9 & 10.5 		8-97041-091-0 AR 1 0009- ● ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97917-063-0 01 1 0009- ● ● ●
14 HOSE; BREATHER,OUTLET
L=430 THA 		8-97917-065-0 01 1 0009- ● ● ●
19 GASKET; FUEL TANK UNIT 5-83148-001-0 01 1 0009- ● ● ●
23 JOINT; BREATHER HOSE
THA 		8-97917-064-0 01 1 0009- ● ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0009- ● ● ●
27 HOSE; BREATHER
L=470 THA 		8-97917-067-0 02 1 0009- ● ● ●
33 SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0009- ● ● ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97916-551-0 02 1 0009- ● ● ●
42 NUT; SUPPORT BELT
M8 LOCK NUT 		9-09131-408-0 02 1 0009- ● ● ●
43 BRACKET; FUEL TANK
THA 		8-97917-011-0 02 1 0009- ● ● ●
49 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0009- ● ● ●
51 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28691-030-0 08 1 0009- ● ● ●
492 CLIP; HARNESS TO VAC HOSE
L=250 THA 		5-09707-030-1 01 1 0009- ● ● ●
