◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#43920) — 8 parça

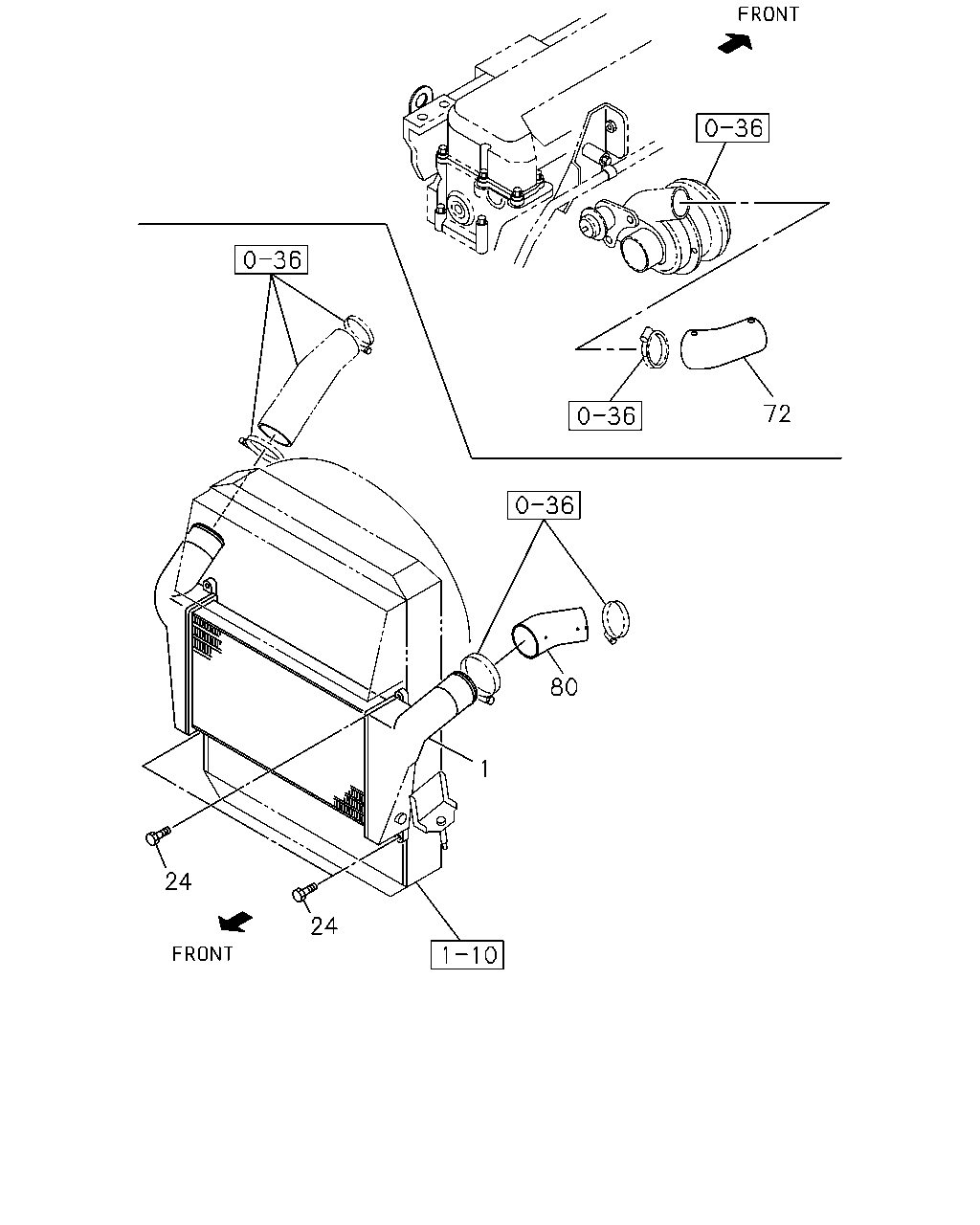

çizim 50257
72 80 1 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA 		8-97218-394-1 01 1 0009- ●
1 COOLER; CHARGE AIR
CHARGE AIR COOLER<6PL> THA 		8-97218-394-1 01 1 0009- ●
24 BOLT; COOLER TO RAD
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8X25 FLANGE 		0-28080-825-0 04 1 0009- ●
24 BOLT; COOLER TO RAD
CHARGE AIR COOLER<6PL> M8X25 FLANGE 		0-28080-825-0 04 1 0009- ●
72 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> 		8-97203-993-0 01 1 0009- ●
72 HOSE; CONN,INL PIPE TO DUCT
CHARGE AIR COOLER<6PL> 		8-97203-993-0 01 1 0009- ●
80 HOSE; CONN,CHARGE AIR COOLER TO DUCT
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> 		8-97233-792-0 01 1 0009- ●
80 HOSE; CONN,CHARGE AIR COOLER TO DUCT
CHARGE AIR COOLER<6PL> 		8-97233-792-0 01 1 0009- ●
