1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#4392) — 459 parça
çizim 3003
74 6 6 43 42 47 43 178 83 77 83
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-239-3 01 1 9101-9504 ● ●
6 VALVE; EXH BRAKE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) 		1-22180-240-3 01 1 9101-9504 ● ● ●
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-234-2 01 1 9101-9504 ●
6 VALVE; EXH BRAKE
(A) 		8-94393-930-2 01 1 9505-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(B) 		8-94394-154-0 01 1 9505-9809 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 9810- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9702-9709 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-1 01 1 9702-9705 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-0 01 1 9706-9709 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-1 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-527-1 01 1 0212- ● ●
42 HOSE; FLEX,EXH BRK
L=630 		0-07150-630-0 01 1 9505-0605 ●
42 HOSE; FLEX,EXH BRK
L=630 		0-57150-630-0 01 1 0606- ●
42 HOSE; FLEX,EXH BRK
L=450 		0-07150-450-0 01 1 9702-9705 ●
42 HOSE; FLEX,EXH BRK
L=460 		1-09363-648-0 01 1 9706-9709 ●
42 HOSE; FLEX,EXH BRK
L=460 		1-09363-648-0 01 1 9710- ● ●
43 GASKET; FLEX HOSE
ID=20.5 OD=28.0 		9-09571-420-0 02 1 9505-9506 ●
43 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9507- ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ● ●
47 BOLT; CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 9505-9506 ●
47 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9507-0512 ●
47 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0212- ● ●
74 CONNECTOR; EXH BRK VLV
M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 0212- ●
77 NUT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
77 NUT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
77 NUT; CLIP
M8 		9-09110-508-0 01 1 9505-9603 ●
77 NUT; CLIP
M8 		9-09110-408-0 01 1 9604-9606 ●
77 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0602 ●
77 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
83 CLIP; FLEX HOSE
ID=12 L=70 		1-09700-097-1 01 1 9505-9506 ●
83 CLIP; FLEX HOSE
ID=13 L=70 		1-09700-970-1 01 1 9507-0104 ●
83 CLIP; FLEX HOSE
ID=11 L=58 		9-09917-135-2 01 1 0105- ●
178 PIECE; DISTANCE
L=22 		9-22159-024-0 01 1 9505-9506 ●

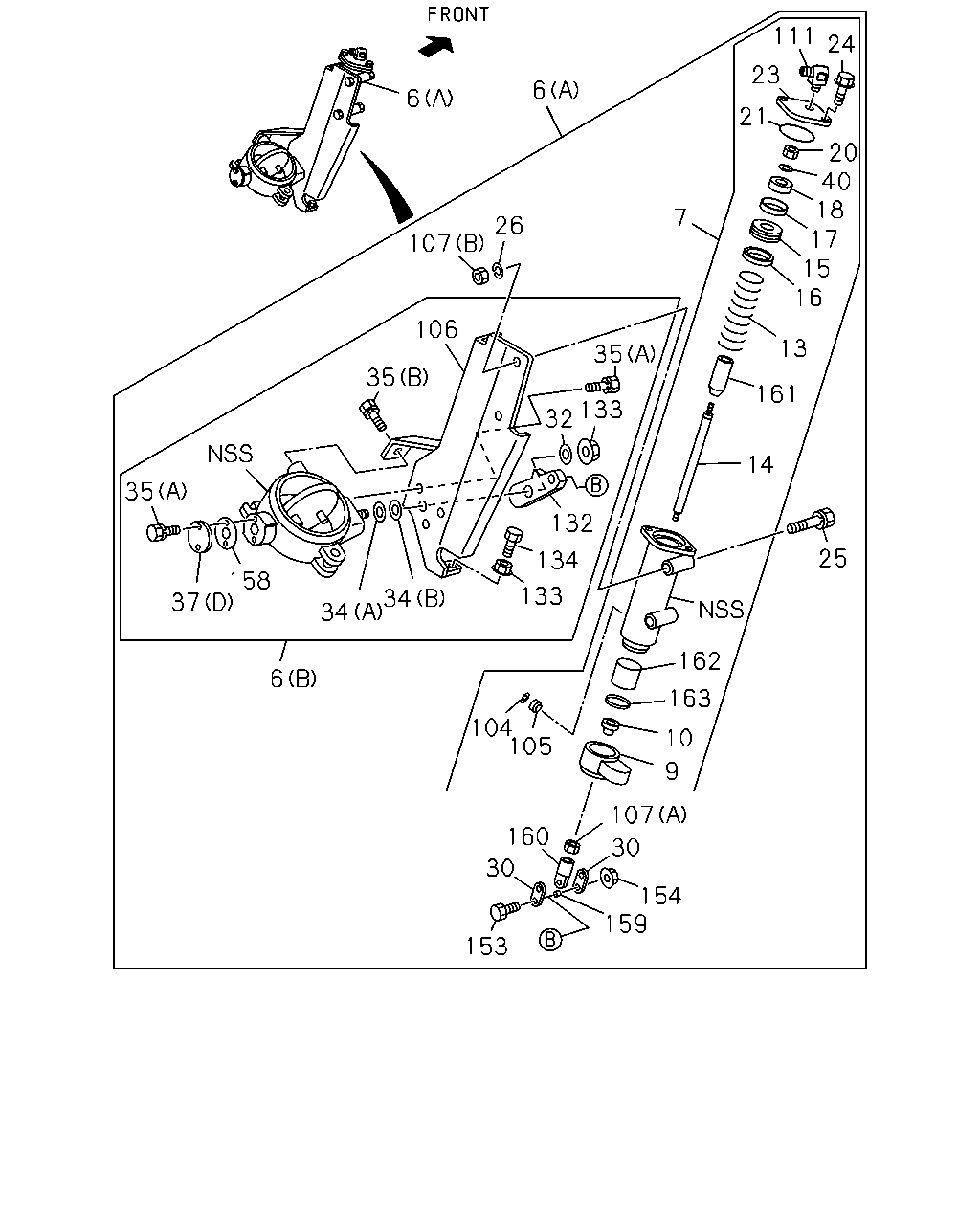

çizim 4739
111 24 23 6 6 21 20 40 18 17 15 16 7 26 107 106 13 35 35 161 133 32 14 35 132 25 134 158 37 133 34 34 162 6 163 104 105 10 9 107 160 30 30 154 159 153
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-239-3 01 1 9101-9504 ● ●
6 VALVE; EXH BRAKE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) 		1-22180-240-3 01 1 9101-9504 ● ● ●
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-234-2 01 1 9101-9504 ●
6 VALVE; EXH BRAKE
(A) 		8-94393-930-2 01 1 9505-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(B) 		8-94394-154-0 01 1 9505-9809 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 9810- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9702-9709 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-1 01 1 9702-9705 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-0 01 1 9706-9709 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-1 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-527-1 01 1 0212- ● ●
7 CYLINDER ASM; CONT 8-94396-813-0 01 1 9505-9809 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 9810- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9702-9709 ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9710-9807 ● ●
7 CYLINDER ASM; CONT 1-22190-651-0 01 1 9808-0211 ● ●
9 COVER; CYL 1-22199-070-0 01 1 9702-9709 ●
9 COVER; CYL 1-22199-070-0 01 1 9710-0211 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9505-9701 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9702-9709 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9710-0211 ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0212- ●
13 SPRING; CONT CYL 1-09580-465-0 01 1 9505-9809 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9702-9709 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9710-9807 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9808-9809 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810-0211 ● ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0212- ●
14 SHAFT; CONT CYL 1-22196-302-0 01 1 9505-9809 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9810- ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9702-9709 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9710-0211 ● ●
15 PLATE; CONT CYL 1-22199-001-0 01 1 9505-9809 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9702-9709 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9710-0211 ● ●
16 RING; WEAR,CONT CYL 1-22199-002-0 01 1 9505-9809 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9702-9709 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9710-0211 ● ●
17 GASKET; CONT CYL 1-22199-110-0 01 1 9505-9809 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9702-9709 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9710-0211 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9505-9701 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9702-9709 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9710-9809 ● ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9810-0211 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9505-9701 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9702-9709 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9710-9809 ● ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9810-0211 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ●
21 GASKET; COVER 1-22199-072-0 01 1 9505-9701 ●
21 GASKET; COVER 1-22199-072-0 01 1 9702-9709 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9710-0211 ● ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0212- ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9505-9701 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9702-9709 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9710-9809 ● ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9810-0211 ● ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ●
24 BOLT; COVER
M8X20 		9-01000-820-0 02 1 9505-9809 ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ●
24 BOLT; COVER 1-22199-155-0 02 1 9702-9709 ●
24 BOLT; COVER 1-22199-155-0 02 1 9710-0211 ● ●
25 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-0 02 1 9505-9809 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9810- ●
25 BOLT; CONT CYL
M10X60 		9-01056-060-0 02 1 9702-9709 ●
25 BOLT; CONT CYL
M10X60 		9-01056-060-0 02 1 9710-9807 ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9808-0211 ● ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9702-9709 ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 02 1 9710-9807 ● ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 9702-9709 ●
30 ROD; LINK,CONT CYL 1-22199-124-0 02 1 9710-0211 ● ●
32 WASHER; LK
EXH BRK<NF8> ID=8.2 		9-09150-508-0 05 1 9101-9504 ● ● ●
32 WASHER; LK
ID=8.2 		9-09150-508-0 06 1 9505-9809 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9702-9709 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9710-9807 ● ●
32 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9806-9807 ● ●
34 RING; SEAL
EXH BRK<NF8> (A) ID=13 		1-22189-009-0 02 1 9101-9504 ● ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9505-9701 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9702-9709 ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9710-0211 ● ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0212- ●
34 RING; SEAL
EXH BRK<NF8> (B) ID=11.7 		1-22189-010-0 02 1 9101-9504 ● ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9505-9701 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9702-9709 ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9710-0211 ● ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0212- ●
35 BOLT; PLATE FIX
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) M8X16 		9-02050-816-0 04 1 9101-9504 ● ●
35 BOLT; PLATE FIX
EXH BRK<NF8> (C) M8X16 		9-02050-816-0 04 1 9101-9504 ●
35 BOLT; PLATE FIX
(C) M8X16 		9-02050-816-0 05 1 9505-9809 ●
35 BOLT; PLATE FIX
(C) 		1-22199-174-0 05 1 9810- ●
35 BOLT; PLATE FIX
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M8X16 W/LK WASHER 		9-01910-816-0 04 1 9101-9504 ● ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9702-9709 ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9710-9807 ● ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 01 1 9702-9709 ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 01 1 9710-9807 ● ●
35 BOLT; PLATE FIX
(B) 		1-22199-174-0 02 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(A) 		1-22199-188-0 01 1 9808-0211 ● ●
37 COVER; BODY
EXH BRK<NF8> (C) 		1-22189-139-0 01 1 9101-9504 ● ● ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9505- ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9505- ●
37 COVER; BODY
(D) 		1-22189-274-0 01 1 9702-9709 ●
37 COVER; BODY
(D) 		1-22189-274-0 01 1 9710-9807 ● ●
37 COVER; BODY
(D) 		1-22189-327-0 01 1 9808-0211 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 03 1 9505-9809 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9702-9709 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9710-0211 ● ●
104 RING; RET 9-88510-331-0 01 1 9505-9701 ●
104 RING; RET 9-88510-331-0 01 1 9702-9709 ● ●
104 RING; RET 9-88510-331-0 01 1 9710-0211 ● ● ●
104 RING; RET 9-88510-331-0 01 1 0212- ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9505-9701 ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9702-9709 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9710-0211 ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0212- ●
106 BRACKET; CONT CYL 8-94394-155-0 01 1 9505-9809 ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 9810- ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9702-9709 ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9710-0211 ● ●
107 NUT; CONT CYL
(C) M10 FLANGE 		0-91150-110-0 01 1 9810- ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9702-9709 ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9710-9807 ● ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 9808-0211 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9702-9709 ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9710-0211 ● ●
111 ELBOW; CONT CYL 8-94393-086-1 01 1 9505-0211 ●
111 ELBOW; CONT CYL 1-09650-358-0 01 1 9702-9709 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9710-0211 ● ●
132 LEVER; BRK VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22189-128-1 01 1 9101-9504 ● ●
132 LEVER; BRK VLV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> 		1-22196-264-0 01 1 9101-9504 ● ● ●
132 LEVER; BRK VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22196-268-0 01 1 9101-9504 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9505- ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9702-9709 ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9710-0211 ● ●
133 NUT; LK
EXH BRK<NF8> M8 		9-09111-508-0 03 1 9101-9504 ● ● ●
133 NUT; LK 8-94311-428-0 03 1 9505-9809 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9702-9709 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9710-9809 ● ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9810-0211 ● ● ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 0212- ●
134 BOLT; STOPPER
EXH BRK<NF8> M8X30 		1-09000-112-1 02 1 9101-9504 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9505-9701 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9702-9709 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9710-0211 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0212- ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9505-9809 ●
153 BOLT; CLEVIS,CONT CYL 8-97600-320-0 02 1 9810- ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9702-9709 ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9710-0211 ● ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 02 1 9505-9809 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9810- ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9702-9709 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9710-0211 ● ●
158 GASKET; COVER 1-22189-286-0 01 1 9702-9709 ●
158 GASKET; COVER 1-22189-286-0 01 1 9710-0211 ● ●
159 COLLAR; CONT CYL 1-22199-138-0 02 1 9702-9709 ●
159 COLLAR; CONT CYL 1-22199-138-0 02 1 9710-0211 ● ●
160 JOINT; CONT CYL 1-22199-137-0 01 1 9702-9709 ●
160 JOINT; CONT CYL 1-22199-137-0 01 1 9710-0211 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9702-9709 ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9710-9809 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 9810-0211 ● ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0212- ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9702-9709 ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9710-9809 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 9810-0211 ● ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0212- ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9702-9709 ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9710-9809 ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 9810-0211 ● ● ●
163 WASHER; CONT CYL 1-22199-148-0 01 1 0212- ●

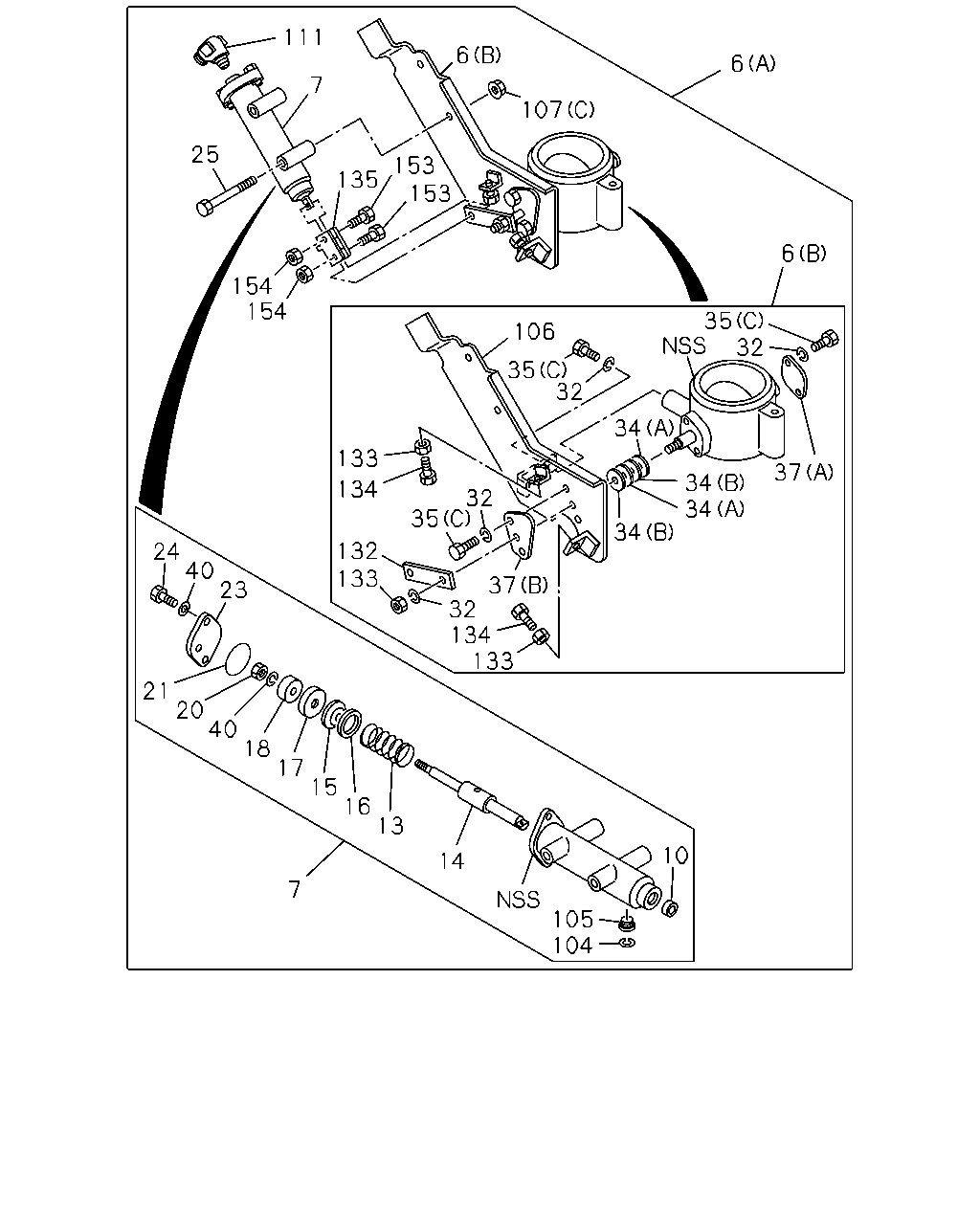

çizim 5058
111 6 6 7 107 25 153 153 135 6 154 154 35 106 35 32 34 133 37 34 34 134 32 35 34 132 133 24 40 23 37 32 134 133 21 20 40 18 17 15 16 13 10 14 7 105 104 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-239-3 01 1 9101-9504 ● ●
6 VALVE; EXH BRAKE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) 		1-22180-240-3 01 1 9101-9504 ● ● ●
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-234-2 01 1 9101-9504 ●
6 VALVE; EXH BRAKE
(A) 		8-94393-930-2 01 1 9505-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(B) 		8-94394-154-0 01 1 9505-9809 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 9810- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9702-9709 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-1 01 1 9702-9705 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-0 01 1 9706-9709 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-1 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-527-1 01 1 0212- ● ●
7 CYLINDER ASM; CONT 8-94396-813-0 01 1 9505-9809 ●
7 CYLINDER ASM; CONT 1-22190-656-0 01 1 9810- ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9702-9709 ●
7 CYLINDER ASM; CONT 1-22190-632-0 01 1 9710-9807 ● ●
7 CYLINDER ASM; CONT 1-22190-651-0 01 1 9808-0211 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9505-9701 ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9702-9709 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 9710-0211 ● ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0212- ●
13 SPRING; CONT CYL 1-09580-465-0 01 1 9505-9809 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9702-9709 ●
13 SPRING; CONT CYL 1-22199-157-0 01 1 9710-9807 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9808-9809 ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 9810-0211 ● ● ●
13 SPRING; CONT CYL 1-09580-517-0 01 1 0212- ●
14 SHAFT; CONT CYL 1-22196-302-0 01 1 9505-9809 ●
14 SHAFT; CONT CYL 1-22199-145-0 01 1 9810- ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9702-9709 ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 9710-0211 ● ●
15 PLATE; CONT CYL 1-22199-001-0 01 1 9505-9809 ●
15 PLATE; CONT CYL 8-97600-316-0 01 1 9810- ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9702-9709 ●
15 PLATE; CONT CYL 1-22199-156-0 01 1 9710-0211 ● ●
16 RING; WEAR,CONT CYL 1-22199-002-0 01 1 9505-9809 ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 9810- ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9702-9709 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 01 1 9710-0211 ● ●
17 GASKET; CONT CYL 1-22199-110-0 01 1 9505-9809 ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 9810- ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9702-9709 ●
17 GASKET; CONT CYL 1-22199-103-0 01 1 9710-0211 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9505-9701 ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9702-9709 ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9710-9809 ● ● ●
18 RETAINER; CONT CYL 9-88510-324-0 01 1 9810-0211 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9505-9701 ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9702-9709 ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9710-9809 ● ● ●
20 NUT; CONT CYL 9-83315-085-0 01 1 9810-0211 ● ●
20 NUT; CONT CYL
M8 FLANGE 		0-91150-108-0 01 1 9810- ●
21 GASKET; COVER 1-22199-072-0 01 1 9505-9701 ●
21 GASKET; COVER 1-22199-072-0 01 1 9702-9709 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 9710-0211 ● ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0212- ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9505-9701 ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9702-9709 ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9710-9809 ● ● ●
23 COVER; CONT CYL 1-22199-066-0 01 1 9810-0211 ● ●
23 COVER; CONT CYL 8-97600-319-0 01 1 9810- ●
24 BOLT; COVER
M8X20 		9-01000-820-0 02 1 9505-9809 ●
24 BOLT; COVER 1-22199-174-0 02 1 9810- ●
24 BOLT; COVER 1-22199-155-0 02 1 9702-9709 ●
24 BOLT; COVER 1-22199-155-0 02 1 9710-0211 ● ●
25 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-0 02 1 9505-9809 ●
25 BOLT; CONT CYL
M10X60 FLANGE 		1-22199-160-0 02 1 9810- ●
25 BOLT; CONT CYL
M10X60 		9-01056-060-0 02 1 9702-9709 ●
25 BOLT; CONT CYL
M10X60 		9-01056-060-0 02 1 9710-9807 ● ●
25 BOLT; CONT CYL
M10X60 FLANGE 		0-28081-060-0 02 1 9808-0211 ● ●
32 WASHER; LK
EXH BRK<NF8> ID=8.2 		9-09150-508-0 05 1 9101-9504 ● ● ●
32 WASHER; LK
ID=8.2 		9-09150-508-0 06 1 9505-9809 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9702-9709 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9710-9807 ● ●
32 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9806-9807 ● ●
34 RING; SEAL
EXH BRK<NF8> (A) ID=13 		1-22189-009-0 02 1 9101-9504 ● ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9505-9701 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9702-9709 ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9710-0211 ● ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0212- ●
34 RING; SEAL
EXH BRK<NF8> (B) ID=11.7 		1-22189-010-0 02 1 9101-9504 ● ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9505-9701 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9702-9709 ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9710-0211 ● ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0212- ●
35 BOLT; PLATE FIX
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) M8X16 		9-02050-816-0 04 1 9101-9504 ● ●
35 BOLT; PLATE FIX
EXH BRK<NF8> (C) M8X16 		9-02050-816-0 04 1 9101-9504 ●
35 BOLT; PLATE FIX
(C) M8X16 		9-02050-816-0 05 1 9505-9809 ●
35 BOLT; PLATE FIX
(C) 		1-22199-174-0 05 1 9810- ●
35 BOLT; PLATE FIX
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M8X16 W/LK WASHER 		9-01910-816-0 04 1 9101-9504 ● ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9702-9709 ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9710-9807 ● ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 01 1 9702-9709 ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 01 1 9710-9807 ● ●
35 BOLT; PLATE FIX
(B) 		1-22199-174-0 02 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(A) 		1-22199-188-0 01 1 9808-0211 ● ●
37 COVER; BODY
EXH BRK<NF8> (C) 		1-22189-139-0 01 1 9101-9504 ● ● ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9505- ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9505- ●
37 COVER; BODY
(D) 		1-22189-274-0 01 1 9702-9709 ●
37 COVER; BODY
(D) 		1-22189-274-0 01 1 9710-9807 ● ●
37 COVER; BODY
(D) 		1-22189-327-0 01 1 9808-0211 ● ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 03 1 9505-9809 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9702-9709 ●
40 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 01 1 9710-0211 ● ●
104 RING; RET 9-88510-331-0 01 1 9505-9701 ●
104 RING; RET 9-88510-331-0 01 1 9702-9709 ● ●
104 RING; RET 9-88510-331-0 01 1 9710-0211 ● ● ●
104 RING; RET 9-88510-331-0 01 1 0212- ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9505-9701 ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9702-9709 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 9710-0211 ● ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0212- ●
106 BRACKET; CONT CYL 8-94394-155-0 01 1 9505-9809 ●
106 BRACKET; CONT CYL 8-97600-869-0 01 1 9810- ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9702-9709 ●
106 BRACKET; CONT CYL 8-94395-578-0 01 1 9710-0211 ● ●
107 NUT; CONT CYL
(C) M10 FLANGE 		0-91150-110-0 01 1 9810- ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9702-9709 ●
107 NUT; CONT CYL
(B) 		9-83315-080-0 02 1 9710-9807 ● ●
107 NUT; CONT CYL
(B) M10 FLANGE 		0-91150-110-0 02 1 9808-0211 ● ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9702-9709 ●
107 NUT; CONT CYL
(A) 		9-83315-085-0 01 1 9710-0211 ● ●
111 ELBOW; CONT CYL 8-94393-086-1 01 1 9505-0211 ●
111 ELBOW; CONT CYL 1-09650-358-0 01 1 9702-9709 ●
111 ELBOW; CONT CYL 1-09650-358-1 01 1 9710-0211 ● ●
132 LEVER; BRK VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22189-128-1 01 1 9101-9504 ● ●
132 LEVER; BRK VLV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> 		1-22196-264-0 01 1 9101-9504 ● ● ●
132 LEVER; BRK VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22196-268-0 01 1 9101-9504 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9505- ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9702-9709 ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9710-0211 ● ●
133 NUT; LK
EXH BRK<NF8> M8 		9-09111-508-0 03 1 9101-9504 ● ● ●
133 NUT; LK 8-94311-428-0 03 1 9505-9809 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9702-9709 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9710-9809 ● ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9810-0211 ● ● ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 0212- ●
134 BOLT; STOPPER
EXH BRK<NF8> M8X30 		1-09000-112-1 02 1 9101-9504 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9505-9701 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9702-9709 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9710-0211 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0212- ●
135 CLEVIS; CONT CYL 1-22199-053-0 01 1 9505- ●
153 BOLT; CLEVIS,CONT CYL
M6X30 		1-09000-559-0 02 1 9505-9809 ●
153 BOLT; CLEVIS,CONT CYL 8-97600-320-0 02 1 9810- ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9702-9709 ●
153 BOLT; CLEVIS,CONT CYL 1-33739-200-0 02 1 9710-0211 ● ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 02 1 9505-9809 ●
154 NUT; CLEVIS,CONT CYL
M6 		9-09110-406-0 04 1 9810- ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9702-9709 ●
154 NUT; CLEVIS,CONT CYL
M8 FLANGE 		0-91150-108-0 02 1 9710-0211 ● ●

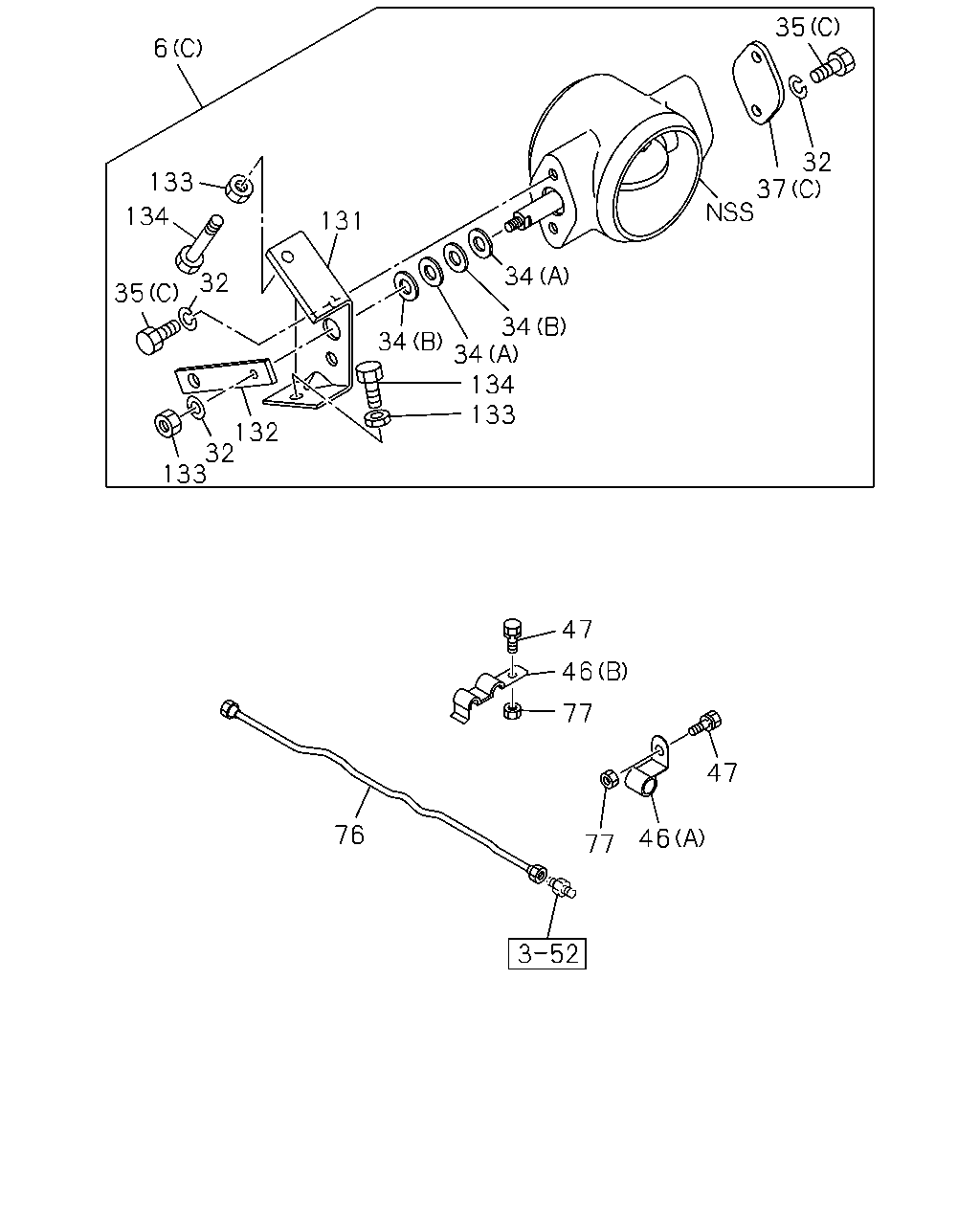

çizim 36895
35 6 32 37 133 134 131 34 32 35 34 34 34 134 133 132 32 133 47 46 77 47 76 46 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-239-3 01 1 9101-9504 ● ●
6 VALVE; EXH BRAKE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) 		1-22180-240-3 01 1 9101-9504 ● ● ●
6 VALVE; EXH BRAKE
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-22180-234-2 01 1 9101-9504 ●
6 VALVE; EXH BRAKE
(A) 		8-94393-930-2 01 1 9505-0211 ●
6 VALVE; EXH BRAKE
(A) 		8-97602-529-0 01 1 0212- ●
6 VALVE; EXH BRAKE
(B) 		8-94394-154-0 01 1 9505-9809 ●
6 VALVE; EXH BRAKE
(B) 		8-97600-870-0 01 1 9810- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9702-9709 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-134-0 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-94395-246-1 01 1 9702-9705 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-0 01 1 9706-9709 ●
6 VALVE; EXH BRAKE
(A) 		8-94391-746-1 01 1 9710-0211 ● ●
6 VALVE; EXH BRAKE
(A) 		8-97602-527-1 01 1 0212- ● ●
32 WASHER; LK
EXH BRK<NF8> ID=8.2 		9-09150-508-0 05 1 9101-9504 ● ● ●
32 WASHER; LK
ID=8.2 		9-09150-508-0 06 1 9505-9809 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9702-9709 ●
32 WASHER; LK
ID=8.4 OD=18 		9-09164-608-0 01 1 9710-9807 ● ●
32 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9806-9807 ● ●
34 RING; SEAL
EXH BRK<NF8> (A) ID=13 		1-22189-009-0 02 1 9101-9504 ● ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9505-9701 ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9702-9709 ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 9710-0211 ● ● ●
34 RING; SEAL
(A) ID=15 		8-94397-184-0 02 1 0212- ●
34 RING; SEAL
EXH BRK<NF8> (B) ID=11.7 		1-22189-010-0 02 1 9101-9504 ● ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9505-9701 ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9702-9709 ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 9710-0211 ● ● ●
34 RING; SEAL
(B) ID=13.7 		9-22189-124-0 02 1 0212- ●
35 BOLT; PLATE FIX
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> (C) M8X16 		9-02050-816-0 04 1 9101-9504 ● ●
35 BOLT; PLATE FIX
EXH BRK<NF8> (C) M8X16 		9-02050-816-0 04 1 9101-9504 ●
35 BOLT; PLATE FIX
(C) M8X16 		9-02050-816-0 05 1 9505-9809 ●
35 BOLT; PLATE FIX
(C) 		1-22199-174-0 05 1 9810- ●
35 BOLT; PLATE FIX
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) M8X16 W/LK WASHER 		9-01910-816-0 04 1 9101-9504 ● ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9702-9709 ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 05 1 9710-9807 ● ●
35 BOLT; PLATE FIX
(A) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 01 1 9702-9709 ●
35 BOLT; PLATE FIX
(B) M10X20 		9-02051-020-0 01 1 9710-9807 ● ●
35 BOLT; PLATE FIX
(B) 		1-22199-174-0 02 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(A) M10X20 		0-28021-020-0 01 1 9808-0211 ● ●
35 BOLT; PLATE FIX
(A) 		1-22199-188-0 01 1 9808-0211 ● ●
37 COVER; BODY
EXH BRK<NF8> (C) 		1-22189-139-0 01 1 9101-9504 ● ● ●
37 COVER; BODY
(A) 		9-22189-160-0 01 1 9505- ●
37 COVER; BODY
(B) 		1-22199-130-0 01 1 9505- ●
37 COVER; BODY
(D) 		1-22189-274-0 01 1 9702-9709 ●
37 COVER; BODY
(D) 		1-22189-274-0 01 1 9710-9807 ● ●
37 COVER; BODY
(D) 		1-22189-327-0 01 1 9808-0211 ● ●
46 CLIP; AIR PIPE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9101-9504 ● ● ●
46 CLIP; AIR PIPE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9101-9504 ● ● ●
46 CLIP; AIR PIPE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) (B) ID=7 & 11 		1-09700-790-0 01 1 9101-9504 ● ● ●
46 CLIP; AIR PIPE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) (B) ID=7 & 11 		1-09700-790-0 01 1 9101-9504 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ● ●
47 BOLT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9504 ● ● ●
47 BOLT; CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 9505-9506 ●
47 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9507-0512 ●
47 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
76 PIPE ASM; AIR UNION TO UNION
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) L=1362 SERVICED BY L=1370 		1-47434-390-0 01 1 9101-9504 ● ● ●
76 PIPE ASM; AIR UNION TO UNION
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) L=1362 SERVICED BY L=1370 		1-47434-390-0 01 1 9101-9504 ● ● ●
77 NUT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLU SYSTEM MINIPACK(B1Z) M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
77 NUT; CLIP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXH BRK<NF8> EXC. CLU SYSTEM MINIPACK(B1Z) M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
77 NUT; CLIP
M8 		9-09110-508-0 01 1 9505-9603 ●
77 NUT; CLIP
M8 		9-09110-408-0 01 1 9604-9606 ●
77 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9607-0602 ●
77 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
131 PLATE; BODY
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22196-170-0 01 1 9101-9504 ● ●
131 PLATE; BODY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> 		1-22196-171-0 01 1 9101-9504 ● ● ●
131 PLATE; BODY
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22196-052-0 01 1 9101-9504 ●
131 PLATE; BODY 8-94391-039-0 01 1 9810- ●
132 LEVER; BRK VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22189-128-1 01 1 9101-9504 ● ●
132 LEVER; BRK VLV
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXH BRK<NF8> 		1-22196-264-0 01 1 9101-9504 ● ● ●
132 LEVER; BRK VLV
EXH BRK<NF8> EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-22196-268-0 01 1 9101-9504 ●
132 LEVER; BRK VLV 8-94397-185-0 01 1 9505- ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9702-9709 ●
132 LEVER; BRK VLV 1-22196-342-0 01 1 9710-0211 ● ●
133 NUT; LK
EXH BRK<NF8> M8 		9-09111-508-0 03 1 9101-9504 ● ● ●
133 NUT; LK 8-94311-428-0 03 1 9505-9809 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9702-9709 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9710-9809 ● ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 9810-0211 ● ● ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 03 1 0212- ●
134 BOLT; STOPPER
EXH BRK<NF8> M8X30 		1-09000-112-1 02 1 9101-9504 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9505-9701 ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9702-9709 ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 9710-0211 ● ● ●
134 BOLT; STOPPER
M8X30 		1-09000-112-1 02 1 0212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
