1-31 — AIR DUCT (#43919) — 100 parça

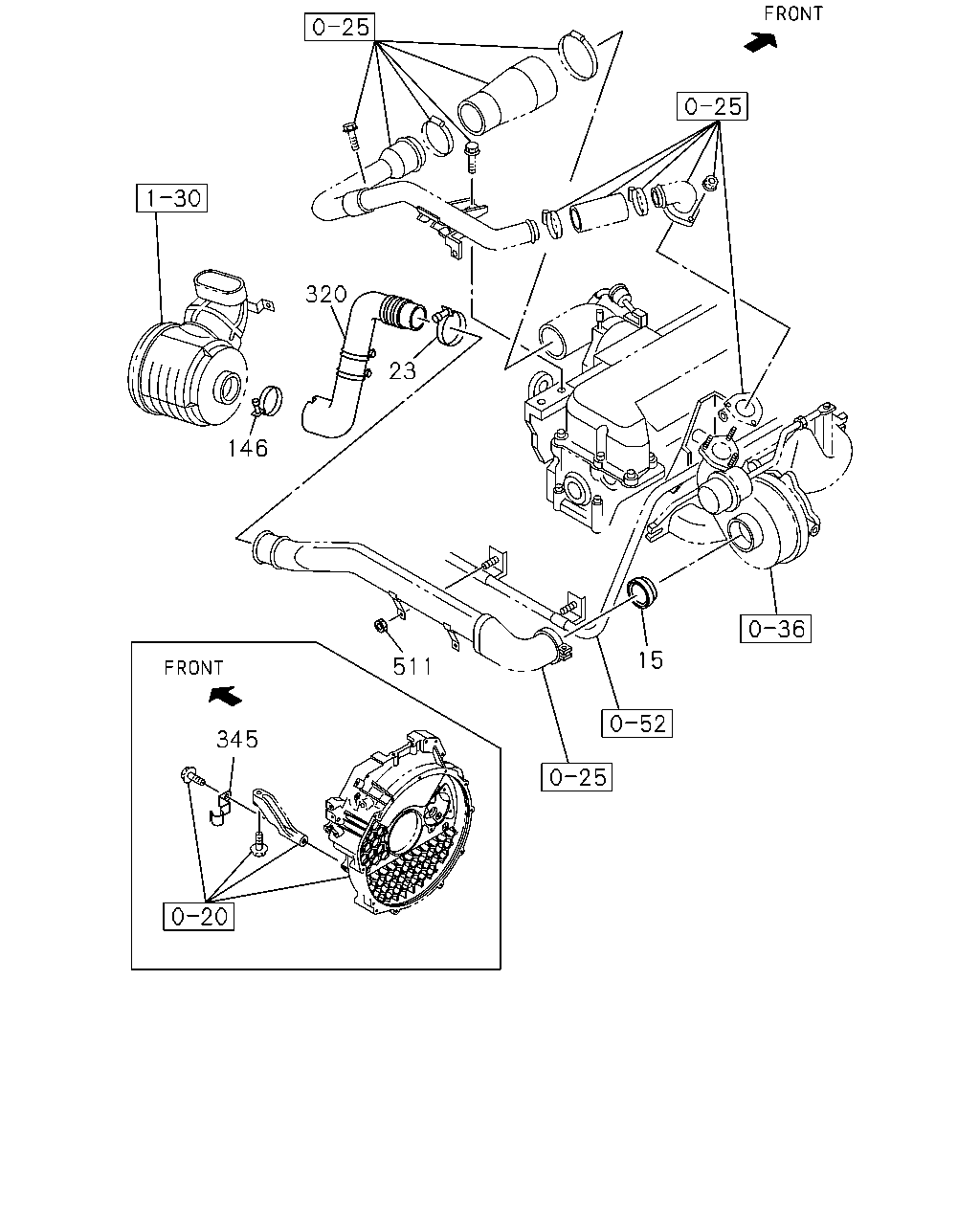

320 23 146 15 511 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	INSULATOR 4HG1 ENG<RJH>	8-94454-802-0	01	1	0009-	●
15	INSULATOR	8-94454-802-0	01	1	0009-		●
23	CLIP; HOSE 4HG1 ENG<RJH> ID=87	8-97087-432-0	01	1	0009-	●
23	CLIP; HOSE ID=87	8-97087-432-0	01	1	0009-		●
146	CLIP; HOSE,ACL 4HG1 ENG<RJH> ID=117	9-09915-075-1	01	1	0009-	●
146	CLIP; HOSE,ACL ID=117	9-09915-075-1	01	1	0009-		●
146	CLIP; HOSE,ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> ID=112	9-09915-074-1	01	1	0009-	●
146	CLIP; HOSE,ACL CHARGE AIR COOLER<6PL> ID=112	9-09915-074-1	01	1	0009-			●
320	HOSE; CONN,ACL 4HG1 ENG<RJH>	8-97223-572-0	01	1	0009-	●
320	HOSE; CONN,ACL	8-97223-572-0	01	1	0009-		●
320	HOSE; CONN,ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0009-	●
320	HOSE; CONN,ACL CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0009-			●
345	CLIP; PCV HOSE TURBOCHARGER<K51>	8-97066-710-1	01	1	0009-0307	●
345	CLIP; PCV HOSE	8-97066-710-1	01	1	0009-0307		●	●
345	CLIP; PCV HOSE TURBOCHARGER<K51>	8-97369-959-0	01	1	0308-	●
345	CLIP; PCV HOSE	8-97369-959-0	01	1	0308-		●	●
511	NUT; PIPE 4HG1 ENG<RJH> M8 FLANGE	0-91150-108-0	02	1	0009-	●
511	NUT; PIPE M8 FLANGE	0-91150-108-0	02	1	0009-		●

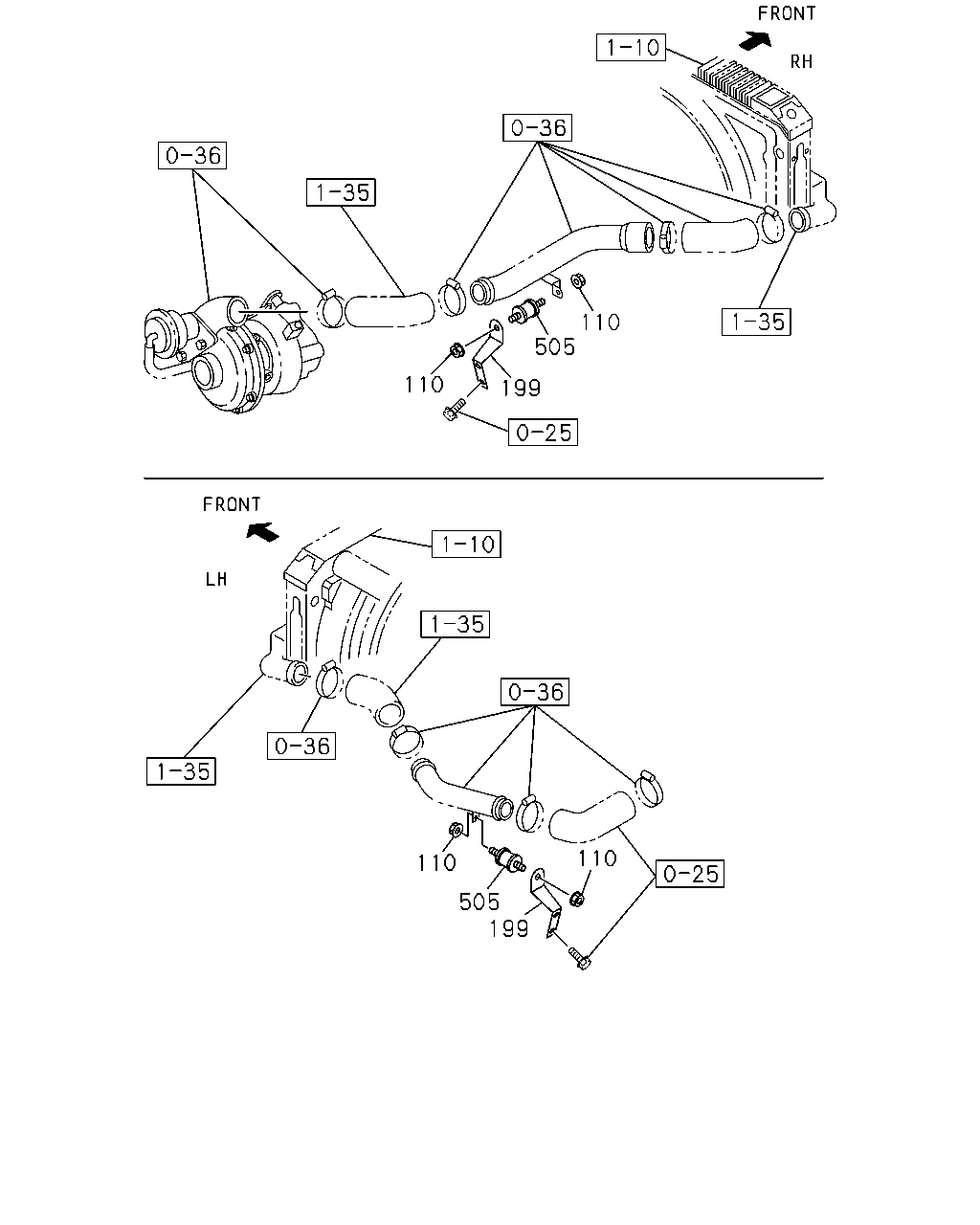

110 505 110 199 110 110 505 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
110	NUT; RUBBER MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-	●
110	NUT; RUBBER MTG CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	04	1	0009-		●
199	BRACKET; PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97189-603-1	01	1	0009-	●
199	BRACKET; PIPE CHARGE AIR COOLER<6PL>	8-97189-603-1	01	1	0009-		●
199	BRACKET; PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97189-604-0	01	1	0009-	●
199	BRACKET; PIPE CHARGE AIR COOLER<6PL>	8-97189-604-0	01	1	0009-		●
505	RUBBER; MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-94158-155-1	02	1	0009-	●
505	RUBBER; MTG CHARGE AIR COOLER<6PL>	8-94158-155-1	02	1	0009-		●

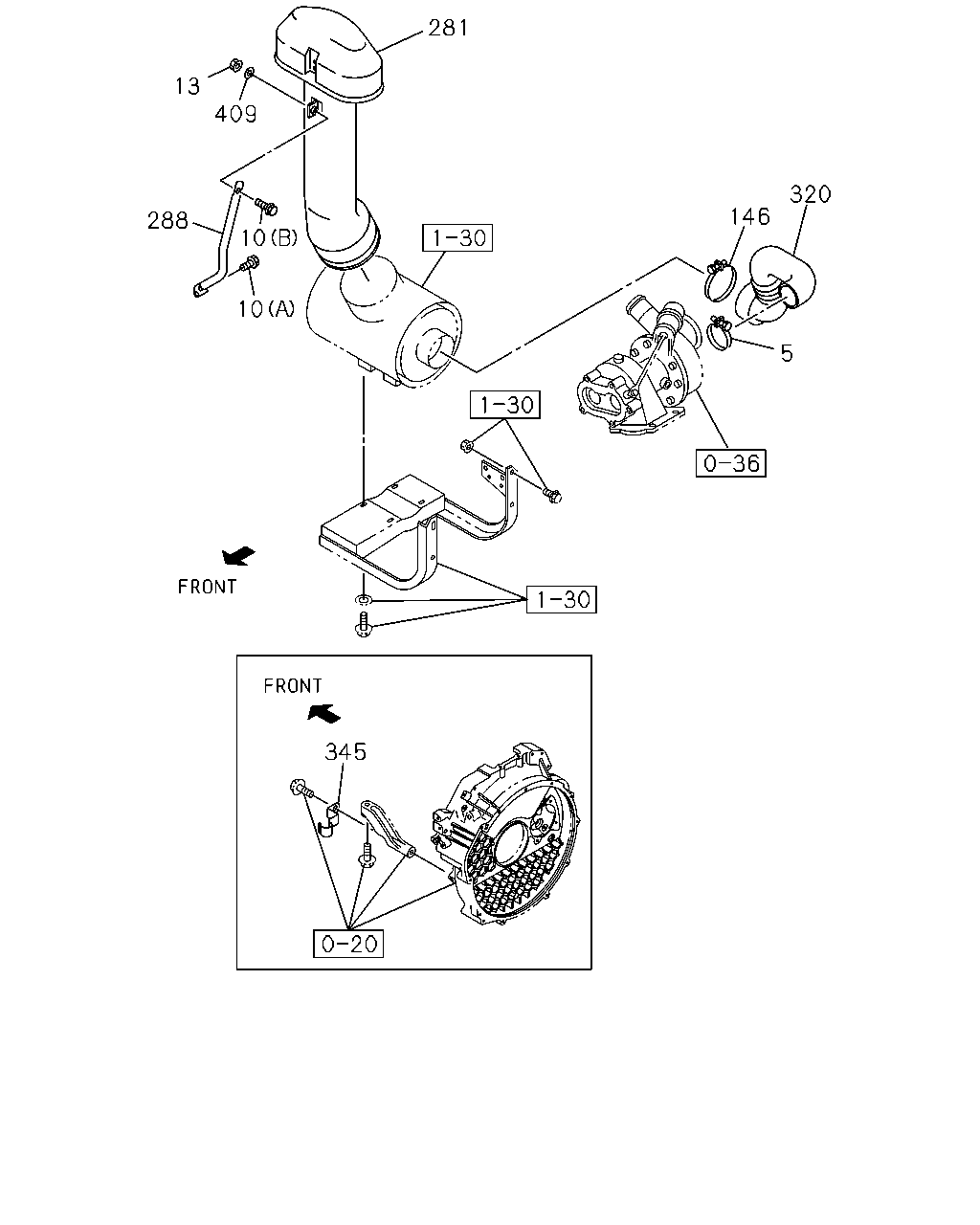

281 13 409 320 146 288 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4HG1 ENG<RJH> D=101.6	9-09915-502-1	01	1	0009-	●
5	CLIP; AIR DUCT D=101.6	9-09915-502-1	01	1	0009-		●
5	CLIP; AIR DUCT 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> ID=58-79	1-09707-136-0	01	1	0009-	●
5	CLIP; AIR DUCT CHARGE AIR COOLER<6PL> ID=58-79	1-09707-136-0	01	1	0009-			●
10	BOLT; BRKT FIX 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (A) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
10	BOLT; BRKT FIX CHARGE AIR COOLER<6PL> (A) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
10	BOLT; BRKT FIX 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B) M8X35 FLANGE	0-28680-835-0	01	1	0009-	●
10	BOLT; BRKT FIX CHARGE AIR COOLER<6PL> (B) M8X35 FLANGE	0-28680-835-0	01	1	0009-			●
13	NUT; BRKT FIX 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-	●
13	NUT; BRKT FIX CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-			●
146	CLIP; HOSE,ACL 4HG1 ENG<RJH> ID=117	9-09915-075-1	01	1	0009-	●
146	CLIP; HOSE,ACL ID=117	9-09915-075-1	01	1	0009-		●
146	CLIP; HOSE,ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> ID=112	9-09915-074-1	01	1	0009-	●
146	CLIP; HOSE,ACL CHARGE AIR COOLER<6PL> ID=112	9-09915-074-1	01	1	0009-			●
281	DUCT; AIR,VERTICAL INT 4HG1 ENG<RJH>	8-97125-174-1	01	1	0009-	●
281	DUCT; AIR,VERTICAL INT	8-97125-174-1	01	1	0009-		●
281	DUCT; AIR,VERTICAL INT 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97180-995-0	01	1	0009-	●
281	DUCT; AIR,VERTICAL INT CHARGE AIR COOLER<6PL>	8-97180-995-0	01	1	0009-			●
288	BRACKET; DUCT 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97183-041-2	01	1	0009-	●
288	BRACKET; DUCT CHARGE AIR COOLER<6PL>	8-97183-041-2	01	1	0009-			●
320	HOSE; CONN,ACL 4HG1 ENG<RJH>	8-97223-572-0	01	1	0009-	●
320	HOSE; CONN,ACL	8-97223-572-0	01	1	0009-		●
320	HOSE; CONN,ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0009-	●
320	HOSE; CONN,ACL CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0009-			●
345	CLIP; PCV HOSE TURBOCHARGER<K51>	8-97066-710-1	01	1	0009-0307	●
345	CLIP; PCV HOSE	8-97066-710-1	01	1	0009-0307		●	●
345	CLIP; PCV HOSE TURBOCHARGER<K51>	8-97369-959-0	01	1	0308-	●
345	CLIP; PCV HOSE	8-97369-959-0	01	1	0308-		●	●
409	WASHER; PL,BRKT 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> ID=8.4 OD=22	9-09160-708-0	01	1	0009-	●
409	WASHER; PL,BRKT CHARGE AIR COOLER<6PL> ID=8.4 OD=22	9-09160-708-0	01	1	0009-			●

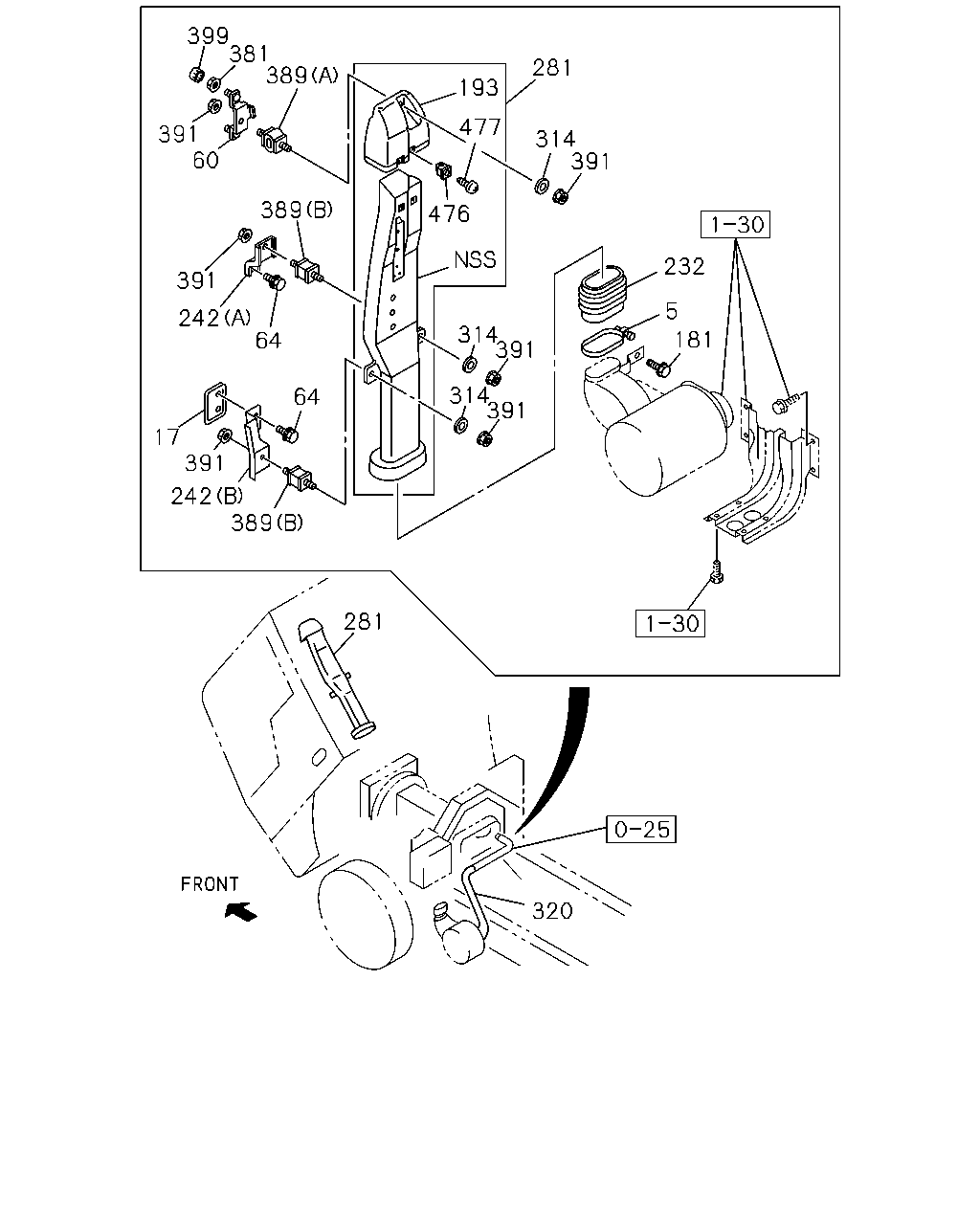

399 381 389 281 193 477 391 60 314 391 389 476 232 391 5 242 64 314 391 181 314 391 64 17 391 242 389 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT 4HG1 ENG<RJH> D=101.6	9-09915-502-1	01	1	0009-	●
5	CLIP; AIR DUCT D=101.6	9-09915-502-1	01	1	0009-		●
5	CLIP; AIR DUCT 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> ID=58-79	1-09707-136-0	01	1	0009-	●
5	CLIP; AIR DUCT CHARGE AIR COOLER<6PL> ID=58-79	1-09707-136-0	01	1	0009-			●
17	GASKET; AIR DUCT 4HG1 ENG<RJH>	8-97853-699-2	01	1	0009-	●
17	GASKET; AIR DUCT	8-97853-699-2	01	1	0009-		●
60	BRACKET; AIR DUCT,UPR 4HG1 ENG<RJH> THA	8-97916-585-0	01	1	0009-	●
60	BRACKET; AIR DUCT,UPR THA	8-97916-585-0	01	1	0009-		●
64	BOLT; BRKT,AIR DUCT 4HG1 ENG<RJH> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0009-	●
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0009-		●
181	BOLT; AIR DUCT TO RAD 4HG1 ENG<RJH> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
181	BOLT; AIR DUCT TO RAD M8X25 FLANGE	0-28680-825-0	01	1	0009-		●
193	COVER; DUCT,AIR INT 4HG1 ENG<RJH>	8-97044-953-0	01	1	0009-	●
193	COVER; DUCT,AIR INT	8-97044-953-0	01	1	0009-		●
232	HOSE; CONN 4HG1 ENG<RJH>	8-97109-423-0	01	1	0009-	●
232	HOSE; CONN	8-97109-423-0	01	1	0009-		●
242	BRACKET; AIR DUCT 4HG1 ENG<RJH> (B) THA	8-97916-575-0	01	1	0009-	●
242	BRACKET; AIR DUCT (B) THA	8-97916-575-0	01	1	0009-		●
242	BRACKET; AIR DUCT 4HG1 ENG<RJH> (A) THA	8-97916-582-0	01	1	0009-	●
242	BRACKET; AIR DUCT (A) THA	8-97916-582-0	01	1	0009-		●
281	DUCT; AIR,VERTICAL INT 4HG1 ENG<RJH>	8-97125-174-1	01	1	0009-	●
281	DUCT; AIR,VERTICAL INT	8-97125-174-1	01	1	0009-		●
281	DUCT; AIR,VERTICAL INT 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97180-995-0	01	1	0009-	●
281	DUCT; AIR,VERTICAL INT CHARGE AIR COOLER<6PL>	8-97180-995-0	01	1	0009-			●
314	WASHER; PL,AIR INT DUCT 4HG1 ENG<RJH> ID=10.2 T=3.2	8-94279-642-0	03	1	0009-	●
314	WASHER; PL,AIR INT DUCT ID=10.2 T=3.2	8-94279-642-0	03	1	0009-		●
320	HOSE; CONN,ACL 4HG1 ENG<RJH>	8-97223-572-0	01	1	0009-	●
320	HOSE; CONN,ACL	8-97223-572-0	01	1	0009-		●
320	HOSE; CONN,ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0009-	●
320	HOSE; CONN,ACL CHARGE AIR COOLER<6PL>	8-97209-707-0	01	1	0009-			●
381	NUT; BRKT,AIR DUCT 4HG1 ENG<RJH> M6 FLANGE	1-09984-018-0	02	1	0009-	●
381	NUT; BRKT,AIR DUCT M6 FLANGE	1-09984-018-0	02	1	0009-		●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG<RJH> (A)	8-97080-149-0	01	1	0009-	●
389	RUBBER; SUPPORT,AIR INT UPR (A)	8-97080-149-0	01	1	0009-		●
389	RUBBER; SUPPORT,AIR INT UPR 4HG1 ENG<RJH> (B)	8-97081-886-0	02	1	0009-	●
389	RUBBER; SUPPORT,AIR INT UPR (B)	8-97081-886-0	02	1	0009-		●
391	NUT; SUPPORT RUBBER,UPR 4HG1 ENG<RJH> M8 FLANGE	8-94279-517-0	06	1	0009-	●
391	NUT; SUPPORT RUBBER,UPR M8 FLANGE	8-94279-517-0	06	1	0009-		●
399	CAP; BRKT,AIR DUCT 4HG1 ENG<RJH>	8-94273-605-0	02	1	0009-	●
399	CAP; BRKT,AIR DUCT	8-94273-605-0	02	1	0009-		●
476	GROMMET; SCREW,COVER 4HG1 ENG<RJH>	1-09983-081-0	04	1	0009-	●
476	GROMMET; SCREW,COVER	1-09983-081-0	04	1	0009-		●
477	SCREW; COVER 4HG1 ENG<RJH> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0009-	●
477	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0009-		●
