1-30 — AIR CLEANER (#43918) — 88 parça

1 2 3 6 99 100 94 146 1 145 54 50 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97228-084-2	01	1	0009-	●
1	CLEANER ASM; AIR	8-97228-084-2	01	1	0009-		●
1	CLEANER ASM; AIR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	0009-0101	●
1	CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	0009-0101			●
1	CLEANER ASM; AIR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97308-653-0	01	1	0102-	●
1	CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97308-653-0	01	1	0102-			●
2	NUT; WING,ELEMENT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94447-989-0	01	1	0009-	●
2	NUT; WING,ELEMENT CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94447-989-0	01	1	0009-			●
3	WASHER; SEAL,WING NUT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94447-990-0	01	1	0009-	●
3	WASHER; SEAL,WING NUT CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94447-990-0	01	1	0009-			●
6	FILTER; ACL 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97062-294-0	01	1	0009-	●
6	FILTER; ACL	8-97062-294-0	01	1	0009-		●
6	FILTER; ACL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-250-0	01	1	0009-	●
6	FILTER; ACL CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-250-0	01	1	0009-			●
6	FILTER; ACL 4HG1 ENG<RJH> TURBOCHARGER<K51> BESTFIX	5-86750-187-0	01	1	0009-	●
6	FILTER; ACL BESTFIX	5-86750-187-0	01	1	0009-		●
50	WASHER; PL,ACL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=10.5 OD=22	9-09164-610-0	04	1	0009-	●
50	WASHER; PL,ACL CHARGE AIR COOLER<6PL> ID=10.5 OD=22	9-09164-610-0	04	1	0009-			●
54	BRACKET; ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97188-598-1	01	1	0009-	●
54	BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97188-598-1	01	1	0009-			●
54	BRACKET; ACL 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97917-168-0	01	1	0009-	●
54	BRACKET; ACL 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97917-167-0	01	1	0009-	●
54	BRACKET; ACL (A) THA	8-97917-167-0	01	1	0009-		●
94	VALVE; VACUATOR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97093-694-0	01	1	0009-	●
94	VALVE; VACUATOR	8-97093-694-0	01	1	0009-		●
94	VALVE; VACUATOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	1-14219-075-0	01	1	0009-	●
94	VALVE; VACUATOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	1-14219-075-0	01	1	0009-			●
99	CAP; NIPPLE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94448-008-0	01	1	0009-	●
99	CAP; NIPPLE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94448-008-0	01	1	0009-			●
100	ADAPTER; ELBOW 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97093-075-0	01	1	0009-	●
100	ADAPTER; ELBOW	8-97093-075-0	01	1	0009-		●
100	ADAPTER; ELBOW 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-259-0	01	1	0009-	●
100	ADAPTER; ELBOW CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-259-0	01	1	0009-			●
130	BOLT; BRKT TO ACL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8X16 FLANGE	0-28080-816-0	04	1	0009-	●
130	BOLT; BRKT TO ACL CHARGE AIR COOLER<6PL> M8X16 FLANGE	0-28080-816-0	04	1	0009-			●
145	BOLT; BRKT TO FRAME 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	05	1	0009-	●
145	BOLT; BRKT TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0009-	●
145	BOLT; BRKT TO FRAME 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0009-	●
145	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	0009-		●	●
146	NUT; BRKT TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0009-	●
146	NUT; BRKT TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	04	1	0009-	●
146	NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	04	1	0009-		●
146	NUT; BRKT TO FRAME CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	04	1	0009-			●
146	NUT; BRKT TO FRAME 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	03	1	0009-	●

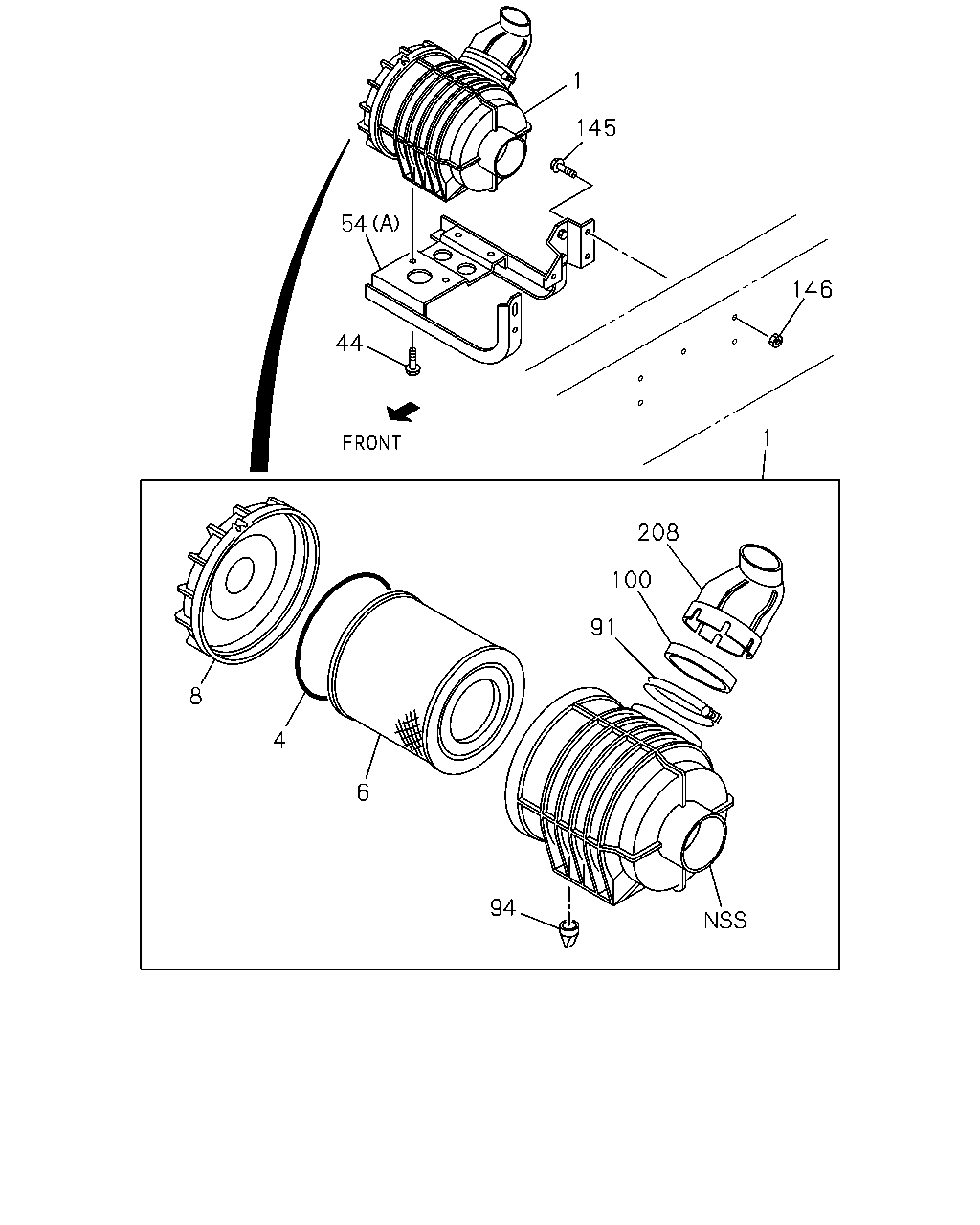

1 145 54 146 44 1 208 100 91 8 4 6 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CLEANER ASM; AIR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97228-084-2	01	1	0009-	●
1	CLEANER ASM; AIR	8-97228-084-2	01	1	0009-		●
1	CLEANER ASM; AIR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	0009-0101	●
1	CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97189-166-2	01	1	0009-0101			●
1	CLEANER ASM; AIR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97308-653-0	01	1	0102-	●
1	CLEANER ASM; AIR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97308-653-0	01	1	0102-			●
4	GASKET; COVER TO BODY 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97228-092-0	01	1	0009-	●
4	GASKET; COVER TO BODY	8-97228-092-0	01	1	0009-		●
6	FILTER; ACL 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97062-294-0	01	1	0009-	●
6	FILTER; ACL	8-97062-294-0	01	1	0009-		●
6	FILTER; ACL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-250-0	01	1	0009-	●
6	FILTER; ACL CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-250-0	01	1	0009-			●
6	FILTER; ACL 4HG1 ENG<RJH> TURBOCHARGER<K51> BESTFIX	5-86750-187-0	01	1	0009-	●
6	FILTER; ACL BESTFIX	5-86750-187-0	01	1	0009-		●
8	COVER ASM; ACL 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97228-090-0	01	1	0009-	●
8	COVER ASM; ACL	8-97228-090-0	01	1	0009-		●
44	BOLT; ACL 4HG1 ENG<RJH> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0009-	●
44	BOLT; ACL M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0009-		●
54	BRACKET; ACL 4HE1 ENG<RLY> TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> (B)	8-97188-598-1	01	1	0009-	●
54	BRACKET; ACL CHARGE AIR COOLER<6PL> (B)	8-97188-598-1	01	1	0009-			●
54	BRACKET; ACL 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97917-168-0	01	1	0009-	●
54	BRACKET; ACL 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97917-167-0	01	1	0009-	●
54	BRACKET; ACL (A) THA	8-97917-167-0	01	1	0009-		●
91	CLAMP 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97093-695-1	01	1	0009-	●
91	CLAMP	8-97093-695-1	01	1	0009-		●
94	VALVE; VACUATOR 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97093-694-0	01	1	0009-	●
94	VALVE; VACUATOR	8-97093-694-0	01	1	0009-		●
94	VALVE; VACUATOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	1-14219-075-0	01	1	0009-	●
94	VALVE; VACUATOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	1-14219-075-0	01	1	0009-			●
100	ADAPTER; ELBOW 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97093-075-0	01	1	0009-	●
100	ADAPTER; ELBOW	8-97093-075-0	01	1	0009-		●
100	ADAPTER; ELBOW 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-259-0	01	1	0009-	●
100	ADAPTER; ELBOW CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-94430-259-0	01	1	0009-			●
145	BOLT; BRKT TO FRAME 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	05	1	0009-	●
145	BOLT; BRKT TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0009-	●
145	BOLT; BRKT TO FRAME 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE	0-28681-035-0	04	1	0009-	●
145	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	04	1	0009-		●	●
146	NUT; BRKT TO FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	04	1	0009-	●
146	NUT; BRKT TO FRAME 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	04	1	0009-	●
146	NUT; BRKT TO FRAME M10 FLANGE	0-91150-110-0	04	1	0009-		●
146	NUT; BRKT TO FRAME CHARGE AIR COOLER<6PL> M10 FLANGE	0-91150-110-0	04	1	0009-			●
146	NUT; BRKT TO FRAME 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91150-110-0	03	1	0009-	●
208	DUCT; ACL 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97230-869-0	01	1	0009-	●
208	DUCT; ACL	8-97230-869-0	01	1	0009-		●
