1-11 — RADIATOR HOSE AND SUB TANK (#43917) — 27 parça

128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	HOSE; WATER,RAD OUTLET 4HG1 ENG<RJH> THA	8-97916-523-0	01	1	0009-0009	●
55	HOSE; WATER,RAD OUTLET THA	8-97916-523-0	01	1	0009-0009		●
55	HOSE; WATER,RAD OUTLET 4HG1 ENG<RJH> TURBOCHARGER<K51> THA	8-97921-709-0	01	1	0010-	●
55	HOSE; WATER,RAD OUTLET THA	8-97921-709-0	01	1	0010-		●
55	HOSE; WATER,RAD OUTLET 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97920-886-0	01	1	0009-	●
55	HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL> THA	8-97920-886-0	01	1	0009-			●
56	CLIP; WATER HOSE,RAD ID=40	8-97245-216-0	02	1	0009-	●	●	●
128	HOSE; WATER,RAD INL 4HG1 ENG<RJH> THA	8-97912-116-0	01	1	0009-0009	●
128	HOSE; WATER,RAD INL THA	8-97912-116-0	01	1	0009-0009		●
128	HOSE; WATER,RAD INL 4HG1 ENG<RJH> TURBOCHARGER<K51> THA	8-97921-708-0	01	1	0010-	●
128	HOSE; WATER,RAD INL THA	8-97921-708-0	01	1	0010-		●
128	HOSE; WATER,RAD INL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97920-885-0	01	1	0009-	●
128	HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL> THA	8-97920-885-0	01	1	0009-			●

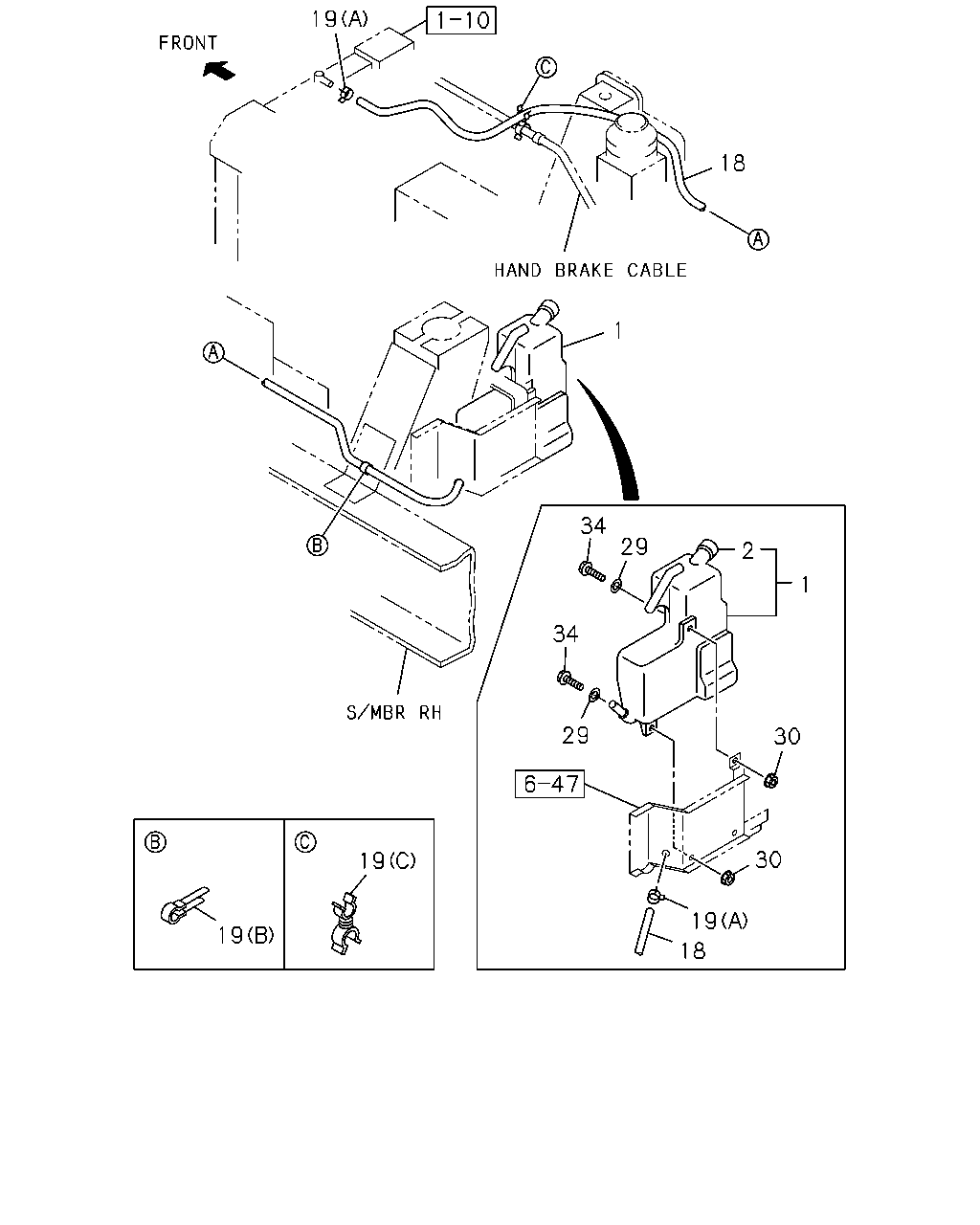

19 18 1 34 29 2 1 34 29 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; SURGE,RAD	8-97210-844-0	01	1	0009-	●	●	●
2	CAP; SURGE TANK	8-97217-796-0	01	1	0009-	●	●	●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG<RJH>	8-97129-557-0	01	1	0009-0009	●
18	HOSE; RAD TO SURGE TANK	8-97129-557-0	01	1	0009-0009		●
18	HOSE; RAD TO SURGE TANK 4HG1 ENG<RJH> TURBOCHARGER<K51> L=1455	8-97148-535-1	01	1	0010-	●
18	HOSE; RAD TO SURGE TANK L=1455	8-97148-535-1	01	1	0010-		●
18	HOSE; RAD TO SURGE TANK 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> L=1450	8-97218-446-0	01	1	0009-	●
18	HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL> L=1450	8-97218-446-0	01	1	0009-			●
19	CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0009-	●	●	●
19	CLIP; HOSE,SURGE TANK (A) ID=12	8-94238-610-0	02	1	0009-	●	●	●
19	CLIP; HOSE,SURGE TANK (C) ID=10 & 11 THA	8-94438-996-0	01	1	0009-	●	●	●
29	WASHER; PL,RESERVE TANK ID=6.4 OD=18	9-09160-706-0	03	1	0009-	●	●	●
30	NUT M6 FLANGE	0-91150-106-0	03	1	0009-	●	●	●
34	BOLT; RESERVE TANK M6X20 FLANGE	0-28680-620-0	03	1	0009-	●	●	●
