Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#43916) — 218 parça

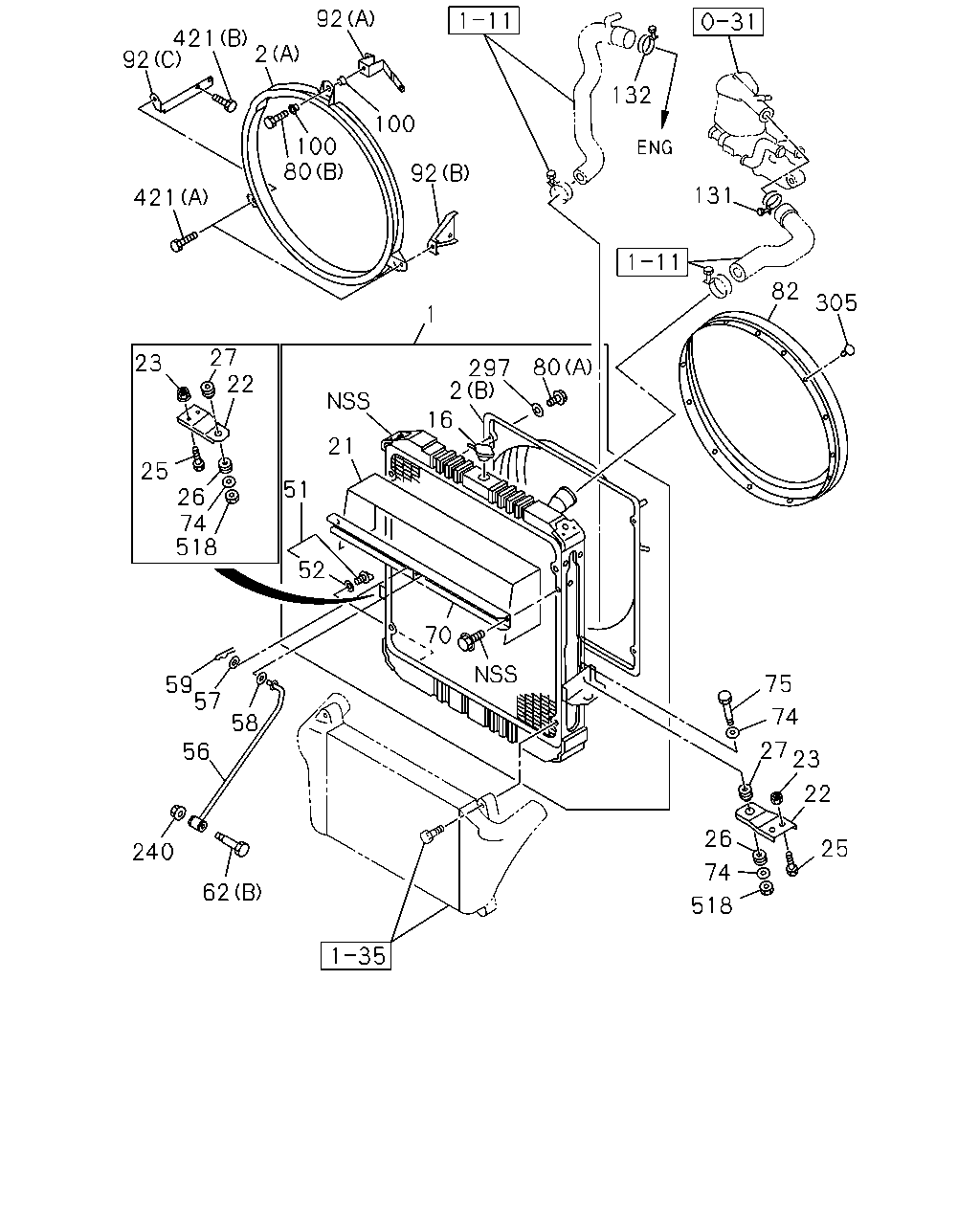

92 421 2 92 132 100 100 80 92 131 421 82 305 1 27 22 23 80 297 2 16 21 25 26 74 518 51 52 70 75 59 57 74 58 27 23 56 22 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97255-209-0	01	1	0009-0010	●
1	RADIATOR ASM CHARGE AIR COOLER<6PL> THA	8-97255-209-0	01	1	0009-0010		●
1	RADIATOR ASM 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97942-216-0	01	1	0011-	●
1	RADIATOR ASM CHARGE AIR COOLER<6PL> THA	8-97942-216-0	01	1	0011-		●
1	RADIATOR ASM 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-295-0	01	1	0009-0009	●
1	RADIATOR ASM THA	8-97940-295-0	01	1	0009-0009			●
1	RADIATOR ASM 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-295-1	01	1	0010-	●
1	RADIATOR ASM THA	8-97940-295-1	01	1	0010-			●
2	GUIDE; FAN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) THA	8-97218-802-0	01	1	0009-	●
2	GUIDE; FAN CHARGE AIR COOLER<6PL> (B) THA	8-97218-802-0	01	1	0009-		●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-657-0	01	1	0009-0009	●
2	GUIDE; FAN THA	8-97940-657-0	01	1	0009-0009			●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-657-0	01	1	0010-0010	●
2	GUIDE; FAN THA	8-97940-657-0	01	1	0010-0010			●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97942-319-0	01	1	0010-	●
2	GUIDE; FAN THA	8-97942-319-0	01	1	0010-			●
2	GUIDE; FAN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	0009-	●
2	GUIDE; FAN CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	0009-		●
16	CAP; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97177-872-0	01	1	0009-0010	●
16	CAP; RAD CHARGE AIR COOLER<6PL> THA	8-97177-872-0	01	1	0009-0010		●
16	CAP; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-668-0	01	1	0009-0009	●
16	CAP; RAD THA	8-97940-668-0	01	1	0009-0009			●
16	CAP; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-668-0	01	1	0010-0010	●
16	CAP; RAD THA	8-97940-668-0	01	1	0010-0010			●
16	CAP; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97940-668-0	01	1	0011-	●
16	CAP; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-668-0	01	1	0011-	●
16	CAP; RAD THA	8-97940-668-0	01	1	0011-			●
16	CAP; RAD CHARGE AIR COOLER<6PL> THA	8-97940-668-0	01	1	0011-		●
18	BOLT; RAD FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
21	SEAL; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97218-801-0	01	1	0009-0010	●
21	SEAL; RAD CHARGE AIR COOLER<6PL> THA	8-97218-801-0	01	1	0009-0010		●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> (B) THA	8-97940-664-0	01	1	0009-0009	●
21	SEAL; RAD (B) THA	8-97940-664-0	01	1	0009-0009			●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-664-0	01	1	0010-	●
21	SEAL; RAD THA	8-97940-664-0	01	1	0010-			●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) THA	8-97940-665-0	01	1	0009-0009	●
21	SEAL; RAD (A) THA	8-97940-665-0	01	1	0009-0009			●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-665-0	01	1	0010-	●
21	SEAL; RAD THA	8-97940-665-0	01	1	0010-			●
22	BRACKET; RAD MTG FRAME STRAIGHT TYPE<7KJ> THA	8-97918-330-0	02	1	0009-	●
22	BRACKET; RAD MTG THA	8-97918-330-0	02	1	0009-		●
22	BRACKET; RAD MTG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97918-331-0	02	1	0009-	●
22	BRACKET; RAD MTG THA	8-97918-331-0	02	1	0009-			●
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	04	1	0009-	●	●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0009-	●	●	●
26	BUFFER; RAD,LWR THA	8-97916-760-0	02	1	0009-	●	●	●
27	BUFFER; RAD,UPR THA	8-97916-770-0	02	1	0009-	●	●	●
51	PLUG; DRAIN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> W/GASKET THA	8-94321-236-0	01	1	0009-0010	●
51	PLUG; DRAIN CHARGE AIR COOLER<6PL> W/GASKET THA	8-94321-236-0	01	1	0009-0010		●
51	PLUG; DRAIN 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-673-0	01	1	0009-0009	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0009-0009			●
51	PLUG; DRAIN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-673-0	01	1	0010-0010	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0010-0010			●
51	PLUG; DRAIN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97940-673-0	01	1	0011-	●
51	PLUG; DRAIN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-673-0	01	1	0011-	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0011-			●
51	PLUG; DRAIN CHARGE AIR COOLER<6PL> THA	8-97940-673-0	01	1	0011-		●
52	GASKET; DRAIN PLUG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=10 THA	9-09720-557-0	01	1	0009-0010	●
52	GASKET; DRAIN PLUG CHARGE AIR COOLER<6PL> ID=10 THA	9-09720-557-0	01	1	0009-0010		●
56	STAY; RAD 4HG1 ENG<RJH>	8-97032-798-2	01	1	0009-0009	●
56	STAY; RAD	8-97032-798-2	01	1	0009-0009			●
56	STAY; RAD 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97032-802-2	01	1	0010-	●
56	STAY; RAD	8-97032-802-2	01	1	0010-			●
56	STAY; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	0009-	●
56	STAY; RAD CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	0009-		●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0009-	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0009-	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0009-	●	●	●
62	BOLT; STAY 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009	●
62	BOLT; STAY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009	●
62	BOLT; STAY (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009			●
62	BOLT; STAY CHARGE AIR COOLER<6PL> (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009		●
62	BOLT; STAY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8X12 FLANGE	0-28080-812-0	02	1	0010-	●
62	BOLT; STAY 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	0010-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	0010-			●
62	BOLT; STAY CHARGE AIR COOLER<6PL> M8X12 FLANGE	0-28080-812-0	02	1	0010-		●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0009-	●	●	●
70	STAY; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97073-125-0	01	1	0009-0010	●
70	STAY; RAD CHARGE AIR COOLER<6PL> THA	8-97073-125-0	01	1	0009-0010		●
70	STAY; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-660-0	01	1	0009-0009	●
70	STAY; RAD THA	8-97940-660-0	01	1	0009-0009			●
70	STAY; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-660-0	01	1	0010-0010	●
70	STAY; RAD THA	8-97940-660-0	01	1	0010-0010			●
70	STAY; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97940-660-0	01	1	0011-	●
70	STAY; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-660-0	01	1	0011-	●
70	STAY; RAD THA	8-97940-660-0	01	1	0011-			●
70	STAY; RAD CHARGE AIR COOLER<6PL> THA	8-97940-660-0	01	1	0011-		●
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-94221-082-0	02	1	0009-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=10.5 OD=26	9-09160-710-0	01	1	0009-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0009-	●	●	●
80	BOLT; FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M6X12 FLANGE	0-28080-612-0	04	1	0009-	●
80	BOLT; FAN GUIDE CHARGE AIR COOLER<6PL> (A) M6X12 FLANGE	0-28080-612-0	04	1	0009-		●
80	BOLT; FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0009-	●
80	BOLT; FAN GUIDE CHARGE AIR COOLER<6PL> (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0009-		●
82	COVER; FAN,RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97218-799-0	01	1	0009-	●
82	COVER; FAN,RAD CHARGE AIR COOLER<6PL> THA	8-97218-799-0	01	1	0009-		●
92	BRACKET; FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	0009-	●
92	BRACKET; FAN GUIDE CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	0009-		●
92	BRACKET; FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	0009-	●
92	BRACKET; FAN GUIDE CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	0009-		●
92	BRACKET; FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-97189-394-0	01	1	0009-	●
92	BRACKET; FAN GUIDE CHARGE AIR COOLER<6PL> (A)	8-97189-394-0	01	1	0009-		●
100	RUBBER; MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	1-09337-027-0	06	1	0009-	●
100	RUBBER; MTG CHARGE AIR COOLER<6PL>	1-09337-027-0	06	1	0009-		●
131	CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0009-	●	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0009-	●	●	●
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0009-	●	●	●
297	WASHER; PL,FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> ID=6.4 OD=18	9-09160-706-0	04	1	0009-	●
297	WASHER; PL,FAN GUIDE CHARGE AIR COOLER<6PL> ID=6.4 OD=18	9-09160-706-0	04	1	0009-		●
305	CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> D6.8X11 PUSH RIVET THA	1-73318-230-0	12	1	0009-	●
305	CLIP; FAN COVER TO FAN GUIDE CHARGE AIR COOLER<6PL> D6.8X11 PUSH RIVET THA	1-73318-230-0	12	1	0009-		●
359	BRACKET; RAD STAY FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97170-632-0	01	1	0009-	●
421	BOLT; BRKT FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M10X18 FLANGE	0-28181-018-0	02	1	0009-	●
421	BOLT; BRKT FAN GUIDE CHARGE AIR COOLER<6PL> (A) M10X18 FLANGE	0-28181-018-0	02	1	0009-		●
421	BOLT; BRKT FAN GUIDE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) M10X20 FLANGE	0-28181-020-0	02	1	0009-	●
421	BOLT; BRKT FAN GUIDE CHARGE AIR COOLER<6PL> (B) M10X20 FLANGE	0-28181-020-0	02	1	0009-		●
518	NUT M8 FLANGE THA	5-09440-005-0	02	1	0009-	●	●	●

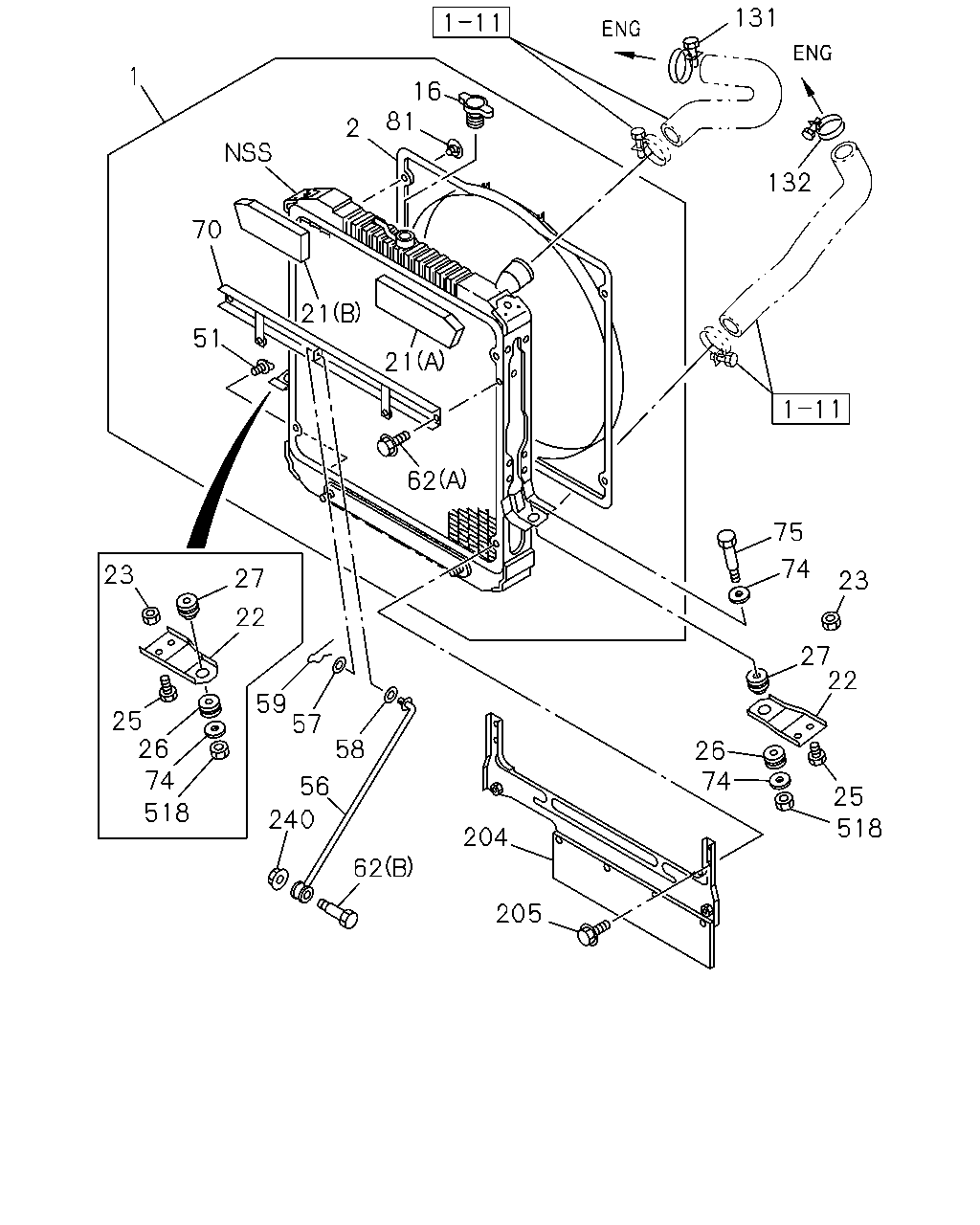

131 1 16 81 2 132 70 21 51 21 62 75 74 23 27 23 22 27 22 59 57 25 26 74 58 26 74 56 25 518 240 518 204 62 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	RADIATOR ASM 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97255-209-0	01	1	0009-0010	●
1	RADIATOR ASM CHARGE AIR COOLER<6PL> THA	8-97255-209-0	01	1	0009-0010		●
1	RADIATOR ASM 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97942-216-0	01	1	0011-	●
1	RADIATOR ASM CHARGE AIR COOLER<6PL> THA	8-97942-216-0	01	1	0011-		●
1	RADIATOR ASM 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-295-0	01	1	0009-0009	●
1	RADIATOR ASM THA	8-97940-295-0	01	1	0009-0009			●
1	RADIATOR ASM 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-295-1	01	1	0010-	●
1	RADIATOR ASM THA	8-97940-295-1	01	1	0010-			●
2	GUIDE; FAN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) THA	8-97218-802-0	01	1	0009-	●
2	GUIDE; FAN CHARGE AIR COOLER<6PL> (B) THA	8-97218-802-0	01	1	0009-		●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-657-0	01	1	0009-0009	●
2	GUIDE; FAN THA	8-97940-657-0	01	1	0009-0009			●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-657-0	01	1	0010-0010	●
2	GUIDE; FAN THA	8-97940-657-0	01	1	0010-0010			●
2	GUIDE; FAN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97942-319-0	01	1	0010-	●
2	GUIDE; FAN THA	8-97942-319-0	01	1	0010-			●
2	GUIDE; FAN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	0009-	●
2	GUIDE; FAN CHARGE AIR COOLER<6PL> (A)	8-97068-803-0	01	1	0009-		●
16	CAP; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97177-872-0	01	1	0009-0010	●
16	CAP; RAD CHARGE AIR COOLER<6PL> THA	8-97177-872-0	01	1	0009-0010		●
16	CAP; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-668-0	01	1	0009-0009	●
16	CAP; RAD THA	8-97940-668-0	01	1	0009-0009			●
16	CAP; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-668-0	01	1	0010-0010	●
16	CAP; RAD THA	8-97940-668-0	01	1	0010-0010			●
16	CAP; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97940-668-0	01	1	0011-	●
16	CAP; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-668-0	01	1	0011-	●
16	CAP; RAD THA	8-97940-668-0	01	1	0011-			●
16	CAP; RAD CHARGE AIR COOLER<6PL> THA	8-97940-668-0	01	1	0011-		●
18	BOLT; RAD FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
21	SEAL; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97218-801-0	01	1	0009-0010	●
21	SEAL; RAD CHARGE AIR COOLER<6PL> THA	8-97218-801-0	01	1	0009-0010		●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> (B) THA	8-97940-664-0	01	1	0009-0009	●
21	SEAL; RAD (B) THA	8-97940-664-0	01	1	0009-0009			●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-664-0	01	1	0010-	●
21	SEAL; RAD THA	8-97940-664-0	01	1	0010-			●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) THA	8-97940-665-0	01	1	0009-0009	●
21	SEAL; RAD (A) THA	8-97940-665-0	01	1	0009-0009			●
21	SEAL; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-665-0	01	1	0010-	●
21	SEAL; RAD THA	8-97940-665-0	01	1	0010-			●
22	BRACKET; RAD MTG FRAME STRAIGHT TYPE<7KJ> THA	8-97918-330-0	02	1	0009-	●
22	BRACKET; RAD MTG THA	8-97918-330-0	02	1	0009-		●
22	BRACKET; RAD MTG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97918-331-0	02	1	0009-	●
22	BRACKET; RAD MTG THA	8-97918-331-0	02	1	0009-			●
23	NUT; RAD MTG M10 FLANGE	5-09440-006-0	04	1	0009-	●	●	●
25	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0009-	●	●	●
26	BUFFER; RAD,LWR THA	8-97916-760-0	02	1	0009-	●	●	●
27	BUFFER; RAD,UPR THA	8-97916-770-0	02	1	0009-	●	●	●
51	PLUG; DRAIN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> W/GASKET THA	8-94321-236-0	01	1	0009-0010	●
51	PLUG; DRAIN CHARGE AIR COOLER<6PL> W/GASKET THA	8-94321-236-0	01	1	0009-0010		●
51	PLUG; DRAIN 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-673-0	01	1	0009-0009	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0009-0009			●
51	PLUG; DRAIN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-673-0	01	1	0010-0010	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0010-0010			●
51	PLUG; DRAIN 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97940-673-0	01	1	0011-	●
51	PLUG; DRAIN 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-673-0	01	1	0011-	●
51	PLUG; DRAIN THA	8-97940-673-0	01	1	0011-			●
51	PLUG; DRAIN CHARGE AIR COOLER<6PL> THA	8-97940-673-0	01	1	0011-		●
56	STAY; RAD 4HG1 ENG<RJH>	8-97032-798-2	01	1	0009-0009	●
56	STAY; RAD	8-97032-798-2	01	1	0009-0009			●
56	STAY; RAD 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97032-802-2	01	1	0010-	●
56	STAY; RAD	8-97032-802-2	01	1	0010-			●
56	STAY; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	0009-	●
56	STAY; RAD CHARGE AIR COOLER<6PL>	8-97073-424-2	01	1	0009-		●
57	WASHER; PL,STAY ID=10.5 OD=18	9-09160-510-0	01	1	0009-	●	●	●
58	WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0009-	●	●	●
59	PIN; SNAP,STAY L=27.7	8-94202-777-0	01	1	0009-	●	●	●
62	BOLT; STAY 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009	●
62	BOLT; STAY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009	●
62	BOLT; STAY (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009			●
62	BOLT; STAY CHARGE AIR COOLER<6PL> (A) M8X12 FLANGE	0-28080-812-0	02	1	0009-0009		●
62	BOLT; STAY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8X12 FLANGE	0-28080-812-0	02	1	0010-	●
62	BOLT; STAY 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	0010-	●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	0010-			●
62	BOLT; STAY CHARGE AIR COOLER<6PL> M8X12 FLANGE	0-28080-812-0	02	1	0010-		●
62	BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0009-	●	●	●
70	STAY; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97073-125-0	01	1	0009-0010	●
70	STAY; RAD CHARGE AIR COOLER<6PL> THA	8-97073-125-0	01	1	0009-0010		●
70	STAY; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-660-0	01	1	0009-0009	●
70	STAY; RAD THA	8-97940-660-0	01	1	0009-0009			●
70	STAY; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-660-0	01	1	0010-0010	●
70	STAY; RAD THA	8-97940-660-0	01	1	0010-0010			●
70	STAY; RAD 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97940-660-0	01	1	0011-	●
70	STAY; RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-660-0	01	1	0011-	●
70	STAY; RAD THA	8-97940-660-0	01	1	0011-			●
70	STAY; RAD CHARGE AIR COOLER<6PL> THA	8-97940-660-0	01	1	0011-		●
74	WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-94221-082-0	02	1	0009-	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=10.5 OD=26	9-09160-710-0	01	1	0009-	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M8X63	8-94249-446-0	01	1	0009-	●	●	●
81	SCREW; FAN GUIDE,RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97940-658-0	04	1	0009-0009	●
81	SCREW; FAN GUIDE,RAD THA	8-97940-658-0	04	1	0009-0009			●
81	SCREW; FAN GUIDE,RAD 4HG1 ENG<RJH> M/T MXA5T<RNQ> TURBOCHARGER<K51> THA	8-97940-658-0	04	1	0010-	●
81	SCREW; FAN GUIDE,RAD THA	8-97940-658-0	04	1	0010-			●
131	CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0009-	●	●	●
132	CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0009-	●	●	●
204	GUIDE ASM; AIR 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60>	8-97038-894-1	01	1	0009-	●
204	GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT<C60>	8-97038-894-1	01	1	0009-			●
205	BOLT; AIR GUIDE 4HG1 ENG<RJH> AIR CONDITIONER MANUAL CONT<C60> M6X10 FLANGE	0-28080-610-0	04	1	0009-	●
205	BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT<C60> M6X10 FLANGE	0-28080-610-0	04	1	0009-			●
240	NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0009-	●	●	●
359	BRACKET; RAD STAY FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97170-632-0	01	1	0009-	●
518	NUT M8 FLANGE THA	5-09440-005-0	02	1	0009-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
