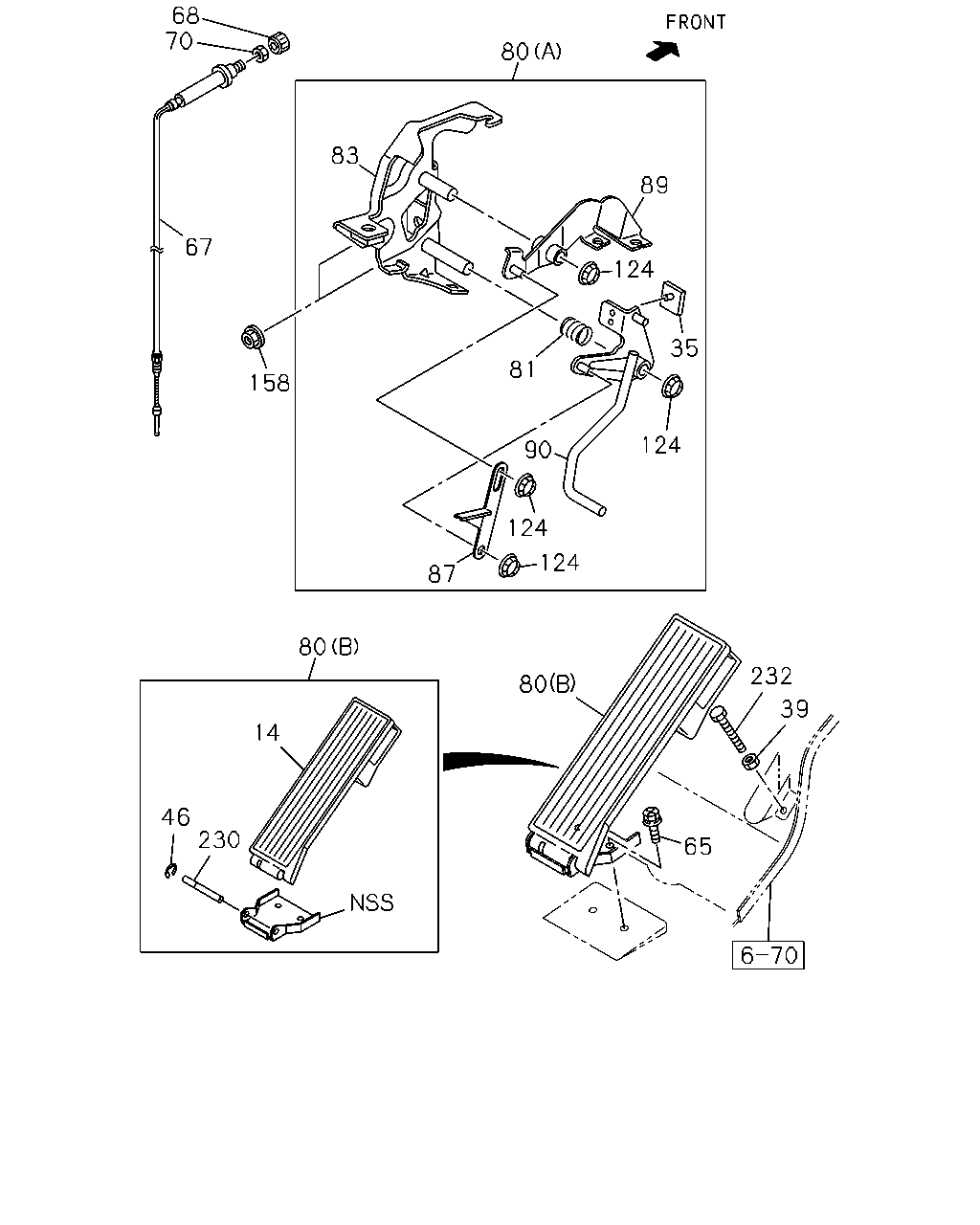

1-01 — ACCELERATOR PEDAL AND CONTROL (#43915) — 92 parça

389 316 389 662 54 60 320 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT 4HG1 ENG<RJH> TURBOCHARGER<K51> (B) L=293	8-97115-730-0	01	1	0009-	●
54	CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0009-		●
54	CABLE; ENG CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0009-	●
54	CABLE; ENG CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0009-	●
54	CABLE; ENG CONT (A) L=2898	8-97167-702-1	01	1	0009-		●
54	CABLE; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0009-	●
54	CABLE; ENG CONT CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0009-			●
54	CABLE; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0009-	●
54	CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=3078	8-97148-584-3	01	1	0009-			●
60	BOLT; CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28480-825-0	01	1	0009-	●
60	BOLT; CABLE M8X25 FLANGE	0-28480-825-0	01	1	0009-		●
60	BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
60	BOLT; CABLE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
60	BOLT; CABLE M8X25 FLANGE	0-28680-825-0	01	1	0009-			●
60	BOLT; CABLE M8X25 FLANGE	0-28680-825-0	01	1	0009-			●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	02	1	0009-	●	●	●
60	BOLT; CABLE M8X20 FLANGE	0-28680-820-0	02	1	0009-	●	●	●
316	CLIP; LAMP BRKT ID=9 THA	5-09707-027-0	01	1	0009-	●	●	●
320	CLIP; FRAME FRAME STRAIGHT TYPE<7KJ>	8-94178-110-0	01	1	0009-	●
320	CLIP; FRAME	8-94178-110-0	01	1	0009-			●
389	NUT; ACCEL CONT CABLE FIX FRAME STRAIGHT TYPE<7KJ> (B) M8 W/LK WASHER	8-94327-073-0	02	1	0009-	●
389	NUT; ACCEL CONT CABLE FIX 4HG1 ENG<RJH> (B) M8 W/LK WASHER	8-94327-073-0	02	1	0009-	●
389	NUT; ACCEL CONT CABLE FIX (B) M8 W/LK WASHER	8-94327-073-0	02	1	0009-		●	●
389	NUT; ACCEL CONT CABLE FIX 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0009-	●
389	NUT; ACCEL CONT CABLE FIX CHARGE AIR COOLER<6PL> (B) M8 W/LK WASHER	8-94327-073-0	01	1	0009-			●
389	NUT; ACCEL CONT CABLE FIX (A) M6 FLANGE	0-91150-106-0	01	1	0009-	●	●	●
662	CLIP; ACCEL CONT CABLE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=6 & 6	1-09709-217-0	01	1	0009-	●
662	CLIP; ACCEL CONT CABLE ID=6 & 6	1-09709-217-0	01	1	0009-		●

68 70 80 83 89 67 124 35 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0009-	●	●	●
35	STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	0009-0012	●	●	●
35	STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-	●	●	●
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0009-	●	●	●
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0009-	●	●	●
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0009-	●	●	●
67	CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	0009-	●	●	●
68	KNOB; IDLE CONT	8-97853-765-1	01	1	0009-	●	●	●
70	NUT; CONT CABLE M18	8-97853-233-0	01	1	0009-	●	●	●
80	LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	0009-	●	●	●
80	LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	0009-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0009-	●	●	●
83	BRACKET; CONT LINK	8-97853-201-4	01	1	0009-	●	●	●
87	LINK; ENG CONT	8-97853-204-1	01	1	0009-	●	●	●
89	LEVER; RELAY	8-97868-042-0	01	1	0009-	●	●	●
90	LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	0009-	●	●	●
124	NUT; LEVER ID=4.9 PUSH NUT	8-94279-042-0	02	1	0009-	●	●	●
124	NUT; LEVER ID=9.9 PUSH NUT	8-97012-098-0	02	1	0009-	●	●	●
158	NUT; BRKT M8 FLANGE	8-94279-060-0	02	1	0009-	●	●	●
230	PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0009-	●	●	●
232	BOLT; STOPPER,ACCEL PEDAL M8X65	0-20800-865-0	01	1	0009-	●	●	●

54 99 54 100 101 218 108 729 101 391 104 110 99 99 114 108 729 104 101 101 100 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT 4HG1 ENG<RJH> TURBOCHARGER<K51> (B) L=293	8-97115-730-0	01	1	0009-	●
54	CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	0009-		●
54	CABLE; ENG CONT 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (A) L=2913	8-97167-698-2	01	1	0009-	●
54	CABLE; ENG CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=2898	8-97167-702-1	01	1	0009-	●
54	CABLE; ENG CONT (A) L=2898	8-97167-702-1	01	1	0009-		●
54	CABLE; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0009-	●
54	CABLE; ENG CONT CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0009-			●
54	CABLE; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) L=3078	8-97148-584-3	01	1	0009-	●
54	CABLE; ENG CONT CHARGE AIR COOLER<6PL> (A) L=3078	8-97148-584-3	01	1	0009-			●
99	BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97118-729-0	01	1	0009-	●
99	BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	0009-		●
99	BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	0009-	●
99	BRACKET ASM; ENG CONT,INL MANIF CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	0009-			●
100	SHAFT ASM; ENG CONT 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97118-737-0	01	1	0009-	●
100	SHAFT ASM; ENG CONT	8-97118-737-0	01	1	0009-		●
100	SHAFT ASM; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	0009-	●
100	SHAFT ASM; ENG CONT CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	0009-			●
101	WASHER; ENG CONT 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-94142-117-0	02	1	0009-	●
101	WASHER; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-94142-117-0	02	1	0009-	●
101	WASHER; ENG CONT	8-94142-117-0	02	1	0009-		●
101	WASHER; ENG CONT CHARGE AIR COOLER<6PL>	8-94142-117-0	02	1	0009-			●
104	NUT; ENG CONT 4HG1 ENG<RJH> TURBOCHARGER<K51> M8 FLANGE	0-91150-108-0	01	1	0009-	●
104	NUT; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-	●
104	NUT; ENG CONT M8 FLANGE	0-91150-108-0	01	1	0009-		●
104	NUT; ENG CONT CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-			●
108	BUSHING; ENG CONT 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97120-004-0	01	1	0009-	●
108	BUSHING; ENG CONT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0009-	●
108	BUSHING; ENG CONT	8-97120-004-0	01	1	0009-		●
108	BUSHING; ENG CONT CHARGE AIR COOLER<6PL>	8-97120-004-0	01	1	0009-			●
110	BOLT; BRKT TO HANGER 4HG1 ENG<RJH> TURBOCHARGER<K51> M8X16 FLANGE	0-28080-816-0	03	1	0009-	●
110	BOLT; BRKT TO HANGER M8X16 FLANGE	0-28080-816-0	03	1	0009-		●
110	BOLT; BRKT TO HANGER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8X16 FLANGE	0-28080-816-0	02	1	0009-	●
110	BOLT; BRKT TO HANGER CHARGE AIR COOLER<6PL> M8X16 FLANGE	0-28080-816-0	02	1	0009-			●
114	CLIP; HARNESS CONNECTOR 4HE1 ENG<RLY> ID=7-10 THA	8-94472-578-0	01	1	0009-	●
114	CLIP; HARNESS CONNECTOR ID=7-10 THA	8-94472-578-0	01	1	0009-			●
218	NUT; BRKT 4HG1 ENG<RJH> M8 FLANGE	0-91150-108-0	01	1	0009-	●
218	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0009-		●
391	BRACKET; ENG CONT 4HG1 ENG<RJH>	8-97172-882-0	01	1	0009-	●
391	BRACKET; ENG CONT	8-97172-882-0	01	1	0009-		●
729	COLLAR; JOINT 4HG1 ENG<RJH> TURBOCHARGER<K51>	8-97118-760-0	01	1	0009-	●
729	COLLAR; JOINT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0009-	●
729	COLLAR; JOINT	8-97118-760-0	01	1	0009-		●
729	COLLAR; JOINT CHARGE AIR COOLER<6PL>	8-97118-760-0	01	1	0009-			●
