◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#43913) — 29 parça

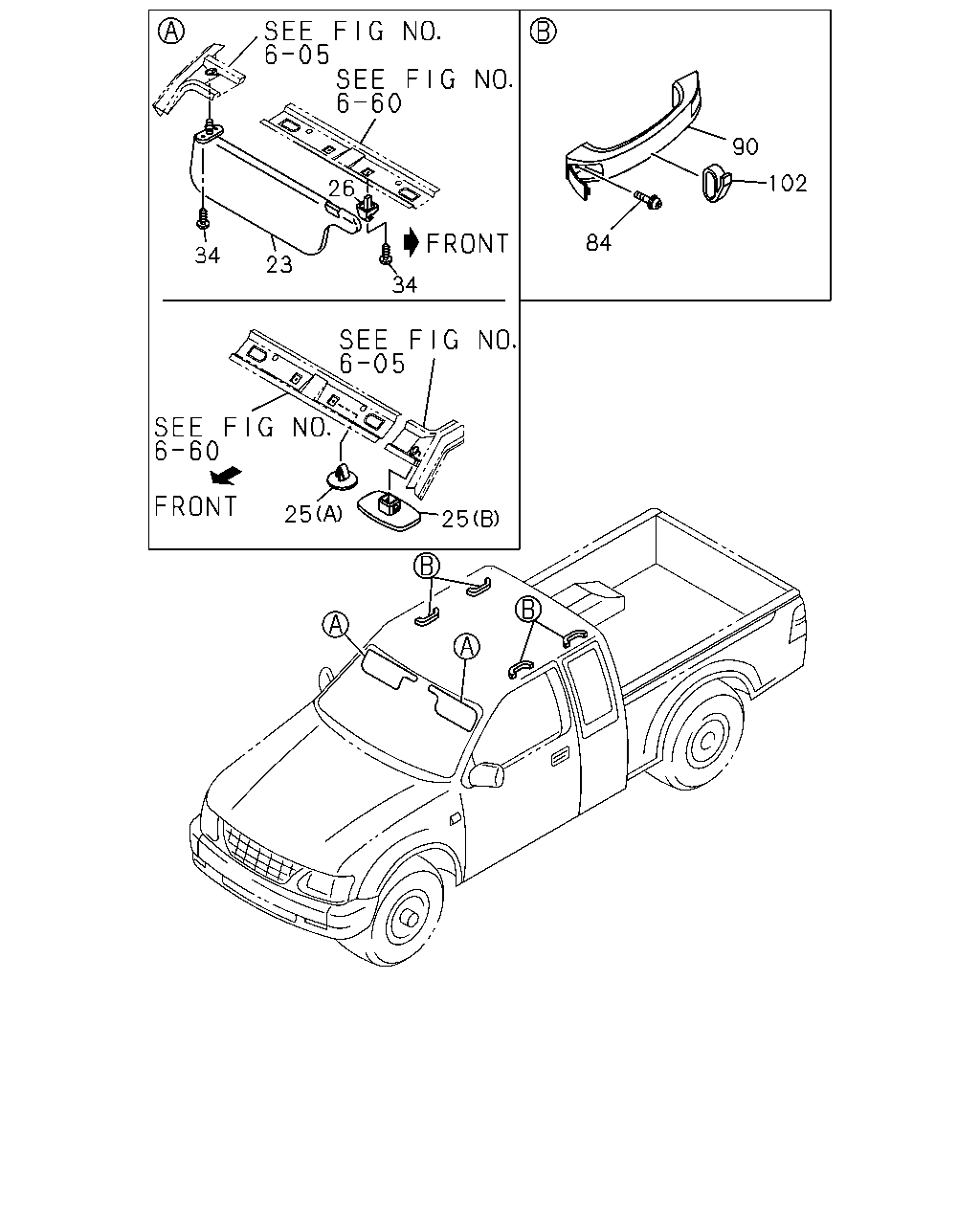

çizim 70235
26 84 34 23 34 25 25 90 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
23 16.070 SUN VISOR
LIGHT GRAY 		8-97154-098-0 01 1 9611- ● ● ● ● ● ● ● ●
23 16.070 SUN VISOR
LIGHT GRAY 		8-97154-614-0 01 1 9611- ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MI RROR<D34> LIGHT GRAY 		8-97154-614-0 01 1 9611- ● ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97154-097-0 01 1 9611- ● ● ● ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> (A) LIGHT GRAY 		8-97154-619-0 01 1 9611-9709 ● ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> (A) LIGHT GRAY 		8-97154-619-0 01 1 9710- ● ● ● ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> (B) LIGHT GRAY 		8-97154-618-0 01 1 9611-9709 ● ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> (B) LIGHT GRAY 		8-97154-618-0 01 1 9710- ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY 		8-97153-244-2 02 1 9611- ● ● ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> LIGHT GRAY 		8-97153-244-2 01 1 9611- ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 06 1 9611- ● ● ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, SUNVISOR PASSENGER SIDE W/VANITY MIR ROR<D34> 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 03 1 9611- ● ● ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
M6X20 		8-94337-721-0 02 1 9611-9711 ● ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> M6X20 		8-94337-721-0 02 1 9611-9711 ● ● ●
84 16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> 16.650 M6X20 W/LK&PL WASHER 		1-09981-073-0 02 1 9712- ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
16.650 M6X20 W/LK&PL WASHER 		1-09981-073-0 02 1 9712- ● ● ● ●
84 16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> M6X20 		8-94337-721-0 04 1 9611-9711 ●
84 16.450 SCREW; ASSIST GRIP
M6X20 		8-94337-721-0 04 1 9611-9711 ●
84 16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> 16.650 M6X20 W/LK&PL WASHER 		1-09981-073-0 04 1 9712- ●
84 16.450 SCREW; ASSIST GRIP
16.650 M6X20 W/LK&PL WASHER 		1-09981-073-0 04 1 9712- ●
90 16.450 GRIP; ASSIST,ROOF
GRAY 		8-97152-650-2 01 1 9611-9801 ● ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97152-650-2 01 1 9611-9801 ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97152-650-2 01 1 9802- ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
GRAY 		8-97152-650-2 01 1 9802- ● ● ● ●
90 16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97152-650-2 02 1 9611- ●
90 16.450 GRIP; ASSIST,ROOF
GRAY 		8-97152-650-2 02 1 9611- ●
102 16.450 HOOK; COAT HANGER
GRAY 		8-97150-620-1 01 1 9611-9711 ● ●
102 16.450 HOOK; COAT HANGER
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97150-620-1 01 1 9712- ●
102 16.450 HOOK; COAT HANGER
GRAY 		8-97150-620-1 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
