7-40 — INSTRUMENT PANEL AND BOX (#43911) — 185 parça

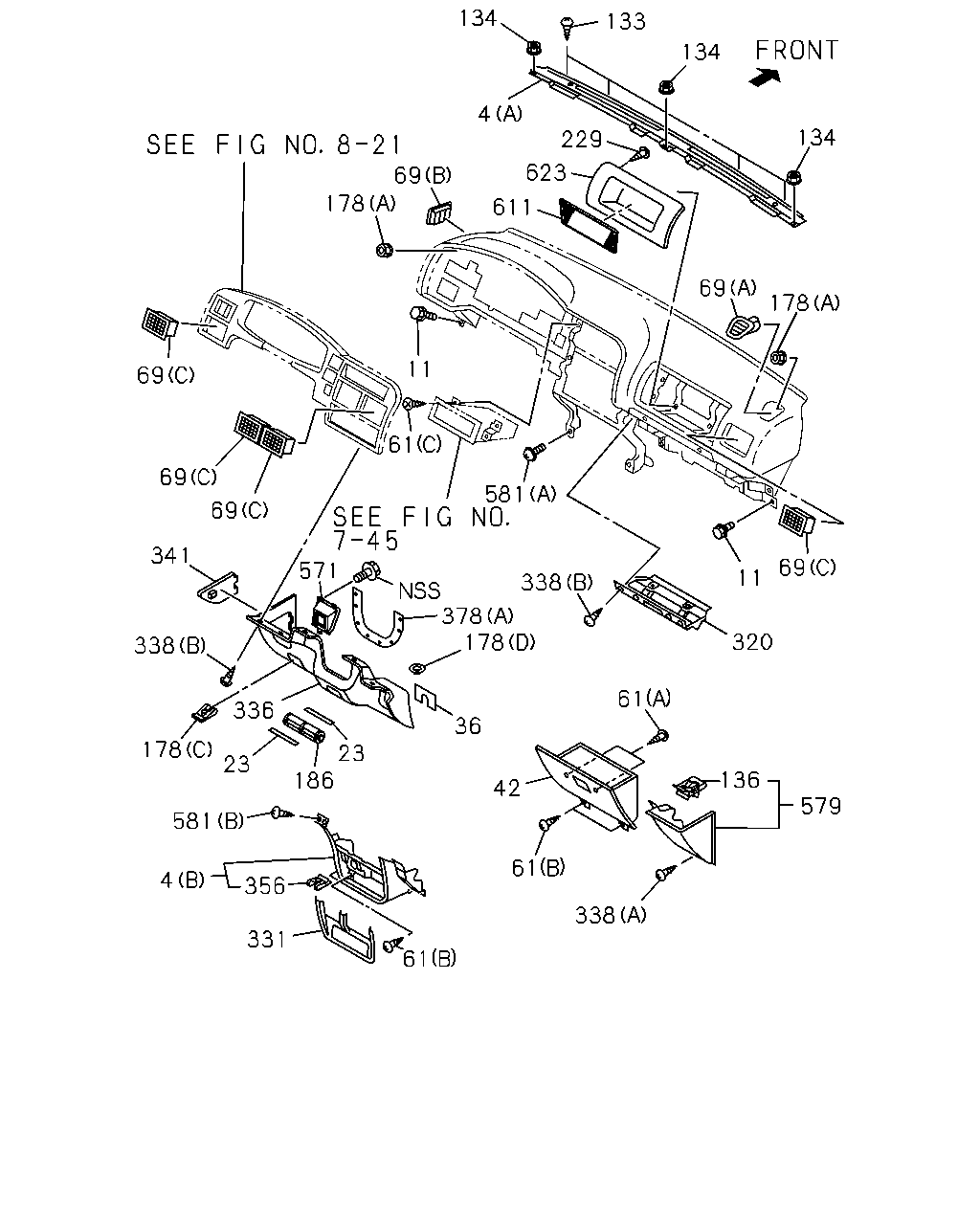

çizim 20576
134 133 134 4 134 229 623 69 178 611 69 178 69 61 69 69 581 571 341 69 338 378 178 320 338 336 61 36 178 23 23 186 136 42 579 581 61 4 356 338 331 61 11 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 16.080 COVER; INST PNL
(A) 		8-97101-621-3 01 1 9611-9612 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 9701- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 9611- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
VENTILATION RAM AIR(6TN) (A) 		8-97142-696-0 01 1 9701- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9611- ● ● ● ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 9709-9710 ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL
GRADE STD(RBA) 		8-97185-832-0 02 1 9709-9710 ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 9711-9711 ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL
GRADE STD(RBA) 		8-97185-832-0 02 1 9711-9711 ● ●
23 16.085 CUSHION; INST,PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 		8-97185-832-0 02 1 9711-9711 ●
23 16.085 CUSHION; INST,PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97185-832-0 02 1 9712- ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL
GRADE STD(RBA) 		8-97185-832-0 02 1 9712- ● ●
23 16.085 CUSHION; INST,PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 		8-97185-832-0 02 1 9712- ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-097-0 01 1 9611-9711 ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE STD(RBA) GRAY 		8-97156-097-0 01 1 9611-9711 ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRAY 		8-97156-097-0 01 1 9712- ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE STD(RBA) GRAY 		8-97156-097-0 01 1 9712- ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97196-066-0 01 1 9711- ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9611 ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9612- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9612- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97150-594-5 01 1 9611-9801 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97150-594-5 01 1 9802- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97150-595-1 01 1 9611-9801 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97150-595-1 01 1 9802- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) 16.070 (C) SLIDE BLACK 		8-94388-772-3 02 1 9611- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) (C)CENTER VENTILATION BLACK 		8-97152-701-1 02 1 9611- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. VENTILATION RAM AIR(6TN) (C)CENTER VENTILATION BLACK 		8-97152-701-1 04 1 9611- ● ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9709-9710 ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9711-9711 ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 16.100 		8-97148-012-0 01 1 9711-9711 ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9712- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.100 		8-97148-012-0 01 1 9712- ● ● ● ● ●
136 16.085 CLIP; INST COVER
GRADE STD(RBA) 16.100 		8-97148-012-0 01 1 9712- ● ●
136 16.085 CLIP; INST COVER
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 16.100 		8-97148-012-0 01 1 9712- ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9611- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 14 1 9709-9711 ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 12 1 9712- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9709-9710 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9709-9710 ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9711-9711 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9711-9711 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9711-9711 ●
178 16.085 NUT; INST PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9712- ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9712- ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9712- ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-780-0 08 1 9709-9710 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) (D) 		8-97185-780-0 08 1 9709-9710 ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-780-0 08 1 9711-9711 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) (D) 		8-97185-780-0 08 1 9711-9711 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97185-780-0 08 1 9711-9711 ●
178 16.085 NUT; INST PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (D) 		8-97185-780-0 08 1 9712- ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) (D) 		8-97185-780-0 08 1 9712- ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97185-780-0 08 1 9712- ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97806-851-2 01 1 9611-9710 ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE STD(RBA) BLACK 		8-97806-851-2 01 1 9611-9710 ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97806-851-2 01 1 9711-9711 ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE STD(RBA) BLACK 		8-97806-851-2 01 1 9711-9711 ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) BLACK 		8-97806-851-2 01 1 9711-9711 ●
186 09.264 GRILLE; LAP VENTILATOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) BLACK 		8-97806-851-2 01 1 9712- ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE STD(RBA) BLACK 		8-97806-851-2 01 1 9712- ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) BLACK 		8-97806-851-2 01 1 9712- ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) BLACK 		8-97123-442-0 01 1 9611-9710 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) BLACK 		8-97123-442-0 01 1 9711-9711 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
6VD1 ENG(RLV) BLACK 		8-97123-442-0 01 1 9712- ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) BLACK 		8-97123-442-0 01 1 9712- ● ● ●
229 09.744 SCREW; BOX,INST
09.787 M5X14 TAPPING 		9-07066-514-0 06 1 9611- ● ● ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9611- ● ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 9611- ● ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97156-095-1 01 1 9611-9710 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE STD(RBA) GRAY 		8-97156-095-1 01 1 9611-9710 ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97156-095-1 01 1 9711-9711 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE STD(RBA) GRAY 		8-97156-095-1 01 1 9711-9711 ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97156-095-1 01 1 9711-9711 ●
336 16.081 COVER; INST PANEL SIDE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRAY 		8-97156-095-1 01 1 9712- ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE STD(RBA) GRAY 		8-97156-095-1 01 1 9712- ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97156-095-1 01 1 9712- ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) GRAY 		8-97153-209-4 01 1 9611-9710 ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97153-209-4 01 1 9711-9711 ● ● ●
336 16.081 COVER; INST PANEL SIDE
6VD1 ENG(RLV) GRAY 		8-97153-209-4 01 1 9712- ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97153-209-4 01 1 9712- ● ● ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9712- ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9611-9711 ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9712- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 9611-9711 ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 9712- ● ● ● ● ● ● ● ●
356 16.085 NUT; COVER
09.262 M5 SPIRE NUT 		8-94217-271-0 01 1 9709- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9611-9711 ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9712-9802 ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) (A) 		8-97120-129-0 01 1 9803- ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97120-129-0 01 1 9803- ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97185-746-0 01 1 9709-9801 ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9802- ● ● ● ●
571 09.743 BEZEL; POCKET
GRADE LS(RBD) GRAY 		8-97153-211-0 01 1 9611-9710 ● ● ●
571 09.743 BEZEL; POCKET
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97153-211-0 01 1 9711-9711 ● ● ●
571 09.743 BEZEL; POCKET
6VD1 ENG(RLV) GRAY 		8-97153-211-0 01 1 9712- ●
571 09.743 BEZEL; POCKET
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) GRAY 		8-97153-211-0 01 1 9712- ● ● ●
579 16.080 COVER; INST PNL
GRAY 		8-97150-598-3 01 1 9611- ● ● ● ● ● ● ● ●
581 09.744 SCREW
15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9801 ● ● ● ● ● ● ● ●
581 09.744 SCREW
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9802- ● ● ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 07 1 9611- ● ● ● ● ● ● ● ●
611 16.081 SHEET
6VD1 ENG(RLV) GRAY 		8-97154-848-0 01 1 9712- ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97154-858-0 01 1 9611- ● ● ● ● ● ● ● ●

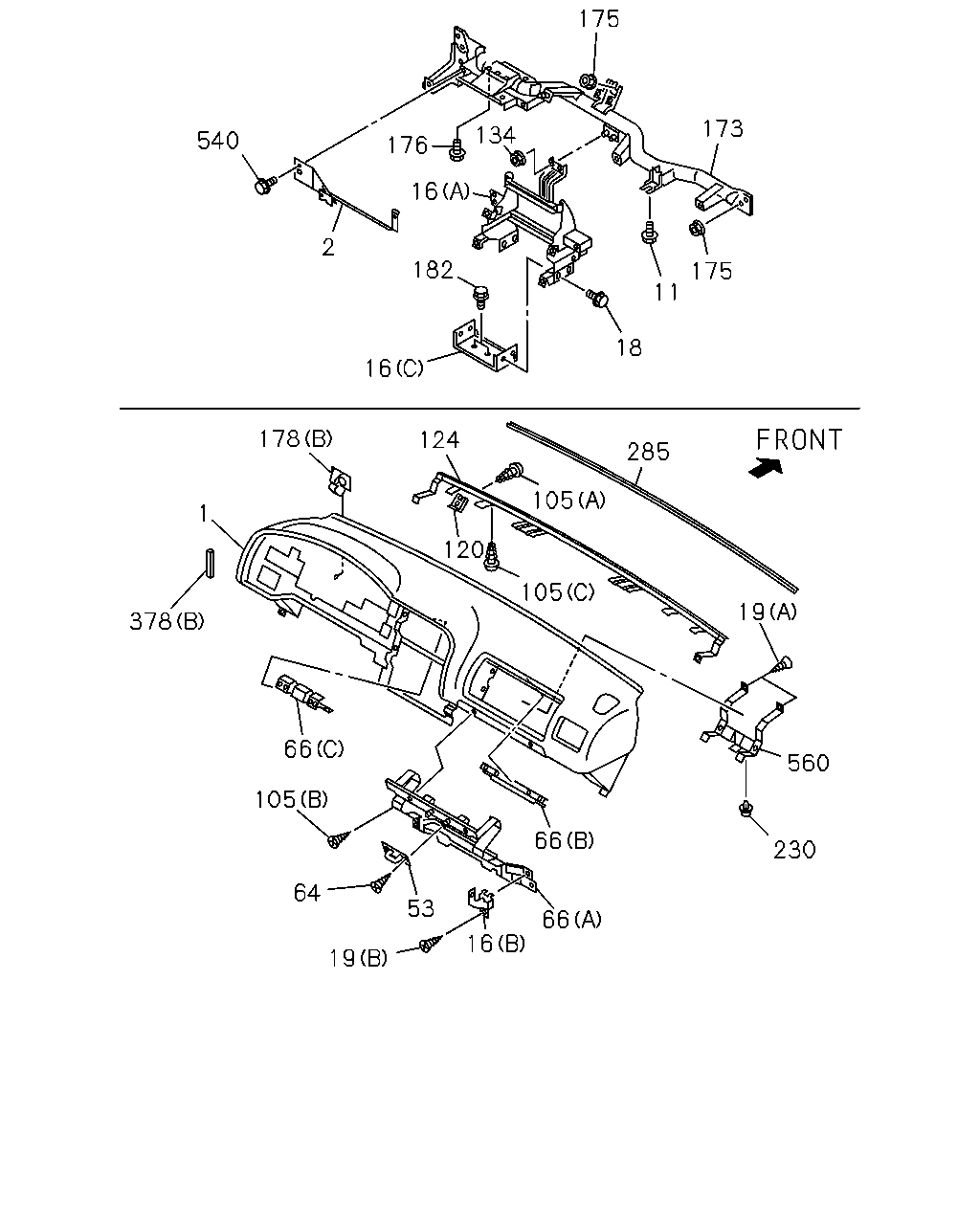

çizim 70160
175 173 176 134 540 16 2 182 175 18 16 178 124 285 105 1 120 105 19 378 66 560 105 66 230 64 53 66 16 19 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
GRAY 		8-97156-099-2 01 1 9611- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97112-305-3 01 1 9611-9710 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97187-497-0 01 1 9711-9802 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97187-497-0 01 1 9803- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
6VD1 ENG(RLV) 		8-97112-305-3 01 1 9803- ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9611- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97132-077-0 01 1 9611- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97114-331-1 01 1 9611- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97112-446-1 01 1 9611- ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
12.809 M6X16 FLANGE 		0-28280-616-0 04 1 9611-9612 ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
08.080 M6X16 FLANGE 		8-97803-298-0 04 1 9701- ● ● ● ● ● ● ● ●
19 16.081 SCREW; BRKT
06.514 (A) M5X14 TAPPING 		9-07076-514-0 01 1 9611- ● ● ● ● ● ● ● ●
19 16.081 SCREW; BRKT
09.787 (B) M5X14 TAPPING 		9-07066-514-0 09 1 9611- ● ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97125-756-0 01 1 9611- ● ● ● ● ● ● ● ●
64 16.085 SCREW; STRIKER
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9611- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97134-474-1 01 1 9611- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97114-724-1 01 1 9611-9712 ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(C) 		8-97114-725-0 01 1 9611- ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.175 (A) M4X12 TAPPING 		9-07066-412-0 20 1 9611-9801 ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.175 (A) M4X12 TAPPING 		9-07066-412-0 16 1 9802- ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
09.787 (B) M5X14 TAPPING 		9-07066-514-0 04 1 9712- ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
08.010 (C) M5X12 TAPPING 		9-07066-512-0 08 1 9611- ● ● ● ● ● ● ● ●
105 16.115 SCREW; REINF
08.010 (C) M5X12 TAPPING 		9-07066-512-0 08 1 9802- ● ● ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 07 1 9709-9711 ● ● ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 08 1 9712- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97134-514-0 01 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97115-516-1 01 1 9611-9710 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE STD(RBA) 		8-97115-516-1 01 1 9611-9710 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-520-0 01 1 9711-9711 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE STD(RBA) 		8-97187-520-0 01 1 9711-9711 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97187-520-0 01 1 9712- ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE STD(RBA) 		8-97187-520-0 01 1 9712- ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97160-115-0 01 1 9611-9710 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97160-115-0 01 1 9611-9710 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-556-0 01 1 9711-9711 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97187-556-0 01 1 9711-9711 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
6VD1 ENG(RLV) 		8-97187-556-0 01 1 9712- ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-556-0 01 1 9712- ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97187-556-0 01 1 9712- ● ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9611- ● ● ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9611- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 14 1 9709-9711 ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 12 1 9712- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9709-9710 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9709-9710 ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9711-9711 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9711-9711 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9711-9711 ●
178 16.085 NUT; INST PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9712- ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9712- ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9712- ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-780-0 08 1 9709-9710 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) (D) 		8-97185-780-0 08 1 9709-9710 ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-780-0 08 1 9711-9711 ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) (D) 		8-97185-780-0 08 1 9711-9711 ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97185-780-0 08 1 9711-9711 ●
178 16.085 NUT; INST PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (D) 		8-97185-780-0 08 1 9712- ● ● ● ● ●
178 16.085 NUT; INST PANEL
GRADE STD(RBA) (D) 		8-97185-780-0 08 1 9712- ● ●
178 16.085 NUT; INST PANEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) (D) 		8-97185-780-0 08 1 9712- ●
182 16.085 BOLT; BRKT,INST PANEL
10.230 M6X16 FLANGE 		8-94380-676-1 02 1 9611-9708 ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9709- ● ● ● ● ● ● ● ●
230 09.744 CLIP; INST
16.165 H=16.7 		8-97022-017-0 01 1 9712- ● ● ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL 8-97142-524-0 01 1 9611- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9611-9711 ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9712-9802 ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) (A) 		8-97120-129-0 01 1 9803- ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) 		8-97120-129-0 01 1 9803- ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97185-746-0 01 1 9709-9801 ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9802- ● ● ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9611- ● ● ● ● ● ● ● ●
560 16.085 BRACKET 8-97166-913-0 01 1 9611- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
