◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#43907) — 51 parça
çizim 18585
38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 01.303 PLATE; NAME
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97115-470-0 01 1 9611-9711 ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97115-470-0 01 1 9712- ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) (A) 		8-97115-470-0 01 1 9712- ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9712- ● ●

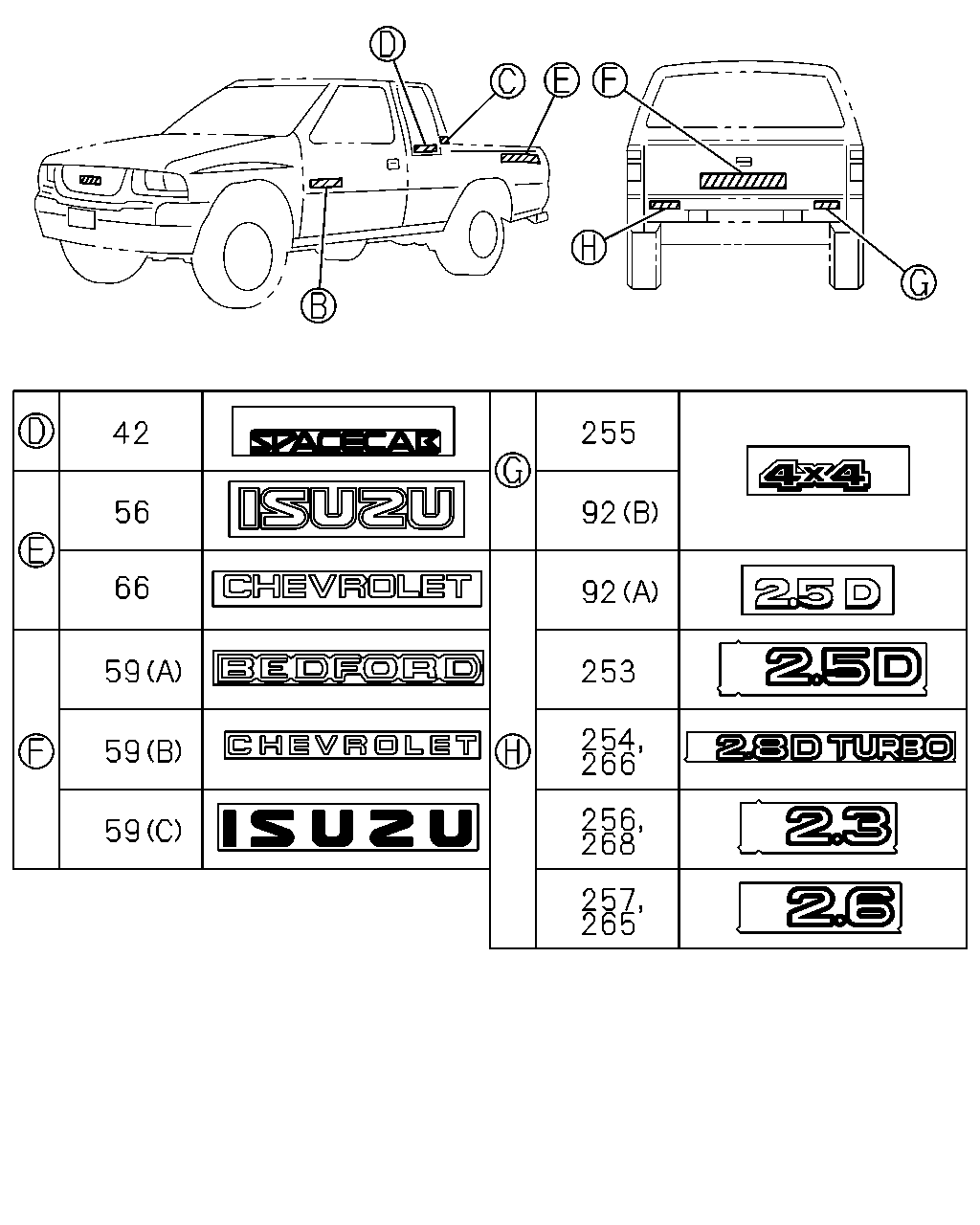

çizim 70051
255 42 56 92 66 92 59 253 254 266 59 256 268 59 257 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
42 16.507 DECAL; RR QUARTER 8-97135-089-0 02 1 9611- ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU RED(6FS) 		8-97022-699-0 02 1 9611- ● ● ● ● ● ● ● ●
56 08.147 DECAL; BODY SIDE
LETTERING ISUZU WHITE(S5N) 		8-97022-698-0 02 1 9611- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINE BLUE(722),BODY COLOR MARINE BLUE/IRON GRAY MET(726), BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IRON GRAY MET(782), BODY COLOR IRON GRAY MET(849) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) LIGHT SILVER 		8-94476-922-0 01 1 9611- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IRON GRAY MET(782) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) (B) LIGHT SILVER 		8-94476-922-0 01 1 9611- ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINE BLUE(722),BODY COLOR MARINE BLUE/IRON GRAY MET(726), BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IRON GRAY MET(782), BODY COLOR IRON GRAY MET(849) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (C) LIGHT SILVER 		8-97001-857-1 01 1 9611- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IRON GRAY MET(782) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (C) LIGHT SILVER 		8-97001-857-1 01 1 9611- ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR TRITON BLUE MICA(725), BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CRE AM WHITE/IRON GRAY MET(776) DECAL-CHEVROLET TAIL GATE(X82) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) DARK SILVER 		8-94476-923-0 01 1 9611- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR TRITON BLUE MICA(725), BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CRE AM WHITE/IRON GRAY MET(776) DECAL-ISUZU TAIL GATE(EX9) EXC. SAUDI ARABIA EQUIPMENT(EU2) (C) DARK SILVER 		8-97001-858-1 01 1 9611- ● ● ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BEDFORD MARK<RS3> (A) 		8-94416-755-0 01 1 9611-9704 ● ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINE BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BO DY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CRE AM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET(849) SAUDI ARABIA EQUIPMENT(EU2) DECAL-CHEVROLET TAIL GATE(X82) 03.459 (B) RED 		8-94476-924-0 01 1 9611- ● ● ● ●
59 01.303 DECAL; TAIL GATE
BODY COLOR MARINE BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BO DY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CRE AM WHITE/IRON GRAY MET(776),BODY COLOR IRON GRAY MET(849) SAUDI ARABIA EQUIPMENT(EU2) DECAL-ISUZU TAIL GATE(EX9) (C) RED 		8-97001-859-1 01 1 9611- ● ● ● ●
66 17.505 DECAL; SIDE PANEL
LETTERING CHEVROLET WHITE(S7E) 		8-94318-467-0 02 1 9611- ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
4JA1 ENG(RLE) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 01.303 (A) 		8-97139-234-1 01 1 9611- ● ● ● ● ● ● ● ●
92 08.147 DECAL; RR END
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 01.303 (B) 		8-97141-969-0 01 1 9611- ● ● ● ●
253 01.303 DECAL; 2.5D
4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97139-234-1 01 1 9611- ● ● ● ● ● ● ● ●
254 01.303 DECAL; 2.8D TURBO
4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97139-236-0 01 1 9611- ● ● ● ● ● ● ●
255 01.303 DECAL; "4X4"
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97141-969-0 01 1 9611- ● ● ● ●
256 01.303 DECAL; "2.3"
4ZD1 ENG(LW3) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97139-233-1 01 1 9611- ● ● ● ● ● ● ● ●
257 01.303 DECAL; "2.6"
4ZE1 ENG(RLJ) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK (7LZ) 		8-97139-235-0 01 1 9611- ● ● ● ● ● ●
265 01.303 DECAL; "2.6"
4ZE1 ENG(RLJ) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97139-235-0 01 1 9611- ● ● ● ● ● ●
266 01.303 DECAL; "2.8D TURBO"
4JB1 ENG(RLF) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97139-236-0 01 1 9611- ● ● ● ● ● ●
268 01.303 DECAL; "2.3"
4ZD1 ENG(LW3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97139-233-1 01 1 9611- ● ● ● ● ● ● ● ●

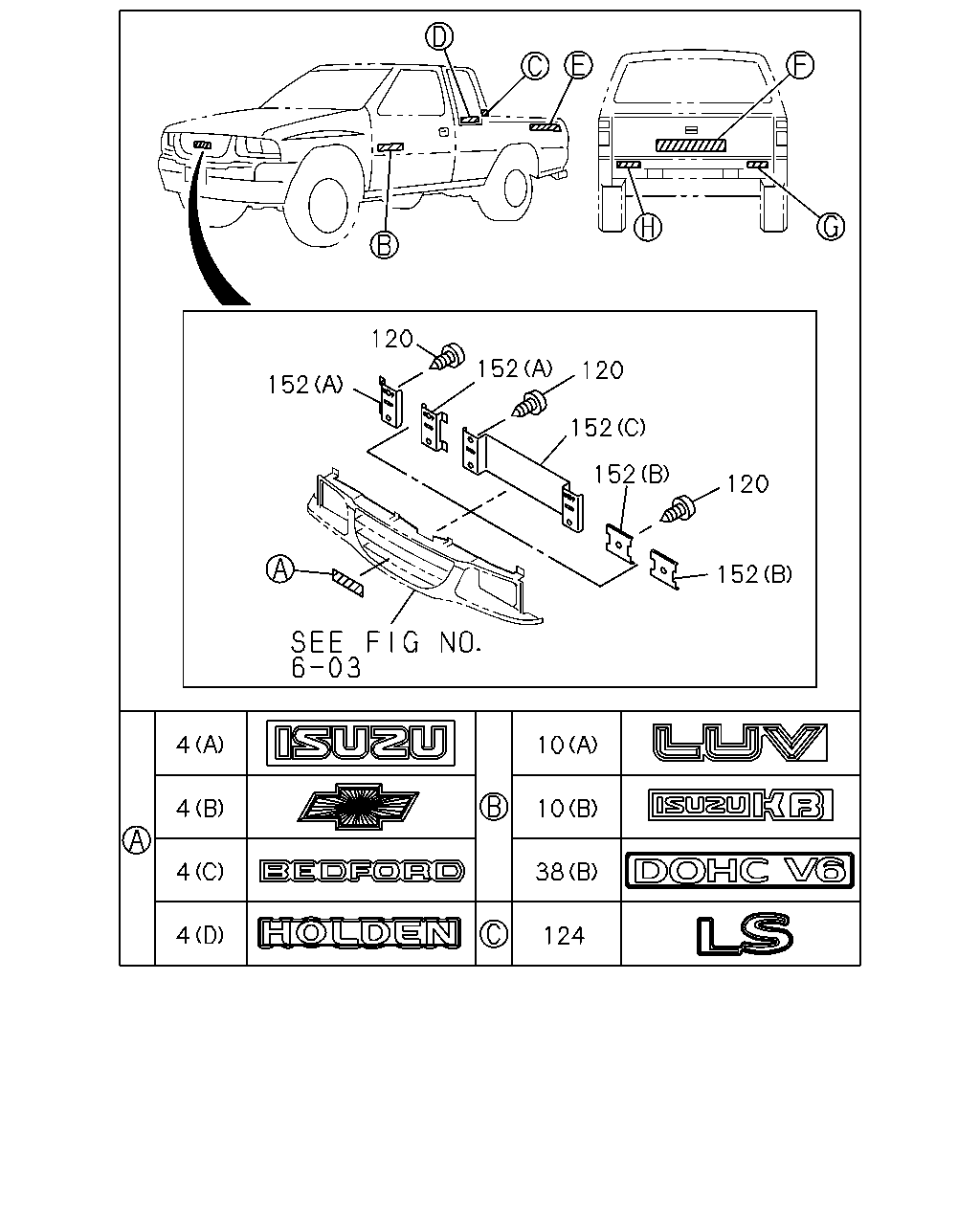

çizim 70237
120 152 120 152 152 152 120 152 4 10 4 10 4 38 4 124
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET MARK<YL6> (B) 		8-97805-998-2 01 1 9611-9611 ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
CHEVROLET MARK<YL6> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97805-998-2 01 1 9612- ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
HALOGEN HEAD LAMP RECTANGULAR<TR4> CHEVROLET MARK<YL6> (D) 		8-97176-327-0 01 1 9612-9612 ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
HALOGEN HEAD LAMP RECTANGULAR<TR4> CHEVROLET MARK<YL6> (D) 		8-97176-327-0 01 1 9701- ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET MARK<YL6> (A) 		8-97096-933-2 01 1 9611-9704 ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> (A) 		8-97096-933-2 01 1 9611-9704 ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
EXC. CHEVROLET MARK<YL6> (A) 		8-97096-933-2 01 1 9705- ● ● ● ● ● ● ● ●
4 01.303 EMBLEM; RAD GRILLE
BEDFORD MARK<RS3> (C) 		8-97085-092-0 01 1 9611-9704 ● ● ● ● ● ●
10 01.303 EMBLEM; DOOR
CHEVROLET MARK<YL6> 08.147 (A) 		8-94233-256-2 02 1 9611- ● ● ● ● ● ● ● ●
10 01.303 EMBLEM; DOOR
NAME PLATE ISUZU KB<6PU> (B) 		8-97022-693-1 02 1 9611- ● ● ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97115-470-0 01 1 9611-9711 ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JB1 ENG(RLF) TURBOCHARGER<K51> (A) 		8-97115-470-0 01 1 9712- ● ● ● ● ● ●
38 01.303 PLATE; NAME
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) (A) 		8-97115-470-0 01 1 9712- ● ● ● ● ●
38 01.303 PLATE; NAME
6VD1 ENG(RLV) (B) 		8-97179-790-0 02 1 9712- ● ●
120 01.303 SCREW; MARK
CHEVROLET MARK<YL6> 08.900 M5X16 		8-94380-268-0 02 1 9611- ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
EXC. CHEVROLET MARK<YL6> 08.900 M5X16 		8-94380-268-0 04 1 9611- ● ● ● ● ● ● ● ●
120 01.303 SCREW; MARK
BEDFORD MARK<RS3> 08.900 M5X16 		8-94380-268-0 08 1 9611-9704 ● ● ● ● ● ●
124 08.147 PLATE; NAME
16.507 		8-97805-215-2 02 1 9611- ● ●
124 08.147 PLATE; NAME
GRADE LS(RBD) 16.507 		8-97805-215-2 02 1 9611- ● ● ● ● ●
152 01.303 RETAINER; MARK
CHEVROLET MARK<YL6> (B) 		8-97805-219-3 02 1 9611-9611 ● ● ● ● ● ● ● ●
152 01.303 RETAINER; MARK
CHEVROLET MARK<YL6> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97805-219-3 02 1 9612- ● ● ● ● ● ● ● ●
152 01.303 RETAINER; MARK
EXC. CHEVROLET MARK<YL6> (C) 		8-97175-941-0 01 1 9611- ● ● ● ● ● ● ● ●
152 01.303 RETAINER; MARK
BEDFORD MARK<RS3> (A) 		8-97114-836-0 01 1 9611-9704 ● ● ● ● ● ●
152 01.303 RETAINER; MARK
BEDFORD MARK<RS3> (A) 		8-97114-835-0 01 1 9611-9704 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
