◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#43905) — 43 parça

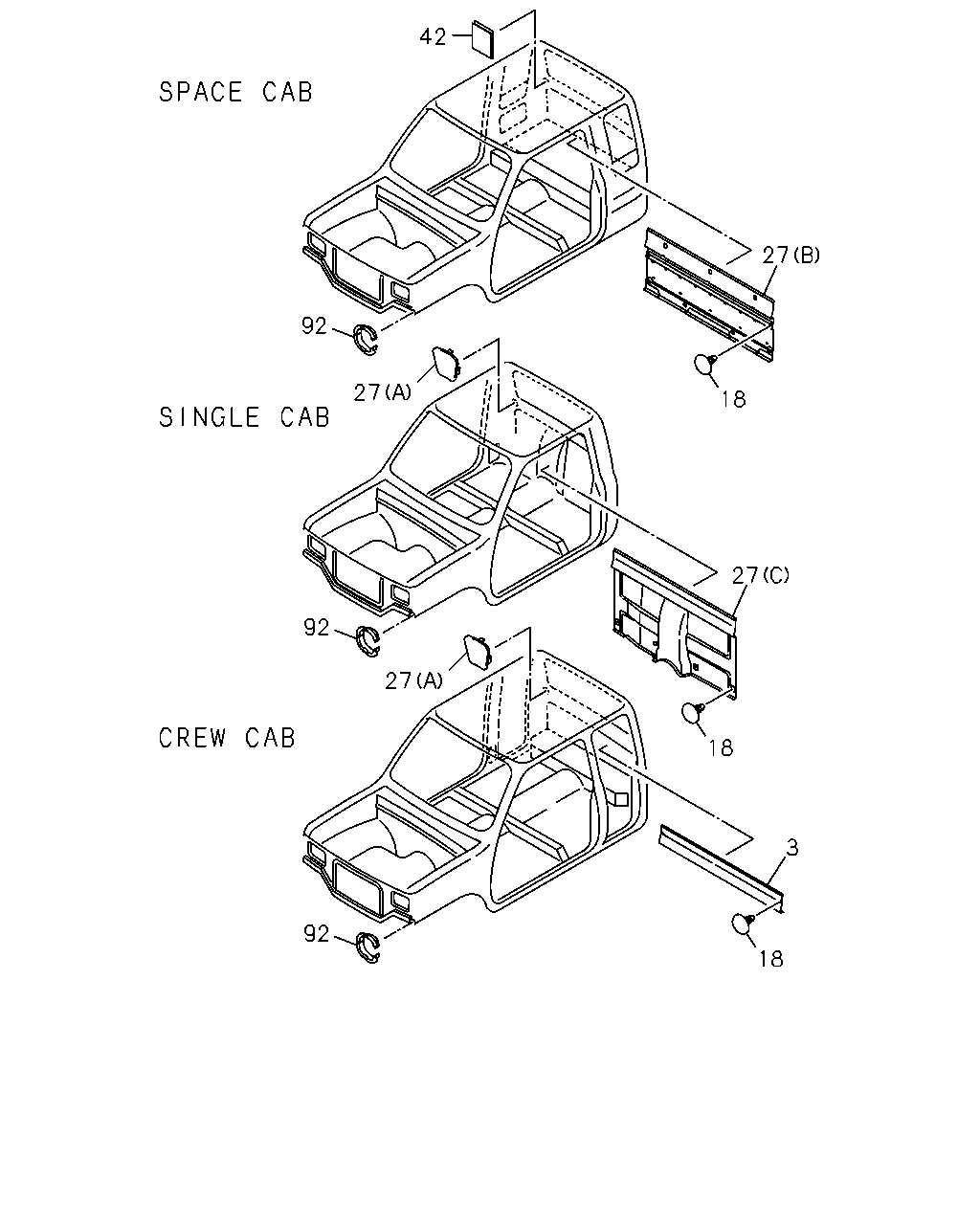

çizim 69273
42 27 92 27 18 27 92 27 18 18 3 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.578 TRIM; FULL,BACK UPR
CREW CAB(TF**W*) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY 		8-97155-657-0 01 1 9611- ●
3 16.578 TRIM; FULL,BACK UPR
CREW CAB(TF**W*) GRAY 		8-97155-657-0 01 1 9611- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> GRAY 		8-97153-648-0 09 1 9611- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
SINGLE CAB(TF**S*) GRAY 		8-97153-648-0 09 1 9611- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
CREW CAB(TF**W*) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY 		8-97153-648-0 05 1 9611- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
4X2 SPACE CAB(TFB6CF) 4X2 CREW CAB(TFB6WF) 4X4 SPACE CAB(TFS6CF) 4X4 CREW CAB(TFS6WF) GRAY 		8-97153-648-0 05 1 9611- ●
18 16.587 CLIP; TRIM COVER,CAB BACK
CREW CAB(TF**W*) REAR DEFOGGER<C49> COLOMBIA EQUIPMENT(X74) GRAY 		8-97153-648-0 02 1 9707- ● ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> (B) GRAY 		8-97154-636-4 01 1 9611- ● ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> (B) GRAY 		8-97156-051-0 01 1 9611- ● ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> 16.165 (A) 		8-97042-361-1 01 1 9611-9706 ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) 16.165 (A) 		8-97042-361-1 01 1 9611-9706 ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD), NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 9611-9706 ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 9611-9706 ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> 16.165 (A) 		8-97042-361-1 01 1 9707-9711 ● ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) EXC. COLOMBIA EQUIPMENT(X74), GUATEMALA/COSTA RICA EQUIPMENT(7LD),NOISE INSULATIONPACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 9707-9711 ● ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) COLOMBIA EQUIPMENT(X74) EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 9707-9711 ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) 16.165 (A) 		8-97042-361-1 01 1 9707-9711 ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 9707-9711 ●
27 16.587 COVER; TRIM,BACK
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 16.165 (A) 		8-97042-361-1 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97042-361-1 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) 16.165 (A) 		8-97042-361-1 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> 16.165 (A) 		8-97049-460-2 01 1 9611-9706 ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) 16.165 (A) 		8-97049-460-2 01 1 9611-9706 ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD), NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 9611-9706 ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 9611-9706 ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> 16.165 (A) 		8-97049-460-2 01 1 9707-9711 ● ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) EXC. COLOMBIA EQUIPMENT(X74), GUATEMALA/COSTA RICA EQUIPMENT(7LD),NOISE INSULATIONPACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 9707-9711 ● ●
27 16.587 COVER; TRIM,BACK
CREW CAB(TF**W*) COLOMBIA EQUIPMENT(X74) EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 9707-9711 ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) 16.165 (A) 		8-97049-460-2 01 1 9707-9711 ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 9707-9711 ●
27 16.587 COVER; TRIM,BACK
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 16.165 (A) 		8-97049-460-2 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> 16.165 (A) 		8-97049-460-2 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 CREW CAB(TFS6WF) 16.165 (A) 		8-97049-460-2 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97156-050-0 01 1 9611-9711 ●
27 16.587 COVER; TRIM,BACK
SHORT(TF***C) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97156-050-0 01 1 9712- ●
27 16.587 COVER; TRIM,BACK
JUMP SEAT<AJ2> EXC. NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97154-635-4 01 1 9611-9801 ●
27 16.587 COVER; TRIM,BACK
SPACE CAB(TF**C*) JUMP SEAT<AJ2> EXC. NOISE INSULATION PACK 2<7MW> (B) GRAY 		8-97154-635-4 01 1 9802- ● ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) NOISE INSULATION PACK 2<7MW> (C) GRAY 		8-97156-049-0 01 1 9611-9801 ●
27 16.587 COVER; TRIM,BACK
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) NOISE INSULATION PACK 2<7MW> (C) GRAY 		8-97156-049-0 01 1 9802- ●
27 16.587 COVER; TRIM,BACK
SINGLE CAB(TF**S*) EXC. NOISE INSULATION PACK 2<7MW> (C) GRAY 		8-97154-637-2 01 1 9611-9801 ●
27 16.587 COVER; TRIM,BACK
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. NOISE INSULATION PACK 2<7MW> (C) GRAY 		8-97154-637-2 01 1 9802- ●
42 16.592 SEAL; BACK OUTER PANEL
SPACE CAB(TF**C*) NOISE INSULATION PACK 2<7MW> 		8-94239-526-0 02 1 9611- ● ●
92 16.445 PROTECTOR; BACK DOOR EDGE
13.090 		8-94340-075-0 02 1 9611- ● ●
