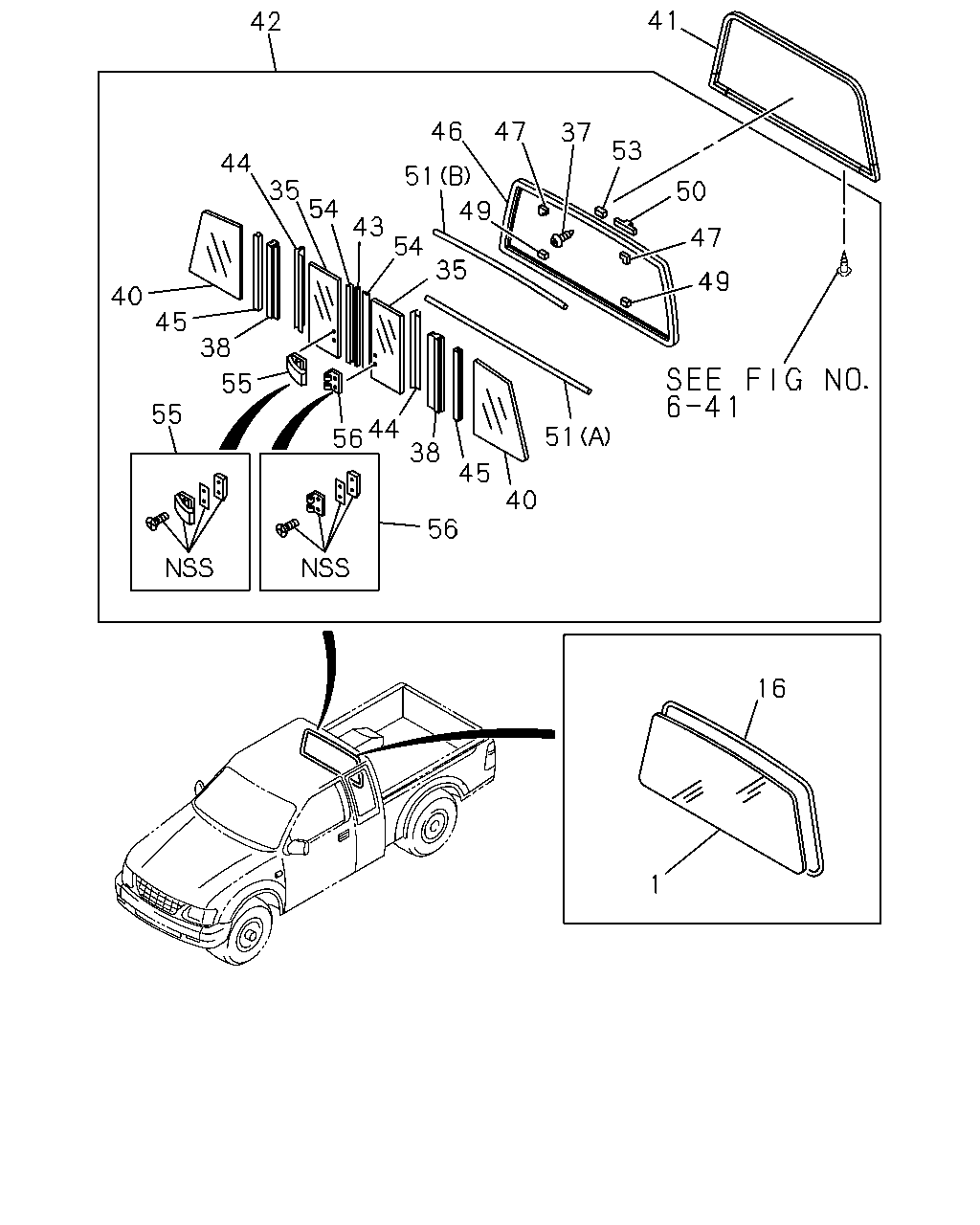

6-82 — BACK GLASS AND WEATHERSTRIP (#43904) — 29 parça

41 42 46 47 37 53 44 35 54 43 54 35 51 49 50 47 49 40 45 38 55 55 44 56 38 45 40 51 56 16 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.464 GLASS; BACKLIGHT	8-97123-195-1	01	1	9611-	●	●
1	16.464 GLASS; BACKLIGHT EXC. SLIDE GLASS<R80>	8-97123-195-1	01	1	9611-			●	●	●	●
1	16.464 GLASS; BACKLIGHT EXC. REAR DEFOGGER<C49>,SLIDE GLASS<R80>	8-97123-195-1	01	1	9611-							●	●
1	16.464 GLASS; BACKLIGHT REAR DEFOGGER<C49> EXC. SLIDE GLASS<R80>	8-97123-196-1	01	1	9611-							●	●
16	16.470 WEATHERSTRIP; BACKLIGHT	8-94435-033-3	01	1	9611-	●	●
16	16.470 WEATHERSTRIP; BACKLIGHT EXC. SLIDE GLASS<R80>	8-94435-033-3	01	1	9611-			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-97123-198-1	01	1	9611-			●	●	●	●	●	●
35	16.464 GLASS; SLIDE WINDOW SLIDE GLASS<R80>	8-97123-197-1	01	1	9611-			●	●	●	●	●	●
37	16.475 SCREW; STOPPER SLIDE GLASS<R80>	8-94136-480-1	01	1	9611-			●	●	●	●	●	●
38	16.464 FRAME; SLIDE WINDOW SLIDE GLASS<R80>	8-94446-647-0	02	1	9611-			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-97123-327-1	01	1	9611-			●	●	●	●	●	●
40	16.464 GLASS; SLIDE WINDOW,CORNER SLIDE GLASS<R80>	8-97123-326-1	01	1	9611-			●	●	●	●	●	●
41	16.470 WEATHERSTRIP; SLIDE WINDOW SLIDE GLASS<R80>	8-94435-033-3	01	1	9611-			●	●	●	●	●	●
42	16.464 WINDOW; SLIDING,RR SLIDE GLASS<R80>	8-97125-594-1	01	1	9611-			●	●	●	●	●	●
43	16.470 WEATHERSTRIP; SLIDE WINDOW CHANN SLIDE GLASS<R80> CENTER	8-94446-646-0	01	1	9611-			●	●	●	●	●	●
44	16.470 WEATHERSTRIP; SLIDE RR WINDOW,FR SLIDE GLASS<R80>	8-94446-648-0	02	1	9611-			●	●	●	●	●	●
45	16.470 WEATHERSTRIP; SLIDE RR WINDOW,CO SLIDE GLASS<R80>	8-94446-649-0	02	1	9611-			●	●	●	●	●	●
46	16.470 CHANNEL; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94446-639-1	01	1	9611-			●	●	●	●	●	●
47	16.470 GASKET; UPR,RR SLIDE WINDOW SLIDE GLASS<R80>	8-94446-653-0	01	1	9611-			●	●	●	●	●	●
47	16.470 GASKET; UPR,RR SLIDE WINDOW SLIDE GLASS<R80>	8-94446-652-0	01	1	9611-			●	●	●	●	●	●
49	16.475 GASKET; LWR,RR SLIDE WINDOW SLIDE GLASS<R80>	8-94127-950-0	02	1	9611-			●	●	●	●	●	●
50	16.460 STOP; SLIDE WINDOW SLIDE GLASS<R80>	8-94446-654-0	01	1	9611-			●	●	●	●	●	●
51	16.470 RUN; GLASS,UPR,RR WINDOW SLIDE GLASS<R80> (A)	8-94446-650-0	01	1	9611-			●	●	●	●	●	●
51	16.470 RUN; GLASS,UPR,RR WINDOW SLIDE GLASS<R80> (B)	8-94446-651-0	01	1	9611-			●	●	●	●	●	●
53	16.475 STOPPER; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94127-949-1	01	1	9611-			●	●	●	●	●	●
54	16.475 CHANNEL; SLIDE WINDOW SLIDE GLASS<R80>	8-94315-937-0	01	1	9611-			●	●	●	●	●	●
54	16.475 CHANNEL; SLIDE WINDOW SLIDE GLASS<R80>	8-94315-936-0	01	1	9611-			●	●	●	●	●	●
55	16.475 LOCK SET; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94143-704-1	01	1	9611-			●	●	●	●	●	●
56	16.475 CATCH SET; SLIDE RR WINDOW SLIDE GLASS<R80>	8-94143-705-1	01	1	9611-			●	●	●	●	●	●
