Sayfa 6-75 - Isuzu EPC

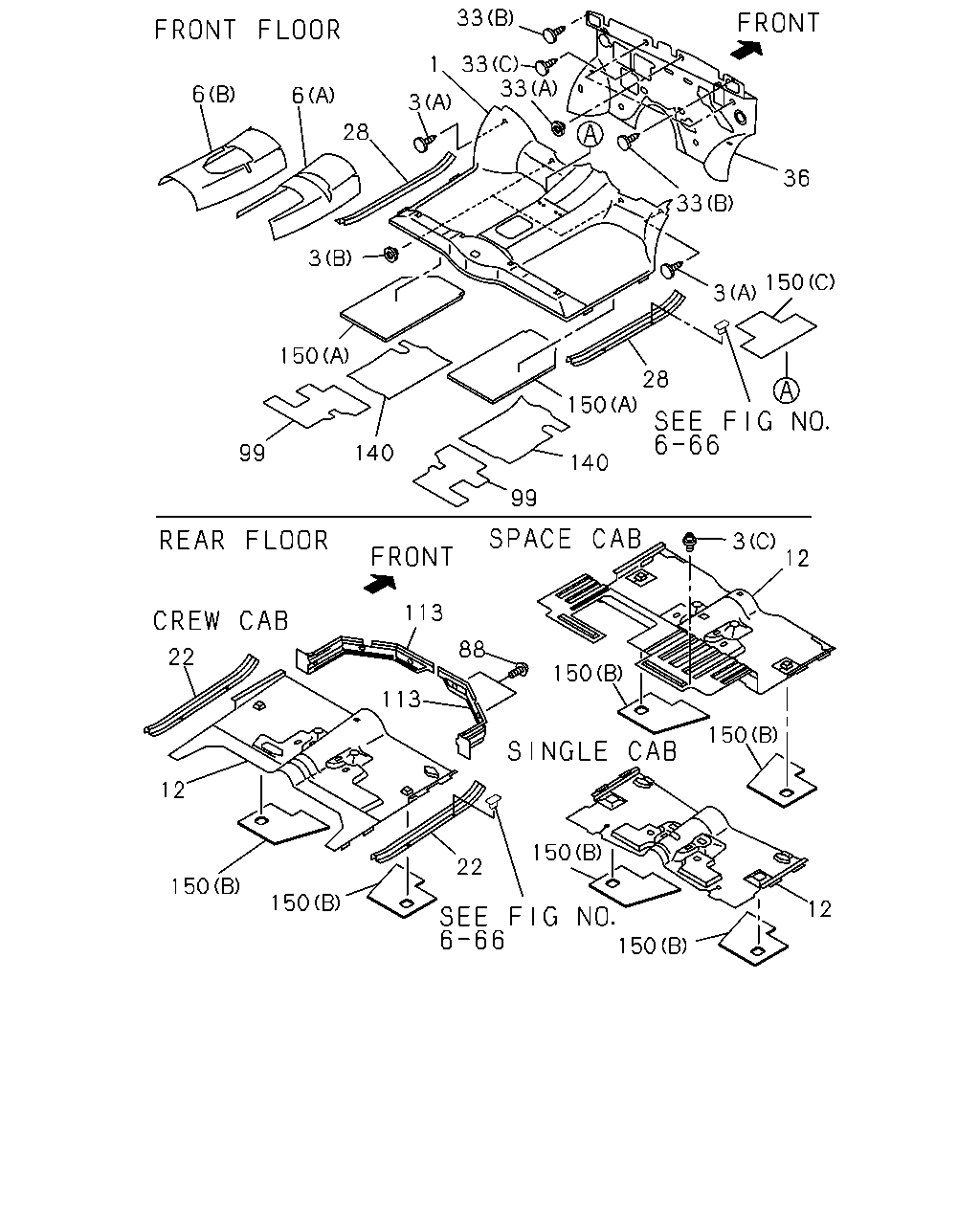

6-75 — MAT AND CARPET (#43901) — 109 parça

33 33 33 6 6 3 28 36 33 3 150 3 150 28 150 99 140 140 99 3 12 113 88 22 150 113 150 12 150 22 150 150 12 150 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 CARPET; FLOOR,FRT 4X2(TFB***) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97154-551-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> DARK GRAY	8-97154-559-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-552-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97154-550-1	01	1	9611-9711	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 CREW CAB(TFBW) 6VD1 ENG(RLV) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> UP GRADE PACKAGE(7MA) DARK GRAY	8-97154-550-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> UP GRADE PACKAGE(7MA) DARK GRAY	8-97154-550-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> FRONT CONSOLE<D55> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-369-2	01	1	9611-9711	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 CREW CAB(TFBW) 6VD1 ENG(RLV) FLOOR CARPET<B30> FRONT CONSOLE<D55> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-369-3	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> FRONT CONSOLE<D55> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-369-3	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) FLOOR CARPET<B30> RR CONSOLE<D63> EXC. FRONT CONSOLE<D55>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97158-493-0	01	1	9611-9709	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) FLOOR CARPET<B30> RR CONSOLE<D63> EXC. FRONT CONSOLE<D55>,UP GRADE PACKAGE(7MA)	8-97195-975-1	01	1	9710-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) 16.850 (C)	8-94321-035-0	03	1	9611-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97115-875-2	01	1	9611-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT FLOOR REMOTE SHIFT<M11> (B)	8-97132-019-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> RR CONSOLE<D63> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> DARK GRAY	8-97154-591-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> RR CONSOLE<D63> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97156-039-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2>,RR CONSOLE<D63>, NOISEINSULATION PACK 2<7MW> DARK GRAY	8-97154-590-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,RR CONSOLE<D63> DARK GRAY	8-97156-038-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) JUMP SEAT<AJ2> FLOOR CARPET<B30> RR CONSOLE<D63> DARK GRAY	8-97154-593-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) JUMP SEAT<AJ2> FLOOR CARPET<B30> EXC. RR CONSOLE<D63> DARK GRAY	8-97154-592-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> DARK GRAY	8-97155-151-0	01	1	9611-9711	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> DARK GRAY	8-97155-151-0	01	1	9712-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-150-0	01	1	9611-9704	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-150-0	01	1	9705-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-152-0	01	1	9611-9711	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) RR CONSOLE<D63> DARK GRAY	8-97155-152-0	01	1	9712-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-588-1	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-589-1	01	1	9611-9711	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-589-1	01	1	9712-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> DARK GRAY	8-97154-583-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97156-040-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) JUMP SEAT<AJ2> FLOOR CARPET<B30> DARK GRAY	8-97154-584-1	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 SINGLE CAB LONG(TFS*SF) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-582-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 CREW CAB(TFSW) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97153-625-1	01	1	9611-9711	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) 6VD1 ENG(RLV) FLOOR CARPET<B30> DARK GRAY	8-97153-625-1	01	1	9712-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 CREW CAB(TFSW) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97153-625-1	01	1	9712-	●	●
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	9611-	●	●
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	03	1	9611-	●	●
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	9611-	●	●
33	16.550 CLIP; INSULATION 16.800 (C)	8-97046-468-0	01	1	9611-	●	●
36	16.550 INSULATION; PAD,DASH INNER	8-97112-108-1	01	1	9611-	●	●
88	16.155 CLIP; TRIM COVER,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97153-651-1	07	1	9611-9711	●	●
88	16.155 CLIP; TRIM COVER,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3),6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97153-651-1	07	1	9712-	●	●
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	9611-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-011-1	01	1	9611-9711	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3),6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-011-1	01	1	9712-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-010-1	01	1	9611-9711	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3),6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-010-1	01	1	9712-	●	●
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-1	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR CREW CAB(TF*W) 6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) (C)	8-97174-032-0	01	1	9712-	●	●

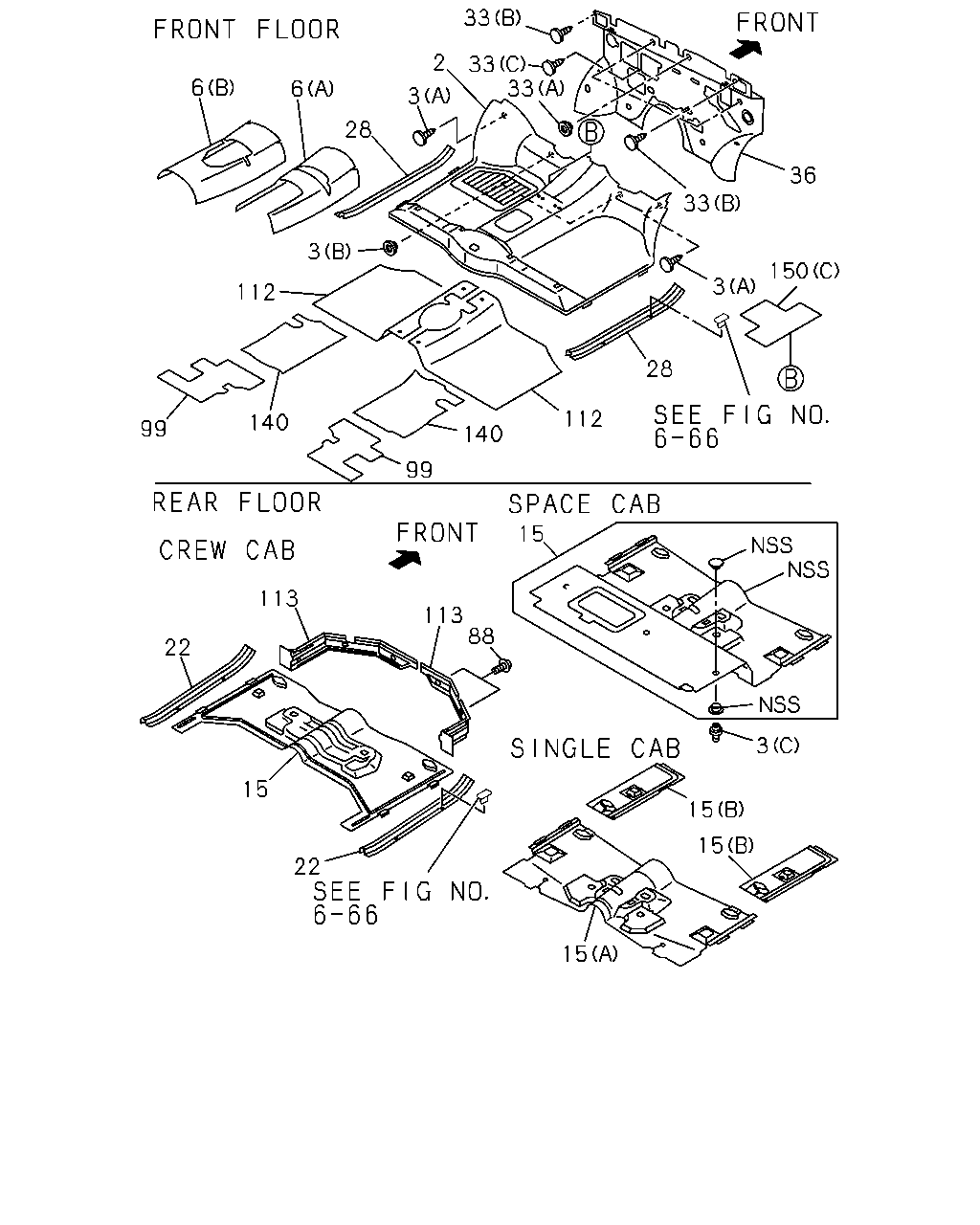

33 2 3 33 6 6 28 36 33 3 150 3 112 28 112 140 99 140 15 113 88 22 3 15 15 15 22 15 33 99 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR 4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR REMOTE SHIFT<M11> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-569-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11> DARK GRAY	8-97157-782-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-564-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-568-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SHORT(TFS**C) DARK GRAY	8-97155-370-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-370-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SPACE CAB(TFSC) EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-372-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) FRONT CONSOLE<D55> RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-372-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> ,RR CONSOLE<D63> DARK GRAY	8-97157-783-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> ,UP GRADE PACKAGE(7MA) DARK GRAY	8-97154-566-2	01	1	9611-9709	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> ,UP GRADE PACKAGE(7MA) DARK GRAY	8-97195-976-0	01	1	9710-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) 16.850 (C)	8-94321-035-0	03	1	9611-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97115-875-2	01	1	9611-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT FLOOR REMOTE SHIFT<M11> (B)	8-97132-019-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> (A) DARK GRAY	8-97155-154-0	01	1	9611-9711	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> (A) DARK GRAY	8-97155-154-0	01	1	9712-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SINGLE CAB LONG(TFS*SF) RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30> (A) DARK GRAY	8-97154-578-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR SINGLE CAB(TF*S) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (B) DARK GRAY	8-97157-033-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR SINGLE CAB(TF*S) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (B) DARK GRAY	8-97157-032-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97158-338-0	01	1	9611-9711	●	●
15	16.800 MAT; FLOOR REAR CREW CAB(TF*W) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97158-338-0	01	1	9712-	●	●
15	16.800 MAT; FLOOR REAR CREW CAB(TF*W) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-577-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SPACE CAB(TFBC) JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-576-5	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SPACE CAB(TFBC) EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-575-5	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SPACE CAB(TFSC) JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-581-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SPACE CAB(TFSC) EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY	8-97154-580-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 CREW CAB(TFSW) RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-579-1	01	1	9611-	●	●
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	9611-	●	●
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	03	1	9611-	●	●
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	9611-	●	●
33	16.550 CLIP; INSULATION 16.800 (C)	8-97046-468-0	01	1	9611-	●	●
36	16.550 INSULATION; PAD,DASH INNER	8-97112-108-1	01	1	9611-	●	●
88	16.155 CLIP; TRIM COVER,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97153-651-1	07	1	9611-9711	●	●
88	16.155 CLIP; TRIM COVER,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3),6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97153-651-1	07	1	9712-	●	●
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11> BLACK	8-97124-458-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11> BLACK	8-97124-455-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30> BLACK	8-97124-459-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30> BLACK	8-97124-456-0	01	1	9611-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-011-1	01	1	9611-9711	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3),6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-011-1	01	1	9712-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-010-1	01	1	9611-9711	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) 4ZD1 ENG(LW3),6VD1 ENG(RLV) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-010-1	01	1	9712-	●	●
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-1	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR CREW CAB(TF*W) 6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) (C)	8-97174-032-0	01	1	9712-	●	●

222 221

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	221	16.800 DAMPER; FLOOR CREW CAB(TF*W) 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.545	8-97139-100-1	01	1	9611-	●	●
	222	16.800 BOLT; DAMPER CREW CAB(TF*W) 16.549 M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9611-	●	●
