Sayfa 1-45 - Isuzu EPC

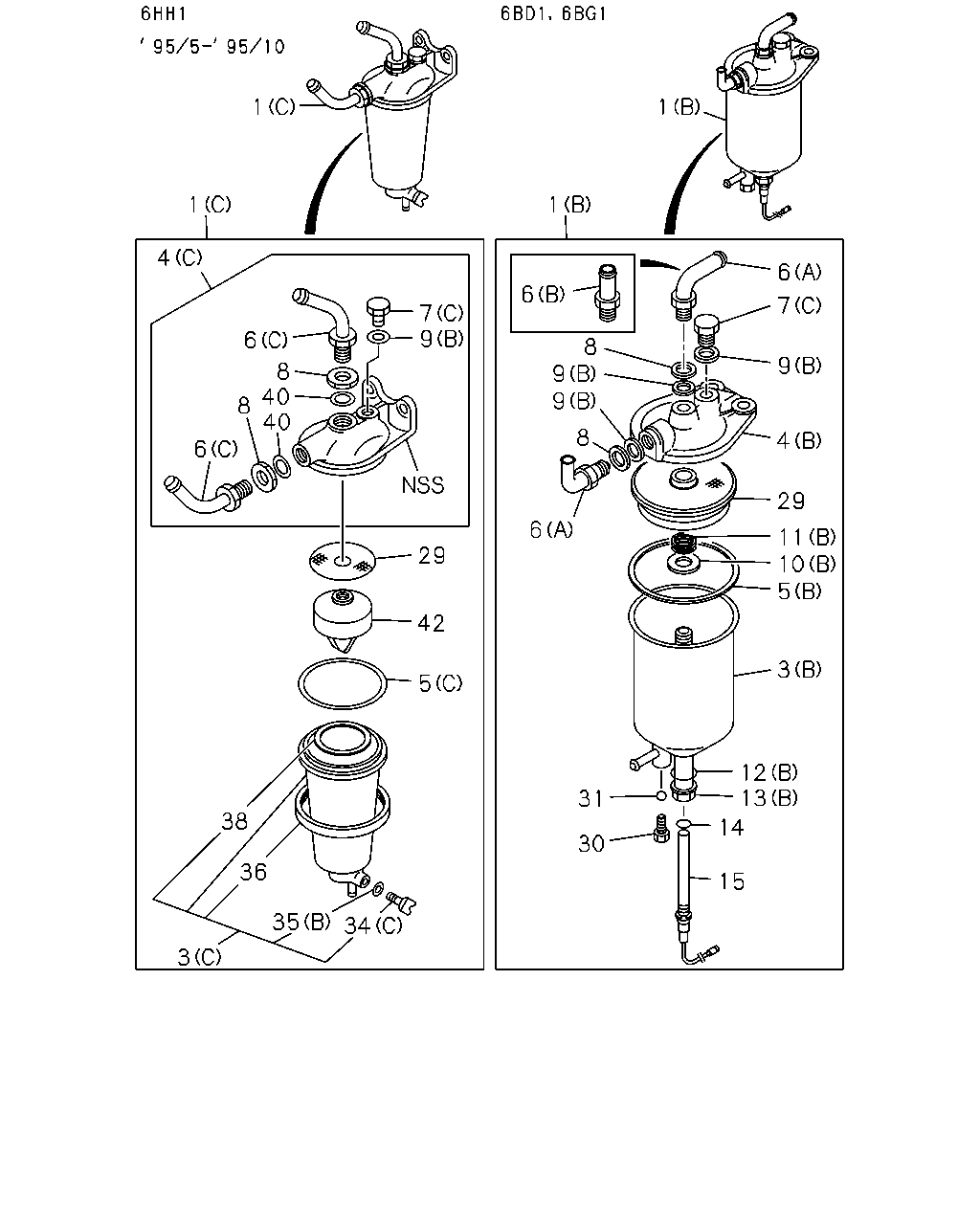

1-45 — WATER SEDIMENTER; FUEL (#4390) — 229 parça

1 1 1 1 4 6 6 7 7 9 6 8 9 9 9 8 40 40 8 8 4 6 29 6 11 10 5 29 42 3 5 12 13 31 38 14 30 36 15 35 34 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SEDIMENTER; FUEL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13200-492-1	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13200-370-0	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL PRE FUEL FILTER(W21) (A)	1-13200-533-2	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL (A)	1-13200-533-3	01	1	9505-9510				●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9710-0006				●	●	●
1	SEDIMENTER; FUEL (D)	1-13201-015-1	01	1	0007-				●	●	●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9511-9702				●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9703-9709				●		●
1	SEDIMENTER; FUEL (C)	1-13200-795-0	01	1	9505-9510				●
3	BODY ASM; SEDIMENTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13212-098-1	01	1	9101-9504	●	●	●
3	BODY ASM; SEDIMENTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13211-159-0	01	1	9101-9504	●	●	●
3	BODY ASM; SEDIMENTER PRE FUEL FILTER(W21) (A)	5-13211-005-1	02	1	9101-9504	●	●	●
3	BODY ASM; SEDIMENTER (C)	1-13211-174-1	01	1	9505-9510				●
3	BODY ASM; SEDIMENTER (A)	5-13211-005-1	02	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM (B)	9-13212-077-0	01	1	9101-9504	●	●	●
4	COVER; UPR,SEDIMENTER ASM (C)	1-13212-147-0	01	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM PRE FUEL FILTER(W21) (A)	1-13212-096-0	01	1	9101-9504	●	●	●
4	COVER; UPR,SEDIMENTER ASM (A)	1-13212-096-1	01	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9710-0203				●	●	●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9511-9702				●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9703-9709				●		●
5	GASKET; UPR COVER,SEDIMENTER (B)	1-09630-050-0	01	1	9101-9504	●	●	●
5	GASKET; UPR COVER,SEDIMENTER (C)	1-09623-491-0	01	1	9505-9510				●
5	GASKET; UPR COVER,SEDIMENTER (D)	9-09920-643-0	01	1	9511-9603				●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9710-				●	●	●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9604-9702				●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9703-9709				●		●
5	GASKET; UPR COVER,SEDIMENTER PRE FUEL FILTER(W21) (A)	9-13213-601-0	02	1	9101-9504	●	●	●
5	GASKET; UPR COVER,SEDIMENTER (A)	9-13213-601-0	02	1	9505-9510				●
6	CONNECTOR ASM; SEDIMENTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-13229-002-0	02	1	9101-9504	●	●	●
6	CONNECTOR ASM; SEDIMENTER (C)	1-13229-002-0	02	1	9505-9510				●
6	CONNECTOR ASM; SEDIMENTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A)	1-13229-002-0	01	1	9101-9504	●	●	●
6	CONNECTOR ASM; SEDIMENTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13229-003-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (C) M14X9	9-99202-314-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (C)	9-13219-070-0	01	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER(W21) (A)	1-13219-138-0	02	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (A)	1-13219-138-0	02	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER(W21) (B)	1-13219-139-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (B)	1-13219-139-0	01	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9710-				●	●	●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9511-9702				●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9703-9709				●		●
8	STOPPER; CONN,SEDIMENTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-13229-001-0	02	1	9101-9504	●	●	●
8	STOPPER; CONN,SEDIMENTER	1-13229-001-0	02	1	9505-9510				●
8	STOPPER; CONN,SEDIMENTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-13229-001-0	01	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (B)	1-09630-085-0	03	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (B)	1-09630-082-0	01	1	9505-9510				●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9710-				●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9511-9702				●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9703-9709				●		●
9	GASKET; DRAIN PLUG & CONNECTOR PRE FUEL FILTER(W21) (A)	5-09623-006-0	01	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (A)	5-09623-006-0	01	1	9505-9510				●
10	SEAT; ELEMENT,SEDIMENTER (B)	1-13249-015-0	01	1	9101-9504	●	●	●
10	SEAT; ELEMENT,SEDIMENTER PRE FUEL FILTER(W21) (A)	9-09651-068-0	02	1	9101-9504	●	●	●
10	SEAT; ELEMENT,SEDIMENTER (A)	9-09651-068-0	02	1	9505-9510				●
11	SPRING; SET,SCREEN (B)	1-13249-014-0	01	1	9101-9504	●	●	●
11	SPRING; SET,SCREEN PRE FUEL FILTER(W21) (A)	9-09742-109-0	02	1	9101-9504	●	●	●
11	SPRING; SET,SCREEN (A)	9-09742-109-0	02	1	9505-9510				●
12	GASKET; CENTER BOLT (B)	9-09920-586-0	01	1	9101-9504	●	●	●
12	GASKET; CENTER BOLT PRE FUEL FILTER(W21) (A)	9-09720-541-0	02	1	9101-9504	●	●	●
12	GASKET; CENTER BOLT (A)	9-09720-541-0	02	1	9505-9510				●
13	BOLT; CENTER,SEDIMENTER (B)	1-13231-049-0	01	1	9101-9504	●	●	●
13	BOLT; CENTER,SEDIMENTER PRE FUEL FILTER(W21) (A)	1-13231-033-0	02	1	9101-9504	●	●	●
13	BOLT; CENTER,SEDIMENTER (A)	1-13231-033-0	02	1	9505-9510				●
14	GASKET; SENSOR TO CENTER BOLT	9-09562-110-0	01	1	9101-9504	●	●	●
15	SENSOR ASM; SEDIMENTER	1-13249-026-0	01	1	9101-9504	●	●	●
29	SCREEN ASM; SEDIMENTER	1-13249-018-0	01	1	9101-9504	●	●	●
29	SCREEN ASM; SEDIMENTER	1-13219-228-0	01	1	9505-9510				●
30	VALVE; SEDIMENTER	1-13219-143-0	01	1	9101-9504	●	●	●
31	VALVE; SEDIMENTER	1-13219-142-0	01	1	9101-9504	●	●	●
34	PLUG; DRAIN,FUEL FILTER PRE FUEL FILTER(W21) (A) M8X10	9-09862-068-0	02	1	9101-9504	●	●	●
34	PLUG; DRAIN,FUEL FILTER (A) M8X10	9-09862-068-0	02	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER (C)	1-13219-225-0	01	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9710-				●	●	●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9511-9702				●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9703-9709				●		●
35	GASKET; DRAIN PLUG PRE FUEL FILTER(W21) (A)	9-09920-255-0	02	1	9101-9504	●	●	●
35	GASKET; DRAIN PLUG (A)	9-09920-255-0	02	1	9505-9510				●
35	GASKET; DRAIN PLUG (B)	1-09623-490-0	01	1	9505-9510				●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9710-				●	●	●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9511-9702				●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9703-9709				●		●
36	RING; BODY TO CASE	1-13219-226-0	01	1	9505-9510				●
38	FLOAT; SEDIMENTER	1-13219-227-0	01	1	9505-9510				●
38	FLOAT; SEDIMENTER	1-13219-313-0	01	1	9710-				●	●	●
38	FLOAT; SEDIMENTER	1-13219-313-0	01	1	9511-9702				●
38	FLOAT; SEDIMENTER	1-13219-313-0	01	1	9703-9709				●		●
40	GASKET; CONNECTOR TO COVER ID=14.2 OD=19.2	1-09630-085-0	02	1	9505-9510				●
42	PLATE; BAFFLE	1-13219-229-0	01	1	9505-9510				●

7 33 4 9 7 5 32 5 32 2 2 32 10 11 1 32 10 11 3 3 12 12 13 35 34 13 35 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SEDIMENTER; FUEL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13200-492-1	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13200-370-0	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL PRE FUEL FILTER(W21) (A)	1-13200-533-2	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL (A)	1-13200-533-3	01	1	9505-9510				●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9710-0006				●	●	●
1	SEDIMENTER; FUEL (D)	1-13201-015-1	01	1	0007-				●	●	●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9511-9702				●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9703-9709				●		●
1	SEDIMENTER; FUEL (C)	1-13200-795-0	01	1	9505-9510				●
2	ELEMENT; FUEL FILTER PRE FUEL FILTER(W21)	9-88511-191-1	02	1	9101-9504	●	●	●
2	ELEMENT; FUEL FILTER	9-88511-191-1	02	1	9505-9510				●
2	ELEMENT; FUEL FILTER	1-13240-194-0	01	1	9710-				●	●	●
2	ELEMENT; FUEL FILTER	1-13240-194-0	01	1	9511-9702				●
2	ELEMENT; FUEL FILTER	1-13240-194-0	01	1	9703-9709				●		●
3	BODY ASM; SEDIMENTER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13212-098-1	01	1	9101-9504	●	●	●
3	BODY ASM; SEDIMENTER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13211-159-0	01	1	9101-9504	●	●	●
3	BODY ASM; SEDIMENTER PRE FUEL FILTER(W21) (A)	5-13211-005-1	02	1	9101-9504	●	●	●
3	BODY ASM; SEDIMENTER (C)	1-13211-174-1	01	1	9505-9510				●
3	BODY ASM; SEDIMENTER (A)	5-13211-005-1	02	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM (B)	9-13212-077-0	01	1	9101-9504	●	●	●
4	COVER; UPR,SEDIMENTER ASM (C)	1-13212-147-0	01	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM PRE FUEL FILTER(W21) (A)	1-13212-096-0	01	1	9101-9504	●	●	●
4	COVER; UPR,SEDIMENTER ASM (A)	1-13212-096-1	01	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9710-0203				●	●	●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9511-9702				●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9703-9709				●		●
5	GASKET; UPR COVER,SEDIMENTER (B)	1-09630-050-0	01	1	9101-9504	●	●	●
5	GASKET; UPR COVER,SEDIMENTER (C)	1-09623-491-0	01	1	9505-9510				●
5	GASKET; UPR COVER,SEDIMENTER (D)	9-09920-643-0	01	1	9511-9603				●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9710-				●	●	●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9604-9702				●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9703-9709				●		●
5	GASKET; UPR COVER,SEDIMENTER PRE FUEL FILTER(W21) (A)	9-13213-601-0	02	1	9101-9504	●	●	●
5	GASKET; UPR COVER,SEDIMENTER (A)	9-13213-601-0	02	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER (C) M14X9	9-99202-314-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (C)	9-13219-070-0	01	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER(W21) (A)	1-13219-138-0	02	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (A)	1-13219-138-0	02	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER(W21) (B)	1-13219-139-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (B)	1-13219-139-0	01	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9710-				●	●	●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9511-9702				●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9703-9709				●		●
9	GASKET; DRAIN PLUG & CONNECTOR (B)	1-09630-085-0	03	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (B)	1-09630-082-0	01	1	9505-9510				●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9710-				●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9511-9702				●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9703-9709				●		●
9	GASKET; DRAIN PLUG & CONNECTOR PRE FUEL FILTER(W21) (A)	5-09623-006-0	01	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (A)	5-09623-006-0	01	1	9505-9510				●
10	SEAT; ELEMENT,SEDIMENTER (B)	1-13249-015-0	01	1	9101-9504	●	●	●
10	SEAT; ELEMENT,SEDIMENTER PRE FUEL FILTER(W21) (A)	9-09651-068-0	02	1	9101-9504	●	●	●
10	SEAT; ELEMENT,SEDIMENTER (A)	9-09651-068-0	02	1	9505-9510				●
11	SPRING; SET,SCREEN (B)	1-13249-014-0	01	1	9101-9504	●	●	●
11	SPRING; SET,SCREEN PRE FUEL FILTER(W21) (A)	9-09742-109-0	02	1	9101-9504	●	●	●
11	SPRING; SET,SCREEN (A)	9-09742-109-0	02	1	9505-9510				●
12	GASKET; CENTER BOLT (B)	9-09920-586-0	01	1	9101-9504	●	●	●
12	GASKET; CENTER BOLT PRE FUEL FILTER(W21) (A)	9-09720-541-0	02	1	9101-9504	●	●	●
12	GASKET; CENTER BOLT (A)	9-09720-541-0	02	1	9505-9510				●
13	BOLT; CENTER,SEDIMENTER (B)	1-13231-049-0	01	1	9101-9504	●	●	●
13	BOLT; CENTER,SEDIMENTER PRE FUEL FILTER(W21) (A)	1-13231-033-0	02	1	9101-9504	●	●	●
13	BOLT; CENTER,SEDIMENTER (A)	1-13231-033-0	02	1	9505-9510				●
32	GASKET; FUEL FILTER PRE FUEL FILTER(W21)	9-09720-542-0	04	1	9101-9504	●	●	●
32	GASKET; FUEL FILTER	9-09720-542-0	04	1	9505-9510				●
33	WASHER; DRAIN PLUG PRE FUEL FILTER(W21)	1-13239-003-0	02	1	9101-9504	●	●	●
33	WASHER; DRAIN PLUG	1-13239-003-0	02	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER PRE FUEL FILTER(W21) (A) M8X10	9-09862-068-0	02	1	9101-9504	●	●	●
34	PLUG; DRAIN,FUEL FILTER (A) M8X10	9-09862-068-0	02	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER (C)	1-13219-225-0	01	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9710-				●	●	●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9511-9702				●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9703-9709				●		●
35	GASKET; DRAIN PLUG PRE FUEL FILTER(W21) (A)	9-09920-255-0	02	1	9101-9504	●	●	●
35	GASKET; DRAIN PLUG (A)	9-09920-255-0	02	1	9505-9510				●
35	GASKET; DRAIN PLUG (B)	1-09623-490-0	01	1	9505-9510				●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9710-				●	●	●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9511-9702				●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9703-9709				●		●

1 7 9 38 5 2 35 34 4 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SEDIMENTER; FUEL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13200-492-1	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-13200-370-0	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL PRE FUEL FILTER(W21) (A)	1-13200-533-2	01	1	9101-9504	●	●	●
1	SEDIMENTER; FUEL (A)	1-13200-533-3	01	1	9505-9510				●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9710-0006				●	●	●
1	SEDIMENTER; FUEL (D)	1-13201-015-1	01	1	0007-				●	●	●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9511-9702				●
1	SEDIMENTER; FUEL (D)	1-13200-953-2	01	1	9703-9709				●		●
1	SEDIMENTER; FUEL (C)	1-13200-795-0	01	1	9505-9510				●
2	ELEMENT; FUEL FILTER PRE FUEL FILTER(W21)	9-88511-191-1	02	1	9101-9504	●	●	●
2	ELEMENT; FUEL FILTER	9-88511-191-1	02	1	9505-9510				●
2	ELEMENT; FUEL FILTER	1-13240-194-0	01	1	9710-				●	●	●
2	ELEMENT; FUEL FILTER	1-13240-194-0	01	1	9511-9702				●
2	ELEMENT; FUEL FILTER	1-13240-194-0	01	1	9703-9709				●		●
4	COVER; UPR,SEDIMENTER ASM (B)	9-13212-077-0	01	1	9101-9504	●	●	●
4	COVER; UPR,SEDIMENTER ASM (C)	1-13212-147-0	01	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM PRE FUEL FILTER(W21) (A)	1-13212-096-0	01	1	9101-9504	●	●	●
4	COVER; UPR,SEDIMENTER ASM (A)	1-13212-096-1	01	1	9505-9510				●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9710-0203				●	●	●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9511-9702				●
4	COVER; UPR,SEDIMENTER ASM (D)	1-13212-176-2	01	1	9703-9709				●		●
5	GASKET; UPR COVER,SEDIMENTER (B)	1-09630-050-0	01	1	9101-9504	●	●	●
5	GASKET; UPR COVER,SEDIMENTER (C)	1-09623-491-0	01	1	9505-9510				●
5	GASKET; UPR COVER,SEDIMENTER (D)	9-09920-643-0	01	1	9511-9603				●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9710-				●	●	●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9604-9702				●
5	GASKET; UPR COVER,SEDIMENTER (D)	1-13213-017-0	01	1	9703-9709				●		●
5	GASKET; UPR COVER,SEDIMENTER PRE FUEL FILTER(W21) (A)	9-13213-601-0	02	1	9101-9504	●	●	●
5	GASKET; UPR COVER,SEDIMENTER (A)	9-13213-601-0	02	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER (C) M14X9	9-99202-314-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (C)	9-13219-070-0	01	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER(W21) (A)	1-13219-138-0	02	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (A)	1-13219-138-0	02	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER PRE FUEL FILTER(W21) (B)	1-13219-139-0	01	1	9101-9504	●	●	●
7	PLUG; DRAIN,SEDIMENTER (B)	1-13219-139-0	01	1	9505-9510				●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9710-				●	●	●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9511-9702				●
7	PLUG; DRAIN,SEDIMENTER (D) M8X10	9-09862-068-0	01	1	9703-9709				●		●
9	GASKET; DRAIN PLUG & CONNECTOR (B)	1-09630-085-0	03	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (B)	1-09630-082-0	01	1	9505-9510				●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9710-				●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9511-9702				●
9	GASKET; DRAIN PLUG & CONNECTOR (C)	5-09623-024-1	01	1	9703-9709				●		●
9	GASKET; DRAIN PLUG & CONNECTOR PRE FUEL FILTER(W21) (A)	5-09623-006-0	01	1	9101-9504	●	●	●
9	GASKET; DRAIN PLUG & CONNECTOR (A)	5-09623-006-0	01	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER PRE FUEL FILTER(W21) (A) M8X10	9-09862-068-0	02	1	9101-9504	●	●	●
34	PLUG; DRAIN,FUEL FILTER (A) M8X10	9-09862-068-0	02	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER (C)	1-13219-225-0	01	1	9505-9510				●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9710-				●	●	●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9511-9702				●
34	PLUG; DRAIN,FUEL FILTER (B)	1-13219-314-0	01	1	9703-9709				●		●
35	GASKET; DRAIN PLUG PRE FUEL FILTER(W21) (A)	9-09920-255-0	02	1	9101-9504	●	●	●
35	GASKET; DRAIN PLUG (A)	9-09920-255-0	02	1	9505-9510				●
35	GASKET; DRAIN PLUG (B)	1-09623-490-0	01	1	9505-9510				●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9710-				●	●	●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9511-9702				●
35	GASKET; DRAIN PLUG (C)	8-94416-377-0	01	1	9703-9709				●		●
38	FLOAT; SEDIMENTER	1-13219-227-0	01	1	9505-9510				●
38	FLOAT; SEDIMENTER	1-13219-313-0	01	1	9710-				●	●	●
38	FLOAT; SEDIMENTER	1-13219-313-0	01	1	9511-9702				●
38	FLOAT; SEDIMENTER	1-13219-313-0	01	1	9703-9709				●		●
91	COVER; LWR,SEDIMENTER	1-13212-176-3	01	1	0204-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
