Sayfa 0-40B - Isuzu EPC

0-40B — FUEL INJECTION SYSTEM (#439) — 191 parça

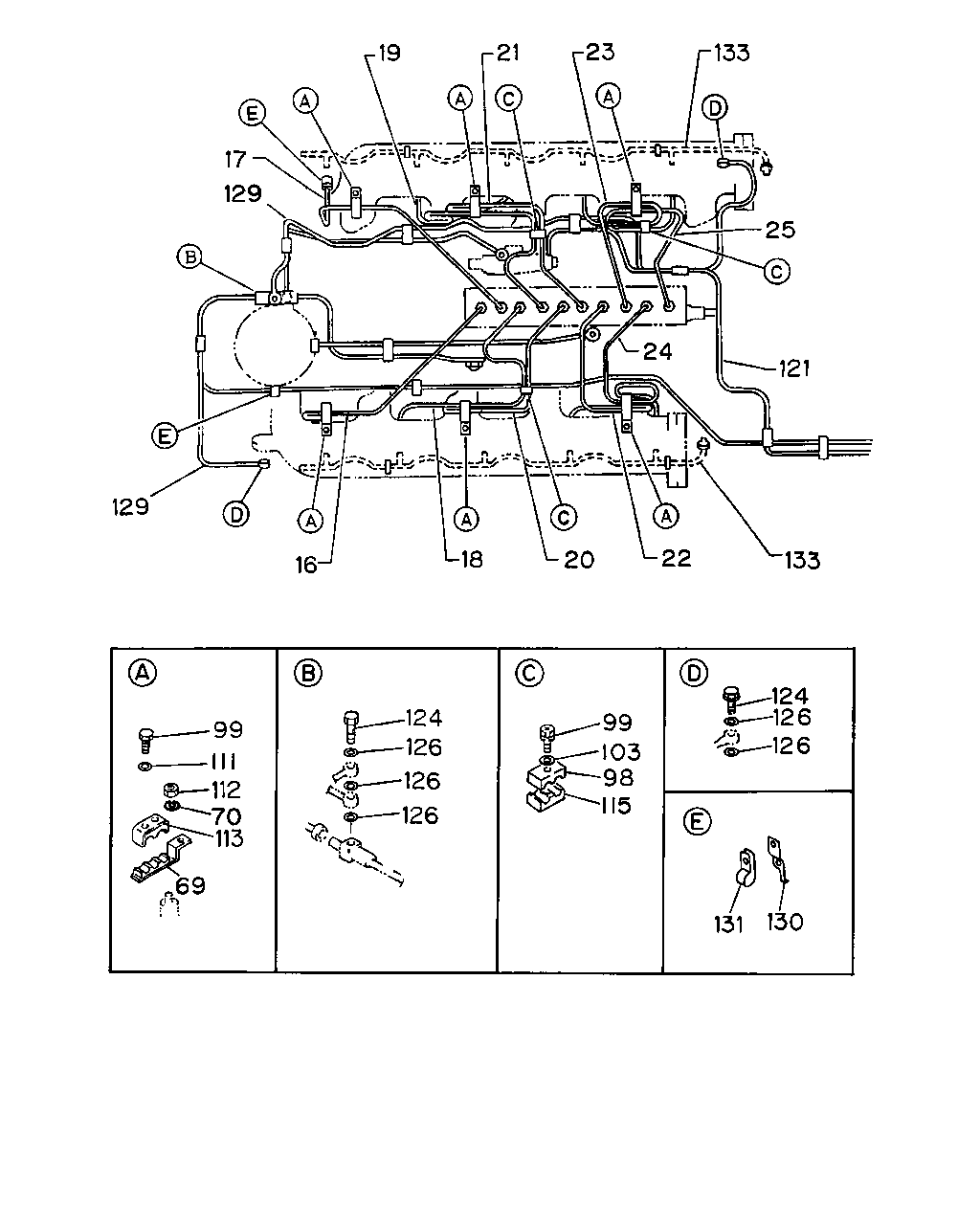

19 21 23 133 25 17 121 24 129 133 129 99 111 113 69 112 70 124 126 126 126 99 103 115 98 124 126 126 130 131 16 18 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	1-15413-660-1	01	1	8712-9001	●
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9002-9412		●
16	PIPE; INJ NO.1 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-631-0	01	1	9501-		●
16	PIPE; INJ NO.1 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-058-0	01	1	9501-		●
17	PIPE; INJ NO.2	1-15413-661-1	01	1	8712-9001	●
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9002-9412		●
17	PIPE; INJ NO.2 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-632-0	01	1	9501-		●
17	PIPE; INJ NO.2 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-059-0	01	1	9501-		●
18	PIPE; INJ NO.3	1-15413-662-1	01	1	8712-9001	●
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9002-9412		●
18	PIPE; INJ NO.3 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-633-0	01	1	9501-		●
18	PIPE; INJ NO.3 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-060-1	01	1	9501-		●
19	PIPE; INJ NO.4	1-15413-663-1	01	1	8712-9001	●
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9002-9412		●
19	PIPE; INJ NO.4 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-634-0	01	1	9501-		●
19	PIPE; INJ NO.4 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-061-1	01	1	9501-		●
20	PIPE; INJ NO.5	1-15413-664-1	01	1	8712-9001	●
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9002-9412		●
20	PIPE; INJ NO.5 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-635-0	01	1	9501-		●
20	PIPE; INJ NO.5 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-062-1	01	1	9501-		●
21	PIPE; INJ NO.6	1-15413-665-1	01	1	8712-9001	●
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9002-9412		●
21	PIPE; INJ NO.6 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-636-0	01	1	9501-		●
21	PIPE; INJ NO.6 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-063-1	01	1	9501-		●
22	PIPE; INJ NO.7	1-15413-666-1	01	1	8712-9001	●
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9002-9412		●
22	PIPE; INJ NO.7 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-637-0	01	1	9501-		●
22	PIPE; INJ NO.7 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-869-0	01	1	9501-		●
23	PIPE; INJ NO.8	1-15413-667-1	01	1	8712-9001	●
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9002-9412		●
23	PIPE; INJ NO.8 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-638-0	01	1	9501-		●
23	PIPE; INJ NO.8 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-065-1	01	1	9501-		●
24	PIPE; INJ NO.9	1-15413-668-1	01	1	8712-9001	●
24	PIPE; INJ NO.9	1-15414-639-0	01	1	9002-9412		●
24	PIPE; INJ NO.9 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-639-0	01	1	9501-		●
24	PIPE; INJ NO.9 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-066-0	01	1	9501-		●
25	PIPE; INJ NO.10	1-15413-669-1	01	1	8712-9001	●
25	PIPE; INJ NO.10	1-15414-640-0	01	1	9002-9412		●
25	PIPE; INJ NO.10 EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-640-0	01	1	9501-		●
25	PIPE; INJ NO.10 EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15414-067-1	01	1	9501-		●
69	BRACKET; INJ PIPE CLIP	1-15419-146-0	06	1	8712-9001	●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-		●
70	WASHER; LK,BRKT ID=8.2	9-09150-508-0	06	1	8712-9001	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	8712-	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	03	1	8712-	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	9-92050-520-0	08	1	8712-9005	●	●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	08	1	9006-9306		●
99	BOLT; CLIP,INJ,PIPE M5X20	0-20800-520-0	06	1	9307-		●
103	WASHER; LK,CLIP,INJ PIPE ID=5.1	9-09150-505-0	03	1	8712-	●	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	8712-9001	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	08	1	9002-9306		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9307-		●
112	NUT; BRKT,INJ PIPE CLIP M8	9-09110-408-0	06	1	8712-9001	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-		●
113	CLIP; INJ PIPE	1-15419-036-1	06	1	8712-	●	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	8712-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15413-281-0	01	1	8712-9001	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-		●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	8712-	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	8712-	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	8712-	●	●
129	PIPE ASM; LEAK OFF OUTER	1-15413-617-0	01	1	8712-9001	●
129	PIPE ASM; LEAK OFF OUTER	1-15413-906-0	01	1	8712-9001	●
129	PIPE ASM; LEAK OFF OUTER	1-15414-074-1	01	1	9002-		●
129	PIPE ASM; LEAK OFF OUTER	1-15414-075-1	01	1	9002-		●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	8712-	●	●
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	8712-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	8712-	●	●

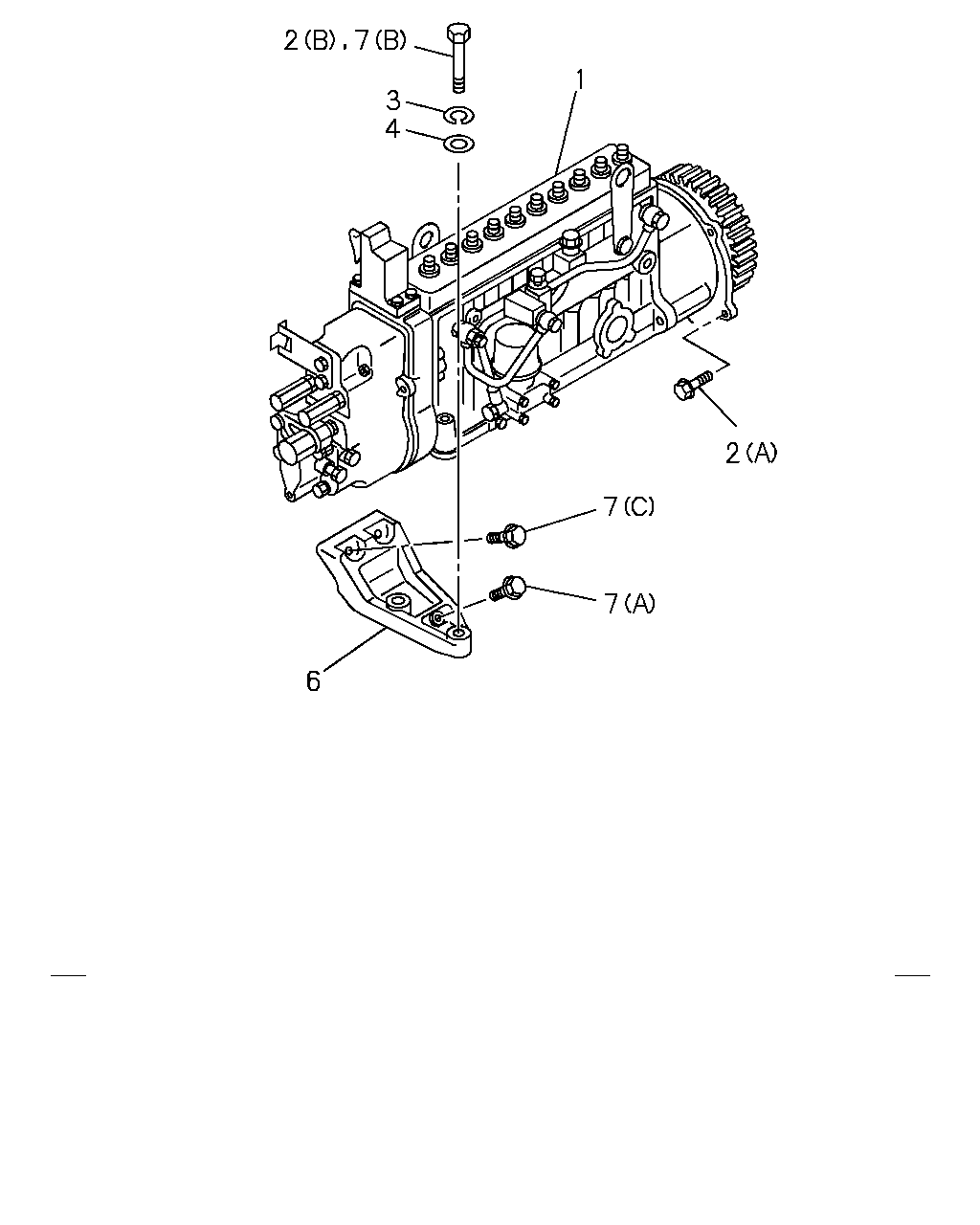

2 7 3 1 4 2 7 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-050-4	01	1	8712-9001	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-434-4	01	1	9002-9306		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6>	1-15602-922-0	01	1	9307-9410		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6>	1-15602-993-0	01	1	9411-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15602-993-0	01	1	9501-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF<KB6>	1-15602-434-4	01	1	9307-9412		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF<KB6>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15602-434-5	01	1	9501-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15603-021-1	01	1	9501-		●
2	BOLT; INJ PUMP (B) M10X85	9-01656-085-0	04	1	8712-9001	●
2	BOLT; INJ PUMP (A) M10X80	8-94399-730-1	04	1	9002-9101		●
2	BOLT; INJ PUMP (A) M10X80 FLANGE	0-28181-080-0	04	1	9102-		●
3	WASHER; LK,INJ PUMP ID=10.2	9-09150-510-0	06	1	8712-9001	●
4	WASHER; INJ PUMP ID=10.5 OD=18	9-09160-510-0	02	1	8712-9001	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	8712-	●	●
7	BOLT; INJ PUMP BRKT (B) M10X100	9-01656-000-0	02	1	8712-9001	●
7	BOLT; INJ PUMP BRKT (A) M10X25 W/LK WASHER	9-01931-025-0	01	1	8712-9001	●
7	BOLT; INJ PUMP BRKT (C) M10X45 W/LK WASHER	9-01931-045-0	01	1	8712-9001	●
7	BOLT; INJ PUMP BRKT (C) M10X40	0-28021-040-0	01	1	9002-9110		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9111-		●
7	BOLT; INJ PUMP BRKT (A) M10X22	0-28121-022-0	01	1	9002-9002		●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9003-		●
7	BOLT; INJ PUMP BRKT (B) M10X95 FLANGE	8-94397-027-1	02	1	9002-		●

31 32 37 38 40 39 143 44 141 140 47 140 138 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-146-1	10	1	8712-8804	●
31	NOZZLE ASM; INJ	1-15300-231-1	10	1	8805-9504	●	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-204-1	10	1	9505-		●
32	HOLDER ASM; NOZZLE	1-15330-048-1	10	1	8712-9504	●	●
32	HOLDER ASM; NOZZLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-048-1	10	1	9505-		●
32	HOLDER ASM; NOZZLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-089-1	10	1	9505-		●
33	NOZZLE; INJ	1-15311-151-0	10	1	8712-8804	●
33	NOZZLE; INJ	1-15311-159-1	10	1	8805-9504	●	●
33	NOZZLE; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-159-1	10	1	9505-		●
33	NOZZLE; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-180-0	10	1	9505-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	5-15332-007-0	10	1	8712-9306	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9307-		●
37	NUT; CAP,NOZZLE HOLDER	1-15332-012-0	10	1	8712-9306	●	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	10	1	9307-9504		●
37	NUT; CAP,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-016-0	10	1	9505-		●
37	NUT; CAP,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-015-0	10	1	9505-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	10	1	9002-9504		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15339-060-0	10	1	9505-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-15339-056-0	10	1	9505-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	10	1	8712-9504	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-005-0	10	1	9505-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-004-0	10	1	9505-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15332-011-0	10	1	9505-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	10	1	8712-9504	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15343-005-0	10	1	9505-		●
44	SPRING; NOZZLE,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94246-531-0	10	1	9505-		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	10	1	8712-9504	●	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94169-502-0	10	1	9505-		●
45	ROD; PUSH,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-004-0	10	1	9505-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	8712-	●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15339-015-0	10	1	9505-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15343-001-0	10	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.50	5-15339-007-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.60	5-15339-008-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.70	5-15339-009-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.80	5-15339-010-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.90	5-15339-011-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=1.00	5-15339-012-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.52	5-15339-018-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.54	5-15339-019-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.56	5-15339-020-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.58	5-15339-021-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.10	8-94128-982-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.20	8-94128-983-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.30	8-94128-984-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> T=0.40	8-94128-985-0	AR	1	9505-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-005-0	10	1	9505-		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-003-0	10	1	9505-		●

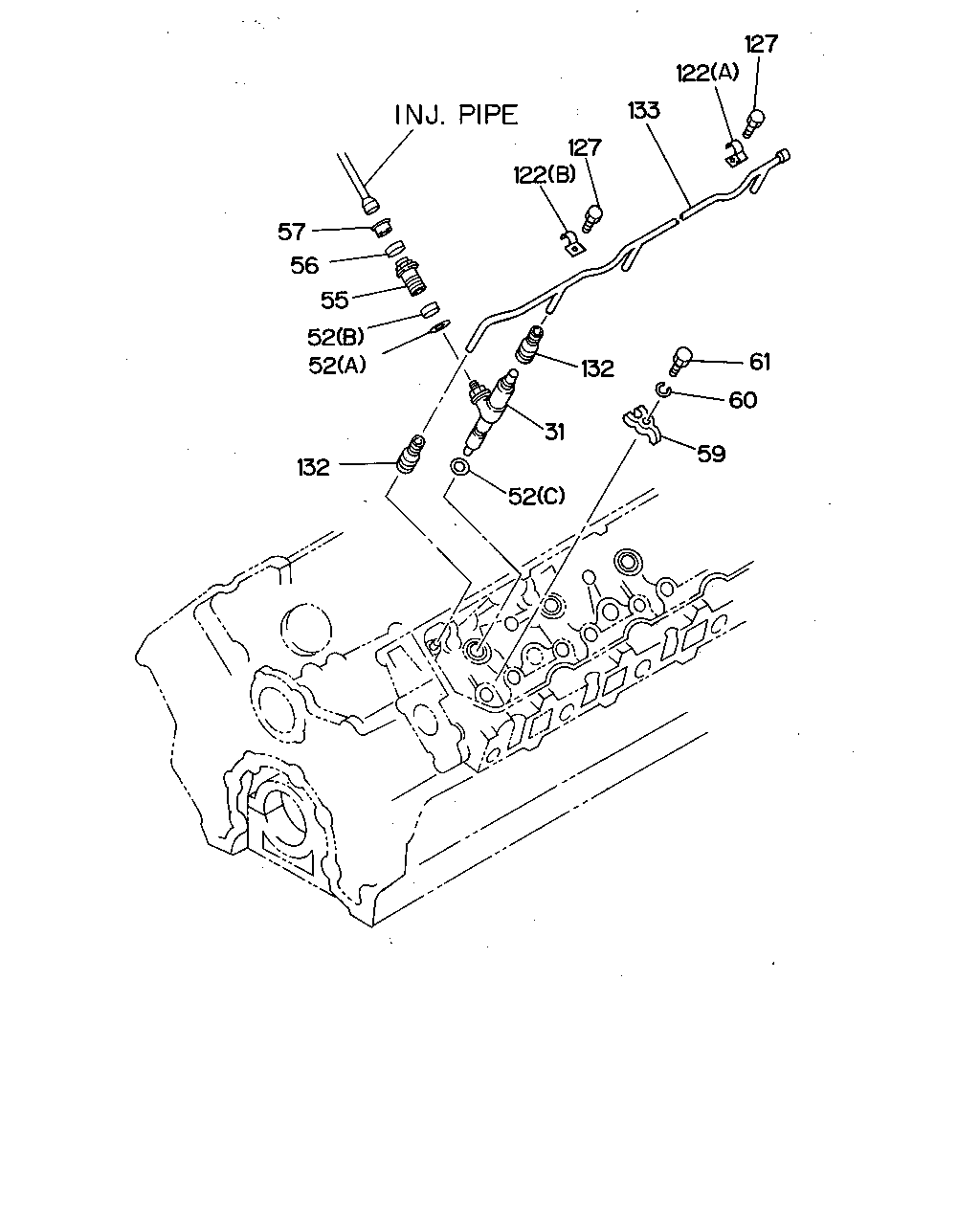

127 122 133 127 122 57 56 55 52 52 132 61 60 59 31 52 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-146-1	10	1	8712-8804	●
31	NOZZLE ASM; INJ	1-15300-231-1	10	1	8805-9504	●	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-204-1	10	1	9505-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	8712-	●	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	8712-	●	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-		●
55	SLEEVE; INJ PUMP	1-15339-006-1	10	1	8712-9001	●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-		●
56	COVER	1-15419-028-0	10	1	8712-	●	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	8712-	●	●
59	CLAMP; NOZZLE HOLDER	1-15337-003-0	10	1	8712-8909	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	8910-	●	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	8712-	●	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	8712-	●	●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	8712-	●	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	8712-	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X20 W/LK WASHER	9-01910-820-0	06	1	8712-9001	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005		●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-		●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	8712-	●	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	8712-	●	●

37 38 31 39 32 44 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	1-15300-146-1	10	1	8712-8804	●
31	NOZZLE ASM; INJ	1-15300-231-1	10	1	8805-9504	●	●
31	NOZZLE ASM; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15300-204-1	10	1	9505-		●
32	HOLDER ASM; NOZZLE	1-15330-048-1	10	1	8712-9504	●	●
32	HOLDER ASM; NOZZLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-048-1	10	1	9505-		●
32	HOLDER ASM; NOZZLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15330-089-1	10	1	9505-		●
33	NOZZLE; INJ	1-15311-151-0	10	1	8712-8804	●
33	NOZZLE; INJ	1-15311-159-1	10	1	8805-9504	●	●
33	NOZZLE; INJ EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-159-1	10	1	9505-		●
33	NOZZLE; INJ EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15311-180-0	10	1	9505-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	5-15332-007-0	10	1	8712-9306	●	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9307-		●
37	NUT; CAP,NOZZLE HOLDER	1-15332-012-0	10	1	8712-9306	●	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	10	1	9307-9504		●
37	NUT; CAP,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-016-0	10	1	9505-		●
37	NUT; CAP,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15334-015-0	10	1	9505-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	10	1	9002-9504		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15339-060-0	10	1	9505-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	9-15339-056-0	10	1	9505-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	10	1	8712-9504	●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-005-0	10	1	9505-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15345-004-0	10	1	9505-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	10	1	8712-9504	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	5-15343-005-0	10	1	9505-		●
44	SPRING; NOZZLE,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94246-531-0	10	1	9505-		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	10	1	8712-9504	●	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94169-502-0	10	1	9505-		●
45	ROD; PUSH,NOZZLE HOLDER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15341-004-0	10	1	9505-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	8712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
