6-60 — ROOF PANEL (#43898) — 29 parça

çizim 18566

1 44 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	1	16.585 PANEL; ROOF	8-94460-986-2	01	1	9611-	●	●
	1	16.585 PANEL; ROOF	8-94449-672-1	01	1	9611-			●	●	●	●
	1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97125-838-0	01	1	9611-							●	●
	1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-94471-173-0	01	1	9611-							●	●
	6	16.550 FRAME; ROOF FRT	8-94455-377-1	01	1	9611-	●	●	●	●	●	●	●	●
	44	16.585 FRAME ASM; ROOF PANEL RR	8-97063-678-0	01	1	9611-	●	●	●	●	●	●	●	●

çizim 20692

1 44 6 13 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	1	16.585 PANEL; ROOF	8-94460-986-2	01	1	9611-	●	●
	1	16.585 PANEL; ROOF	8-94449-672-1	01	1	9611-			●	●	●	●
	1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97125-838-0	01	1	9611-							●	●
	1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-94471-173-0	01	1	9611-							●	●
	6	16.550 FRAME; ROOF FRT	8-94455-377-1	01	1	9611-	●	●	●	●	●	●	●	●
	13	16.585 PANEL; ROOF SUPPORT	8-94451-967-3	01	1	9611-	●	●					●	●
	15	16.585 BOLT; ROOF SUPPORT M6X14 FLANGE	8-94327-380-0	04	1	9611-	●	●
	15	16.585 BOLT; ROOF SUPPORT 16.570 M6X16 W/LK&PL WASHER	9-03920-616-0	08	1	9611-							●	●
	44	16.585 FRAME ASM; ROOF PANEL RR	8-97063-678-0	01	1	9611-	●	●	●	●	●	●	●	●

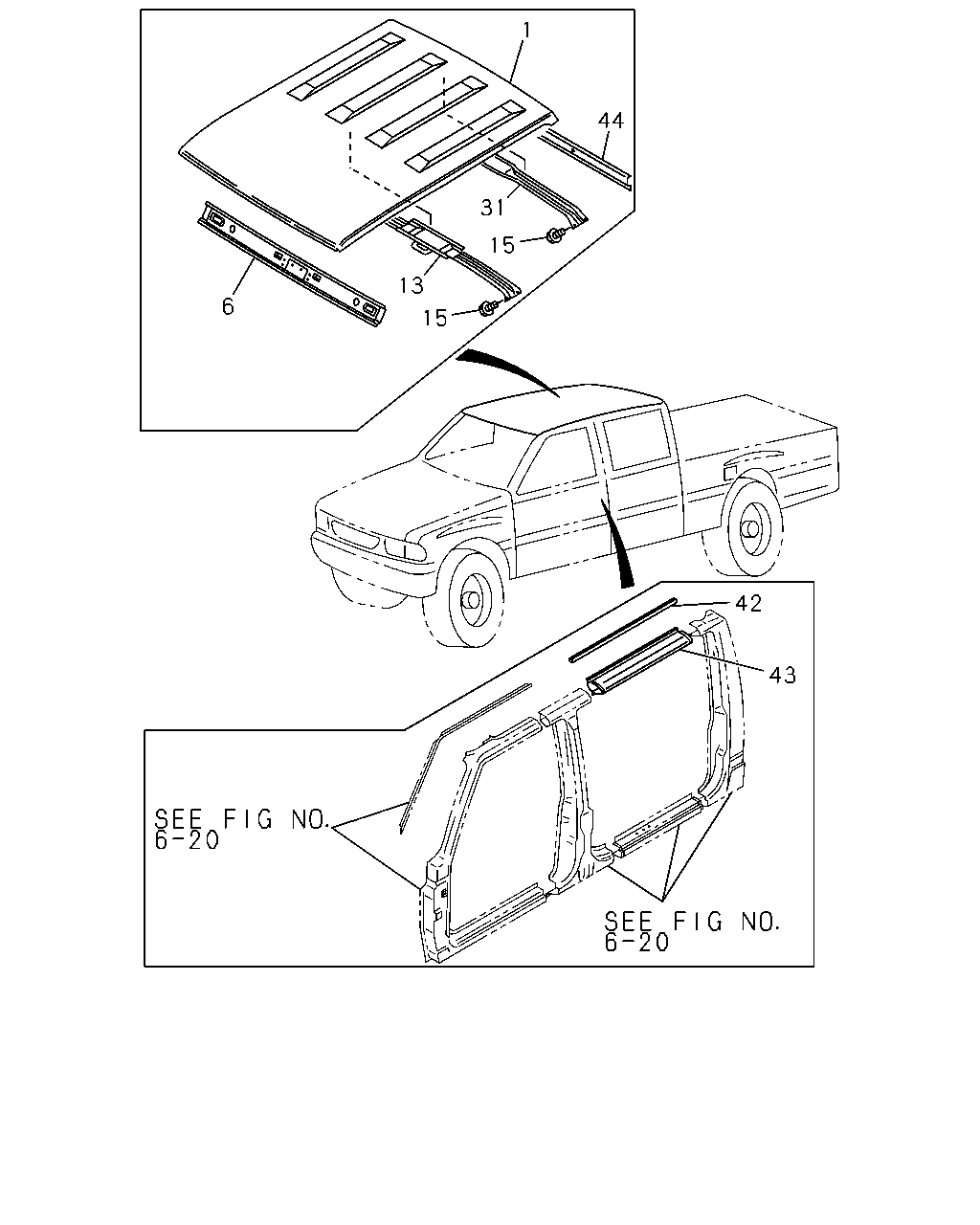

çizim 71279

31 15 13 15 6 42 43 1 44

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
	1	16.585 PANEL; ROOF	8-94460-986-2	01	1	9611-	●	●
	1	16.585 PANEL; ROOF	8-94449-672-1	01	1	9611-			●	●	●	●
	1	16.585 PANEL; ROOF HIGH MOUNT STOP LAMP<TS6>	8-97125-838-0	01	1	9611-							●	●
	1	16.585 PANEL; ROOF EXC. HIGH MOUNT STOP LAMP<TS6>	8-94471-173-0	01	1	9611-							●	●
	6	16.550 FRAME; ROOF FRT	8-94455-377-1	01	1	9611-	●	●	●	●	●	●	●	●
	13	16.585 PANEL; ROOF SUPPORT	8-94451-967-3	01	1	9611-	●	●					●	●
	15	16.585 BOLT; ROOF SUPPORT M6X14 FLANGE	8-94327-380-0	04	1	9611-	●	●
	15	16.585 BOLT; ROOF SUPPORT 16.570 M6X16 W/LK&PL WASHER	9-03920-616-0	08	1	9611-							●	●
	31	16.585 PANEL; ROOF SUPPORT,RR	8-94454-085-3	01	1	9611-							●	●
	42	16.585 RAIL; DRIP,ROOF RR	8-94454-397-0	01	1	9611-							●	●
	42	16.585 RAIL; DRIP,ROOF RR	8-94454-396-0	01	1	9611-							●	●
	43	16.585 CLOSING; ROOF RAIL,RR	8-94454-389-0	01	1	9611-							●	●
	43	16.585 CLOSING; ROOF RAIL,RR	8-94454-388-0	01	1	9611-							●	●
	44	16.585 FRAME ASM; ROOF PANEL RR	8-97063-678-0	01	1	9611-	●	●	●	●	●	●	●	●
