Isuzu WW
▶
PICKUP
▶
TFR
▶
50726 - TFR/TFS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-50 - REAR DOOR AND HINGE
▶

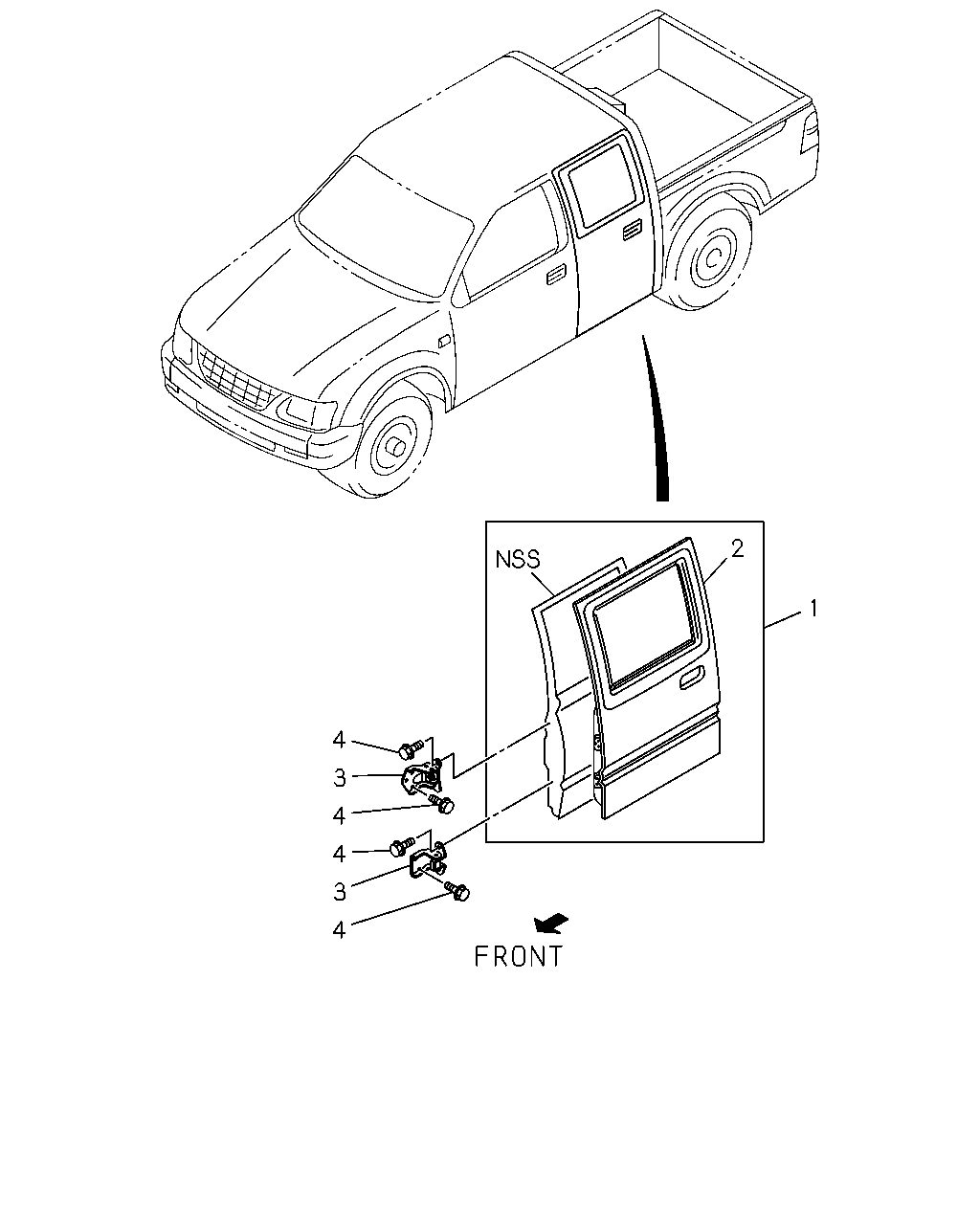

6-50 — REAR DOOR AND HINGE
(#43894) — 12 parça
Tümü
A - TFB6WF
B - TFS6WF
2
1
4
3
4
4
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.150 DOOR ASM; REAR
CHILE EQUIPMENT(6KB)
8-97146-834-0
01
1
9611-
●
●
1
16.150 DOOR ASM; REAR
CHILE EQUIPMENT(6KB)
8-97146-833-0
01
1
9611-
●
●
1
16.150 DOOR ASM; REAR
EXC. CHILE EQUIPMENT(6KB)
8-97112-215-0
01
1
9611-
●
●
1
16.150 DOOR ASM; REAR
EXC. CHILE EQUIPMENT(6KB)
8-97112-214-0
01
1
9611-
●
●
2
16.152 PANEL; RR DOOR OUTER
8-94472-546-1
01
1
9611-
●
●
2
16.152 PANEL; RR DOOR OUTER
8-94472-545-1
01
1
9611-
●
●
3
16.335 HINGE; RR DOOR
LOWER
8-94183-176-2
01
1
9611-
●
●
3
16.335 HINGE; RR DOOR
LOWER
8-94183-175-2
01
1
9611-
●
●
3
16.335 HINGE; RR DOOR
16.320 UPPER
8-94474-102-1
01
1
9611-
●
●
3
16.335 HINGE; RR DOOR
16.320 UPPER
8-94474-101-1
01
1
9611-
●
●
4
16.335 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
08
1
9611-
●
●
4
16.335 BOLT; HINGE
10.463 M8X23 FLANGE
8-94174-559-2
10
1
9611-
●
●
