6-47 — MUD GUARD AND INSULATOR (#43893) — 44 parça

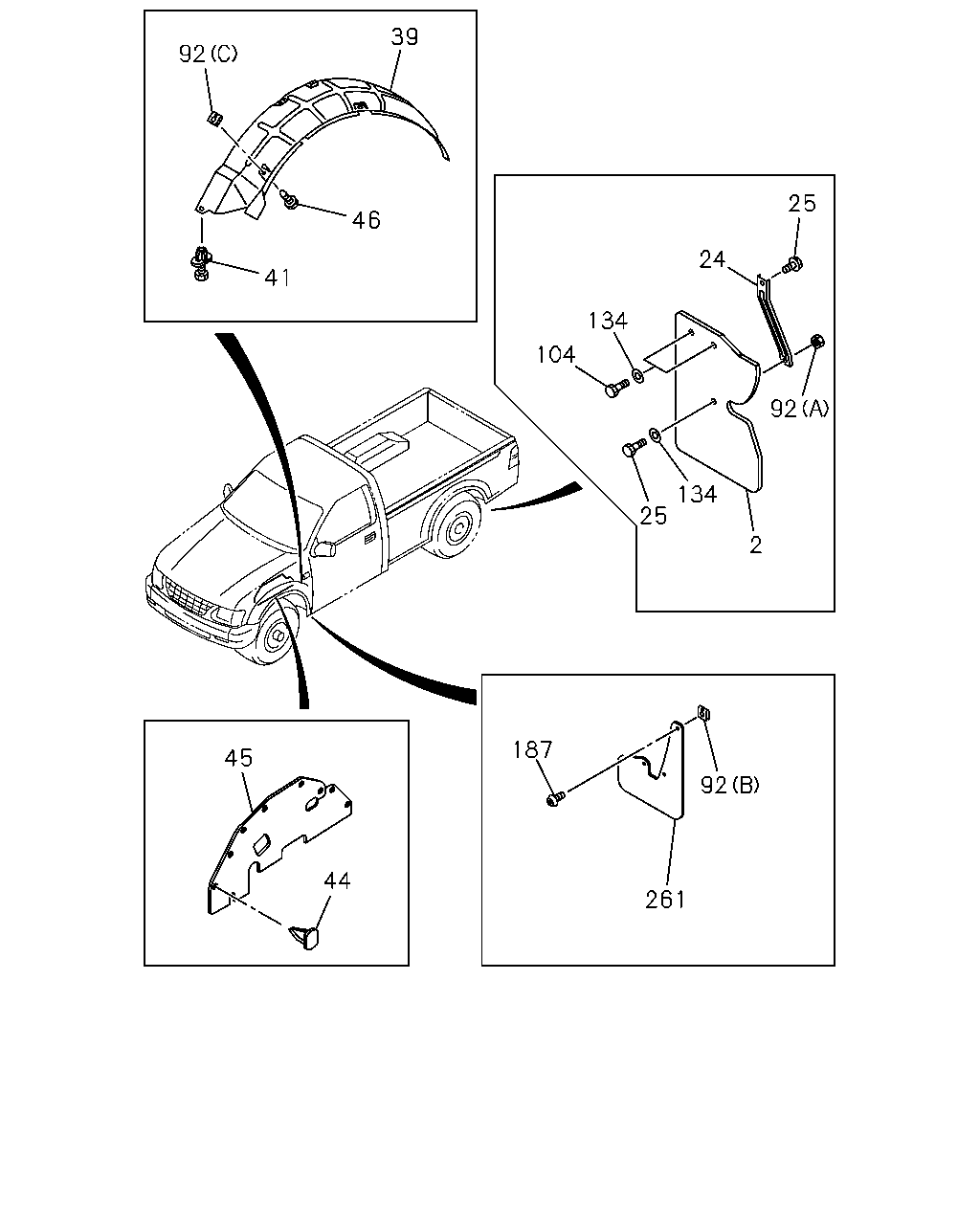

çizim 72108
39 92 25 46 24 41 134 104 92 134 25 2 187 45 92 44 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.154 COVER; MUD,TIRE RR
BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 		8-97142-531-1 02 1 9611-9704 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-531-1 02 1 9705-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-531-1 02 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97142-514-1 01 1 9611-9704 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-514-1 01 1 9705-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-514-1 01 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97142-513-1 01 1 9611-9704 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-513-1 01 1 9705-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-513-1 01 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 		8-97142-530-1 02 1 9611-9704 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-530-1 02 1 9705-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
6VD1 ENG(RLV) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-530-1 02 1 9801- ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-530-1 02 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97142-516-1 01 1 9611-9704 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-516-1 01 1 9705-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
6VD1 ENG(RLV) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-516-1 01 1 9801- ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-516-1 01 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. BEDFORD MARK<RS3>,CHEVROLET MARK<YL6> 		8-97142-515-1 01 1 9611-9704 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-515-1 01 1 9705-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
6VD1 ENG(RLV) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-515-1 01 1 9801- ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. CHEVROLET MARK<YL6> 		8-97142-515-1 01 1 9801- ● ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 16.100 		8-94328-186-0 01 1 9611- ● ● ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 		8-94328-185-0 01 1 9611- ● ● ● ● ● ● ● ●
25 08.155 BOLT; PLATE TO MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER 8-97111-843-2 01 1 9611- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER 8-97111-842-2 01 1 9611- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 08.154 		8-94221-150-0 12 1 9611- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9611- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9611- ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 16 1 9611- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-997-2 01 1 9611- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-996-2 01 1 9611- ● ● ● ● ● ● ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9611- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9611- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> (B) ID=5.2 H=10 		8-97032-135-0 06 1 9611- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
(C) ID=5.2 H=10 		8-97032-135-0 04 1 9611- ● ● ● ● ● ● ● ●
104 08.214 BOLT; BRKT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ● ● ●
134 08.155 WASHER; PL
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> 07.633 ID=8.4 OD=22 		9-09164-708-0 06 1 9611- ● ● ● ● ● ● ● ●
187 08.155 SCREW; FENDER COVER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9611- ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-97166-253-1 02 1 9611-9712 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-97166-253-1 02 1 9801- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97166-252-1 02 1 9611-9712 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
6VD1 ENG(RLV) MUD FLAP<VH4> 		8-97166-252-1 02 1 9801- ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97166-252-1 02 1 9801- ● ● ● ●
