◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-45 - MOLDING AND STRIPE ▶
6-45 — MOLDING AND STRIPE (#43892) — 142 parça

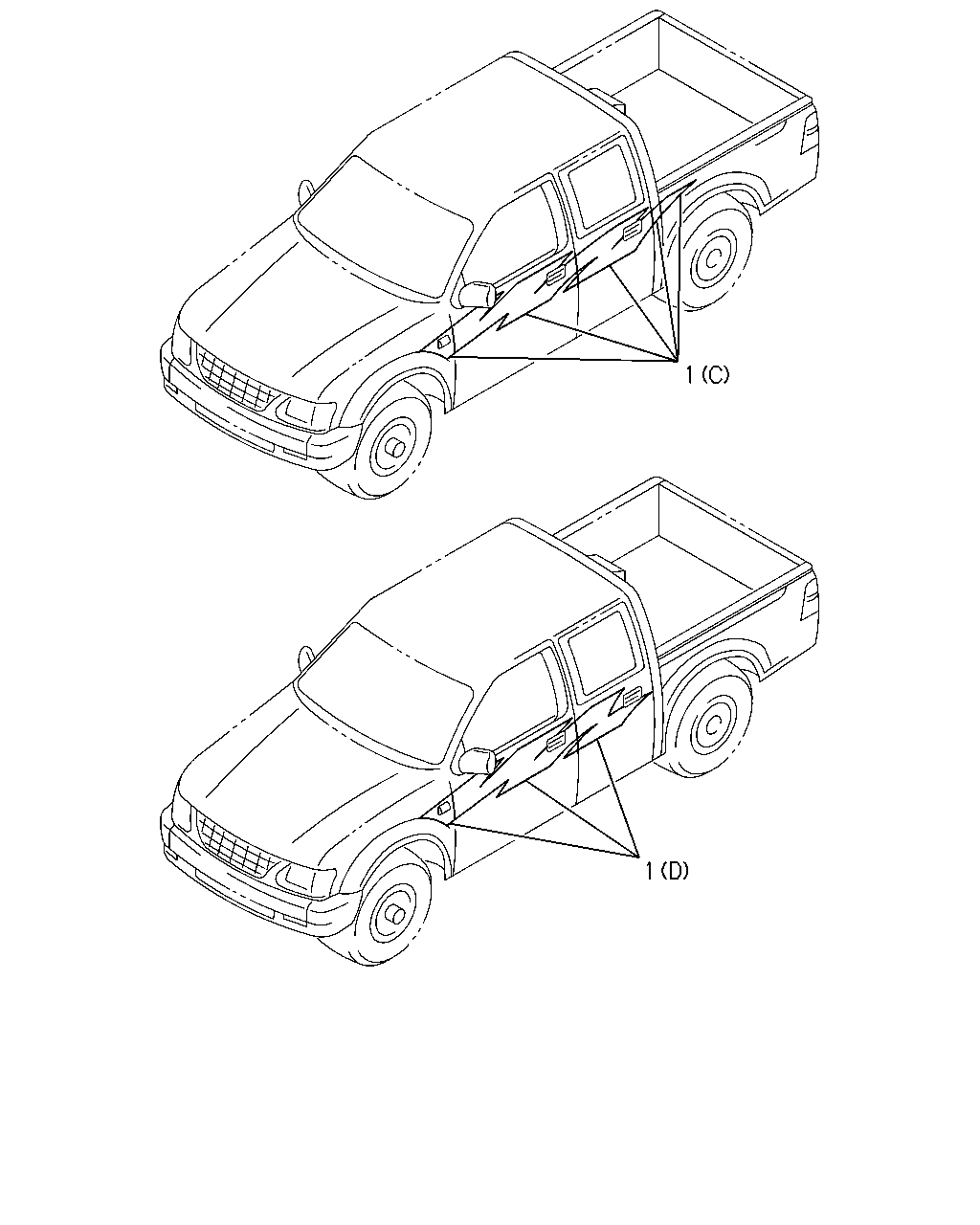

çizim 18249
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-570-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-569-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-572-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-571-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-576-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-575-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-574-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-573-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-580-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-579-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-578-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-577-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-640-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-639-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-636-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-635-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-642-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-641-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-638-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-637-0 01 1 9705- ● ●

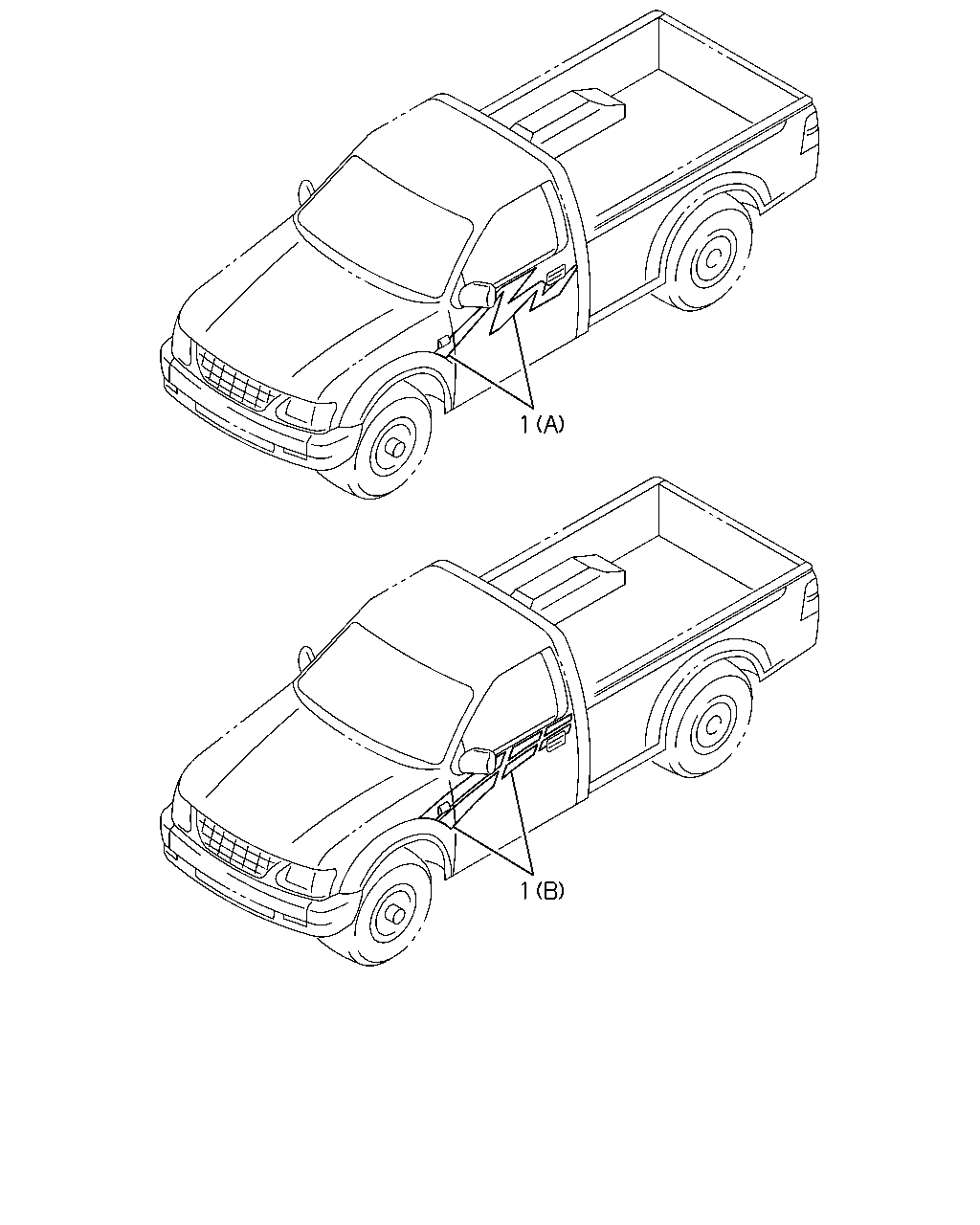

çizim 20687
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-570-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-569-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-572-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-571-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-576-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-575-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-574-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-573-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-580-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-579-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-578-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-577-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-640-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-639-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-636-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-635-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-642-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-641-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-638-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-637-0 01 1 9705- ● ●

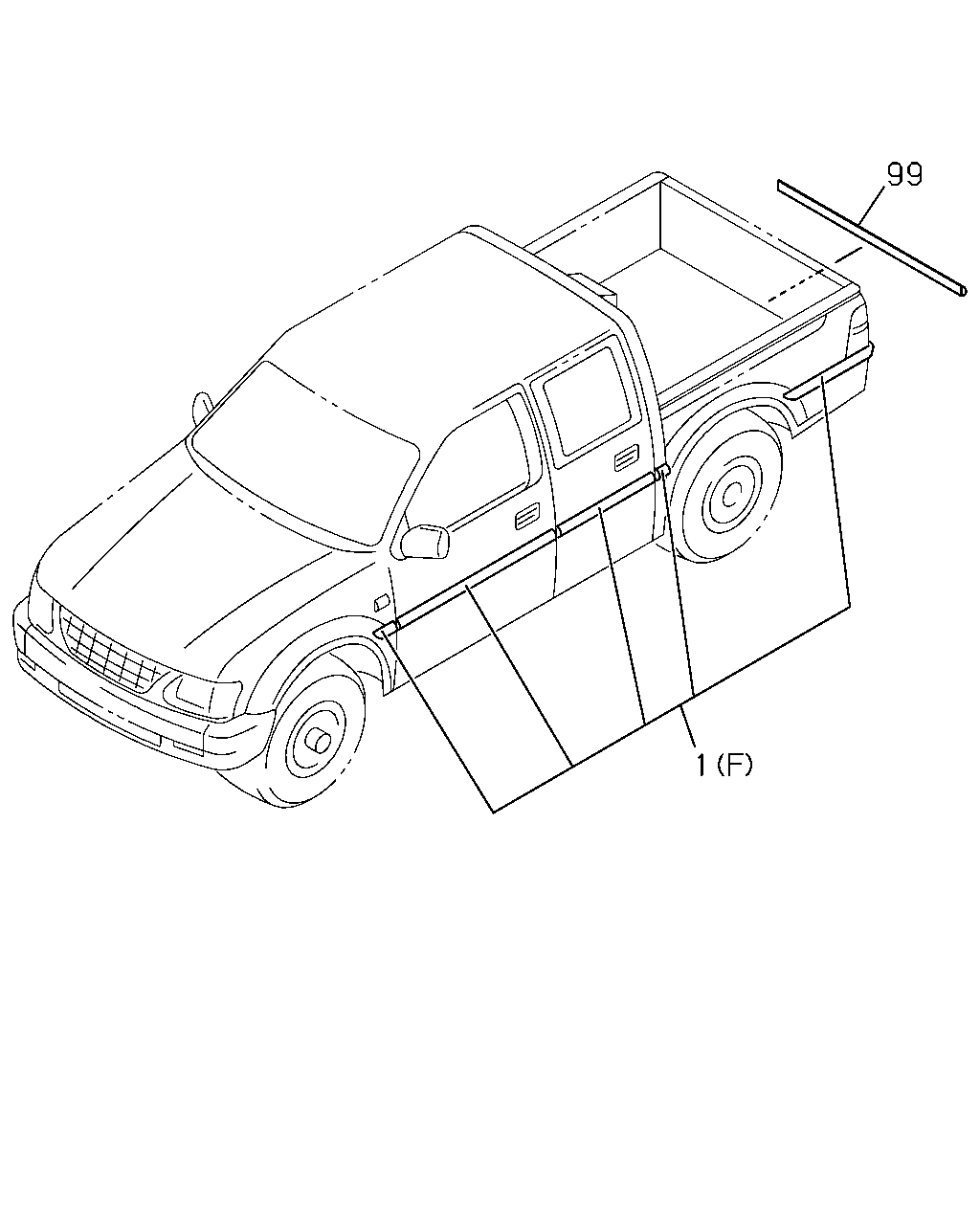

çizim 20689
99 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-570-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-569-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-572-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-571-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-576-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-575-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-574-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-573-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-580-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-579-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-578-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-577-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-640-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-639-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-636-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-635-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-642-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-641-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-638-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-637-0 01 1 9705- ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		8-97195-591-0 01 1 9706- ● ●

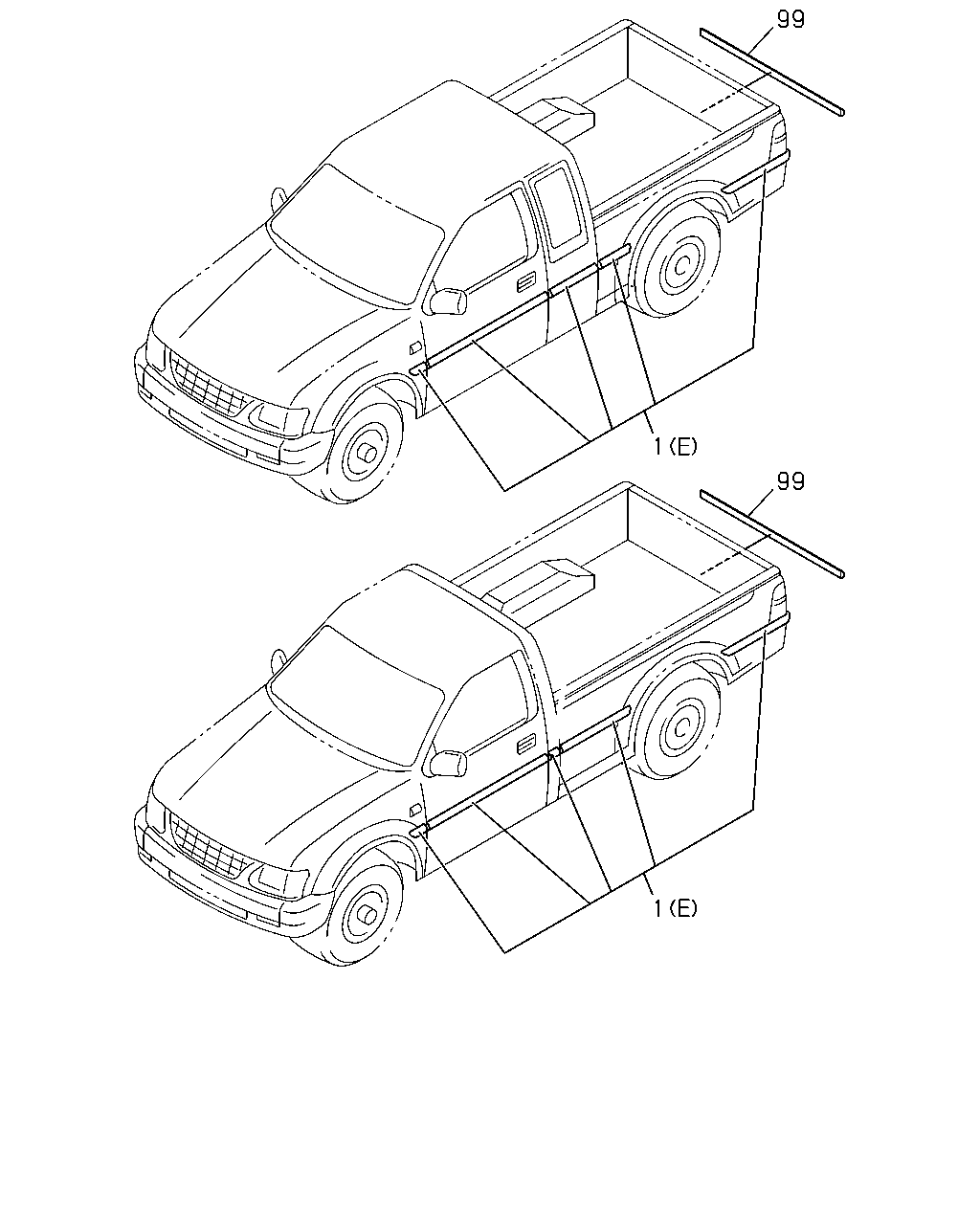

çizim 67956
1 99 1 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-570-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE HEDGEHOG GRADATION<230> BODY SIDE STRIPE TYPE A(7RA) (A) 		5-87831-569-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-572-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
BODY STRIPE FLAG GRADATION<231> BODY SIDE STRIPE TYPE B(7RB) (B) 		5-87831-571-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-576-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-575-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-574-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE C(7RC) (C) 		5-87831-573-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-580-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE COOL LIGHTNING GRADATION<233> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-579-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-578-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY STRIPE HOT LIGHTNING GRADATION<232> BODY SIDE STRIPE TYPE D(7RD) (D) 		5-87831-577-0 01 1 9611- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-640-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SPACE CAB(TF**C*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-639-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-636-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
SINGLE CAB LONG(TF**SF) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-635-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-642-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
CREW CAB(TF**W*) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (F) 		5-87831-641-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-638-0 01 1 9705- ● ●
1 08.304 STRIPE SET; BODY SIDE
4X2 SHORT(TFB**C) BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) (E) 		5-87831-637-0 01 1 9705- ● ●
99 16.290 STRIPE; TAIL GATE
BODY COLOR MARINE BLUE/IRON GRAY MET(726) ,BODY COLOR CREAM WHITE/IRON GRAY MET(776),BODY COLOR RADIANT RED/IRON GRAY MET(782) BODY SIDE STRIPE PIN TYPE(6MD) GRAY 		8-97195-591-0 01 1 9706- ● ●

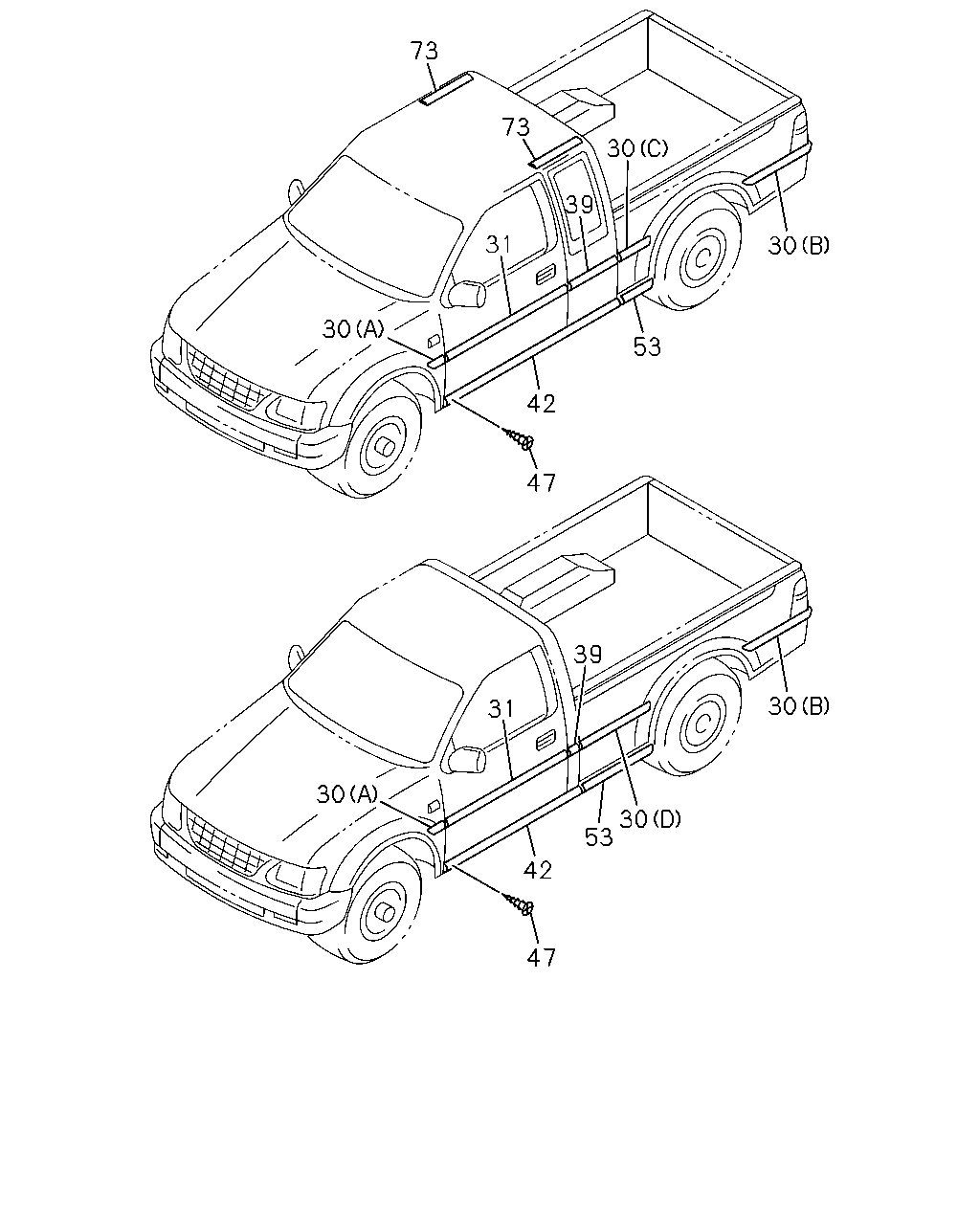

çizim 68951
73 73 30 39 31 30 30 53 42 47 39 30 31 30 30 53 42 47
BalonParca AdiParca NoAdetTipApplied Date A B
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (A) 		8-97112-361-1 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (A) 		8-97112-360-1 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (B) 		8-97112-377-2 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (B) 		8-97112-376-2 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> (C) 		8-97112-375-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> (C) 		8-97112-374-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-373-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-372-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-371-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-370-0 01 1 9611- ● ●
31 16.445 MOLDING; FRT DOOR
BODY SIDE MOLDING WIDE<BX4> 		8-97110-193-2 01 1 9611- ● ●
31 16.445 MOLDING; FRT DOOR
BODY SIDE MOLDING WIDE<BX4> 		8-97110-192-2 01 1 9611- ● ●
39 16.450 MOLDING; QUARTER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-97112-369-1 01 1 9611- ● ●
39 16.450 MOLDING; QUARTER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-97112-368-1 01 1 9611- ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) BODY SIDE MOLDING WIDE<BX4> 		8-97112-367-1 01 1 9611-9711 ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97112-367-1 01 1 9712- ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) BODY SIDE MOLDING WIDE<BX4> 		8-97112-366-1 01 1 9611-9711 ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97112-366-1 01 1 9712- ● ●
42 17.507 MOLDING; ROCKER
SPACE CAB(TF**C*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-661-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
SPACE CAB(TF**C*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-660-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
SINGLE CAB(TF**S*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-659-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
SINGLE CAB(TF**S*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-658-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
CREW CAB(TF**W*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-663-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
CREW CAB(TF**W*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-662-0 01 1 9611- ● ●
47 17.507 SCREW; ROCKER MOLDING
BODY SIDE MOLDING BRIGHT<7HR> 		0-70090-620-0 02 1 9611- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) BODY SIDE MOLDING BRIGHT<7HR> 		8-94474-011-4 01 1 9611- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SPACE CAB(TF**C*) BODY SIDE MOLDING BRIGHT<7HR> 		8-94474-010-4 01 1 9611- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING BRIGHT<7HR> 		8-94473-907-4 01 1 9611- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING BRIGHT<7HR> 		8-94473-906-4 01 1 9611- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
4X2 SHORT(TFB**C) BODY SIDE MOLDING BRIGHT<7HR> 		8-94473-909-4 01 1 9611- ● ●
53 17.507 MOLDING; ROCKER,PICKUP BOX,FRT
4X2 SHORT(TFB**C) BODY SIDE MOLDING BRIGHT<7HR> 		8-94473-908-4 01 1 9611- ● ●
73 16.642 MOLDING; DRIP,BODY SIDE
SPACE CAB(TF**C*) 		8-94465-494-6 01 1 9611- ● ●
73 16.642 MOLDING; DRIP,BODY SIDE
SPACE CAB(TF**C*) 		8-94465-493-6 01 1 9611- ● ●

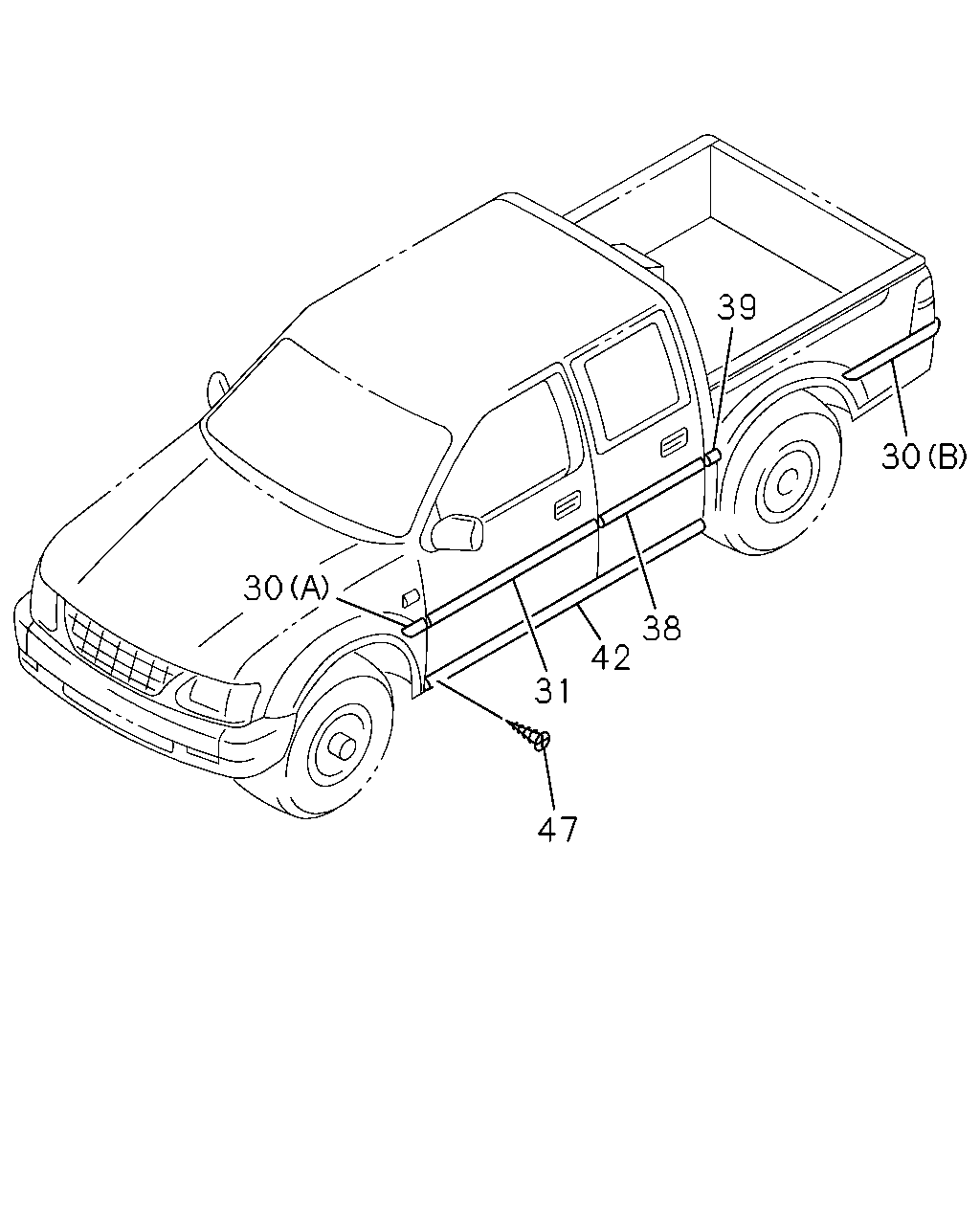

çizim 69817
39 30 30 38 42 31 47
BalonParca AdiParca NoAdetTipApplied Date A B
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (A) 		8-97112-361-1 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (A) 		8-97112-360-1 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (B) 		8-97112-377-2 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
BODY SIDE MOLDING WIDE<BX4> (B) 		8-97112-376-2 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> (C) 		8-97112-375-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> (C) 		8-97112-374-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-373-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SHORT(TF***C) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-372-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-371-0 01 1 9611- ● ●
30 08.132 MOLDING; FENDER
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING WIDE<BX4> (D) 		8-97112-370-0 01 1 9611- ● ●
31 16.445 MOLDING; FRT DOOR
BODY SIDE MOLDING WIDE<BX4> 		8-97110-193-2 01 1 9611- ● ●
31 16.445 MOLDING; FRT DOOR
BODY SIDE MOLDING WIDE<BX4> 		8-97110-192-2 01 1 9611- ● ●
38 16.445 MOLDING; RR DOOR
CREW CAB(TF**W*) BODY SIDE MOLDING WIDE<BX4> 		8-97112-365-0 01 1 9611- ● ●
38 16.445 MOLDING; RR DOOR
CREW CAB(TF**W*) BODY SIDE MOLDING WIDE<BX4> 		8-97112-364-0 01 1 9611- ● ●
39 16.450 MOLDING; QUARTER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-97112-369-1 01 1 9611- ● ●
39 16.450 MOLDING; QUARTER
SPACE CAB(TF**C*) BODY SIDE MOLDING WIDE<BX4> 		8-97112-368-1 01 1 9611- ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) BODY SIDE MOLDING WIDE<BX4> 		8-97112-367-1 01 1 9611-9711 ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97112-367-1 01 1 9712- ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) BODY SIDE MOLDING WIDE<BX4> 		8-97112-366-1 01 1 9611-9711 ● ●
39 16.450 MOLDING; QUARTER
4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) 		8-97112-366-1 01 1 9712- ● ●
42 17.507 MOLDING; ROCKER
SPACE CAB(TF**C*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-661-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
SPACE CAB(TF**C*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-660-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
SINGLE CAB(TF**S*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-659-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
SINGLE CAB(TF**S*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-658-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
CREW CAB(TF**W*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-663-0 01 1 9611- ● ●
42 17.507 MOLDING; ROCKER
CREW CAB(TF**W*) BODY SIDE MOLDING BRIGHT<7HR> 		8-97115-662-0 01 1 9611- ● ●
47 17.507 SCREW; ROCKER MOLDING
BODY SIDE MOLDING BRIGHT<7HR> 		0-70090-620-0 02 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
