6-43 — SIDE TRIM (#43891) — 41 parça

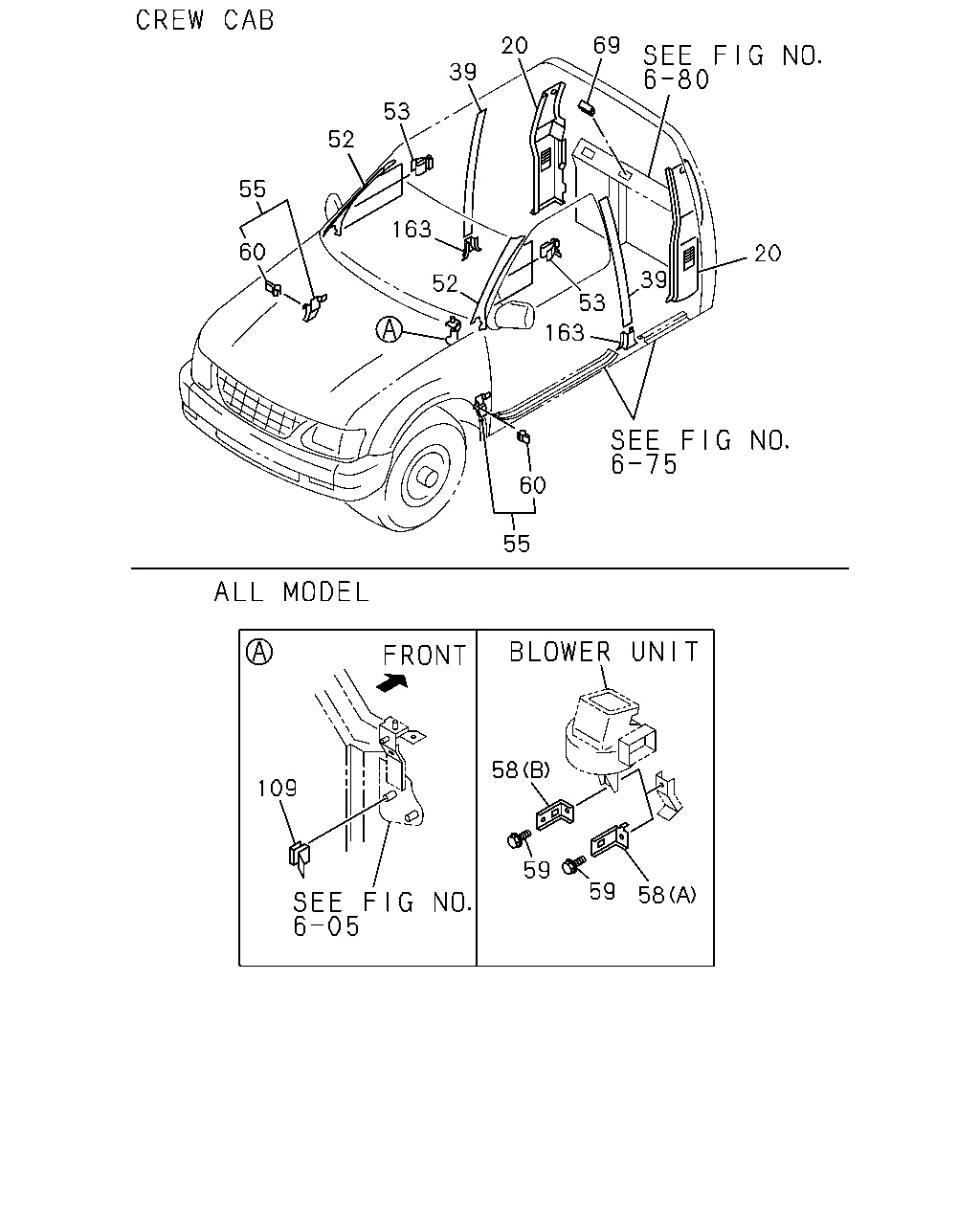

69 20 39 53 52 55 163 60 20 39 52 53 163 60 55 58 109 59 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97158-336-0	01	1	9611-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97158-335-0	01	1	9611-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> COLOMBIA EQUIPMENT(X74) GRAY	8-97158-334-0	01	1	9707-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) REAR DEFOGGER<C49> COLOMBIA EQUIPMENT(X74) GRAY	8-97158-333-0	01	1	9707-	●	●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) GRAY	8-97158-332-0	01	1	9611-		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2) GRAY	8-97158-331-0	01	1	9611-		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. REAR DEFOGGER<C49> GRAY	8-97158-330-0	01	1	9611-		●
20	16.165 COVER; TRIM,RR PILLAR CREW CAB(TF*W) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. REAR DEFOGGER<C49> GRAY	8-97158-329-0	01	1	9611-		●
39	16.575 COVER; TRIM,CENTER PILLAR CREW CAB(TF*W) GRAY	8-97154-629-0	02	1	9611-		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9611-	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9611-	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9611-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-609-0	01	1	9611-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-607-0	01	1	9611-	●	●
58	16.551 BRACKET HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER W O/HEATER(YL1) (A)	8-97132-073-0	01	1	9611-	●	●
58	16.551 BRACKET HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER W O/HEATER(YL1) (B)	8-97132-075-0	01	1	9611-	●	●
58	16.551 BRACKET EXC. HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COO LER WO/HEATER(YL1) (A)	8-97132-073-0	02	1	9611-	●	●
59	16.560 BOLT; DASH SIDE TRIM BRKT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M6X16	8-94220-097-0	01	1	9611-	●	●
59	16.560 BOLT; DASH SIDE TRIM BRKT EXC. HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M6X16	8-94220-097-0	02	1	9611-	●	●
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9611-	●	●
69	16.585 PLUG; HOLE CREW CAB(TF*W) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97012-841-1	03	1	9611-	●
109	16.225 CLIP; DOOR FINISHER	8-97175-995-0	01	1	9611-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97154-631-1	01	1	9611-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97154-630-1	01	1	9611-	●	●
163	16.575 COVER; TRIM,CENTER PILLAR,LWR CREW CAB(TF*W) EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97154-632-1	02	1	9611-	●	●

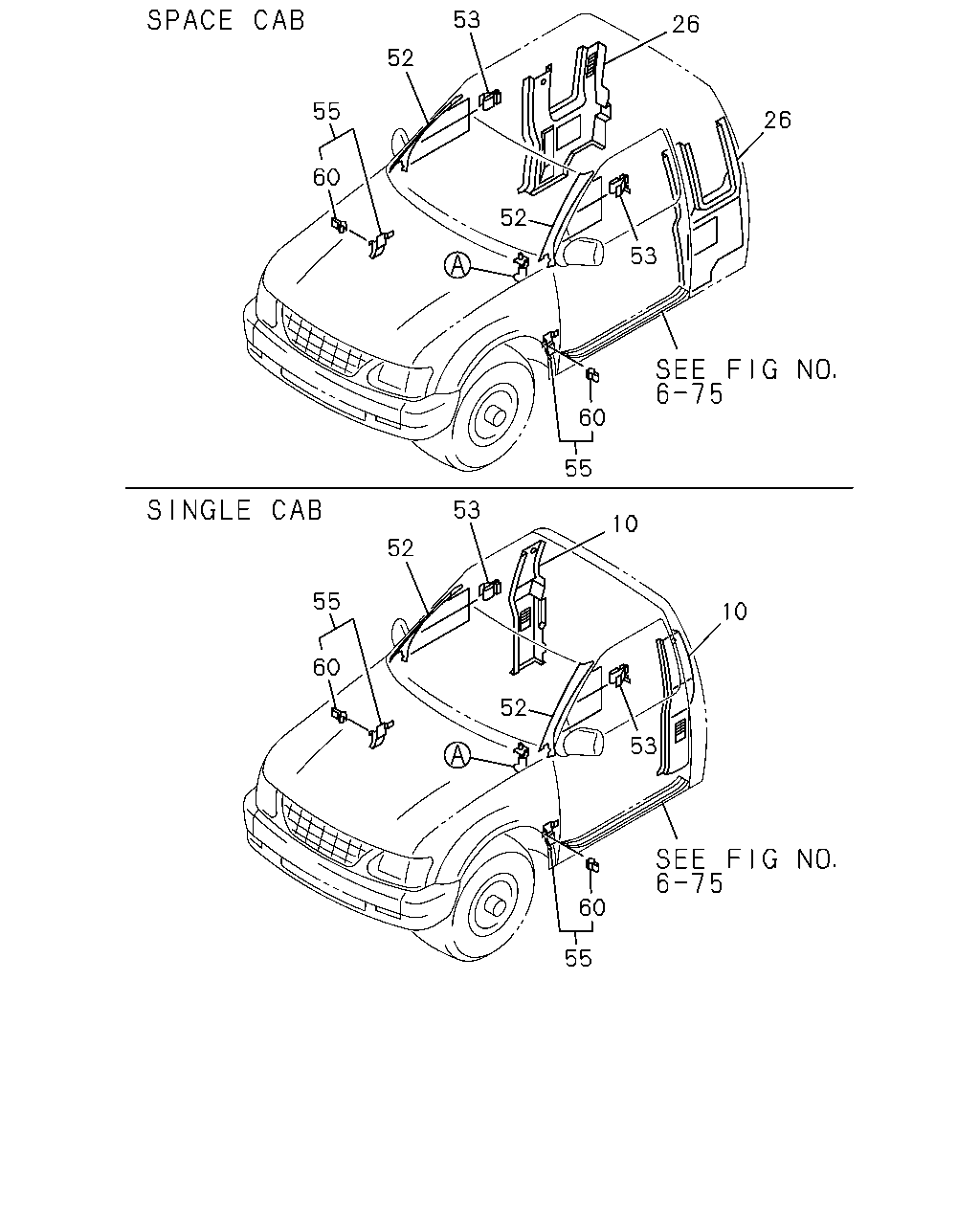

53 26 52 55 26 60 52 53 60 55 53 10 52 55 10 60 52 53 60 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	16.578 TRIM; B-POST 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) GRAY	8-97154-634-2	01	1	9611-		●
10	16.578 TRIM; B-POST 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) GRAY	8-97154-633-2	01	1	9611-		●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY	8-97154-649-3	01	1	9611-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY	8-97154-648-3	01	1	9611-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY	8-97156-055-0	01	1	9611-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE SPACE CAB(TF*C) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY	8-97156-054-0	01	1	9611-	●	●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-053-0	01	1	9611-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> GRAY	8-97156-052-0	01	1	9611-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-651-3	01	1	9611-		●
26	16.578 COVER; TRIM,RR COMPT SIDE JUMP SEAT<AJ2> EXC. NOISE INSULATION PACK 2<7MW> GRAY	8-97154-650-3	01	1	9611-		●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-700-0	01	1	9611-	●	●
52	16.165 COVER; TRIM,FRT PILLAR GRAY	8-97152-699-0	01	1	9611-	●	●
53	16.165 RETAINER; TRIM,FRT PILLAR 10.056	8-94117-873-3	06	1	9611-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-609-0	01	1	9611-	●	●
55	16.166 PAD; TRIM,DASH SIDE GRAY	8-97154-607-0	01	1	9611-	●	●
60	16.166 CLIP; ANCHOR,TRIM PAD	8-94321-034-0	04	1	9611-	●	●
