◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#43889) — 55 parça

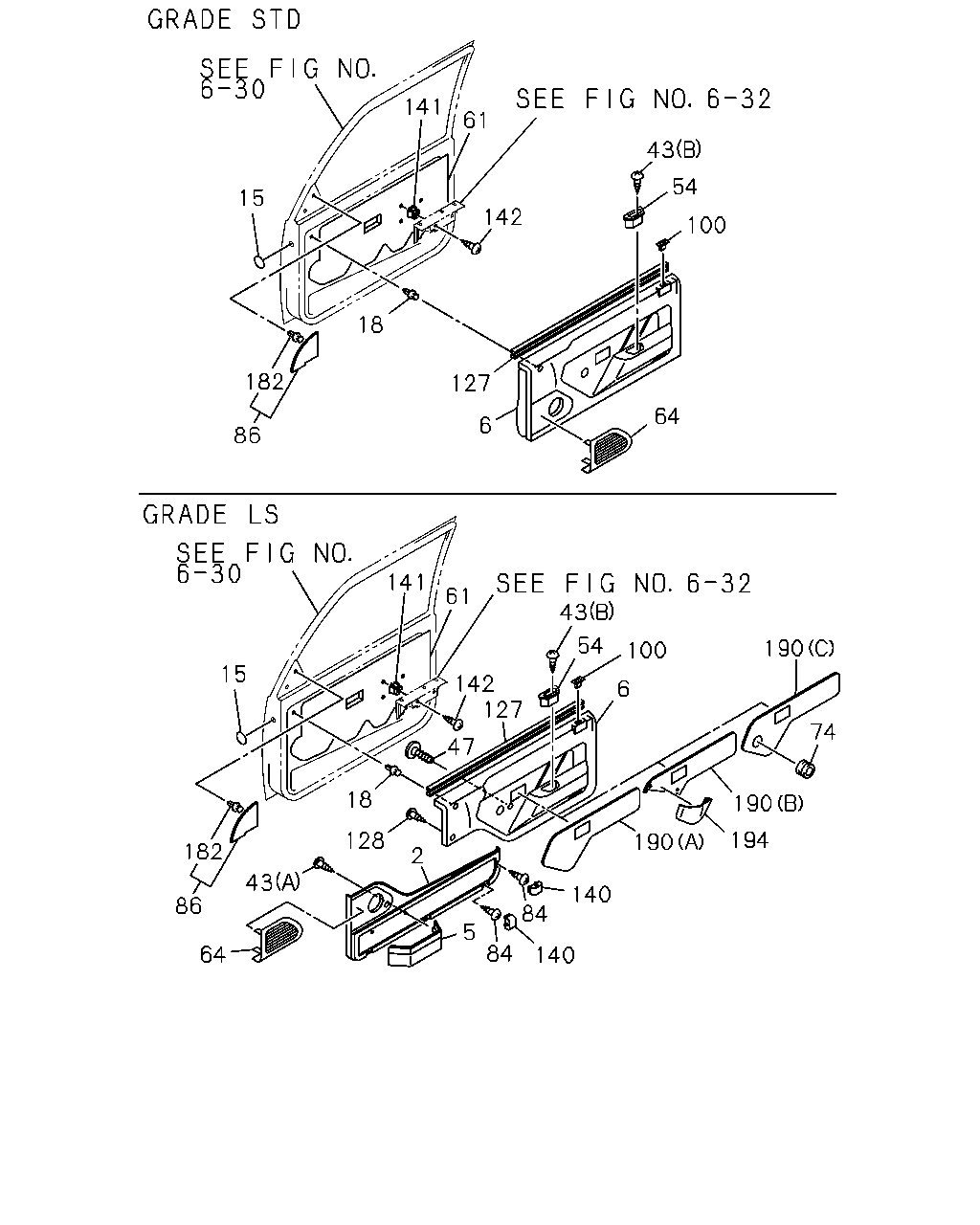

çizim 20575
141 61 43 54 15 142 100 18 182 127 64 6 86 141 61 43 54 190 100 15 142 127 6 74 47 18 190 190 194 128 182 2 43 140 86 84 5 84 64 140
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.165 TRIM; DOOR,LWR
GRAY 		8-97155-085-1 01 1 9611- ●
2 16.165 TRIM; DOOR,LWR
GRAY 		8-97155-084-1 01 1 9611- ●
5 16.165 POCKET; DOOR
GRAY 		8-97150-665-1 02 1 9611- ●
6 16.165 TRIM; DOOR,UPR
GRAY 		8-97155-071-3 01 1 9611- ●
6 16.165 TRIM; DOOR,UPR
GRAY 		8-97155-070-3 01 1 9611- ●
6 16.165 TRIM; DOOR,UPR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) POWER WINDOW<A30> GRAY 		8-97155-637-4 01 1 9611- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW<A30> GRAY 		8-97155-636-4 01 1 9611- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97155-635-4 01 1 9611- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> GRAY 		8-97155-634-4 01 1 9611- ●
6 16.165 TRIM; DOOR,UPR
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-639-4 01 1 9611- ●
15 16.165 COVER; HOLE,DOOR TRIM
CREW CAB(TF**W*) EXC. CONVENIENT PACKAGE<6QZ> OD=50 T=0.08 BLACK 		8-94111-754-0 04 1 9611-9708 ● ●
18 16.165 CLIP; DOOR PAD 8-97074-005-0 22 1 9611- ●
18 16.165 CLIP; DOOR PAD
EXC. POWER WINDOW<A30> 14.683 		8-94318-803-1 22 1 9611- ●
18 16.165 CLIP; DOOR PAD
POWER WINDOW<A30> 14.683 		8-94318-803-1 11 1 9611- ●
18 16.165 CLIP; DOOR PAD
POWER WINDOW<A30> 14.683 		8-94318-803-1 11 1 9611- ●
43 16.165 SCREW; DOOR POCKET
(A) 		8-97136-100-0 08 1 9611- ●
43 16.165 SCREW; DOOR POCKET
(B) M6X14 SELF TAPPING 		9-09629-040-0 04 1 9611- ● ●
47 16.165 SCREW
CREW CAB(TF**W*) POWER WINDOW<A30> 		8-97123-889-0 08 1 9701- ●
54 16.165 BOX; FRT DOOR
GRAY 		8-97154-666-3 02 1 9611- ● ●
61 16.165 SEAL; WATER,DOOR PAD
POWER WINDOW<A30> 		8-97101-946-2 02 1 9611- ● ●
61 16.165 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW<A30> 		8-97101-945-2 02 1 9611- ● ●
64 09.650 GRILLE
GRAY 		8-97153-441-0 01 1 9611- ● ●
64 09.650 GRILLE
GRAY 		8-97153-440-0 01 1 9611- ● ●
74 16.165 CAP; DOOR TRIM
EXC. POWER WINDOW<A30> GRAY 		8-97158-999-2 02 1 9701-9702 ●
74 16.165 CAP; DOOR TRIM
EXC. POWER WINDOW<A30> GRAY 		8-97150-937-2 02 1 9703- ●
84 16.165 SCREW; BOX BRKT
M4X13 TAPPING 		8-97104-883-0 08 1 9611- ●
86 16.155 COVER ASM; DOOR POCKET 8-97093-746-1 01 1 9611- ● ●
86 16.155 COVER ASM; DOOR POCKET 8-97093-747-1 01 1 9611- ● ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
EXC. POWER WINDOW<A30> GRAY 		8-97152-748-3 02 1 9611- ● ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> GRAY 		8-97152-748-3 01 1 9611- ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
POWER WINDOW<A30> GRAY 		8-97152-748-3 01 1 9611- ●
127 16.183 SEAL; DOOR INNER 8-97160-985-1 01 1 9611- ● ●
127 16.183 SEAL; DOOR INNER 8-97160-984-1 01 1 9611- ● ●
128 16.165 SCREW; TAP
POWER WINDOW<A30> 		8-97123-889-0 10 1 9611- ●
128 16.165 SCREW; TAP
POWER WINDOW<A30> 		8-97123-889-0 10 1 9611- ●
128 16.165 SCREW; TAP
EXC. POWER WINDOW<A30> 		8-97123-889-0 20 1 9611- ●
140 16.165 COVER; LWR PLATE,DOOR
GRAY 		8-97152-745-3 08 1 9611- ●
141 16.165 GROMMET; SCREW,LWR COVER
16.450 		5-09470-001-0 06 1 9611- ● ●
142 16.165 SCREW; LWR COVER,DOOR TRIM
10.512 M6X16 		9-09829-197-0 06 1 9611- ● ●
182 16.165 CLIP; COVER
16.166 		8-97019-200-0 02 1 9611- ● ●
190 16.165 TRIM; CTR CLOTH
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) POWER WINDOW<A30> (A) GRAY 		8-97155-643-2 01 1 9611- ●
190 16.165 TRIM; CTR CLOTH
CREW CAB(TF**W*) POWER WINDOW<A30> (B) GRAY 		8-97155-645-2 01 1 9611- ●
190 16.165 TRIM; CTR CLOTH
POWER WINDOW<A30> (B) GRAY 		8-97155-642-2 01 1 9611- ●
190 16.165 TRIM; CTR CLOTH
EXC. POWER WINDOW<A30> (C) GRAY 		8-97155-641-2 01 1 9611- ●
190 16.165 TRIM; CTR CLOTH
EXC. POWER WINDOW<A30> (C) GRAY 		8-97155-640-2 01 1 9611- ●
194 16.155 TRIM; SW BOX
CREW CAB(TF**W*) POWER WINDOW<A30> GRAY 		8-97155-087-1 01 1 9611- ●

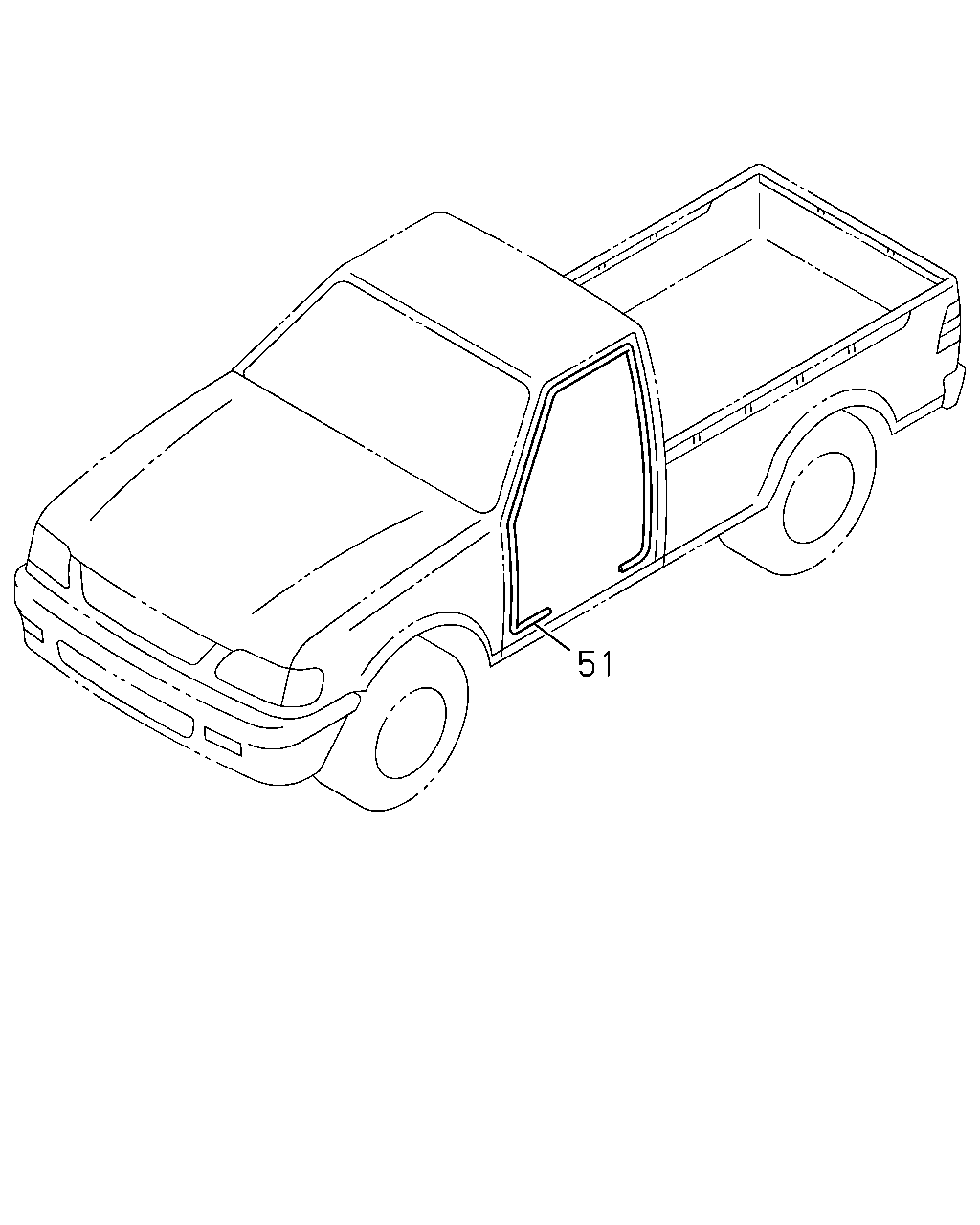

çizim 20803
51
BalonParca AdiParca NoAdetTipApplied Date A B
51 16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY 		8-97152-747-6 01 1 9611-9705 ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. ANTI WIND NOISE<7MD> GRAY 		8-97152-747-6 01 1 9611-9705 ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY 		8-97158-982-0 01 1 9706- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. ANTI WIND NOISE<7MD> GRAY 		8-97158-982-0 01 1 9706- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY 		8-97152-746-6 01 1 9611-9705 ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. ANTI WIND NOISE<7MD> GRAY 		8-97152-746-6 01 1 9611-9705 ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
ANTI WIND NOISE<7MD> GRAY 		8-97158-981-0 01 1 9706- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS) EXC. ANTI WIND NOISE<7MD> GRAY 		8-97158-981-0 01 1 9706- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
EXC. CHILE EQUIPMENT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),ANTI WIND NOISE<7MD> GRAY 		8-97154-667-0 02 1 9611- ● ●
