Isuzu WW
▶
PICKUP
▶
TFR
▶
50726 - TFR/TFS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-31 - FRONT DOOR GLASS AND REGULATOR
▶
6-31 — FRONT DOOR GLASS AND REGULATOR
(#43887) — 33 parça
Tümü
A - TFB6CF
B - TFB6SC
C - TFB6SF
D - TFB6WF
E - TFS6CF
F - TFS6SC
G - TFS6SF
H - TFS6WF
◀

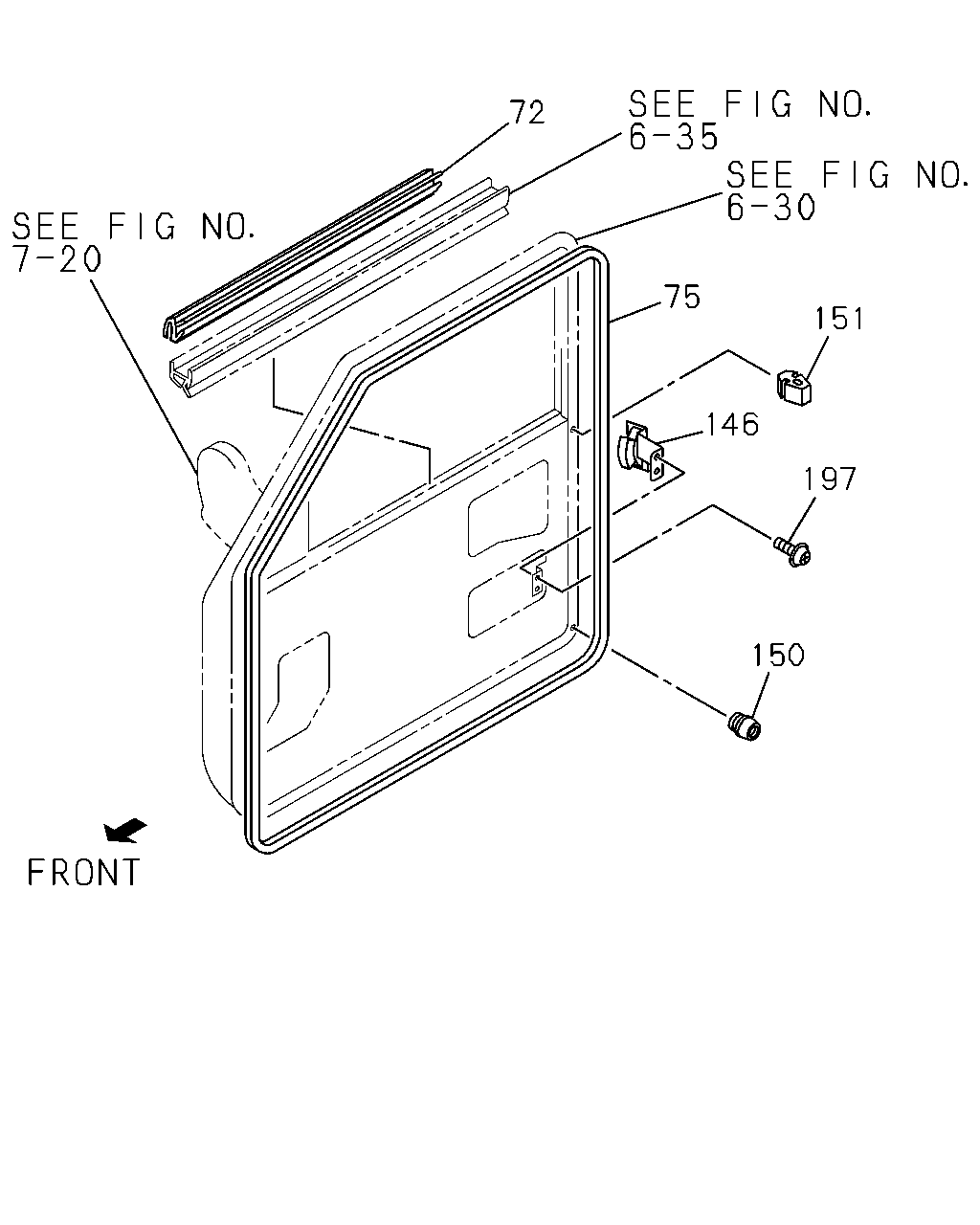

[631A] NO.1 (12 parça)
[631A] NO.2 (21 parça)
▶
72
75
151
146
197
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
72
16.183 SEAL; WAIST,FRT DOOR
8-97021-884-2
01
1
9611-
●
●
●
●
●
●
●
●
72
16.183 SEAL; WAIST,FRT DOOR
8-97021-883-2
01
1
9611-
●
●
●
●
●
●
●
●
75
16.183 WEATHERSTRIP; FRT DOOR
8-97104-070-0
01
1
9611-
●
●
●
●
●
●
●
●
75
16.183 WEATHERSTRIP; FRT DOOR
8-97104-069-0
01
1
9611-
●
●
●
●
●
●
●
●
146
16.175 STABILIZER; FRT DOOR
8-97033-817-1
01
1
9611-
●
●
●
●
●
●
●
●
146
16.175 STABILIZER; FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>
8-97033-817-1
01
1
9611-
●
●
●
●
●
●
●
●
146
16.175 STABILIZER; FRT DOOR
8-97033-816-1
01
1
9611-
●
●
●
●
●
●
●
●
146
16.175 STABILIZER; FRT DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>
8-97033-816-1
01
1
9611-
●
●
●
●
●
●
●
●
150
16.400 BUFFER; FRT DOOR
8-97014-688-0
02
1
9611-
●
●
●
●
●
●
●
●
151
16.400 BUFFER; DOOR UPR
10.587
8-03468-771-1
02
1
9611-
●
●
●
●
●
●
●
●
197
16.175 SCREW; STABILIZER
M6X14
8-94113-240-1
04
1
9611-
●
●
●
●
●
●
●
●
197
16.175 SCREW; STABILIZER
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> M6X14
8-94113-240-1
04
1
9611-
●
●
●
●
●
●
●
●
7
1
78
19
27
27
187
26
21
25
25
28
36
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
16.180 GLASS; FRT DOOR
EXC. POWER WINDOW<A30>
8-97123-205-1
01
1
9611-
●
●
●
●
●
●
●
●
1
16.180 GLASS; FRT DOOR
EXC. POWER WINDOW<A30>
8-97123-203-1
01
1
9611-
●
●
●
●
●
●
●
●
1
16.180 GLASS; FRT DOOR
POWER WINDOW<A30>
8-97123-206-1
01
1
9611-
●
●
●
●
●
●
1
16.180 GLASS; FRT DOOR
POWER WINDOW<A30>
8-97123-204-1
01
1
9611-
●
●
●
●
●
●
7
16.190 GLASS RUN; FRT DOOR
8-97093-573-3
01
1
9611-
●
●
●
●
●
●
●
●
7
16.190 GLASS RUN; FRT DOOR
8-97093-572-3
01
1
9611-
●
●
●
●
●
●
●
●
19
16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30>
8-97095-532-2
01
1
9611-
●
●
●
●
●
●
●
●
19
16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30>
8-97095-531-2
01
1
9611-
●
●
●
●
●
●
●
●
21
16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30>
8-97165-882-0
01
1
9611-
●
●
●
●
●
●
21
16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30>
8-97165-881-0
01
1
9611-
●
●
●
●
●
●
25
16.270 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> 10.701 M6X8 FLANGE
8-94155-893-0
08
1
9611-
●
●
●
●
●
●
●
●
25
16.270 BOLT; WINDOW REG
POWER WINDOW<A30> 10.701 M6X8 FLANGE
8-94155-893-0
14
1
9611-
●
●
●
●
●
●
26
16.270 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> 07.829 M6 FLANGE
5-09440-004-0
06
1
9611-
●
●
●
●
●
●
●
●
27
16.270 BOLT; GLASS FIX
10.701 M6X8 FLANGE
8-94155-893-0
04
1
9611-
●
●
●
●
●
●
●
●
28
16.155 GASKET; DUST SEAL,WINDOW REG
EXC. POWER WINDOW<A30> 10.783
8-94106-830-1
02
1
9611-
●
●
●
●
●
●
●
●
36
16.270 ESCUTCHEON; HANDLE,WINDOW REG
EXC. POWER WINDOW<A30> 10.805
8-94220-668-1
02
1
9611-
●
●
●
●
●
●
●
●
39
16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> GRAY
8-97150-650-0
02
1
9611-
●
●
●
●
●
●
●
●
78
16.190 RAIL; FRT GUIDE
16.069
8-97012-540-1
01
1
9611-
●
●
●
●
●
●
●
●
78
16.190 RAIL; FRT GUIDE
16.069
8-97012-539-1
01
1
9611-
●
●
●
●
●
●
●
●
187
16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30>
8-97165-880-0
01
1
9611-
●
●
●
●
●
●
187
16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30>
8-97165-879-0
01
1
9611-
●
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
