6-30 — FRONT DOOR AND HINGE (#43886) — 28 parça

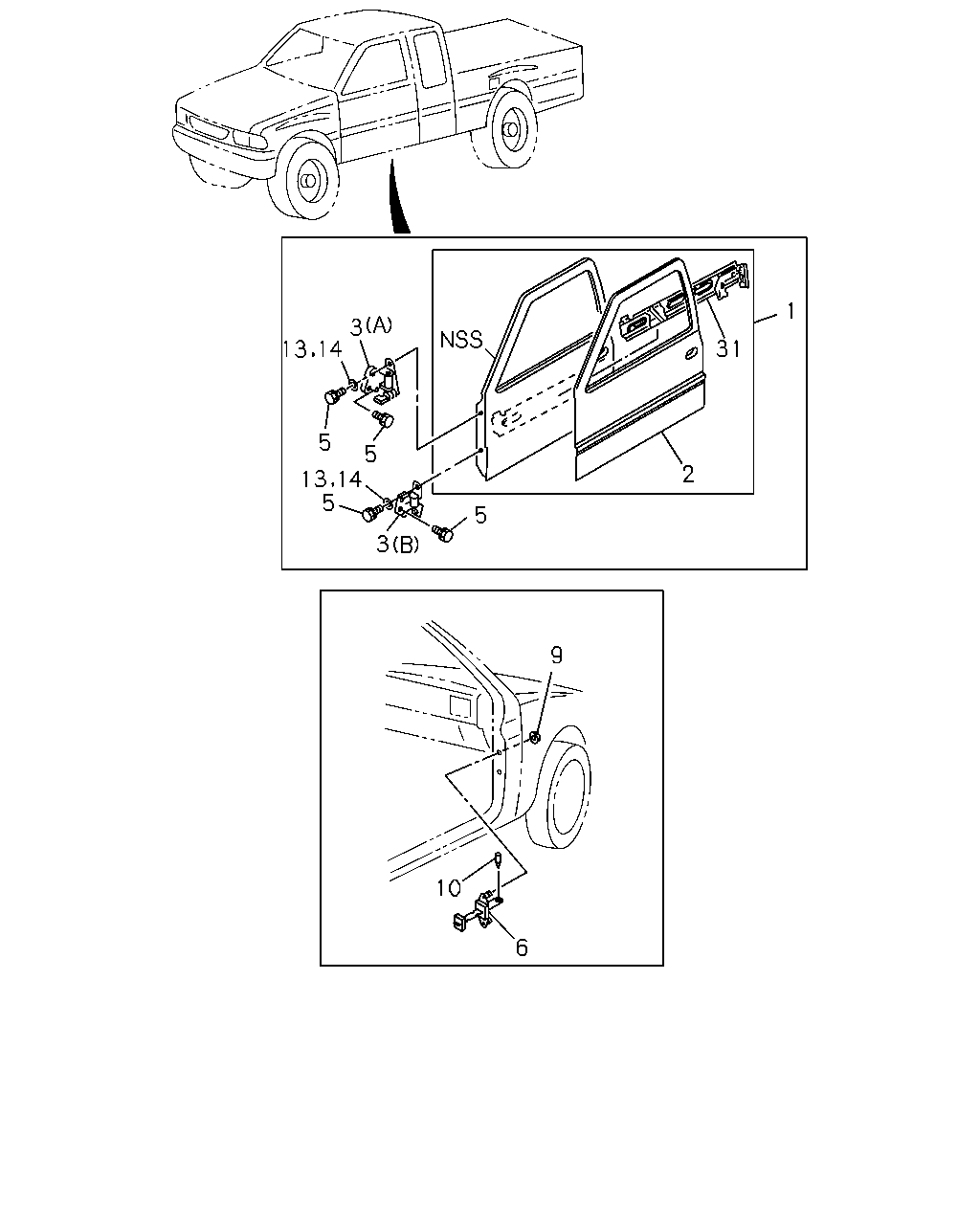

çizim 71091
3 31 5 5 5 5 9 10 6 13 14 13 14 2 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.150 DOOR ASM; FRT,WO/TRIM
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-97088-623-1 01 1 9611- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-97088-622-1 01 1 9611- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. KD PREPARATORY PACK<6HF>, CHILEEQUIPMENT(6KB) 		8-97115-884-0 01 1 9612- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. KD PREPARATORY PACK<6HF>, CHILEEQUIPMENT(6KB) 		8-97115-883-0 01 1 9612- ● ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CHILE EQUIPMENT(6KB) 		8-97101-801-1 01 1 9612- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CHILE EQUIPMENT(6KB) 		8-97101-797-1 01 1 9612- ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-94449-356-5 01 1 9611-9611 ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94449-356-5 01 1 9612- ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-94449-355-5 01 1 9611-9611 ● ● ● ● ● ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-94449-355-5 01 1 9612- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 10.454 (A) 		8-94155-315-2 01 1 9611-9611 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 (A) 		8-94155-315-2 01 1 9612- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) (B) 		8-94230-392-4 01 1 9611-9611 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-94230-392-4 01 1 9612- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 10.454 (A) 		8-94155-314-2 01 1 9611-9611 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
10.454 (A) 		8-94155-314-2 01 1 9612- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) (B) 		8-94230-393-4 01 1 9611-9611 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-94230-393-4 01 1 9612- ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 9611- ● ● ● ● ● ● ● ●
6 16.320 ARM; CHECK,FRT DOOR 8-94370-880-1 02 1 9611- ● ● ● ● ● ● ● ●
9 16.320 NUT; CHECK ARM
07.829 M6 FLANGE 		5-09440-004-0 04 1 9611- ● ● ● ● ● ● ● ●
10 16.320 PIN; CHECK ARM
10.455 		8-94111-468-0 02 1 9611- ● ● ● ● ● ● ● ●
13 16.320 WASHER; HINGE
CHILE EQUIPMENT(6KB) ID=8 OD=21 W/ADHESIVE TAPE 		8-97113-760-1 04 1 9612-9612 ● ● ● ●
14 16.320 WASHER; PL,HINGE
EXC. KD PREPARATORY PACK<6HF>, CHILEEQUIPMENT(6KB) W/PLAIN WASHER SEAL ID=8.1 		8-97859-295-1 04 1 9612-9612 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-97112-918-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97112-918-0 01 1 9612- ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR
KD PREPARATORY PACK<6HF> EXC. CHILE EQUIPMENT(6KB) 		8-97112-917-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
31 16.152 REINFORCEMENT; FRT DOOR 8-97112-917-0 01 1 9612- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
