6-20 — SIDE PANEL AND STEP (#43885) — 135 parça

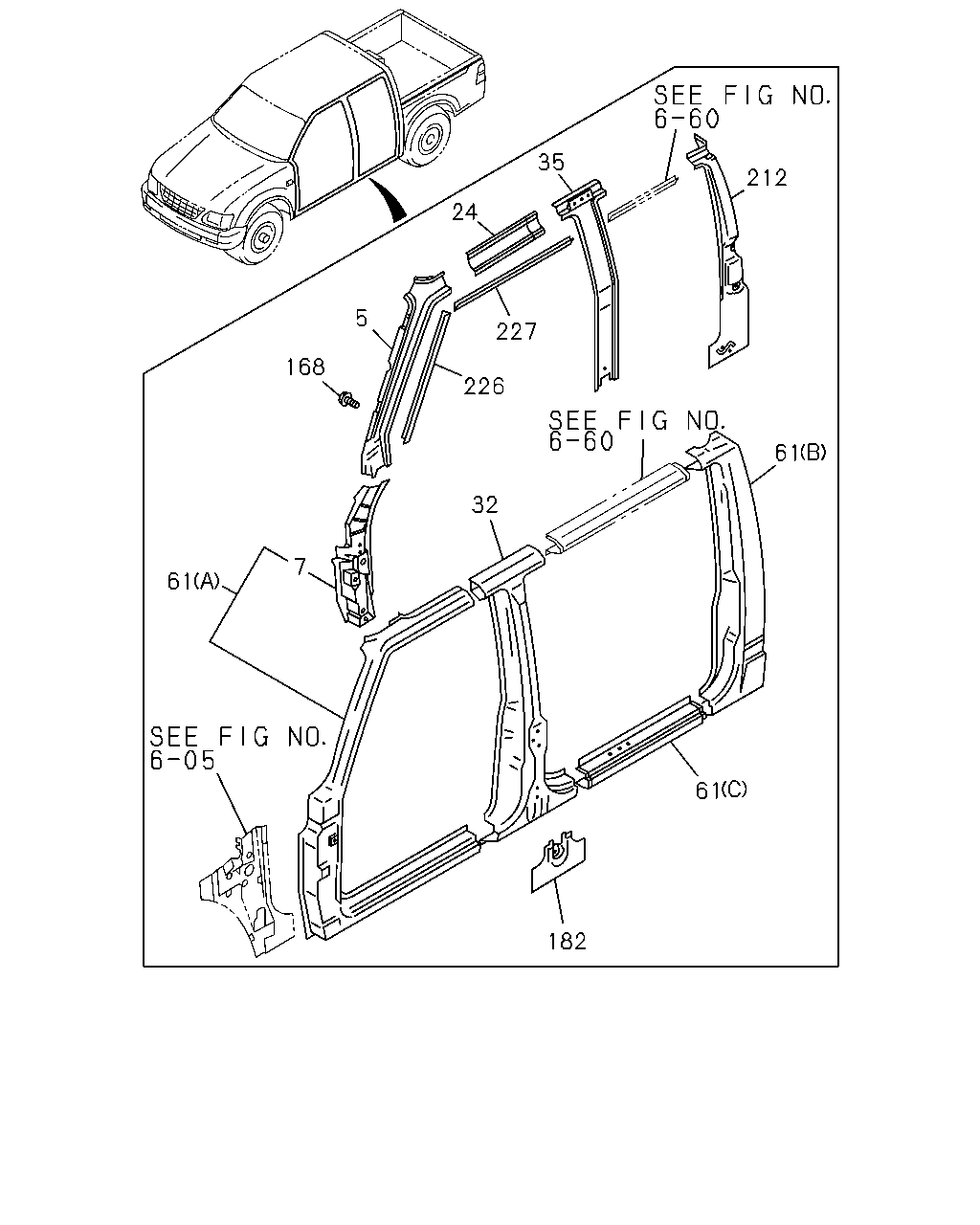

çizim 69854
35 212 24 5 227 168 226 32 7 61 182 61 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
5 16.507 CLOSING ASM; A-POST 8-97103-536-0 01 1 9611- ● ● ● ● ● ● ● ●
5 16.507 CLOSING ASM; A-POST 8-97103-533-0 01 1 9611- ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97048-690-3 01 1 9611-9706 ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-649-0 01 1 9707- ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97048-689-3 01 1 9611-9706 ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-648-0 01 1 9707- ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9703-9709 ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-618-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9710- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-618-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9703-9709 ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-617-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9710- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-617-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-359-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-359-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-358-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-358-0 01 1 9710- ● ● ●
32 16.570 PANEL; BC-POST 8-97112-407-2 01 1 9611- ● ●
32 16.570 PANEL; BC-POST 8-97112-406-2 01 1 9611- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-94454-391-0 01 1 9611- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-94454-390-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-142-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-141-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-006-1 01 1 9611- ● ● ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-005-1 01 1 9611- ● ● ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-151-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-386-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-405-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-150-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-385-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-404-1 01 1 9611- ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.143 M6X16 W/PL WASHER 		8-94199-279-1 04 1 9611-9802 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 04 1 9803- ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.143 M6X16 W/PL WASHER 		8-94199-279-1 06 1 9611-9802 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 06 1 9803- ● ● ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97116-321-0 01 1 9611-9702 ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97116-321-0 01 1 9703- ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97116-320-0 01 1 9611-9702 ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97116-320-0 01 1 9703- ● ●
212 16.588 CLOSING; PILLAR 8-97038-148-1 01 1 9611- ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97038-147-1 01 1 9611- ● ● ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> 		8-94471-164-0 01 1 9611- ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> 		8-94471-163-0 01 1 9611- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 9611- ● ● ● ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 9611- ● ● ● ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-593-1 01 1 9611- ● ● ● ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-592-1 01 1 9611- ● ● ● ● ● ● ● ●

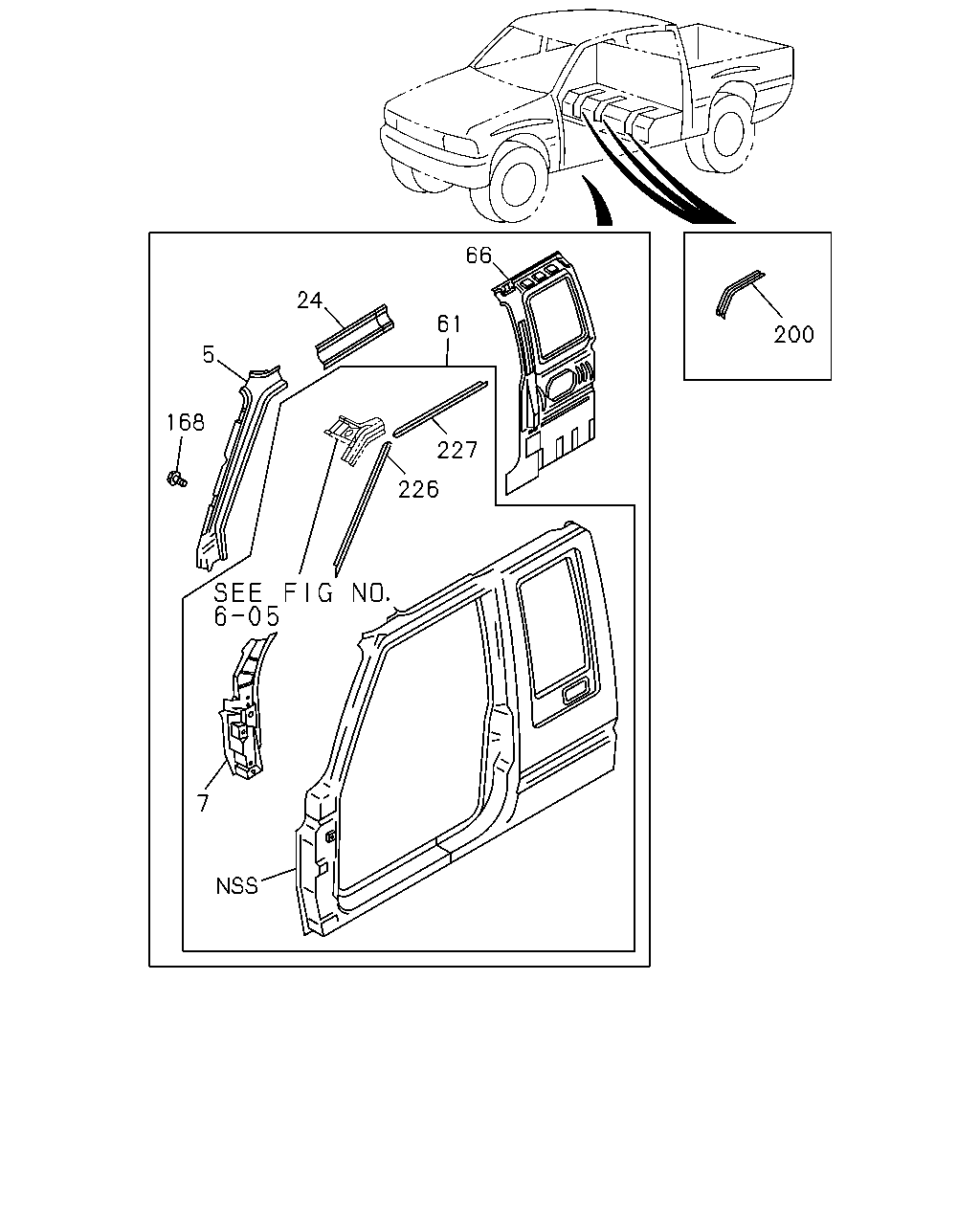

çizim 70655
66 24 61 200 5 168 227 226 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
5 16.507 CLOSING ASM; A-POST 8-97103-536-0 01 1 9611- ● ● ● ● ● ● ● ●
5 16.507 CLOSING ASM; A-POST 8-97103-533-0 01 1 9611- ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97048-690-3 01 1 9611-9706 ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-649-0 01 1 9707- ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97048-689-3 01 1 9611-9706 ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-648-0 01 1 9707- ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9703-9709 ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-618-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9710- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-618-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9703-9709 ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-617-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9710- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-617-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-359-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-359-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-358-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-358-0 01 1 9710- ● ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-142-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-141-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-006-1 01 1 9611- ● ● ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-005-1 01 1 9611- ● ● ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-151-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-386-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-405-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-150-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-385-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-404-1 01 1 9611- ● ●
66 16.592 PANEL; BACK SIDE INNER 8-97038-151-1 01 1 9611- ● ●
66 16.592 PANEL; BACK SIDE INNER 8-97038-150-1 01 1 9611- ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.143 M6X16 W/PL WASHER 		8-94199-279-1 04 1 9611-9802 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 04 1 9803- ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.143 M6X16 W/PL WASHER 		8-94199-279-1 06 1 9611-9802 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 06 1 9803- ● ● ● ●
200 16.545 REINFORCEMENT; RR FLOOR SIDE 8-94454-045-0 03 1 9611- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 9611- ● ● ● ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 9611- ● ● ● ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-593-1 01 1 9611- ● ● ● ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-592-1 01 1 9611- ● ● ● ● ● ● ● ●

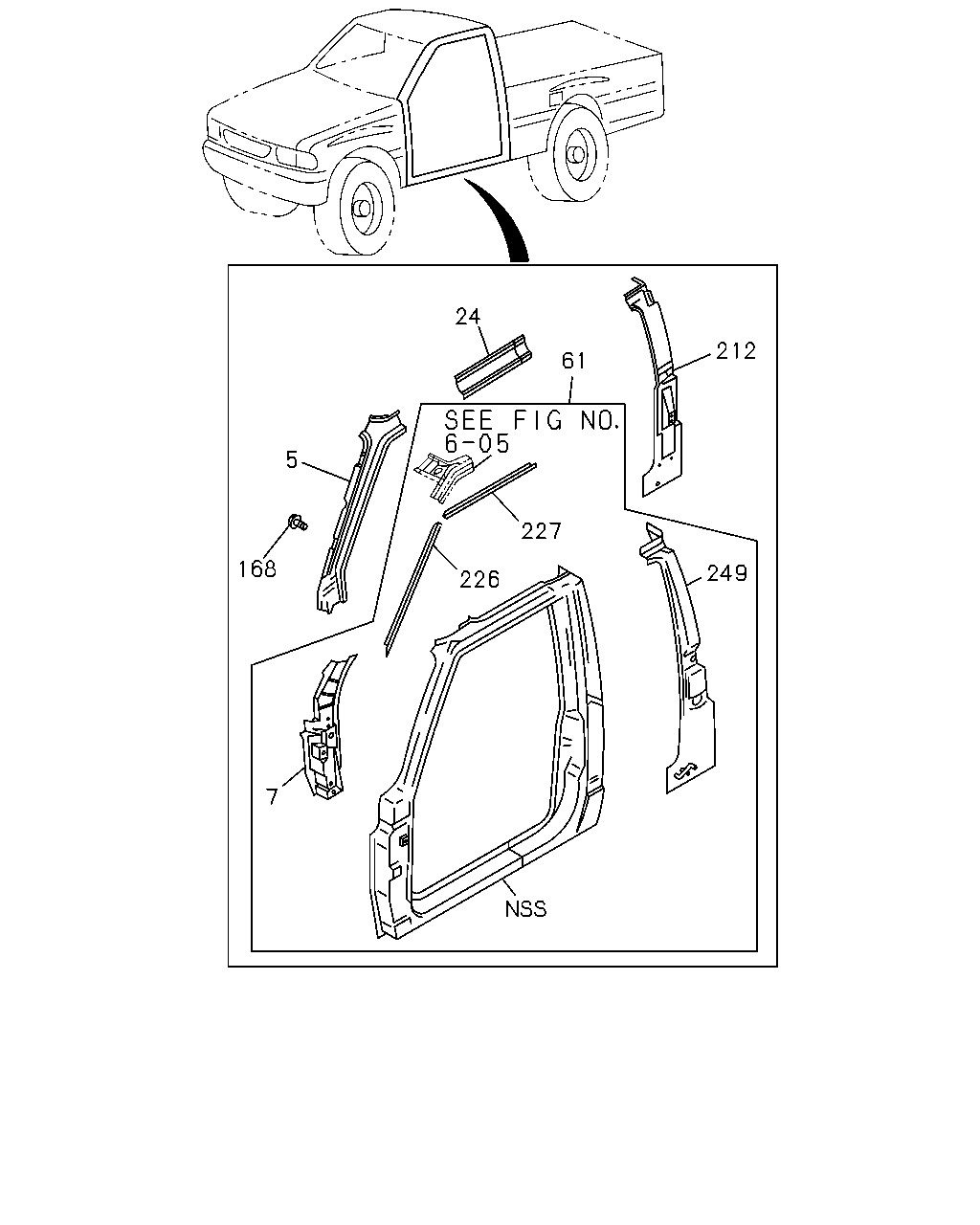

çizim 72170
24 212 61 5 227 168 249 226 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
5 16.507 CLOSING ASM; A-POST 8-97103-536-0 01 1 9611- ● ● ● ● ● ● ● ●
5 16.507 CLOSING ASM; A-POST 8-97103-533-0 01 1 9611- ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97048-690-3 01 1 9611-9706 ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-649-0 01 1 9707- ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97048-689-3 01 1 9611-9706 ● ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97179-648-0 01 1 9707- ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9703-9709 ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-618-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-618-0 01 1 9710- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-618-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9703-9709 ● ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-617-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE 8-94435-617-0 01 1 9710- ● ● ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94435-617-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-359-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-359-0 01 1 9710- ● ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-358-0 01 1 9703-9709 ● ●
24 16.585 CLOSING; ROOF RAIL SIDE
CHINA CHONGQING EQUIPMENT(R5B) 		8-97178-358-0 01 1 9710- ● ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-142-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-94471-141-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-006-1 01 1 9611- ● ● ● ●
61 16.570 PANEL; SIDE OUTER 8-97013-005-1 01 1 9611- ● ● ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-151-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-386-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-405-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-94471-150-1 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-97013-385-0 01 1 9611- ● ●
61 16.570 PANEL; SIDE OUTER
(C) 		8-97112-404-1 01 1 9611- ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.143 M6X16 W/PL WASHER 		8-94199-279-1 04 1 9611-9802 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 04 1 9803- ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
08.143 M6X16 W/PL WASHER 		8-94199-279-1 06 1 9611-9802 ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.545 M6X20 W/PL WASHER 		8-97808-622-0 06 1 9803- ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97038-148-1 01 1 9611- ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97038-147-1 01 1 9611- ● ● ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> 		8-94471-164-0 01 1 9611- ● ●
212 16.588 CLOSING; PILLAR
HEAD LINING FOR KD<6PJ> 		8-94471-163-0 01 1 9611- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-595-3 01 1 9611- ● ● ● ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-94435-594-3 01 1 9611- ● ● ● ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-593-1 01 1 9611- ● ● ● ● ● ● ● ●
227 16.585 RAIL; DRIP,ROOF SIDE FRT 8-94435-592-1 01 1 9611- ● ● ● ● ● ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97013-538-2 01 1 9611- ● ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97013-537-2 01 1 9611- ● ● ● ●
