Sayfa 6-14 - Isuzu EPC

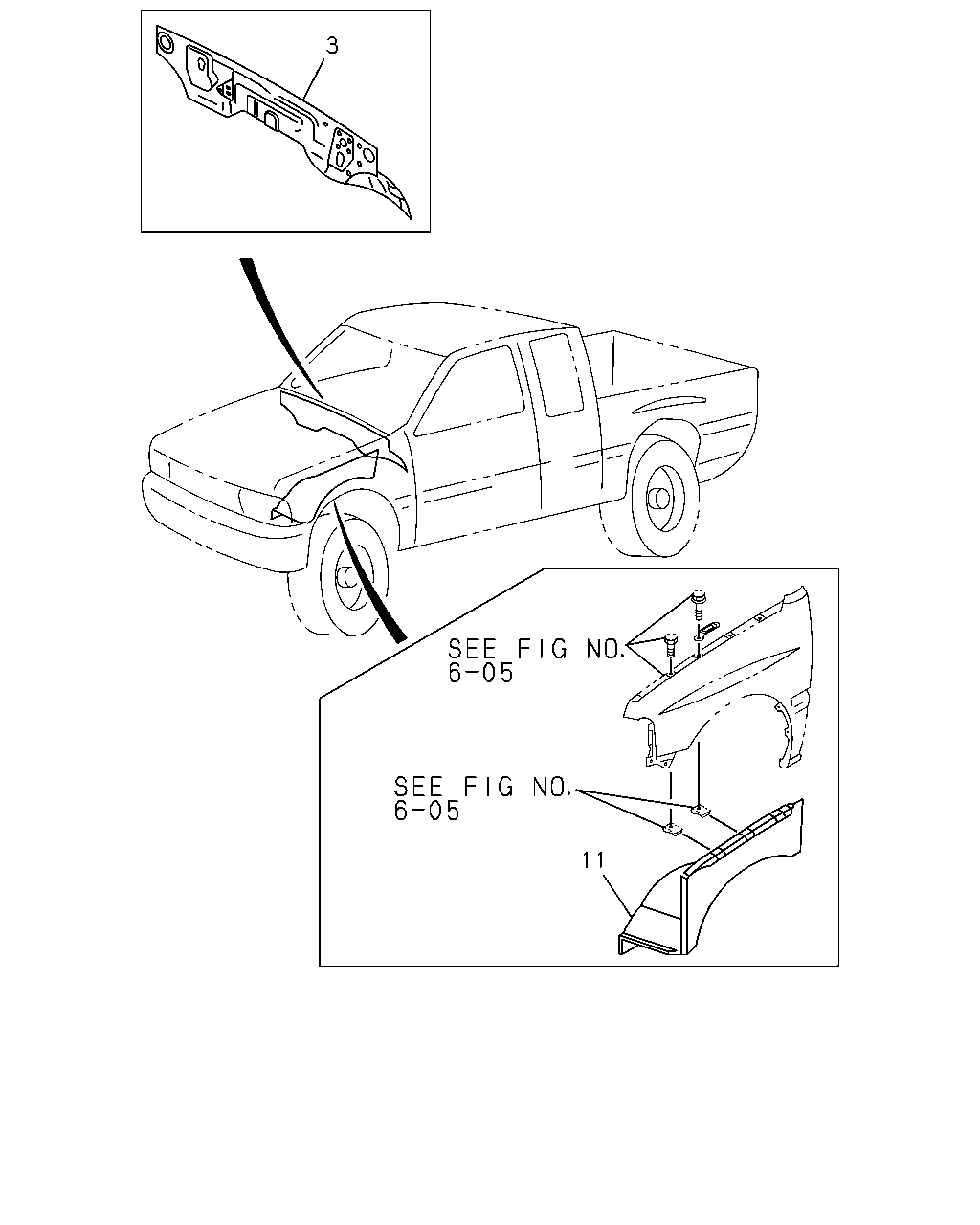

6-14 — DASH PANEL AND FENDER SKIRT (#43884) — 6 parça

3 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
3	16.550 PANEL; SUB,DASH LWR NOISE INSULATION PACK 2<7MW>	8-97065-582-8	01	1	9611-	●	●	●	●	●	●	●	●
3	16.550 PANEL; SUB,DASH LWR 4JB1 ENG(RLF) EXC. NOISE INSULATION PACK 2<7MW>	8-97065-582-8	01	1	9611-	●		●	●	●		●	●
3	16.550 PANEL; SUB,DASH LWR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4ZE1 ENG(RLJ) EXC. NOISE INSULATION PACK 2<7MW>	8-97065-580-5	01	1	9611-	●	●	●	●	●	●	●	●
3	16.550 PANEL; SUB,DASH LWR 6VD1 ENG(RLV)	8-97180-681-0	01	1	9712-				●				●
11	08.153 SKIRT; FRT FENDER PNL	8-97038-160-0	01	1	9611-	●	●	●	●	●	●	●	●
11	08.153 SKIRT; FRT FENDER PNL	8-97130-526-0	01	1	9611-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
