Isuzu WW
▶
PICKUP
▶
TFR
▶
50726 - TFR/TFS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-10 - ENGINE HOOD AND LOCK
▶

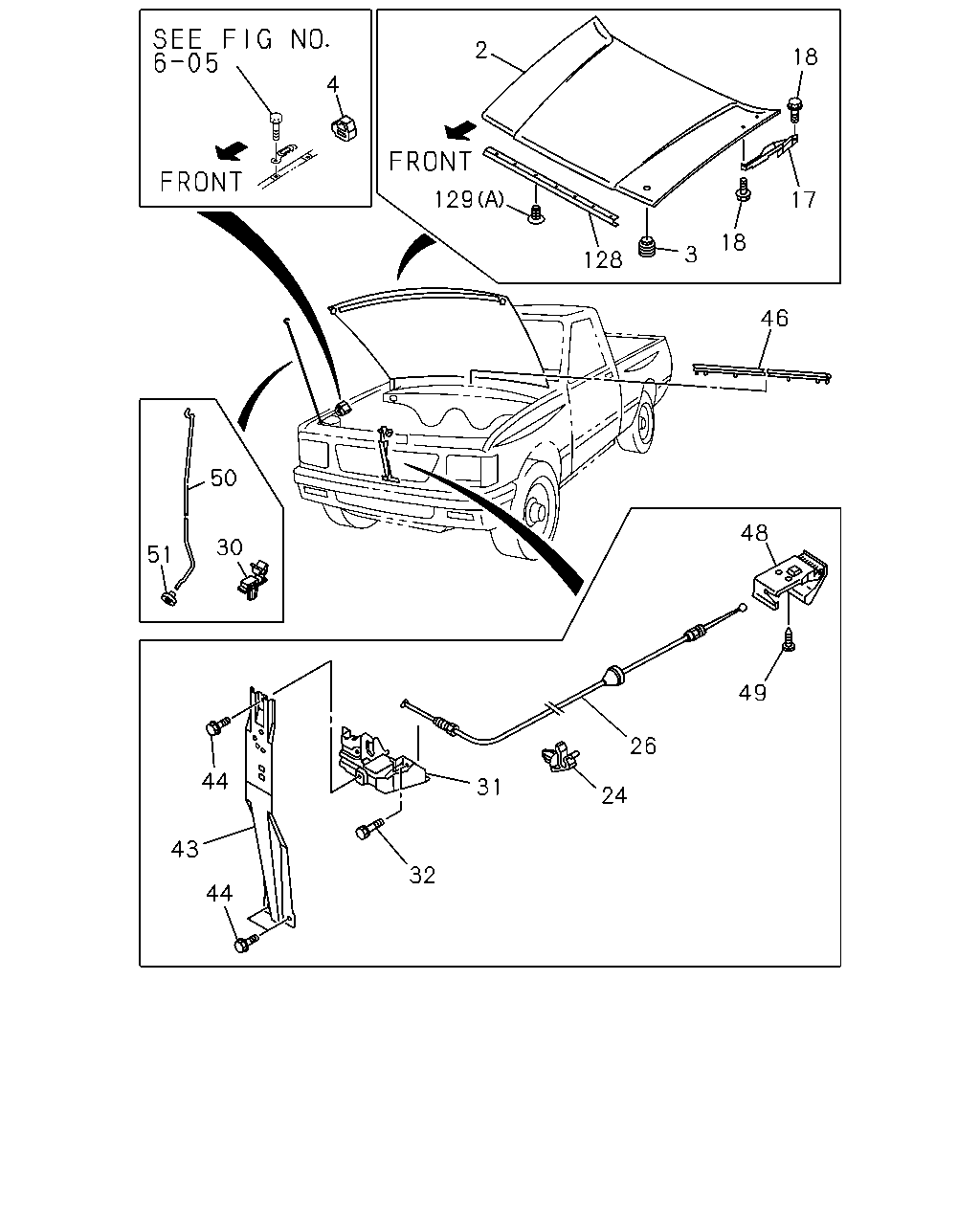

6-10 — ENGINE HOOD AND LOCK
(#43883) — 23 parça
Tümü
A - TFB6CF
B - TFB6SC
C - TFB6SF
D - TFB6WF
E - TFS6CF
F - TFS6SC
G - TFS6SF
H - TFS6WF
◀
[610A] NO.2 (2 parça)
[610A] NO.1 (21 parça)
▶
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
129
08.010 CLIP; ENG HOOD SEAL
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 15.100 (A) BLACK
8-94104-935-0
07
1
9611-
●
●
●
●
●
●
●
●
129
08.010 CLIP; ENG HOOD SEAL
4ZD1 ENG(LW3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ELECTRIC FUEL INJECTION<6GG> 02.559 (B) ID=13 & 21
8-94417-626-0
01
1
9611-
●
●
●
●
●
●
●
2
18
4
129
17
18
3
128
46
50
48
30
51
49
26
44
31
24
43
32
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
2
08.000 PANEL; ENG HOOD
8-97111-807-4
01
1
9611-
●
●
●
●
●
●
●
●
3
08.077 BUFFER; ENG HOOD,FRT
08.024
8-94237-385-0
02
1
9611-
●
●
●
●
●
●
●
●
4
08.024 REST; SIDE
8-94442-966-0
02
1
9611-
●
●
●
●
●
●
●
●
17
08.015 HINGE; ENG HOOD
8-94388-235-4
01
1
9611-
●
●
●
●
●
●
●
●
17
08.015 HINGE; ENG HOOD
8-94388-234-4
01
1
9611-
●
●
●
●
●
●
●
●
18
08.015 BOLT; HINGE
M8X16
8-94139-492-0
08
1
9611-
●
●
●
●
●
●
●
●
24
08.077 CLIP; CONT CABLE
09.647 ID=4.8
8-94128-483-0
02
1
9611-
●
●
●
●
●
●
●
●
26
08.075 CABLE; ENG HOOD CONT
8-97106-131-0
01
1
9611-
●
●
●
●
●
●
●
●
30
08.077 CLIP; SUPPORT ROD,HOOD
8-97104-427-0
01
1
9611-
●
●
●
●
●
●
●
●
31
08.083 LOCK; ENG HOOD
8-97112-040-0
01
1
9611-
●
●
●
●
●
●
●
●
32
08.077 BOLT; HOOD LK
M6X18
8-97071-681-0
02
1
9611-
●
●
●
●
●
●
●
●
43
08.077 STAY; ENG HOOD,FRT END
8-94434-818-3
01
1
9611-
●
●
●
●
●
●
●
●
44
08.077 BOLT; STAY,HOOD
M6X18
8-97071-681-0
03
1
9611-
●
●
●
●
●
●
●
●
46
01.272 SEAL; ENG HOOD
8-97147-261-0
01
1
9611-
●
●
●
●
●
●
●
●
48
08.083 LEVER; ENG HOOD
BLACK
8-97150-583-0
01
1
9611-
●
●
●
●
●
●
●
●
49
08.083 SCREW; LEVER,ENG HOOD OPENER
08.077 M5X10
9-09829-185-0
02
1
9611-
●
●
●
●
●
●
●
●
50
08.015 ROD; SUPPORT,ENG HOOD
8-97073-612-1
01
1
9611-
●
●
●
●
●
●
●
●
51
08.080 GROMMET; SUPPORT ROD
8-94220-508-2
01
1
9611-
●
●
●
●
●
●
●
●
128
08.010 SEAL; PLATFORM
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)
8-97139-188-0
01
1
9611-
●
●
●
●
●
●
●
●
129
08.010 CLIP; ENG HOOD SEAL
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 15.100 (A) BLACK
8-94104-935-0
07
1
9611-
●
●
●
●
●
●
●
●
129
08.010 CLIP; ENG HOOD SEAL
4ZD1 ENG(LW3) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ELECTRIC FUEL INJECTION<6GG> 02.559 (B) ID=13 & 21
8-94417-626-0
01
1
9611-
●
●
●
●
●
●
●
