6-03 — RADIATOR GRILLE (#43880) — 27 parça

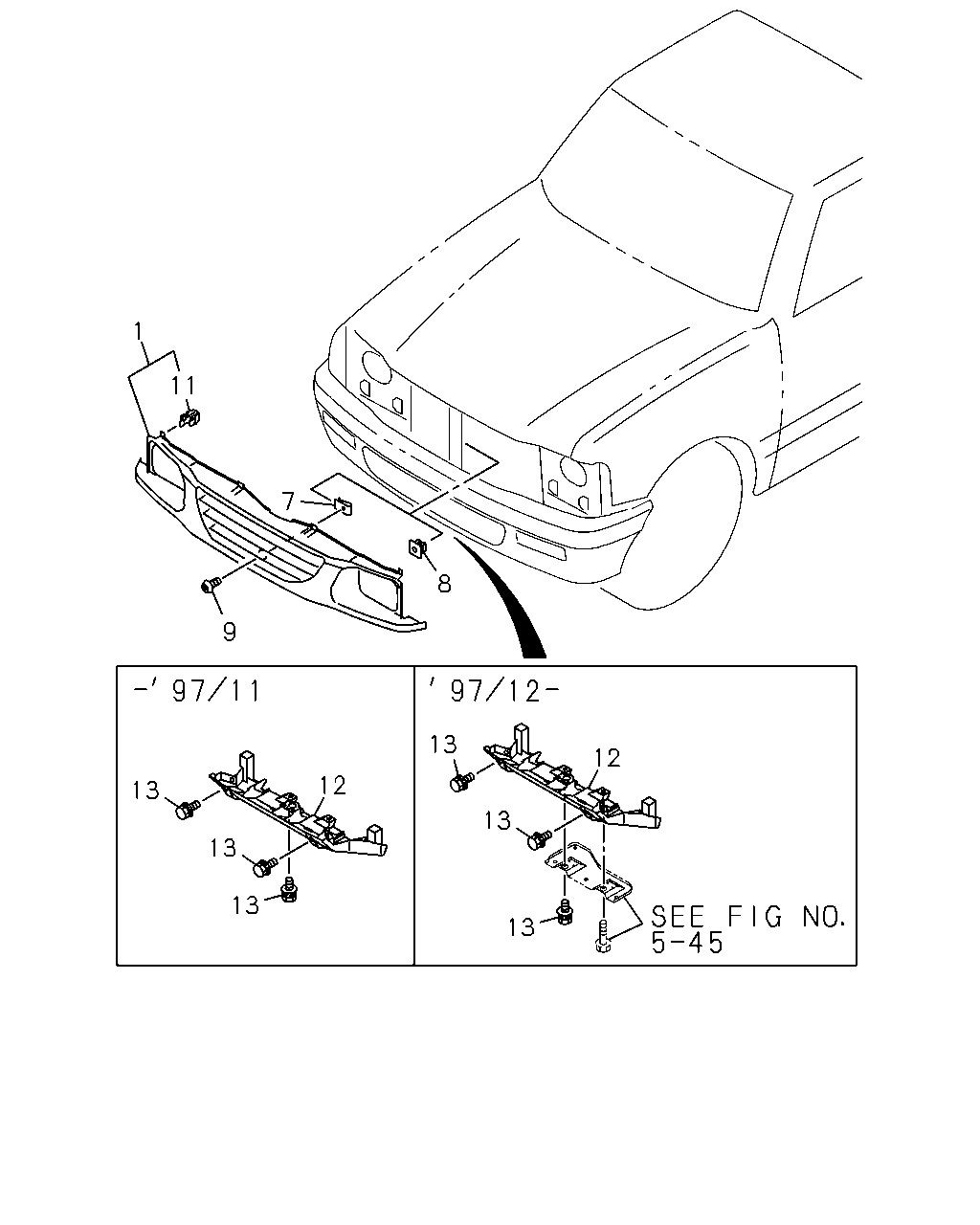

çizim 71036
1 7 8 9 13 12 12 13 13 13 13 13 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.266 GRILLE; RAD
EXC. BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT<7LB> 		8-97111-871-1 01 1 9611-9611 ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT<7LB> 		8-97111-871-1 01 1 9612- ● ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> 		8-97111-872-1 01 1 9611-9611 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT HEAVY DUTY RAD GRILLE<6QR> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97111-872-1 01 1 9612- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT<7LB> 		8-97166-867-0 01 1 9612-9612 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> EXC. BRIGHT HEAVY DUTY RAD GRILLE<6QR>,RADIATOR GRILLE NON PAINT<7LB> 		8-97166-867-0 01 1 9701- ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> BRIGHT HEAVY DUTY RAD GRILLE<6QR> 		8-97940-034-0 01 1 9612-9612 ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> BRIGHT HEAVY DUTY RAD GRILLE<6QR> 		8-97940-034-0 01 1 9701- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT<7LB> 		8-97940-038-0 01 1 9612- ● ● ● ● ●
1 01.266 GRILLE; RAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> RADIATOR GRILLE NON PAINT<7LB> 		8-97175-562-0 01 1 9702-9711 ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-97162-239-0 01 1 9611-9611 ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97162-239-0 01 1 9612-9711 ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97175-529-0 01 1 9702-9711 ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> M5 SPIRE 		8-94146-492-1 01 1 9612-9612 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
M5 SPIRE 		8-94146-492-1 01 1 9612-9612 ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
M5 SPIRE 		8-94146-492-1 01 1 9701- ● ● ● ● ● ● ● ●
8 01.269 GROMMET; SCREW,RAD GRILLE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 9612-9612 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 M5X16 		8-94380-268-0 01 1 9611- ● ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
BLACK 		8-94218-027-0 08 1 9611- ● ● ● ● ● ● ● ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97072-508-1 01 1 9611-9711 ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) 		8-97072-508-1 01 1 9712- ●
12 01.274 PLATE; SKID,RAD
UNDER GUARD<ES7> 		8-97072-508-1 01 1 9712- ● ● ● ●
12 01.274 PLATE; SKID,RAD
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 		8-97072-508-1 01 1 9712- ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9611-9711 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9712- ●
13 01.267 BOLT; RAD SKID PLATE
UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9712- ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. UNDER GUARD<ES7> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9712- ●
