1-40 — FUEL TANK (#4388) — 471 parça

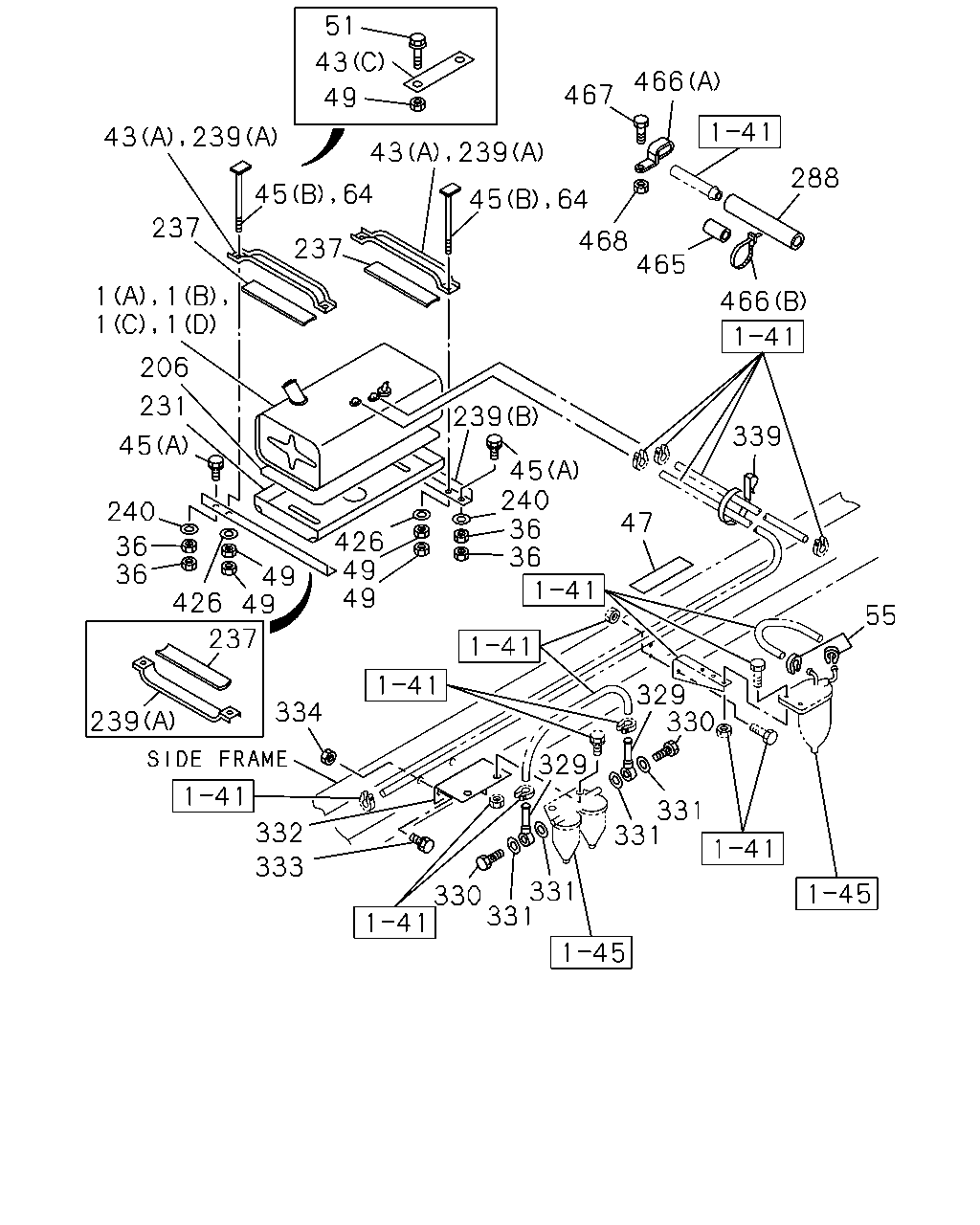

51 43 466 467 49 43 239 43 239 288 237 468 465 237 1 1 1 1 466 206 231 239 339 45 45 240 36 36 240 47 426 49 49 36 36 49 49 426 55 237 329 330 334 239 329 331 331 332 333 330 331 331 45 64 45 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-1	01	1	0204-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3> (D)	1-22400-340-4	01	1	9101-9504		●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X532X322 200L	1-22400-992-0	01	1	9505-9508	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-0	01	1	9509-9604	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A) 1260X532X322 200L	1-22401-030-2	01	1	9605-0203	●				●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-3	01	1	0204-	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> AUSTRALIA EQUIPMENT<RR3> (D)	8-94300-060-1	01	1	9101-9504		●	●	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22402-121-5	01	1	9101-9504		●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9505-9708	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A) 914X502X322 137L	1-22400-991-0	01	1	9709-9805	●				●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9806-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (B) 1220X532X322 200L	1-22400-884-3	01	1	9605-0203	●
1	TANK; FUEL LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (C) 840X649X549 278L	8-94300-186-1	01	1	9709-9805	●				●
36	NUT; SPACER,FUEL TANK H=7 M12	9-99111-412-0	04	1	9101-9504		●	●	●
36	NUT; SPACER,FUEL TANK H=7 M12	9-99111-412-0	04	1	9505-9702	●
36	NUT; SPACER,FUEL TANK H=7 M12	9-99111-412-0	04	1	9703-9709	●					●
36	NUT; SPACER,FUEL TANK H=7 M12	9-99111-412-0	04	1	9710-0509	●				●	●
36	NUT; SPACER,FUEL TANK M12	9-99110-512-0	08	1	0510-0512	●				●	●
36	NUT; SPACER,FUEL TANK M12	0-91110-512-0	08	1	0601-	●				●	●
36	NUT; SPACER,FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	08	1	9101-9504		●	●	●
36	NUT; SPACER,FUEL TANK EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> H=10 M12	9-99110-512-0	08	1	9101-9504		●	●	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	08	1	9505-9708	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> M12	9-99110-512-0	08	1	9709-9805	●				●	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	08	1	9806-0509	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91150-212-0	04	1	0510-0602	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE	0-91180-212-0	04	1	0603-	●
36	NUT; SPACER,FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99110-412-0	04	1	9101-9307		●	●	●
36	NUT; SPACER,FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	9308-9504		●	●	●
36	NUT; SPACER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	9505-9708	●
36	NUT; SPACER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> M12	9-99110-512-0	04	1	9709-9805	●				●	●
36	NUT; SPACER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	04	1	9806-0509	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9101-9504		●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9505-9604	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A)	9-22555-005-0	02	1	9605-0203	●				●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	0204-	●
43	BRACKET; FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> AUSTRALIA EQUIPMENT<RR3> (B)	9-53461-247-0	04	1	9101-9504		●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (C)	1-22555-016-0	02	1	9605-0203	●
43	BRACKET; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (A)	1-22555-004-0	02	1	9709-9805	●				●
45	BOLT; BRKT,FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FUEL TANK 200L FRAME SIDE<N20> (A) M12X35 W/LK WASHER	0-50041-235-0	04	1	9101-9504		●	●	●
45	BOLT; BRKT,FUEL TANK EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M12X35 W/LK WASHER	0-50041-235-0	04	1	9101-9504		●	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M12X35 FLANGE	0-28081-235-0	04	1	9505-9606	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M12X40 FLANGE	0-28681-240-0	04	1	9607-9708	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A) M12X40 FLANGE	0-28681-240-0	04	1	9709-9805	●				●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M12X40 FLANGE	0-28681-240-0	04	1	9806-0512	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M12X40 FLANGE	0-28651-240-0	04	1	0601-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3> (B) BOLT ASM L=370 M12X359	9-22559-030-2	04	1	9101-9504		●	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) BOLT ASM L=370 M12X359	9-22559-030-2	04	1	9505-9604	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (B) BOLT ASM L=370 M12X359	9-22559-030-2	04	1	9605-0203	●				●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) BOLT ASM L=370 M12X359	9-22559-030-2	04	1	0204-	●
45	BOLT; BRKT,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (B) M12X594	1-22559-003-1	04	1	9709-9805	●				●
47	SPACER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-22554-097-0	02	1	9605-0203	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-412-0	04	1	9101-9307		●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99111-412-0	04	1	9101-9504		●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99111-412-0	04	1	9505-9604	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> H=7 M12	9-99111-412-0	04	1	9605-0203	●				●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99111-412-0	04	1	0204-0512	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	0-91111-512-0	04	1	0601-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	9308-9504		●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	9505-9604	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> H=10 M12	9-99110-512-0	02	1	9605-0203	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	0204-0512	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> H=10 M12	9-99110-512-0	04	1	9605-0203	●				●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> M12X35 FLANGE	0-28681-235-0	02	1	9605-0203	●
55	CLIP; FUEL PIPE ID=15	9-09715-098-0	02	1	9101-9504		●	●	●
55	CLIP; FUEL PIPE ID=15	9-09715-098-0	02	1	9505-9510	●
64	BOLT; FUEL TANK M12X359	9-22559-030-2	04	1	9101-9504		●	●	●
64	BOLT; FUEL TANK M12X359	9-22559-030-2	04	1	9505-9708	●
64	BOLT; FUEL TANK EXC. FUEL TANK 280L<RF4> M12X359	9-22559-030-2	04	1	9709-9805	●				●	●
64	BOLT; FUEL TANK M12X359	9-22559-030-2	04	1	9806-	●
64	BOLT; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M12X594	1-22559-003-1	04	1	9709-9805	●				●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22554-095-0	01	1	9101-9504		●	●	●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22554-095-0	01	1	9505-9604	●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	9-22554-095-0	01	1	9605-9902	●				●	●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22555-018-0	01	1	9903-0203	●				●	●
206	SLEEPER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22555-018-0	01	1	0204-	●
206	SLEEPER; FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	9-22554-056-0	01	1	9101-9504		●	●	●
206	SLEEPER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	9-22554-056-0	01	1	9505-9708	●
206	SLEEPER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	9-22554-056-0	01	1	9709-9805	●				●	●
206	SLEEPER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	9-22554-056-0	01	1	9806-	●
206	SLEEPER; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	1-22554-002-0	01	1	9709-9805	●				●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22557-068-0	01	1	9101-9504		●	●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	9-22557-068-0	01	1	9505-9604	●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	9-22557-068-0	01	1	9605-9902	●				●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22557-040-0	01	1	9903-0203	●				●	●
231	COVER; UNDER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22557-040-0	01	1	0204-	●
231	COVER; UNDER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	9-22557-052-0	01	1	9101-9504		●	●	●
231	COVER; UNDER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	9-22557-052-0	01	1	9505-9708	●
231	COVER; UNDER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	9-22557-052-0	01	1	9709-9805	●				●	●
231	COVER; UNDER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	9-22557-052-0	01	1	9806-	●
231	COVER; UNDER,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	1-22557-003-0	01	1	9709-9805	●				●
237	GASKET; BRKT TO FUEL TANK L=540	1-22553-014-2	02	1	9202-9205		●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	9202-9205		●	●	●
237	GASKET; BRKT TO FUEL TANK L=540	1-22553-006-0	02	1	9206-9504		●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-006-0	02	1	9206-9504		●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-006-0	02	1	9505-9604	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> L=540	1-22553-006-0	02	1	9605-0203	●				●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-006-0	02	1	0204-	●
237	GASKET; BRKT TO FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> L=580	1-22553-003-0	04	1	9709-9805	●				●
239	SUPPORT; FUEL TANK (A)	9-22555-005-0	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9505-9604	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (A)	9-22555-005-0	03	1	9605-0203	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	0204-	●
239	SUPPORT; FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-0	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-0	02	1	9505-9708	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (B)	1-22555-015-0	02	1	9709-9805	●				●	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-1	02	1	9806-	●
239	SUPPORT; FUEL TANK EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-22555-012-1	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	04	1	9505-9708	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A)	9-22555-005-0	04	1	9709-9805	●				●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	04	1	9806-	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A)	9-22555-005-0	02	1	9605-0203	●				●	●
239	SUPPORT; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (A)	1-22555-004-0	02	1	9709-9805	●				●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	9101-9504		●	●	●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	9505-9702	●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	9703-9709	●					●
240	WASHER; PL,FUEL TANK ID=12.5 OD=26	9-09164-612-0	04	1	9710-	●				●	●
288	COVER; RUBBER FUEL PIPE FRT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9101-9504		●	●	●
288	COVER; RUBBER FUEL PIPE FRT L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9505-9603	●
329	JOINT ASM; EYE,FUEL PIPE PRE FUEL FILTER(W21)	5-09674-054-0	02	1	9101-9504		●	●	●
329	JOINT ASM; EYE,FUEL PIPE	5-09674-054-0	02	1	9505-9510	●
330	BOLT; EYE,JOINT PRE FUEL FILTER(W21) M14X27 FLANGE	1-09675-086-0	02	1	9101-9504		●	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9505-9510	●
331	GASKET; EYE JOINT PRE FUEL FILTER(W21) ID=14.2 OD=19.2	1-09630-085-0	04	1	9101-9504		●	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9505-9510	●
332	BRACKET; PRE FUEL FILTER PRE FUEL FILTER(W21)	1-22518-072-0	01	1	9101-9504		●	●	●
332	BRACKET; PRE FUEL FILTER	1-22518-072-0	01	1	9505-9510	●
333	BOLT; BRKT,PRE FUEL FILTER PRE FUEL FILTER(W21) M10X25 W/LK WASHER	0-50041-025-0	03	1	9101-9504		●	●	●
333	BOLT; BRKT,PRE FUEL FILTER M10X25 FLANGE	0-28081-025-0	03	1	9505-9510	●
334	NUT; BRKT,PRE FUEL FILTER PRE FUEL FILTER(W21) M10	9-09110-510-0	03	1	9101-9504		●	●	●
334	NUT; BRKT,PRE FUEL FILTER M10	9-09110-510-0	03	1	9505-9510	●
339	CLIP; BAND,FUEL HOSE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=250	5-09707-030-0	01	1	9101-9504		●	●	●
339	CLIP; BAND,FUEL HOSE L=250	5-09707-030-0	01	1	9505-9603	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	9101-9504		●	●	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	9505-9604	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> ID=12.5 OD=26	9-09164-612-0	04	1	9605-0203	●				●	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	0204-	●
465	SLEEVE; RUBBER BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=17 OD=21 L=40	1-09337-012-0	01	1	9101-9504		●	●	●
465	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	9505-9603	●
466	CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9101-9504		●	●	●
466	CLIP BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	5-09707-030-0	02	1	9101-9504		●	●	●
466	CLIP (B) L=250	5-09707-030-0	02	1	9505-9603	●
467	BOLT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	9-01900-820-0	02	1	9101-9204		●	●	●
467	BOLT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9504		●	●	●
468	NUT BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8	9-09110-408-0	02	1	9101-9504		●	●	●

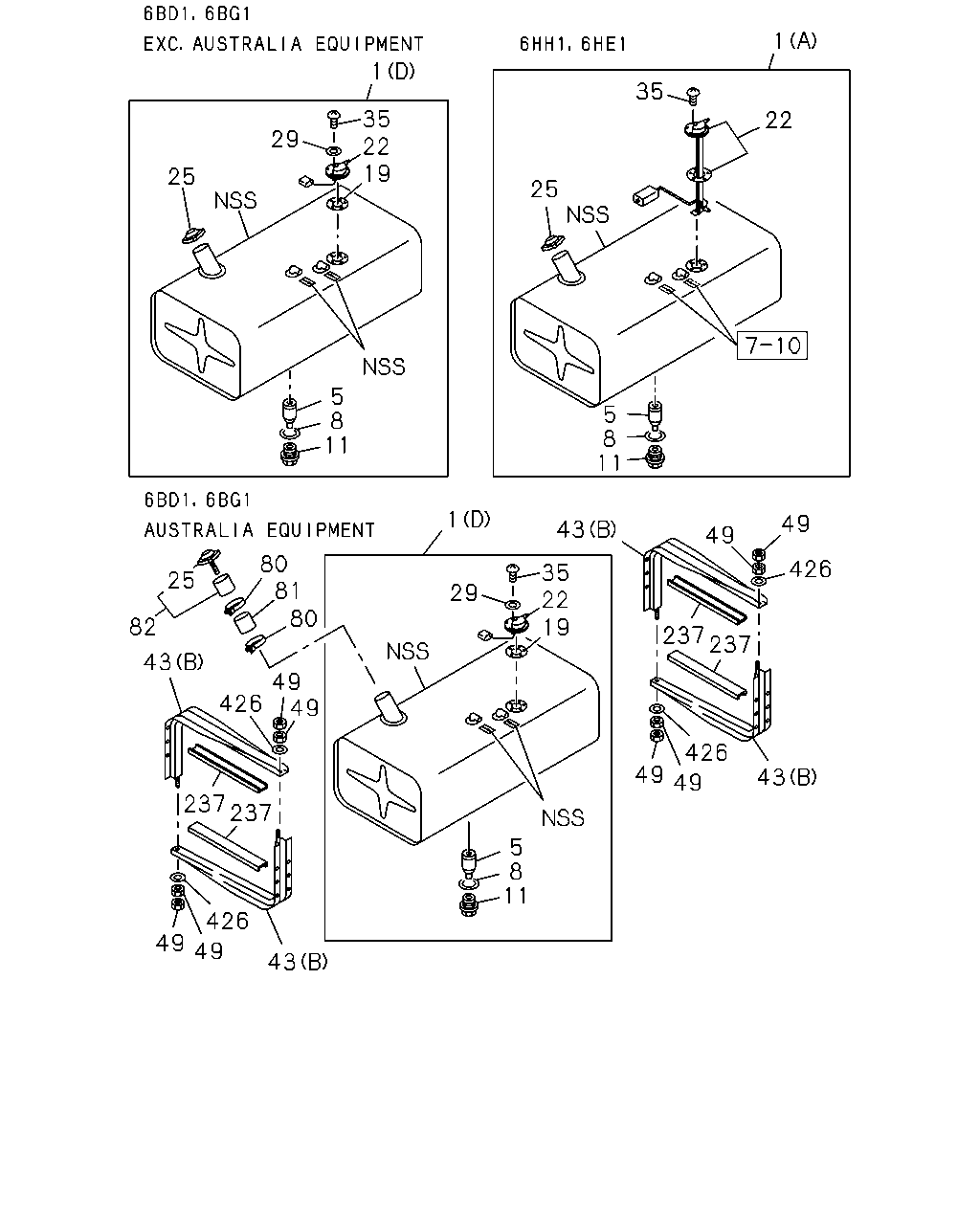

1 1 35 35 22 19 22 29 25 25 5 8 11 5 8 11 1 49 43 49 80 81 80 426 35 22 19 25 29 237 237 82 43 49 426 49 426 49 43 49 237 237 5 8 11 426 49 49 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-1	01	1	0204-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3> (D)	1-22400-340-4	01	1	9101-9504		●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X532X322 200L	1-22400-992-0	01	1	9505-9508	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-0	01	1	9509-9604	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A) 1260X532X322 200L	1-22401-030-2	01	1	9605-0203	●				●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-3	01	1	0204-	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> AUSTRALIA EQUIPMENT<RR3> (D)	8-94300-060-1	01	1	9101-9504		●	●	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22402-121-5	01	1	9101-9504		●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9505-9708	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A) 914X502X322 137L	1-22400-991-0	01	1	9709-9805	●				●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9806-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (B) 1220X532X322 200L	1-22400-884-3	01	1	9605-0203	●
1	TANK; FUEL LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (C) 840X649X549 278L	8-94300-186-1	01	1	9709-9805	●				●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9101-9504		●	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9505-9702	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9703-9709	●					●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9710-0111	●				●	●
5	STRAINER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	0112-0203	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22460-001-1	01	1	0112-0203	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	0204-	●				●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9101-9504		●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9505-9702	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9703-9709	●					●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9710-0509	●				●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-	●				●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9101-9504		●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9505-9604	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9605-9708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9605-9708	●
11	PLUG; DRAIN,FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9806-0003	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9806-0003	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0004-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> PT1/4	9-99204-513-0	02	1	9509-9604	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> PT1/4	9-99204-513-0	02	1	9605-0203	●				●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> PT1/4	9-99204-513-0	02	1	0204-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-09604-079-0	01	1	9605-0203	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	0004-0203	●				●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0204-	●
11	PLUG; DRAIN,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M36	1-09604-052-0	01	1	9709-9805	●				●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0204-	●				●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9101-9504		●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9605-9708	●
19	GASKET; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	9-83135-003-0	01	1	9709-9805	●				●
19	GASKET; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9709-9805	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9806-0203	●
22	UNIT; FUEL TANK WO/GASKET	9-83131-682-0	01	1	9101-9105		●	●	●
22	UNIT; FUEL TANK WO/GASKET	9-83132-115-0	01	1	9106-9504		●	●	●
22	UNIT; FUEL TANK W/GASKET	1-83141-078-0	01	1	9505-9604	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9605-9708	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9605-9708	●
22	UNIT; FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9806-0203	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9806-0203	●
22	UNIT; FUEL TANK	1-83141-078-0	01	1	0204-	●				●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-83141-106-0	01	1	9605-0203	●
22	UNIT; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	9-83132-101-0	01	1	9709-9805	●				●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3>	1-22440-023-1	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-023-1	01	1	9505-9604	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9605-9708	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-023-1	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9806-0203	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-023-1	01	1	0204-	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>	9-22440-099-0	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9505-9708	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-028-0	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9806-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-22440-042-2	01	1	9605-0203	●
29	WASHER; PL,FUEL TANK UNIT ID=4.3	9-09160-504-0	01	1	9101-9504		●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9605-9708	●
29	WASHER; PL,FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> ID=4.3	9-09160-504-0	01	1	9709-9805	●				●
29	WASHER; PL,FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9709-9805	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9806-0203	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	9101-9504		●	●	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	9505-9604	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9605-9708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9605-9708	●
35	SCREW; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9806-0203	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9806-0203	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	0204-	●				●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> M4X10	9-93497-410-0	05	1	9605-0203	●
35	SCREW; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	9-03920-410-0	05	1	9709-9805	●				●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9101-9504		●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9505-9604	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A)	9-22555-005-0	02	1	9605-0203	●				●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	0204-	●
43	BRACKET; FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> AUSTRALIA EQUIPMENT<RR3> (B)	9-53461-247-0	04	1	9101-9504		●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (C)	1-22555-016-0	02	1	9605-0203	●
43	BRACKET; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (A)	1-22555-004-0	02	1	9709-9805	●				●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-412-0	04	1	9101-9307		●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99111-412-0	04	1	9101-9504		●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99111-412-0	04	1	9505-9604	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> H=7 M12	9-99111-412-0	04	1	9605-0203	●				●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	9-99111-412-0	04	1	0204-0512	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=7 M12	0-91111-512-0	04	1	0601-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	9308-9504		●	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	9505-9604	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> H=10 M12	9-99110-512-0	02	1	9605-0203	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> H=10 M12	9-99110-512-0	04	1	0204-0512	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	0-91110-512-0	04	1	0601-	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> H=10 M12	9-99110-512-0	04	1	9605-0203	●				●	●
80	CLIP; FILLER HOSE RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3> ID=95	9-09915-733-1	02	1	9101-9504		●	●	●
81	HOSE; FUEL FILLER RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>	1-09360-392-0	01	1	9101-9504		●	●	●
82	FILLER; FUEL RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>	8-94300-210-0	01	1	9101-9504		●	●	●
237	GASKET; BRKT TO FUEL TANK L=540	1-22553-014-2	02	1	9202-9205		●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	9202-9205		●	●	●
237	GASKET; BRKT TO FUEL TANK L=540	1-22553-006-0	02	1	9206-9504		●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-006-0	02	1	9206-9504		●	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-006-0	02	1	9505-9604	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> L=540	1-22553-006-0	02	1	9605-0203	●				●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-006-0	02	1	0204-	●
237	GASKET; BRKT TO FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> L=580	1-22553-003-0	04	1	9709-9805	●				●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	9101-9504		●	●	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	9505-9604	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> ID=12.5 OD=26	9-09164-612-0	04	1	9605-0203	●				●	●
426	WASHER; PL FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26	9-09164-612-0	04	1	0204-	●

1 35 32 29 35 32 22 19 25 5 8 11 513 514 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-1	01	1	0204-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3> (D)	1-22400-340-4	01	1	9101-9504		●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X532X322 200L	1-22400-992-0	01	1	9505-9508	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-0	01	1	9509-9604	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A) 1260X532X322 200L	1-22401-030-2	01	1	9605-0203	●				●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-3	01	1	0204-	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> AUSTRALIA EQUIPMENT<RR3> (D)	8-94300-060-1	01	1	9101-9504		●	●	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22402-121-5	01	1	9101-9504		●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9505-9708	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A) 914X502X322 137L	1-22400-991-0	01	1	9709-9805	●				●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9806-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (B) 1220X532X322 200L	1-22400-884-3	01	1	9605-0203	●
1	TANK; FUEL LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (C) 840X649X549 278L	8-94300-186-1	01	1	9709-9805	●				●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9101-9504		●	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9505-9702	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9703-9709	●					●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9710-0111	●				●	●
5	STRAINER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	0112-0203	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22460-001-1	01	1	0112-0203	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	0204-	●				●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9101-9504		●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9505-9702	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9703-9709	●					●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9710-0509	●				●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-	●				●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9101-9504		●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9505-9604	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9605-9708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9605-9708	●
11	PLUG; DRAIN,FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9806-0003	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9806-0003	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0004-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> PT1/4	9-99204-513-0	02	1	9509-9604	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> PT1/4	9-99204-513-0	02	1	9605-0203	●				●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> PT1/4	9-99204-513-0	02	1	0204-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-09604-079-0	01	1	9605-0203	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	0004-0203	●				●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0204-	●
11	PLUG; DRAIN,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M36	1-09604-052-0	01	1	9709-9805	●				●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0204-	●				●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9101-9504		●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9605-9708	●
19	GASKET; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	9-83135-003-0	01	1	9709-9805	●				●
19	GASKET; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9709-9805	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9806-0203	●
22	UNIT; FUEL TANK WO/GASKET	9-83131-682-0	01	1	9101-9105		●	●	●
22	UNIT; FUEL TANK WO/GASKET	9-83132-115-0	01	1	9106-9504		●	●	●
22	UNIT; FUEL TANK W/GASKET	1-83141-078-0	01	1	9505-9604	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9605-9708	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9605-9708	●
22	UNIT; FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9806-0203	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9806-0203	●
22	UNIT; FUEL TANK	1-83141-078-0	01	1	0204-	●				●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-83141-106-0	01	1	9605-0203	●
22	UNIT; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	9-83132-101-0	01	1	9709-9805	●				●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3>	1-22440-023-1	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-023-1	01	1	9505-9604	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9605-9708	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-023-1	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9806-0203	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-023-1	01	1	0204-	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>	9-22440-099-0	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9505-9708	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-028-0	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9806-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-22440-042-2	01	1	9605-0203	●
29	WASHER; PL,FUEL TANK UNIT ID=4.3	9-09160-504-0	01	1	9101-9504		●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9605-9708	●
29	WASHER; PL,FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> ID=4.3	9-09160-504-0	01	1	9709-9805	●				●
29	WASHER; PL,FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9709-9805	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9806-0203	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.1	9-09150-504-0	05	1	9605-0203	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	9101-9504		●	●	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	9505-9604	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9605-9708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9605-9708	●
35	SCREW; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9806-0203	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9806-0203	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	0204-	●				●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> M4X10	9-93497-410-0	05	1	9605-0203	●
35	SCREW; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	9-03920-410-0	05	1	9709-9805	●				●
239	SUPPORT; FUEL TANK (A)	9-22555-005-0	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	9505-9604	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (A)	9-22555-005-0	03	1	9605-0203	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	02	1	0204-	●
239	SUPPORT; FUEL TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-0	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-0	02	1	9505-9708	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (B)	1-22555-015-0	02	1	9709-9805	●				●	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B)	1-22555-015-1	02	1	9806-	●
239	SUPPORT; FUEL TANK EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B)	1-22555-012-1	02	1	9101-9504		●	●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	04	1	9505-9708	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A)	9-22555-005-0	04	1	9709-9805	●				●	●
239	SUPPORT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22555-005-0	04	1	9806-	●
239	SUPPORT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A)	9-22555-005-0	02	1	9605-0203	●				●	●
239	SUPPORT; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (A)	1-22555-004-0	02	1	9709-9805	●				●
513	ADAPTER FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-15416-018-0	02	1	9605-0203	●
514	TUBE; DISTANCE FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-33619-195-1	02	1	9605-0203	●

35 29 22 25 19 1 5 8 11 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-1	01	1	0204-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3> (D)	1-22400-340-4	01	1	9101-9504		●	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X532X322 200L	1-22400-992-0	01	1	9505-9508	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-0	01	1	9509-9604	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> (A) 1260X532X322 200L	1-22401-030-2	01	1	9605-0203	●				●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1260X532X322 200L	1-22401-030-3	01	1	0204-	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> AUSTRALIA EQUIPMENT<RR3> (D)	8-94300-060-1	01	1	9101-9504		●	●	●
1	TANK; FUEL RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> (A)	9-22402-121-5	01	1	9101-9504		●	●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9505-9708	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4> (A) 914X502X322 137L	1-22400-991-0	01	1	9709-9805	●				●	●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20> (A) 914X502X322 137L	1-22400-991-0	01	1	9806-	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> (B) 1220X532X322 200L	1-22400-884-3	01	1	9605-0203	●
1	TANK; FUEL LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> (C) 840X649X549 278L	8-94300-186-1	01	1	9709-9805	●				●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9101-9504		●	●	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9505-9702	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9703-9709	●					●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	9710-0111	●				●	●
5	STRAINER; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	0112-0203	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22460-001-1	01	1	0112-0203	●
5	STRAINER; FUEL TANK	1-22460-001-1	01	1	0204-	●				●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9101-9504		●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9505-9702	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9703-9709	●					●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9710-0509	●				●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	8-98030-375-0	01	1	0510-	●				●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9101-9504		●	●	●
11	PLUG; DRAIN,FUEL TANK M36	1-09604-052-0	01	1	9505-9604	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9605-9708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9605-9708	●
11	PLUG; DRAIN,FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9709-9805	●				●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9806-0003	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	9806-0003	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0004-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> PT1/4	9-99204-513-0	02	1	9509-9604	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> PT1/4	9-99204-513-0	02	1	9605-0203	●				●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> PT1/4	9-99204-513-0	02	1	0204-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-09604-079-0	01	1	9605-0203	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> M36	1-09604-052-0	01	1	0004-0203	●				●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0204-	●
11	PLUG; DRAIN,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M36	1-09604-052-0	01	1	9709-9805	●				●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0204-	●				●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9101-9504		●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9605-9708	●
19	GASKET; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	9-83135-003-0	01	1	9709-9805	●				●
19	GASKET; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9709-9805	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	9-83135-003-0	01	1	9806-0203	●
22	UNIT; FUEL TANK WO/GASKET	9-83131-682-0	01	1	9101-9105		●	●	●
22	UNIT; FUEL TANK WO/GASKET	9-83132-115-0	01	1	9106-9504		●	●	●
22	UNIT; FUEL TANK W/GASKET	1-83141-078-0	01	1	9505-9604	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9605-9708	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9605-9708	●
22	UNIT; FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9709-9805	●				●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> W/GASKET	1-83141-078-0	01	1	9806-0203	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07> W/GASKET	1-83141-078-0	01	1	9806-0203	●
22	UNIT; FUEL TANK	1-83141-078-0	01	1	0204-	●				●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-83141-106-0	01	1	9605-0203	●
22	UNIT; FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4>	9-83132-101-0	01	1	9709-9805	●				●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. AUSTRALIA EQUIPMENT<RR3>	1-22440-023-1	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-023-1	01	1	9505-9604	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9605-9708	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK LEFT HAND DRIVE(LTR6FB) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-023-1	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22440-023-1	01	1	9806-0203	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-023-1	01	1	0204-	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) AUSTRALIA EQUIPMENT<RR3>	9-22440-099-0	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9101-9504		●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9505-9708	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 280L<RF4>	1-22440-028-0	01	1	9709-9805	●				●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9806-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07>	1-22440-042-2	01	1	9605-0203	●
29	WASHER; PL,FUEL TANK UNIT ID=4.3	9-09160-504-0	01	1	9101-9504		●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9605-9708	●
29	WASHER; PL,FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> ID=4.3	9-09160-504-0	01	1	9709-9805	●				●
29	WASHER; PL,FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9709-9805	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> ID=4.3	9-09160-504-0	01	1	9806-0203	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	9101-9504		●	●	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	9505-9604	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9605-9708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9605-9708	●
35	SCREW; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) EXC. FUEL TANK 280L<RF4>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT RIGHT HAND DRIVE(LTR5FB) EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9709-9805	●				●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22419-012-0	05	1	9806-0203	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> EXC. BUS BODY MAKER FUJIJUKO<Y07>	1-22419-012-0	05	1	9806-0203	●
35	SCREW; FUEL TANK UNIT	1-22419-012-0	05	1	0204-	●				●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> BUS BODY MAKER FUJIJUKO<Y07> M4X10	9-93497-410-0	05	1	9605-0203	●
35	SCREW; FUEL TANK UNIT LEFT HAND DRIVE(LTR6FB) FUEL TANK 280L<RF4> M4X10 W/LK&PL WASHER	9-03920-410-0	05	1	9709-9805	●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
