2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#43879) — 224 parça

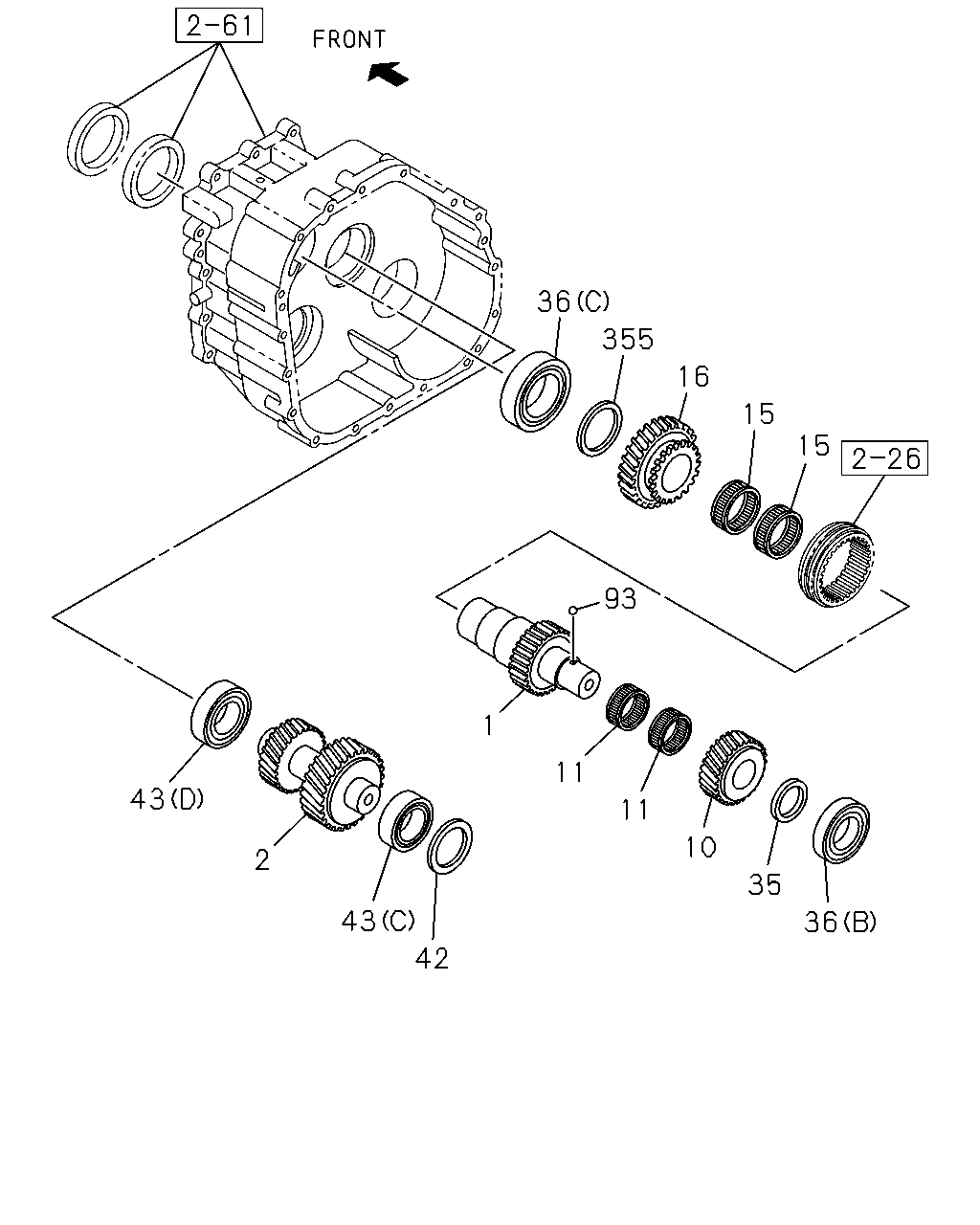

çizim 69281
36 355 16 15 15 93 1 11 43 11 10 2 35 43 36 42
BalonParca AdiParca NoAdetTipApplied Date
1 04.162 SHAFT; GEAR,INPUT 8-97016-710-0 01 1 9412-0105
1 04.162 SHAFT; GEAR,INPUT
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97016-710-0 01 1 0106-0212
1 04.162 SHAFT; GEAR,INPUT
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0301-0310
1 04.162 SHAFT; GEAR,INPUT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0311-0501
1 04.162 SHAFT; GEAR,INPUT
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0502-0506
1 04.162 SHAFT; GEAR,INPUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0507-0611
1 04.162 SHAFT; GEAR,INPUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0612-
2 04.162 SHAFT; GEAR,IDLE 8-97016-711-1 01 1 9412-0105
2 04.162 SHAFT; GEAR,IDLE
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97016-711-1 01 1 0106-0212
2 04.162 SHAFT; GEAR,IDLE
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0301-0310
2 04.162 SHAFT; GEAR,IDLE
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0311-0501
2 04.162 SHAFT; GEAR,IDLE
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0502-0506
2 04.162 SHAFT; GEAR,IDLE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0507-0611
2 04.162 SHAFT; GEAR,IDLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0612-
10 04.532 GEAR; INPUT,LOW 8-94481-312-0 01 1 9412-9506
10 04.532 GEAR; INPUT,LOW 8-97129-502-0 01 1 9507-0105
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97129-502-0 01 1 0106-0212
10 04.532 GEAR; INPUT,LOW
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-941-0 01 1 0301-0310
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-941-0 01 1 0311-0411
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0412-0501
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0502-0506
10 04.532 GEAR; INPUT,LOW
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0507-0611
10 04.532 GEAR; INPUT,LOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0612-
11 04.520 BEARING; LOW GEAR,TRANSFER 8-94318-403-0 02 1 9412-0105
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94318-403-0 02 1 0106-0212
11 04.520 BEARING; LOW GEAR,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0301-0310
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0311-0501
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0502-0506
11 04.520 BEARING; LOW GEAR,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0507-0611
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0612-
15 04.520 BEARING; HIGH GEAR,TRANSFER
JTEKT 		8-94329-643-0 01 1 9412-0105
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) JTEKT 		8-94329-643-0 01 1 0106-0212
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0301-0310
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0311-0501
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0502-0506
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0507-0611
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0612-
15 04.520 BEARING; HIGH GEAR,TRANSFER
NTN 		8-94481-413-0 01 1 9412-0105
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) NTN 		8-94481-413-0 01 1 0106-0212
16 04.532 GEAR; INPUT,HIGH 8-94481-311-0 01 1 9412-9506
16 04.532 GEAR; INPUT,HIGH 8-97129-500-0 01 1 9507-0105
16 04.532 GEAR; INPUT,HIGH
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97129-500-0 01 1 0106-0212
16 04.532 GEAR; INPUT,HIGH
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0301-0310
16 04.532 GEAR; INPUT,HIGH
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0311-0501
16 04.532 GEAR; INPUT,HIGH
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0502-0506
16 04.532 GEAR; INPUT,HIGH
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0507-0611
16 04.532 GEAR; INPUT,HIGH
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0612-
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER 8-94481-418-0 01 1 9412-0105
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94481-418-0 01 1 0106-0212
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0301-0310
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0311-0501
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0502-0506
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0507-0611
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0612-
36 04.520 BEARING; IDLE SHAFT,TRANSFER
04.355 (A) 		8-94178-731-0 01 1 9412-0105
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 04.355 (A) 		8-94178-731-0 01 1 0106-0212
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0301-0310
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0311-0501
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0502-0506
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0507-0611
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0612-
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0301-0310
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0311-0501
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0502-0506
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0507-0611
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0612-
42 04.520 SHIM; IDLE SHAFT BRG
4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.18 		8-97326-912-0 01 1 0301-0310
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.18 		8-97326-912-0 01 1 0311-0501
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.18 		8-97326-912-0 01 1 0502-0506
42 04.520 SHIM; IDLE SHAFT BRG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.18 		8-97326-912-0 01 1 0507-0611
42 04.520 SHIM; IDLE SHAFT BRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.18 		8-97326-912-0 01 1 0612-
42 04.520 SHIM; IDLE SHAFT BRG
4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.50 		8-97326-913-0 02 1 0301-0310
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.50 		8-97326-913-0 02 1 0311-0501
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.50 		8-97326-913-0 02 1 0502-0506
42 04.520 SHIM; IDLE SHAFT BRG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.50 		8-97326-913-0 02 1 0507-0611
42 04.520 SHIM; IDLE SHAFT BRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.50 		8-97326-913-0 02 1 0612-
42 04.520 SHIM; IDLE SHAFT BRG
4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.40 		8-97326-914-0 01 1 0301-0310
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.40 		8-97326-914-0 01 1 0311-0501
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.40 		8-97326-914-0 01 1 0502-0506
42 04.520 SHIM; IDLE SHAFT BRG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.40 		8-97326-914-0 01 1 0507-0611
42 04.520 SHIM; IDLE SHAFT BRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.40 		8-97326-914-0 01 1 0612-
42 04.520 SHIM; IDLE SHAFT BRG
4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.35 		8-97326-915-0 01 1 0301-0310
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.35 		8-97326-915-0 01 1 0311-0501
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.35 		8-97326-915-0 01 1 0502-0506
42 04.520 SHIM; IDLE SHAFT BRG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.35 		8-97326-915-0 01 1 0507-0611
42 04.520 SHIM; IDLE SHAFT BRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.35 		8-97326-915-0 01 1 0612-
42 04.520 SHIM; IDLE SHAFT BRG
4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.30 		8-97326-916-0 01 1 0301-0310
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.30 		8-97326-916-0 01 1 0311-0501
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.30 		8-97326-916-0 01 1 0502-0506
42 04.520 SHIM; IDLE SHAFT BRG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.30 		8-97326-916-0 01 1 0507-0611
42 04.520 SHIM; IDLE SHAFT BRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.30 		8-97326-916-0 01 1 0612-
42 04.520 SHIM; IDLE SHAFT BRG
4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.25 		8-97326-917-0 01 1 0301-0310
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) T=0.25 		8-97326-917-0 01 1 0311-0501
42 04.520 SHIM; IDLE SHAFT BRG
4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.25 		8-97326-917-0 01 1 0502-0506
42 04.520 SHIM; IDLE SHAFT BRG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.25 		8-97326-917-0 01 1 0507-0611
42 04.520 SHIM; IDLE SHAFT BRG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) T=0.25 		8-97326-917-0 01 1 0612-
43 04.520 BEARING; ROLLER,IDLE SHAFT
(A) 		8-94467-900-0 01 1 9412-0105
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) (A) 		8-94467-900-0 01 1 0106-0212
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0301-0310
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0311-0501
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0502-0506
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0507-0611
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0612-
43 04.520 BEARING; ROLLER,IDLE SHAFT
(B) 		8-94481-419-0 01 1 9412-0105
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) (B) 		8-94481-419-0 01 1 0106-0212
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HE1 ENG(RLY) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0301-0310
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0311-0501
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0502-0506
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0507-0611
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0612-
93 04.520 BALL; INPUT SHAFT
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97328-680-0 01 1 0301-0310
93 04.520 BALL; INPUT SHAFT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97328-680-0 01 1 0311-0501
93 04.520 BALL; INPUT SHAFT
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97328-680-0 01 1 0502-0506
93 04.520 BALL; INPUT SHAFT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97328-680-0 01 1 0507-0611
93 04.520 BALL; INPUT SHAFT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97328-680-0 01 1 0612-
355 04.520 WASHER; THRUST,INPUT SHAFT
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-942-0 01 1 0301-0310
355 04.520 WASHER; THRUST,INPUT SHAFT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-942-0 01 1 0311-0501
355 04.520 WASHER; THRUST,INPUT SHAFT
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-942-0 01 1 0502-0506
355 04.520 WASHER; THRUST,INPUT SHAFT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-942-0 01 1 0507-0611
355 04.520 WASHER; THRUST,INPUT SHAFT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-942-0 01 1 0612-

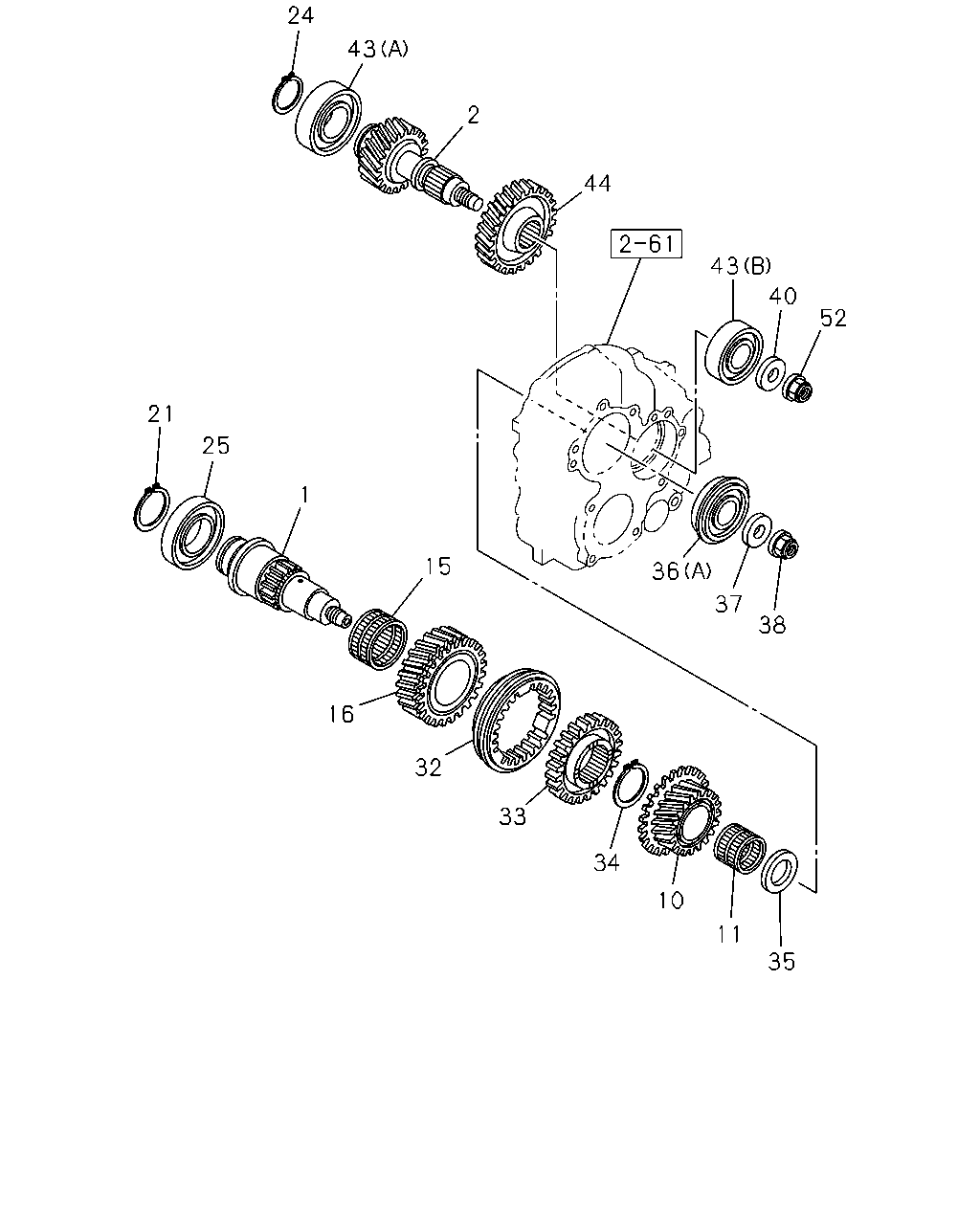

çizim 70229
24 43 2 44 43 40 52 21 25 1 15 36 37 38 16 32 33 34 10 11 35
BalonParca AdiParca NoAdetTipApplied Date
1 04.162 SHAFT; GEAR,INPUT 8-97016-710-0 01 1 9412-0105
1 04.162 SHAFT; GEAR,INPUT
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97016-710-0 01 1 0106-0212
1 04.162 SHAFT; GEAR,INPUT
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0301-0310
1 04.162 SHAFT; GEAR,INPUT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0311-0501
1 04.162 SHAFT; GEAR,INPUT
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0502-0506
1 04.162 SHAFT; GEAR,INPUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0507-0611
1 04.162 SHAFT; GEAR,INPUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-946-0 01 1 0612-
2 04.162 SHAFT; GEAR,IDLE 8-97016-711-1 01 1 9412-0105
2 04.162 SHAFT; GEAR,IDLE
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97016-711-1 01 1 0106-0212
2 04.162 SHAFT; GEAR,IDLE
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0301-0310
2 04.162 SHAFT; GEAR,IDLE
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0311-0501
2 04.162 SHAFT; GEAR,IDLE
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0502-0506
2 04.162 SHAFT; GEAR,IDLE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0507-0611
2 04.162 SHAFT; GEAR,IDLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-921-0 01 1 0612-
10 04.532 GEAR; INPUT,LOW 8-94481-312-0 01 1 9412-9506
10 04.532 GEAR; INPUT,LOW 8-97129-502-0 01 1 9507-0105
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97129-502-0 01 1 0106-0212
10 04.532 GEAR; INPUT,LOW
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-941-0 01 1 0301-0310
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-941-0 01 1 0311-0411
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0412-0501
10 04.532 GEAR; INPUT,LOW
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0502-0506
10 04.532 GEAR; INPUT,LOW
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0507-0611
10 04.532 GEAR; INPUT,LOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98000-326-0 01 1 0612-
11 04.520 BEARING; LOW GEAR,TRANSFER 8-94318-403-0 02 1 9412-0105
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94318-403-0 02 1 0106-0212
11 04.520 BEARING; LOW GEAR,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0301-0310
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0311-0501
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0502-0506
11 04.520 BEARING; LOW GEAR,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0507-0611
11 04.520 BEARING; LOW GEAR,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97351-791-0 02 1 0612-
15 04.520 BEARING; HIGH GEAR,TRANSFER
JTEKT 		8-94329-643-0 01 1 9412-0105
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) JTEKT 		8-94329-643-0 01 1 0106-0212
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0301-0310
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0311-0501
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0502-0506
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0507-0611
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-943-0 02 1 0612-
15 04.520 BEARING; HIGH GEAR,TRANSFER
NTN 		8-94481-413-0 01 1 9412-0105
15 04.520 BEARING; HIGH GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) NTN 		8-94481-413-0 01 1 0106-0212
16 04.532 GEAR; INPUT,HIGH 8-94481-311-0 01 1 9412-9506
16 04.532 GEAR; INPUT,HIGH 8-97129-500-0 01 1 9507-0105
16 04.532 GEAR; INPUT,HIGH
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97129-500-0 01 1 0106-0212
16 04.532 GEAR; INPUT,HIGH
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0301-0310
16 04.532 GEAR; INPUT,HIGH
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0311-0501
16 04.532 GEAR; INPUT,HIGH
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0502-0506
16 04.532 GEAR; INPUT,HIGH
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0507-0611
16 04.532 GEAR; INPUT,HIGH
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-944-0 01 1 0612-
21 04.162 RING; SNAP,PILOT BRG
04.422 ID=60.8 		9-09180-065-0 01 1 9412-0105
21 04.162 RING; SNAP,PILOT BRG
4HG1 ENG(RJH) M/T MXA5R(RMT) 04.422 ID=60.8 		9-09180-065-0 01 1 0106-0212
24 04.545 RING; SNAP,IDLE SHAFT,TRANSFER
ID=50.8 		9-09180-055-0 01 1 9412-0105
24 04.545 RING; SNAP,IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) ID=50.8 		9-09180-055-0 01 1 0106-0212
25 04.164 BEARING; BALL,INPUT SHAFT 8-94481-421-0 01 1 9412-0105
25 04.164 BEARING; BALL,INPUT SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94481-421-0 01 1 0106-0212
32 04.540 SLEEVE; L-H SHIFT,TRANSFER 8-94480-898-2 01 1 9412-9506
32 04.540 SLEEVE; L-H SHIFT,TRANSFER 8-94340-128-1 01 1 9507-0105
32 04.540 SLEEVE; L-H SHIFT,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94340-128-1 01 1 0106-0212
33 04.535 HUB; CLU,L-H,TRANSFER 8-94480-899-0 01 1 9412-9506
33 04.535 HUB; CLU,L-H,TRANSFER 8-97129-501-0 01 1 9507-0105
33 04.535 HUB; CLU,L-H,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-97129-501-0 01 1 0106-0212
34 04.545 RING; SNAP,CLU HUB
ID=65.5 		9-09180-070-0 01 1 9412-0105
34 04.545 RING; SNAP,CLU HUB
4HG1 ENG(RJH) M/T MXA5R(RMT) ID=65.5 		9-09180-070-0 01 1 0106-0212
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER 8-94481-418-0 01 1 9412-0105
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94481-418-0 01 1 0106-0212
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0301-0310
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0311-0501
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0502-0506
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0507-0611
35 04.533 WASHER; THRUST,LOW GEAR,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-97326-937-0 01 1 0612-
36 04.520 BEARING; IDLE SHAFT,TRANSFER
04.355 (A) 		8-94178-731-0 01 1 9412-0105
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 04.355 (A) 		8-94178-731-0 01 1 0106-0212
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0301-0310
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0311-0501
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0502-0506
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0507-0611
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) 		8-97326-935-0 01 1 0612-
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0301-0310
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0311-0501
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0502-0506
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0507-0611
36 04.520 BEARING; IDLE SHAFT,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-936-0 01 1 0612-
37 04.540 SPACER; IDLE SHAFT,TRANSFER 8-94481-416-0 01 1 9412-0105
37 04.540 SPACER; IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94481-416-0 01 1 0106-0212
38 04.555 NUT; LK,IDLE SHAFT,TRANSFER
04.162 M24 FLANGE 		8-97087-750-0 01 1 9412-0105
38 04.555 NUT; LK,IDLE SHAFT,TRANSFER
4HG1 ENG(RJH) M/T MXA5R(RMT) 04.162 M24 FLANGE 		8-97087-750-0 01 1 0106-0212
40 04.533 WASHER; IDLE SHAFT
04.540 		8-94481-416-0 01 1 9412-0105
40 04.533 WASHER; IDLE SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) 04.540 		8-94481-416-0 01 1 0106-0212
43 04.520 BEARING; ROLLER,IDLE SHAFT
(A) 		8-94467-900-0 01 1 9412-0105
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) (A) 		8-94467-900-0 01 1 0106-0212
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0301-0310
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0311-0501
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0502-0506
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0507-0611
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) 		8-97326-919-0 01 1 0612-
43 04.520 BEARING; ROLLER,IDLE SHAFT
(B) 		8-94481-419-0 01 1 9412-0105
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) (B) 		8-94481-419-0 01 1 0106-0212
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HE1 ENG(RLY) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0301-0310
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0311-0501
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1 ENG(RJH) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0502-0506
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0507-0611
43 04.520 BEARING; ROLLER,IDLE SHAFT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) 		8-97326-920-0 01 1 0612-
44 04.532 GEAR; IDLE,LOW RANGE 8-94482-076-0 01 1 9412-0105
44 04.532 GEAR; IDLE,LOW RANGE
4HG1 ENG(RJH) M/T MXA5R(RMT) 		8-94482-076-0 01 1 0106-0212
52 04.533 NUT; IDLE SHAFT
04.162 M24 FLANGE 		8-97087-750-0 01 1 9412-0105
52 04.533 NUT; IDLE SHAFT
4HG1 ENG(RJH) M/T MXA5R(RMT) 04.162 M24 FLANGE 		8-97087-750-0 01 1 0106-0212
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
