◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-62 - TRANSFER SIDE CASE AND SHIFT LEVER ▶
2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#43878) — 29 parça

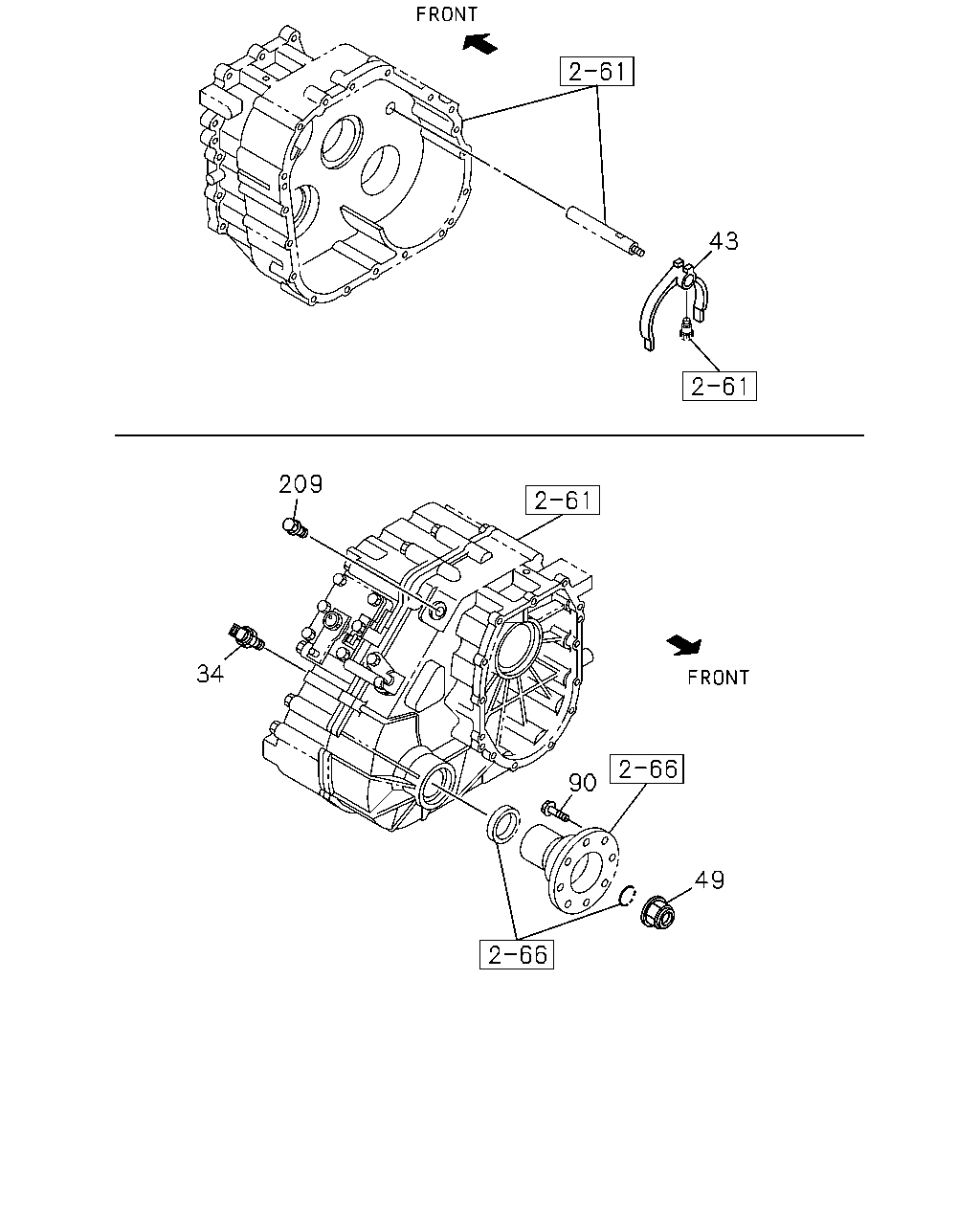

çizim 69280
43 209 34 90 49
BalonParca AdiParca NoAdetTipApplied Date
34 04.075 SWITCH; TRANSFER INDICATOR
4HE1 ENG(RLY) M/T MYY5T(RSM) 04.054 		8-97316-688-1 01 1 0301-0310
34 04.075 SWITCH; TRANSFER INDICATOR
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.054 		8-97316-688-1 01 1 0311-0501
34 04.075 SWITCH; TRANSFER INDICATOR
4HG1 ENG(RJH) M/T MYY5T(RSM) 04.054 		8-97316-688-1 01 1 0502-0506
34 04.075 SWITCH; TRANSFER INDICATOR
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.054 		8-97316-688-1 01 1 0507-0604
34 04.075 SWITCH; TRANSFER INDICATOR
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 		8-98023-050-0 01 1 0605-0611
34 04.075 SWITCH; TRANSFER INDICATOR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 		8-98023-050-0 01 1 0612-
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4HE1 ENG(RLY) M/T MYY5T(RSM) 04.302 		1-33511-502-1 01 1 0301-0310
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.302 		1-33511-502-1 01 1 0311-0501
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4HG1 ENG(RJH) M/T MYY5T(RSM) 04.302 		1-33511-502-1 01 1 0502-0506
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.302 		1-33511-502-1 01 1 0507-0611
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.302 		1-33511-502-1 01 1 0612-
49 04.525 NUT; COUPLING DRIVER,FRT OUTPUT
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) 04.412 M27 H=25 		8-97253-126-0 01 1 0507-0507
49 04.525 NUT; COUPLING DRIVER,FRT OUTPUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.412 M27 H=25 		8-97253-126-0 01 1 0508-0604
49 04.525 NUT; COUPLING DRIVER,FRT OUTPUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) M27 H=25 		8-97360-410-0 01 1 0605-0611
49 04.525 NUT; COUPLING DRIVER,FRT OUTPUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) M27 H=25 		8-97360-410-0 01 1 0612-
49 04.525 NUT; COUPLING DRIVER,FRT OUTPUT
4HE1 ENG(RLY) M/T MYY5T(RSM) 04.412 M27 H=25 		8-97253-126-0 01 1 0301-0310
49 04.525 NUT; COUPLING DRIVER,FRT OUTPUT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.412 M27 H=25 		8-97253-126-0 01 1 0311-0501
90 05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
4HE1 ENG(RLY) M/T MYY5T(RSM) M10X27 		8-97061-793-0 04 1 0301-0310
90 05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) M10X27 		8-97061-793-0 04 1 0311-0501
90 05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
4HG1 ENG(RJH) M/T MYY5T(RSM) M10X27 		8-97061-793-0 04 1 0502-0506
90 05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) M10X27 		8-97061-793-0 04 1 0507-0611
90 05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) M10X27 		8-97061-793-0 04 1 0612-0804
90 05.555 BOLT; COUPLING DRIVER,FRT OUTPUT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) M10X27 		8-98034-315-0 04 1 0805-
209 05.555 PLUG; HOLE
4HE1 ENG(RLY) M/T MYY5T(RSM) 04.104 M14X11 		8-94252-142-0 01 1 0301-0310
209 05.555 PLUG; HOLE
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.104 M14X11 		8-94252-142-0 01 1 0311-0501
209 05.555 PLUG; HOLE
4HG1 ENG(RJH) M/T MYY5T(RSM) 04.104 M14X11 		8-94252-142-0 01 1 0502-0506
209 05.555 PLUG; HOLE
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.104 M14X11 		8-94252-142-0 01 1 0507-0611
209 05.555 PLUG; HOLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.104 M14X11 		8-94252-142-0 01 1 0612-0708
209 05.555 PLUG; HOLE
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.104 M14X11 		8-98035-674-0 01 1 0709-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
