Sayfa 2-61 - Isuzu EPC

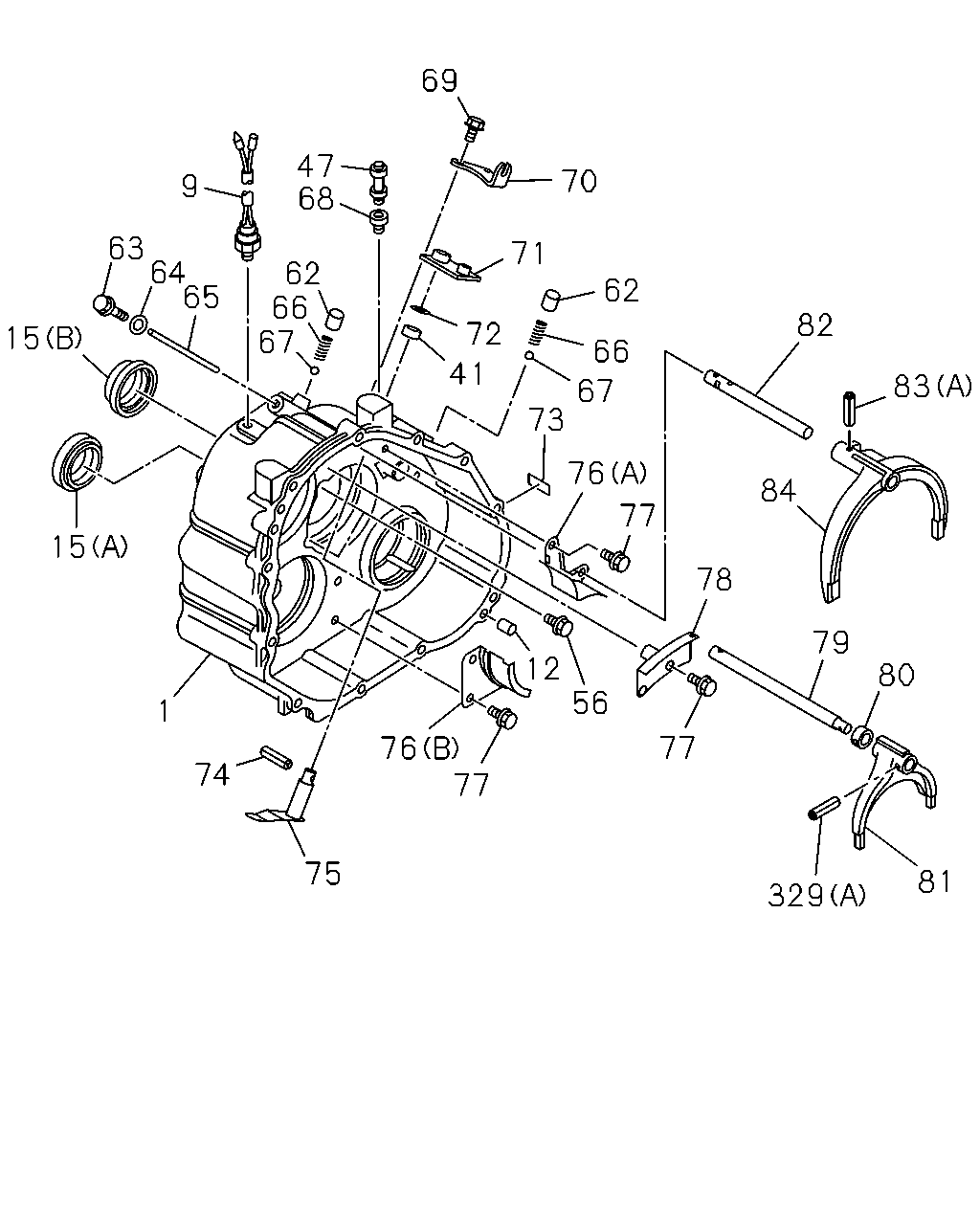

2-61 — TRANSFER CASE AND GEAR SHIFTER (#43877) — 490 parça

69 47 68 70 9 63 64 65 71 62 66 67 62 82 72 15 66 41 83 67 73 76 84 77 15 78 79 12 56 80 1 77 76 77 74 75 81 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.510 CASE; TRANSFER	8-97075-336-0	01	1	9412-9711
1	04.510 CASE; TRANSFER	8-97190-729-0	01	1	9712-9810
1	04.510 CASE; TRANSFER	8-97075-337-0	01	1	9811-0105
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97075-337-0	01	1	0106-0212
1	04.510 CASE; TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-886-0	01	1	0301-0310
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-886-0	01	1	0311-0501
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0502-0506
1	04.510 CASE; TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0507-0611
1	04.510 CASE; TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0612-
9	04.500 SWITCH; TRANSFER 02.698	8-94152-161-0	01	1	9412-0105
9	04.500 SWITCH; TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT) 02.698	8-94152-161-0	01	1	0106-0212
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	9-08161-016-0	02	1	9412-9810
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	9-08161-016-0	02	1	9811-9906
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	8-97229-245-0	02	1	9907-9907
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	9-08161-016-0	02	1	9908-0105
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105	9-08161-016-0	02	1	0106-0212
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-880-0	02	1	0301-0310
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-880-0	02	1	0311-0501
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-880-0	02	1	0502-0506
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-880-0	02	1	0507-0611
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-880-0	02	1	0612-
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (A)	8-94468-010-0	01	1	9412-9711
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (B)	8-94468-011-0	01	1	9412-0105
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT) (B)	8-94468-011-0	01	1	0106-0212
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0301-0310
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0311-0501
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0502-0506
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0507-0611
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0612-
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (A)	8-97190-772-0	01	1	9712-0105
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-97190-772-0	01	1	0106-0212
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0301-0310
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0311-0501
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0502-0506
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0507-0611
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0612-
41	04.515 SEAL; OIL,SHIFT ROD	8-94481-422-0	01	1	9412-0105
41	04.515 SEAL; OIL,SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-422-0	01	1	0106-0212
41	04.515 SEAL; OIL,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-887-0	01	1	0301-0310
41	04.515 SEAL; OIL,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-887-0	01	1	0311-0501
41	04.515 SEAL; OIL,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-887-0	01	1	0502-0506
41	04.515 SEAL; OIL,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-887-0	01	1	0507-0611
41	04.515 SEAL; OIL,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-887-0	01	1	0612-
47	04.510 BREATHER; TRANSFER CASE	8-94368-963-2	02	1	9412-9511
47	04.510 BREATHER; TRANSFER CASE 04.104	8-97010-244-1	02	1	9512-9608
47	04.510 BREATHER; TRANSFER CASE 04.104	8-97165-939-0	02	1	9609-0005
47	04.510 BREATHER; TRANSFER CASE	8-97258-213-0	02	1	0006-0105
47	04.510 BREATHER; TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97258-213-0	02	1	0106-0212
56	04.525 BOLT; TRANSFER CASE TO TRANS CAS 04.105 M10X30	8-94468-197-0	07	1	9412-0105
56	04.525 BOLT; TRANSFER CASE TO TRANS CAS 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105 M10X30	8-94468-197-0	07	1	0106-0212
62	04.510 CAP; SHIFT ROD 04.105	8-94101-319-0	02	1	9412-0105
62	04.510 CAP; SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105	8-94101-319-0	02	1	0106-0212
63	04.510 PLUG; DETENT SPRING 04.311	5-09604-012-0	02	1	9412-0105
63	04.510 PLUG; DETENT SPRING 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.311	5-09604-012-0	02	1	0106-0212
63	04.510 PLUG; DETENT SPRING 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-926-0	02	1	0301-0310
63	04.510 PLUG; DETENT SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-926-0	02	1	0311-0501
63	04.510 PLUG; DETENT SPRING 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-926-0	02	1	0502-0506
63	04.510 PLUG; DETENT SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-926-0	02	1	0507-0611
63	04.510 PLUG; DETENT SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-926-0	02	1	0612-
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	02	1	9412-0105
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MXA5R(RMT) 08.929	9-09571-612-0	02	1	0106-0212
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0301-0310
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0311-0501
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0502-0506
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0507-0611
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0612-
65	04.309 ROD; INTER LOCK,SHIFT ROD	8-94465-881-0	01	1	9412-0105
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94465-881-0	01	1	0106-0212
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-924-0	01	1	0301-0310
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-924-0	01	1	0311-0501
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-924-0	01	1	0502-0506
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-924-0	01	1	0507-0611
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-924-0	01	1	0612-
66	04.198 SPRING; DETENT,SHIFT ROD 04.311 OD=6.8 L=31.6	9-09740-114-0	02	1	9412-0105
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.311 OD=6.8 L=31.6	9-09740-114-0	02	1	0106-0212
66	04.198 SPRING; DETENT,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-927-0	02	1	0301-0310
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-927-0	02	1	0311-0501
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-927-0	02	1	0502-0506
66	04.198 SPRING; DETENT,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-927-0	02	1	0507-0611
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-927-0	02	1	0612-
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 04.311	9-00097-010-0	02	1	9412-0105
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.311	9-00097-010-0	02	1	0106-0212
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-928-0	02	1	0301-0310
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-928-0	02	1	0311-0501
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-928-0	02	1	0502-0506
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-928-0	02	1	0507-0611
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-928-0	02	1	0612-
68	04.510 PLUG; AIR BREATHER,TRANSFER CASE 04.307	8-94468-008-0	01	1	9412-0105
68	04.510 PLUG; AIR BREATHER,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.307	8-94468-008-0	01	1	0106-0212
69	04.525 BOLT; BRKT 04.105 M8X20	8-94134-587-0	02	1	9412-0105
69	04.525 BOLT; BRKT 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105 M8X20	8-94134-587-0	02	1	0106-0212
70	04.552 BRACKET; L-H CONT LEVER	8-97088-702-0	01	1	9412-0105
70	04.552 BRACKET; L-H CONT LEVER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97088-702-0	01	1	0106-0212
71	04.246 LEVER ASM; L-H CONT,EXTERNAL	8-94321-857-0	01	1	9412-0105
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94321-857-0	01	1	0106-0212
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-674-0	01	1	0301-0310
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-674-0	01	1	0311-0501
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-674-0	01	1	0502-0506
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-674-0	01	1	0507-0611
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-674-0	01	1	0612-
72	04.510 WASHER; PL,L-H CONT LEVER	9-09651-054-0	01	1	9412-0105
72	04.510 WASHER; PL,L-H CONT LEVER 4HG1 ENG(RJH) M/T MXA5R(RMT)	9-09651-054-0	01	1	0106-0212
73	04.500 LABEL; TRANSFER	8-94481-330-1	01	1	9412-0105
73	04.500 LABEL; TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-330-1	01	1	0106-0212
74	04.490 PIN; SPRING,EXTERNAL LEVER	8-94322-418-0	01	1	9412-0105
74	04.490 PIN; SPRING,EXTERNAL LEVER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94322-418-0	01	1	0106-0212
75	04.246 LEVER ASM; L-H CONT,INTERNAL	8-97088-701-0	01	1	9412-0105
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97088-701-0	01	1	0106-0212
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-875-1	01	1	0301-0310
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-875-1	01	1	0311-0501
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-875-1	01	1	0502-0506
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-875-1	01	1	0507-0611
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-875-1	01	1	0612-
76	04.500 PLATE; GUIDE,AIR BREATHER,TRANSF (A)	8-94482-148-0	01	1	9412-0105
76	04.500 PLATE; GUIDE,AIR BREATHER,TRANSF 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-94482-148-0	01	1	0106-0212
76	04.500 PLATE; GUIDE,AIR BREATHER,TRANSF (B)	8-94482-149-0	01	1	9412-0105
76	04.500 PLATE; GUIDE,AIR BREATHER,TRANSF 4HG1 ENG(RJH) M/T MXA5R(RMT) (B)	8-94482-149-0	01	1	0106-0212
77	04.525 BOLT; GUIDE PLATE	8-94482-337-0	06	1	9412-0105
77	04.525 BOLT; GUIDE PLATE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94482-337-0	06	1	0106-0212
78	04.500 PLATE; BAFFLE,AIR BREATHER	8-94482-147-1	01	1	9412-0105
78	04.500 PLATE; BAFFLE,AIR BREATHER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94482-147-1	01	1	0106-0212
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE	8-94481-329-1	01	1	9412-0105
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-329-1	01	1	0106-0212
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97357-217-0	01	1	0301-0310
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97357-217-0	01	1	0311-0501
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97357-217-0	01	1	0502-0506
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97357-217-0	01	1	0507-0611
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97357-217-0	01	1	0612-
80	04.510 STOPPER; SHIFT ROD	8-94481-328-0	01	1	9412-0212
81	04.555 FORK; SHIFT,NEUTRAL & FRT DRIVE	8-94481-327-0	01	1	9412-0105
81	04.555 FORK; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-327-0	01	1	0106-0212
82	04.309 ROD; SHIFT,LOW & HIGH	8-94341-320-0	01	1	9412-9506
82	04.309 ROD; SHIFT,LOW & HIGH	8-97129-505-0	01	1	9507-9811
82	04.309 ROD; SHIFT,LOW & HIGH	8-94341-320-0	01	1	9812-0105
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94341-320-0	01	1	0106-0212
82	04.309 ROD; SHIFT,LOW & HIGH 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-930-0	01	1	0301-0310
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-930-0	01	1	0311-0501
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-930-0	01	1	0502-0506
82	04.309 ROD; SHIFT,LOW & HIGH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-930-0	01	1	0507-0611
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-930-0	01	1	0612-
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9412-0105
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	0106-0212
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0301-0310
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0311-0501
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0502-0506
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0507-0611
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0612-
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0301-0310
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0311-0501
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0502-0506
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0507-0611
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0612-
84	04.555 FORK; SHIFT,LOW & HIGH	8-94481-321-0	01	1	9412-9506
84	04.555 FORK; SHIFT,LOW & HIGH	8-97129-504-0	01	1	9507-0105
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97129-504-0	01	1	0106-0212
84	04.555 FORK; SHIFT,LOW & HIGH 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-933-0	01	1	0301-0310
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-933-0	01	1	0311-0501
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-933-0	01	1	0502-0506
84	04.555 FORK; SHIFT,LOW & HIGH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-933-0	01	1	0507-0611
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-933-0	01	1	0612-
329	04.107 PIN; SPRING,SHIFT ROD 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9412-0212
329	04.107 PIN; SPRING,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0301-0310
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0311-0501
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0502-0506
329	04.107 PIN; SPRING,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0507-0611
329	04.107 PIN; SPRING,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0612-
329	04.107 PIN; SPRING,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0301-0310
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0311-0501
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0502-0506
329	04.107 PIN; SPRING,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0507-0611
329	04.107 PIN; SPRING,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0612-

15 15 1 79 12 83 12 83 109 82 84 93 92 403 93 93 41 326 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.510 CASE; TRANSFER	8-97075-336-0	01	1	9412-9711
1	04.510 CASE; TRANSFER	8-97190-729-0	01	1	9712-9810
1	04.510 CASE; TRANSFER	8-97075-337-0	01	1	9811-0105
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97075-337-0	01	1	0106-0212
1	04.510 CASE; TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-886-0	01	1	0301-0310
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-886-0	01	1	0311-0501
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0502-0506
1	04.510 CASE; TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0507-0611
1	04.510 CASE; TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0612-
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	9-08161-016-0	02	1	9412-9810
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	9-08161-016-0	02	1	9811-9906
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	8-97229-245-0	02	1	9907-9907
12	04.510 PIN; STRAIGHT,TRANSFER CASE 04.105	9-08161-016-0	02	1	9908-0105
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105	9-08161-016-0	02	1	0106-0212
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-880-0	02	1	0301-0310
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-880-0	02	1	0311-0501
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-880-0	02	1	0502-0506
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-880-0	02	1	0507-0611
12	04.510 PIN; STRAIGHT,TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-880-0	02	1	0612-
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (A)	8-94468-010-0	01	1	9412-9711
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (B)	8-94468-011-0	01	1	9412-0105
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT) (B)	8-94468-011-0	01	1	0106-0212
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0301-0310
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0311-0501
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0502-0506
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0507-0611
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-934-0	02	1	0612-
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT (A)	8-97190-772-0	01	1	9712-0105
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-97190-772-0	01	1	0106-0212
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HE1 ENG(RLY) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0301-0310
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0311-0501
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1 ENG(RJH) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0502-0506
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0507-0611
15	04.515 SEAL; OIL,INPUT & FRT OUTPUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D)	8-97327-114-0	01	1	0612-
41	04.515 SEAL; OIL,SHIFT ROD	8-94481-422-0	01	1	9412-0105
41	04.515 SEAL; OIL,SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-422-0	01	1	0106-0212
41	04.515 SEAL; OIL,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-887-0	01	1	0301-0310
41	04.515 SEAL; OIL,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-887-0	01	1	0311-0501
41	04.515 SEAL; OIL,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-887-0	01	1	0502-0506
41	04.515 SEAL; OIL,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-887-0	01	1	0507-0611
41	04.515 SEAL; OIL,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-887-0	01	1	0612-
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE	8-94481-329-1	01	1	9412-0105
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-329-1	01	1	0106-0212
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97357-217-0	01	1	0301-0310
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97357-217-0	01	1	0311-0501
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97357-217-0	01	1	0502-0506
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97357-217-0	01	1	0507-0611
79	04.309 ROD; SHIFT,NEUTRAL & FRT DRIVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97357-217-0	01	1	0612-
82	04.309 ROD; SHIFT,LOW & HIGH	8-94341-320-0	01	1	9412-9506
82	04.309 ROD; SHIFT,LOW & HIGH	8-97129-505-0	01	1	9507-9811
82	04.309 ROD; SHIFT,LOW & HIGH	8-94341-320-0	01	1	9812-0105
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94341-320-0	01	1	0106-0212
82	04.309 ROD; SHIFT,LOW & HIGH 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-930-0	01	1	0301-0310
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-930-0	01	1	0311-0501
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-930-0	01	1	0502-0506
82	04.309 ROD; SHIFT,LOW & HIGH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-930-0	01	1	0507-0611
82	04.309 ROD; SHIFT,LOW & HIGH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-930-0	01	1	0612-
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9412-0105
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	0106-0212
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0301-0310
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0311-0501
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0502-0506
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0507-0611
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-931-0	01	1	0612-
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0301-0310
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0311-0501
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0502-0506
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0507-0611
83	04.105 PIN; SPRING,LOW-HIGH,SHIFT BLOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-932-0	01	1	0612-
84	04.555 FORK; SHIFT,LOW & HIGH	8-94481-321-0	01	1	9412-9506
84	04.555 FORK; SHIFT,LOW & HIGH	8-97129-504-0	01	1	9507-0105
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97129-504-0	01	1	0106-0212
84	04.555 FORK; SHIFT,LOW & HIGH 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-933-0	01	1	0301-0310
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-933-0	01	1	0311-0501
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-933-0	01	1	0502-0506
84	04.555 FORK; SHIFT,LOW & HIGH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-933-0	01	1	0507-0611
84	04.555 FORK; SHIFT,LOW & HIGH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-933-0	01	1	0612-
92	04.552 COVER; RR,TRANSFER	8-94481-305-0	01	1	9412-9504
92	04.552 COVER; RR,TRANSFER	8-97117-376-0	01	1	9505-0105
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97117-376-0	01	1	0106-0212
92	04.552 COVER; RR,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-884-0	01	1	0301-0310
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-884-0	01	1	0311-0501
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0502-0506
92	04.552 COVER; RR,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0507-0611
92	04.552 COVER; RR,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0612-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 04.317 (A) M10X30 FLANGE	8-94482-338-0	07	1	9412-0105
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.317 (A) M10X30 FLANGE	8-94482-338-0	07	1	0106-0212
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0301-0310
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0311-0501
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0502-0506
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0507-0611
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0612-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0301-0310
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0311-0501
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0502-0506
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0507-0611
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0612-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0301-0310
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0311-0501
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0502-0506
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0507-0611
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0612-
109	04.319 BOLT; TAPER,TRANSFER CASE 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.302	1-09052-034-2	01	1	0301-0310
109	04.319 BOLT; TAPER,TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.302	1-09052-034-2	01	1	0311-0501
109	04.319 BOLT; TAPER,TRANSFER CASE 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.302	1-09052-034-2	01	1	0502-0506
109	04.319 BOLT; TAPER,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.302	1-09052-034-2	01	1	0507-0611
109	04.319 BOLT; TAPER,TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.302	1-09052-034-2	01	1	0612-
326	04.128 CLIP; HARNESS (A) ID=6 L=16	9-09545-105-0	01	1	9412-0105
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MXA5R(RMT) (A) ID=6 L=16	9-09545-105-0	01	1	0106-0212
326	04.128 CLIP; HARNESS 4HE1 ENG(RLY) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0301-0310
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0311-0501
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0502-0506
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0507-0611
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0612-0804
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.559 (B) ID=8	8-97329-633-0	01	1	0805-
326	04.128 CLIP; HARNESS 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0301-0310
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0311-0501
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0502-0506
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0507-0611
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0612-
403	04.552 PLUG 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-929-0	01	1	0301-0310
403	04.552 PLUG 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-929-0	01	1	0311-0501
403	04.552 PLUG 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-929-0	01	1	0502-0506
403	04.552 PLUG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-929-0	01	1	0507-0611
403	04.552 PLUG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-929-0	01	1	0612-

90 91 89 93 13 95 85 14 94 326 92 86 26 27 88 87 29 28 2 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.317 CASE; TRANSFER	8-94341-319-0	01	1	9412-0105
2	04.317 CASE; TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94341-319-0	01	1	0106-0212
13	04.515 GASKET; COVER TO TRANSFER CASE	8-94482-161-0	01	1	9412-0105
13	04.515 GASKET; COVER TO TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94482-161-0	01	1	0106-0212
14	04.525 BOLT; COVER TO TRANSFER CASE 04.317 M10X30 FLANGE	8-94482-338-0	11	1	9412-0105
14	04.525 BOLT; COVER TO TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.317 M10X30 FLANGE	8-94482-338-0	11	1	0106-0212
26	04.510 PLUG; FILLER,TRANSFER CASE 04.105 M18	8-94337-946-1	01	1	9412-0105
26	04.510 PLUG; FILLER,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105 M18	8-94337-946-1	01	1	0106-0212
27	04.515 GASKET; FILLER PLUG 04.422 ID=15.3	8-94336-511-0	01	1	9412-0105
27	04.515 GASKET; FILLER PLUG 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.422 ID=15.3	8-94336-511-0	01	1	0106-0212
28	04.510 PLUG; DRAIN,TRANSFER CASE 04.105	8-94336-512-1	01	1	9412-0105
28	04.510 PLUG; DRAIN,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.105	8-94336-512-1	01	1	0106-0212
29	04.510 GASKET; DRAIN PLUG 04.422 ID=15.3	8-94336-511-0	01	1	9412-0105
29	04.510 GASKET; DRAIN PLUG 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.422 ID=15.3	8-94336-511-0	01	1	0106-0212
85	04.538 GUIDE; OIL,TRANSFER CASE	8-94316-999-0	01	1	9412-0105
85	04.538 GUIDE; OIL,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94316-999-0	01	1	0106-0212
86	04.510 BOLT; OIL GUIDE,TRANSFER CASE 04.525	8-94482-337-0	01	1	9412-0105
86	04.510 BOLT; OIL GUIDE,TRANSFER CASE 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.525	8-94482-337-0	01	1	0106-0212
87	04.512 SEAL; OIL,SHIFT ROD,2-4	8-94481-423-0	01	1	9412-0105
87	04.512 SEAL; OIL,SHIFT ROD,2-4 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-423-0	01	1	0106-0212
88	04.538 SWITCH; 4WD,TRANSFER 02.698	8-94152-161-0	01	1	9412-0105
88	04.538 SWITCH; 4WD,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT) 02.698	8-94152-161-0	01	1	0106-0212
89	04.573 COVER; PTO DRIVE,TRANSFER	8-94481-307-0	01	1	9412-0105
89	04.573 COVER; PTO DRIVE,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-307-0	01	1	0106-0212
90	04.573 GASKET; PTO DRIVE COVER	8-94481-160-0	01	1	9412-0105
90	04.573 GASKET; PTO DRIVE COVER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-160-0	01	1	0106-0212
91	04.574 BOLT; PTO DRIVE COVER 04.317 M10X30 FLANGE	8-94482-338-0	04	1	9412-0105
91	04.574 BOLT; PTO DRIVE COVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.317 M10X30 FLANGE	8-94482-338-0	04	1	0106-0212
92	04.552 COVER; RR,TRANSFER	8-94481-305-0	01	1	9412-9504
92	04.552 COVER; RR,TRANSFER	8-97117-376-0	01	1	9505-0105
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97117-376-0	01	1	0106-0212
92	04.552 COVER; RR,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-884-0	01	1	0301-0310
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-884-0	01	1	0311-0501
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0502-0506
92	04.552 COVER; RR,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0507-0611
92	04.552 COVER; RR,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0612-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 04.317 (A) M10X30 FLANGE	8-94482-338-0	07	1	9412-0105
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.317 (A) M10X30 FLANGE	8-94482-338-0	07	1	0106-0212
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0301-0310
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0311-0501
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0502-0506
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0507-0611
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) M10X100 FLANGE	8-97326-881-0	02	1	0612-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0301-0310
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0311-0501
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0502-0506
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0507-0611
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C) M10X70 FLANGE	8-97326-882-0	05	1	0612-
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0301-0310
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0311-0501
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0502-0506
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0507-0611
93	04.552 BOLT; TRANSFER CASE TO RR COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (D) M10X40 FLANGE	8-97326-883-0	11	1	0612-
94	04.515 SEAL; OIL,RR COVER,OUTPUT	8-94481-424-0	01	1	9412-0105
94	04.515 SEAL; OIL,RR COVER,OUTPUT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94481-424-0	01	1	0106-0212
95	04.552 SCREW; BUSHING,DRIVEN GEAR 04.338 M8X12	8-94128-785-0	01	1	9412-0212
326	04.128 CLIP; HARNESS (A) ID=6 L=16	9-09545-105-0	01	1	9412-0105
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MXA5R(RMT) (A) ID=6 L=16	9-09545-105-0	01	1	0106-0212
326	04.128 CLIP; HARNESS 4HE1 ENG(RLY) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0301-0310
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0311-0501
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0502-0506
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0507-0611
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0612-0804
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.559 (B) ID=8	8-97329-633-0	01	1	0805-
326	04.128 CLIP; HARNESS 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0301-0310
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0311-0501
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0502-0506
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0507-0611
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0612-

329 329 71 440 440 134 441 412 277 440 326 75 439 63 64 66 67 65 67 66 64 63 92 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.510 CASE; TRANSFER	8-97075-336-0	01	1	9412-9711
1	04.510 CASE; TRANSFER	8-97190-729-0	01	1	9712-9810
1	04.510 CASE; TRANSFER	8-97075-337-0	01	1	9811-0105
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97075-337-0	01	1	0106-0212
1	04.510 CASE; TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-886-0	01	1	0301-0310
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-886-0	01	1	0311-0501
1	04.510 CASE; TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0502-0506
1	04.510 CASE; TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0507-0611
1	04.510 CASE; TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-886-0	01	1	0612-
63	04.510 PLUG; DETENT SPRING 04.311	5-09604-012-0	02	1	9412-0105
63	04.510 PLUG; DETENT SPRING 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.311	5-09604-012-0	02	1	0106-0212
63	04.510 PLUG; DETENT SPRING 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-926-0	02	1	0301-0310
63	04.510 PLUG; DETENT SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-926-0	02	1	0311-0501
63	04.510 PLUG; DETENT SPRING 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-926-0	02	1	0502-0506
63	04.510 PLUG; DETENT SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-926-0	02	1	0507-0611
63	04.510 PLUG; DETENT SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-926-0	02	1	0612-
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	02	1	9412-0105
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MXA5R(RMT) 08.929	9-09571-612-0	02	1	0106-0212
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0301-0310
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0311-0501
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0502-0506
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0507-0611
64	04.515 GASKET; DETENT SPRING PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.510	8-97326-925-0	02	1	0612-
65	04.309 ROD; INTER LOCK,SHIFT ROD	8-94465-881-0	01	1	9412-0105
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94465-881-0	01	1	0106-0212
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-924-0	01	1	0301-0310
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-924-0	01	1	0311-0501
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-924-0	01	1	0502-0506
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-924-0	01	1	0507-0611
65	04.309 ROD; INTER LOCK,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-924-0	01	1	0612-
66	04.198 SPRING; DETENT,SHIFT ROD 04.311 OD=6.8 L=31.6	9-09740-114-0	02	1	9412-0105
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.311 OD=6.8 L=31.6	9-09740-114-0	02	1	0106-0212
66	04.198 SPRING; DETENT,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-927-0	02	1	0301-0310
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-927-0	02	1	0311-0501
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-927-0	02	1	0502-0506
66	04.198 SPRING; DETENT,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-927-0	02	1	0507-0611
66	04.198 SPRING; DETENT,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-927-0	02	1	0612-
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 04.311	9-00097-010-0	02	1	9412-0105
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT) 04.311	9-00097-010-0	02	1	0106-0212
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-928-0	02	1	0301-0310
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-928-0	02	1	0311-0501
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-928-0	02	1	0502-0506
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-928-0	02	1	0507-0611
67	04.262 BALL; DETENT,SHIFT ROD,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-928-0	02	1	0612-
71	04.246 LEVER ASM; L-H CONT,EXTERNAL	8-94321-857-0	01	1	9412-0105
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-94321-857-0	01	1	0106-0212
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-674-0	01	1	0301-0310
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-674-0	01	1	0311-0501
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-674-0	01	1	0502-0506
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-674-0	01	1	0507-0611
71	04.246 LEVER ASM; L-H CONT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-674-0	01	1	0612-
75	04.246 LEVER ASM; L-H CONT,INTERNAL	8-97088-701-0	01	1	9412-0105
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97088-701-0	01	1	0106-0212
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-875-1	01	1	0301-0310
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-875-1	01	1	0311-0501
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-875-1	01	1	0502-0506
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-875-1	01	1	0507-0611
75	04.246 LEVER ASM; L-H CONT,INTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-875-1	01	1	0612-
92	04.552 COVER; RR,TRANSFER	8-94481-305-0	01	1	9412-9504
92	04.552 COVER; RR,TRANSFER	8-97117-376-0	01	1	9505-0105
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97117-376-0	01	1	0106-0212
92	04.552 COVER; RR,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-884-0	01	1	0301-0310
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-884-0	01	1	0311-0501
92	04.552 COVER; RR,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0502-0506
92	04.552 COVER; RR,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0507-0611
92	04.552 COVER; RR,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-884-0	01	1	0612-
134	04.319 WASHER; PL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-876-0	01	1	0301-0310
134	04.319 WASHER; PL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-876-0	01	1	0311-0501
134	04.319 WASHER; PL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-876-0	01	1	0502-0506
134	04.319 WASHER; PL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-876-0	01	1	0507-0611
134	04.319 WASHER; PL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-876-0	01	1	0612-
277	04.552 COVER; SHIFT ROD,TRANSFER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-879-0	01	1	0301-0310
277	04.552 COVER; SHIFT ROD,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-879-0	01	1	0311-0501
277	04.552 COVER; SHIFT ROD,TRANSFER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-879-0	01	1	0502-0506
277	04.552 COVER; SHIFT ROD,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-879-0	01	1	0507-0611
277	04.552 COVER; SHIFT ROD,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-879-0	01	1	0612-
326	04.128 CLIP; HARNESS (A) ID=6 L=16	9-09545-105-0	01	1	9412-0105
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MXA5R(RMT) (A) ID=6 L=16	9-09545-105-0	01	1	0106-0212
326	04.128 CLIP; HARNESS 4HE1 ENG(RLY) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0301-0310
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0311-0501
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0502-0506
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0507-0611
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.698 (B) ID=8	8-94107-659-0	01	1	0612-0804
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 02.559 (B) ID=8	8-97329-633-0	01	1	0805-
326	04.128 CLIP; HARNESS 4HE1 ENG(RLY) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0301-0310
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0311-0501
326	04.128 CLIP; HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0502-0506
326	04.128 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0507-0611
326	04.128 CLIP; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) 04.930 (C) L=91 ID=8.5	8-94329-956-0	01	1	0612-
329	04.107 PIN; SPRING,SHIFT ROD 04.303 (A) L=25 OD=5	8-94135-771-0	01	1	9412-0212
329	04.107 PIN; SPRING,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0301-0310
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0311-0501
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0502-0506
329	04.107 PIN; SPRING,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0507-0611
329	04.107 PIN; SPRING,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-867-0	01	1	0612-
329	04.107 PIN; SPRING,SHIFT ROD 4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0301-0310
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0311-0501
329	04.107 PIN; SPRING,SHIFT ROD 4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0502-0506
329	04.107 PIN; SPRING,SHIFT ROD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0507-0611
329	04.107 PIN; SPRING,SHIFT ROD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (C)	8-97326-868-0	01	1	0612-
412	04.555 BRACKET; SW CONN 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97327-662-1	01	1	0301-0310
412	04.555 BRACKET; SW CONN 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97327-662-1	01	1	0311-0501
412	04.555 BRACKET; SW CONN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97327-662-1	01	1	0502-0506
412	04.555 BRACKET; SW CONN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97327-662-1	01	1	0507-0611
412	04.555 BRACKET; SW CONN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97327-662-1	01	1	0612-
439	04.555 BRACKET; SHIFT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-672-0	01	1	0301-0310
439	04.555 BRACKET; SHIFT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97328-672-0	01	1	0311-0501
439	04.555 BRACKET; SHIFT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-672-0	01	1	0502-0506
439	04.555 BRACKET; SHIFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-672-0	01	1	0507-0611
439	04.555 BRACKET; SHIFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97328-672-0	01	1	0612-
440	04.319 BOLT; W/WASHER 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97326-865-0	02	1	0301-0310
440	04.319 BOLT; W/WASHER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97326-865-0	02	1	0311-0501
440	04.319 BOLT; W/WASHER 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97326-865-0	02	1	0502-0506
440	04.319 BOLT; W/WASHER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97326-865-0	02	1	0507-0611
440	04.319 BOLT; W/WASHER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97326-865-0	02	1	0612-
440	04.319 BOLT; W/WASHER 4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-877-0	06	1	0301-0310
440	04.319 BOLT; W/WASHER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B)	8-97326-877-0	06	1	0311-0501
440	04.319 BOLT; W/WASHER 4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-877-0	06	1	0502-0506
440	04.319 BOLT; W/WASHER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-877-0	06	1	0507-0611
440	04.319 BOLT; W/WASHER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM) (B)	8-97326-877-0	06	1	0612-
441	04.319 SEAL; OIL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-878-0	01	1	0301-0310
441	04.319 SEAL; OIL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97326-878-0	01	1	0311-0501
441	04.319 SEAL; OIL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-878-0	01	1	0502-0506
441	04.319 SEAL; OIL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-878-0	01	1	0507-0611
441	04.319 SEAL; OIL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97326-878-0	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
