Sayfa 2-36 - Isuzu EPC

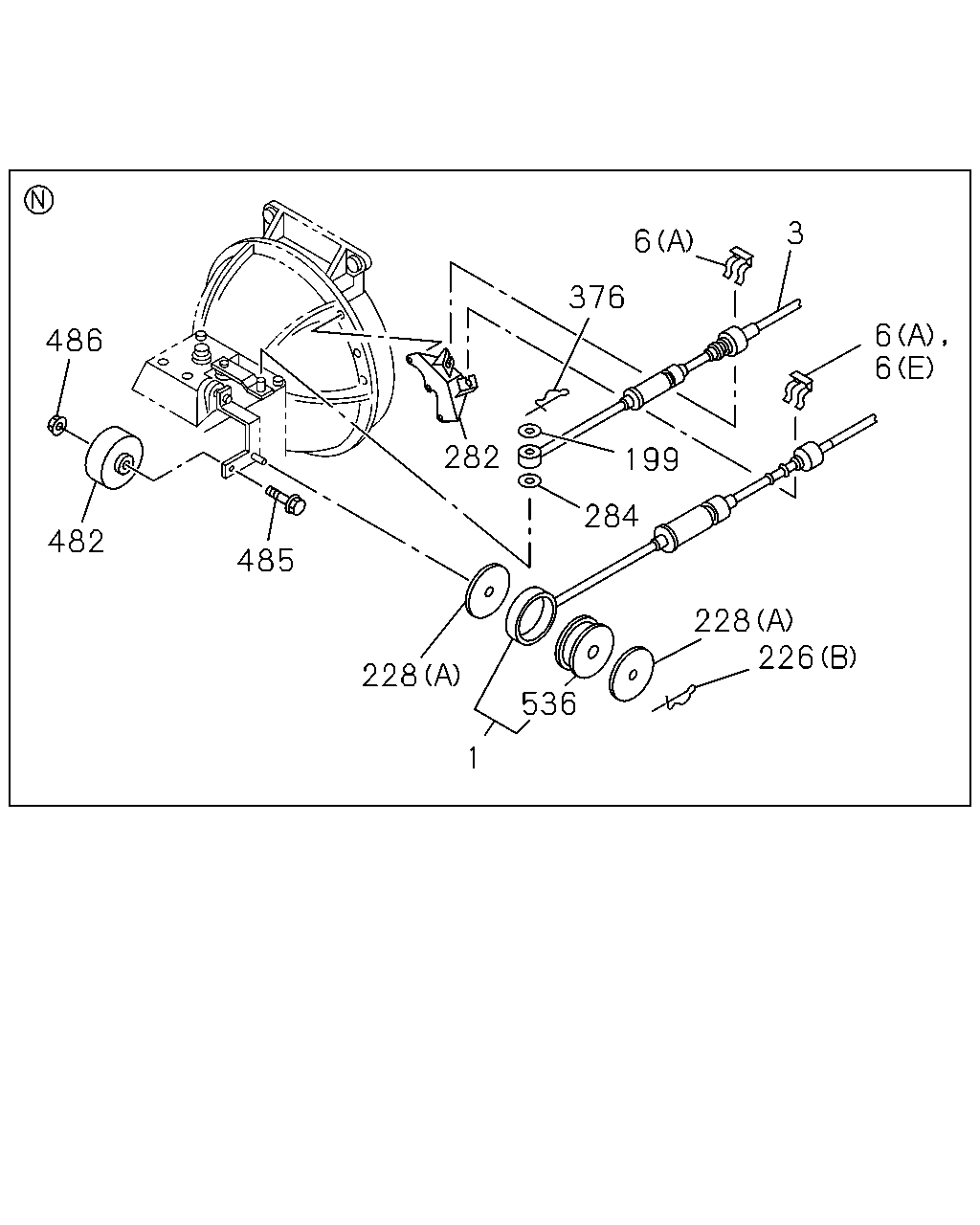

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#43875) — 476 parça

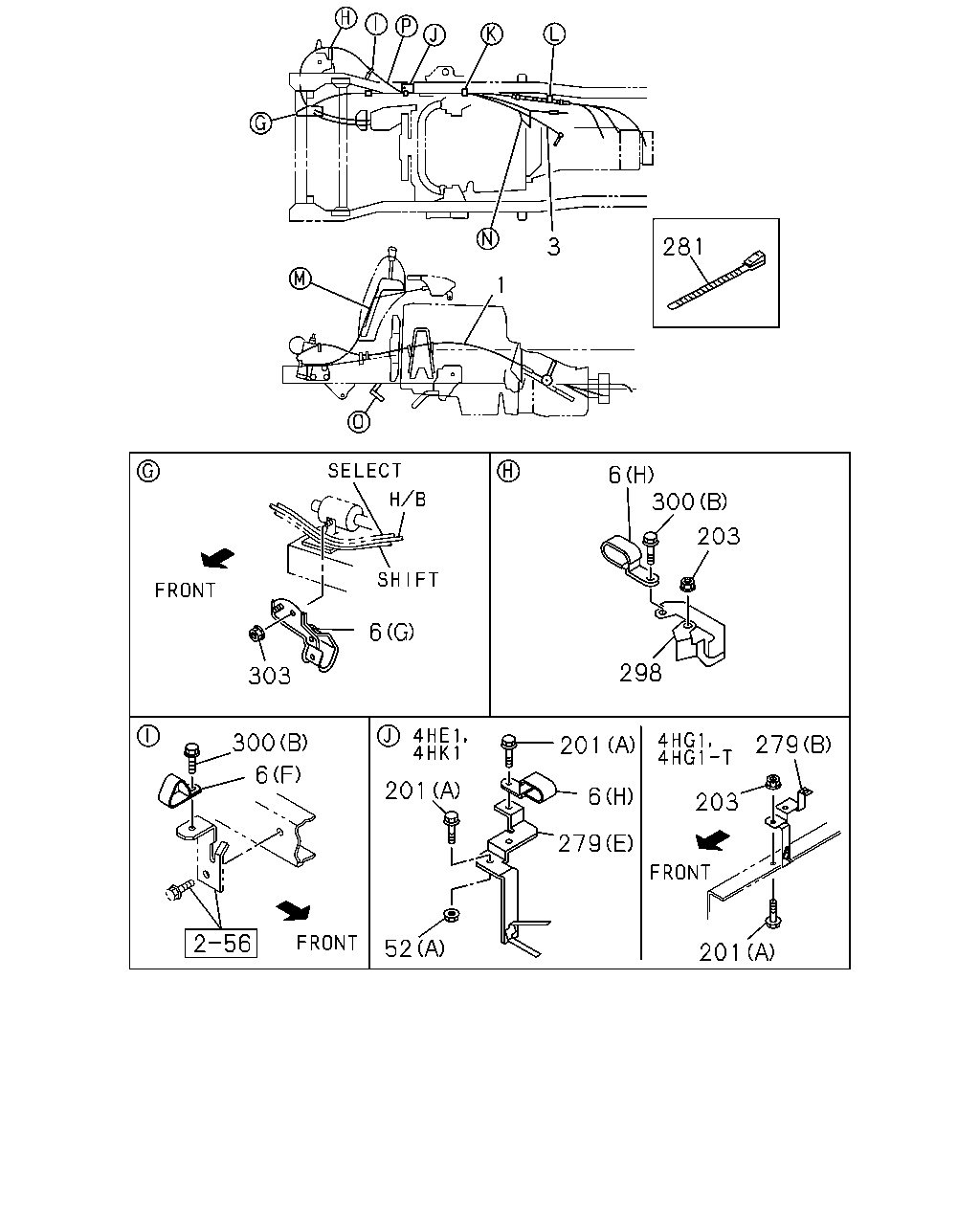

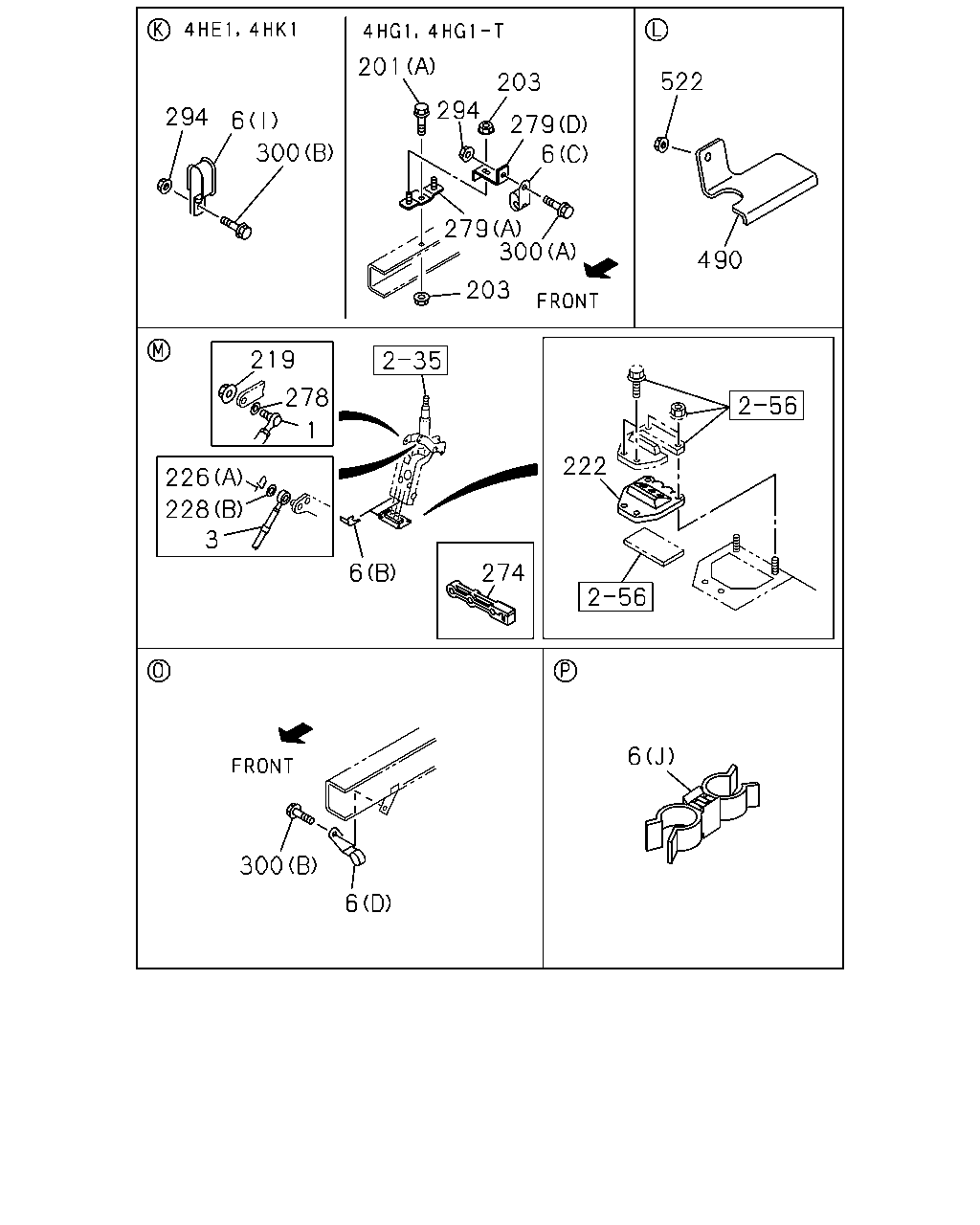

201 522 203 294 294 6 279 6 300 279 300 490 203 219 278 1 222 226 228 3 6 274 6 300 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0507-0611	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2809	8-97043-137-3	01	1	9412-0212		●
1	00.854 CABLE; SHIFT,TRANS CONT L=3050	8-97350-442-1	01	1	0301-0501	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0311-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0507-0611	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT L=2863	8-97043-143-1	01	1	9412-0212		●
3	00.852 CABLE; SELECT,TRANS CONT 00.854 L=3132	8-97350-443-1	01	1	0301-0501	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0311-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0507-	●
6	04.047 CLIP; CABLE (C)	1-09700-988-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE (G)	8-97147-985-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (G)	8-97147-985-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9412-9808		●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0212		●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0301-0501	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	9412-0212		●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0301-	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE 04.785 (I)	8-94458-385-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0502-	●
6	04.047 CLIP; CABLE (F)	8-97036-333-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (F)	8-97036-333-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0310-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 04.785 (I)	8-94458-385-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0502-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-	●	●
201	04.032 BOLT; BRKT 09.008 (B) M10X20 FLANGE	0-28081-020-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0301-0309	●
201	04.032 BOLT; BRKT 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0310-0310	●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0311-0501	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0506	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0611	●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0309	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9412-9801		●
219	04.047 NUT; FLANGE,SHAFT CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9802-9802		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9803-9810		●
219	04.047 NUT; FLANGE,SHAFT CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-9905		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9906-0212		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0301-	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	9412-0212		●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0301-	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	9412-0212		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0301-	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	9412-0212		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0301-	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8 T=2.3	8-94368-403-1	02	1	9412-9707		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	9708-0212		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0301-	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	9412-0212		●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0301-0605	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	9412-9508		●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	9811-0212		●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0301-	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	9412-0212		●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0301-0604	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ) (E)	8-97350-450-1	01	1	0507-	●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97028-496-1	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97066-367-2	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (E)	8-97350-450-1	01	1	0301-0309	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) (E)	8-97350-450-1	01	1	0310-0501	●
279	04.047 BRACKET; CABLE TO FRAME (C)	8-97066-440-0	01	1	9412-9412		●
279	04.047 BRACKET; CABLE TO FRAME (D)	8-97089-179-0	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0612-	●	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
294	00.854 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-0212		●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501	●
294	00.854 NUT; CLIP 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0602	●
294	00.854 NUT; CLIP 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0611	●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●	●
300	00.854 BOLT; CLIP 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	9412-9711		●
300	00.854 BOLT; CLIP 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	9712-0212		●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309	●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0310-0501	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0310-0506	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH) 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	0311-0512	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0601-0611	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●
490	04.010 PROTECTOR; EDGE 4HK1-TCN ENG(RDQ)	8-97360-001-1	01	1	0507-	●
490	04.010 PROTECTOR; EDGE	8-97360-001-1	01	1	0301-0309	●
490	04.010 PROTECTOR; EDGE 4HE1 ENG(RLY)	8-97360-001-1	01	1	0310-0501	●
522	04.010 NUT; PROTECTOR 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
522	04.010 NUT; PROTECTOR 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
522	04.010 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0309	●
522	04.010 NUT; PROTECTOR 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●

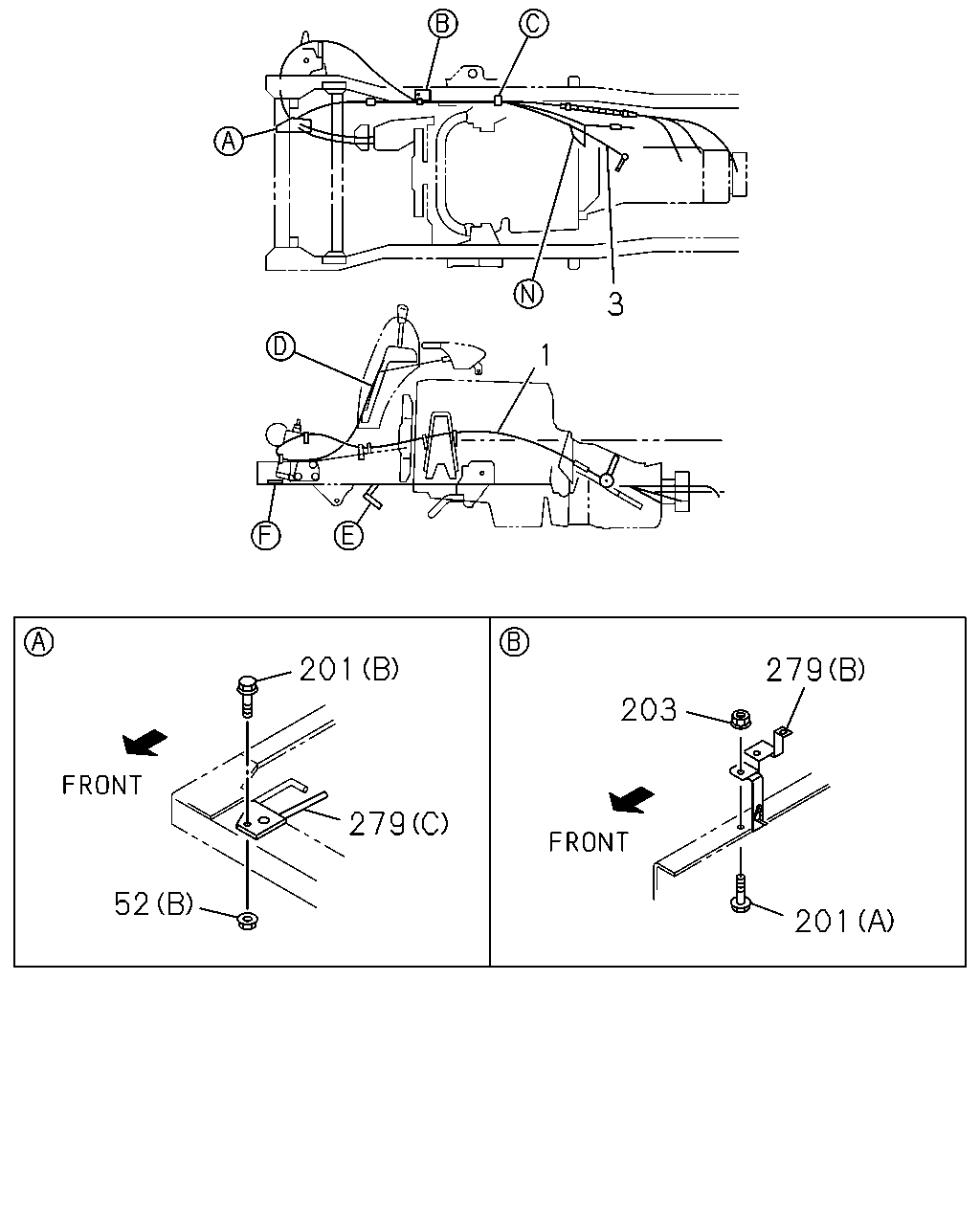

281 3 1 6 300 203 6 298 303 300 279 201 6 201 6 203 279 52 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0507-0611	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2809	8-97043-137-3	01	1	9412-0212		●
1	00.854 CABLE; SHIFT,TRANS CONT L=3050	8-97350-442-1	01	1	0301-0501	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0311-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0507-0611	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT L=2863	8-97043-143-1	01	1	9412-0212		●
3	00.852 CABLE; SELECT,TRANS CONT 00.854 L=3132	8-97350-443-1	01	1	0301-0501	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0311-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0507-	●
6	04.047 CLIP; CABLE (C)	1-09700-988-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE (G)	8-97147-985-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (G)	8-97147-985-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9412-9808		●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0212		●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0301-0501	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	9412-0212		●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0301-	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE 04.785 (I)	8-94458-385-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0502-	●
6	04.047 CLIP; CABLE (F)	8-97036-333-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (F)	8-97036-333-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0310-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 04.785 (I)	8-94458-385-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0502-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-	●	●
52	04.047 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
52	04.047 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0301-0602	●
52	04.047 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
52	04.047 NUT; BRKT 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 09.008 (B) M10X20 FLANGE	0-28081-020-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0301-0309	●
201	04.032 BOLT; BRKT 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0310-0310	●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0311-0501	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0506	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0611	●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0309	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ) (E)	8-97350-450-1	01	1	0507-	●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97028-496-1	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97066-367-2	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (E)	8-97350-450-1	01	1	0301-0309	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) (E)	8-97350-450-1	01	1	0310-0501	●
279	04.047 BRACKET; CABLE TO FRAME (C)	8-97066-440-0	01	1	9412-9412		●
279	04.047 BRACKET; CABLE TO FRAME (D)	8-97089-179-0	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0612-	●	●
281	04.042 CLIP; BAND 4HK1-TCN ENG(RDQ) 02.559 L=250	5-09707-030-1	03	1	0507-	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	9412-0212		●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0301-	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	03	1	0301-0309	●
281	04.042 CLIP; BAND 4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	03	1	0310-0501	●
298	00.854 BRACKET 4HK1-TCN ENG(RDQ)	8-97288-446-0	01	1	0507-	●
298	00.854 BRACKET	8-97288-446-0	01	1	0301-0309	●
298	00.854 BRACKET 4HE1 ENG(RLY)	8-97288-446-0	01	1	0310-0501	●
300	00.854 BOLT; CLIP 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	9412-9711		●
300	00.854 BOLT; CLIP 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	9712-0212		●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309	●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0310-0501	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0310-0506	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH) 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	0311-0512	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0601-0611	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●
303	00.855 NUT; CLIP 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●
303	00.855 NUT; CLIP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0309	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0310-0501	●

3 1 201 279 203 279 52 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0507-0611	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2809	8-97043-137-3	01	1	9412-0212		●
1	00.854 CABLE; SHIFT,TRANS CONT L=3050	8-97350-442-1	01	1	0301-0501	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0311-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0507-0611	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT L=2863	8-97043-143-1	01	1	9412-0212		●
3	00.852 CABLE; SELECT,TRANS CONT 00.854 L=3132	8-97350-443-1	01	1	0301-0501	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0311-	●
52	04.047 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
52	04.047 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0301-0602	●
52	04.047 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
52	04.047 NUT; BRKT 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 09.008 (B) M10X20 FLANGE	0-28081-020-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0301-0309	●
201	04.032 BOLT; BRKT 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0310-0310	●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0311-0501	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0506	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0611	●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0309	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ) (E)	8-97350-450-1	01	1	0507-	●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97028-496-1	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97066-367-2	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (E)	8-97350-450-1	01	1	0301-0309	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) (E)	8-97350-450-1	01	1	0310-0501	●
279	04.047 BRACKET; CABLE TO FRAME (C)	8-97066-440-0	01	1	9412-9412		●
279	04.047 BRACKET; CABLE TO FRAME (D)	8-97089-179-0	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0612-	●	●

52 201 294 279 6 279 300 203 219 278 1 222 226 228 3 274 6 281 300 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0507-0611	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2809	8-97043-137-3	01	1	9412-0212		●
1	00.854 CABLE; SHIFT,TRANS CONT L=3050	8-97350-442-1	01	1	0301-0501	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0311-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0507-0611	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT L=2863	8-97043-143-1	01	1	9412-0212		●
3	00.852 CABLE; SELECT,TRANS CONT 00.854 L=3132	8-97350-443-1	01	1	0301-0501	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0311-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0507-	●
6	04.047 CLIP; CABLE (C)	1-09700-988-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE (G)	8-97147-985-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (G)	8-97147-985-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9412-9808		●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0212		●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0301-0501	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	9412-0212		●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0301-	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE 04.785 (I)	8-94458-385-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0502-	●
6	04.047 CLIP; CABLE (F)	8-97036-333-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (F)	8-97036-333-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0310-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 04.785 (I)	8-94458-385-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0502-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-	●	●
52	04.047 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
52	04.047 NUT; BRKT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0301-0602	●
52	04.047 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
52	04.047 NUT; BRKT 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 09.008 (B) M10X20 FLANGE	0-28081-020-0	01	1	9412-9412		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0301-0309	●
201	04.032 BOLT; BRKT 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0310-0310	●
201	04.032 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0311-0501	●
201	04.032 BOLT; BRKT 4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0502-0506	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0611	●
201	04.032 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0612-	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
203	04.032 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-0212		●
203	04.032 NUT; BRKT FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0309	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0310-0501	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0602	●
203	04.032 NUT; BRKT FIX 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611	●
203	04.032 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9412-9801		●
219	04.047 NUT; FLANGE,SHAFT CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9802-9802		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9803-9810		●
219	04.047 NUT; FLANGE,SHAFT CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-9905		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	9906-0212		●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0301-	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	9412-0212		●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0301-	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	9412-0212		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0301-	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	9412-0212		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0301-	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8 T=2.3	8-94368-403-1	02	1	9412-9707		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	9708-0212		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0301-	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	9412-0212		●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0301-0605	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●
274	04.008 CLIP; CONT CABLE	8-97093-491-1	01	1	9412-9508		●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	9811-0212		●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0301-	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	9412-0212		●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0301-0604	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ) (E)	8-97350-450-1	01	1	0507-	●
279	04.047 BRACKET; CABLE TO FRAME (A)	8-97028-496-1	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (B)	8-97066-367-2	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME (E)	8-97350-450-1	01	1	0301-0309	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) (E)	8-97350-450-1	01	1	0310-0501	●
279	04.047 BRACKET; CABLE TO FRAME (C)	8-97066-440-0	01	1	9412-9412		●
279	04.047 BRACKET; CABLE TO FRAME (D)	8-97089-179-0	01	1	9412-0212		●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97028-496-1	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97066-367-2	01	1	0612-	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0311-0611	●
279	04.047 BRACKET; CABLE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) (D)	8-97089-179-0	01	1	0612-	●	●
281	04.042 CLIP; BAND 4HK1-TCN ENG(RDQ) 02.559 L=250	5-09707-030-1	03	1	0507-	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	9412-0212		●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0301-	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	03	1	0301-0309	●
281	04.042 CLIP; BAND 4HE1 ENG(RLY) 02.559 L=250	5-09707-030-1	03	1	0310-0501	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
294	00.854 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-0212		●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501	●
294	00.854 NUT; CLIP 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0602	●
294	00.854 NUT; CLIP 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0611	●
294	00.854 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●	●
300	00.854 BOLT; CLIP 03.670 (A) M6X20 FLANGE	0-28080-620-0	01	1	9412-9711		●
300	00.854 BOLT; CLIP 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	9712-0212		●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9412-0212		●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0301-0309	●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0310-0501	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0310-0506	●
300	00.854 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
300	00.854 BOLT; CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH) 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	0311-0512	●
300	00.854 BOLT; CLIP 4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0601-0611	●
300	00.854 BOLT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●

3 6 376 6 6 486 199 282 284 482 485 228 226 228 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1-T ENG(RDP) L=2835	8-98048-976-0	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0507-0611	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ) L=3050	8-97350-442-1	01	1	0612-	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2809	8-97043-137-3	01	1	9412-0212		●
1	00.854 CABLE; SHIFT,TRANS CONT L=3050	8-97350-442-1	01	1	0301-0501	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HG1 ENG(RJH) L=2835	8-97302-751-2	01	1	0311-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1-T ENG(RDP) L=2905	8-98048-977-0	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0507-0611	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ) 00.854 L=3132	8-97350-443-1	01	1	0612-	●
3	00.852 CABLE; SELECT,TRANS CONT L=2863	8-97043-143-1	01	1	9412-0212		●
3	00.852 CABLE; SELECT,TRANS CONT 00.854 L=3132	8-97350-443-1	01	1	0301-0501	●
3	00.852 CABLE; SELECT,TRANS CONT 4HG1 ENG(RJH) L=2905	8-97373-724-0	01	1	0311-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 02.559 (J) ID=10.5 & 13.2	8-94310-916-0	01	1	0702-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) 04.785 (I)	8-94458-385-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (F)	8-97036-333-1	01	1	0507-	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ) (G)	8-97147-985-0	01	1	0507-	●
6	04.047 CLIP; CABLE (C)	1-09700-988-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE (G)	8-97147-985-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (G)	8-97147-985-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-94365-914-2	02	1	9412-9808		●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	9809-0212		●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0301-0501	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	9412-0212		●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0301-	●
6	04.047 CLIP; CABLE 03.162 (D)	9-09917-171-0	01	1	9412-0212		●
6	04.047 CLIP; CABLE 04.785 (I)	8-94458-385-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0310-0501	●
6	04.047 CLIP; CABLE 00.854 (E) ID=22.2	1-09701-209-1	01	1	0502-	●
6	04.047 CLIP; CABLE (F)	8-97036-333-1	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) (F)	8-97036-333-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0301-0309	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 03.162 (H) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0310-0501	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) 04.785 (I)	8-94458-385-1	01	1	0310-0501	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0502-	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) WO/SCREW	1-09700-988-0	01	1	0612-	●	●
6	04.047 CLIP; CABLE 4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0311-0611	●
6	04.047 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (D)	9-09917-171-0	01	1	0612-	●	●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	9412-0212		●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0301-0605	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	9412-0212		●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0301-	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	9412-0212		●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0301-	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8 T=2.3	8-94368-403-1	02	1	9412-9707		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	9708-0212		●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0301-	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	9412-0212		●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0301-0605	●
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-	●
282	04.010 BRACKET; TRANS SIDE	8-97035-760-0	01	1	9412-9707		●
282	04.010 BRACKET; TRANS SIDE	8-97182-260-0	01	1	9708-0212		●
282	04.010 BRACKET; TRANS SIDE 4HE1 ENG(RLY)	8-97350-449-0	01	1	0301-0310	●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97350-449-0	01	1	0311-0501	●
282	04.010 BRACKET; TRANS SIDE 4HG1 ENG(RJH)	8-97350-449-0	01	1	0502-0506	●
282	04.010 BRACKET; TRANS SIDE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97350-449-0	01	1	0507-0611	●
282	04.010 BRACKET; TRANS SIDE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97350-449-0	01	1	0612-	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	9412-0212		●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0301-	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	9412-0212		●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0301-	●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-1	01	1	9412-9501		●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	9412-9501		●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	9412-9501		●
536	00.854 DAMPER; CABLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98097-681-0	01	1	0612-	●
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0301-0506	●
536	00.854 DAMPER; CABLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98097-681-0	01	1	0507-0611	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
