2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#43874) — 156 parça

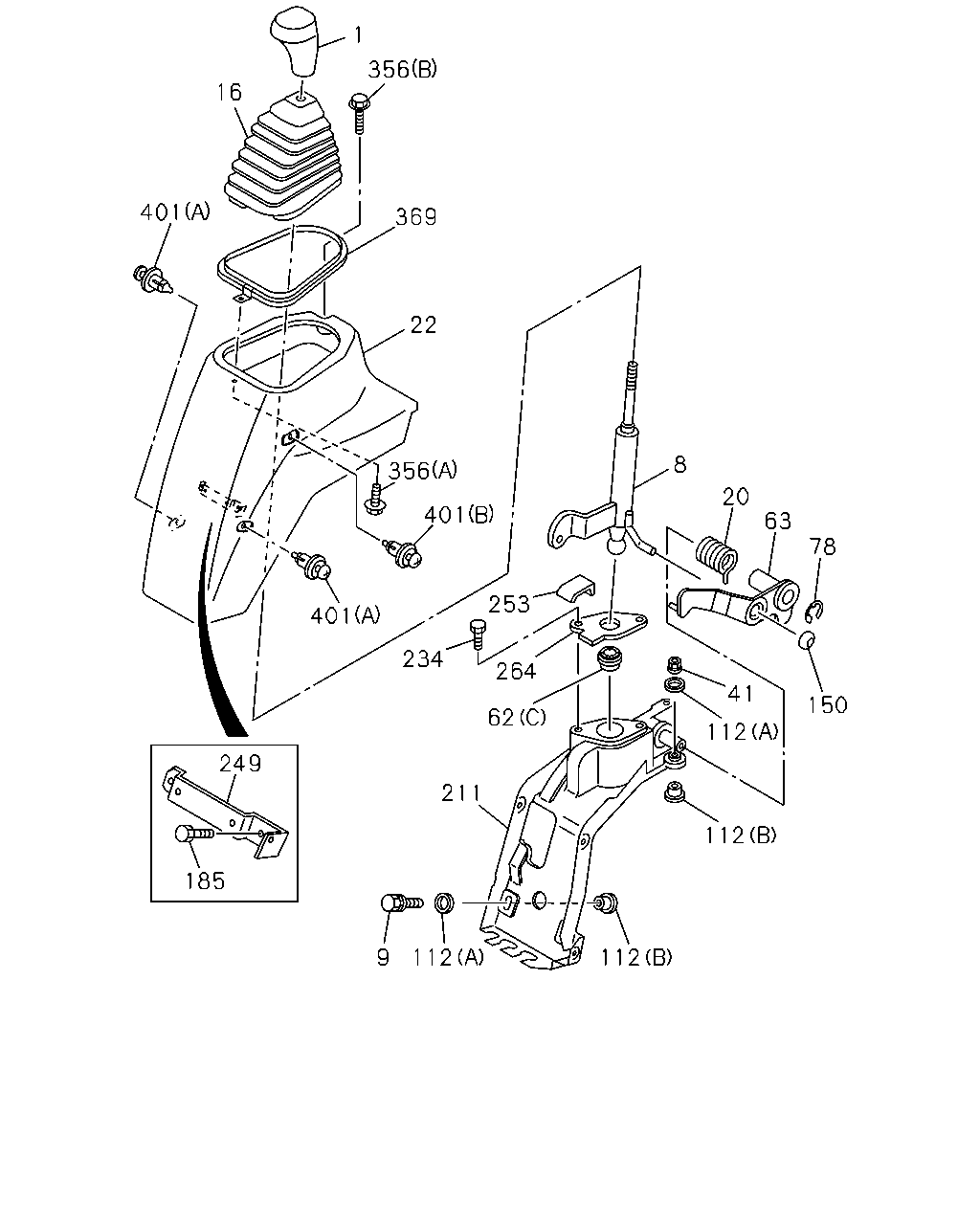

1 356 16 401 369 22 8 356 20 401 63 78 253 401 234 264 41 150 62 112 249 211 112 185 9 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 KNOB; CHANGE LEVER DARK BEIGE	8-97009-442-0	01	1	9412-9711	●
1	04.006 KNOB; CHANGE LEVER DARK GRAY	8-97098-657-0	01	1	9712-0212	●
1	04.006 KNOB; CHANGE LEVER BLACK	8-97196-286-1	01	1	0301-		●
8	04.006 LEVER; CHANGE	8-97093-841-1	01	1	9412-9802	●
8	04.006 LEVER; CHANGE	8-97204-506-0	01	1	9803-0212	●
8	04.006 LEVER; CHANGE	8-97204-506-0	01	1	0301-		●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	9412-0212	●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0301-		●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-1	01	1	9412-0212	●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-2	01	1	0301-		●
20	04.012 SPRING; CHANGE LEVER	8-97091-424-0	01	1	9412-9802	●
20	04.012 SPRING; CHANGE LEVER	8-97204-514-0	01	1	9803-0212	●
20	04.012 SPRING; CHANGE LEVER	8-97204-514-1	01	1	0301-		●
22	04.015 COVER; DUST,CHANGE LEVER DARK BEIGE	8-97082-705-3	01	1	9412-9711	●
22	04.015 COVER; DUST,CHANGE LEVER DARK GRAY	8-97867-625-3	01	1	9712-0212	●
22	04.015 COVER; DUST,CHANGE LEVER DARK GRAY	8-97867-625-3	01	1	0301-0501		●
22	04.015 COVER; DUST,CHANGE LEVER GRAY	8-97582-878-3	01	1	0502-		●
41	04.012 NUT; CHANGE LEVER 07.832 M8 FLANGE	8-94459-656-0	02	1	9412-9602	●
41	04.012 NUT; CHANGE LEVER 09.011 M8 W/LK WASHER	8-97065-435-0	02	1	9603-0110	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0111-0212	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0301-0610		●
41	04.012 NUT; CHANGE LEVER 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●
62	04.012 SEAT; BALL,CHANGE LEVER (A)	8-97049-148-0	01	1	9412-9802	●
62	04.012 SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	9803-0212	●
62	04.012 SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	0301-		●
62	04.012 SEAT; BALL,CHANGE LEVER (B)	8-97091-423-0	01	1	9412-9802	●
63	04.006 LEVER; RELAY,SELECT	8-97083-147-1	01	1	9412-9604	●
63	04.006 LEVER; RELAY,SELECT	8-97143-199-0	01	1	9605-0212	●
63	04.006 LEVER; RELAY,SELECT	8-97143-199-0	01	1	0301-		●
78	04.008 RING; SNAP,CHANGE LEVER 08.934 ID=10	9-09185-410-0	01	1	9412-0212	●
78	04.008 RING; SNAP,CHANGE LEVER 08.934 ID=10	9-09185-410-0	01	1	0301-0604		●
78	04.008 RING; SNAP,CHANGE LEVER ID=10	0-91805-510-0	01	1	0605-		●
112	04.012 RUBBER; CUSHION (A)	8-97091-426-0	04	1	9412-0212	●
112	04.012 RUBBER; CUSHION (A)	8-97091-426-0	04	1	0301-		●
112	04.012 RUBBER; CUSHION (B)	8-97091-427-0	04	1	9412-0212	●
112	04.012 RUBBER; CUSHION (B)	8-97091-427-0	04	1	0301-		●
150	04.008 BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	9412-0212	●
150	04.008 BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	0301-		●
185	04.012 BOLT; BRKT,COVER 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9412-9708	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9709-0212	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0301-0512		●
185	04.012 BOLT; BRKT,COVER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
211	04.010 BRACKET; CHANGE LEVER	8-97083-139-1	01	1	9412-9604	●
211	04.010 BRACKET; CHANGE LEVER	8-97143-198-0	01	1	9605-9802	●
211	04.010 BRACKET; CHANGE LEVER	8-97204-505-0	01	1	9803-0212	●
211	04.010 BRACKET; CHANGE LEVER	8-97204-505-1	01	1	0301-		●
234	04.010 BOLT; BRKT	8-97011-898-0	02	1	9412-9802	●
234	04.010 BOLT; BRKT	8-97204-512-0	02	1	9803-0212	●
234	04.010 BOLT; BRKT	8-97204-512-0	02	1	0301-0310		●
234	04.010 BOLT; BRKT M6X12 FLANGE	1-33739-842-0	02	1	0311-		●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	9412-0212	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0301-		●
253	04.012 STOPPER; CHANGE LEVER	8-97026-014-0	01	1	9412-9802	●
253	04.012 STOPPER; CHANGE LEVER	8-97204-510-0	01	1	9803-0212	●
253	04.012 STOPPER; CHANGE LEVER	8-97204-510-0	01	1	0301-		●
264	04.015 PLATE; COVER	8-97083-151-0	01	1	9412-9802	●
264	04.015 PLATE; COVER	8-97204-511-0	01	1	9803-0212	●
264	04.015 PLATE; COVER	8-97204-511-0	01	1	0301-		●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0510-0604		●
356	04.012 SCREW; COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-		●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9412-0212	●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0301-0509		●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	9412-0212	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0301-0612		●
356	04.012 SCREW; COVER 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-		●
369	04.012 RETAINER; REINF	8-97066-288-0	01	1	9412-0212	●
369	04.012 RETAINER; REINF	8-97066-288-1	01	1	0301-		●
401	04.012 CLIP; COVER (A) DARK BEIGE	8-97009-447-0	02	1	9412-9711	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	9712-0212	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	0301-0501		●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0502-0602		●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	03	1	0603-		●
401	04.012 CLIP; COVER (B) DARK BEIGE	8-97097-001-0	01	1	9412-9711	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	9712-0212	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	0301-0501		●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0502-0602		●

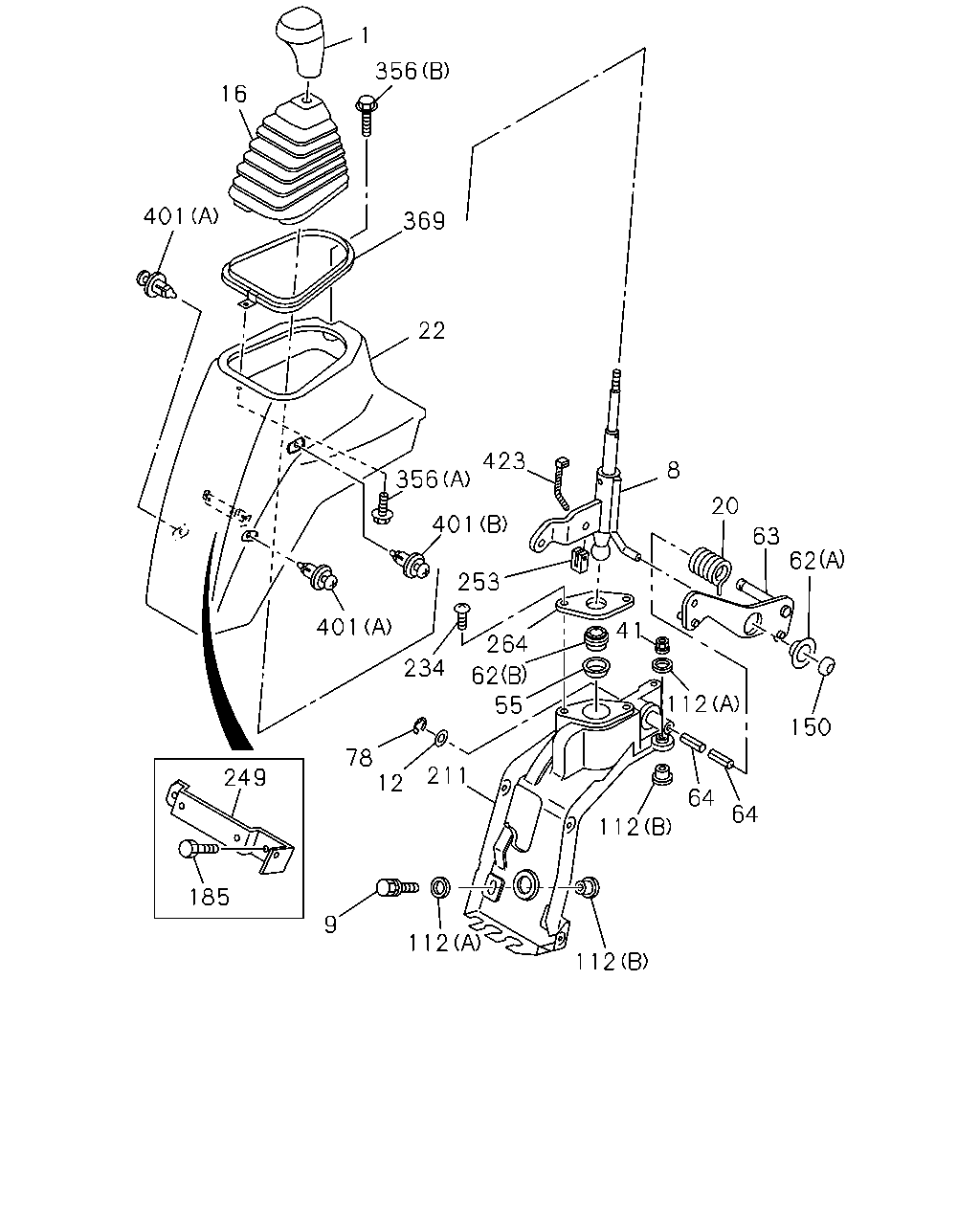

1 356 16 401 369 22 423 8 356 20 401 63 62 253 401 41 264 234 62 112 55 150 78 12 211 249 64 64 112 185 9 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.006 KNOB; CHANGE LEVER DARK BEIGE	8-97009-442-0	01	1	9412-9711	●
1	04.006 KNOB; CHANGE LEVER DARK GRAY	8-97098-657-0	01	1	9712-0212	●
1	04.006 KNOB; CHANGE LEVER BLACK	8-97196-286-1	01	1	0301-		●
8	04.006 LEVER; CHANGE	8-97093-841-1	01	1	9412-9802	●
8	04.006 LEVER; CHANGE	8-97204-506-0	01	1	9803-0212	●
8	04.006 LEVER; CHANGE	8-97204-506-0	01	1	0301-		●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	9412-0212	●
9	04.012 BOLT; CHANGE LEVER 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0301-		●
12	04.012 WASHER; PL,CHANGE LEVER 03.430 ID=12.5	9-09160-512-0	01	1	9412-9504	●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-1	01	1	9412-0212	●
16	04.015 BOOT; CHANGE LEVER	8-97066-287-2	01	1	0301-		●
20	04.012 SPRING; CHANGE LEVER	8-97091-424-0	01	1	9412-9802	●
20	04.012 SPRING; CHANGE LEVER	8-97204-514-0	01	1	9803-0212	●
20	04.012 SPRING; CHANGE LEVER	8-97204-514-1	01	1	0301-		●
22	04.015 COVER; DUST,CHANGE LEVER DARK BEIGE	8-97082-705-3	01	1	9412-9711	●
22	04.015 COVER; DUST,CHANGE LEVER DARK GRAY	8-97867-625-3	01	1	9712-0212	●
22	04.015 COVER; DUST,CHANGE LEVER DARK GRAY	8-97867-625-3	01	1	0301-0501		●
22	04.015 COVER; DUST,CHANGE LEVER GRAY	8-97582-878-3	01	1	0502-		●
41	04.012 NUT; CHANGE LEVER 07.832 M8 FLANGE	8-94459-656-0	02	1	9412-9602	●
41	04.012 NUT; CHANGE LEVER 09.011 M8 W/LK WASHER	8-97065-435-0	02	1	9603-0110	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0111-0212	●
41	04.012 NUT; CHANGE LEVER 04.010 M8 FLANGE	8-97046-127-0	02	1	0301-0610		●
41	04.012 NUT; CHANGE LEVER 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●
55	04.012 SEAT; RUBBER,SELECT SPRING	8-97083-150-0	01	1	9412-9802	●
62	04.012 SEAT; BALL,CHANGE LEVER (A)	8-97049-148-0	01	1	9412-9802	●
62	04.012 SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	9803-0212	●
62	04.012 SEAT; BALL,CHANGE LEVER (C)	8-97011-895-1	01	1	0301-		●
62	04.012 SEAT; BALL,CHANGE LEVER (B)	8-97091-423-0	01	1	9412-9802	●
63	04.006 LEVER; RELAY,SELECT	8-97083-147-1	01	1	9412-9604	●
63	04.006 LEVER; RELAY,SELECT	8-97143-199-0	01	1	9605-0212	●
63	04.006 LEVER; RELAY,SELECT	8-97143-199-0	01	1	0301-		●
64	04.008 BUSHING; SELECT LEVER	8-97083-149-0	02	1	9412-9802	●
78	04.008 RING; SNAP,CHANGE LEVER 08.934 ID=10	9-09185-410-0	01	1	9412-0212	●
78	04.008 RING; SNAP,CHANGE LEVER 08.934 ID=10	9-09185-410-0	01	1	0301-0604		●
78	04.008 RING; SNAP,CHANGE LEVER ID=10	0-91805-510-0	01	1	0605-		●
112	04.012 RUBBER; CUSHION (A)	8-97091-426-0	04	1	9412-0212	●
112	04.012 RUBBER; CUSHION (A)	8-97091-426-0	04	1	0301-		●
112	04.012 RUBBER; CUSHION (B)	8-97091-427-0	04	1	9412-0212	●
112	04.012 RUBBER; CUSHION (B)	8-97091-427-0	04	1	0301-		●
150	04.008 BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	9412-0212	●
150	04.008 BALL; DETENT,CONT LEVER	8-97049-147-0	01	1	0301-		●
185	04.012 BOLT; BRKT,COVER 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9412-9708	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9709-0212	●
185	04.012 BOLT; BRKT,COVER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0301-0512		●
185	04.012 BOLT; BRKT,COVER 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
211	04.010 BRACKET; CHANGE LEVER	8-97083-139-1	01	1	9412-9604	●
211	04.010 BRACKET; CHANGE LEVER	8-97143-198-0	01	1	9605-9802	●
211	04.010 BRACKET; CHANGE LEVER	8-97204-505-0	01	1	9803-0212	●
211	04.010 BRACKET; CHANGE LEVER	8-97204-505-1	01	1	0301-		●
234	04.010 BOLT; BRKT	8-97011-898-0	02	1	9412-9802	●
234	04.010 BOLT; BRKT	8-97204-512-0	02	1	9803-0212	●
234	04.010 BOLT; BRKT	8-97204-512-0	02	1	0301-0310		●
234	04.010 BOLT; BRKT M6X12 FLANGE	1-33739-842-0	02	1	0311-		●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	9412-0212	●
249	04.012 BRACKET; COVER	8-97065-170-0	01	1	0301-		●
253	04.012 STOPPER; CHANGE LEVER	8-97026-014-0	01	1	9412-9802	●
253	04.012 STOPPER; CHANGE LEVER	8-97204-510-0	01	1	9803-0212	●
253	04.012 STOPPER; CHANGE LEVER	8-97204-510-0	01	1	0301-		●
264	04.015 PLATE; COVER	8-97083-151-0	01	1	9412-9802	●
264	04.015 PLATE; COVER	8-97204-511-0	01	1	9803-0212	●
264	04.015 PLATE; COVER	8-97204-511-0	01	1	0301-		●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0510-0604		●
356	04.012 SCREW; COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	01	1	0605-		●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9412-0212	●
356	04.012 SCREW; COVER 02.510 (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	0301-0509		●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	9412-0212	●
356	04.012 SCREW; COVER (B) M6X12	8-97094-854-0	01	1	0301-0612		●
356	04.012 SCREW; COVER 16.650 (B) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	01	1	0701-		●
369	04.012 RETAINER; REINF	8-97066-288-0	01	1	9412-0212	●
369	04.012 RETAINER; REINF	8-97066-288-1	01	1	0301-		●
401	04.012 CLIP; COVER (A) DARK BEIGE	8-97009-447-0	02	1	9412-9711	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	9712-0212	●
401	04.012 CLIP; COVER (A) DARK GRAY	8-97098-523-0	02	1	0301-0501		●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	02	1	0502-0602		●
401	04.012 CLIP; COVER (A) GRAY	8-97582-240-0	03	1	0603-		●
401	04.012 CLIP; COVER (B) DARK BEIGE	8-97097-001-0	01	1	9412-9711	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	9712-0212	●
401	04.012 CLIP; COVER (B) DARK GRAY	8-97098-524-0	01	1	0301-0501		●
401	04.012 CLIP; COVER (B) GRAY	8-97582-796-0	01	1	0502-0602		●
423	04.008 CLIP; BAND	8-97062-120-0	01	1	9412-9802	●
