Sayfa 2-30 - Isuzu EPC

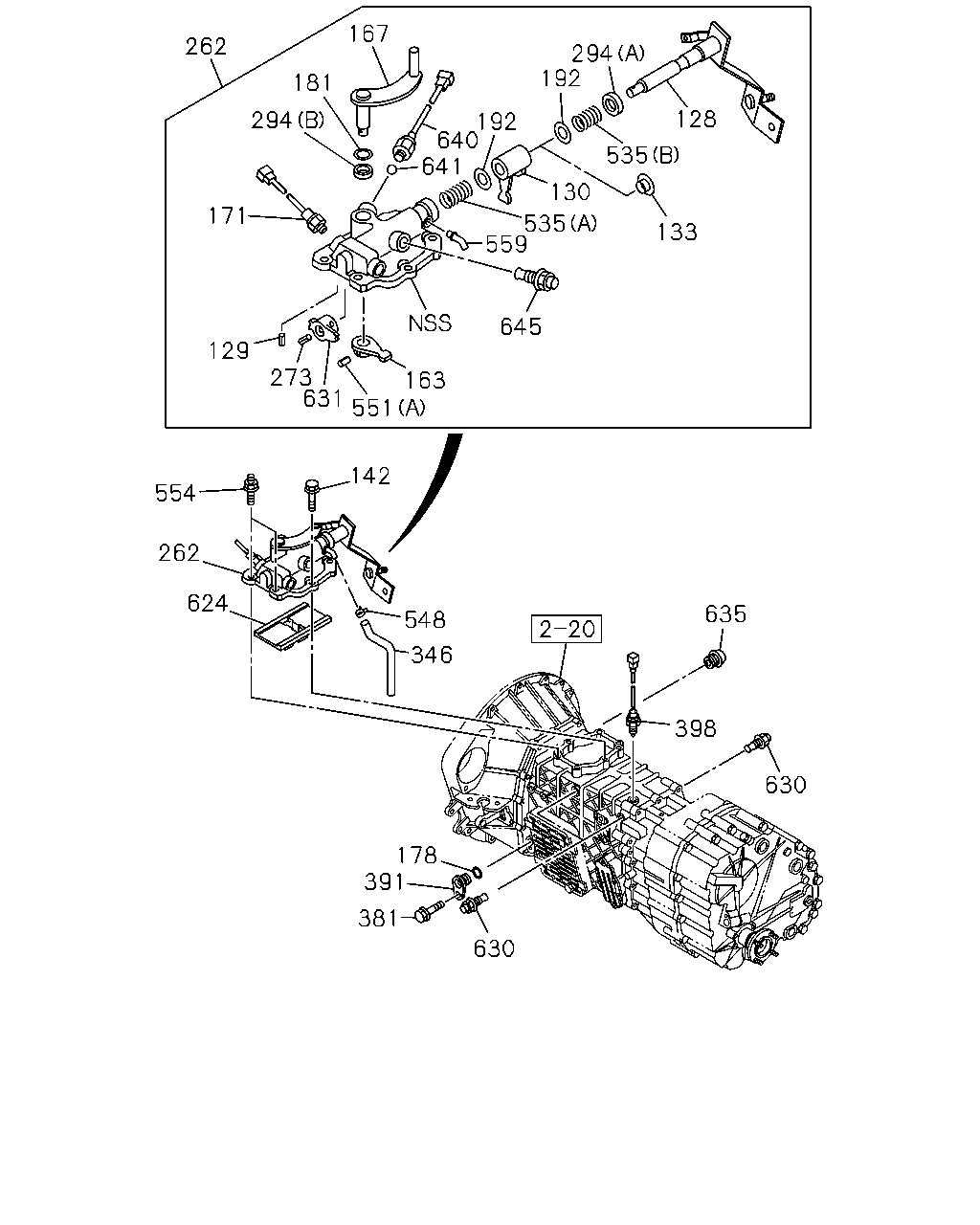

2-30 — GEAR SHIFTER AND QUADRANT BOX (#43873) — 366 parça

167 262 294 192 181 128 294 192 640 641 535 130 171 535 559 133 645 129 273 631 163 551 142 554 262 624 635 548 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1 ENG(RLY)	8-97305-658-0	01	1	0301-0303	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1 ENG(RLY)	8-97305-725-0	01	1	0304-0310	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-725-0	01	1	0311-0501	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HG1 ENG(RJH)	8-97305-725-0	01	1	0502-0506	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-725-0	01	1	0507-0611	●
128	04.030 LEVER; SHIFT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-725-0	01	1	0612-	●
129	04.027 PIN; SPR,SHIFT 4HE1 ENG(RLY) L=30 OD=4	1-09748-031-0	01	1	0301-0310	●
129	04.027 PIN; SPR,SHIFT 4HG1 ENG(RJH),4HE1 ENG(RLY) L=30 OD=4	1-09748-031-0	01	1	0311-0501	●
129	04.027 PIN; SPR,SHIFT 4HG1 ENG(RJH) L=30 OD=4	1-09748-031-0	01	1	0502-0506	●
129	04.027 PIN; SPR,SHIFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) L=30 OD=4	1-09748-031-0	01	1	0507-0611	●
129	04.027 PIN; SPR,SHIFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) L=30 OD=4	1-09748-031-0	01	1	0612-	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9412-0212		●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97305-657-0	01	1	0301-0303	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0304-0310	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97306-647-0	01	1	0311-0501	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH)	8-97306-647-0	01	1	0502-0506	●
130	04.302 LEVER; SHIFT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97306-647-0	01	1	0507-0611	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97306-647-0	01	1	0612-	●
133	04.027 SEAT; SPR 4HE1 ENG(RLY)	8-97305-667-0	01	1	0301-0310	●
133	04.027 SEAT; SPR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-667-0	01	1	0311-0501	●
133	04.027 SEAT; SPR 4HG1 ENG(RJH)	8-97305-667-0	01	1	0502-0506	●
133	04.027 SEAT; SPR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-667-0	01	1	0507-0611	●
133	04.027 SEAT; SPR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-667-0	01	1	0612-	●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0301-0310	●
142	04.012 BOLT; QUAD BOX 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0311-0501	●
142	04.012 BOLT; QUAD BOX 4HG1 ENG(RJH) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0506	●
142	04.012 BOLT; QUAD BOX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0507-0604	●
142	04.012 BOLT; QUAD BOX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0611	●
142	04.012 BOLT; QUAD BOX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0612-	●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9412-0212		●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	8-97305-663-0	01	1	0301-0310	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-663-0	01	1	0311-0501	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH)	8-97305-663-0	01	1	0502-0506	●
163	04.302 LEVER; SELECT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-663-0	01	1	0507-0611	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-663-0	01	1	0612-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9412-0212		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97333-847-0	01	1	0301-0303	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97367-322-0	01	1	0304-0501	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH)	8-97333-847-0	01	1	0311-0506	●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97333-847-0	01	1	0507-0611	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97333-847-0	01	1	0612-0612	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98039-436-0	01	1	0612-	●
171	04.054 SWITCH; NEUTRAL	8-97113-440-1	01	1	9412-9508		●
171	04.054 SWITCH; NEUTRAL	8-97137-656-0	01	1	9509-9608		●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	9609-0212		●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	8-97316-688-1	01	1	0301-0310	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97316-688-1	01	1	0311-0501	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH)	8-97316-688-1	01	1	0502-0506	●
171	04.054 SWITCH; NEUTRAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97316-688-1	01	1	0507-0611	●
171	04.054 SWITCH; NEUTRAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97316-688-1	01	1	0612-0612	●
171	04.054 SWITCH; NEUTRAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.698	8-98023-050-0	01	1	0612-	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9412-0212		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY)	9-09567-113-0	01	1	0301-0310	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY)	9-09567-113-0	01	1	0311-0501	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH)	9-09567-113-0	01	1	0502-0506	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09567-113-0	01	1	0507-0611	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09567-113-0	01	1	0612-	●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY)	1-09503-280-0	01	1	0301-0303	●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY)	8-97367-327-0	01	1	0304-0310	●
181	04.302 WASHER; PL,SELECT LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97367-327-0	01	1	0311-0501	●
181	04.302 WASHER; PL,SELECT LEVER 4HG1 ENG(RJH)	8-97367-327-0	01	1	0502-0506	●
181	04.302 WASHER; PL,SELECT LEVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97367-327-0	01	1	0507-0611	●
181	04.302 WASHER; PL,SELECT LEVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97367-327-0	01	1	0612-	●
192	04.309 WASHER; PL 4HE1 ENG(RLY)	8-97305-661-0	02	1	0301-0303	●
192	04.309 WASHER; PL 4HE1 ENG(RLY)	8-97305-661-0	01	1	0304-0310	●
192	04.309 WASHER; PL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-661-0	01	1	0311-0501	●
192	04.309 WASHER; PL 4HG1 ENG(RJH)	8-97305-661-0	01	1	0502-0506	●
192	04.309 WASHER; PL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-661-0	01	1	0507-0611	●
192	04.309 WASHER; PL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-661-0	01	1	0612-	●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97355-928-0	01	1	0301-0404	●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97362-754-0	01	1	0405-0501	●
262	04.105 BOX ASM; SHIFT CONT 4HG1 ENG(RJH)	8-97310-609-2	01	1	0311-0404	●
262	04.105 BOX ASM; SHIFT CONT 4HG1 ENG(RJH)	8-97362-753-0	01	1	0405-0506	●
262	04.105 BOX ASM; SHIFT CONT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-753-2	01	1	0507-0611	●
262	04.105 BOX ASM; SHIFT CONT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-753-2	01	1	0612-	●
273	04.309 PIN; SPR,STOPPER 4HE1 ENG(RLY) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0301-0310	●
273	04.309 PIN; SPR,STOPPER 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0311-0501	●
273	04.309 PIN; SPR,STOPPER 4HG1 ENG(RJH) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0502-0506	●
273	04.309 PIN; SPR,STOPPER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0507-0611	●
273	04.309 PIN; SPR,STOPPER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0612-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (A)	1-09625-599-0	01	1	0301-0303	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (A)	8-97363-225-0	01	1	0304-0310	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97363-225-0	01	1	0311-0501	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) (A)	8-97363-225-0	01	1	0502-0506	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97363-225-0	01	1	0507-0611	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97363-225-0	01	1	0612-	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) (B)	8-97305-662-0	01	1	0301-0310	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97305-662-0	01	1	0311-0501	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) (B)	8-97305-662-0	01	1	0502-0506	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97305-662-0	01	1	0507-0611	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97305-662-0	01	1	0612-	●
346	04.545 HOSE; AIR 4HE1 ENG(RLY)	8-97309-855-0	01	1	0301-0310	●
346	04.545 HOSE; AIR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97309-855-0	01	1	0311-0501	●
346	04.545 HOSE; AIR 4HG1 ENG(RJH)	8-97309-855-0	01	1	0502-0506	●
346	04.545 HOSE; AIR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97309-855-0	01	1	0507-0611	●
346	04.545 HOSE; AIR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97309-855-0	01	1	0612-	●
381	04.105 BOLT 4HE1 ENG(RLY) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0301-0310	●
381	04.105 BOLT 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0311-0501	●
381	04.105 BOLT 4HG1 ENG(RJH) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0506	●
381	04.105 BOLT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0507-0512	●
381	04.105 BOLT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-0611	●
381	04.105 BOLT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0612-	●
391	04.104 PLUG; SW HOLE 4HE1 ENG(RLY)	8-97300-273-1	01	1	0301-0310	●
391	04.104 PLUG; SW HOLE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97300-273-1	01	1	0311-0501	●
391	04.104 PLUG; SW HOLE 4HG1 ENG(RJH)	8-97300-273-1	01	1	0502-0506	●
391	04.104 PLUG; SW HOLE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97300-273-1	01	1	0507-0611	●
391	04.104 PLUG; SW HOLE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97300-273-1	01	1	0612-	●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9412-9508		●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9608		●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	9609-0212		●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0301-0310	●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0311-0501	●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH) 04.054	8-97316-688-1	01	1	0502-0506	●
398	02.698 SWITCH; REV LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.054	8-97316-688-1	01	1	0507-0604	●
398	02.698 SWITCH; REV LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98023-050-0	01	1	0605-0611	●
398	02.698 SWITCH; REV LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98023-050-0	01	1	0612-	●
535	04.302 SPRING; LEVER 4HE1 ENG(RLY) (A)	8-97323-771-0	01	1	0301-0310	●
535	04.302 SPRING; LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97323-771-0	01	1	0311-0501	●
535	04.302 SPRING; LEVER 4HG1 ENG(RJH) (A)	8-97323-771-0	01	1	0502-0506	●
535	04.302 SPRING; LEVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97323-771-0	01	1	0507-0611	●
535	04.302 SPRING; LEVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97323-771-0	01	1	0612-	●
535	04.302 SPRING; LEVER 4HE1 ENG(RLY) (B)	8-97323-772-0	01	1	0301-0310	●
535	04.302 SPRING; LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97323-772-0	01	1	0311-0501	●
535	04.302 SPRING; LEVER 4HG1 ENG(RJH) (B)	8-97323-772-0	01	1	0502-0506	●
535	04.302 SPRING; LEVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97323-772-0	01	1	0507-0611	●
535	04.302 SPRING; LEVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97323-772-0	01	1	0612-	●
548	04.457 CLIP; HOSE 4HE1 ENG(RLY) 03.278	8-97031-674-0	01	1	0301-0310	●
548	04.457 CLIP; HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.278	8-97031-674-0	01	1	0311-0501	●
548	04.457 CLIP; HOSE 4HG1 ENG(RJH) 03.278	8-97031-674-0	01	1	0502-0506	●
548	04.457 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.278	8-97031-674-0	01	1	0507-0611	●
548	04.457 CLIP; HOSE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.278	8-97031-674-0	01	1	0612-	●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0301-0310	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0311-0501	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH) (A) L=25 OD=5	1-09748-032-0	01	1	0502-0506	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) L=25 OD=5	1-09748-032-0	01	1	0507-0611	●
551	04.303 PIN; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) L=25 OD=5	1-09748-032-0	01	1	0612-	●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0301-0310	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0311-0501	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH) 04.302 (B) L=32	8-97011-596-2	04	1	0502-0506	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.302 (B) L=32	8-97011-596-2	04	1	0507-0611	●
551	04.303 PIN; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.302 (B) L=32	8-97011-596-2	04	1	0612-	●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0301-0310	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0311-0501	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH) (C) L=20	8-97241-340-0	01	1	0502-0506	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) L=20	8-97241-340-0	01	1	0507-0611	●
551	04.303 PIN; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) L=20	8-97241-340-0	01	1	0612-	●
554	04.302 STUD; CONT BOX 4HE1 ENG(RLY) M8X15,M8X25 L=49	8-97352-677-0	02	1	0301-0310	●
554	04.302 STUD; CONT BOX 4HG1 ENG(RJH),4HE1 ENG(RLY) M8X15,M8X25 L=49	8-97352-677-0	02	1	0311-0501	●
554	04.302 STUD; CONT BOX 4HG1 ENG(RJH) M8X15,M8X25 L=49	8-97352-677-0	02	1	0502-0506	●
554	04.302 STUD; CONT BOX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8X15,M8X25 L=49	8-97352-677-0	02	1	0507-0604	●
554	04.302 STUD; CONT BOX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8X15,M8X25 L=49	8-97365-378-0	02	1	0605-0611	●
554	04.302 STUD; CONT BOX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M8X15,M8X25 L=49	8-97365-378-0	02	1	0612-	●
559	04.302 PIPE; BREATHER 4HE1 ENG(RLY)	8-97305-517-0	01	1	0301-0310	●
559	04.302 PIPE; BREATHER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-517-0	01	1	0311-0501	●
559	04.302 PIPE; BREATHER 4HG1 ENG(RJH)	8-97305-517-0	01	1	0502-0506	●
559	04.302 PIPE; BREATHER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-517-0	01	1	0507-0604	●
559	04.302 PIPE; BREATHER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510	8-97358-318-0	01	1	0605-0611	●
559	04.302 PIPE; BREATHER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510	8-97358-318-0	01	1	0612-	●
624	04.105 PLATE; INTER LOCK 4HE1 ENG(RLY)	8-97241-317-2	01	1	0301-0310	●
624	04.105 PLATE; INTER LOCK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-317-2	01	1	0311-0501	●
624	04.105 PLATE; INTER LOCK 4HG1 ENG(RJH)	8-97241-317-2	01	1	0502-0506	●
624	04.105 PLATE; INTER LOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-317-3	01	1	0507-0611	●
624	04.105 PLATE; INTER LOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-317-3	01	1	0612-	●
630	04.307 DETENT ASM 4HE1 ENG(RLY)	8-97241-341-0	03	1	0301-0310	●
630	04.307 DETENT ASM 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-341-0	03	1	0311-0501	●
630	04.307 DETENT ASM 4HG1 ENG(RJH)	8-97241-341-0	03	1	0502-0506	●
630	04.307 DETENT ASM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-341-0	03	1	0507-0604	●
630	04.307 DETENT ASM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98019-536-0	03	1	0605-0611	●
630	04.307 DETENT ASM 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98019-536-0	03	1	0612-	●
631	04.105 STOPPER; SPRING 4HE1 ENG(RLY)	8-97305-666-0	01	1	0301-0310	●
631	04.105 STOPPER; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-666-0	01	1	0311-0501	●
631	04.105 STOPPER; SPRING 4HG1 ENG(RJH)	8-97305-666-0	01	1	0502-0506	●
631	04.105 STOPPER; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-666-0	01	1	0507-0611	●
631	04.105 STOPPER; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-666-0	01	1	0612-	●
635	04.309 PLUG; DETENT 4HE1 ENG(RLY) 00.206	8-97229-313-2	01	1	0301-0310	●
635	04.309 PLUG; DETENT 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.206	8-97229-313-2	01	1	0311-0501	●
635	04.309 PLUG; DETENT 4HG1 ENG(RJH) 00.206	8-97229-313-2	01	1	0502-0506	●
635	04.309 PLUG; DETENT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.206	8-97229-313-2	01	1	0507-0611	●
635	04.309 PLUG; DETENT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.206	8-97380-892-0	01	1	0612-	●
640	04.054 SWITCH; SELECT 4HE1 ENG(RLY)	8-97316-687-1	01	1	0301-0501	●
641	04.311 BALL 4HE1 ENG(RLY)	8-97305-668-0	01	1	0301-0501	●
645	04.311 DETENT ASM 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.307	8-97241-341-0	01	1	0405-0501	●
645	04.311 DETENT ASM 4HG1 ENG(RJH) 04.307	8-97241-341-0	01	1	0502-0506	●
645	04.311 DETENT ASM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307	8-97241-341-0	01	1	0507-0604	●
645	04.311 DETENT ASM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307	8-98019-536-0	01	1	0605-0611	●
645	04.311 DETENT ASM 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307	8-98019-536-0	01	1	0612-	●

167 165 169 168 166 170 164 398 157 214 164 171 28 108 178 162 222 162 162 179 70 162 163 130 91 175 174 107 25 29 106 176 176 108 28 28 28 28 91 1 108 28 28 28 91 26 17 2 117 117 114 30 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9412-0212		●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	8-97241-320-2	01	1	0301-0310	●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-320-2	01	1	0311-0501	●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH)	8-97241-320-2	01	1	0502-0506	●
1	04.302 ARM; SHIFT,1ST & REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-320-2	01	1	0507-0611	●
1	04.302 ARM; SHIFT,1ST & REV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-320-2	01	1	0612-	●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9412-0212		●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9412-0212		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9412-0212		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	8-97355-690-0	01	1	0301-0310	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97355-690-0	01	1	0311-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97362-731-1	01	1	0405-0501	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH)	8-97362-731-1	01	1	0502-0506	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-731-1	01	1	0507-0611	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-731-2	01	1	0612-	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97034-821-0	01	1	9412-9507		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	9508-0212		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9412-0212		●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	9412-0212		●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	9412-0212		●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9412-0212		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9412-0212		●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9412-0212		●
106	04.309 ROD; SHIFT,OD TO TOP	8-97034-822-0	01	1	9412-9609		●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	9610-0212		●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	9412-0212		●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9412-0212		●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9412-0212		●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	9412-0212		●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9412-0212		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9412-0212		●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97305-657-0	01	1	0301-0303	●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0304-0310	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97306-647-0	01	1	0311-0501	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH)	8-97306-647-0	01	1	0502-0506	●
130	04.302 LEVER; SHIFT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97306-647-0	01	1	0507-0611	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97306-647-0	01	1	0612-	●
157	04.105 BOX; QUAD,TRANS	8-97034-814-1	01	1	9412-9610		●
157	04.105 BOX; QUAD,TRANS	8-97167-640-0	01	1	9611-9911		●
157	04.105 BOX; QUAD,TRANS	8-97249-547-0	01	1	9912-0212		●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	9412-0212		●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9412-0212		●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	8-97305-663-0	01	1	0301-0310	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97305-663-0	01	1	0311-0501	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH)	8-97305-663-0	01	1	0502-0506	●
163	04.302 LEVER; SELECT,INTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-663-0	01	1	0507-0611	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97305-663-0	01	1	0612-	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9412-0011		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	01	1	0012-0212		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9412-0011		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-97304-066-0	01	1	0012-0212		●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	9412-0212		●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	9412-0212		●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9412-0212		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97333-847-0	01	1	0301-0303	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97367-322-0	01	1	0304-0501	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH)	8-97333-847-0	01	1	0311-0506	●
167	04.302 LEVER; SELECT,EXTERNAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97333-847-0	01	1	0507-0611	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97333-847-0	01	1	0612-0612	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98039-436-0	01	1	0612-	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9412-0212		●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94326-733-1	02	1	9412-0212		●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9412-0212		●
171	04.054 SWITCH; NEUTRAL	8-97113-440-1	01	1	9412-9508		●
171	04.054 SWITCH; NEUTRAL	8-97137-656-0	01	1	9509-9608		●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	9609-0212		●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	8-97316-688-1	01	1	0301-0310	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97316-688-1	01	1	0311-0501	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH)	8-97316-688-1	01	1	0502-0506	●
171	04.054 SWITCH; NEUTRAL 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97316-688-1	01	1	0507-0611	●
171	04.054 SWITCH; NEUTRAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97316-688-1	01	1	0612-0612	●
171	04.054 SWITCH; NEUTRAL 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.698	8-98023-050-0	01	1	0612-	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	9412-0212		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9412-0212		●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9412-0212		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9412-0212		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY)	9-09567-113-0	01	1	0301-0310	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY)	9-09567-113-0	01	1	0311-0501	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH)	9-09567-113-0	01	1	0502-0506	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09567-113-0	01	1	0507-0611	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09567-113-0	01	1	0612-	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	9412-0212		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94322-745-0	04	1	9412-0212		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94322-746-0	06	1	9412-0212		●
222	04.057 BRACKET; CLIP	8-97061-051-0	01	1	9412-0212		●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9412-9508		●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9608		●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	9609-0212		●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0301-0310	●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0311-0501	●
398	02.698 SWITCH; REV LAMP 4HG1 ENG(RJH) 04.054	8-97316-688-1	01	1	0502-0506	●
398	02.698 SWITCH; REV LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.054	8-97316-688-1	01	1	0507-0604	●
398	02.698 SWITCH; REV LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98023-050-0	01	1	0605-0611	●
398	02.698 SWITCH; REV LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98023-050-0	01	1	0612-	●

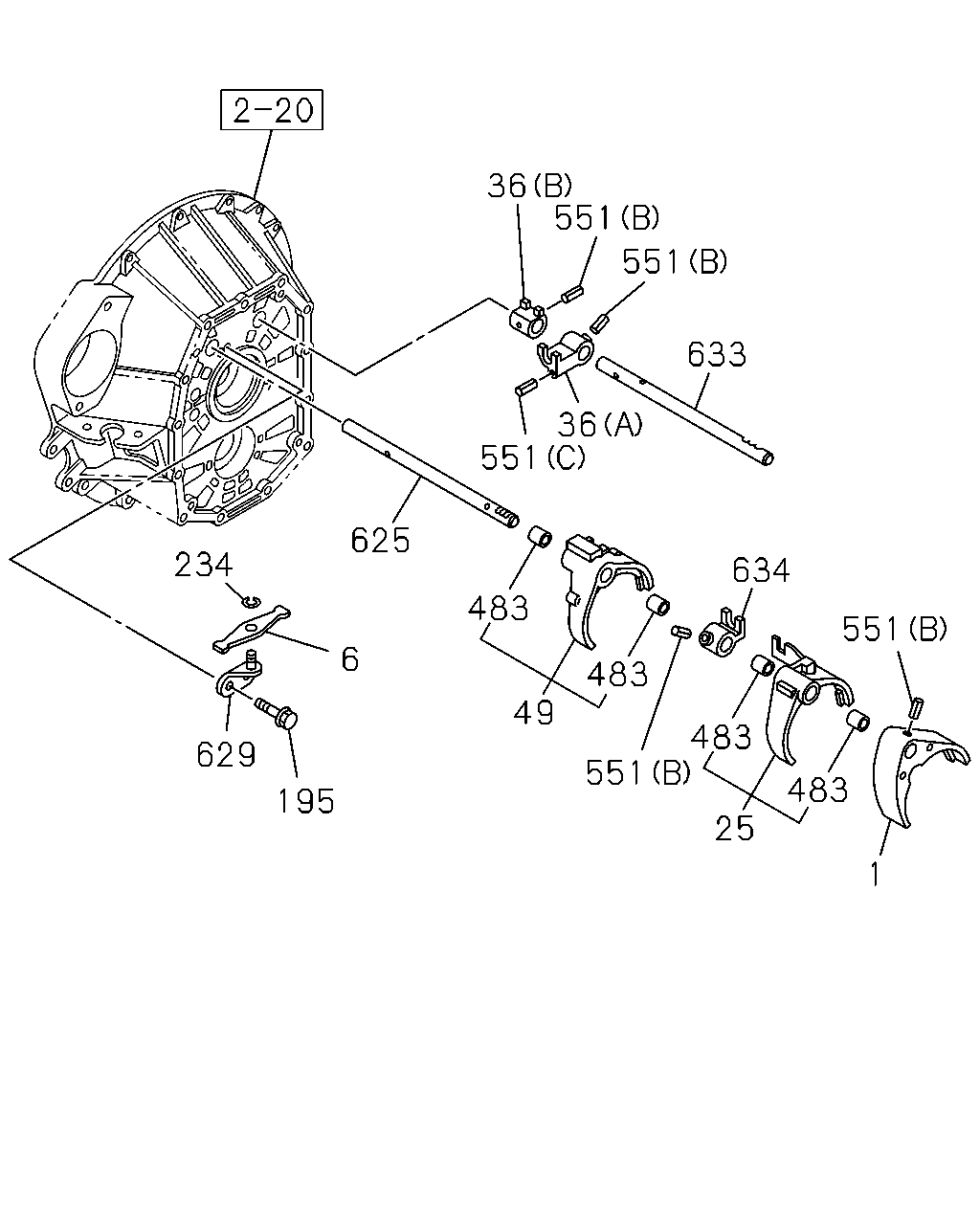

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9412-0212		●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	8-97241-320-2	01	1	0301-0310	●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-320-2	01	1	0311-0501	●
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH)	8-97241-320-2	01	1	0502-0506	●
1	04.302 ARM; SHIFT,1ST & REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-320-2	01	1	0507-0611	●
1	04.302 ARM; SHIFT,1ST & REV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-320-2	01	1	0612-	●
6	04.302 LEVER; RELAY 4HE1 ENG(RLY)	8-97241-344-0	01	1	0301-0310	●
6	04.302 LEVER; RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-344-0	01	1	0311-0501	●
6	04.302 LEVER; RELAY 4HG1 ENG(RJH)	8-97241-344-0	01	1	0502-0506	●
6	04.302 LEVER; RELAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-344-0	01	1	0507-0611	●
6	04.302 LEVER; RELAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-344-0	01	1	0612-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9412-0212		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	8-97355-690-0	01	1	0301-0310	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97355-690-0	01	1	0311-0404	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97362-731-1	01	1	0405-0501	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH)	8-97362-731-1	01	1	0502-0506	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-731-1	01	1	0507-0611	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-731-2	01	1	0612-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HE1 ENG(RLY) (A)	8-97241-329-1	01	1	0301-0310	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97241-329-1	01	1	0311-0501	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HG1 ENG(RJH) (A)	8-97241-329-1	01	1	0502-0506	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97241-329-1	01	1	0507-0611	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97241-329-1	01	1	0612-	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HE1 ENG(RLY) (B)	8-97241-330-0	01	1	0301-0310	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97241-330-0	01	1	0311-0501	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HG1 ENG(RJH) (B)	8-97241-330-0	01	1	0502-0506	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97241-330-0	01	1	0507-0611	●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97241-330-0	01	1	0612-	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	8-97258-716-0	01	1	0301-0310	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97258-716-0	01	1	0311-0501	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HG1 ENG(RJH)	8-97258-716-0	01	1	0502-0506	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97258-716-0	01	1	0507-0611	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97258-716-0	01	1	0612-	●
195	04.105 BOLT 4HE1 ENG(RLY) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0301-0310	●
195	04.105 BOLT 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0311-0501	●
195	04.105 BOLT 4HG1 ENG(RJH) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0502-0506	●
195	04.105 BOLT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0507-0604	●
195	04.105 BOLT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0611	●
195	04.105 BOLT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0612-	●
234	04.311 RING; SNAP 4HE1 ENG(RLY) 04.307 ID=12	8-94460-357-0	01	1	0301-0310	●
234	04.311 RING; SNAP 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.307 ID=12	8-94460-357-0	01	1	0311-0501	●
234	04.311 RING; SNAP 4HG1 ENG(RJH) 04.307 ID=12	8-94460-357-0	01	1	0502-0506	●
234	04.311 RING; SNAP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307 ID=12	8-94460-357-0	01	1	0507-0611	●
234	04.311 RING; SNAP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.307 ID=12	8-94460-357-0	01	1	0612-	●
483	04.419 BUSHING; SHIFT ARM 4HE1 ENG(RLY) 00.683	8-97241-326-1	04	1	0301-0310	●
483	04.419 BUSHING; SHIFT ARM 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.683	8-97241-326-2	04	1	0311-0501	●
483	04.419 BUSHING; SHIFT ARM 4HG1 ENG(RJH) 00.683	8-97241-326-2	04	1	0502-0506	●
483	04.419 BUSHING; SHIFT ARM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.683	8-97241-326-2	04	1	0507-0611	●
483	04.419 BUSHING; SHIFT ARM 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.683	8-97241-326-2	04	1	0612-	●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0301-0310	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0311-0501	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH) (A) L=25 OD=5	1-09748-032-0	01	1	0502-0506	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) L=25 OD=5	1-09748-032-0	01	1	0507-0611	●
551	04.303 PIN; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) L=25 OD=5	1-09748-032-0	01	1	0612-	●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0301-0310	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0311-0501	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH) 04.302 (B) L=32	8-97011-596-2	04	1	0502-0506	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.302 (B) L=32	8-97011-596-2	04	1	0507-0611	●
551	04.303 PIN; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.302 (B) L=32	8-97011-596-2	04	1	0612-	●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0301-0310	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0311-0501	●
551	04.303 PIN; SPRING 4HG1 ENG(RJH) (C) L=20	8-97241-340-0	01	1	0502-0506	●
551	04.303 PIN; SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) L=20	8-97241-340-0	01	1	0507-0611	●
551	04.303 PIN; SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) L=20	8-97241-340-0	01	1	0612-	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1 ENG(RLY)	8-97241-333-3	01	1	0301-0310	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-333-3	01	1	0311-0404	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97362-741-0	01	1	0405-0501	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HG1 ENG(RJH)	8-97362-741-0	01	1	0502-0506	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-741-0	01	1	0507-0611	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-741-0	01	1	0612-	●
629	04.555 BRIDGE; LEVER 4HE1 ENG(RLY)	8-97237-107-1	01	1	0301-0310	●
629	04.555 BRIDGE; LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97237-107-1	01	1	0311-0501	●
629	04.555 BRIDGE; LEVER 4HG1 ENG(RJH)	8-97237-107-1	01	1	0502-0506	●
629	04.555 BRIDGE; LEVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97237-107-1	01	1	0507-0611	●
629	04.555 BRIDGE; LEVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97237-107-1	01	1	0612-	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HE1 ENG(RLY)	8-97358-832-0	01	1	0301-0310	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97358-832-0	01	1	0311-0404	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97362-743-0	01	1	0405-0501	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HG1 ENG(RJH)	8-97362-743-0	01	1	0502-0506	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-743-0	01	1	0507-0611	●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97362-743-0	01	1	0612-	●
634	04.303 BLOCK; SHIFT,LOW,REV 4HE1 ENG(RLY)	8-97241-327-1	01	1	0301-0310	●
634	04.303 BLOCK; SHIFT,LOW,REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-327-1	01	1	0311-0501	●
634	04.303 BLOCK; SHIFT,LOW,REV 4HG1 ENG(RJH)	8-97241-327-1	01	1	0502-0506	●
634	04.303 BLOCK; SHIFT,LOW,REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-327-1	01	1	0507-0611	●
634	04.303 BLOCK; SHIFT,LOW,REV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-327-1	01	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
