Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#43872) — 504 parça

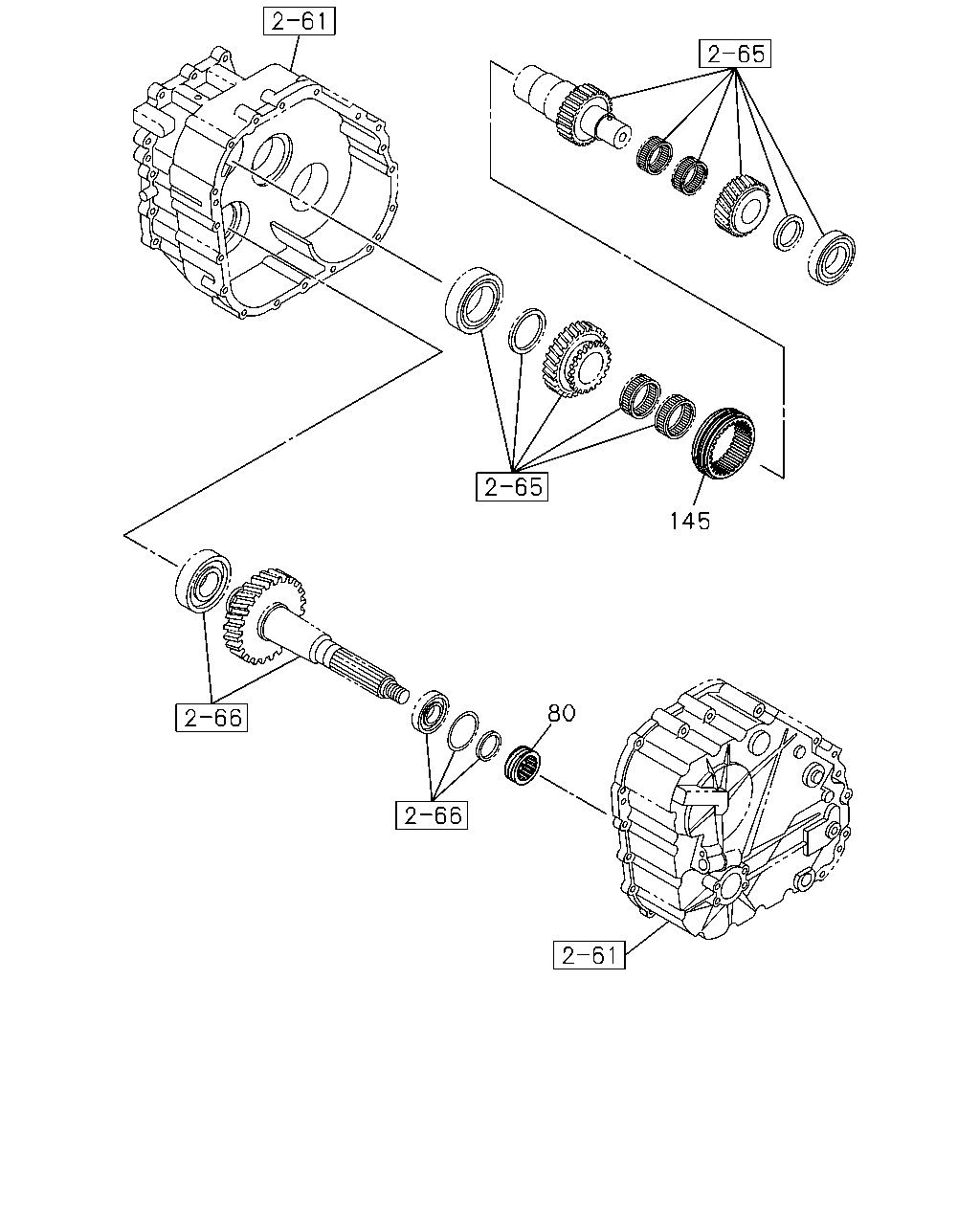

145 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=4	8-97318-465-0	01	1	0301-0310	●
80	04.343 GEAR; SPD DRIVE 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=4	8-97318-465-0	01	1	0311-0501	●
80	04.343 GEAR; SPD DRIVE 4HG1 ENG(RJH) Z=4	8-97318-465-0	01	1	0502-0506	●
80	04.343 GEAR; SPD DRIVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=4	8-97318-465-0	01	1	0507-0611	●
80	04.343 GEAR; SPD DRIVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=4	8-97318-465-0	01	1	0612-	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4HE1 ENG(RLY) 04.383 Z=45	8-97241-296-1	01	1	0301-0310	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.383 Z=45	8-97241-296-1	01	1	0311-0501	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4HG1 ENG(RJH) 04.383 Z=45	8-97241-296-1	01	1	0502-0506	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.383 Z=45	8-97241-296-1	01	1	0507-0611	●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.383 Z=45	8-97241-296-1	01	1	0612-	●

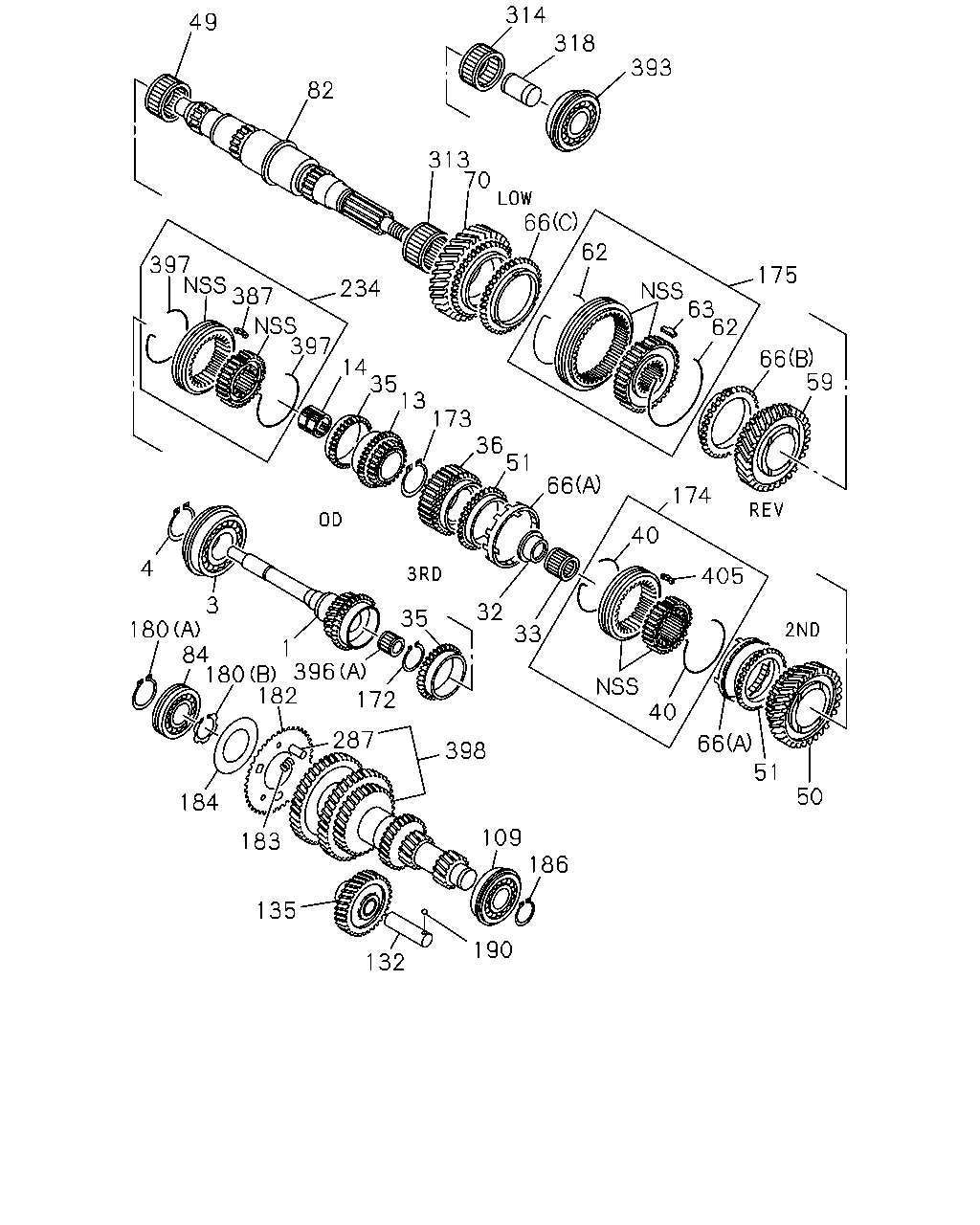

314 318 49 393 82 313 70 66 62 397 387 175 234 63 62 397 66 59 14 35 13 173 36 51 66 174 40 4 405 3 180 1 84 180 396 182 32 35 33 172 40 287 66 398 51 50 184 109 186 183 135 190 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97034-848-0	01	1	9412-9611		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	9612-0212		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=28	8-97252-924-1	01	1	0301-0310	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=28	8-97252-924-1	01	1	0311-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0502-0506	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0507-0611	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0612-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9412-0212		●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-098-1	01	1	0301-0310	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) NSK	8-97253-098-1	01	1	0311-0501	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0502-0506	●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0507-0611	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0612-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	9412-0212		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	9412-0212		●
14	04.419 BEARING; NEEDLE,5TH	8-97035-069-0	01	1	9412-9512		●
14	04.419 BEARING; NEEDLE,5TH	8-97147-572-0	01	1	9601-0212		●
32	04.415 COLLAR; 3RD GEAR	8-94178-500-2	01	1	9412-0212		●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	9412-0212		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	9802-0212		●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9412-0212		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	9412-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97034-854-1	01	1	0202-0212		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-234-0	01	1	0301-0310	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=34	8-97241-234-0	01	1	0311-0501	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0502-0506	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0507-0611	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0612-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9412-0212		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	9412-0212		●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	9802-0212		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9412-0105		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0201		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97262-951-0	01	1	0202-0212		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=38	8-97241-237-1	01	1	0301-0310	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=38	8-97241-237-1	01	1	0311-0501	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0502-0506	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0507-0611	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0612-	●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	9412-0212		●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) Z=41	8-97350-011-0	01	1	0507-	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9412-0201		●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97094-821-1	01	1	0202-0212		●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=41	8-97241-244-0	01	1	0301-0310	●
59	04.417 GEAR; REV MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=41	8-97241-244-0	01	1	0311-0501	●
59	04.417 GEAR; REV MAINSHAFT 4HG1 ENG(RJH) Z=41	8-97241-244-0	01	1	0502-0801	●
59	04.417 GEAR; REV MAINSHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) Z=41	8-97241-244-0	01	1	0802-	●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	9412-0212		●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9412-0201		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0202-0212		●
66	04.383 RING; BLOCK,SYN (C) Z=45	8-97061-752-0	01	1	9412-0212		●
66	04.383 RING; BLOCK,SYN (A) OUTER	8-94316-749-0	02	1	0202-0212		●
66	04.383 RING; BLOCK,SYN (B) Z=30	8-97034-840-1	01	1	0202-0212		●
66	04.383 RING; BLOCK,SYN (A) INNER	8-97248-220-0	02	1	0202-0212		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9412-0212		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-242-1	01	1	0301-0310	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=43	8-97241-242-1	01	1	0311-0404	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=43	8-97350-010-0	01	1	0405-0501	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0502-0506	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0507-0611	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0612-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9412-0212		●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97314-394-1	01	1	0301-0310	●
82	04.403 SHAFT; MAIN,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=28-42-42-21	8-97314-394-1	01	1	0311-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0502-0506	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0507-0611	●
82	04.403 SHAFT; MAIN,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0612-	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	9412-0212		●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	9412-0212		●

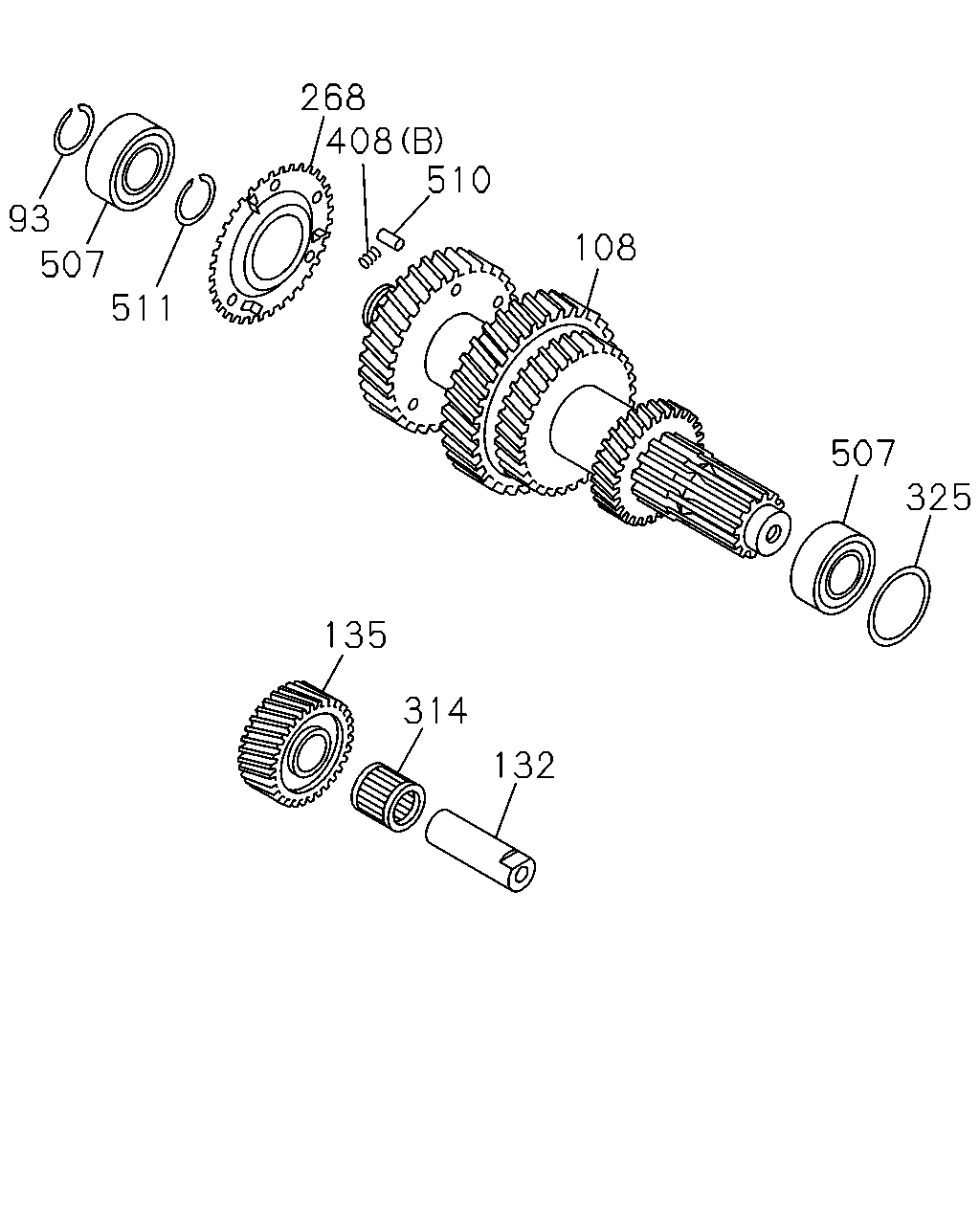

132	04.433 SHAFT; REV	8-94415-162-1	01	1	9412-0212		●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0301-0310	●
132	04.433 SHAFT; REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-655-0	01	1	0311-0501	●
132	04.433 SHAFT; REV 4HG1 ENG(RJH)	8-97252-655-0	01	1	0502-0506	●
132	04.433 SHAFT; REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-655-0	01	1	0507-0611	●
132	04.433 SHAFT; REV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-655-0	01	1	0612-	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9412-0212		●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=25	8-97241-293-0	01	1	0301-0310	●
135	04.430 GEAR; REV IDLER 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=25	8-97241-293-0	01	1	0311-0501	●
135	04.430 GEAR; REV IDLER 4HG1 ENG(RJH) Z=25	8-97241-293-0	01	1	0502-0506	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-97241-293-0	01	1	0507-0512	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-98031-869-0	01	1	0601-0611	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-98031-869-1	01	1	0612-	●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	9412-0212		●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	9412-0212		●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	9412-0212		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9412-0212		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9412-0212		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9412-0212		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9412-0212		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97091-432-0	01	1	9412-9711		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	9712-0201		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-991-0	01	1	0202-0212		●
175	04.380 SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	9412-0201		●
175	04.380 SYNCHRONIZER; LOW-REV	8-97048-738-0	01	1	0202-0212		●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	9412-0212		●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	9811-0212		●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	9412-0212		●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	9412-0212		●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	9412-0212		●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	9412-0212		●
190	04.435 BALL; LK,REV SHAFT 04.311	9-00097-509-0	01	1	9412-0212		●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	9412-0212		●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	9412-0212		●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	9412-0212		●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	9802-0212		●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	9412-0212		●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9802-0212		●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0301-0310	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HG1 ENG(RJH),4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0311-0501	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0502-0506	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0507-0611	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0612-	●
318	04.419 COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	9412-0212		●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9412-0212		●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	9412-0212		●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY)	8-97253-105-1	01	1	0301-0310	●
393	04.352 BEARING; MAINSHAFT END 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97253-105-1	01	1	0311-0501	●
393	04.352 BEARING; MAINSHAFT END 4HG1 ENG(RJH)	8-97253-105-1	01	1	0502-0506	●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-105-1	01	1	0507-0611	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-105-1	01	1	0612-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97035-050-0	01	1	9412-9904		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	9905-0212		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (C)	8-97253-102-1	01	1	0301-0310	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) (C)	8-97253-102-1	01	1	0311-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH) (C)	8-97253-102-1	01	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-97253-102-1	01	1	0507-0611	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-97253-102-1	01	1	0612-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (B)	8-97253-110-0	04	1	0301-0310	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97253-110-0	04	1	0311-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0507-0611	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0612-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9412-0212		●
398	04.421 GEAR; COUNTER Z=45-49-36-20-14-13	8-97075-976-0	01	1	9412-0212		●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9412-0212		●

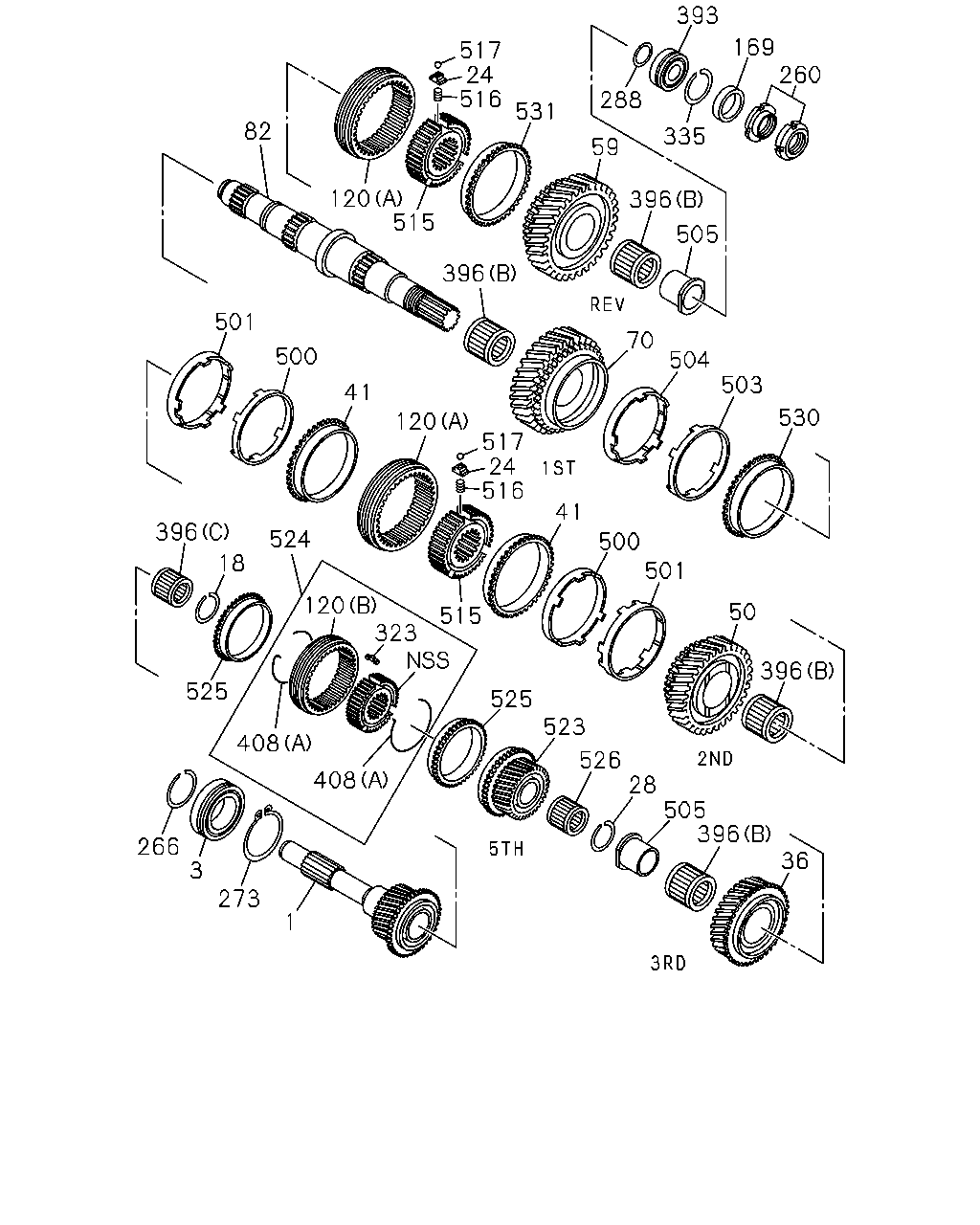

393 169 260 517 24 516 288 531 82 335 59 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97034-848-0	01	1	9412-9611		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	9612-0212		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=28	8-97252-924-1	01	1	0301-0310	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=28	8-97252-924-1	01	1	0311-0501	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0502-0506	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0507-0611	●
1	04.351 SHAFT; TOP GEAR,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28	8-97252-924-1	01	1	0612-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	9412-0212		●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-098-1	01	1	0301-0310	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) NSK	8-97253-098-1	01	1	0311-0501	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0502-0506	●
3	04.403 BEARING; TOP GEAR SHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0507-0611	●
3	04.403 BEARING; TOP GEAR SHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-098-1	01	1	0612-	●
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ID=30.7 T=1.8	8-97254-728-0	01	1	0301-0310	●
18	04.384 RING; SNAP,CLU HUB 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=30.7 T=1.8	8-97254-728-0	01	1	0311-0501	●
18	04.384 RING; SNAP,CLU HUB 4HG1 ENG(RJH) ID=30.7 T=1.8	8-97254-728-0	01	1	0502-0506	●
18	04.384 RING; SNAP,CLU HUB 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=1.8	8-97254-728-0	01	1	0507-0611	●
18	04.384 RING; SNAP,CLU HUB 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=1.8	8-97254-728-0	01	1	0612-	●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	8-97241-313-1	06	1	0301-0310	●
24	04.383 BLOCK; INDEX,SYN 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-313-1	06	1	0311-0501	●
24	04.383 BLOCK; INDEX,SYN 4HG1 ENG(RJH)	8-97241-313-1	06	1	0502-0506	●
24	04.383 BLOCK; INDEX,SYN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-313-1	06	1	0507-0611	●
24	04.383 BLOCK; INDEX,SYN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-313-1	06	1	0612-	●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY) ID=46.5 T=1.8	8-97254-743-0	01	1	0301-0310	●
28	04.416 RING; SNAP,3RD GEAR 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=46.5 T=1.8	8-97254-743-0	01	1	0311-0501	●
28	04.416 RING; SNAP,3RD GEAR 4HG1 ENG(RJH) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-0506	●
28	04.416 RING; SNAP,3RD GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=46.5 T=1.8	8-97254-743-0	01	1	0507-0611	●
28	04.416 RING; SNAP,3RD GEAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=46.5 T=1.8	8-97254-743-0	01	1	0612-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	9412-0201		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97034-854-1	01	1	0202-0212		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-234-0	01	1	0301-0310	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=34	8-97241-234-0	01	1	0311-0501	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0502-0506	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0507-0611	●
36	04.415 GEAR; 3RD,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=34	8-97241-234-0	01	1	0612-	●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1 ENG(RLY) Z=45	8-97241-306-1	02	1	0301-0310	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=45	8-97241-306-1	02	1	0311-0501	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1 ENG(RJH) Z=45	8-97241-306-1	02	1	0502-0506	●
41	04.383 RING; BLOCK,2ND & 3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97241-306-1	02	1	0507-0611	●
41	04.383 RING; BLOCK,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97241-306-1	02	1	0612-	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-94178-506-4	01	1	9412-0105		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0106-0201		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97262-951-0	01	1	0202-0212		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=38	8-97241-237-1	01	1	0301-0310	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=38	8-97241-237-1	01	1	0311-0501	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0502-0506	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0507-0611	●
50	04.395 GEAR; 2ND,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=38	8-97241-237-1	01	1	0612-	●
59	04.417 GEAR; REV MAINSHAFT 4HK1-TCN ENG(RDQ) Z=41	8-97350-011-0	01	1	0507-	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	9412-0201		●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97094-821-1	01	1	0202-0212		●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=41	8-97241-244-0	01	1	0301-0310	●
59	04.417 GEAR; REV MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=41	8-97241-244-0	01	1	0311-0501	●
59	04.417 GEAR; REV MAINSHAFT 4HG1 ENG(RJH) Z=41	8-97241-244-0	01	1	0502-0801	●
59	04.417 GEAR; REV MAINSHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) Z=41	8-97241-244-0	01	1	0802-	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	9412-0212		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-242-1	01	1	0301-0310	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=43	8-97241-242-1	01	1	0311-0404	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=43	8-97350-010-0	01	1	0405-0501	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0502-0506	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0507-0611	●
70	04.417 GEAR; 1ST,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=43	8-97350-010-0	01	1	0612-	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	9412-0212		●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=28-42-42-21	8-97314-394-1	01	1	0301-0310	●
82	04.403 SHAFT; MAIN,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=28-42-42-21	8-97314-394-1	01	1	0311-0501	●
82	04.403 SHAFT; MAIN,TRANS 4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0502-0506	●
82	04.403 SHAFT; MAIN,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0507-0611	●
82	04.403 SHAFT; MAIN,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=28-42-42-21	8-97314-394-1	01	1	0612-	●
120	04.383 SLEEVE 4HG1 ENG(RJH) 04.535 (B) Z=45	8-94421-871-1	01	1	0502-0506	●
120	04.383 SLEEVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.535 (B) Z=45	8-94421-871-1	01	1	0507-0611	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.535 (B) Z=45	8-94421-871-1	01	1	0612-	●
120	04.383 SLEEVE 4HE1 ENG(RLY) (A) Z=45	8-97241-296-1	02	1	0301-0310	●
120	04.383 SLEEVE 4HG1 ENG(RJH),4HE1 ENG(RLY) (A) Z=45	8-97241-296-1	02	1	0311-0501	●
120	04.383 SLEEVE 4HG1 ENG(RJH) (A) Z=45	8-97241-296-1	02	1	0502-0506	●
120	04.383 SLEEVE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) Z=45	8-97241-296-1	02	1	0507-0611	●
120	04.383 SLEEVE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) Z=45	8-97241-296-1	02	1	0612-	●
169	04.419 COLLAR; MAINSHAFT 4HE1 ENG(RLY)	8-97314-455-0	01	1	0301-0310	●
169	04.419 COLLAR; MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97314-455-0	01	1	0311-0501	●
169	04.419 COLLAR; MAINSHAFT 4HG1 ENG(RJH)	8-97314-455-0	01	1	0502-0506	●
169	04.419 COLLAR; MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-455-0	01	1	0507-0611	●
169	04.419 COLLAR; MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-455-0	01	1	0612-	●
260	04.412 NUT; MAINSHAFT END 4HE1 ENG(RLY)	8-97314-121-0	01	1	0301-0310	●
260	04.412 NUT; MAINSHAFT END 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97314-121-0	01	1	0311-0501	●
260	04.412 NUT; MAINSHAFT END 4HG1 ENG(RJH)	8-97314-121-0	01	1	0502-0506	●
260	04.412 NUT; MAINSHAFT END 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-121-1	01	1	0507-0611	●
260	04.412 NUT; MAINSHAFT END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97314-121-1	01	1	0612-	●
266	04.525 RING; SNAP,BRG INNER 4HE1 ENG(RLY)	8-97286-916-0	01	1	0301-0310	●
266	04.525 RING; SNAP,BRG INNER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97286-916-0	01	1	0311-0501	●
266	04.525 RING; SNAP,BRG INNER 4HG1 ENG(RJH)	8-97286-916-0	01	1	0502-0506	●
266	04.525 RING; SNAP,BRG INNER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97286-916-0	01	1	0507-0611	●
266	04.525 RING; SNAP,BRG INNER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97286-916-0	01	1	0612-	●
273	04.525 RING; SNAP,BRG OUTER 4HE1 ENG(RLY)	8-97254-610-0	01	1	0301-0310	●
273	04.525 RING; SNAP,BRG OUTER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97254-610-0	01	1	0311-0501	●
273	04.525 RING; SNAP,BRG OUTER 4HG1 ENG(RJH)	8-97254-610-0	01	1	0502-0506	●
273	04.525 RING; SNAP,BRG OUTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-610-0	01	1	0507-0611	●
273	04.525 RING; SNAP,BRG OUTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-610-0	01	1	0612-	●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1 ENG(RLY)	8-97252-942-0	01	1	0301-0310	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-942-0	01	1	0311-0501	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1 ENG(RJH)	8-97252-942-0	01	1	0502-0506	●
288	04.399 SPACER; BRG,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-942-0	01	1	0507-0611	●
288	04.399 SPACER; BRG,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-942-0	01	1	0612-	●
323	04.384 INSERT 4HE1 ENG(RLY)	8-94448-202-2	03	1	0301-0310	●
323	04.384 INSERT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94448-202-2	03	1	0311-0501	●
323	04.384 INSERT 4HG1 ENG(RJH)	8-94448-202-2	03	1	0502-0506	●
323	04.384 INSERT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94448-202-2	03	1	0507-0611	●
323	04.384 INSERT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94448-202-2	03	1	0612-	●
335	04.383 RING; SNAP,BEARING 4HE1 ENG(RLY)	8-97254-722-0	01	1	0301-0310	●
335	04.383 RING; SNAP,BEARING 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97254-722-0	01	1	0311-0501	●
335	04.383 RING; SNAP,BEARING 4HG1 ENG(RJH)	8-97254-722-0	01	1	0502-0506	●
335	04.383 RING; SNAP,BEARING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-722-0	01	1	0507-0611	●
335	04.383 RING; SNAP,BEARING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-722-0	01	1	0612-	●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	9412-0212		●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY)	8-97253-105-1	01	1	0301-0310	●
393	04.352 BEARING; MAINSHAFT END 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97253-105-1	01	1	0311-0501	●
393	04.352 BEARING; MAINSHAFT END 4HG1 ENG(RJH)	8-97253-105-1	01	1	0502-0506	●
393	04.352 BEARING; MAINSHAFT END 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-105-1	01	1	0507-0611	●
393	04.352 BEARING; MAINSHAFT END 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-105-1	01	1	0612-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97035-050-0	01	1	9412-9904		●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	9905-0212		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (C)	8-97253-102-1	01	1	0301-0310	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) (C)	8-97253-102-1	01	1	0311-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH) (C)	8-97253-102-1	01	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-97253-102-1	01	1	0507-0611	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C)	8-97253-102-1	01	1	0612-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (B)	8-97253-110-0	04	1	0301-0310	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97253-110-0	04	1	0311-0501	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0502-0506	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0507-0611	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97253-110-0	04	1	0612-	●
408	04.384 SPRING 4HE1 ENG(RLY) 04.422 (B)	8-94148-196-0	03	1	0301-0310	●
408	04.384 SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.422 (B)	8-94148-196-0	03	1	0311-0501	●
408	04.384 SPRING 4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0502-0506	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0507-0611	●
408	04.384 SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0612-	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0301-0310	●
408	04.384 SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0311-0404	●
408	04.384 SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HG1 ENG(RJH) (A)	8-97366-040-0	02	1	0502-0506	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97366-040-1	02	1	0507-0611	●
408	04.384 SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97366-040-1	02	1	0612-	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-309-1	02	1	0301-0310	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-309-1	02	1	0311-0501	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1 ENG(RJH)	8-97241-309-1	02	1	0502-0506	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-309-1	02	1	0507-0611	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-309-1	02	1	0612-	●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-312-1	02	1	0301-0310	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-312-1	02	1	0311-0501	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1 ENG(RJH)	8-97241-312-1	02	1	0502-0506	●
501	04.383 RING; INSIDE,3RD & 2ND 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-312-1	02	1	0507-0611	●
501	04.383 RING; INSIDE,3RD & 2ND 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-312-1	02	1	0612-	●
503	04.383 RING; OUTSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-309-1	02	1	0507-	●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-309-1	01	1	0301-0310	●
503	04.383 RING; OUTSIDE,LOW & REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-309-1	01	1	0311-0501	●
503	04.383 RING; OUTSIDE,LOW & REV 4HG1 ENG(RJH)	8-97241-309-1	01	1	0502-0801	●
503	04.383 RING; OUTSIDE,LOW & REV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97241-309-1	01	1	0802-	●
504	04.383 RING; INSIDE,LOW & REV 4HK1-TCN ENG(RDQ)	8-97241-312-1	02	1	0507-	●
504	04.383 RING; INSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-312-1	01	1	0301-0310	●
504	04.383 RING; INSIDE,LOW & REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-312-1	01	1	0311-0501	●
504	04.383 RING; INSIDE,LOW & REV 4HG1 ENG(RJH)	8-97241-312-1	01	1	0502-0801	●
504	04.383 RING; INSIDE,LOW & REV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97241-312-1	01	1	0802-	●
505	04.419 COLLAR; 3RD & REV 4HE1 ENG(RLY)	8-97253-119-2	02	1	0301-0310	●
505	04.419 COLLAR; 3RD & REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97253-119-2	02	1	0311-0501	●
505	04.419 COLLAR; 3RD & REV 4HG1 ENG(RJH)	8-97253-119-2	02	1	0502-0506	●
505	04.419 COLLAR; 3RD & REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-119-2	02	1	0507-0611	●
505	04.419 COLLAR; 3RD & REV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-119-2	02	1	0612-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1 ENG(RLY)	8-97241-298-2	02	1	0301-0310	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-298-2	02	1	0311-0501	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1 ENG(RJH)	8-97241-298-2	02	1	0502-0506	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-298-2	02	1	0507-0611	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-298-3	02	1	0612-	●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97254-835-0	06	1	0301-0310	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97254-835-0	06	1	0311-0501	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1 ENG(RJH)	8-97254-835-0	06	1	0502-0506	●
516	04.384 SPRING; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-835-0	06	1	0507-0611	●
516	04.384 SPRING; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-835-0	06	1	0612-	●
517	04.384 BALL; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97252-935-0	06	1	0301-0310	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-935-0	06	1	0311-0501	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1 ENG(RJH)	8-97252-935-0	06	1	0502-0506	●
517	04.384 BALL; SYNCHRO,INDEX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-935-0	06	1	0507-0611	●
517	04.384 BALL; SYNCHRO,INDEX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-935-0	06	1	0612-	●
523	04.395 GEAR; OD,MAINSHAFT 4HE1 ENG(RLY) Z=22	8-97241-231-0	01	1	0301-0310	●
523	04.395 GEAR; OD,MAINSHAFT 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=22	8-97241-231-0	01	1	0311-0501	●
523	04.395 GEAR; OD,MAINSHAFT 4HG1 ENG(RJH) Z=22	8-97241-231-0	01	1	0502-0506	●
523	04.395 GEAR; OD,MAINSHAFT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=22	8-97241-231-0	01	1	0507-0611	●
523	04.395 GEAR; OD,MAINSHAFT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=22	8-97241-231-0	01	1	0612-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HE1 ENG(RLY)	8-97300-195-0	01	1	0301-0310	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97300-195-0	01	1	0311-0404	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97366-526-0	01	1	0405-0501	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1 ENG(RJH)	8-97366-526-0	01	1	0502-0506	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97366-526-0	01	1	0507-0611	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97366-526-0	01	1	0612-	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HE1 ENG(RLY) Z=45	8-97309-532-0	02	1	0301-0310	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=45	8-97309-532-0	02	1	0311-0501	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1 ENG(RJH) Z=45	8-97309-532-0	02	1	0502-0506	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97309-532-0	02	1	0507-0611	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97309-532-0	02	1	0612-	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HE1 ENG(RLY)	8-97253-112-0	01	1	0301-0310	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97253-112-0	01	1	0311-0501	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1 ENG(RJH)	8-97253-112-0	01	1	0502-0506	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-112-0	01	1	0507-0611	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-112-0	01	1	0612-	●
530	04.383 RING; BLOCK,LOW 4HE1 ENG(RLY) Z=45	8-97241-306-1	01	1	0301-0310	●
530	04.383 RING; BLOCK,LOW 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=45	8-97241-306-1	01	1	0311-0501	●
530	04.383 RING; BLOCK,LOW 4HG1 ENG(RJH) Z=45	8-97241-306-1	01	1	0502-0506	●
530	04.383 RING; BLOCK,LOW 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97241-306-1	01	1	0507-0611	●
530	04.383 RING; BLOCK,LOW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45	8-97241-306-1	01	1	0612-	●
531	04.383 RING; BLOCK,REV 4HK1-TCN ENG(RDQ) Z=45	8-97241-306-1	01	1	0507-	●
531	04.383 RING; BLOCK,REV 4HE1 ENG(RLY) Z=45	8-97328-151-1	01	1	0301-0305	●
531	04.383 RING; BLOCK,REV 4HE1 ENG(RLY) Z=45	8-97368-343-0	01	1	0306-0310	●
531	04.383 RING; BLOCK,REV 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=45	8-97368-343-0	01	1	0311-0501	●
531	04.383 RING; BLOCK,REV 4HG1 ENG(RJH) Z=45	8-97368-343-0	01	1	0502-0801	●
531	04.383 RING; BLOCK,REV 4HG1-T ENG(RDP),4HG1 ENG(RJH) Z=45	8-97368-343-0	01	1	0802-	●

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=30.7 T=1.9	8-97254-734-0	01	1	0301-0310	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=30.7 T=1.9	8-97254-734-0	01	1	0311-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1 ENG(RJH) ID=30.7 T=1.9	8-97254-734-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=1.9	8-97254-734-0	01	1	0507-0611	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=1.9	8-97254-734-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=30.7 T=2.1	8-97254-740-0	01	1	0301-0310	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=30.7 T=2.1	8-97254-740-0	01	1	0311-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1 ENG(RJH) ID=30.7 T=2.1	8-97254-740-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=2.1	8-97254-740-0	01	1	0507-0611	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=2.1	8-97254-740-0	01	1	0612-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=30.7 T=2.3	8-97254-742-0	01	1	0301-0310	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=30.7 T=2.3	8-97254-742-0	01	1	0311-0501	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1 ENG(RJH) ID=30.7 T=2.3	8-97254-742-0	01	1	0502-0506	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=2.3	8-97254-742-0	01	1	0507-0611	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=30.7 T=2.3	8-97254-742-0	01	1	0612-	●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=45-49-33-20	8-97326-590-0	01	1	0301-0310	●
108	04.428 SHAFT; COUNTER 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=45-49-33-20	8-97326-590-0	01	1	0311-0404	●
108	04.428 SHAFT; COUNTER 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=45-49-33-20	8-97380-630-0	01	1	0405-0501	●
108	04.428 SHAFT; COUNTER 4HG1 ENG(RJH) Z=45-49-33-20	8-97380-630-0	01	1	0502-0506	●
108	04.428 SHAFT; COUNTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45-49-33-20	8-97380-630-1	01	1	0507-0611	●
108	04.428 SHAFT; COUNTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=45-49-33-20	8-97380-630-1	01	1	0612-	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	9412-0212		●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0301-0310	●
132	04.433 SHAFT; REV 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-655-0	01	1	0311-0501	●
132	04.433 SHAFT; REV 4HG1 ENG(RJH)	8-97252-655-0	01	1	0502-0506	●
132	04.433 SHAFT; REV 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-655-0	01	1	0507-0611	●
132	04.433 SHAFT; REV 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-655-0	01	1	0612-	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	9412-0212		●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=25	8-97241-293-0	01	1	0301-0310	●
135	04.430 GEAR; REV IDLER 4HG1 ENG(RJH),4HE1 ENG(RLY) Z=25	8-97241-293-0	01	1	0311-0501	●
135	04.430 GEAR; REV IDLER 4HG1 ENG(RJH) Z=25	8-97241-293-0	01	1	0502-0506	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-97241-293-0	01	1	0507-0512	●
135	04.430 GEAR; REV IDLER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-98031-869-0	01	1	0601-0611	●
135	04.430 GEAR; REV IDLER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) Z=25	8-98031-869-1	01	1	0612-	●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97257-300-1	01	1	0301-0310	●
268	04.537 PLATE; ANTI LASH,COUNTER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97257-300-1	01	1	0311-0501	●
268	04.537 PLATE; ANTI LASH,COUNTER 4HG1 ENG(RJH)	8-97257-300-1	01	1	0502-0506	●
268	04.537 PLATE; ANTI LASH,COUNTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97257-300-1	01	1	0507-0611	●
268	04.537 PLATE; ANTI LASH,COUNTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97257-300-1	01	1	0612-	●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	9412-0212		●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	9802-0212		●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0301-0310	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HG1 ENG(RJH),4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0311-0501	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0502-0506	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0507-0611	●
314	04.419 BEARING; NEEDLE,REV GEAR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NSK	8-97253-114-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.41	8-97252-668-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.41	8-97252-668-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.41	8-97252-668-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.41	8-97252-668-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.41	8-97252-668-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.47	8-97252-669-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.47	8-97252-669-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.47	8-97252-669-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.47	8-97252-669-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.47	8-97252-669-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.53	8-97252-670-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.53	8-97252-670-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.53	8-97252-670-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.53	8-97252-670-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.53	8-97252-670-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.59	8-97252-671-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.59	8-97252-671-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.59	8-97252-671-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.59	8-97252-671-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.59	8-97252-671-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.65	8-97252-672-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.65	8-97252-672-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.65	8-97252-672-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.65	8-97252-672-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.65	8-97252-672-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.71	8-97252-673-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.71	8-97252-673-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.71	8-97252-673-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.71	8-97252-673-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.71	8-97252-673-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.77	8-97252-674-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.77	8-97252-674-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.77	8-97252-674-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.77	8-97252-674-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.77	8-97252-674-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.83	8-97252-675-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.83	8-97252-675-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.83	8-97252-675-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.83	8-97252-675-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.83	8-97252-675-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.89	8-97257-622-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.89	8-97257-622-0	01	1	0311-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.89	8-97257-622-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.89	8-97257-622-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.89	8-97257-622-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=2.95	8-97320-549-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.95	8-97320-549-0	01	1	0311-0404	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.29	8-97252-666-0	01	1	0405-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.29	8-97252-666-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.29	8-97252-666-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.29	8-97252-666-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.01	8-97320-550-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=3.01	8-97320-550-0	01	1	0311-0404	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.35	8-97252-667-0	01	1	0405-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.35	8-97252-667-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.35	8-97252-667-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.35	8-97252-667-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.07	8-97320-551-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=3.07	8-97320-551-0	01	1	0311-0404	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.11	8-97306-188-0	01	1	0405-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.11	8-97306-188-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.11	8-97306-188-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.11	8-97306-188-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.13	8-97320-552-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=3.13	8-97320-552-0	01	1	0311-0404	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.17	8-97306-189-0	01	1	0405-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.17	8-97306-189-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.17	8-97306-189-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.17	8-97306-189-0	01	1	0612-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=62.7 T=3.19	8-97320-553-0	01	1	0301-0310	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=3.19	8-97320-553-0	01	1	0311-0404	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=62.7 T=2.23	8-97306-190-0	01	1	0405-0501	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1 ENG(RJH) ID=62.7 T=2.23	8-97306-190-0	01	1	0502-0506	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.23	8-97306-190-0	01	1	0507-0611	●
325	04.423 SHIM; COUNTER SHAFT BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=62.7 T=2.23	8-97306-190-0	01	1	0612-	●
408	04.384 SPRING 4HE1 ENG(RLY) 04.422 (B)	8-94148-196-0	03	1	0301-0310	●
408	04.384 SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.422 (B)	8-94148-196-0	03	1	0311-0501	●
408	04.384 SPRING 4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0502-0506	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0507-0611	●
408	04.384 SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.422 (B)	8-94148-196-0	03	1	0612-	●
408	04.384 SPRING 4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0301-0310	●
408	04.384 SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-94422-075-0	02	1	0311-0404	●
408	04.384 SPRING 4HG1 ENG(RJH),4HE1 ENG(RLY) (A)	8-97366-040-0	02	1	0405-0501	●
408	04.384 SPRING 4HG1 ENG(RJH) (A)	8-97366-040-0	02	1	0502-0506	●
408	04.384 SPRING 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97366-040-1	02	1	0507-0611	●
408	04.384 SPRING 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-97366-040-1	02	1	0612-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1 ENG(RLY)	8-97253-107-0	02	1	0301-0310	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97253-107-0	02	1	0311-0501	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1 ENG(RJH)	8-97253-107-0	02	1	0502-0506	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-107-0	02	1	0507-0611	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-107-0	02	1	0612-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HE1 ENG(RLY) 00.862	9-08160-825-0	03	1	0301-0310	●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.862	9-08160-825-0	03	1	0311-0501	●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HG1 ENG(RJH) 00.862	9-08160-825-0	03	1	0502-0506	●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.862	9-08160-825-0	03	1	0507-0611	●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.862	9-08160-825-0	03	1	0612-	●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HE1 ENG(RLY)	8-97254-767-0	01	1	0301-0310	●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97254-767-0	01	1	0311-0501	●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HG1 ENG(RJH)	8-97254-767-0	01	1	0502-0506	●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-767-0	01	1	0507-0611	●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97254-767-0	01	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
