Sayfa 2-20 - Isuzu EPC

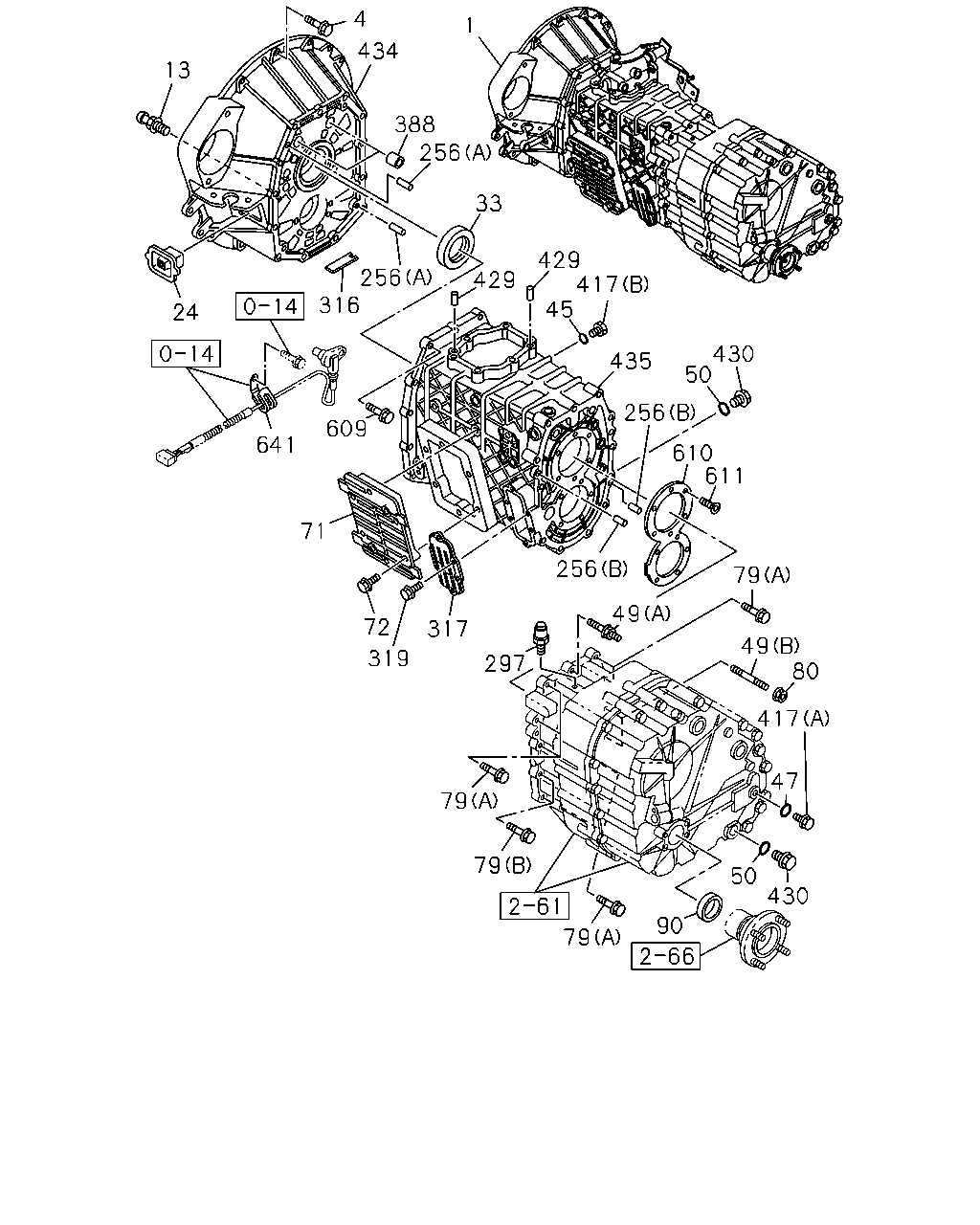

2-20 — MANUAL TRANSMISSION ASM AND CASE (#43870) — 322 parça

4 1 434 13 388 256 33 429 417 45 256 316 429 24 430 50 435 256 610 611 609 641 256 71 79 49 72 317 49 80 319 297 417 47 79 79 50 430 90 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ)	8-98001-193-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97092-045-0	01	1	9412-9504		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97117-395-0	01	1	9505-9605		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-344-0	01	1	9606-0201		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97328-897-0	01	1	0202-0212		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97355-941-0	01	1	0301-0404	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97373-965-0	01	1	0405-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-97374-847-0	01	1	0311-0404	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-97374-848-0	01	1	0405-0801	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-848-0	01	1	0802-	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 04.510 M10X35 FLANGE	0-28181-035-0	01	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0601-0802	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 00.029 M10X35 L=65	8-97178-725-0	02	1	0507-0802	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X35 L=65	8-97178-725-0	02	1	0803-	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0301-0501	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0301-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0611	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0611	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0301-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
4	00.683 BOLT; FLYWHEEL HSG 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0301-0310	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0311-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0611	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-0802	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0803-	●
13	04.302 SUPPORT; SHIFT FORK 4HK1-TCN ENG(RDQ)	8-97255-385-1	01	1	0507-	●
13	04.302 SUPPORT; SHIFT FORK 4HE1 ENG(RLY)	8-97255-384-1	01	1	0301-0310	●
13	04.302 SUPPORT; SHIFT FORK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97255-384-1	01	1	0311-0501	●
13	04.302 SUPPORT; SHIFT FORK 4HG1 ENG(RJH)	8-97255-384-1	01	1	0502-0801	●
13	04.302 SUPPORT; SHIFT FORK 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97255-384-1	01	1	0802-	●
24	00.797 COVER; CHECK HOLE,DUST 4HE1 ENG(RLY)	8-97255-201-0	01	1	0301-0310	●
24	00.797 COVER; CHECK HOLE,DUST 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97255-201-0	01	1	0311-0501	●
24	00.797 COVER; CHECK HOLE,DUST 4HG1 ENG(RJH)	8-97255-201-0	01	1	0502-0506	●
24	00.797 COVER; CHECK HOLE,DUST 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97255-201-0	01	1	0507-0611	●
24	00.797 COVER; CHECK HOLE,DUST 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97255-201-0	01	1	0612-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY)	8-97253-550-0	01	1	0301-0310	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97253-550-0	01	1	0311-0501	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH)	8-97253-550-0	01	1	0502-0506	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-550-0	01	1	0507-0611	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97253-550-0	01	1	0612-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9412-0212		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=17	8-97115-712-0	01	1	0301-0310	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=17	8-97115-712-0	01	1	0311-0501	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0502-0506	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0507-0611	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0612-	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4HE1 ENG(RLY) 04.105 ID=17	8-97115-712-0	01	1	0301-0310	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.105 ID=17	8-97115-712-0	01	1	0311-0501	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4HG1 ENG(RJH) 04.105 ID=17	8-97115-712-0	01	1	0502-0506	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.105 ID=17	8-97115-712-0	01	1	0507-0611	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.105 ID=17	8-97115-712-0	01	1	0612-	●
49	04.510 STUD; TRANSFER CASE 4HE1 ENG(RLY) 04.319 (A) M10X15,M10X40 L=65	8-97309-013-0	01	1	0301-0310	●
49	04.510 STUD; TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.319 (A) M10X15,M10X40 L=65	8-97309-013-0	01	1	0311-0501	●
49	04.510 STUD; TRANSFER CASE 4HG1 ENG(RJH) 04.319 (A) M10X15,M10X40 L=65	8-97309-013-0	01	1	0502-0506	●
49	04.510 STUD; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.319 (A) M10X15,M10X40 L=65	8-97309-013-0	01	1	0507-0604	●
49	04.510 STUD; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-0611	●
49	04.510 STUD; TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	0612-	●
49	04.510 STUD; TRANSFER CASE 4HE1 ENG(RLY) 00.685 (B) M10X35 L=50	9-04411-035-0	02	1	0301-0310	●
49	04.510 STUD; TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.685 (B) M10X35 L=50	9-04411-035-0	02	1	0311-0501	●
49	04.510 STUD; TRANSFER CASE 4HG1 ENG(RJH) 00.685 (B) M10X35 L=50	9-04411-035-0	02	1	0502-0506	●
49	04.510 STUD; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.685 (B) M10X35 L=50	9-04411-035-0	02	1	0507-0604	●
49	04.510 STUD; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	0605-0611	●
49	04.510 STUD; TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.275 (B) M10X35 L=50	0-44011-035-0	02	1	0612-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	02	1	0507-0611	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0612-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9412-0212		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=17	8-97115-712-0	03	1	0301-0310	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=17	8-97115-712-0	03	1	0311-0501	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) ID=17	8-97115-712-0	03	1	0502-0506	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0507-0611	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	02	1	0612-	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9412-0212		●
71	04.439 COVER; SIDE,TRANS CASE 4HE1 ENG(RLY)	8-97252-625-0	01	1	0301-0310	●
71	04.439 COVER; SIDE,TRANS CASE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-625-0	01	1	0311-0501	●
71	04.439 COVER; SIDE,TRANS CASE 4HG1 ENG(RJH)	8-97252-625-0	01	1	0502-0506	●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-625-0	01	1	0507-0611	●
71	04.439 COVER; SIDE,TRANS CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-625-0	01	1	0612-	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9412-0212		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0301-	●
79	04.510 BOLT; TRANSFER CASE 4HE1 ENG(RLY) (A) M10X40 FLANGE	0-28181-040-0	08	1	0301-0310	●
79	04.510 BOLT; TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) (A) M10X40 FLANGE	0-28181-040-0	08	1	0311-0501	●
79	04.510 BOLT; TRANSFER CASE 4HG1 ENG(RJH) (A) M10X40 FLANGE	0-28181-040-0	08	1	0502-0506	●
79	04.510 BOLT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) M10X40 FLANGE	0-28181-040-0	08	1	0507-0512	●
79	04.510 BOLT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 (A) M10X40 FLANGE	0-28151-040-0	08	1	0601-0611	●
79	04.510 BOLT; TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 (A) M10X40 FLANGE	0-28151-040-0	08	1	0612-	●
79	04.510 BOLT; TRANSFER CASE 4HE1 ENG(RLY) 04.317 (B) M10X40 FLANGE	8-97305-392-0	02	1	0301-0310	●
79	04.510 BOLT; TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.317 (B) M10X40 FLANGE	8-97305-392-0	02	1	0311-0501	●
79	04.510 BOLT; TRANSFER CASE 4HG1 ENG(RJH) 04.317 (B) M10X40 FLANGE	8-97305-392-0	02	1	0502-0506	●
79	04.510 BOLT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.317 (B) M10X40 FLANGE	8-97305-392-0	02	1	0507-0604	●
79	04.510 BOLT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-0611	●
79	04.510 BOLT; TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) M10X40 FLANGE	8-97365-377-0	02	1	0612-	●
80	04.510 NUT; TRANSFER CASE 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0301-0310	●
80	04.510 NUT; TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0311-0501	●
80	04.510 NUT; TRANSFER CASE 4HG1 ENG(RJH) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0506	●
80	04.510 NUT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●
80	04.510 NUT; TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0611	●
80	04.510 NUT; TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.085 M10 FLANGE	0-91180-210-0	02	1	0612-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK	8-97253-552-1	01	1	0301-0310	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) NOK	8-97253-552-1	01	1	0311-0501	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) NOK	8-97253-552-1	01	1	0502-0506	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NOK	8-97253-552-1	01	1	0507-0611	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) NOK	8-97253-552-1	01	1	0612-	●
256	04.317 PIN; KNOCK 4HE1 ENG(RLY) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0301-0310	●
256	04.317 PIN; KNOCK 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0311-0501	●
256	04.317 PIN; KNOCK 4HG1 ENG(RJH) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0502-0506	●
256	04.317 PIN; KNOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0507-0611	●
256	04.317 PIN; KNOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0612-	●
256	04.317 PIN; KNOCK 4HE1 ENG(RLY) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0301-0310	●
256	04.317 PIN; KNOCK 4HG1 ENG(RJH),4HE1 ENG(RLY) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0311-0501	●
256	04.317 PIN; KNOCK 4HG1 ENG(RJH) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0502-0506	●
256	04.317 PIN; KNOCK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0507-0611	●
256	04.317 PIN; KNOCK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0612-	●
297	04.104 BREATHER; AIR,TRANSFER CASE 4HE1 ENG(RLY) 04.510	8-97258-213-0	01	1	0301-0310	●
297	04.104 BREATHER; AIR,TRANSFER CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.510	8-97258-213-0	01	1	0311-0501	●
297	04.104 BREATHER; AIR,TRANSFER CASE 4HG1 ENG(RJH) 04.510	8-97258-213-0	01	1	0502-0506	●
297	04.104 BREATHER; AIR,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510	8-97258-213-0	01	1	0507-0604	●
297	04.104 BREATHER; AIR,TRANSFER CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98031-520-0	01	1	0605-0611	●
297	04.104 BREATHER; AIR,TRANSFER CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98031-520-0	01	1	0612-	●
316	04.105 MAGNET; TRANS CASE 4HE1 ENG(RLY)	8-94249-524-2	01	1	0301-0310	●
316	04.105 MAGNET; TRANS CASE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-94249-524-2	01	1	0311-0501	●
316	04.105 MAGNET; TRANS CASE 4HG1 ENG(RJH)	8-94249-524-2	01	1	0502-0506	●
316	04.105 MAGNET; TRANS CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94249-524-2	01	1	0507-0611	●
316	04.105 MAGNET; TRANS CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-94249-524-2	01	1	0612-	●
317	04.109 COVER; CASE 4HE1 ENG(RLY)	8-97252-626-0	01	1	0301-0310	●
317	04.109 COVER; CASE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-626-0	01	1	0311-0501	●
317	04.109 COVER; CASE 4HG1 ENG(RJH)	8-97252-626-0	01	1	0502-0506	●
317	04.109 COVER; CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-626-0	01	1	0507-0611	●
317	04.109 COVER; CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-626-0	01	1	0612-	●
319	04.109 BOLT; COVER 4HE1 ENG(RLY) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0301-0310	●
319	04.109 BOLT; COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0311-0501	●
319	04.109 BOLT; COVER 4HG1 ENG(RJH) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0502-0506	●
319	04.109 BOLT; COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0507-0512	●
319	04.109 BOLT; COVER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-0611	●
319	04.109 BOLT; COVER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0612-	●
388	00.683 BUSHING; CLU HSG 4HE1 ENG(RLY)	8-97241-326-1	02	1	0301-0310	●
388	00.683 BUSHING; CLU HSG 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-326-2	02	1	0311-0501	●
388	00.683 BUSHING; CLU HSG 4HG1 ENG(RJH)	8-97241-326-2	02	1	0502-0506	●
388	00.683 BUSHING; CLU HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-326-2	02	1	0507-0611	●
388	00.683 BUSHING; CLU HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-326-2	02	1	0612-	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1 ENG(RJH) 08.971 (B)	8-94310-917-0	02	1	0502-0506	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.971 (B)	8-94310-917-0	01	1	0507-0604	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.971 (B)	8-94310-917-0	01	1	0507-0604	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0605-0611	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0605-0611	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0612-	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0612-	●
417	04.105 PLUG; OIL FILLER,TRANS (C) M18	8-94337-946-1	01	1	9412-0212		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971 (B)	8-94310-917-0	01	1	0301-0309	●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971 (B)	8-94310-917-0	02	1	0310-0310	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.971 (B)	8-94310-917-0	02	1	0311-0501	●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 04.103 (A) M20X10.5	9-09662-005-0	01	1	0301-0309	●
429	04.105 PIN; STRAIGHT 4HE1 ENG(RLY) 04.510 OD=10 L=20	8-97135-423-0	02	1	0301-0310	●
429	04.105 PIN; STRAIGHT 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.510 OD=10 L=20	8-97135-423-0	02	1	0311-0501	●
429	04.105 PIN; STRAIGHT 4HG1 ENG(RJH) 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-0506	●
429	04.105 PIN; STRAIGHT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0611	●
429	04.105 PIN; STRAIGHT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-	●
430	04.105 PLUG; OIL DRAIN 4HG1 ENG(RJH)	9-09662-004-0	03	1	0502-0506	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09662-004-0	01	1	0507-0604	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	01	1	0605-0611	●
430	04.105 PLUG; OIL DRAIN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	01	1	0612-	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09662-004-0	02	1	0507-0604	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	02	1	0605-0611	●
430	04.105 PLUG; OIL DRAIN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	02	1	0612-	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	9412-0212		●
430	04.105 PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	03	1	0301-0310	●
430	04.105 PLUG; OIL DRAIN 4HG1 ENG(RJH),4HE1 ENG(RLY)	9-09662-004-0	03	1	0311-0501	●
434	00.683 HOUSING; CLU	8-97042-455-2	01	1	9412-9510		●
434	00.683 HOUSING; CLU	8-97131-348-0	01	1	9511-0212		●
434	00.683 HOUSING; CLU 4HE1 ENG(RLY)	8-97310-346-2	01	1	0301-0310	●
434	00.683 HOUSING; CLU 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97310-346-2	01	1	0311-0501	●
434	00.683 HOUSING; CLU 4HG1 ENG(RJH)	8-97310-346-2	01	1	0502-0506	●
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97310-346-2	01	1	0507-0611	●
434	00.683 HOUSING; CLU 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97310-346-3	01	1	0612-	●
435	04.103 CASE; TRANS	8-97034-803-2	01	1	9412-9903		●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	9904-0212		●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97237-102-7	01	1	0301-0310	●
435	04.103 CASE; TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97237-102-7	01	1	0311-0403	●
435	04.103 CASE; TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97379-374-0	01	1	0404-0501	●
435	04.103 CASE; TRANS 4HG1 ENG(RJH)	8-97379-374-0	01	1	0502-0506	●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97379-374-0	01	1	0507-0611	●
435	04.103 CASE; TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97379-374-0	01	1	0612-	●
609	04.104 BOLT; HSG TO CASE 4HE1 ENG(RLY) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0301-0310	●
609	04.104 BOLT; HSG TO CASE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0311-0501	●
609	04.104 BOLT; HSG TO CASE 4HG1 ENG(RJH) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0502-0506	●
609	04.104 BOLT; HSG TO CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0507-0512	●
609	04.104 BOLT; HSG TO CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-0611	●
609	04.104 BOLT; HSG TO CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0612-	●
610	04.412 RETAINER; BRG 4HE1 ENG(RLY)	8-97241-315-1	01	1	0301-0310	●
610	04.412 RETAINER; BRG 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97241-315-1	01	1	0311-0501	●
610	04.412 RETAINER; BRG 4HG1 ENG(RJH)	8-97241-315-1	01	1	0502-0506	●
610	04.412 RETAINER; BRG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-315-1	01	1	0507-0611	●
610	04.412 RETAINER; BRG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97241-315-1	01	1	0612-	●
611	04.104 SCREW 4HE1 ENG(RLY) M10X27	8-97254-834-2	11	1	0301-0310	●
611	04.104 SCREW 4HG1 ENG(RJH),4HE1 ENG(RLY) M10X27	8-97254-834-2	11	1	0311-0501	●
611	04.104 SCREW 4HG1 ENG(RJH) M10X27	8-97254-834-2	11	1	0502-0506	●
611	04.104 SCREW 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10X27	8-97254-834-2	11	1	0507-0604	●
611	04.104 SCREW 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10X27 TORQUES	8-97365-354-0	11	1	0605-0611	●
611	04.104 SCREW 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10X27 TORQUES	8-97365-354-0	11	1	0612-	●
641	04.710 CLIP; CAM SENSOR 4HK1-TCN ENG(RDQ) 02.698 ID=8	8-94107-659-0	01	1	0507-	●

1 4 18 434 55 54 67 420 430 50 417 45 54 126 93 94 95 435 34 72 73 55 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ)	8-98001-193-0	01	1	0507-	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97092-045-0	01	1	9412-9504		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97117-395-0	01	1	9505-9605		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-344-0	01	1	9606-0201		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97328-897-0	01	1	0202-0212		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97355-941-0	01	1	0301-0404	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97373-965-0	01	1	0405-0501	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-97374-847-0	01	1	0311-0404	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH)	8-97374-848-0	01	1	0405-0801	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-848-0	01	1	0802-	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 04.510 M10X35 FLANGE	0-28181-035-0	01	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0601-0802	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ) 00.029 M10X35 L=65	8-97178-725-0	02	1	0507-0802	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X35 L=65	8-97178-725-0	02	1	0803-	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0301-0501	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0301-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0611	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0611	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0612-	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	9412-0212		●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0301-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0502-0506	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0507-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.042 M10X50 FLANGE	0-28151-050-0	02	1	0601-	●
4	00.683 BOLT; FLYWHEEL HSG 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0301-0310	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.900 M10X50 FLANGE	0-28181-050-0	02	1	0311-0501	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0611	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0612-0802	●
4	00.683 BOLT; FLYWHEEL HSG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0803-	●
18	00.683 SUPPORT; DRAW LEVER 00.796 L=47.5	5-31345-002-1	01	1	9412-9903		●
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	9904-0212		●
34	00.686 COVER; DUST,SHIFT FORK	8-97017-333-0	01	1	9412-0212		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9412-0212		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=17	8-97115-712-0	01	1	0301-0310	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=17	8-97115-712-0	01	1	0311-0501	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0502-0506	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0507-0611	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0612-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	02	1	0507-0611	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0612-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9412-0212		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) ID=17	8-97115-712-0	03	1	0301-0310	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=17	8-97115-712-0	03	1	0311-0501	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH) ID=17	8-97115-712-0	03	1	0502-0506	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	01	1	0507-0611	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=17	8-97115-712-0	02	1	0612-	●
54	04.105 BOLT; FULCRUM	8-94459-970-1	02	1	9412-9612		●
54	04.105 BOLT; FULCRUM	8-97171-503-0	02	1	9701-0212		●
55	04.105 PIN; KNOCK,CASE,TRANS	9-08161-016-0	02	1	9412-9905		●
55	04.105 PIN; KNOCK,CASE,TRANS	8-97229-245-0	02	1	9906-9907		●
55	04.105 PIN; KNOCK,CASE,TRANS	9-08161-016-0	02	1	9908-0212		●
67	04.105 STUD; CASE TRANS	8-94433-189-0	04	1	9412-0212		●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9412-0212		●
71	04.439 COVER; SIDE,TRANS CASE 4HE1 ENG(RLY)	8-97252-625-0	01	1	0301-0310	●
71	04.439 COVER; SIDE,TRANS CASE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97252-625-0	01	1	0311-0501	●
71	04.439 COVER; SIDE,TRANS CASE 4HG1 ENG(RJH)	8-97252-625-0	01	1	0502-0506	●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-625-0	01	1	0507-0611	●
71	04.439 COVER; SIDE,TRANS CASE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97252-625-0	01	1	0612-	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	9412-0212		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0301-	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	9412-0212		●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	9412-0212		●
94	05.595 WASHER; COUPLING DRIVER	8-94249-240-0	01	1	9412-0212		●
95	05.595 NUT; MAINSHAFT 04.162 M24 FLANGE	8-97087-750-0	01	1	9412-0212		●
126	04.020 PIPE; JOINT,MAINSHAFT,TRANS 04.405	8-97076-707-0	01	1	9412-0212		●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1 ENG(RJH) 08.971 (B)	8-94310-917-0	02	1	0502-0506	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.971 (B)	8-94310-917-0	01	1	0507-0604	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.971 (B)	8-94310-917-0	01	1	0507-0604	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0605-0611	●
417	04.105 PLUG; OIL FILLER,TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0605-0611	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0612-	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97365-373-0	01	1	0612-	●
417	04.105 PLUG; OIL FILLER,TRANS (C) M18	8-94337-946-1	01	1	9412-0212		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971 (B)	8-94310-917-0	01	1	0301-0309	●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971 (B)	8-94310-917-0	02	1	0310-0310	●
417	04.105 PLUG; OIL FILLER,TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY) 08.971 (B)	8-94310-917-0	02	1	0311-0501	●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 04.103 (A) M20X10.5	9-09662-005-0	01	1	0301-0309	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97017-350-0	01	1	9412-0212		●
430	04.105 PLUG; OIL DRAIN 4HG1 ENG(RJH)	9-09662-004-0	03	1	0502-0506	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09662-004-0	01	1	0507-0604	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	01	1	0605-0611	●
430	04.105 PLUG; OIL DRAIN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	01	1	0612-	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	9-09662-004-0	02	1	0507-0604	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	02	1	0605-0611	●
430	04.105 PLUG; OIL DRAIN 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97365-374-0	02	1	0612-	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	9412-0212		●
430	04.105 PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	03	1	0301-0310	●
430	04.105 PLUG; OIL DRAIN 4HG1 ENG(RJH),4HE1 ENG(RLY)	9-09662-004-0	03	1	0311-0501	●
434	00.683 HOUSING; CLU	8-97042-455-2	01	1	9412-9510		●
434	00.683 HOUSING; CLU	8-97131-348-0	01	1	9511-0212		●
434	00.683 HOUSING; CLU 4HE1 ENG(RLY)	8-97310-346-2	01	1	0301-0310	●
434	00.683 HOUSING; CLU 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97310-346-2	01	1	0311-0501	●
434	00.683 HOUSING; CLU 4HG1 ENG(RJH)	8-97310-346-2	01	1	0502-0506	●
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97310-346-2	01	1	0507-0611	●
434	00.683 HOUSING; CLU 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97310-346-3	01	1	0612-	●
435	04.103 CASE; TRANS	8-97034-803-2	01	1	9412-9903		●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	9904-0212		●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97237-102-7	01	1	0301-0310	●
435	04.103 CASE; TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97237-102-7	01	1	0311-0403	●
435	04.103 CASE; TRANS 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97379-374-0	01	1	0404-0501	●
435	04.103 CASE; TRANS 4HG1 ENG(RJH)	8-97379-374-0	01	1	0502-0506	●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97379-374-0	01	1	0507-0611	●
435	04.103 CASE; TRANS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97379-374-0	01	1	0612-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
