Isuzu WW
▶
BUSES
▶
LT
▶
10676 - LT 111,112,132,133
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

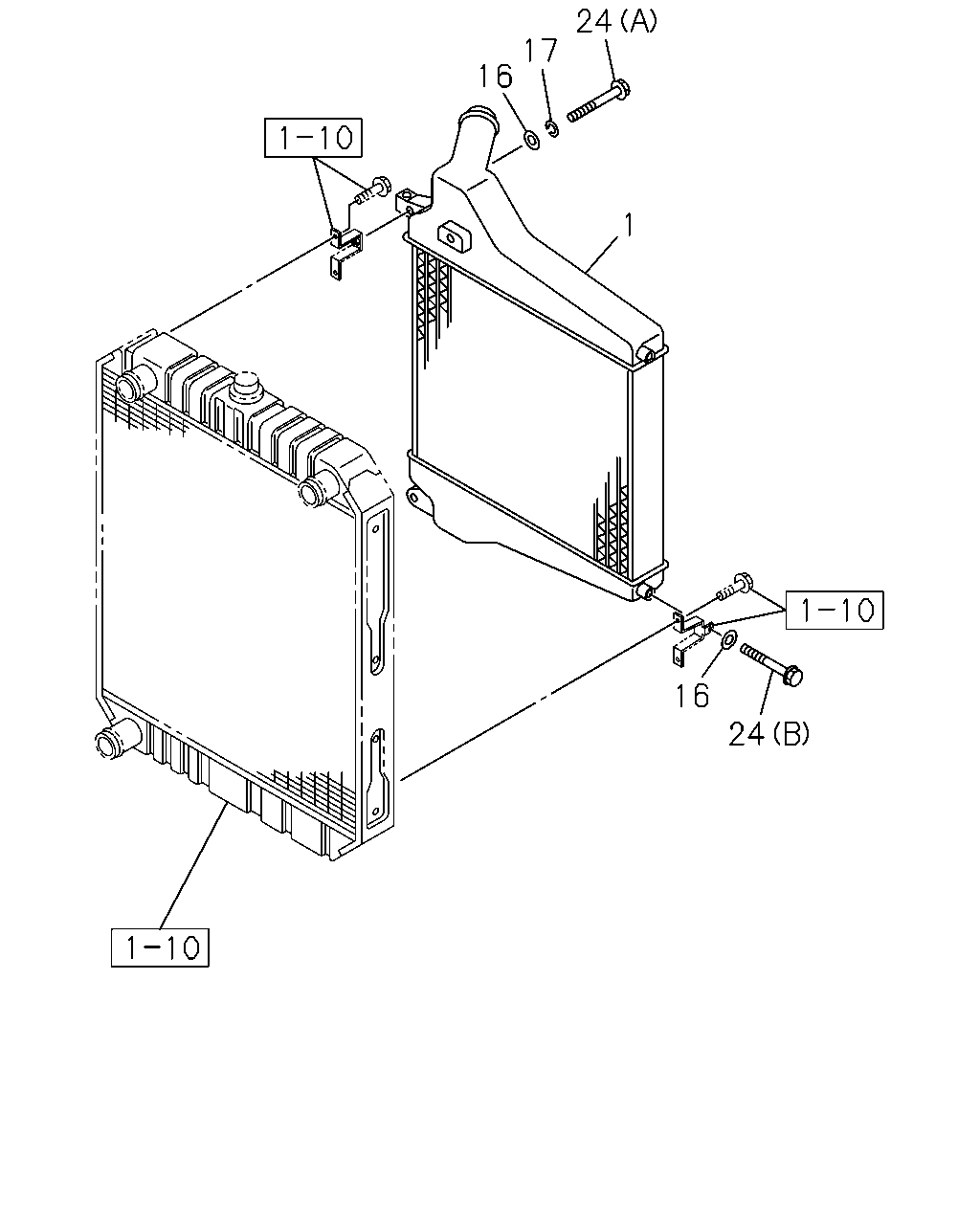

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#4387) — 17 parça
Tümü
A - 6HE1 TCC ENG
B - 6HE1 TC ENG
1
16
24
16
17
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
8-94394-311-2
01
1
9702-9709
●
1
COOLER; CHARGE AIR
8-94394-311-2
01
1
9710-
●
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1206-1504
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1505-
●
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
04
1
9702-9709
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
04
1
9710-1205
●
●
16
WASHER; PL,CHARGE AIR COOLER
ISUZU M/T<X9A> ID=10.5 OD=22
9-09160-610-0
04
1
1206-1504
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
02
1
9702-9709
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
02
1
9710-1205
●
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
0-91510-810-0
02
1
1206-
●
●
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
0-91510-810-0
02
1
1206-
●
24
BOLT; COOLER TO RAD
(A) M10X50 FLANGE
0-28081-050-0
02
1
9702-1205
●
24
BOLT; COOLER TO RAD
(B) M10X16 FLANGE
0-28181-016-0
02
1
9702-9709
●
24
BOLT; COOLER TO RAD
(B) M10X16 FLANGE
0-28181-016-0
02
1
9710-1205
●
●
24
BOLT; COOLER TO RAD
(B) M10X16 FLANGE
0-28151-016-0
02
1
1206-
●
●
24
BOLT; COOLER TO RAD
ISUZU M/T<X9A> (A) M10X70 FLANGE
0-28081-070-0
02
1
9710-1205
●
24
BOLT; COOLER TO RAD
(A) M10X70 FLANGE
0-28051-070-0
02
1
1206-
●
●
