Isuzu WW
▶
TRUCKS
▶
NPS
▶
50701 - NPS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶

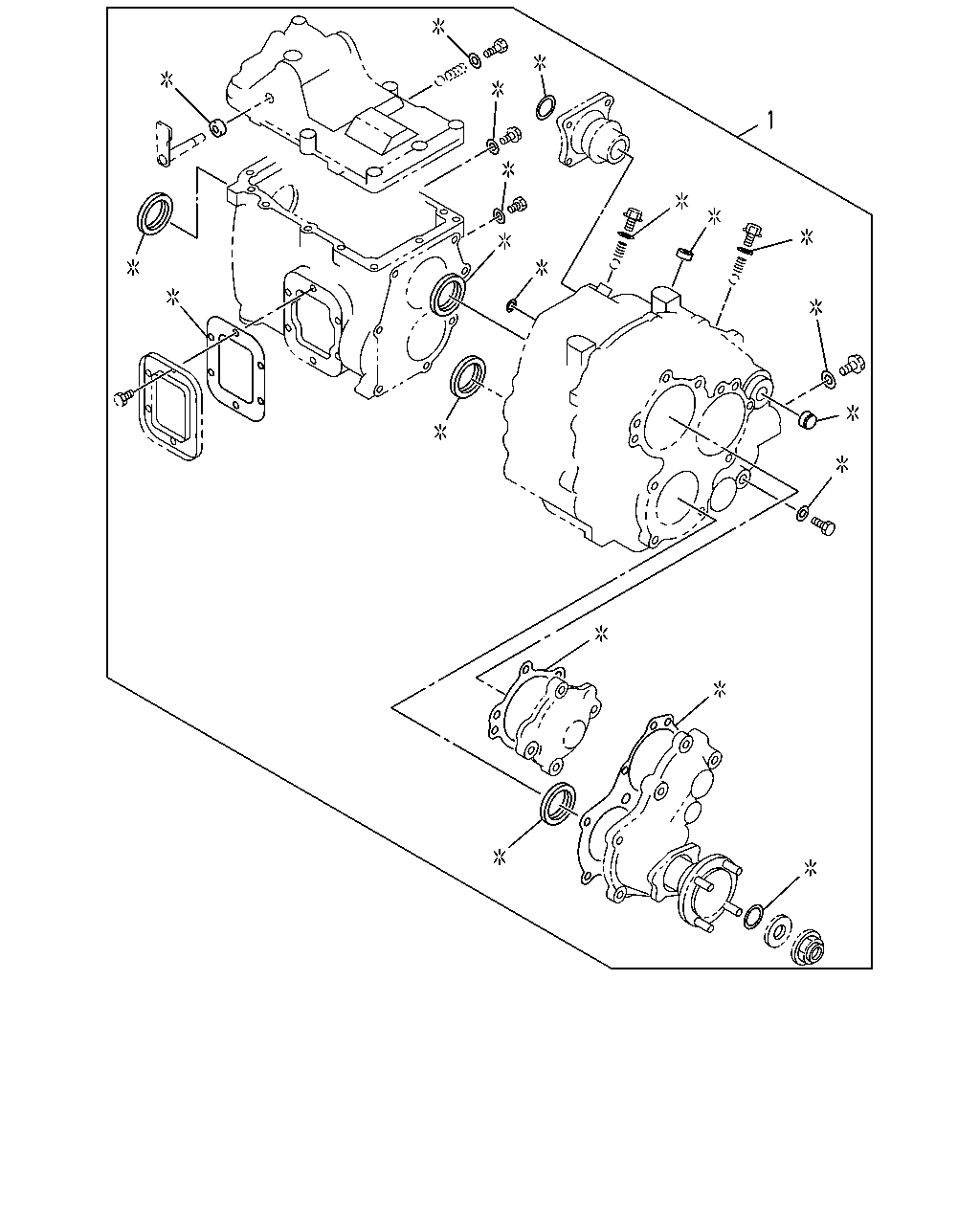

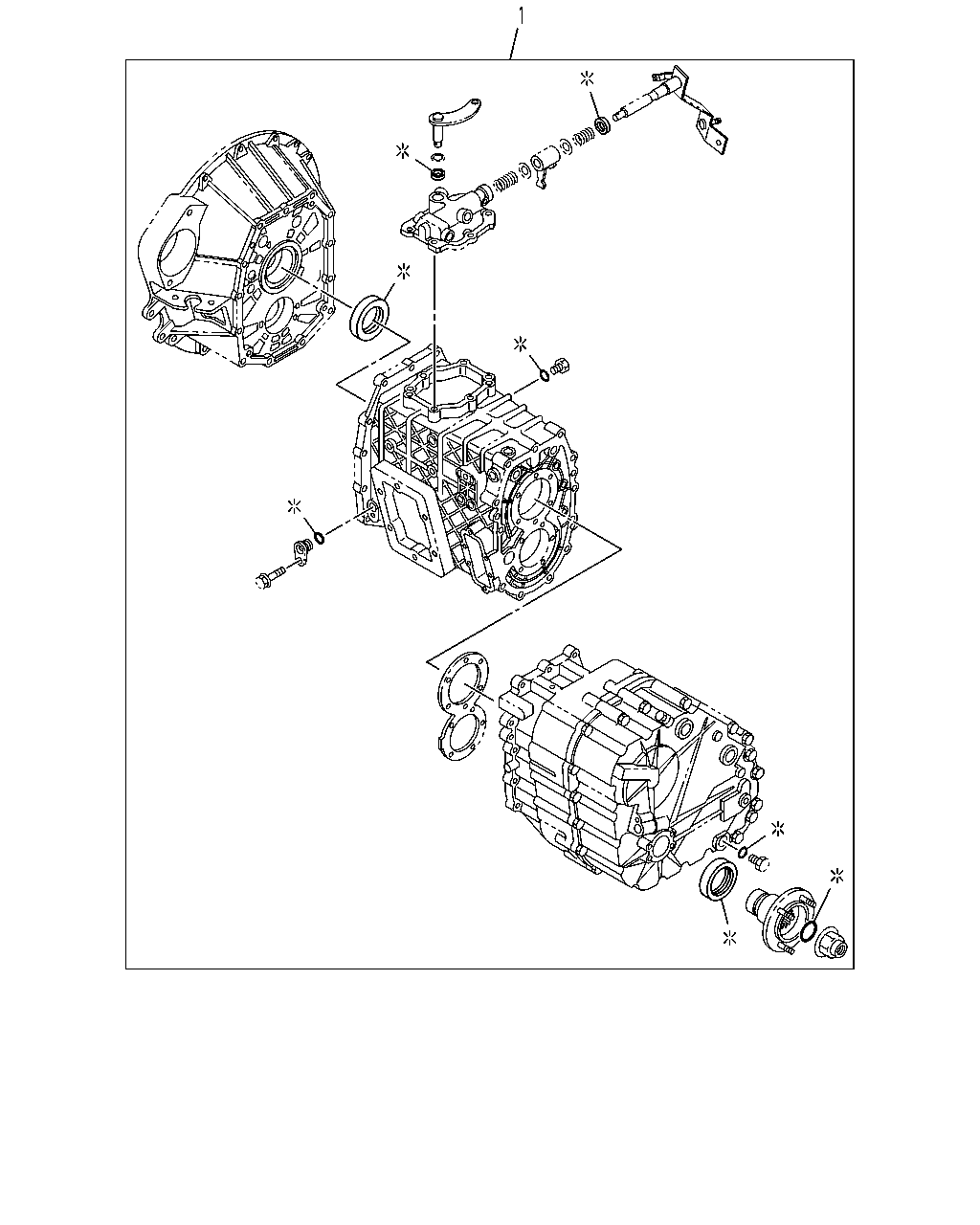

2-10 - REPAIR KIT; TRANSMISSION OVERHAUL
▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL
(#43869) — 18 parça
Tümü
A - M/T MXA5R
B - M/T MYY5T
◀
[210A] MYY (9 parça)
[210A] MXA (9 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.005 GASKET SET; TRANS OVERHAUL
5-87831-406-0
01
1
9412-9711
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87831-705-0
01
1
9712-0011
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87831-980-0
01
1
0012-0212
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HE1 ENG(RLY)
5-87832-033-0
01
1
0301-0303
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HE1 ENG(RLY)
5-87832-128-0
01
1
0304-0310
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HG1 ENG(RJH),4HE1 ENG(RLY)
5-87832-128-0
01
1
0311-0501
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HG1 ENG(RJH)
5-87832-128-0
01
1
0502-0506
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)
5-87832-128-2
01
1
0507-0611
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)
5-87832-128-2
01
1
0612-
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.005 GASKET SET; TRANS OVERHAUL
5-87831-406-0
01
1
9412-9711
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87831-705-0
01
1
9712-0011
●
1
04.005 GASKET SET; TRANS OVERHAUL
5-87831-980-0
01
1
0012-0212
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HE1 ENG(RLY)
5-87832-033-0
01
1
0301-0303
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HE1 ENG(RLY)
5-87832-128-0
01
1
0304-0310
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HG1 ENG(RJH),4HE1 ENG(RLY)
5-87832-128-0
01
1
0311-0501
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HG1 ENG(RJH)
5-87832-128-0
01
1
0502-0506
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)
5-87832-128-2
01
1
0507-0611
●
1
04.005 GASKET SET; TRANS OVERHAUL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)
5-87832-128-2
01
1
0612-
●
