2-07 — CLUTCH BOOSTER; MINIPACK (#43867) — 51 parça

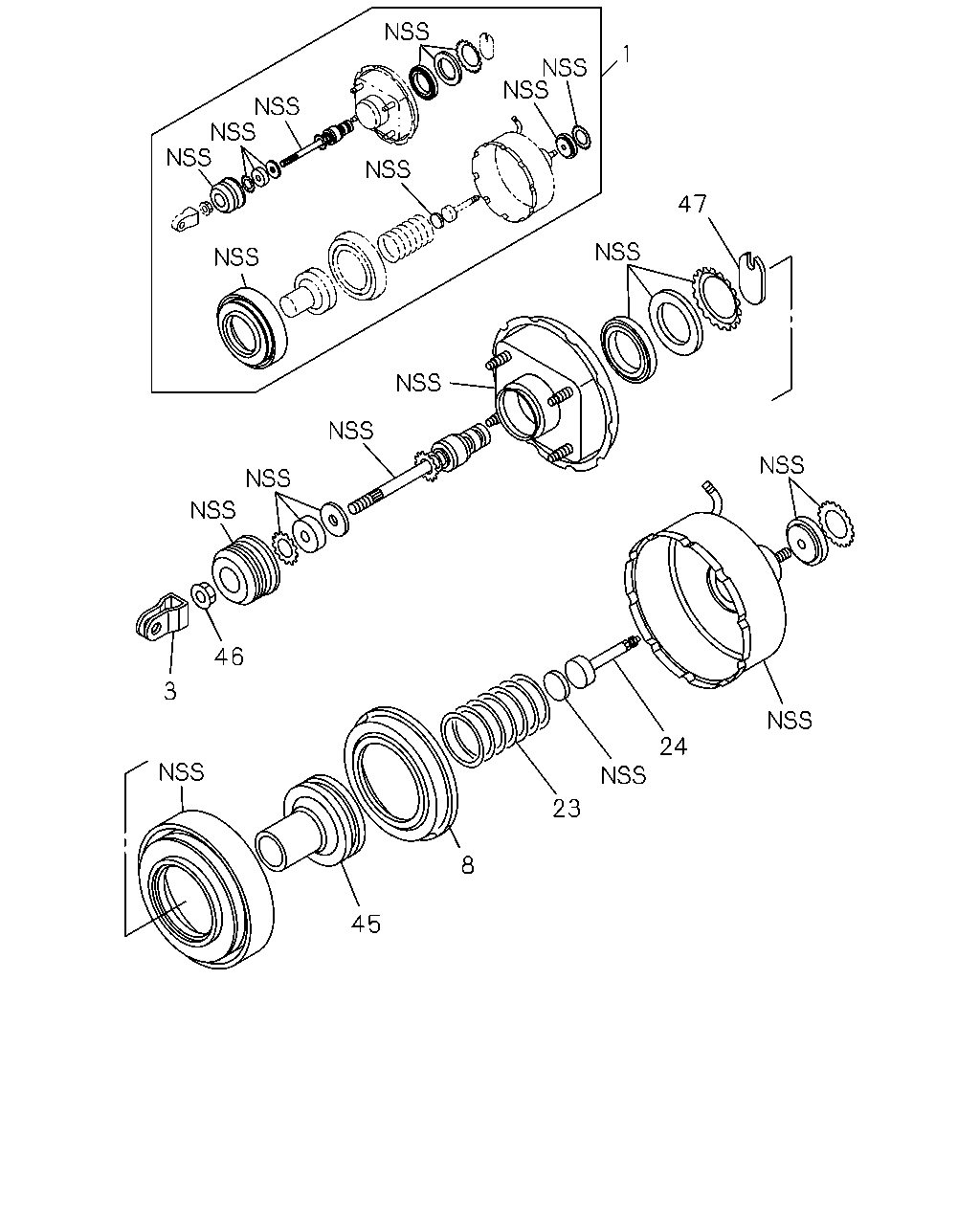

1 47 46 3 24 23 8 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 REPAIR KIT; CLU BOOSTER 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T)	8-97174-151-0	01	1	0507-	●
1	00.775 REPAIR KIT; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97080-111-0	01	1	9412-9703		●
1	00.775 REPAIR KIT; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97174-145-0	01	1	9704-0212		●
1	00.775 REPAIR KIT; CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-151-0	01	1	0301-0310	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TURBOCHARGER(K51)	8-97174-151-0	01	1	0311-0501	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-151-0	01	1	0311-0501	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51)	8-97174-145-0	01	1	0311-0501	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-145-0	01	1	0502-0611	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-145-0	01	1	0612-	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T) 04.662	8-94341-787-0	01	1	9412-9703		●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	9704-0212		●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0301-0310	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0311-0501	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0502-0506	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0507-0611	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0612-	●
8	00.775 RETAINER; DIAPH POWER ASSIST CLUTCH(S2T)	8-97015-778-0	01	1	9412-9703		●
23	00.775 SPRING; SHELL,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-94369-071-0	01	1	9412-9703		●
24	00.787 ROD; PUSH,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97094-972-0	01	1	9412-9703		●
45	00.775 PLATE; END,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97103-376-0	01	1	9412-9703		●
46	00.787 NUT; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T) 04.785 M10 FLANGE	0-91150-110-0	01	1	9412-9703		●
46	00.787 NUT; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	9704-0212		●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0301-0310	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0311-0501	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0502-0506	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0507-0611	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0612-	●
47	00.775 KEY; CLU BOOSTER POWER ASSIST CLUTCH(S2T) 04.924	8-94123-120-0	01	1	9412-9703		●

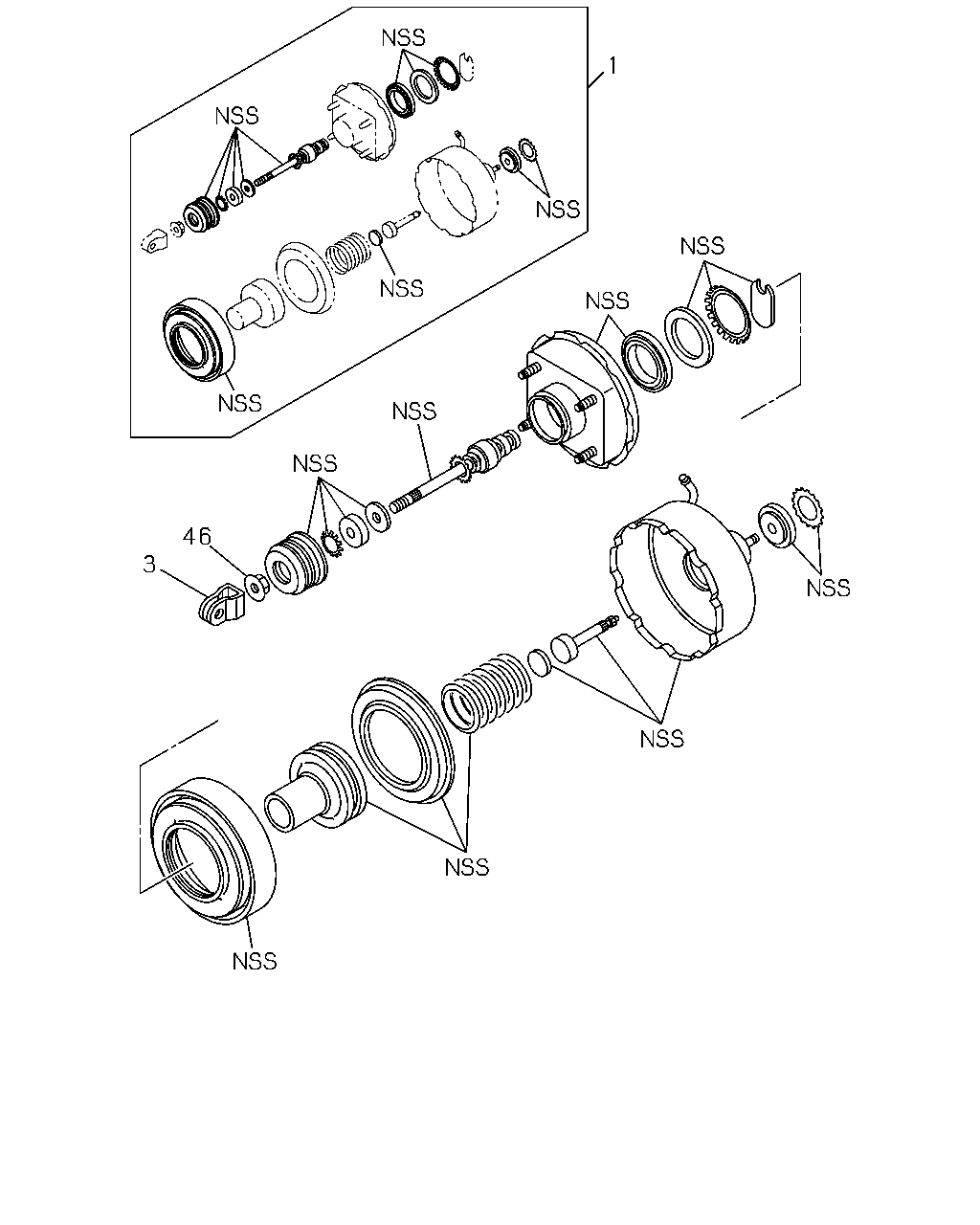

1 46 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 REPAIR KIT; CLU BOOSTER 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T)	8-97174-151-0	01	1	0507-	●
1	00.775 REPAIR KIT; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97080-111-0	01	1	9412-9703		●
1	00.775 REPAIR KIT; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97174-145-0	01	1	9704-0212		●
1	00.775 REPAIR KIT; CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-151-0	01	1	0301-0310	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TURBOCHARGER(K51)	8-97174-151-0	01	1	0311-0501	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-151-0	01	1	0311-0501	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51)	8-97174-145-0	01	1	0311-0501	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-145-0	01	1	0502-0611	●
1	00.775 REPAIR KIT; CLU BOOSTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-145-0	01	1	0612-	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T) 04.662	8-94341-787-0	01	1	9412-9703		●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	9704-0212		●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0301-0310	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0311-0501	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0502-0506	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0507-0611	●
3	00.787 CLEVIS; PUSH ROD,CLU BOOSTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-147-0	01	1	0612-	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T) 04.785 M10 FLANGE	0-91150-110-0	01	1	9412-9703		●
46	00.787 NUT; PUSH ROD,CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	9704-0212		●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0301-0310	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0311-0501	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0502-0506	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0507-0611	●
46	00.787 NUT; PUSH ROD,CLU BOOSTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T)	8-97174-148-0	01	1	0612-	●
