◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#43866) — 192 parça
çizim 17892
1 3 8 7 5 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0507-0611 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0612- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9412-9711 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9712-0105 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT) 		8-97032-847-1 01 1 0106-0212 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-424-0 01 1 0301-0310 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0311-0501 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0311-0501 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-423-0 01 1 0502-0506 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0507-0611 ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0612-0908 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98004-780-0 01 1 0909- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0507-0611 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0612- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9412-9711 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9712-0105 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT) 		5-87831-204-0 01 1 0106-0212 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-364-0 01 1 0301-0310 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0311-0501 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0311-0501 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-204-0 01 1 0502-0506 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0507-0611 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0612- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0507-0611 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0612- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9412-9711 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9712-0105 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT) 		8-94457-860-0 01 1 0106-0212 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97349-910-0 01 1 0301-0310 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0311-0501 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0311-0501 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97255-389-0 01 1 0502-0506 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0507-0611 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0612-0908 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 0909- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97160-570-0 01 1 0502-0611 ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97160-570-0 01 1 0612- ● ● ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MYY5T(RSM) 		8-97160-570-0 01 1 0301-0310 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97160-570-0 01 1 0311-0501 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9412-9711 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9712-0105 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) M8X16.5 		8-94115-113-0 01 1 0106-0212 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0301-0310 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0311-0501 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0502-0506 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0507-0511 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0512-0611 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0612- ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9412-9711 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9712-0105 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) OD=9.5 		9-47619-005-0 01 1 0106-0212 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0301-0310 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0311-0501 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0502-0506 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0507-0611 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0612- ● ● ●
çizim 18289
1 4 8 6 7 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0507-0611 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0612- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9412-9711 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9712-0105 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT) 		8-97032-847-1 01 1 0106-0212 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-424-0 01 1 0301-0310 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0311-0501 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0311-0501 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-423-0 01 1 0502-0506 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0507-0611 ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0612-0908 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98004-780-0 01 1 0909- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0507-0611 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0612- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9412-9711 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9712-0105 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT) 		5-87831-204-0 01 1 0106-0212 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-364-0 01 1 0301-0310 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0311-0501 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0311-0501 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-204-0 01 1 0502-0506 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0507-0611 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0612- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0507-0611 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0612- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9412-9711 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9712-0105 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT) 		8-94457-860-0 01 1 0106-0212 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97349-910-0 01 1 0301-0310 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0311-0501 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0311-0501 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97255-389-0 01 1 0502-0506 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0507-0611 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0612-0908 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 0909- ● ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD 8-97032-299-0 01 1 9412-9711 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD 8-97032-299-0 01 1 9712-0105 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MXA5R(RMT) 		8-97032-299-0 01 1 0106-0212 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97065-441-0 01 1 0311-0501 ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) 		8-97065-441-0 01 1 0502-0506 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97065-441-0 01 1 0507-0611 ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97065-441-0 01 1 0612-0908 ● ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-149-0 01 1 0909- ● ● ●
6 00.787 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9412-9711 ●
6 00.787 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9712-0105 ●
6 00.787 NUT; LK,ROD END
M/T MXA5R(RMT) M8 		9-09111-408-0 01 1 0106-0212 ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 06.822 M10 		9-09111-410-0 01 1 0311-0501 ● ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) 06.822 M10 		9-09111-410-0 01 1 0502-0506 ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 06.822 M10 		9-09111-410-0 01 1 0507-0512 ● ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10 		0-91111-510-0 01 1 0601-0611 ● ●
6 00.787 NUT; LK,ROD END
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10 		0-91111-510-0 01 1 0612- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9412-9711 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9712-0105 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) M8X16.5 		8-94115-113-0 01 1 0106-0212 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0301-0310 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0311-0501 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0502-0506 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0507-0511 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0512-0611 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0612- ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9412-9711 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9712-0105 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) OD=9.5 		9-47619-005-0 01 1 0106-0212 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0301-0310 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0311-0501 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0502-0506 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0507-0611 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0612- ● ● ●

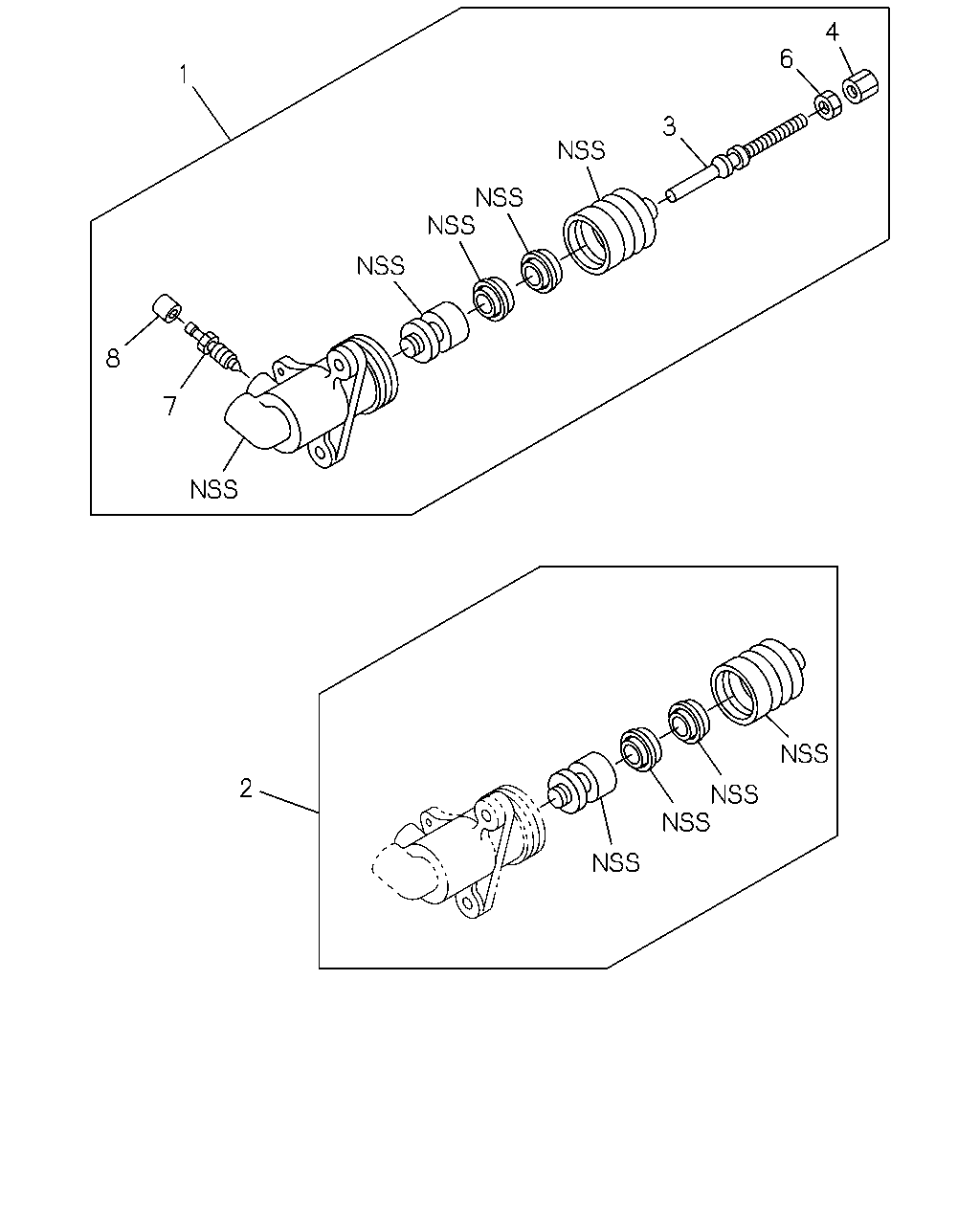

çizim 19450
4 6 1 3 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0507-0611 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0612- ● ● ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9412-9711 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9712-0105 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MXA5R(RMT) 		8-97032-847-1 01 1 0106-0212 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-424-0 01 1 0301-0310 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-424-0 01 1 0311-0501 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0311-0501 ● ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) 		8-97349-423-0 01 1 0502-0506 ●
1 00.780 CYLINDER; SLAVE,CLU
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0507-0611 ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-423-0 01 1 0612-0908 ● ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98004-780-0 01 1 0909- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0507-0611 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0612- ● ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9412-9711 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9712-0105 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MXA5R(RMT) 		5-87831-204-0 01 1 0106-0212 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-364-0 01 1 0301-0310 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-364-0 01 1 0311-0501 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0311-0501 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) 		5-87831-204-0 01 1 0502-0506 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0507-0611 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		5-87831-204-0 01 1 0612- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0507-0611 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0612- ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9412-9711 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9712-0105 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MXA5R(RMT) 		8-94457-860-0 01 1 0106-0212 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97349-910-0 01 1 0301-0310 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97349-910-0 01 1 0311-0501 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0311-0501 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) 		8-97255-389-0 01 1 0502-0506 ●
3 00.780 ROD; PUSH,SLAVE CYL
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0507-0611 ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97255-389-0 01 1 0612-0908 ● ● ●
3 00.780 ROD; PUSH,SLAVE CYL
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-132-0 01 1 0909- ● ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD 8-97032-299-0 01 1 9412-9711 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD 8-97032-299-0 01 1 9712-0105 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MXA5R(RMT) 		8-97032-299-0 01 1 0106-0212 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97065-441-0 01 1 0311-0501 ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) 		8-97065-441-0 01 1 0502-0506 ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97065-441-0 01 1 0507-0611 ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97065-441-0 01 1 0612-0908 ● ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98061-149-0 01 1 0909- ● ● ●
6 00.787 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9412-9711 ●
6 00.787 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9712-0105 ●
6 00.787 NUT; LK,ROD END
M/T MXA5R(RMT) M8 		9-09111-408-0 01 1 0106-0212 ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 06.822 M10 		9-09111-410-0 01 1 0311-0501 ● ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) 06.822 M10 		9-09111-410-0 01 1 0502-0506 ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 06.822 M10 		9-09111-410-0 01 1 0507-0512 ● ●
6 00.787 NUT; LK,ROD END
M/T MYY5T(RSM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10 		0-91111-510-0 01 1 0601-0611 ● ●
6 00.787 NUT; LK,ROD END
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> M10 		0-91111-510-0 01 1 0612- ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9412-9711 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9712-0105 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) M8X16.5 		8-94115-113-0 01 1 0106-0212 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0301-0310 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0311-0501 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0502-0506 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X16.5 		8-94115-113-0 01 1 0507-0511 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0512-0611 ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) M8X10 		8-98020-477-0 01 1 0612- ● ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9412-9711 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9712-0105 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MXA5R(RMT) OD=9.5 		9-47619-005-0 01 1 0106-0212 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0301-0310 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0311-0501 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0502-0506 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0507-0611 ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
M/T MYY5T(RSM) OD=9.5 		9-47619-005-0 01 1 0612- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
