◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶

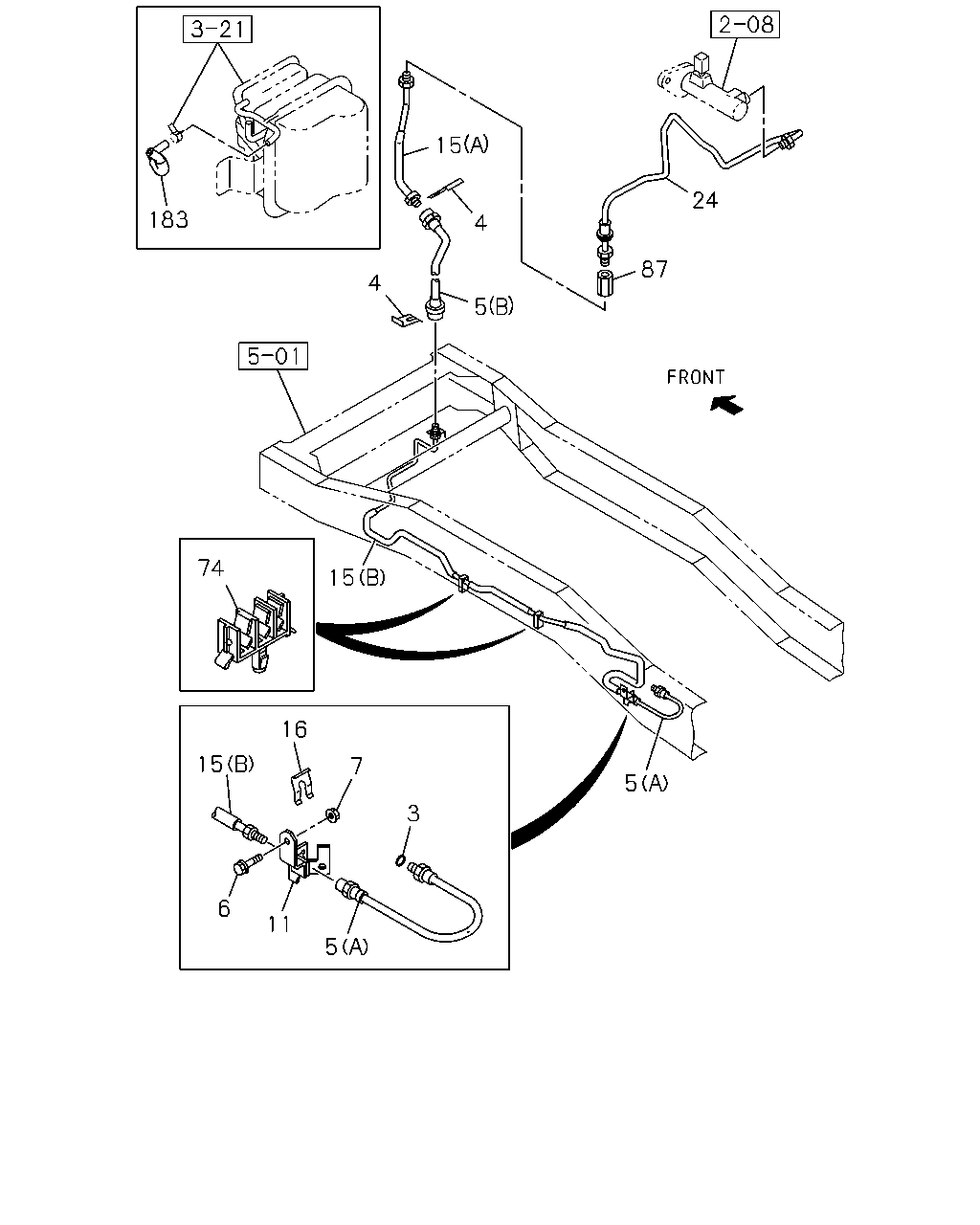

2-05 — CLUTCH PIPING (#43865) — 118 parça
çizim 70288
15 24 183 4 87 4 5 74 15 16 15 7 5 3 6 11 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9412-9711 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 9712-0105 ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MXA5R(RMT) 		9-09920-873-1 01 1 0106-0212 ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MYY5T(RSM) 		9-09920-873-1 01 1 0301-0310 ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MYY5T(RSM) 		9-09920-873-1 01 1 0311-0501 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MYY5T(RSM) 		9-09920-873-1 01 1 0502-0506 ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MYY5T(RSM) 		9-09920-873-1 01 1 0507-0611 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MYY5T(RSM) 		9-09920-873-1 01 1 0612- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9412-9711 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9712-0212 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0301-0310 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0311-0501 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0502-0506 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MYY5T(RSM) 		8-94167-006-0 02 1 0507-0610 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MYY5T(RSM) 04.681 		8-97365-304-0 02 1 0611-0611 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0612- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94108-360-2 01 1 0507- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9412-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9712-0212 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0301-0310 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0311-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0502-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MYY5T(RSM) (B) 		8-94248-702-2 01 1 0507-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MYY5T(RSM) (B) 		8-98004-775-0 01 1 0610-0611 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0612-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97047-058-1 01 1 9412-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97047-058-1 01 1 9712-0212 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94108-360-2 01 1 0301-0310 ●
5 00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94108-360-2 01 1 0311-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0311-0501 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97047-058-1 01 1 0502-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0507-0611 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97047-058-1 01 1 0612- ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712-0105 ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MXA5R(RMT) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0212 ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0301-0310 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0311-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0506 ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FLOOR REMOTE SHIFT<M11> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MYY5T(RSM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0611 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FLOOR REMOTE SHIFT<M11> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0611 ●
6 00.785 BOLT; BRKT,FLEX HOSE
M/T MYY5T(RSM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612- ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
02.559 M8 		9-09110-408-0 01 1 9412-9502 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9503-9711 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-0212 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0301-0310 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0311-0501 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MYY5T(RSM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MYY5T(RSM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MYY5T(RSM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0611 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0611 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MYY5T(RSM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0612- ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. FLOOR REMOTE SHIFT<M11> 		8-97365-305-0 01 1 0507-0611 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97084-710-0 01 1 9412-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 9712-0212 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 0301-0310 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 0311-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 0502-0506 ●
11 00.785 BRACKET; FLEX HOSE,CLU
M/T MYY5T(RSM) 		8-97114-778-1 01 1 0507-0611 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97114-778-1 01 1 0612- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97040-994-0 01 1 9412-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 9712-0212 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0301-0310 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0311-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0502-0506 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0507-0611 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97177-305-0 01 1 0612- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97047-036-3 01 1 9412-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97047-036-3 01 1 9712-0212 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97325-817-3 01 1 0301-0310 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97325-817-3 01 1 0311-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97374-197-0 01 1 0502-0506 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97374-197-0 01 1 0507-0611 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97374-197-0 01 1 0612- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9412-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 9712-0105 ●
16 00.785 CLIP; FLEX HOSE
M/T MXA5R(RMT) 		8-94167-006-0 01 1 0106-0212 ●
16 00.785 CLIP; FLEX HOSE
M/T MYY5T(RSM) 		8-94167-006-0 01 1 0301-0310 ●
16 00.785 CLIP; FLEX HOSE
M/T MYY5T(RSM) 		8-94167-006-0 01 1 0311-0501 ● ●
16 00.785 CLIP; FLEX HOSE
M/T MYY5T(RSM) 		8-94167-006-0 01 1 0502-0506 ●
16 00.785 CLIP; FLEX HOSE
M/T MYY5T(RSM) 		8-94167-006-0 01 1 0507-0610 ● ●
16 00.785 CLIP; FLEX HOSE
M/T MYY5T(RSM) 04.681 		8-97365-304-0 01 1 0611-0611 ● ●
16 00.785 CLIP; FLEX HOSE
M/T MYY5T(RSM) 04.681 		8-97365-304-0 01 1 0612- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97207-635-0 01 1 0507- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98011-703-0 01 1 0507- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97040-993-3 01 1 9412-9711 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 9712-0212 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0301-0310 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0311-0501 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0502-0611 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97177-034-0 01 1 0612- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97091-944-1 01 1 9412-9711 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 9712-0212 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0301-0310 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0311-0501 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0502-0611 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97149-835-0 01 1 0612- ● ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9412-9711 ●
74 00.785 CLIP; CLU OIL PIPE
04.686 ID=6.5 & 4.8X2 		8-94131-710-2 01 1 9712-0212 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9412-9711 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9712-0212 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0301-0310 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0311-0501 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0502-0506 ●
87 00.785 UNION; OIL PIPE
M/T MYY5T(RSM) M12 STRAIGHT 		9-99227-006-0 01 1 0507-0607 ● ●
87 00.785 UNION; OIL PIPE
M/T MYY5T(RSM) M12 STRAIGHT 		0-92107-006-0 01 1 0608-0611 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0612- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97108-638-0 01 1 9412-9503 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 9504-9711 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 9712-0212 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0301-0310 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0311-0501 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0502-0611 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97129-873-0 01 1 0612- ● ● ●
