◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#43864) — 87 parça

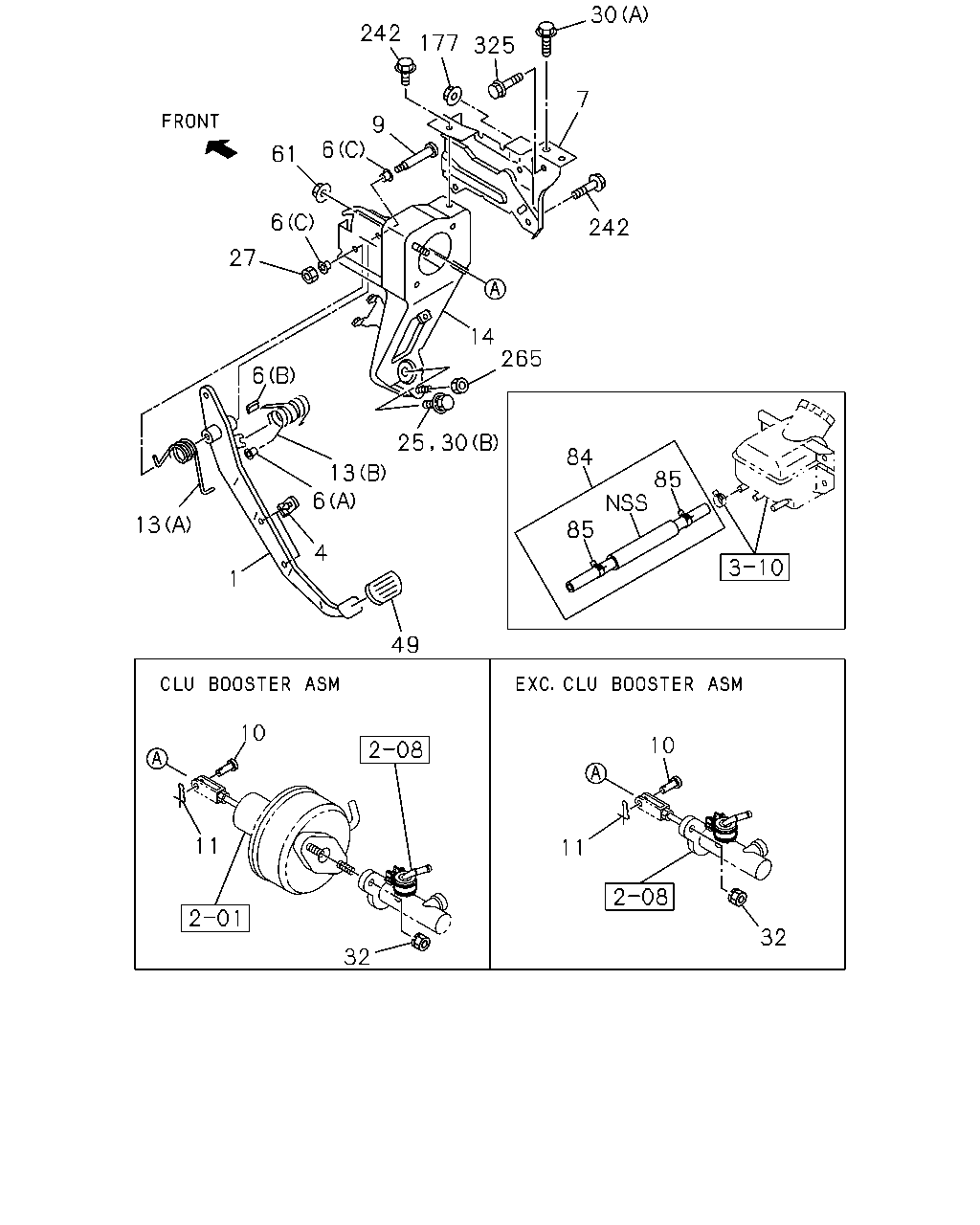

çizim 67231
30 242 177 325 7 9 6 61 6 242 27 14 265 6 84 13 6 85 13 85 4 1 49 10 10 11 11 32 32 25 30
BalonParca AdiParca NoAdetTipApplied Date
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 9412-0310
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0311-0501
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0502-0506
1 00.830 PEDAL; CLU
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0507-0611
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH(S2T) 		8-97853-220-2 01 1 0612-
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97853-219-1 01 1 9412-9712
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 9712-0310
1 00.830 PEDAL; CLU
4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0311-0501
1 00.830 PEDAL; CLU
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0502-0506
1 00.830 PEDAL; CLU
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0507-0611
1 00.830 PEDAL; CLU
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) 		8-97857-984-2 01 1 0612-
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 9412-
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9412-
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 9412-0310
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0311-0501
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0502-0506
6 00.831 BUSHING; CLU PEDAL
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0507-0611
6 00.831 BUSHING; CLU PEDAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97853-619-0 02 1 0612-
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 9412-0310
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0311-0501
6 00.831 BUSHING; CLU PEDAL
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0502-0506
6 00.831 BUSHING; CLU PEDAL
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0507-0611
6 00.831 BUSHING; CLU PEDAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-620-0 01 1 0612-
7 00.829 BRACKET; CLU PEDAL 8-97853-522-5 01 1 9412-
9 00.833 PIN; CLU PEDAL 8-97853-213-0 01 1 9412-9511
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 9512-
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9412-0310
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 0311-0501
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0502-0506
10 00.833 PIN; CLU PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94410-276-0 01 1 0507-0611
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0612-
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9412-0310
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 0311-0501
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0502-0506
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
FLOOR REMOTE SHIFT<M11> 04.634 		8-94279-912-0 01 1 0507-0611
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0612-
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 9412-0310
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0311-0501
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0502-0506
13 00.844 SPRING; ASSIST,CLU PEDAL
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0507-0611
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T) (A) 		8-97853-535-1 01 1 0612-
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 9412-0310
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0311-0501
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0502-0506
13 00.844 SPRING; ASSIST,CLU PEDAL
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0507-0611
13 00.844 SPRING; ASSIST,CLU PEDAL
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97853-221-1 01 1 0612-
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97853-217-3 01 1 9412-9609
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97867-997-1 01 1 9610-9903
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 9904-0310
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0311-0501
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0502-0506
14 00.829 BRACKET ASM; CLU PEDAL MTG
FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0507-0611
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T) 		8-97892-849-3 01 1 0612-
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97856-402-3 01 1 9412-9609
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97867-998-1 01 1 9610-9903
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 9904-0310
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0311-0501
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0502-0506
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0507-0611
14 00.829 BRACKET ASM; CLU PEDAL MTG
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) 		8-97892-848-3 01 1 0612-
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9512-0110
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0111-
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9412-
30 00.829 BOLT; CLU MTG BRKT
09.003 (B) M10X25 		1-09980-494-0 01 1 9412-9511
30 00.829 BOLT; CLU MTG BRKT
(A) M10X25 		8-94279-212-0 01 1 9412-9603
30 00.829 BOLT; CLU MTG BRKT
09.003 (A) M10X25 FLANGE 		0-28691-025-0 01 1 9604-0512
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 0601-
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9412-
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 9412-
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER 		8-94279-050-0 04 1 9412-
84 00.785 HOSE; RUBBER,CLU LINE 8-97113-846-0 01 1 9412-9507
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-025-0 01 1 9508-0310
84 00.785 HOSE; RUBBER,CLU LINE
FLOOR REMOTE SHIFT<M11> 		8-97135-025-0 01 1 0311-0501
84 00.785 HOSE; RUBBER,CLU LINE
M/T MYY5T(RSM) 		8-97135-025-0 01 1 0502-
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97094-435-0 02 1 9412-9507
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9508-0310
85 00.785 CLIP; HOSE TO M/CYL
FLOOR REMOTE SHIFT<M11> 04.681 		8-97130-480-0 02 1 0311-0501
85 00.785 CLIP; HOSE TO M/CYL
M/T MYY5T(RSM) 04.681 		8-97130-480-0 02 1 0502-
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9412-
242 00.785 BOLT; BRKT,CLUTCH
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9412-9511
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9512-0512
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601-
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9412-9609
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9610-0610
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611-
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0512
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-
