◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#43863) — 87 parça

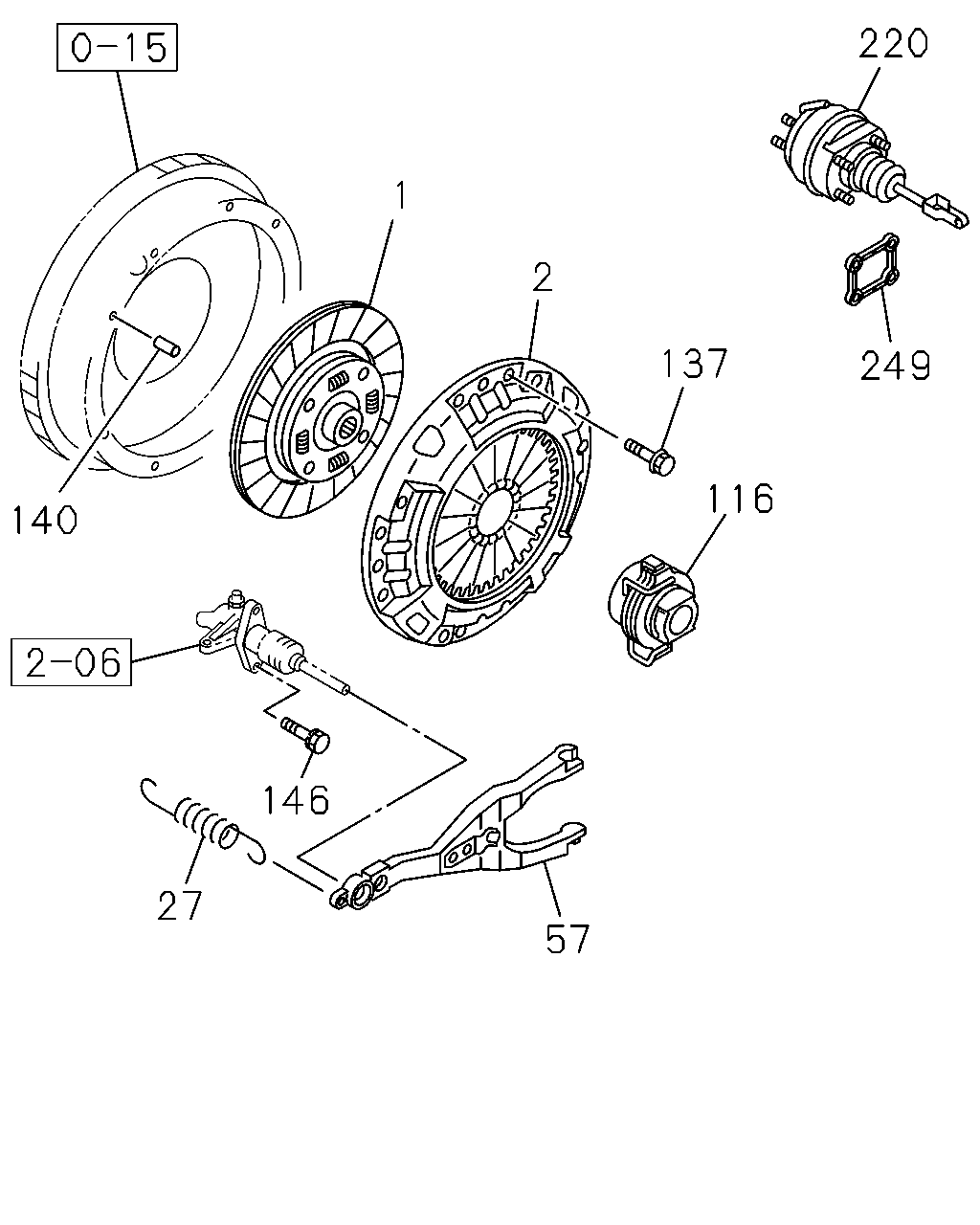

çizim 17863
220 1 2 137 249 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.886 DISC; CLUTCH 8-97362-235-1 01 1 0507- ●
1 00.886 DISC; CLUTCH 8-97076-639-2 01 1 9412-9503 ●
1 00.886 DISC; CLUTCH 8-97118-840-0 01 1 9504-9511 ●
1 00.886 DISC; CLUTCH 8-97139-129-0 01 1 9512-9701 ●
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 9702-9711 ●
1 00.886 DISC; CLUTCH 8-97162-966-1 01 1 9712-0212 ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0301-0310 ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0311-0412 ● ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-0501 ● ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0502-0611 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0612- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
08.859 		8-97351-794-0 01 1 0507- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 9412-9711 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97031-757-2 01 1 9712-0103 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0104-0212 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97169-534-0 01 1 0301-0501 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97169-534-0 01 1 0612- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97351-833-0 01 1 0311-0412 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97310-796-0 01 1 0501- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94335-691-2 01 1 9412-9711 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94335-691-2 01 1 9712-9712 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-359-0 01 1 9801-0212 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0301-0501 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0502-0506 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0507-0611 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0612-0812 ● ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 0901- ● ● ●
57 00.795 FORK; SHIFT,CLU 8-97045-138-0 01 1 9412-9711 ●
57 00.795 FORK; SHIFT,CLU 8-97045-138-0 01 1 9712-9712 ●
57 00.795 FORK; SHIFT,CLU 8-97187-936-0 01 1 9801-0105 ●
57 00.795 FORK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97187-936-0 01 1 0106-0212 ●
57 00.795 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 0301-0310 ●
57 00.795 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 0311-0501 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 0502-0506 ●
57 00.795 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 0507-0611 ● ●
57 00.795 FORK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-303-0 01 1 0612- ● ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 9412-9711 ●
116 00.799 BLOCK; SHIFT,CLU 8-97089-652-0 01 1 9712-0105 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MXA5R(RMT) 		8-97089-652-0 01 1 0106-0212 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 0301-0310 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 0311-0501 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 0502-0506 ●
116 00.799 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 0507-0611 ● ●
116 00.799 BLOCK; SHIFT,CLU
M/T MYY5T(RSM) 		8-97255-313-0 01 1 0612- ● ● ●
137 00.862 BOLT; CLU COVER
M10X20 W/LK WASHER 		8-94462-038-1 10 1 9412-9702 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9703-9711 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 9712-0212 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0301-0310 ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0311-0501 ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0502-0506 ●
137 00.862 BOLT; CLU COVER
M/T MYY5T(RSM) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0507-0507 ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0508-0512 ● ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0611 ● ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0612- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9412-9711 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 9712-0212 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0301-0310 ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0311-0501 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0502-0506 ●
140 00.862 PIN; STRAIGHT
M/T MYY5T(RSM) L=25 		8-94410-361-0 02 1 0507-0507 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0508-0611 ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0612- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9412-9606 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9607-9711 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9712-0212 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0301-0310 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0311-0501 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0502-0506 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MYY5T(RSM) 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M/T MYY5T(RSM) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0611 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0612- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0507- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97048-928-2 01 1 9412-9703 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 9704-9711 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 9712-0212 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0301-0310 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. TURBOCHARGER(K51) POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0311-0501 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0311-0501 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MYY5T(RSM) POWER ASSIST CLUTCH(S2T) EXC. TURBOCHARGER(K51) 		8-97162-962-1 01 1 0311-0501 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MYY5T(RSM) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0502-0611 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. M/T MYY5T(RSM) POWER ASSIST CLUTCH(S2T) 		8-97162-962-1 01 1 0612- ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9704-9711 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 9712-0212 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0301-0310 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0311-0501 ● ●
249 00.864 SPACER; CLU BOOSTER 8-97167-489-0 01 1 0502-0611 ● ●
249 00.864 SPACER; CLU BOOSTER 8-97167-489-0 01 1 0612- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
