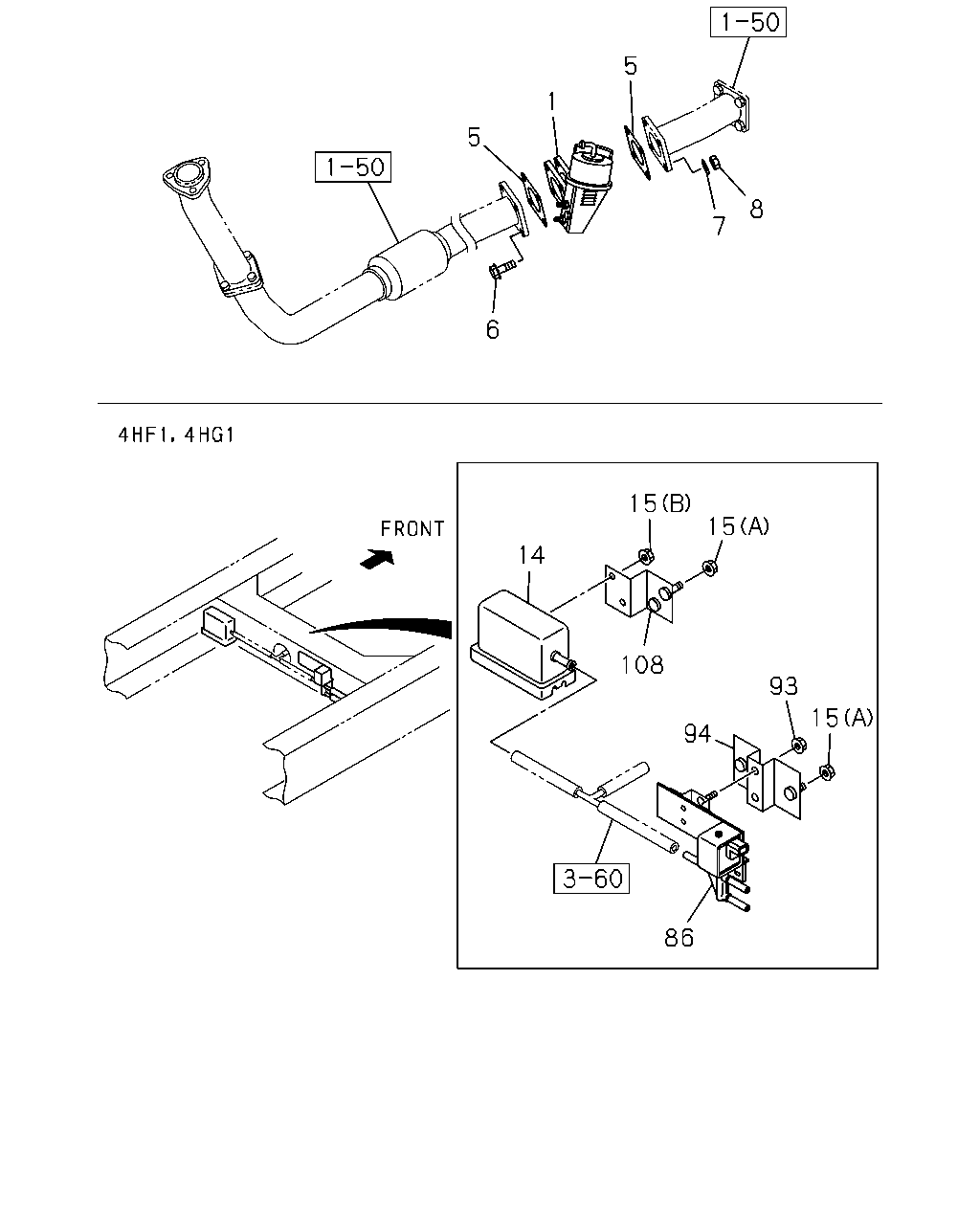

1-56 — EXHAUST BRAKE SYSTEM (#43862) — 142 parça

5 1 5 8 7 6 15 15 14 108 93 15 94 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-97361-928-0	01	1	0507-
1	03.632 BRAKE UNIT; EXH	8-97034-028-1	01	1	9412-9612
1	03.632 BRAKE UNIT; EXH	8-97135-836-0	01	1	9701-9706
1	03.632 BRAKE UNIT; EXH	8-97174-739-0	01	1	9707-0003
1	03.632 BRAKE UNIT; EXH	8-97257-916-0	01	1	0004-0105
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH)	8-97257-916-1	01	1	0106-0212
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY)	8-97361-928-0	01	1	0301-0310
1	03.632 BRAKE UNIT; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97361-928-0	01	1	0311-0501
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH)	8-97257-916-1	01	1	0311-0611
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98056-674-0	01	1	0612-
5	03.634 GASKET; EXH BRAKE UNIT ID=64	8-97037-694-0	02	1	9412-0105
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) ID=64	8-97037-694-0	02	1	0106-0212
5	03.634 GASKET; EXH BRAKE UNIT 4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	0301-0310
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=64	8-97037-694-0	02	1	0311-0501
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) ID=64	8-97037-694-0	02	1	0502-0506
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=64	8-97037-694-0	02	1	0507-0611
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=64	8-97037-694-0	02	1	0612-
6	03.632 BOLT; EXH BRAKE UNIT FIX 03.708 M8X70	0-10805-870-0	04	1	9412-0105
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) 03.708 M8X70	0-10805-870-0	04	1	0106-0212
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	0301-0310
6	03.632 BOLT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.708 M8X70	0-10805-870-0	04	1	0311-0501
6	03.632 BOLT; EXH BRAKE UNIT FIX 03.708 M8X70	0-10805-870-0	04	1	0502-0512
6	03.632 BOLT; EXH BRAKE UNIT FIX M8X70	0-10855-870-0	04	1	0601-
7	03.632 WASHER; EXH BRAKE UNIT FIX T=1.9	5-09500-012-0	04	1	9412-0105
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) T=1.9	5-09500-012-0	04	1	0106-0212
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	0301-0310
7	03.632 WASHER; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) T=1.9	5-09500-012-0	04	1	0311-0501
7	03.632 WASHER; EXH BRAKE UNIT FIX T=1.9	5-09500-012-0	04	1	0502-
8	03.632 NUT; EXH BRAKE UNIT FIX 02.559 M8	9-09110-408-0	04	1	9412-0105
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) 02.559 M8	9-09110-408-0	04	1	0106-0212
8	03.632 NUT; EXH BRAKE UNIT FIX 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	0301-0310
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	04	1	0311-0501
8	03.632 NUT; EXH BRAKE UNIT FIX 02.559 M8	9-09110-408-0	04	1	0502-0512
8	03.632 NUT; EXH BRAKE UNIT FIX 02.334 M8	0-91110-508-0	04	1	0601-
14	03.634 FILTER; AIR,EXH BRAKE	8-97033-888-0	01	1	9412-0105
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH)	8-97033-888-0	01	1	0106-0212
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY)	8-97033-888-0	01	1	0301-0310
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97033-888-0	01	1	0311-0501
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH)	8-97033-888-0	01	1	0502-0506
14	03.634 FILTER; AIR,EXH BRAKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97033-888-0	01	1	0507-0611
14	03.634 FILTER; AIR,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97033-888-0	01	1	0612-
15	03.634 NUT; AIR FILTER 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	9412-0105
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0106-0212
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0301-0310
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0311-0501
15	03.634 NUT; AIR FILTER 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602
15	03.634 NUT; AIR FILTER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-
15	03.634 NUT; AIR FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9412-0105
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-0212
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0301-0310
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0311-0501
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506
15	03.634 NUT; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602
15	03.634 NUT; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0611
15	03.634 NUT; AIR FILTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-
86	03.636 VALVE; MAG,EXH BRK	8-97065-472-0	01	1	9412-9911
86	03.636 VALVE; MAG,EXH BRK	8-97239-246-0	01	1	9912-0105
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH)	8-97239-246-0	01	1	0106-0212
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY)	8-97066-716-0	01	1	0301-0310
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97066-716-0	01	1	0311-0405
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97374-153-0	01	1	0406-0501
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH)	8-97374-153-2	01	1	0502-0506
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97374-153-2	01	1	0507-0611
86	03.636 VALVE; MAG,EXH BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97374-153-2	01	1	0612-
93	08.917 NUT; MAG VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0105
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	03	1	0301-0310
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	03	1	0311-0501
93	08.917 NUT; MAG VLV 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602
93	08.917 NUT; MAG VLV 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-
94	03.634 BRACKET; MAG VLV,EXH BRAKE	8-97089-849-0	01	1	9412-0105
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH)	8-97089-849-0	01	1	0106-0212
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HE1 ENG(RLY)	8-97350-658-1	01	1	0301-0310
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97350-658-1	01	1	0311-0501
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH)	8-97350-658-1	01	1	0502-0506
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97350-658-1	01	1	0507-0611
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97350-658-1	01	1	0612-
108	03.634 BRACKET; AIR FILTER	8-97089-850-0	01	1	9412-0105
108	03.634 BRACKET; AIR FILTER 4HG1 ENG(RJH)	8-97089-850-0	01	1	0106-0212
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY)	8-97089-850-0	01	1	0301-0310
108	03.634 BRACKET; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97089-850-0	01	1	0311-0501
108	03.634 BRACKET; AIR FILTER 4HG1 ENG(RJH)	8-97089-850-0	01	1	0502-0506
108	03.634 BRACKET; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97089-850-0	01	1	0507-0611
108	03.634 BRACKET; AIR FILTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97089-850-0	01	1	0612-

15 94 93 86 19 15 15 14 108 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.634 FILTER; AIR,EXH BRAKE	8-97033-888-0	01	1	9412-0105
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH)	8-97033-888-0	01	1	0106-0212
14	03.634 FILTER; AIR,EXH BRAKE 4HE1 ENG(RLY)	8-97033-888-0	01	1	0301-0310
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97033-888-0	01	1	0311-0501
14	03.634 FILTER; AIR,EXH BRAKE 4HG1 ENG(RJH)	8-97033-888-0	01	1	0502-0506
14	03.634 FILTER; AIR,EXH BRAKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97033-888-0	01	1	0507-0611
14	03.634 FILTER; AIR,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97033-888-0	01	1	0612-
15	03.634 NUT; AIR FILTER 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	9412-0105
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0106-0212
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0301-0310
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0311-0501
15	03.634 NUT; AIR FILTER 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602
15	03.634 NUT; AIR FILTER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-
15	03.634 NUT; AIR FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	9412-0105
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-0212
15	03.634 NUT; AIR FILTER 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0301-0310
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0311-0501
15	03.634 NUT; AIR FILTER 4HG1 ENG(RJH) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0502-0506
15	03.634 NUT; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602
15	03.634 NUT; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0611
15	03.634 NUT; AIR FILTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0612-
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0301-0310
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY) (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0311-0501
19	03.630 HOSE; AIR FILTER (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0502-
19	03.630 HOSE; AIR FILTER 4HE1 ENG(RLY) (A) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0301-0310
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY) (A) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0311-0501
19	03.630 HOSE; AIR FILTER 4HG1 ENG(RJH) (A) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0502-0506
19	03.630 HOSE; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0611
19	03.630 HOSE; AIR FILTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0612-
86	03.636 VALVE; MAG,EXH BRK	8-97065-472-0	01	1	9412-9911
86	03.636 VALVE; MAG,EXH BRK	8-97239-246-0	01	1	9912-0105
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH)	8-97239-246-0	01	1	0106-0212
86	03.636 VALVE; MAG,EXH BRK 4HE1 ENG(RLY)	8-97066-716-0	01	1	0301-0310
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97066-716-0	01	1	0311-0405
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97374-153-0	01	1	0406-0501
86	03.636 VALVE; MAG,EXH BRK 4HG1 ENG(RJH)	8-97374-153-2	01	1	0502-0506
86	03.636 VALVE; MAG,EXH BRK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97374-153-2	01	1	0507-0611
86	03.636 VALVE; MAG,EXH BRK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97374-153-2	01	1	0612-
93	08.917 NUT; MAG VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0105
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212
93	08.917 NUT; MAG VLV 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	03	1	0301-0310
93	08.917 NUT; MAG VLV 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	03	1	0311-0501
93	08.917 NUT; MAG VLV 07.633 M8 FLANGE	0-91150-108-0	03	1	0502-0602
93	08.917 NUT; MAG VLV 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-
94	03.634 BRACKET; MAG VLV,EXH BRAKE	8-97089-849-0	01	1	9412-0105
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH)	8-97089-849-0	01	1	0106-0212
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HE1 ENG(RLY)	8-97350-658-1	01	1	0301-0310
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97350-658-1	01	1	0311-0501
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH)	8-97350-658-1	01	1	0502-0506
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97350-658-1	01	1	0507-0611
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97350-658-1	01	1	0612-
108	03.634 BRACKET; AIR FILTER	8-97089-850-0	01	1	9412-0105
108	03.634 BRACKET; AIR FILTER 4HG1 ENG(RJH)	8-97089-850-0	01	1	0106-0212
108	03.634 BRACKET; AIR FILTER 4HE1 ENG(RLY)	8-97089-850-0	01	1	0301-0310
108	03.634 BRACKET; AIR FILTER 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97089-850-0	01	1	0311-0501
108	03.634 BRACKET; AIR FILTER 4HG1 ENG(RJH)	8-97089-850-0	01	1	0502-0506
108	03.634 BRACKET; AIR FILTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97089-850-0	01	1	0507-0611
108	03.634 BRACKET; AIR FILTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97089-850-0	01	1	0612-
