Sayfa 1-50 - Isuzu EPC

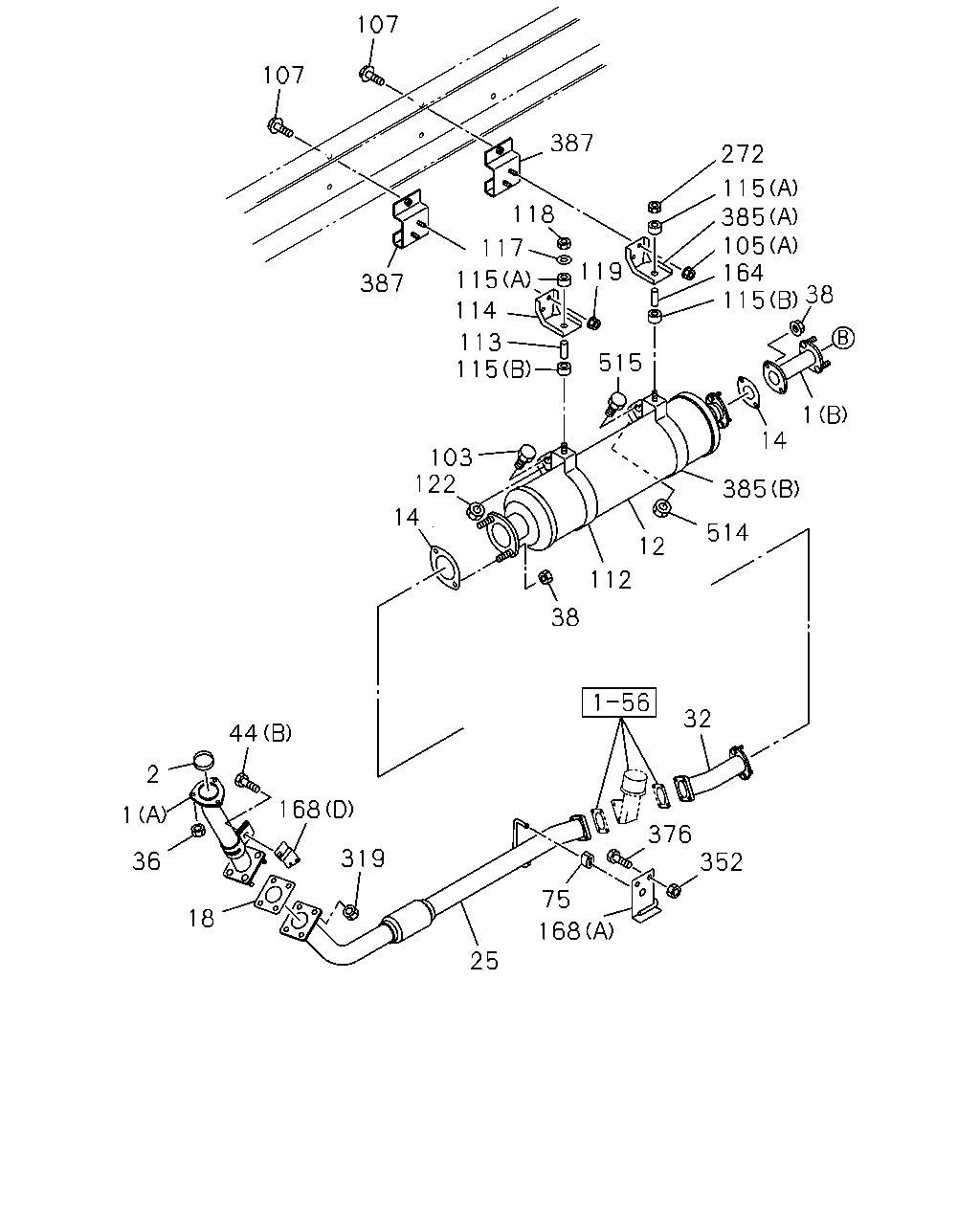

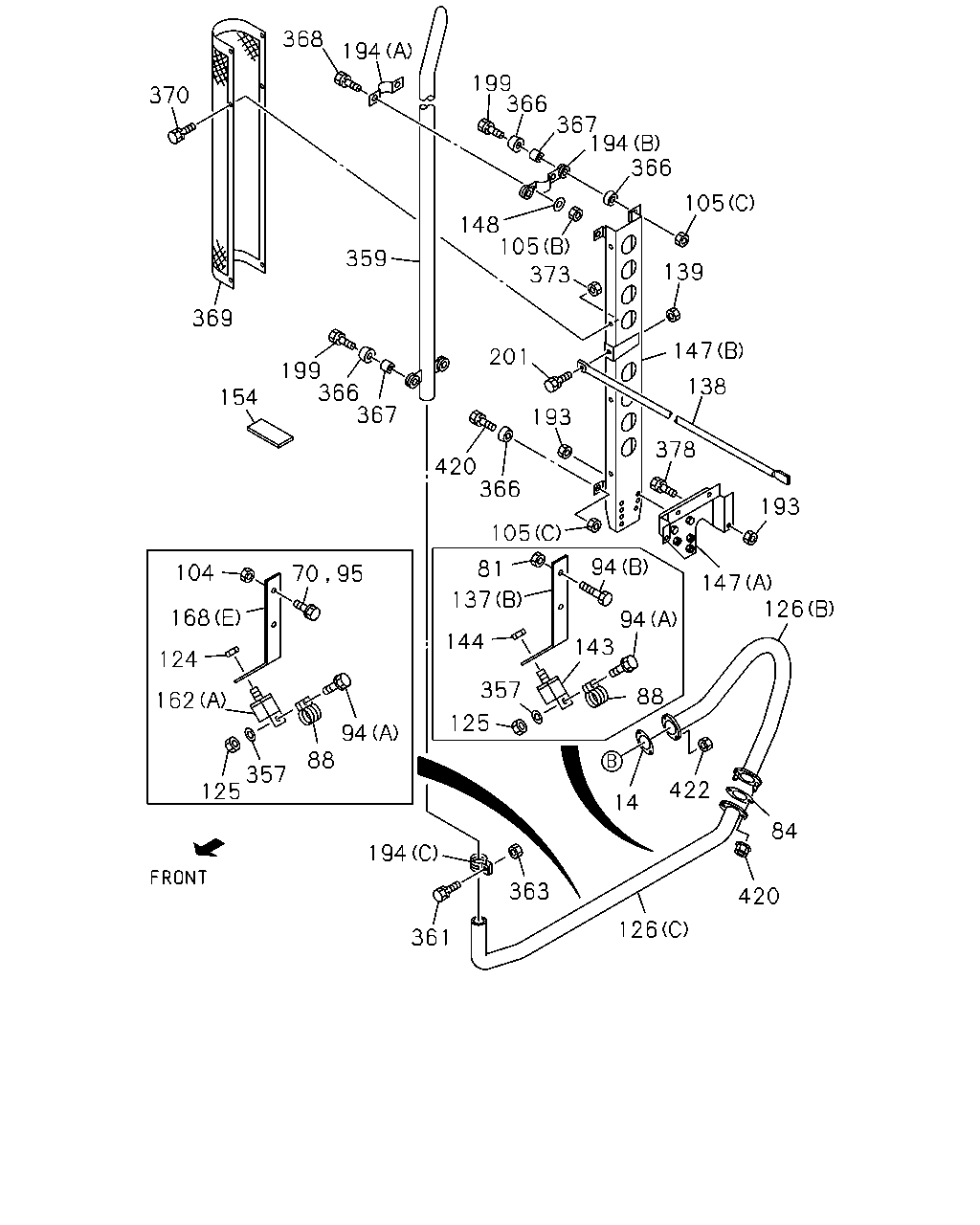

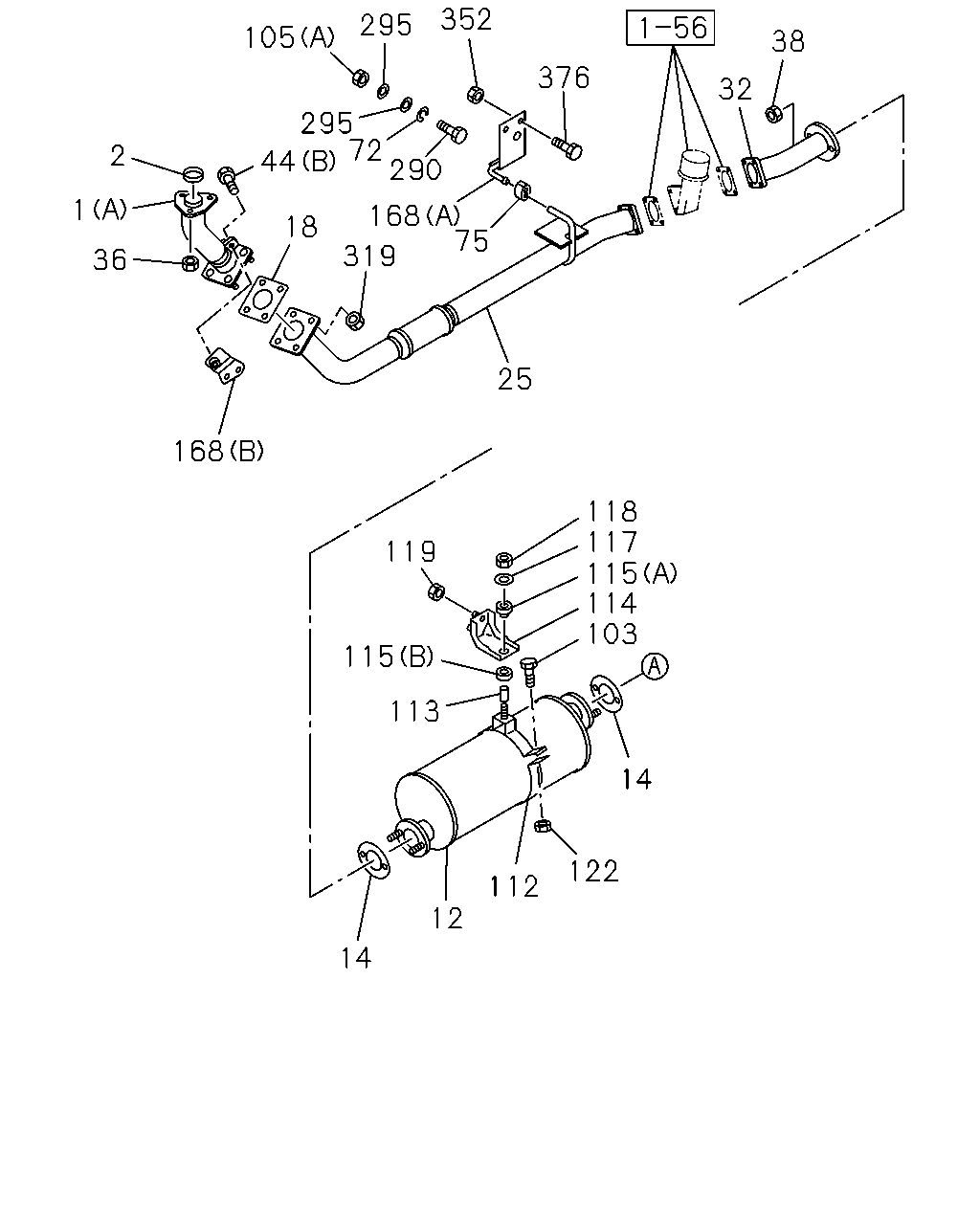

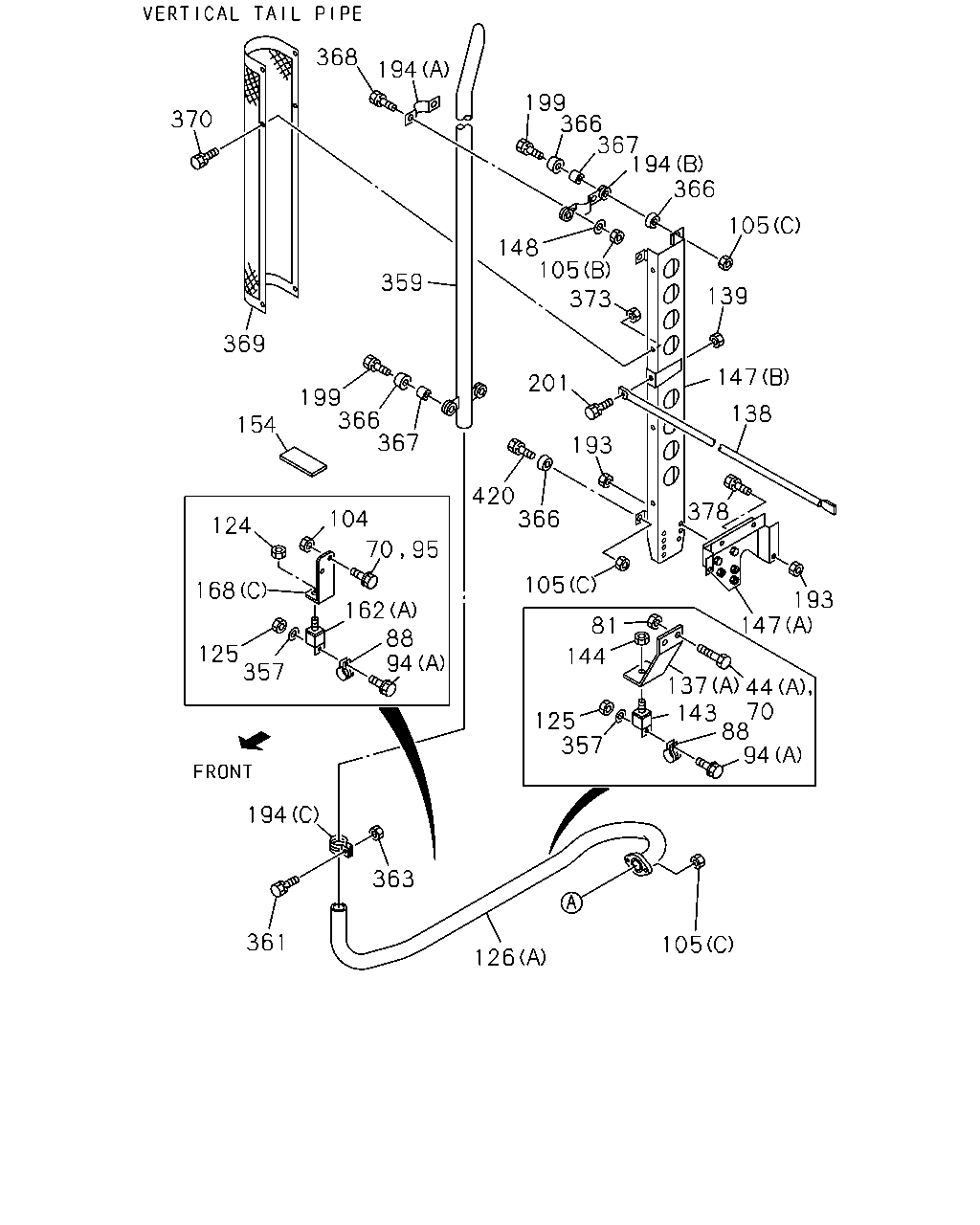

1-50 — EXHAUST PIPE AND SILENCER (#43860) — 1455 parça

368 194 199 366 367 194 366 370 105 148 105 373 359 139 369 147 201 199 366 367 138 154 193 420 366 378 104 124 105 168 193 147 162 88 94 81 125 357 144 88 94 125 357 194 363 361 105 126 137 44 143 70 70 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	03.613 BOLT; BRKT 00.002 (A) M10X25	0-28091-025-0	02	1	9412-9711
44	03.613 BOLT; BRKT 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	9712-0105
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	0106-0212
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) (B) M10X50 W/LK&PL WASHER	0-50151-050-0	01	1	0301-0307
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0308-0309
44	03.613 BOLT; BRKT 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0310-0512
44	03.613 BOLT; BRKT (B)	0-50641-050-0	01	1	0601-
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	03.706 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9412-9511
70	03.706 BOLT; BRKT 00.002 M10X25	0-28091-025-0	02	1	9712-9712
70	03.706 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9801-0310
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	9412-0003
81	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0004-0310
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP)	8-98034-766-0	02	1	0807-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9412-9604
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9605-0105
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9605-0105
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0106-0212
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0106-0212
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-0501
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-0501
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0502-0506
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0502-0506
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0507-0611
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0507-0611
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 00.685 (A) REAR M10X45 FLANGE	0-28051-045-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 03.023 (A) FRONT M10X50 FLANGE	8-97301-165-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	02	1	9412-9511
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	9605-0105
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0106-0212
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-0806
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-0806
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0301-0310
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
95	03.708 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9605-9712
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9801-0310
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
104	03.704 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	9412-9712
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9801-0310
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0507-0512
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0601-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0502-0506
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9412-9604
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	9605-9810
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0506
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
125	03.708 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	9412-9511
125	03.708 NUT; CLAMP 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0310
125	03.708 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (D)	8-98049-519-0	01	1	0612-0805
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (D)	8-98125-496-1	01	1	0806-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97254-253-0	01	1	0507-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C)	8-97379-245-0	01	1	0507-
126	03.705 PIPE; EXH,RR (A)	8-97104-626-1	01	1	9412-0105
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) (A)	8-97104-626-1	01	1	0106-0212
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) (B)	8-97254-253-0	01	1	0301-0310
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	8-97254-253-0	01	1	0311-0501
126	03.705 PIPE; EXH,RR EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4>,CATALYSIS CONTROL<6MZ> (D)	8-97043-236-0	01	1	0311-0501
126	03.705 PIPE; EXH,RR (D)	8-97043-236-0	01	1	0502-0504
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) (D)	8-97043-236-0	01	1	0505-0506
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (D)	8-97043-236-0	01	1	0507-
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) (C)	8-97354-376-0	01	1	0301-0310
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (C)	8-97354-376-0	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97354-438-0	01	1	0507-
137	03.706 BRACKET; TAIL PIPE (A)	8-97096-656-0	01	1	9412-0212
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) (B)	8-97354-438-0	01	1	0301-0310
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	8-97354-438-0	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (C)	8-94114-022-1	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE (C)	8-94114-022-1	01	1	0502-0506
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (C)	8-94114-022-1	01	1	0507-
138	03.704 STAY; EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-94139-804-0	01	1	0507-
138	03.704 STAY; EXH PIPE	5-22151-072-1	01	1	9412-0212
138	03.704 STAY; EXH PIPE 4HE1 ENG(RLY)	8-94139-804-0	01	1	0301-0310
138	03.704 STAY; EXH PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL>	8-94139-804-0	01	1	0311-0501
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
139	03.704 NUT; STAY 04.785 M10 FLANGE	0-91150-110-0	01	1	9412-0310
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501
143	03.704 RUBBER; SUPPORT 4HG1-T ENG(RDP)	8-98034-767-0	01	1	0807-
143	03.704 RUBBER; SUPPORT	8-97046-148-1	01	1	9412-9908
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	9909-0105
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH)	8-97229-586-0	01	1	0106-0212
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0301-0308
143	03.704 RUBBER; SUPPORT	8-97371-655-0	01	1	0309-0806
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97371-655-1	01	1	0807-
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-9511
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
147	03.704 BRACKET; VERTICAL PIPE 4HG1-T ENG(RDP) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97047-557-2	01	1	0612-
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97019-513-2	01	1	0507-
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	8-97354-439-1	01	1	0507-
147	03.704 BRACKET; VERTICAL PIPE (B)	8-97047-557-2	01	1	9412-0105
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) (B)	8-97047-557-2	01	1	0106-0212
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) (A)	8-97354-439-0	01	1	0301-0310
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (A)	8-97354-439-0	01	1	0311-0501
147	03.704 BRACKET; VERTICAL PIPE (A)	8-97104-657-1	01	1	9412-0212
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) (B)	5-22151-070-3	01	1	0301-0310
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	5-22151-070-3	01	1	0311-0501
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> EXC. CHARGE AIR COOLER<6PL> (B)	8-97047-557-2	01	1	0311-0501
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.002 ID=10.2	9-09150-510-0	02	1	0507-0603
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 06.606 ID=10.2	0-91510-510-0	02	1	0604-
148	03.708 WASHER; LK,CLAMP 00.002 ID=10.2	9-09150-510-0	02	1	9412-0310
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.002 ID=10.2	9-09150-510-0	02	1	0311-0501
154	03.613 CUSHION; HEAT PROTECTOR EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.629 125X50X10	8-94341-284-0	05	1	0507-
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	05	1	9412-0212
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	06	1	0301-0301
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	05	1	0302-0310
154	03.613 CUSHION; HEAT PROTECTOR EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.629 125X50X10	8-94341-284-0	05	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) (B) L=115	8-98034-765-0	01	1	0807-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-1	01	1	0507-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97046-148-1	01	1	9412-9908
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97229-586-0	01	1	9909-0105
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) 03.704 (A)	8-97229-586-0	01	1	0106-0212
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97229-586-0	01	1	0301-0308
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97371-655-0	01	1	0309-0310
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-0	01	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0502-0506
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0507-0806
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0807-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (A)	8-97046-681-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (A)	8-97046-681-1	01	1	0301-0309
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0310-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97088-733-1	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97088-733-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97354-431-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97354-431-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT (C)	8-97104-656-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (C)	8-97104-656-0	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) 03.706 (E)	8-97354-438-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.706 (E)	8-97354-438-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (F)	5-22151-044-0	01	1	0502-0506
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0311-0611
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	9412-9711
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	06	1	9712-0003
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0004-0105
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0212
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	04	1	9412-0105
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0212
193	03.704 NUT; BRKT,VERTICAL PIPE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0301-0310
193	03.704 NUT; BRKT,VERTICAL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0311-0501
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	1-22133-052-0	01	1	0507-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	1-22133-065-0	01	1	0507-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C) ID=61.6	8-97010-307-0	01	1	0507-
194	03.708 CLAMP; TAIL PIPE (A)	1-22133-052-0	01	1	9412-0310
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	1-22133-052-0	01	1	0311-0501
194	03.708 CLAMP; TAIL PIPE (B)	1-22133-065-0	01	1	9412-0310
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	1-22133-065-0	01	1	0311-0501
194	03.708 CLAMP; TAIL PIPE (C) ID=61.6	8-97010-307-0	01	1	9412-0310
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C) ID=61.6	8-97010-307-0	01	1	0311-0501
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X50 FLANGE	0-28081-050-0	04	1	0507-0512
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.173 M10X50 FLANGE	0-28051-050-0	04	1	0601-
199	03.708 BOLT; TAIL PIPE 00.685 M10X50 FLANGE	0-28081-050-0	04	1	9412-0310
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X50 FLANGE	0-28081-050-0	04	1	0311-0501
201	03.704 BOLT; STAY 4HG1-T ENG(RDP) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0612-
201	03.704 BOLT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0507-0507
201	03.704 BOLT; STAY 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0507-0512
201	03.704 BOLT; STAY 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28651-040-0	02	1	0601-
201	03.704 BOLT; STAY 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9412-0005
201	03.704 BOLT; STAY 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0006-0212
201	03.704 BOLT; STAY 4HE1 ENG(RLY) 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0301-0310
201	03.704 BOLT; STAY 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0311-0501
201	03.704 BOLT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> EXC. TURBOCHARGER(K51) 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0311-0501
201	03.704 BOLT; STAY 4HG1 ENG(RJH) TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0311-0501
357	03.708 WASHER; PL,CLAMP 4HG1-T ENG(RDP) 00.002 ID=10.5 OD=22	0-91614-610-0	02	1	0807-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9412-0105
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0106-0212
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0806
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0806
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
359	03.069 PIPE; EXH,VERTICAL EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97128-546-1	01	1	0507-
359	03.069 PIPE; EXH,VERTICAL	8-97092-079-1	01	1	9412-9503
359	03.069 PIPE; EXH,VERTICAL	8-97128-546-1	01	1	9504-0310
359	03.069 PIPE; EXH,VERTICAL EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97128-546-1	01	1	0311-0501
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> M8X45 W/LK WASHER	0-50540-845-0	01	1	0507-0801
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
361	03.704 BOLT; EXH PIPE TO PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-0310
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0311-0501
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.559 M8	9-09110-408-0	01	1	0507-0512
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.334 M8	0-91110-508-0	01	1	0601-
363	03.704 NUT; EXH PIPE TO PIPE 02.559 M8	9-09110-408-0	01	1	9412-0310
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.559 M8	9-09110-408-0	01	1	0311-0501
366	03.706 RUBBER; SUPPORT,EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> OD=40	1-22159-193-0	08	1	0507-
366	03.706 RUBBER; SUPPORT,EXH PIPE OD=40	1-22159-193-0	08	1	9412-0310
366	03.706 RUBBER; SUPPORT,EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> OD=40	1-22159-193-0	08	1	0311-0501
367	03.704 COLLAR; DIST,SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> L=22	9-22159-024-0	04	1	0507-
367	03.704 COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	04	1	9412-0310
367	03.704 COLLAR; DIST,SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> L=22	9-22159-024-0	04	1	0311-0501
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0507-0512
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.439 M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-
368	03.704 BOLT; CLAMP 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9412-0310
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0311-0501
369	03.704 NET; EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97321-334-0	01	1	0507-
369	03.704 NET; EXH PIPE	8-97321-334-0	01	1	9412-0310
369	03.704 NET; EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97321-334-0	01	1	0311-0501
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.670 M6X20 FLANGE	0-28080-620-0	14	1	0507-0512
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.386 M6X20 FLANGE	0-28050-620-0	14	1	0601-
370	03.704 BOLT; NET TO BRKT 03.670 M6X20 FLANGE	0-28080-620-0	14	1	9412-0310
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.670 M6X20 FLANGE	0-28080-620-0	14	1	0311-0501
373	03.704 NUT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.829 M6 FLANGE	5-09440-004-0	10	1	0507-
373	03.704 NUT; NET TO BRKT 07.829 M6 FLANGE	5-09440-004-0	10	1	9412-0310
373	03.704 NUT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.829 M6 FLANGE	5-09440-004-0	10	1	0311-0501
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0507-0512
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0601-
378	03.704 BOLT; BRKT,TAIL PIPE 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9412-0310
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0311-0501
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.417 M10X25 FLANGE	0-28081-025-0	03	1	0507-0512
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X25 FLANGE	0-28051-025-0	03	1	0601-
420	03.704 BOLT; BRKT,VERTICAL PIPE 03.417 M10X25 FLANGE	0-28081-025-0	03	1	9412-0310
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.417 M10X25 FLANGE	0-28081-025-0	03	1	0311-0501

107 107 272 387 173 115 385 105 164 115 118 117 119 115 387 515 114 113 115 103 122 385 178 514 210 12 38 32 44 2 168 1 376 352 319 36 75 18 168 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A)	8-98049-518-3	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-97354-373-0	01	1	0507-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97210-052-0	01	1	0507-
1	03.609 PIPE; EXH (A)	8-97115-323-0	01	1	9412-0105
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97115-323-1	01	1	0106-0212
1	03.609 PIPE; EXH 4HE1 ENG(RLY) (A)	8-97354-373-0	01	1	0301-0310
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97354-373-0	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> (A)	8-97187-143-1	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A)	8-97226-272-0	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97226-272-0	01	1	0502-
2	03.611 GASKET; PIPE TO MANIF	8-97036-287-0	01	1	9412-9709
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	9710-0105
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97180-749-2	01	1	0106-0212
2	03.611 GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97180-749-2	01	1	0301-0310
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97180-749-2	01	1	0311-0408
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97381-455-0	01	1	0502-0506
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97381-455-0	01	1	0507-0611
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0612-0805
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0806-0806
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0807-0807
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0807-
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-97222-489-1	01	1	0507-
12	03.701 SILENCER ASM; EXH	8-97120-517-0	01	1	9412-9806
12	03.701 SILENCER ASM; EXH	8-97206-525-1	01	1	9807-0105
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-2	01	1	0106-0212
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97114-564-1	01	1	0311-0501
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97206-525-3	01	1	0311-0501
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-3	01	1	0502-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	9412-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP)	8-98125-494-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-97354-374-0	01	1	0507-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97114-605-0	01	1	9412-0105
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97114-605-1	01	1	0106-0212
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY)	8-97354-374-0	01	1	0301-0310
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97354-374-0	01	1	0311-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0311-0611
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0612-0805
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-494-0	01	1	0806-0806
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-0807
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-
32	03.609 PIPE; EXH,FRT 4HK1-TCN ENG(RDQ)	8-98000-939-0	01	1	0507-
32	03.609 PIPE; EXH,FRT	8-97079-392-0	01	1	9412-0006
32	03.609 PIPE; EXH,FRT	8-97254-685-0	01	1	0007-0105
32	03.609 PIPE; EXH,FRT 4HG1 ENG(RJH)	8-97254-685-0	01	1	0106-0212
32	03.609 PIPE; EXH,FRT 4HE1 ENG(RLY)	8-97354-375-0	01	1	0301-0310
32	03.609 PIPE; EXH,FRT 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL>	8-97354-375-0	01	1	0311-0501
32	03.609 PIPE; EXH,FRT 4HG1 ENG(RJH)	8-97254-685-0	01	1	0311-0611
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97254-685-0	01	1	0612-0805
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-495-0	01	1	0806-
36	03.613 NUT; EXH PIPE 00.004 M10 LOCK NUT	8-94375-110-0	03	1	9501-9501
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	9502-0105
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0106-0212
36	03.613 NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0301-0310
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0311-0501
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0502-0506
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0507-0611
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0612-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0506
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9412-0105
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0212
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0310
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0311-0501
44	03.613 BOLT; BRKT 00.002 (A) M10X25	0-28091-025-0	02	1	9412-9711
44	03.613 BOLT; BRKT 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	9712-0105
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	0106-0212
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) (B) M10X50 W/LK&PL WASHER	0-50151-050-0	01	1	0301-0307
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0308-0309
44	03.613 BOLT; BRKT 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0310-0512
44	03.613 BOLT; BRKT (B)	0-50641-050-0	01	1	0601-
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
75	03.704 RUBBER; SUPPORT,BRKT 03.706 T=28 55X44(OVAL)	8-94332-331-0	01	1	9412-9612
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-0	01	1	9701-0105
75	03.704 RUBBER; SUPPORT,BRKT 4HG1 ENG(RJH) 03.613	8-97166-498-0	01	1	0106-0212
75	03.704 RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY) 03.613	8-97166-498-0	01	1	0301-0309
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0310-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
103	03.704 BOLT; SILENCER BRKT FIX 01.540 M8X45 FLANGE	0-28080-845-0	01	1	9712-9802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9803-0611
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0507-0512
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0601-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0502-0506
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9412-9604
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0311-0501
107	03.704 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
107	03.704 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
107	03.704 BOLT; BRKT 4HE1 ENG(RLY) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0301-0310
107	03.704 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	9412-
114	03.704 BRACKET; EXH SILENCER 4HK1-TCN ENG(RDQ)	8-97172-313-0	01	1	0507-
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	9412-0212
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY)	8-97172-313-0	01	1	0301-0310
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97172-313-0	01	1	0311-0501
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	0502-0504
114	03.704 BRACKET; EXH SILENCER 4HG1 ENG(RJH)	8-94329-996-0	01	1	0505-0611
114	03.704 BRACKET; EXH SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94329-996-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HG1 ENG(RJH)	8-94329-996-0	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-882-0	01	1	0507-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-927-0	01	1	0507-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9412-0212
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) (A)	8-94457-277-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0502-0506
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0507-0611
115	03.704 RUBBER; MTG,SILENCER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9412-0212
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) (B)	8-94457-278-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0502-0506
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0507-0611
115	03.704 RUBBER; MTG,SILENCER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0612-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9412-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	9412-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	9412-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) L=37.5	9-22151-217-0	01	1	0301-0310
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0311-0501
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0311-0501
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0502-0506
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0507-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (A)	8-97046-681-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (A)	8-97046-681-1	01	1	0301-0309
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0310-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97088-733-1	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97088-733-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97354-431-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97354-431-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT (C)	8-97104-656-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (C)	8-97104-656-0	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) 03.706 (E)	8-97354-438-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.706 (E)	8-97354-438-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (F)	5-22151-044-0	01	1	0502-0506
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0311-0611
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
173	03.685 WASHER; PL 4HK1-TCN ENG(RDQ) 03.704 OD=55	9-09852-169-0	01	1	0507-
173	03.685 WASHER; PL 4HE1 ENG(RLY) 03.704 OD=55	9-09852-169-0	01	1	0301-0310
173	03.685 WASHER; PL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.704 OD=55	9-09852-169-0	01	1	0311-0501
178	03.611 GASKET; CONV TO MANIF 4HE1 ENG(RLY) 03.634 ID=64	8-97037-694-0	01	1	0301-0310
178	03.611 GASKET; CONV TO MANIF 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> 03.634 ID=64	8-97037-694-0	01	1	0311-0501
210	03.685 CONVERTER 4HE1 ENG(RLY)	8-97210-797-1	01	1	0301-0310
210	03.685 CONVERTER 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> AUSTRALIA EQUIPMENT(RR3) CHARGE AIR COOLER<6PL>	8-97210-797-1	01	1	0311-0501
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	01	1	0507-
272	03.685 NUT; FLANGE 4HE1 ENG(RLY) 07.874 M10 FLANGE	5-09440-006-0	01	1	0301-0310
272	03.685 NUT; FLANGE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.874 M10 FLANGE	5-09440-006-0	01	1	0311-0501
319	03.602 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	04	1	9412-0602
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0105
352	03.613 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-0105
376	03.708 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0212
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-97172-313-0	01	1	0507-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	01	1	0507-
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) (A)	8-97172-313-0	01	1	0301-0310
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97172-313-0	01	1	0311-0501
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) (B)	8-97207-224-0	01	1	0301-0310
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> (B)	8-97207-224-0	01	1	0311-0501
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ)	8-97354-437-0	01	1	0507-
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ)	8-97354-437-0	01	1	0507-
387	03.704 SPACER; BRKT 4HE1 ENG(RLY)	8-97354-437-0	02	1	0301-0310
387	03.704 SPACER; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97354-437-0	02	1	0311-0501
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ) 02.559 M8	9-09110-408-0	01	1	0507-0512
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ) 02.334 M8	0-91110-508-0	01	1	0601-
514	03.704 NUT; BAND 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	01	1	0301-0310
514	03.704 NUT; BAND 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 M8	9-09110-408-0	01	1	0311-0501
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0801
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
515	03.704 BOLT; BAND 4HE1 ENG(RLY) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0310
515	03.704 BOLT; BAND 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0311-0501

107 107 387 272 115 385 105 164 38 115 118 117 119 115 387 114 113 115 515 1 14 103 122 385 14 514 12 112 38 32 44 2 168 1 376 352 319 36 75 18 168 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A)	8-98049-518-3	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-97354-373-0	01	1	0507-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97210-052-0	01	1	0507-
1	03.609 PIPE; EXH (A)	8-97115-323-0	01	1	9412-0105
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97115-323-1	01	1	0106-0212
1	03.609 PIPE; EXH 4HE1 ENG(RLY) (A)	8-97354-373-0	01	1	0301-0310
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97354-373-0	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> (A)	8-97187-143-1	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A)	8-97226-272-0	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97226-272-0	01	1	0502-
2	03.611 GASKET; PIPE TO MANIF	8-97036-287-0	01	1	9412-9709
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	9710-0105
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97180-749-2	01	1	0106-0212
2	03.611 GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97180-749-2	01	1	0301-0310
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97180-749-2	01	1	0311-0408
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97381-455-0	01	1	0502-0506
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97381-455-0	01	1	0507-0611
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0612-0805
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0806-0806
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0807-0807
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0807-
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-97222-489-1	01	1	0507-
12	03.701 SILENCER ASM; EXH	8-97120-517-0	01	1	9412-9806
12	03.701 SILENCER ASM; EXH	8-97206-525-1	01	1	9807-0105
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-2	01	1	0106-0212
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97114-564-1	01	1	0311-0501
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97206-525-3	01	1	0311-0501
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-3	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	9412-9511
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	9512-0105
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) ID=64.7	8-94328-352-0	01	1	0106-0212
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0301-0310
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0507-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	9412-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP)	8-98125-494-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-97354-374-0	01	1	0507-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97114-605-0	01	1	9412-0105
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97114-605-1	01	1	0106-0212
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY)	8-97354-374-0	01	1	0301-0310
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97354-374-0	01	1	0311-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0311-0611
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0612-0805
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-494-0	01	1	0806-0806
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-0807
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-
32	03.609 PIPE; EXH,FRT 4HK1-TCN ENG(RDQ)	8-98000-939-0	01	1	0507-
32	03.609 PIPE; EXH,FRT	8-97079-392-0	01	1	9412-0006
32	03.609 PIPE; EXH,FRT	8-97254-685-0	01	1	0007-0105
32	03.609 PIPE; EXH,FRT 4HG1 ENG(RJH)	8-97254-685-0	01	1	0106-0212
32	03.609 PIPE; EXH,FRT 4HE1 ENG(RLY)	8-97354-375-0	01	1	0301-0310
32	03.609 PIPE; EXH,FRT 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL>	8-97354-375-0	01	1	0311-0501
32	03.609 PIPE; EXH,FRT 4HG1 ENG(RJH)	8-97254-685-0	01	1	0311-0611
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97254-685-0	01	1	0612-0805
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-495-0	01	1	0806-
36	03.613 NUT; EXH PIPE 00.004 M10 LOCK NUT	8-94375-110-0	03	1	9501-9501
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	9502-0105
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0106-0212
36	03.613 NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0301-0310
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0311-0501
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0502-0506
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0507-0611
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0612-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0506
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9412-0105
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0212
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0310
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0311-0501
44	03.613 BOLT; BRKT 00.002 (A) M10X25	0-28091-025-0	02	1	9412-9711
44	03.613 BOLT; BRKT 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	9712-0105
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	0106-0212
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) (B) M10X50 W/LK&PL WASHER	0-50151-050-0	01	1	0301-0307
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0308-0309
44	03.613 BOLT; BRKT 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0310-0512
44	03.613 BOLT; BRKT (B)	0-50641-050-0	01	1	0601-
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
75	03.704 RUBBER; SUPPORT,BRKT 03.706 T=28 55X44(OVAL)	8-94332-331-0	01	1	9412-9612
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-0	01	1	9701-0105
75	03.704 RUBBER; SUPPORT,BRKT 4HG1 ENG(RJH) 03.613	8-97166-498-0	01	1	0106-0212
75	03.704 RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY) 03.613	8-97166-498-0	01	1	0301-0309
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0310-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
103	03.704 BOLT; SILENCER BRKT FIX 01.540 M8X45 FLANGE	0-28080-845-0	01	1	9712-9802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9803-0611
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0507-0512
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0601-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0502-0506
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9412-9604
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0311-0501
107	03.704 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
107	03.704 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
107	03.704 BOLT; BRKT 4HE1 ENG(RLY) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0301-0310
107	03.704 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0807-
112	03.706 BRACKET; HANGER 4HK1-TCN ENG(RDQ) 03.704	8-97207-224-0	01	1	0507-
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	9412-9511
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0502-0611
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97076-020-0	01	1	0612-0805
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-504-0	01	1	0806-0806
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP)	8-98125-504-0	01	1	0807-
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	9512-0105
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0106-0212
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) 03.704	8-97207-224-0	01	1	0301-0310
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0311-0501
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	9412-
114	03.704 BRACKET; EXH SILENCER 4HK1-TCN ENG(RDQ)	8-97172-313-0	01	1	0507-
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	9412-0212
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY)	8-97172-313-0	01	1	0301-0310
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97172-313-0	01	1	0311-0501
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	0502-0504
114	03.704 BRACKET; EXH SILENCER 4HG1 ENG(RJH)	8-94329-996-0	01	1	0505-0611
114	03.704 BRACKET; EXH SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94329-996-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HG1 ENG(RJH)	8-94329-996-0	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-882-0	01	1	0507-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-927-0	01	1	0507-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9412-0212
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) (A)	8-94457-277-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0502-0506
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0507-0611
115	03.704 RUBBER; MTG,SILENCER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9412-0212
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) (B)	8-94457-278-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0502-0506
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0507-0611
115	03.704 RUBBER; MTG,SILENCER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0612-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9412-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	9412-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	9412-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) L=37.5	9-22151-217-0	01	1	0301-0310
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0311-0501
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0311-0501
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0502-0506
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0507-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (A)	8-97046-681-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (A)	8-97046-681-1	01	1	0301-0309
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0310-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97088-733-1	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97088-733-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97354-431-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97354-431-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT (C)	8-97104-656-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (C)	8-97104-656-0	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) 03.706 (E)	8-97354-438-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.706 (E)	8-97354-438-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (F)	5-22151-044-0	01	1	0502-0506
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0311-0611
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	01	1	0507-
272	03.685 NUT; FLANGE 4HE1 ENG(RLY) 07.874 M10 FLANGE	5-09440-006-0	01	1	0301-0310
272	03.685 NUT; FLANGE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.874 M10 FLANGE	5-09440-006-0	01	1	0311-0501
319	03.602 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	04	1	9412-0602
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0105
352	03.613 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-0105
376	03.708 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0212
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (A)	8-97172-313-0	01	1	0507-
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (B)	8-97207-224-0	01	1	0507-
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) (A)	8-97172-313-0	01	1	0301-0310
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97172-313-0	01	1	0311-0501
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) (B)	8-97207-224-0	01	1	0301-0310
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> (B)	8-97207-224-0	01	1	0311-0501
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ)	8-97354-437-0	01	1	0507-
387	03.704 SPACER; BRKT 4HK1-TCN ENG(RDQ)	8-97354-437-0	01	1	0507-
387	03.704 SPACER; BRKT 4HE1 ENG(RLY)	8-97354-437-0	02	1	0301-0310
387	03.704 SPACER; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97354-437-0	02	1	0311-0501
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ) 02.559 M8	9-09110-408-0	01	1	0507-0512
514	03.704 NUT; BAND 4HK1-TCN ENG(RDQ) 02.334 M8	0-91110-508-0	01	1	0601-
514	03.704 NUT; BAND 4HE1 ENG(RLY) 02.559 M8	9-09110-408-0	01	1	0301-0310
514	03.704 NUT; BAND 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 M8	9-09110-408-0	01	1	0311-0501
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0801
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
515	03.704 BOLT; BAND 4HK1-TCN ENG(RDQ) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
515	03.704 BOLT; BAND 4HE1 ENG(RLY) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0301-0310
515	03.704 BOLT; BAND 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0311-0501

368 194 199 366 367 194 366 370 105 148 105 373 359 139 369 147 201 199 366 367 138 154 193 378 420 366 193 105 94 81 104 147 126 137 168 94 143 144 124 357 88 162 125 94 88 357 125 422 14 84 194 363 420 126 361 70 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	9412-9511
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	9512-0105
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) ID=64.7	8-94328-352-0	01	1	0106-0212
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0301-0310
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0507-
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	03.706 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9412-9511
70	03.706 BOLT; BRKT 00.002 M10X25	0-28091-025-0	02	1	9712-9712
70	03.706 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9801-0310
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	9412-0003
81	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0004-0310
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 ID=64.7	8-94328-352-0	01	1	0507-
84	03.611 GASKET; EXH PIPE 4HE1 ENG(RLY) 03.704 ID=64.7	8-94328-352-0	01	1	0301-0310
84	03.611 GASKET; EXH PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.704 ID=64.7	8-94328-352-0	01	1	0311-0501
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP)	8-98034-766-0	02	1	0807-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9412-9604
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9605-0105
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9605-0105
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0106-0212
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0106-0212
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-0501
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-0501
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0502-0506
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0502-0506
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0507-0611
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0507-0611
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 00.685 (A) REAR M10X45 FLANGE	0-28051-045-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 03.023 (A) FRONT M10X50 FLANGE	8-97301-165-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	02	1	9412-9511
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	9605-0105
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0106-0212
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-0806
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-0806
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0301-0310
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
95	03.708 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9605-9712
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9801-0310
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
104	03.704 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	9412-9712
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9801-0310
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0507-0512
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0601-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0502-0506
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9412-9604
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	9605-9810
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0506
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
125	03.708 NUT; CLAMP 02.559 M8	9-09110-408-0	02	1	9412-9511
125	03.708 NUT; CLAMP 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0310
125	03.708 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (D)	8-98049-519-0	01	1	0612-0805
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (D)	8-98125-496-1	01	1	0806-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97254-253-0	01	1	0507-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C)	8-97379-245-0	01	1	0507-
126	03.705 PIPE; EXH,RR (A)	8-97104-626-1	01	1	9412-0105
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) (A)	8-97104-626-1	01	1	0106-0212
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) (B)	8-97254-253-0	01	1	0301-0310
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	8-97254-253-0	01	1	0311-0501
126	03.705 PIPE; EXH,RR EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4>,CATALYSIS CONTROL<6MZ> (D)	8-97043-236-0	01	1	0311-0501
126	03.705 PIPE; EXH,RR (D)	8-97043-236-0	01	1	0502-0504
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) (D)	8-97043-236-0	01	1	0505-0506
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (D)	8-97043-236-0	01	1	0507-
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) (C)	8-97354-376-0	01	1	0301-0310
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (C)	8-97354-376-0	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97354-438-0	01	1	0507-
137	03.706 BRACKET; TAIL PIPE (A)	8-97096-656-0	01	1	9412-0212
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) (B)	8-97354-438-0	01	1	0301-0310
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	8-97354-438-0	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (C)	8-94114-022-1	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE (C)	8-94114-022-1	01	1	0502-0506
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (C)	8-94114-022-1	01	1	0507-
138	03.704 STAY; EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-94139-804-0	01	1	0507-
138	03.704 STAY; EXH PIPE	5-22151-072-1	01	1	9412-0212
138	03.704 STAY; EXH PIPE 4HE1 ENG(RLY)	8-94139-804-0	01	1	0301-0310
138	03.704 STAY; EXH PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL>	8-94139-804-0	01	1	0311-0501
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
139	03.704 NUT; STAY 04.785 M10 FLANGE	0-91150-110-0	01	1	9412-0310
139	03.704 NUT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501
143	03.704 RUBBER; SUPPORT 4HG1-T ENG(RDP)	8-98034-767-0	01	1	0807-
143	03.704 RUBBER; SUPPORT	8-97046-148-1	01	1	9412-9908
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	9909-0105
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH)	8-97229-586-0	01	1	0106-0212
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0301-0308
143	03.704 RUBBER; SUPPORT	8-97371-655-0	01	1	0309-0806
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97371-655-1	01	1	0807-
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-9511
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
147	03.704 BRACKET; VERTICAL PIPE 4HG1-T ENG(RDP) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97047-557-2	01	1	0612-
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97019-513-2	01	1	0507-
147	03.704 BRACKET; VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	8-97354-439-1	01	1	0507-
147	03.704 BRACKET; VERTICAL PIPE (B)	8-97047-557-2	01	1	9412-0105
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH) (B)	8-97047-557-2	01	1	0106-0212
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) (A)	8-97354-439-0	01	1	0301-0310
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (A)	8-97354-439-0	01	1	0311-0501
147	03.704 BRACKET; VERTICAL PIPE (A)	8-97104-657-1	01	1	9412-0212
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) (B)	5-22151-070-3	01	1	0301-0310
147	03.704 BRACKET; VERTICAL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	5-22151-070-3	01	1	0311-0501
147	03.704 BRACKET; VERTICAL PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> EXC. CHARGE AIR COOLER<6PL> (B)	8-97047-557-2	01	1	0311-0501
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.002 ID=10.2	9-09150-510-0	02	1	0507-0603
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 06.606 ID=10.2	0-91510-510-0	02	1	0604-
148	03.708 WASHER; LK,CLAMP 00.002 ID=10.2	9-09150-510-0	02	1	9412-0310
148	03.708 WASHER; LK,CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.002 ID=10.2	9-09150-510-0	02	1	0311-0501
154	03.613 CUSHION; HEAT PROTECTOR EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.629 125X50X10	8-94341-284-0	05	1	0507-
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	05	1	9412-0212
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	06	1	0301-0301
154	03.613 CUSHION; HEAT PROTECTOR 07.629 125X50X10	8-94341-284-0	05	1	0302-0310
154	03.613 CUSHION; HEAT PROTECTOR EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.629 125X50X10	8-94341-284-0	05	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) (B) L=115	8-98034-765-0	01	1	0807-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-1	01	1	0507-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97046-148-1	01	1	9412-9908
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97229-586-0	01	1	9909-0105
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) 03.704 (A)	8-97229-586-0	01	1	0106-0212
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97229-586-0	01	1	0301-0308
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97371-655-0	01	1	0309-0310
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-0	01	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0502-0506
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0507-0806
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0807-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (A)	8-97046-681-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (A)	8-97046-681-1	01	1	0301-0309
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0310-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97088-733-1	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97088-733-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97354-431-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97354-431-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT (C)	8-97104-656-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (C)	8-97104-656-0	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) 03.706 (E)	8-97354-438-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.706 (E)	8-97354-438-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (F)	5-22151-044-0	01	1	0502-0506
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0311-0611
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602
193	03.704 NUT; BRKT,VERTICAL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	9412-9711
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	06	1	9712-0003
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0004-0105
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0212
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310
193	03.704 NUT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	04	1	9412-0105
193	03.704 NUT; BRKT,VERTICAL PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0212
193	03.704 NUT; BRKT,VERTICAL PIPE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	04	1	0301-0310
193	03.704 NUT; BRKT,VERTICAL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	04	1	0311-0501
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	1-22133-052-0	01	1	0507-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	1-22133-065-0	01	1	0507-
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C) ID=61.6	8-97010-307-0	01	1	0507-
194	03.708 CLAMP; TAIL PIPE (A)	1-22133-052-0	01	1	9412-0310
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (A)	1-22133-052-0	01	1	0311-0501
194	03.708 CLAMP; TAIL PIPE (B)	1-22133-065-0	01	1	9412-0310
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	1-22133-065-0	01	1	0311-0501
194	03.708 CLAMP; TAIL PIPE (C) ID=61.6	8-97010-307-0	01	1	9412-0310
194	03.708 CLAMP; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C) ID=61.6	8-97010-307-0	01	1	0311-0501
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X50 FLANGE	0-28081-050-0	04	1	0507-0512
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.173 M10X50 FLANGE	0-28051-050-0	04	1	0601-
199	03.708 BOLT; TAIL PIPE 00.685 M10X50 FLANGE	0-28081-050-0	04	1	9412-0310
199	03.708 BOLT; TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X50 FLANGE	0-28081-050-0	04	1	0311-0501
201	03.704 BOLT; STAY 4HG1-T ENG(RDP) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0612-
201	03.704 BOLT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0507-0507
201	03.704 BOLT; STAY 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0507-0512
201	03.704 BOLT; STAY 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.613 M10X40 FLANGE	0-28651-040-0	02	1	0601-
201	03.704 BOLT; STAY 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9412-0005
201	03.704 BOLT; STAY 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0006-0212
201	03.704 BOLT; STAY 4HE1 ENG(RLY) 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0301-0310
201	03.704 BOLT; STAY 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0311-0501
201	03.704 BOLT; STAY EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> EXC. TURBOCHARGER(K51) 03.613 M10X40 FLANGE	0-28681-040-0	02	1	0311-0501
201	03.704 BOLT; STAY 4HG1 ENG(RJH) TURBOCHARGER(K51) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0311-0501
357	03.708 WASHER; PL,CLAMP 4HG1-T ENG(RDP) 00.002 ID=10.5 OD=22	0-91614-610-0	02	1	0807-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9412-0105
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0106-0212
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0806
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0806
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
359	03.069 PIPE; EXH,VERTICAL EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97128-546-1	01	1	0507-
359	03.069 PIPE; EXH,VERTICAL	8-97092-079-1	01	1	9412-9503
359	03.069 PIPE; EXH,VERTICAL	8-97128-546-1	01	1	9504-0310
359	03.069 PIPE; EXH,VERTICAL EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97128-546-1	01	1	0311-0501
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> M8X45 W/LK WASHER	0-50540-845-0	01	1	0507-0801
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
361	03.704 BOLT; EXH PIPE TO PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-0310
361	03.704 BOLT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0311-0501
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.559 M8	9-09110-408-0	01	1	0507-0512
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.334 M8	0-91110-508-0	01	1	0601-
363	03.704 NUT; EXH PIPE TO PIPE 02.559 M8	9-09110-408-0	01	1	9412-0310
363	03.704 NUT; EXH PIPE TO PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 02.559 M8	9-09110-408-0	01	1	0311-0501
366	03.706 RUBBER; SUPPORT,EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> OD=40	1-22159-193-0	08	1	0507-
366	03.706 RUBBER; SUPPORT,EXH PIPE OD=40	1-22159-193-0	08	1	9412-0310
366	03.706 RUBBER; SUPPORT,EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> OD=40	1-22159-193-0	08	1	0311-0501
367	03.704 COLLAR; DIST,SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> L=22	9-22159-024-0	04	1	0507-
367	03.704 COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	04	1	9412-0310
367	03.704 COLLAR; DIST,SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> L=22	9-22159-024-0	04	1	0311-0501
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0507-0512
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.439 M10X30 W/LK WASHER	0-50541-030-0	02	1	0601-
368	03.704 BOLT; CLAMP 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9412-0310
368	03.704 BOLT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0311-0501
369	03.704 NET; EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97321-334-0	01	1	0507-
369	03.704 NET; EXH PIPE	8-97321-334-0	01	1	9412-0310
369	03.704 NET; EXH PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4>	8-97321-334-0	01	1	0311-0501
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.670 M6X20 FLANGE	0-28080-620-0	14	1	0507-0512
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.386 M6X20 FLANGE	0-28050-620-0	14	1	0601-
370	03.704 BOLT; NET TO BRKT 03.670 M6X20 FLANGE	0-28080-620-0	14	1	9412-0310
370	03.704 BOLT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.670 M6X20 FLANGE	0-28080-620-0	14	1	0311-0501
373	03.704 NUT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.829 M6 FLANGE	5-09440-004-0	10	1	0507-
373	03.704 NUT; NET TO BRKT 07.829 M6 FLANGE	5-09440-004-0	10	1	9412-0310
373	03.704 NUT; NET TO BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.829 M6 FLANGE	5-09440-004-0	10	1	0311-0501
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0507-0512
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.890 M10X30 FLANGE	0-28051-030-0	04	1	0601-
378	03.704 BOLT; BRKT,TAIL PIPE 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9412-0310
378	03.704 BOLT; BRKT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0311-0501
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.417 M10X25 FLANGE	0-28081-025-0	03	1	0507-0512
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.171 M10X25 FLANGE	0-28051-025-0	03	1	0601-
420	03.704 BOLT; BRKT,VERTICAL PIPE 03.417 M10X25 FLANGE	0-28081-025-0	03	1	9412-0310
420	03.704 BOLT; BRKT,VERTICAL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.417 M10X25 FLANGE	0-28081-025-0	03	1	0311-0501
422	03.704 NUT; PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
422	03.704 NUT; PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
422	03.704 NUT; PIPE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310
422	03.704 NUT; PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501

352 295 105 38 376 32 295 72 44 290 2 1 168 75 18 319 36 25 168 118 117 115 114 103 119 115 113 14 122 112 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH 4HG1-T ENG(RDP) (A)	8-98049-518-3	01	1	0612-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) (A)	8-97354-373-0	01	1	0507-
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97210-052-0	01	1	0507-
1	03.609 PIPE; EXH (A)	8-97115-323-0	01	1	9412-0105
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97115-323-1	01	1	0106-0212
1	03.609 PIPE; EXH 4HE1 ENG(RLY) (A)	8-97354-373-0	01	1	0301-0310
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97354-373-0	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) TURBOCHARGER(K51) FLOOR REMOTE SHIFT<M11> (A)	8-97187-143-1	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) (A)	8-97226-272-0	01	1	0311-0501
1	03.609 PIPE; EXH 4HG1 ENG(RJH) (A)	8-97226-272-0	01	1	0502-
2	03.611 GASKET; PIPE TO MANIF	8-97036-287-0	01	1	9412-9709
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	9710-0105
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97180-749-2	01	1	0106-0212
2	03.611 GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97180-749-2	01	1	0301-0310
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97180-749-2	01	1	0311-0408
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4HG1 ENG(RJH)	8-97381-455-0	01	1	0502-0506
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97381-455-0	01	1	0507-0611
2	03.611 GASKET; PIPE TO MANIF 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	0612-
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0612-0805
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0806-0806
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-97114-564-1	01	1	0807-0807
12	03.701 SILENCER ASM; EXH 4HG1-T ENG(RDP)	8-98125-505-0	01	1	0807-
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ)	8-97222-489-1	01	1	0507-
12	03.701 SILENCER ASM; EXH	8-97120-517-0	01	1	9412-9806
12	03.701 SILENCER ASM; EXH	8-97206-525-1	01	1	9807-0105
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-2	01	1	0106-0212
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-97114-564-1	01	1	0311-0501
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-97206-525-3	01	1	0311-0501
12	03.701 SILENCER ASM; EXH 4HG1 ENG(RJH)	8-97206-525-3	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	9412-9511
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	9512-0105
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) ID=64.7	8-94328-352-0	01	1	0106-0212
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0301-0310
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0507-
18	03.611 GASKET; EXH PIPE TO PIPE 03.634 ID=64	8-97037-694-0	01	1	9412-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP)	8-98125-494-1	01	1	0807-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ)	8-97354-374-0	01	1	0507-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-97114-605-0	01	1	9412-0105
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97114-605-1	01	1	0106-0212
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY)	8-97354-374-0	01	1	0301-0310
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97354-374-0	01	1	0311-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0311-0611
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0612-0805
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-494-0	01	1	0806-0806
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-0807
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HG1 ENG(RJH)	8-97201-746-1	01	1	0807-
32	03.609 PIPE; EXH,FRT 4HK1-TCN ENG(RDQ)	8-98000-939-0	01	1	0507-
32	03.609 PIPE; EXH,FRT	8-97079-392-0	01	1	9412-0006
32	03.609 PIPE; EXH,FRT	8-97254-685-0	01	1	0007-0105
32	03.609 PIPE; EXH,FRT 4HG1 ENG(RJH)	8-97254-685-0	01	1	0106-0212
32	03.609 PIPE; EXH,FRT 4HE1 ENG(RLY)	8-97354-375-0	01	1	0301-0310
32	03.609 PIPE; EXH,FRT 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL>	8-97354-375-0	01	1	0311-0501
32	03.609 PIPE; EXH,FRT 4HG1 ENG(RJH)	8-97254-685-0	01	1	0311-0611
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97254-685-0	01	1	0612-0805
32	03.609 PIPE; EXH,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-495-0	01	1	0806-
36	03.613 NUT; EXH PIPE 00.004 M10 LOCK NUT	8-94375-110-0	03	1	9501-9501
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	9502-0105
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0106-0212
36	03.613 NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0301-0310
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0311-0501
36	03.613 NUT; EXH PIPE 4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0502-0506
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0507-0611
36	03.613 NUT; EXH PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) M10 FLANGE	8-97096-192-1	03	1	0612-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0506
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9412-0105
38	00.002 NUT; SILENCER 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-0212
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	04	1	0301-0310
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0311-0501
44	03.613 BOLT; BRKT 00.002 (A) M10X25	0-28091-025-0	02	1	9412-9711
44	03.613 BOLT; BRKT 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	9712-0105
44	03.613 BOLT; BRKT 4HG1 ENG(RJH) 03.415 (B) M8X35 FLANGE	0-28080-835-0	01	1	0106-0212
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) (B) M10X50 W/LK&PL WASHER	0-50151-050-0	01	1	0301-0307
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0308-0309
44	03.613 BOLT; BRKT 00.683 (B) M10X50 W/LK&PL WASHER	0-50141-050-0	01	1	0310-0512
44	03.613 BOLT; BRKT (B)	0-50641-050-0	01	1	0601-
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
72	03.704 WASHER; LK,BRKT 00.002 ID=8.2	9-09150-508-0	01	1	9412-0105
72	03.704 WASHER; LK,BRKT 4HG1 ENG(RJH) 00.002 ID=8.2	9-09150-508-0	01	1	0106-0212
75	03.704 RUBBER; SUPPORT,BRKT 03.706 T=28 55X44(OVAL)	8-94332-331-0	01	1	9412-9612
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-0	01	1	9701-0105
75	03.704 RUBBER; SUPPORT,BRKT 4HG1 ENG(RJH) 03.613	8-97166-498-0	01	1	0106-0212
75	03.704 RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY) 03.613	8-97166-498-0	01	1	0301-0309
75	03.704 RUBBER; SUPPORT,BRKT 03.613	8-97166-498-1	01	1	0310-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9412-9711
103	03.704 BOLT; SILENCER BRKT FIX 01.540 M8X45 FLANGE	0-28080-845-0	01	1	9712-9802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9803-0611
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0612-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0507-0512
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0601-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0502-0506
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9412-9604
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0311-0501
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0807-
112	03.706 BRACKET; HANGER 4HK1-TCN ENG(RDQ) 03.704	8-97207-224-0	01	1	0507-
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	9412-9511
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0502-0611
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97076-020-0	01	1	0612-0805
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98125-504-0	01	1	0806-0806
112	03.706 BRACKET; HANGER 4HG1-T ENG(RDP)	8-98125-504-0	01	1	0807-
112	03.706 BRACKET; HANGER	8-97076-020-0	01	1	9512-0105
112	03.706 BRACKET; HANGER 4HG1 ENG(RJH)	8-97076-020-0	01	1	0106-0212
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) 03.704	8-97207-224-0	01	1	0301-0310
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0311-0501
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	9412-
114	03.704 BRACKET; EXH SILENCER 4HK1-TCN ENG(RDQ)	8-97172-313-0	01	1	0507-
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	9412-0212
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY)	8-97172-313-0	01	1	0301-0310
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97172-313-0	01	1	0311-0501
114	03.704 BRACKET; EXH SILENCER	8-94329-996-0	01	1	0502-0504
114	03.704 BRACKET; EXH SILENCER 4HG1 ENG(RJH)	8-94329-996-0	01	1	0505-0611
114	03.704 BRACKET; EXH SILENCER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94329-996-0	01	1	0612-
114	03.704 BRACKET; EXH SILENCER 4HG1 ENG(RJH)	8-94329-996-0	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-97379-882-0	01	1	0507-
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-97379-927-0	01	1	0507-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9412-0212
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) (A)	8-94457-277-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0502-0506
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0507-0611
115	03.704 RUBBER; MTG,SILENCER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A)	8-94457-277-1	01	1	0612-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9412-0212
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) (B)	8-94457-278-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0301-0310
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0311-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0502-0506
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0507-0611
115	03.704 RUBBER; MTG,SILENCER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-94457-278-1	01	1	0612-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9412-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	9412-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	9412-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (A)	8-97046-681-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (A)	8-97046-681-1	01	1	0301-0309
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0310-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97088-733-1	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97088-733-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97354-431-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97354-431-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT (C)	8-97104-656-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (C)	8-97104-656-0	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) 03.706 (E)	8-97354-438-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.706 (E)	8-97354-438-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (F)	5-22151-044-0	01	1	0502-0506
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0311-0611
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
290	03.613 BOLT; CLAMP M8X65	0-10805-865-0	01	1	9412-0105
290	03.613 BOLT; CLAMP 4HG1 ENG(RJH) M8X65	0-10805-865-0	01	1	0106-0212
295	03.613 WASHER; PL,CLAMP 00.206 ID=8.4	9-09164-508-0	02	1	9412-0105
295	03.613 WASHER; PL,CLAMP 4HG1 ENG(RJH) 00.206 ID=8.4	9-09164-508-0	02	1	0106-0212
319	03.602 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	04	1	9412-0602
319	03.602 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-0105
352	03.613 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-0212
352	03.613 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0602
352	03.613 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-0105
376	03.708 BOLT; BRKT 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0212
376	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
376	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-

165 164 95 162 166 104 124 137 105 357 88 94 126 81 105 70 88 144 143 168 357 94 105 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	02	1	9412-9511
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	9512-0105
14	03.704 GASKET; SILENCER TO EXH PIPE 4HG1 ENG(RJH) ID=64.7	8-94328-352-0	01	1	0106-0212
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0301-0310
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0311-0501
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0502-0506
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0507-
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> ID=64.7	8-94328-352-0	01	1	0507-
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
70	03.706 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9412-9511
70	03.706 BOLT; BRKT 00.002 M10X25	0-28091-025-0	02	1	9712-9712
70	03.706 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9801-0310
70	03.706 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
70	03.706 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
70	03.706 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	9412-0003
81	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0004-0310
81	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
81	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP)	8-98034-766-0	02	1	0807-
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9412-9604
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9605-0105
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	9605-0105
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0106-0212
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0106-0212
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-0501
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0301-0501
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0502-0506
88	03.708 CLAMP; EXH PIPE 4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0502-0506
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0507-0611
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0507-0611
88	03.708 CLAMP; EXH PIPE ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0612-0806
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=61.6	8-97010-307-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 00.685 (A) REAR M10X45 FLANGE	0-28051-045-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HG1-T ENG(RDP) 03.023 (A) FRONT M10X50 FLANGE	8-97301-165-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	02	1	9412-9511
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	9605-0105
94	03.704 BOLT; CLAMP 4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0106-0212
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-0806
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0301-0806
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.708 (A) M8X45	0-20800-845-0	01	1	0807-
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0301-0310
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 (B) M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
95	03.708 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	02	1	9605-9712
95	03.708 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9801-0310
95	03.708 BOLT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0311-0501
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0506
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512
95	03.708 BOLT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
104	03.704 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	02	1	9412-9712
104	03.704 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9801-0310
104	03.704 NUT; BRKT EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0501
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0506
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602
104	03.704 NUT; BRKT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0507-0512
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0601-0806
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 4HG1-T ENG(RDP) 00.833 (B) M10	0-91110-510-0	02	1	0807-
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0311-0501
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0502-0506
105	03.704 NUT; CLAMP 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 04.785 (C) M10 FLANGE	0-91150-110-0	02	1	0507-0602
105	03.704 NUT; CLAMP 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.162 (C) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9412-9604
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	9605-0105
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 4HG1 ENG(RJH) 02.559 (A) M8	9-09110-408-0	01	1	0106-0212
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.559 (A) M8	9-09110-408-0	01	1	0301-0512
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 02.334 (A) M8	0-91110-508-0	01	1	0601-0806
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.334 (A) M8	0-91110-508-0	01	1	0807-
105	03.704 NUT; CLAMP 09.011 (B) M10	9-09110-410-0	02	1	9412-0310
105	03.704 NUT; CLAMP EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 09.011 (B) M10	9-09110-410-0	02	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	9605-9810
124	03.704 NUT; SUPPORT RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310
124	03.704 NUT; SUPPORT RUBBER EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0501
124	03.704 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0506
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602
124	03.704 NUT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (D)	8-98049-519-0	01	1	0612-0805
126	03.705 PIPE; EXH,RR 4HG1-T ENG(RDP) (D)	8-98125-496-1	01	1	0806-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97254-253-0	01	1	0507-
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (C)	8-97379-245-0	01	1	0507-
126	03.705 PIPE; EXH,RR (A)	8-97104-626-1	01	1	9412-0105
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) (A)	8-97104-626-1	01	1	0106-0212
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) (B)	8-97254-253-0	01	1	0301-0310
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	8-97254-253-0	01	1	0311-0501
126	03.705 PIPE; EXH,RR EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4>,CATALYSIS CONTROL<6MZ> (D)	8-97043-236-0	01	1	0311-0501
126	03.705 PIPE; EXH,RR (D)	8-97043-236-0	01	1	0502-0504
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) (D)	8-97043-236-0	01	1	0505-0506
126	03.705 PIPE; EXH,RR 4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (D)	8-97043-236-0	01	1	0507-
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) (C)	8-97354-376-0	01	1	0301-0310
126	03.705 PIPE; EXH,RR 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (C)	8-97354-376-0	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> (B)	8-97354-438-0	01	1	0507-
137	03.706 BRACKET; TAIL PIPE (A)	8-97096-656-0	01	1	9412-0212
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) (B)	8-97354-438-0	01	1	0301-0310
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> (B)	8-97354-438-0	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (C)	8-94114-022-1	01	1	0311-0501
137	03.706 BRACKET; TAIL PIPE (C)	8-94114-022-1	01	1	0502-0506
137	03.706 BRACKET; TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (C)	8-94114-022-1	01	1	0507-
143	03.704 RUBBER; SUPPORT 4HG1-T ENG(RDP)	8-98034-767-0	01	1	0807-
143	03.704 RUBBER; SUPPORT	8-97046-148-1	01	1	9412-9908
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	9909-0105
143	03.704 RUBBER; SUPPORT 4HG1 ENG(RJH)	8-97229-586-0	01	1	0106-0212
143	03.704 RUBBER; SUPPORT	8-97229-586-0	01	1	0301-0308
143	03.704 RUBBER; SUPPORT	8-97371-655-0	01	1	0309-0806
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97371-655-1	01	1	0807-
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	02	1	9412-9511
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-0105
144	03.613 NUT; MTG RUBBER 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0602
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1-T ENG(RDP) (B) L=115	8-98034-765-0	01	1	0807-
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-1	01	1	0507-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97046-148-1	01	1	9412-9908
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97229-586-0	01	1	9909-0105
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HG1 ENG(RJH) 03.704 (A)	8-97229-586-0	01	1	0106-0212
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97229-586-0	01	1	0301-0308
162	03.706 RUBBER; SUPPORT,TAIL PIPE 03.704 (A)	8-97371-655-0	01	1	0309-0310
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.704 (A)	8-97371-655-0	01	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0311-0501
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0502-0506
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0507-0806
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> (B) L=115	8-94156-256-0	01	1	0807-
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) L=37.5	9-22151-217-0	01	1	0301-0310
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0311-0501
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0311-0501
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0502-0506
164	03.706 COLLAR; DIST,TAIL PIPE 4HK1-TCN ENG(RDQ) L=37.5	9-22151-217-0	01	1	0507-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> L=37.5	9-22151-217-0	01	1	0507-
165	03.706 BOLT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> M10X70 FLANGE	0-28081-070-0	01	1	0311-0501
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0502-0506
165	03.706 BOLT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> M10X70 FLANGE	0-28081-070-0	01	1	0507-0512
165	03.706 BOLT; SUPPORT RUBBER EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> M10X70 FLANGE	0-28051-070-0	01	1	0601-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	01	1	0311-0501
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0502-0506
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> ID=10.5 OD=32	9-09164-810-0	01	1	0507-0605
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) (D)	8-97354-431-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HK1-TCN ENG(RDQ) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> 03.706 (E)	8-97354-438-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (A)	8-97046-681-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (A)	8-97046-681-1	01	1	0301-0309
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-97046-681-1	01	1	0310-
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-97088-733-1	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97088-733-1	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (D)	8-97354-431-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97354-431-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT (C)	8-97104-656-0	01	1	9412-0105
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (C)	8-97104-656-0	01	1	0106-0212
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) 03.706 (E)	8-97354-438-0	01	1	0301-0310
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIP E<NC4> CHARGE AIR COOLER<6PL> 03.706 (E)	8-97354-438-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0311-0501
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (F)	5-22151-044-0	01	1	0502-0506
168	03.613 BRACKET; EXH PIPE,FRT EXC. EXH SYSTEM CHROME SINGLE VERTICAL TAI L PIPE<NC4> 03.704 (F)	5-22151-044-0	01	1	0507-
168	03.613 BRACKET; EXH PIPE,FRT 4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0311-0611
168	03.613 BRACKET; EXH PIPE,FRT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97226-274-0	01	1	0612-
357	03.708 WASHER; PL,CLAMP 4HG1-T ENG(RDP) 00.002 ID=10.5 OD=22	0-91614-610-0	02	1	0807-
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9412-0105
357	03.708 WASHER; PL,CLAMP 4HG1 ENG(RJH) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0106-0212
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0301-0605
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0806
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0806
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-
357	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0807-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
